Presentation Transcript
finish phase overview
Finish Phase Overview
  • Testing
  • Troubleshooting
  • Certification
  • Documentation
finish phase
Finish Phase
  • Steps
    • Testing
    • Troubleshooting
    • Certification
    • Documentation
  • Testing
    • Testing verifies that all wires are working so that the customer does not find that there are problems later
    • Testing is for functionality, that is, it determines if the wire can carry the signal from end to end
finish phase1
Finish Phase

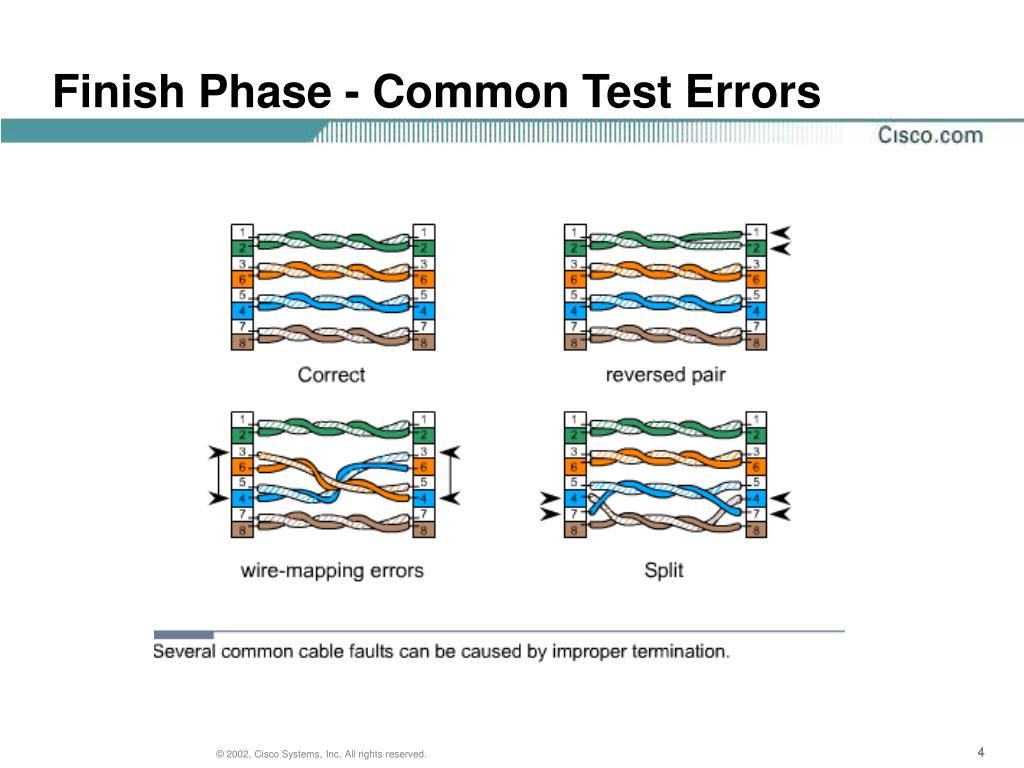

  • Common Test Errors
    • Wire-mapping errors – Wires in a multi-pair cable do not terminate at the appropriate contacts in the connector at the far end
    • Opens – Wires in cables fail to make a continuous path from end to end. This is usually due to improper termination or breakage. Occasionally it is due to faulty cable
    • Shorts – Wires in cables touch each other, thus shorting the circuit
    • Split pairs – Wires are mixed among pairs

Phases of testing

finish phase2
Finish Phase
  • Common Testers
    • tone generators
    • cable and jack testers
    • telephone test sets
    • multimeters
    • TDR and OTDR
  • Two methods of testing
    • Channel Test
    • Link Test
  • Channel Test
    • The channel test goes truly end-to-end from the workstation or telephone to the device in the TR
      • The channel test includes the line cord from the jack to the user equipment
finish phase3
Finish Phase

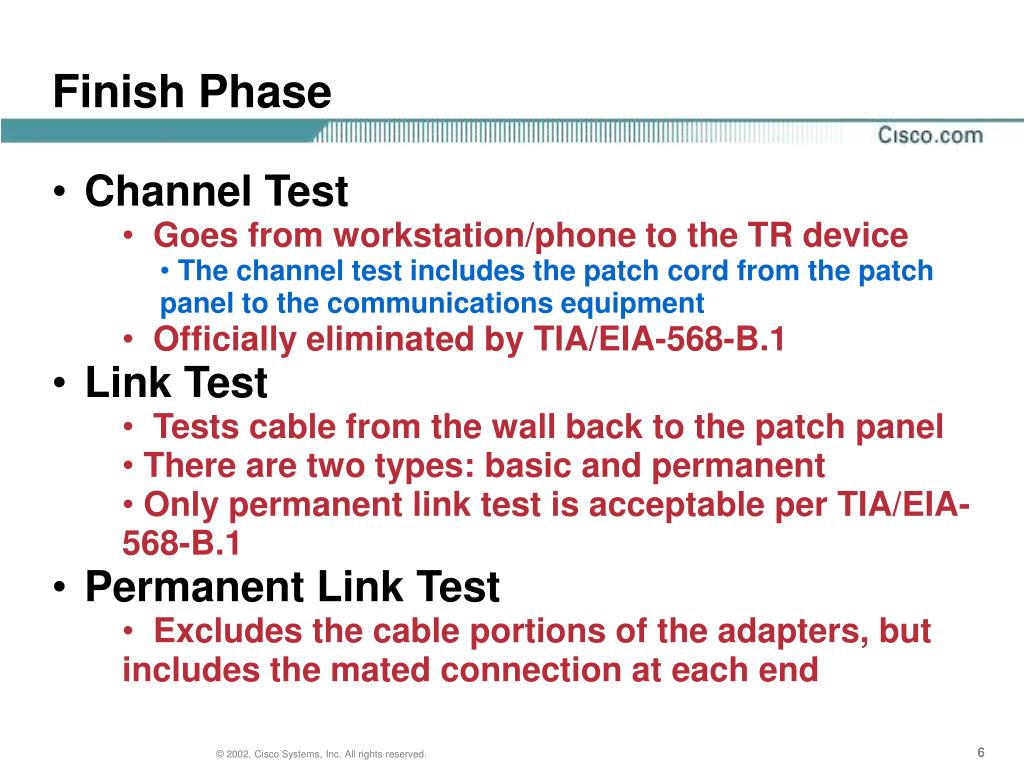

  • Channel Test
    • Goes from workstation/phone to the TR device
      • The channel test includes the patch cord from the patch panel to the communications equipment
    • Officially eliminated by TIA/EIA-568-B.1
  • Link Test
    • Tests cable from the wall back to the patch panel
    • There are two types: basic and permanent
    • Only permanent link test is acceptable per TIA/EIA-568-B.1
  • Permanent Link Test
    • Excludes the cable portions of the adapters, but includes the mated connection at each end
finish phase4
Finish Phase
  • Permanent Link Test
    • Allows for a consolidation point, which is desirable for open office cabling installations and is therefore more practical
    • The problems that should be tested for are foreign voltage, shorts, reversals, split pairs, and crosstalk
  • Testing for Foreign Voltage
    • A voltage that does not belong on the wire
    • Sources of foreign voltage can be dangerous
      • Cross-connects, insulation failures, static electricity
      • Inductive currents formed by routing signal wires too close to wires carrying large voltages
    • Multimeters can test for foreign voltage.
finish phase5
Finish Phase
  • Testing for Shorts
    • A short is formed when the two wires in a pair touch each other
    • Tests to determine if there is a short measure the continuity or resistance between the wires
    • Make these measurements with an ohmmeter using a low-resistance scale
  • Testing for Reversals
    • A cable tester is needed

to determine reversals

  • A reversal occurs when the tip (or ring) side of a pair is terminated on the ring (or tip) position at the opposite end of the wire
finish phase6
Finish Phase
  • Testing for Split Pairs
    • Split pairs happen when wires are mixed
    • Test for splits with an ohmmeter & tone generator
finish phase7
Finish Phase
  • Testing for Crosstalk
    • Crosstalk occurs when the signal from a transmitting pair is coupled to the receiving pair or other pairs in the cable
    • Cable testers are used to detect crosstalk
finish phase8
Finish Phase
  • Fiber-optic Testing
    • Fiber-optic cables are tested using a calibrated light source and an optical power meter to measure the loss in the cable being tested
finish phase9
Finish Phase
  • Testing Grounding Systems
    • Grounding systems tests are generally performed using a special purpose instrument - a megger
      • Megger checks performance of grounding and bonding
    • The NEC states that if the grounding systems resistance to ground is 25 ohms or greater
      • The installer has to add a second ground rod
    • Reading of 5 ohms or less is considered commercially acceptable
  • Troubleshooting Copper Connections
    • Hard faults
      • Problems that make communication virtually impossible
      • Are relatively easy to identify and clear
      • Opens, split pairs, and shorts are examples of hard faults
finish phase10
Finish Phase
  • Troubleshooting Copper Connections
    • Intermittent faults
      • Come and go and cause problems such as:
        • Dropped packets
        • Packets with errors
      • Often, these problems are caused by crosstalk
  • Troubleshooting Fiber-optics
    • Most problems are found with the connectors
    • Fiber connector end faces can become scratched:
      • With repeated connecting and disconnecting
    • Dirt and dust on the end faces of the connectors can also add attenuation that will impede a fiber-optic signal
finish phase11
Finish Phase

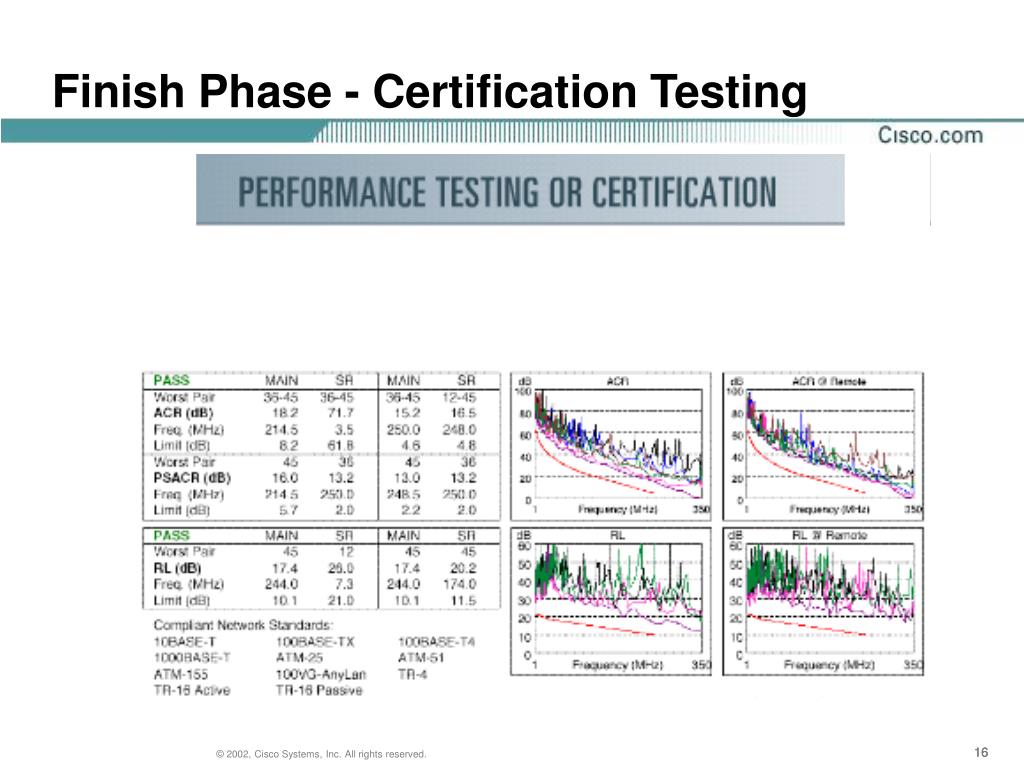

  • Certification
    • The certification process forms a baseline measurement for the cabling system
    • It allows the installer to say unequivocally that at a certain day and time the cables performed
      • Any later change in cable performance must be attributable to some cause
      • it will be easier to troubleshoot
    • Minimum Test Results
      • To pass, cables must meet the minimum grade test results
      • The difference between the actual test results and the minimum test results is known as headroom.
        • If the results show lots of headroom
          • There should be less cable maintenance needed in the future
          • More tolerant of poor grade patch cords and equipment cables
finish phase12
Finish Phase
  • Certification
    • Testing is for functionality, that is, it determines if the wire can carry the signal from end to end. Certification, or performance testing, is a statement about cable performance
    • Performance test systems usually use a receiver on the far end that communicates over the wire to the main test unit.
    • Category 5e cable is tested at 100 MHz and Category 6 at 250 MHz.
    • Performance testing per TIA/EIA-568-B
finish phase13
Finish Phase
  • Common Test Specifications
    • Specified Frequency Range
    • Attenuation
    • Near End Crosstalk (NEXT)
    • Return Loss
    • Propagation Delay
    • Delay Skew
  • Documentation
    • After the cabling has been tested and certified, documentation is created
    • These are called as-built documents
      • As-builts show the client and future technicians exactly the layout of the cable installation.
finish phase14
Finish Phase
  • Documentation
    • These are called as-built documents
      • It may vary from the original plans since obstacles or problems may have occurred during installation
      • Diagrams showing the cable runs, locations of outlets, and identity of each outlet should be created and presented to the client
