Application and validation of 3d electromagnetic and thermal modeling

Keh-Jeng Chang, Ph.D.

Associate Professor

Department of Computer Science

National Tsing Hua University, Hsinchu, Taiwan

kchang@cs.nthu.edu.tw

Application and Validation of 3D Electromagnetic and Thermal Modeling


Acknowledgements
Acknowledgements

The authors want to thank the following institutes for providing this research with generous resources:

  • National Science Council, Taipei

  • Ministry of Economic Affairs, Executive Yuan, Taipei

  • Ministry of Education, Executive Yuan, Taipei

  • TSMC, Hsinchu

  • UMC, Hsinchu

  • Silvaco International, Santa Clara

  • Clear Shape Technologies, Sunnyvale


Major references
Major References

  • Silvaco International, “TCAD for Flat Panel Display,” Technical Presentation Slides, Jan. 2006, Hsinchu, Taiwan.

  • Y.H. Tai, Design and Operation of TFT-LCD Panels, ISBN 957-11-4291-3 (Chinese Language), June 2006, Taipei, Taiwan.

  • K.J. Chang, “Accurate On-Chip Variation Modeling to Achieve Design for Manufacturability,” 4th IWSOC, July 2004, Banff, Canada.

  • K.J. Chang et al., “Verifying On-Chip Inductance Extraction with Silicon Measurement,” www.eetimes.com, Nov. 2003.

  • J.F. Huang et al., “Modeling Sub-90nm On-Chip variation Using Monte Carlo Method for DFM,” 12th ASP-DAC, Jan. 2007, Yokohama, Japan.

  • J. Xiong et al., “Robust Extraction of Spatial Correlation,” 6th ISPD, April 2006, San Jose, USA.

  • K.M. Cham et al., Computer-Aided Design and VLSI Device Development, 2nd edition,Kluwer ISBN 0-89838-277-7, 1988.


Outlines
Outlines

  • The emerging needs of 3D models

  • 3D research summary

  • Applications of 3D models

  • Validations of 3D models

  • In a nutshell


The emerging needs of 3d models
The Emerging Needs of 3D Models

  • A “fishbone” viewpoint of 3D research subjects

Optical/optoelectrical

Biological/medical

Mechanical

DC+TEM (deterministic)

CFD/naval

3D

Statistical

Art/social

Thermal

Full-wave (deterministic)

Molecular/atomic

Material/chemical


3d research summary algorithms
3D Research Summary (Algorithms)

  • Modeling (1D, 2D, 3D)

    • Empirical

    • Simulated

  • Simulations

    • Finite difference (with or without time domain)

    • Finite element

    • Boundary element

    • Monte Carlo / Markov / Brownian

  • Governing mathematics

    • Maxwell’s

    • Poisson / Laplace

    • Fourier

    • Band gap

    • et al.


3d research summary inputs outputs
3D Research Summary (Inputs/Outputs)

  • Models based on profiles/structures of nanodevices

    • Dimensions on x-axis, y-axis, and z-axis

      • Cartesian coordinates dominate 3D modeling in electronics

    • Material properties

      • Permittivity

      • Permeability

      • Stress

      • Resistivity

      • Leakage

      • Thermal conductivity

      • et al.

    • 3D mechanical / thermal / electromagnetic nanodevice models

  • Electrical and non-structural model/characterization

    • SPICE-level circuit simulations


3d research summary bright future
3D Research Summary (Bright Future)

  • Commercially successful (profitable) and sustainable stories in 3D modeling for the electronics

    • Ansoft

    • Ansys

    • Silvaco

    • Matlab

    • Sigrity

    • Brion (merged to ASML)

    • Numerical Technologies (merged to Synopsys)

    • Etc.



Applying 3d models to tft lcd
Applying 3D Models to TFT-LCD

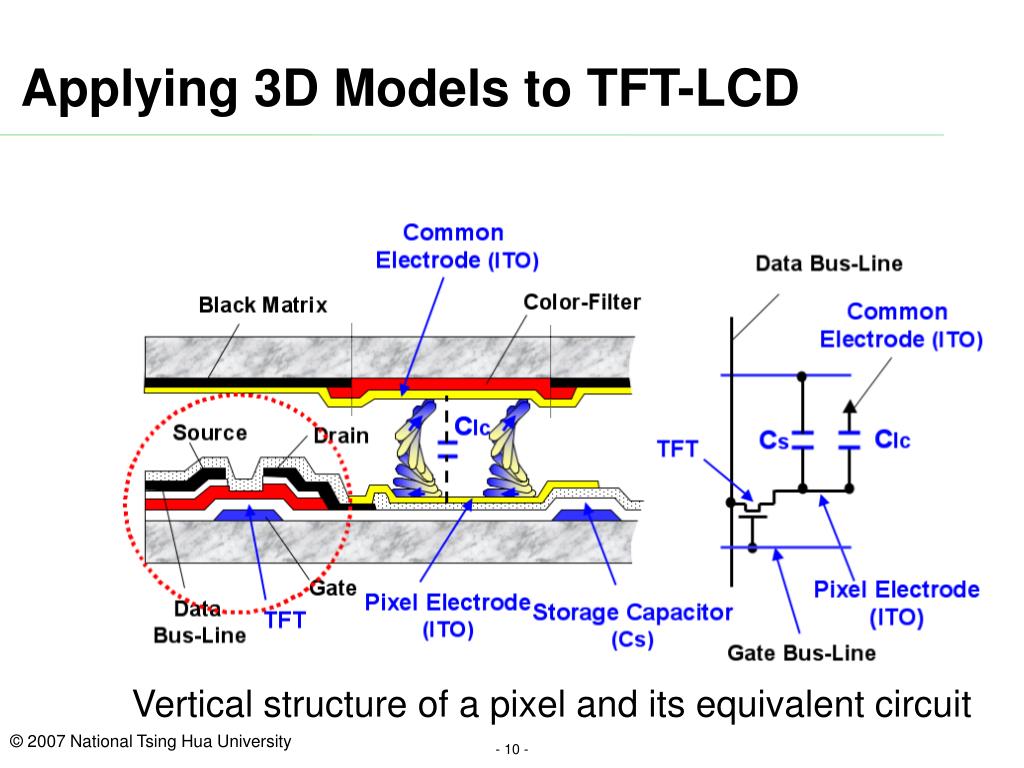

Vertical structure of a pixel and its equivalent circuit


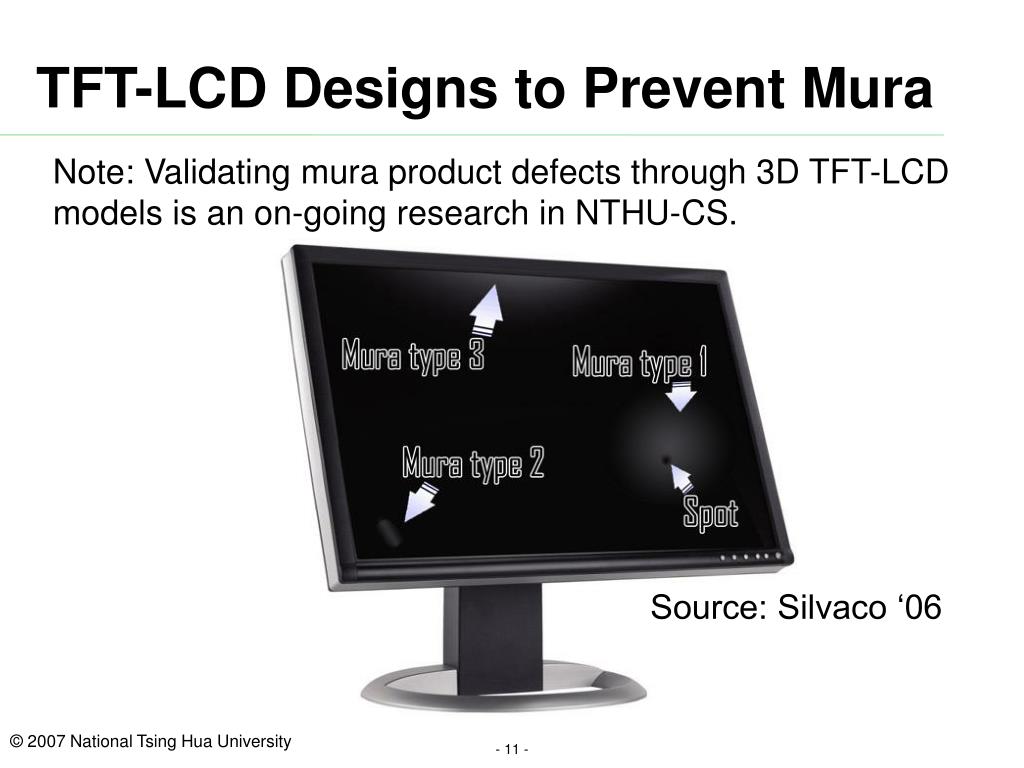

Tft lcd designs to prevent mura
TFT-LCD Designs to Prevent Mura

Note: Validating mura product defects through 3D TFT-LCD models is an on-going research in NTHU-CS.

Source: Silvaco ‘06



Manufacturable through silicon vias
Manufacturable Through Silicon Vias

The growing popularity of trough silicon vias (TSV) and on-chip spiral inductaors.

Source: P. Franzon, NCSU, ‘05


1d thermal modeling
1D Thermal Modeling

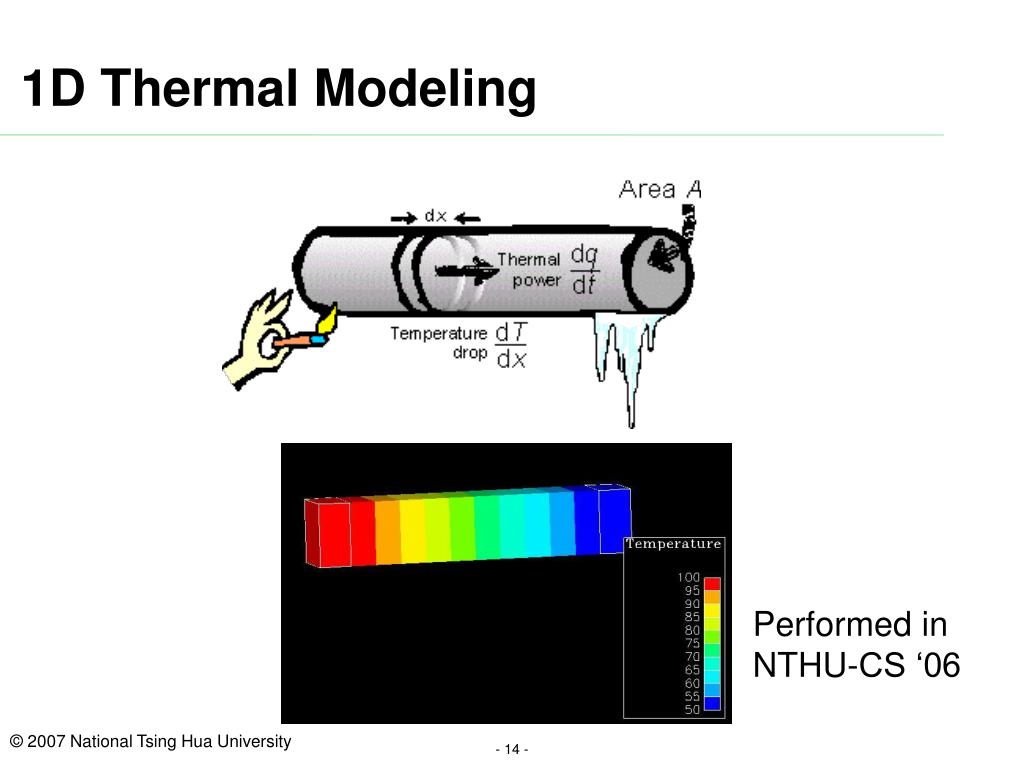

Performed in NTHU-CS ‘06



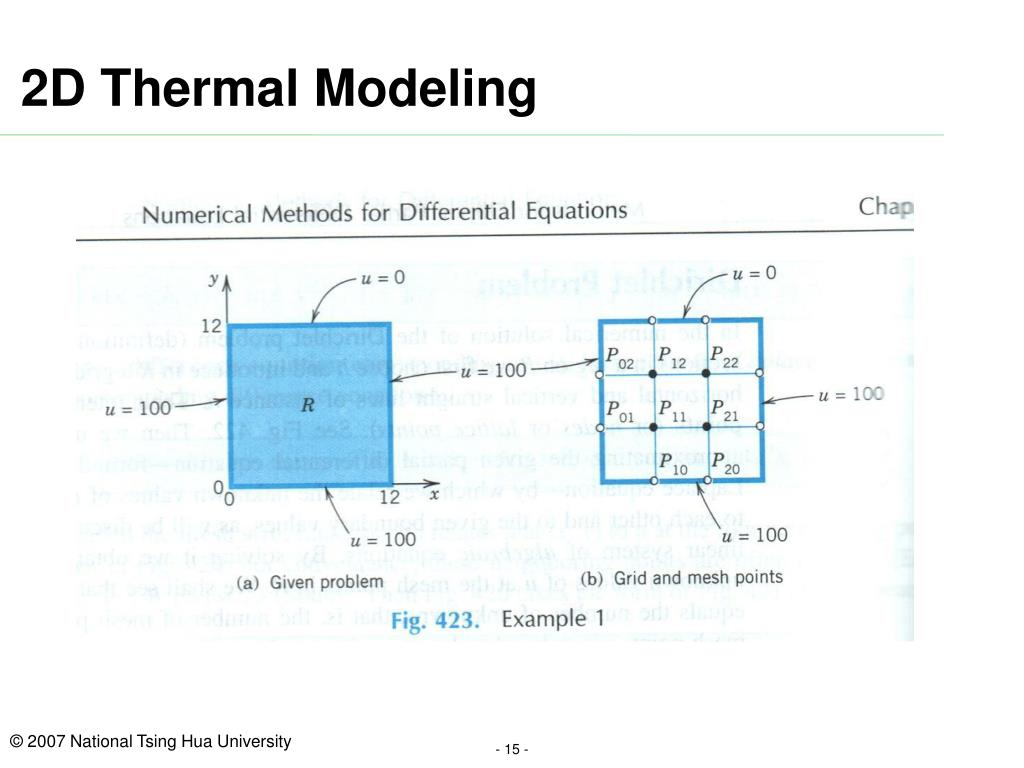

3d thermal modeling 1 2
3D Thermal Modeling (1/2)

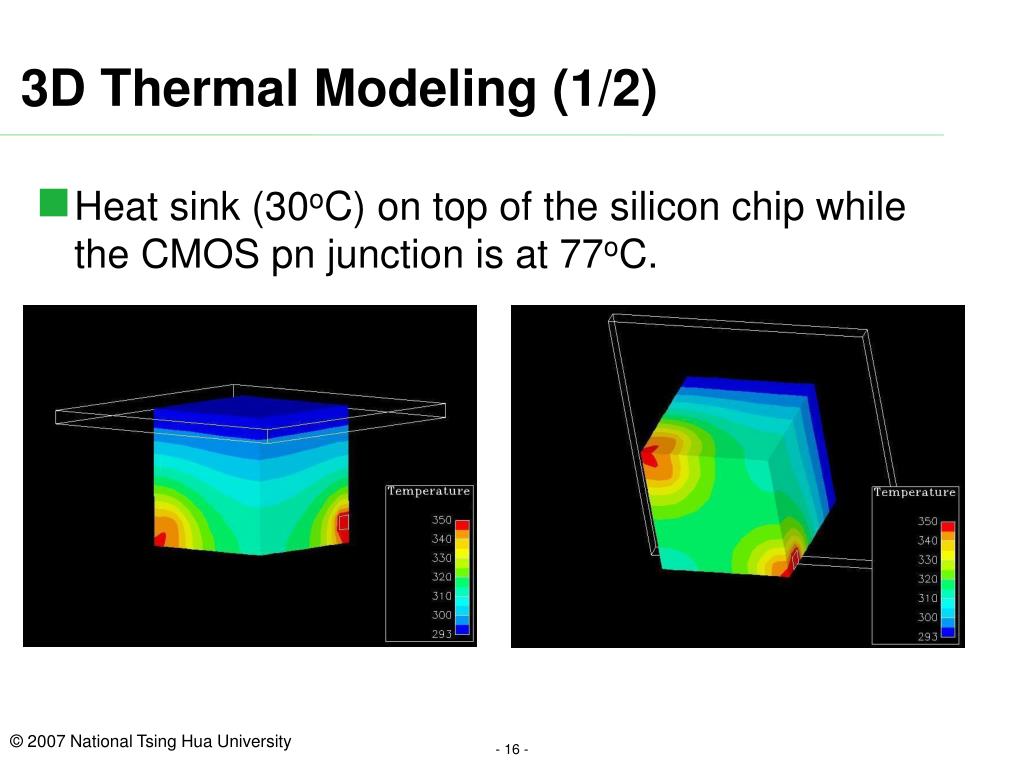

  • Heat sink (30oC) on top of the silicon chip while the CMOS pn junction is at 77oC.



Deterministic eectrical 3 d modeling
Deterministic Eectrical 3-D Modeling

DRC-clean nanometer circuit layouts

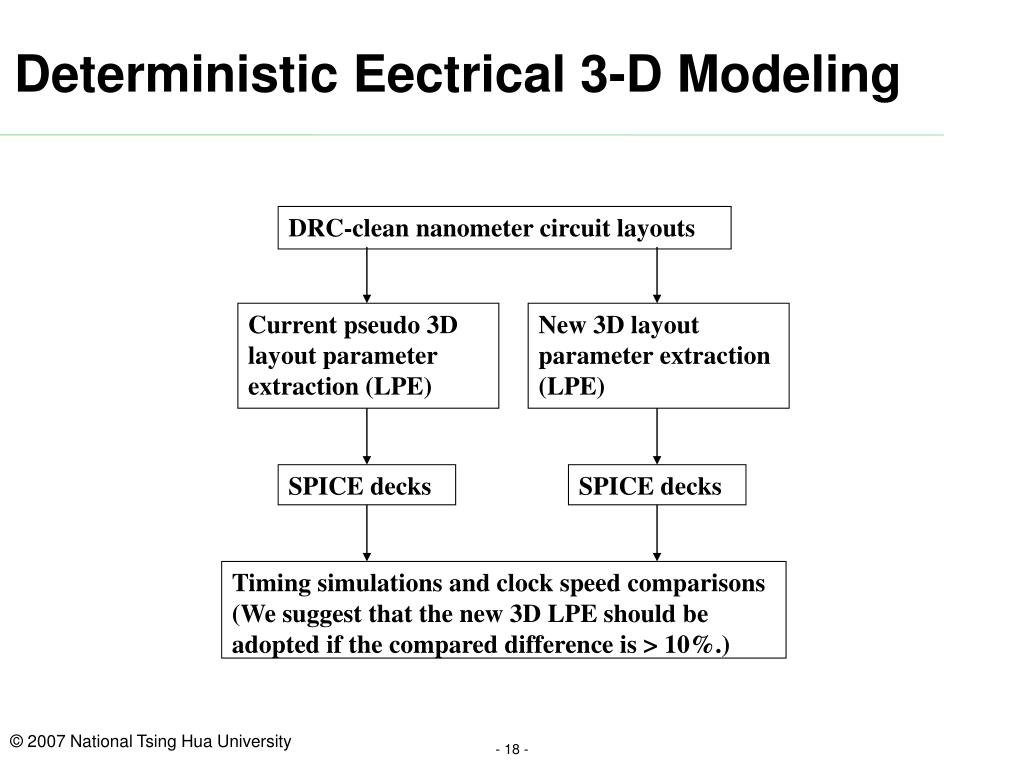

Current pseudo 3D layout parameter extraction (LPE)

New 3D layout parameter extraction (LPE)

SPICE decks

SPICE decks

Timing simulations and clock speed comparisons (We suggest that the new 3D LPE should be adopted if the compared difference is > 10%.)


3d capacitances by 3 d tools
3D Capacitances by 3-D Tools

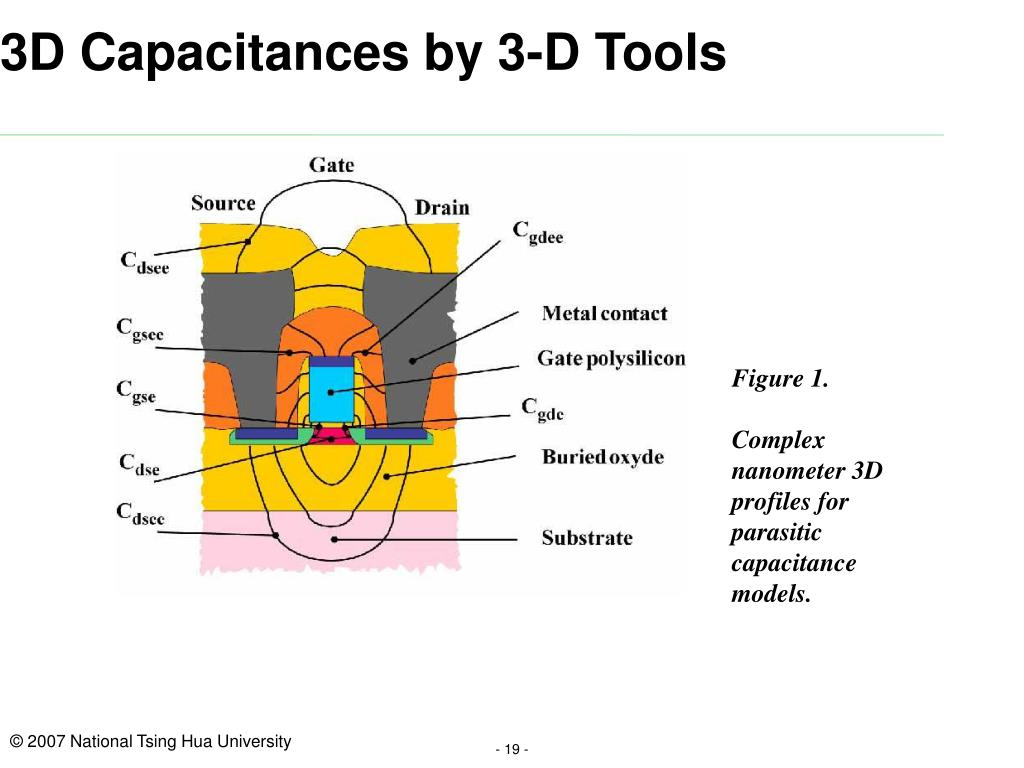

Figure 1.

Complex nanometer 3D profiles for parasitic capacitance models.


Nanometer ring oscillator
Nanometer Ring Oscillator

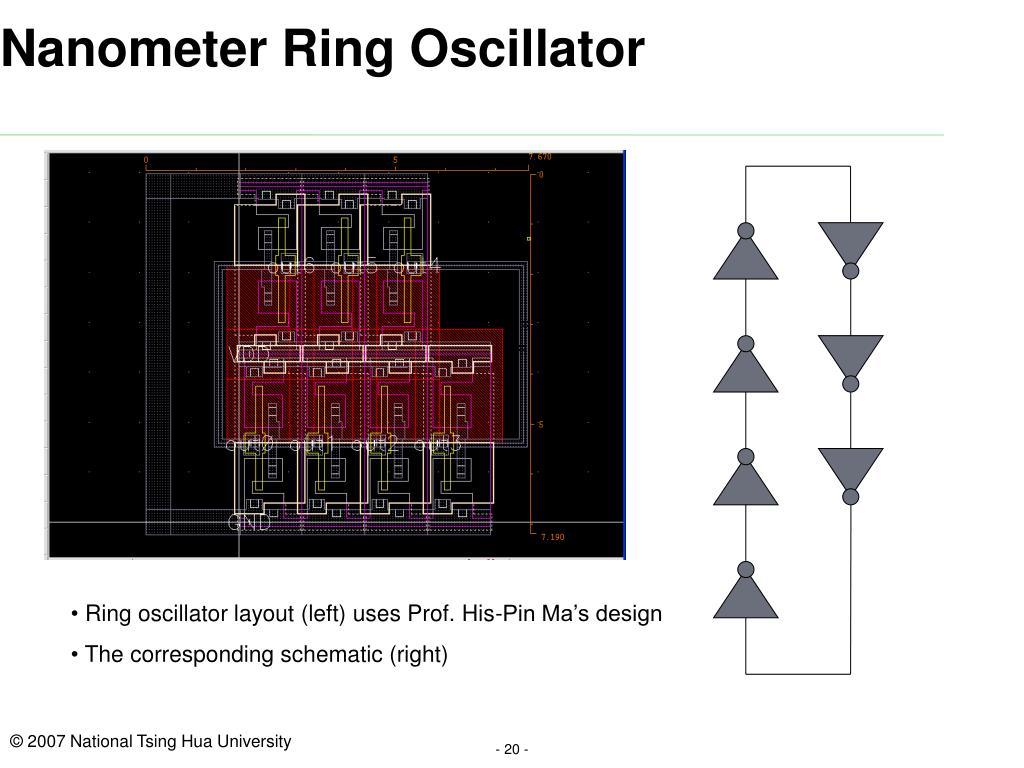

  • Ring oscillator layout (left) uses Prof. His-Pin Ma’s design

  • The corresponding schematic (right)



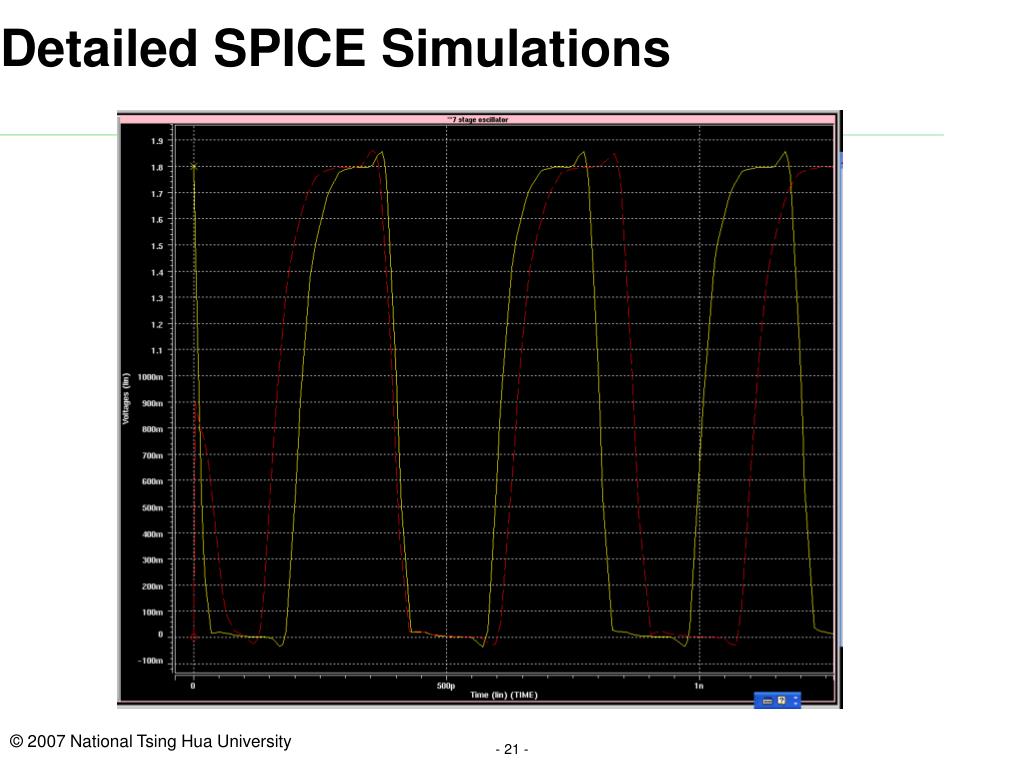

Current eda vs 3d eda differences
Current EDA vs. 3D EDA Differences

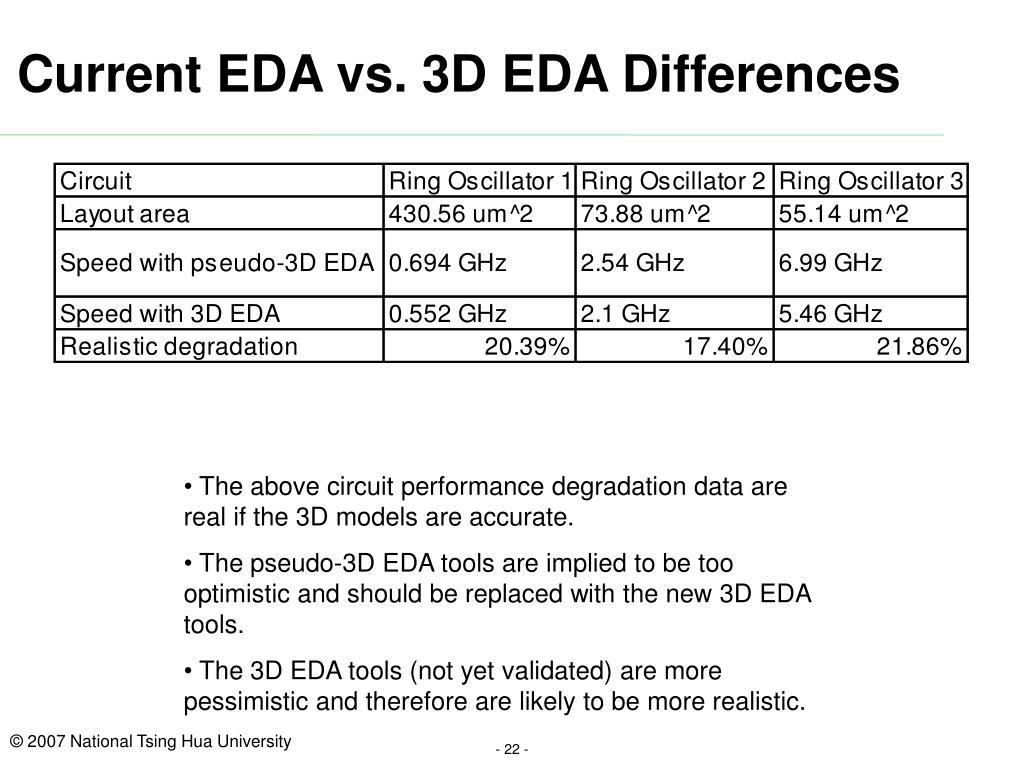

  • The above circuit performance degradation data are real if the 3D models are accurate.

  • The pseudo-3D EDA tools are implied to be too optimistic and should be replaced with the new 3D EDA tools.

  • The 3D EDA tools (not yet validated) are more pessimistic and therefore are likely to be more realistic.






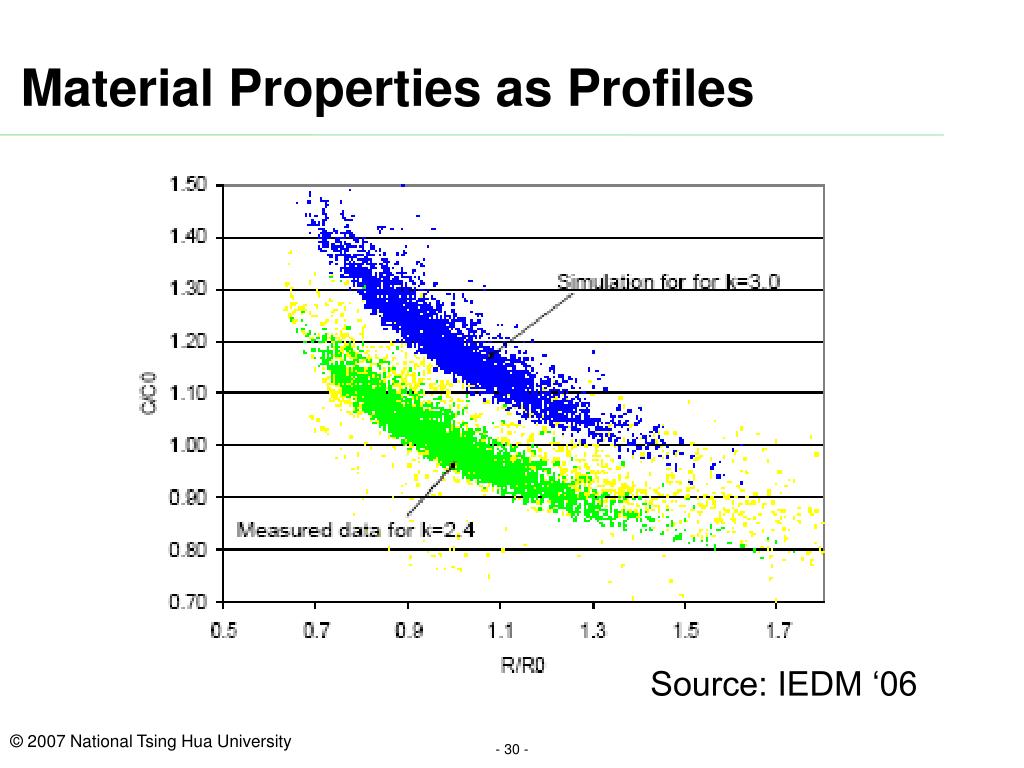

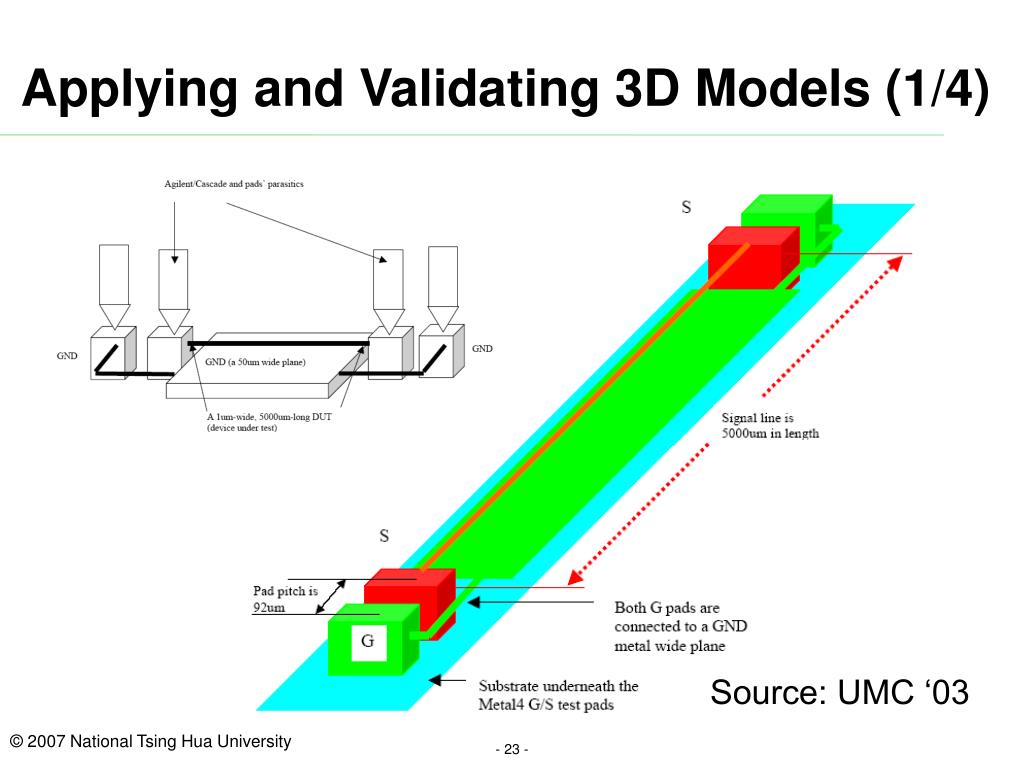

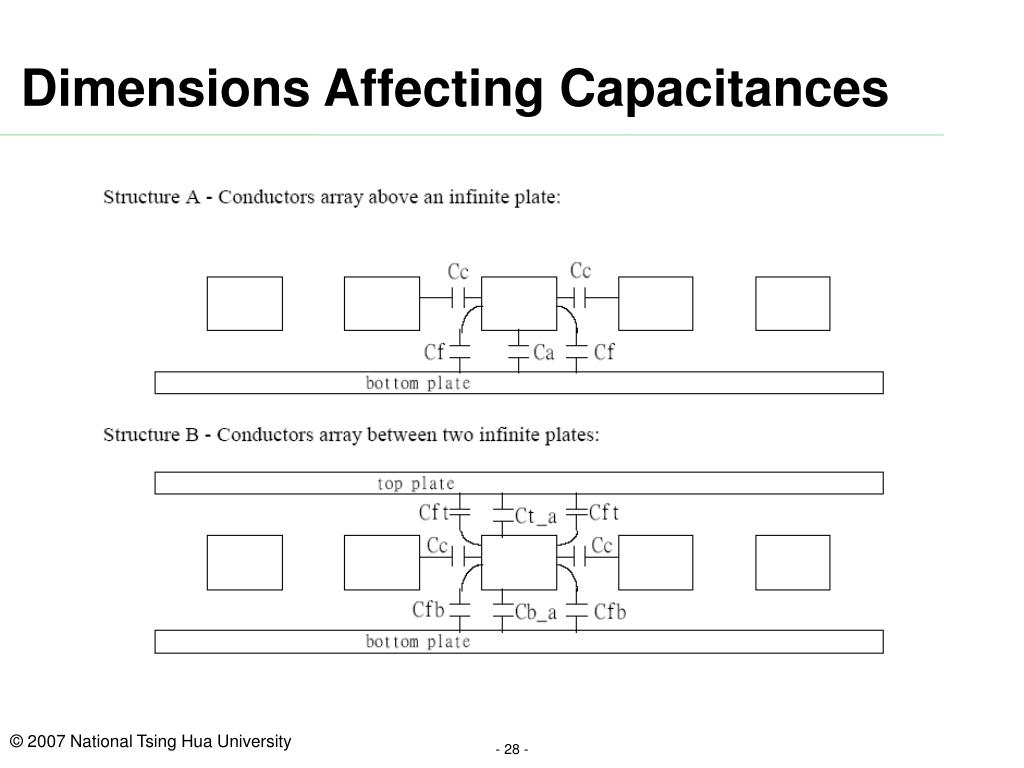

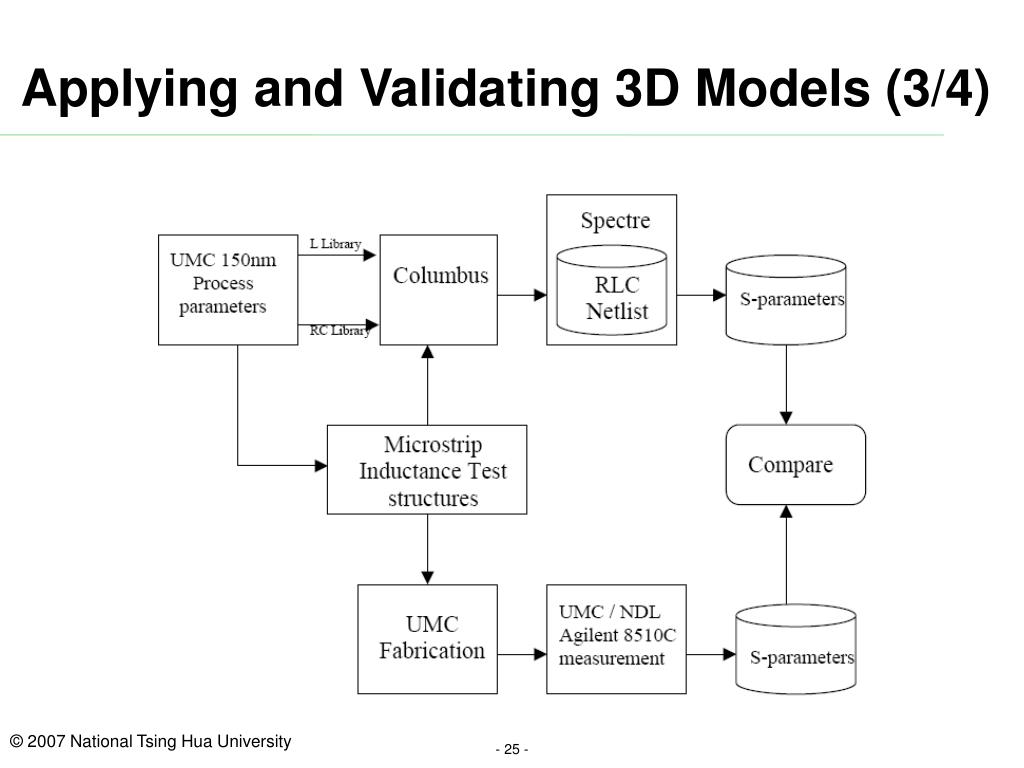

Physical views of sub 100nm vlsi
Physical Views of Sub-100nm VLSI

  • 2-D and 3-D views of sub-100nm physical structures (Courtesy: UMC, 2006)



Varying nanometer beol profiles

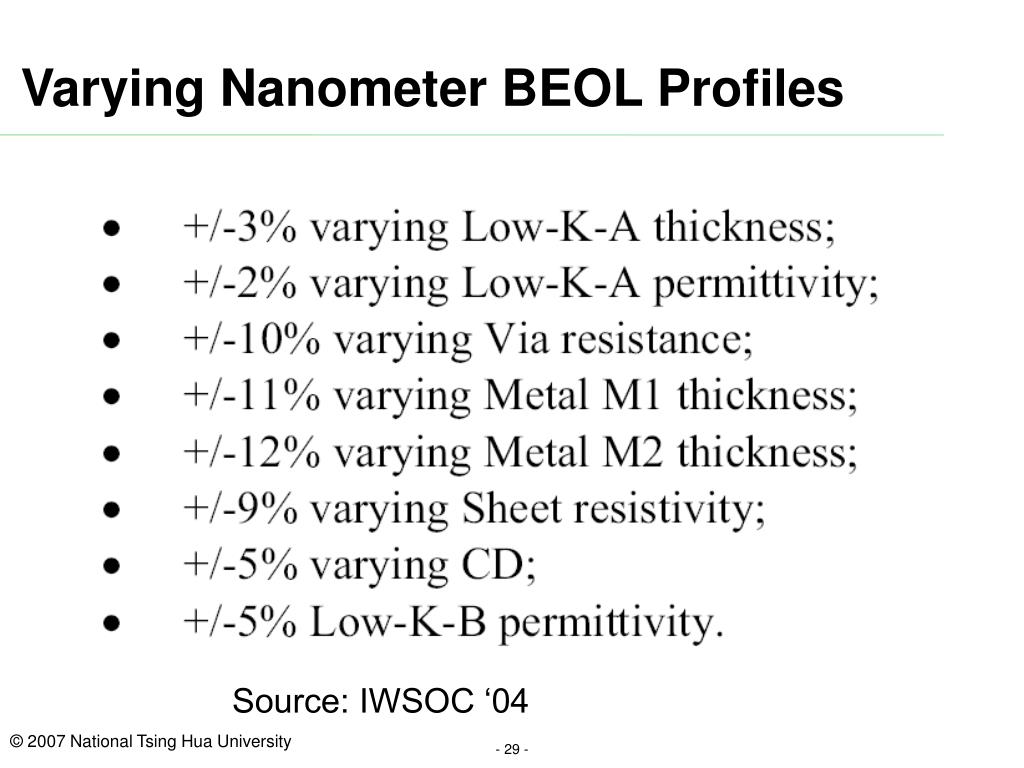

Varying Nanometer BEOL Profiles

Source: IWSOC ‘04




Gate oxide on chip variations
Gate Oxide On-Chip Variations

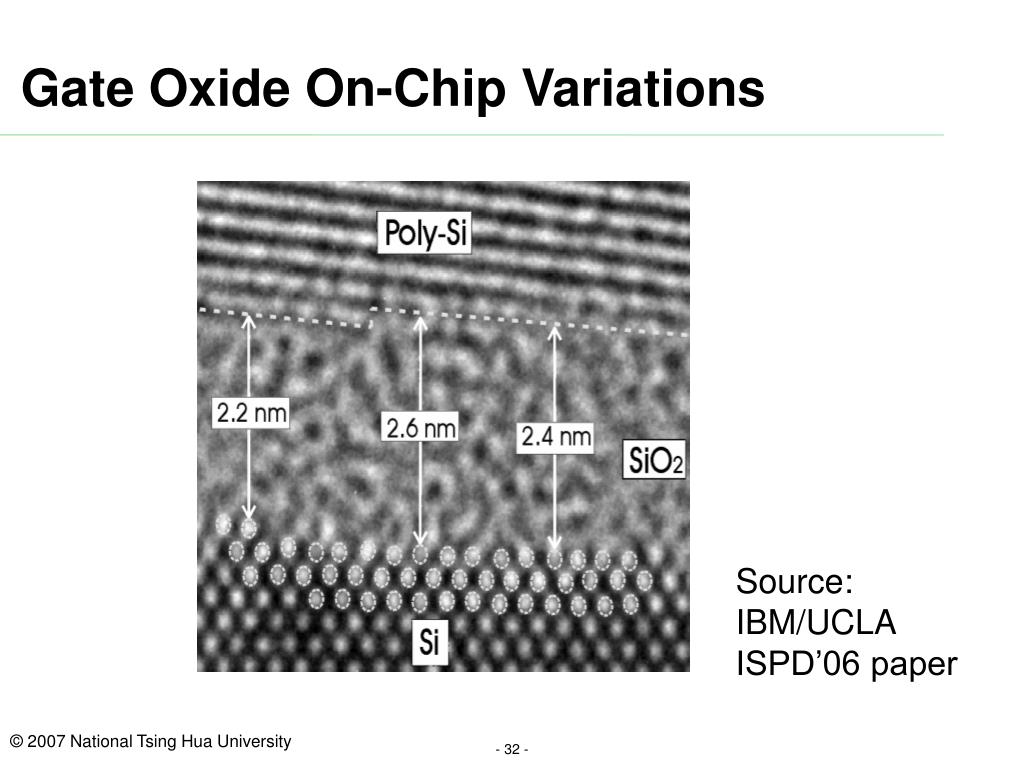

Source: IBM/UCLA ISPD’06 paper


Lithographic imaging in sub 100nm
Lithographic Imaging in Sub-100nm

  • Courtesy Porf. KY Tsai of NTUEE, 2006


Resolution enhancement tech ret

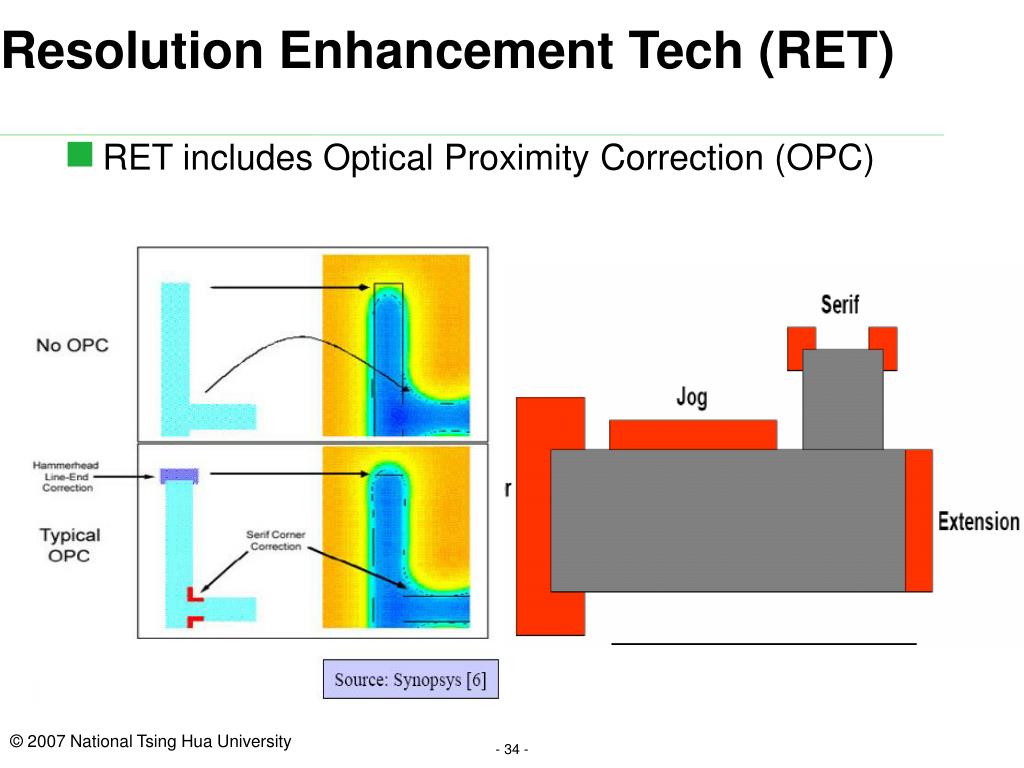

Resolution Enhancement Tech (RET)

  • RET includes Optical Proximity Correction (OPC)


3 d modeling and predicting ret
3-D Modeling and Predicting RET

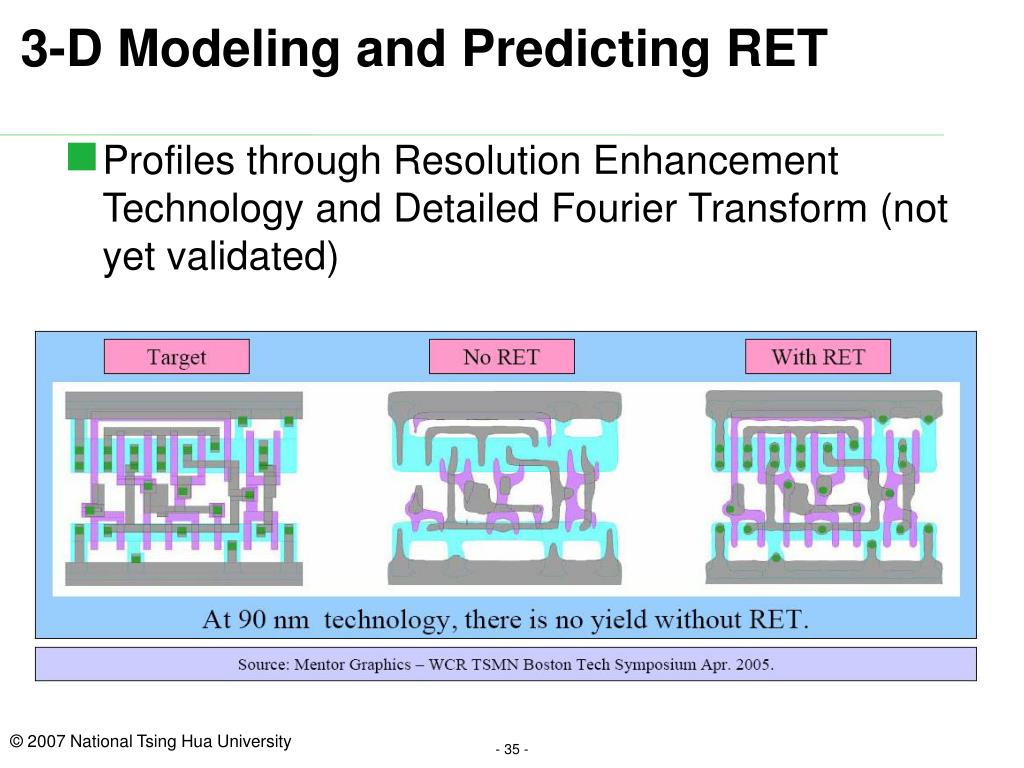

  • Profiles through Resolution Enhancement Technology and Detailed Fourier Transform (not yet validated)


In a nutshell
In a Nutshell

  • 3-D electrical modeling for resistance, capacitance, thermal, inductance, and transmission lines of TFT-LCD and sub-90nm devices are performed but more are planned.

  • 3-D lithographic modeling for sub-100nm with National Taiwan University and commercial companies is started.

  • 3-D modeling of etching/CMP or reliability not started yet.
