  1. Surface Inversions, Atmospheric Stability, and Spray Drift

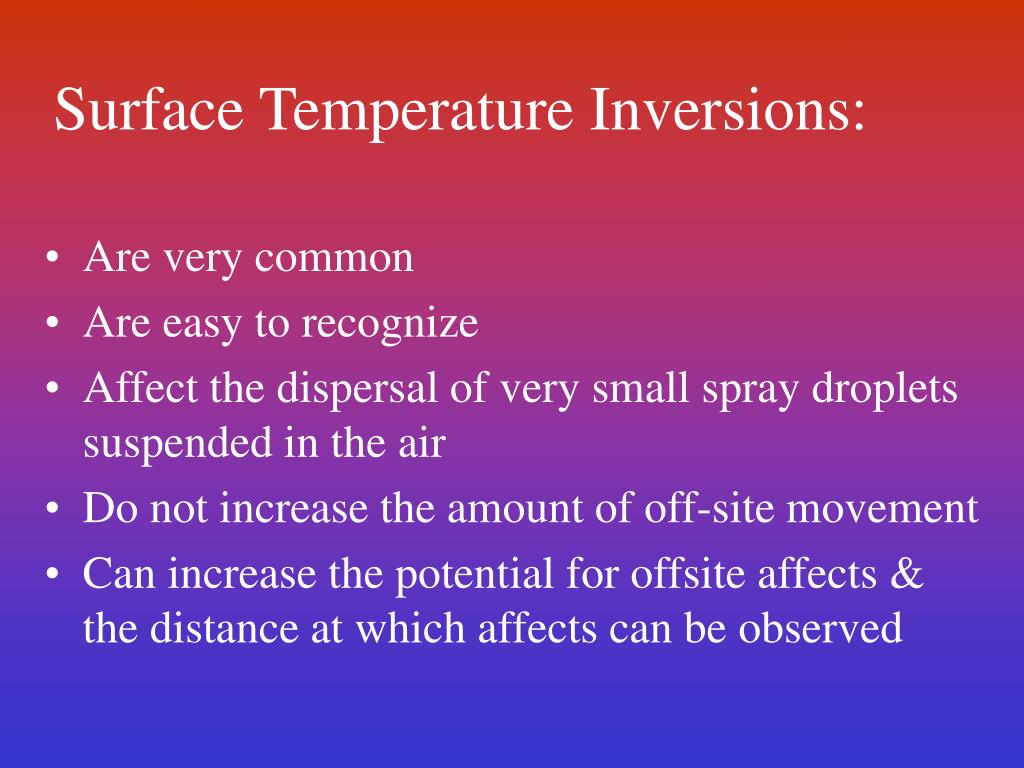

  2. Surface Temperature Inversions: • Are very common • Are easy to recognize • Affect the dispersal of very small spray droplets suspended in the air • Do not increase the amount of off-site movement • Can increase the potential for offsite affects & the distance at which affects can be observed

  3. Atmospheric Stability • Inversions cause STABLE atmospheric conditions • The concept of atmospheric stability helps understand how inversions affect drift • Close to the ground, atmospheric stability changes regularly between STABLE, NEUTRAL, & UNSTABLE

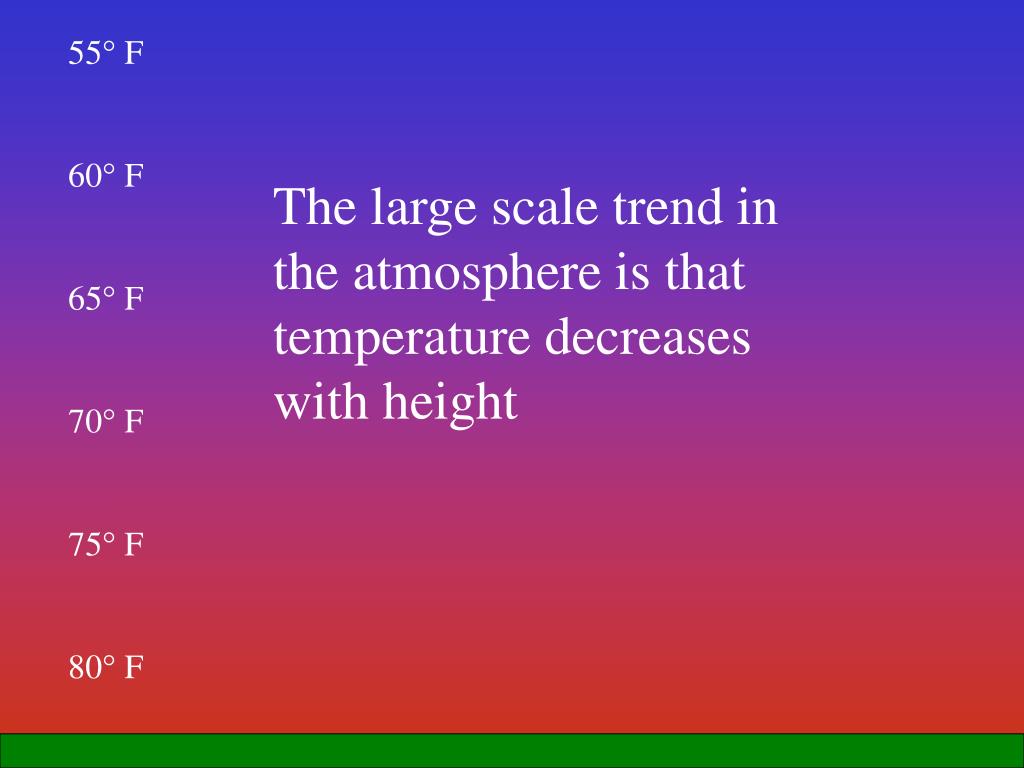

  4. 55 F 60 F 65 F 70 F 75 F 80 F The large scale trend in the atmosphere is that temperature decreases with height

  5. 55 F 60 F 65 F 70 F 75  F 80  F Where there is a decrease in temperature with height greater than the adiabatic rate the atmosphere is UNSTABLE

  6. Droplets or particles suspended in the air will be dispersed/diluted 55 F 60 F 65 F 70 F 75  F 80  F When the atmosphere is UNSTABLE air parcels near the surface will rise and expand because they are warmer & less dense than the air above

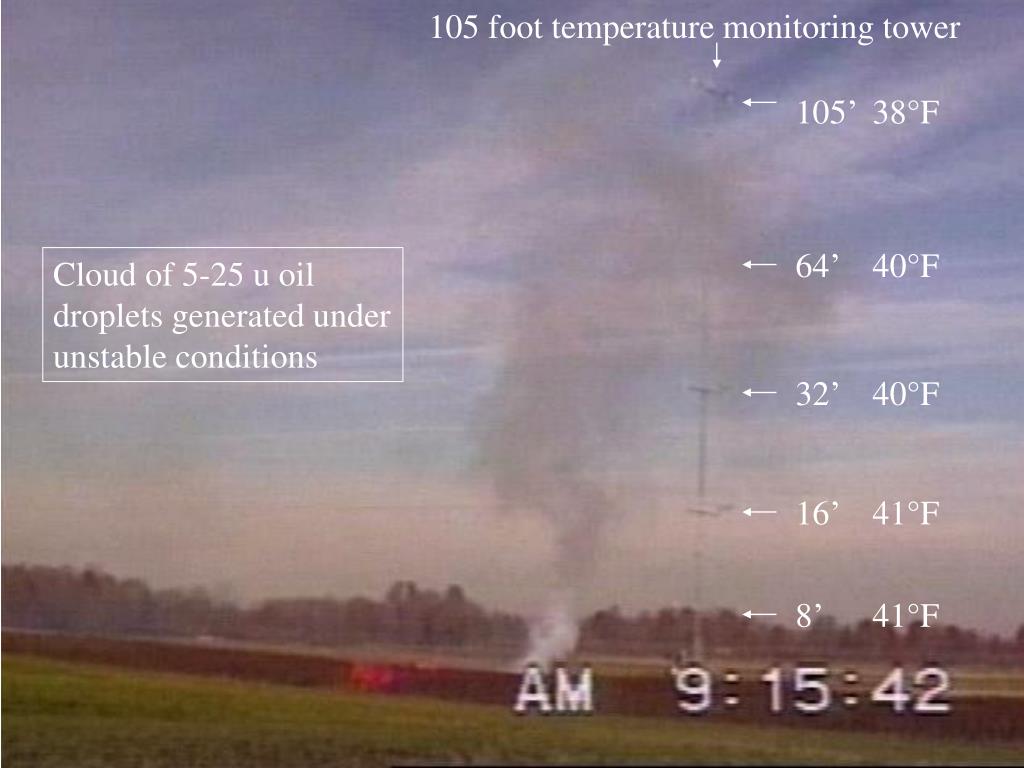

  7. 105 foot temperature monitoring tower 105’ 38°F 64’ 40°F Cloud of 5-25 u oil droplets generated under unstable conditions 32’ 40°F 16’ 41°F 8’ 41°F

  8. 105’ 38°F 105’ 38°F 64’ 40°F 64’ 40°F 32’ 40°F 32’ 40°F 16’ 41°F 16’ 41°F 8’ 41°F 8’ 41°F

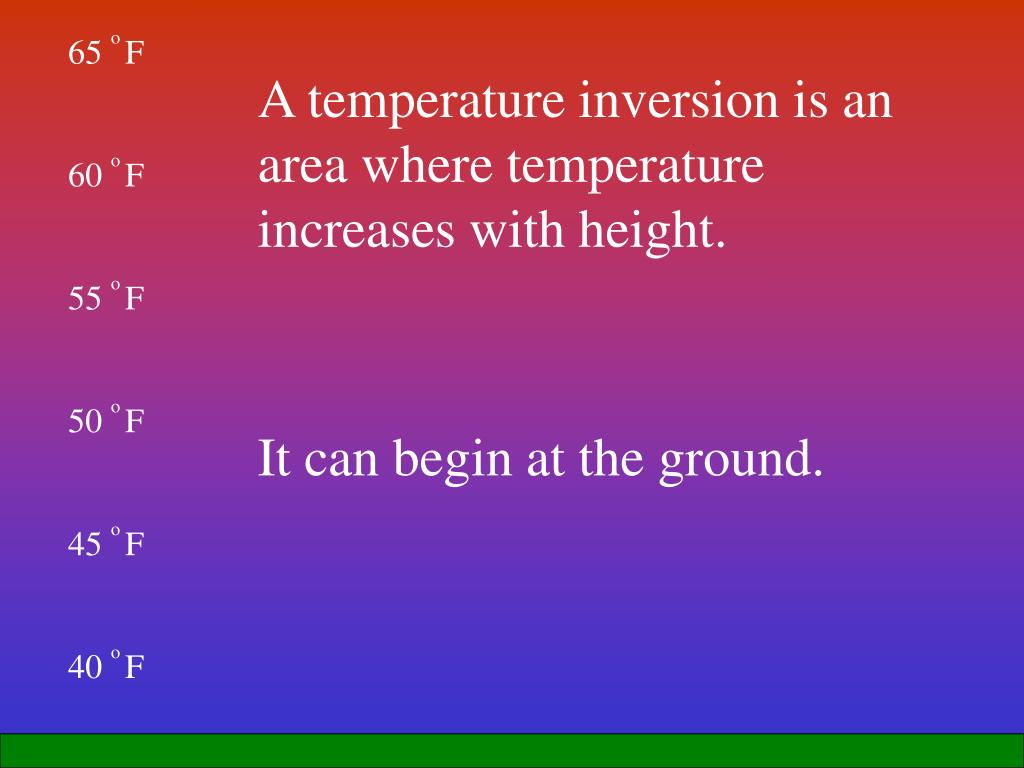

  9. 65 o F 60 o F 55 o F 50 o F 45 o F 40 o F A temperature inversion is an area where temperature increases with height. It can begin at the ground.

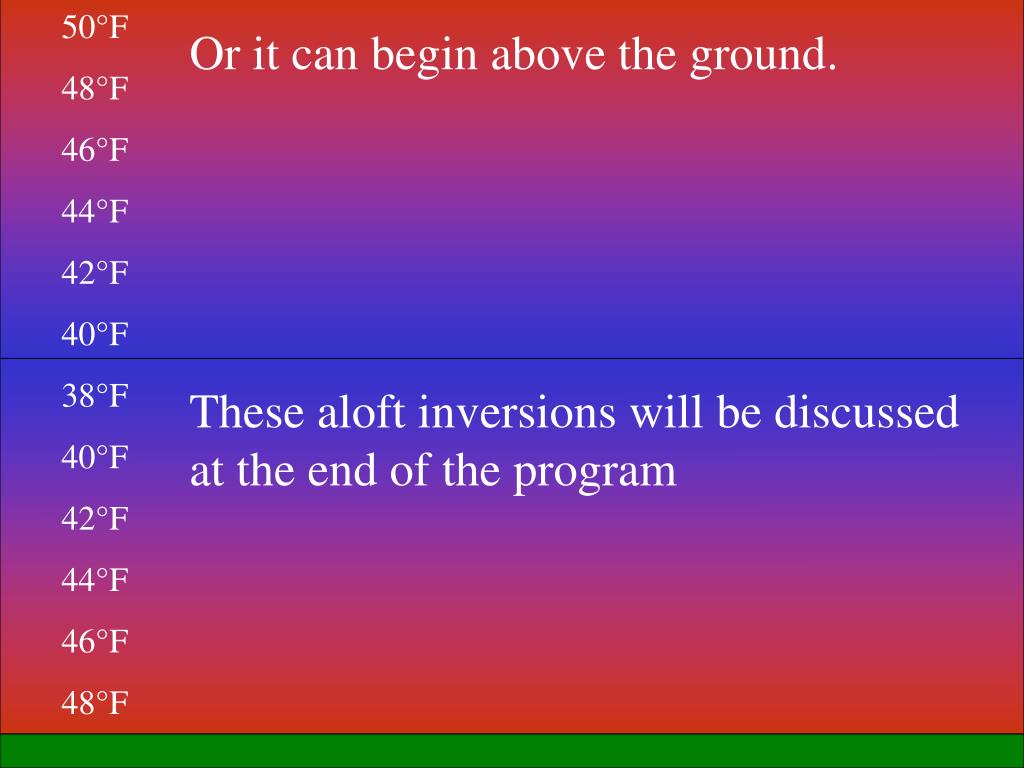

  10. 50°F 48°F 46°F 44°F 42°F 40°F 38°F 40°F 42°F 44°F 46°F 48°F Or it can begin above the ground. 30 o F 40 o F 50 o F 60 o F 70 o F 80 o F A temperature inversion is an area where temperature increases with height, this is area is the inversion layer These aloft inversions will be discussed at the end of the program 55

  11. 65o F 60o F 55o F 50o F 45o F 40o F When temperature increases with height the atmosphere is STABLE. Vertical mixing of the air and dispersion of small droplets is suppressed.

  12. 65o F 60o F 55o F 50o F 45o F 40o F A parcel of air near the surface is always cooler & more dense than the air above, so it can’t rise and disperse. If forced down by a current of air, it will immediately rise back.

  13. 65o F 60o F 55o F 50o F 45o F 40o F If forced up by a current of air, it will immediately sink back.

  14. 65o F 60o F 55o F 50o F 45o F 44o F The parcel of air can’t rise and disperse, but it can be move laterally in the light variable winds typical of a surface inversion

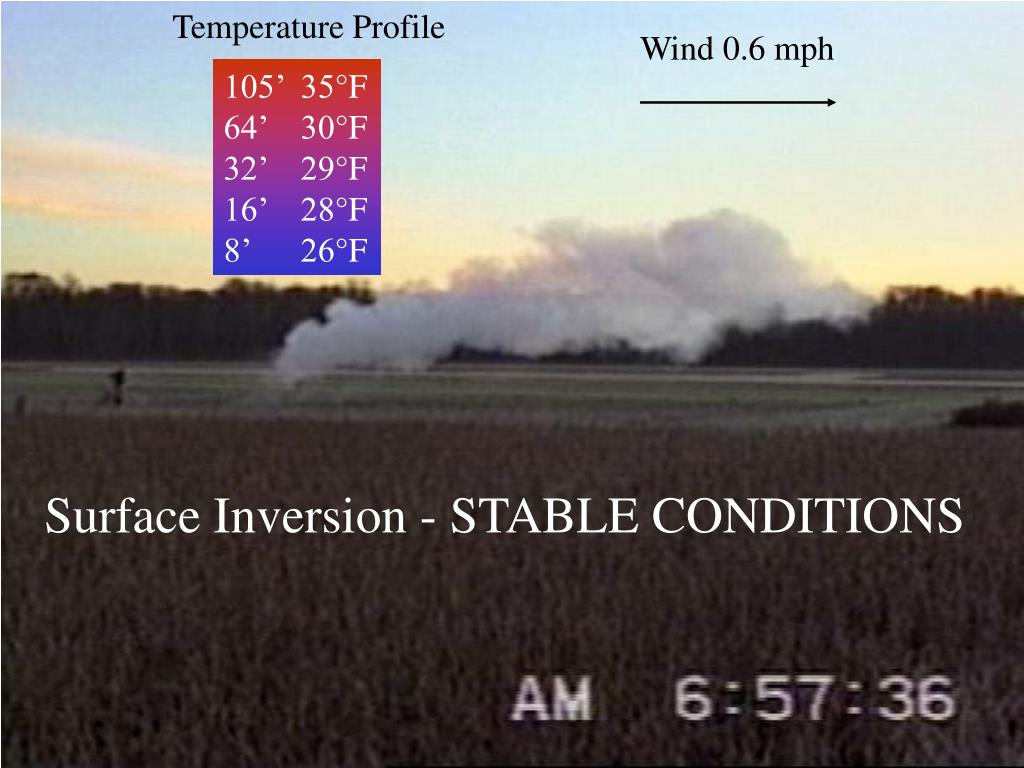

  15. Temperature Profile Wind 0.6 mph 105’ 35°F 64’ 30°F 32’ 29°F 16’ 28°F 8’ 26°F Surface Inversion - STABLE CONDITIONS

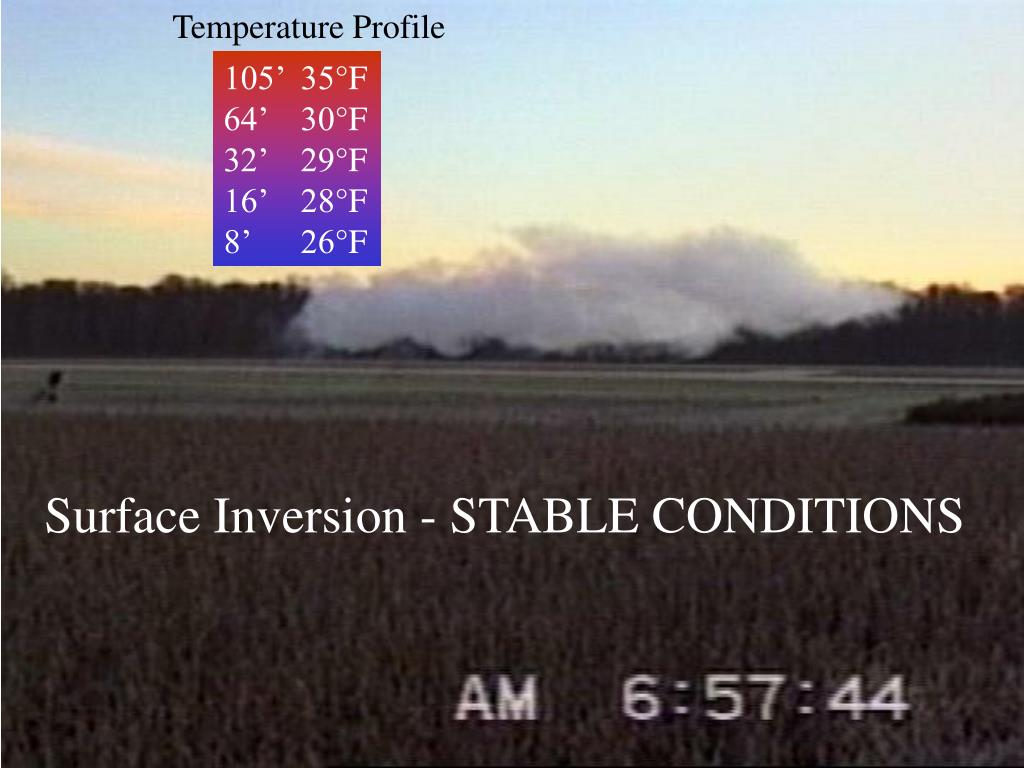

  16. Temperature Profile 105’ 35°F 64’ 30°F 32’ 29°F 16’ 28°F 8’ 26°F Surface Inversion - STABLE CONDITIONS

  17. 105’ 33°F 64’ 32°F 32’ 31°F 16’ 29°F 8’ 27°F Surface Inversion - STABLE CONDITIONS

  18. Temperature Profile 105’ 43°F 64’ 36°F 32’ 32°F 16’ 30°F 8’ 28°F Cold air drainage down a slope Surface Inversion - STABLE CONDITIONS

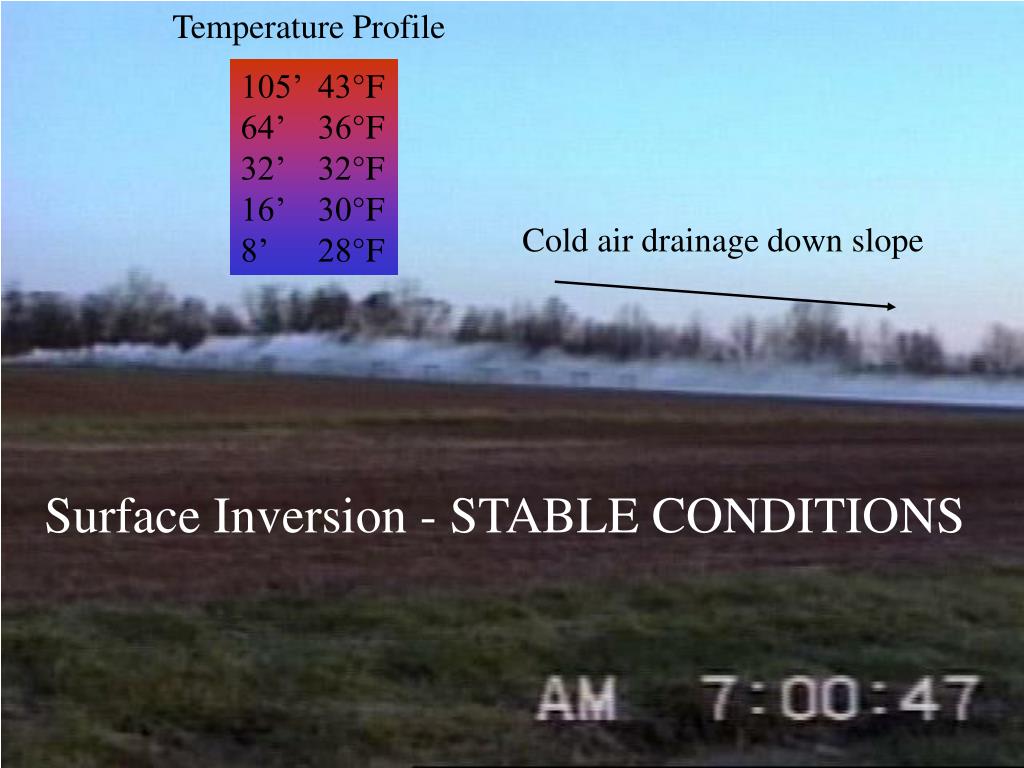

  19. Temperature Profile 105’ 43°F 64’ 36°F 32’ 32°F 16’ 30°F 8’ 28°F Cold air drainage down slope Surface Inversion - STABLE CONDITIONS

  20. 65o F 60o F 55 F 50o F 45o F 40o F A Surface Inversion can extend upwards 5, 50, 100, 500 ft or more. Height (of the inversion) doesn’t matter: If the application is made within the inversion it, the effects will be similar.

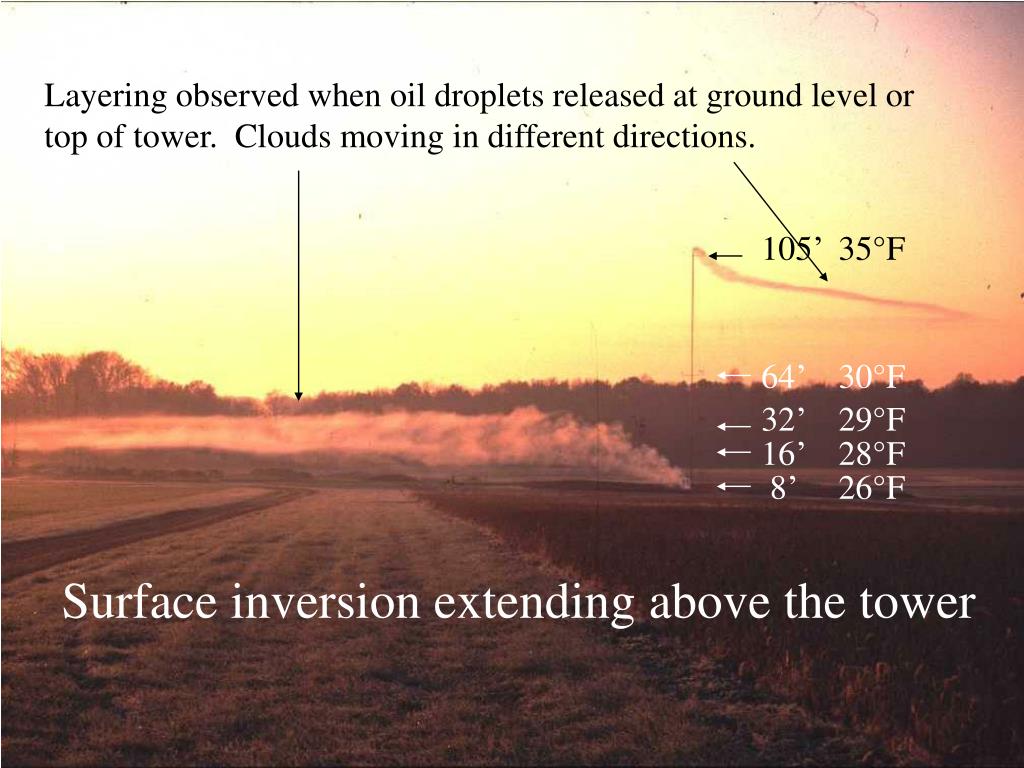

  21. Layering observed when oil droplets released at ground level or top of tower. Clouds moving in different directions. 105’ 35°F 64’ 30°F 32’ 29°F 16’ 28°F 8’ 26°F Surface inversion extending above the tower

  22. Cloud is dispersing 2.5 mph wind 105’ 38°F 64’ 38°F 32’ 37°F 16’ 36°F .5 mph wind 8’ 33°F Shallow surface inversion STABLE conditions up to 64’ NEUTRAL conditions at 105’

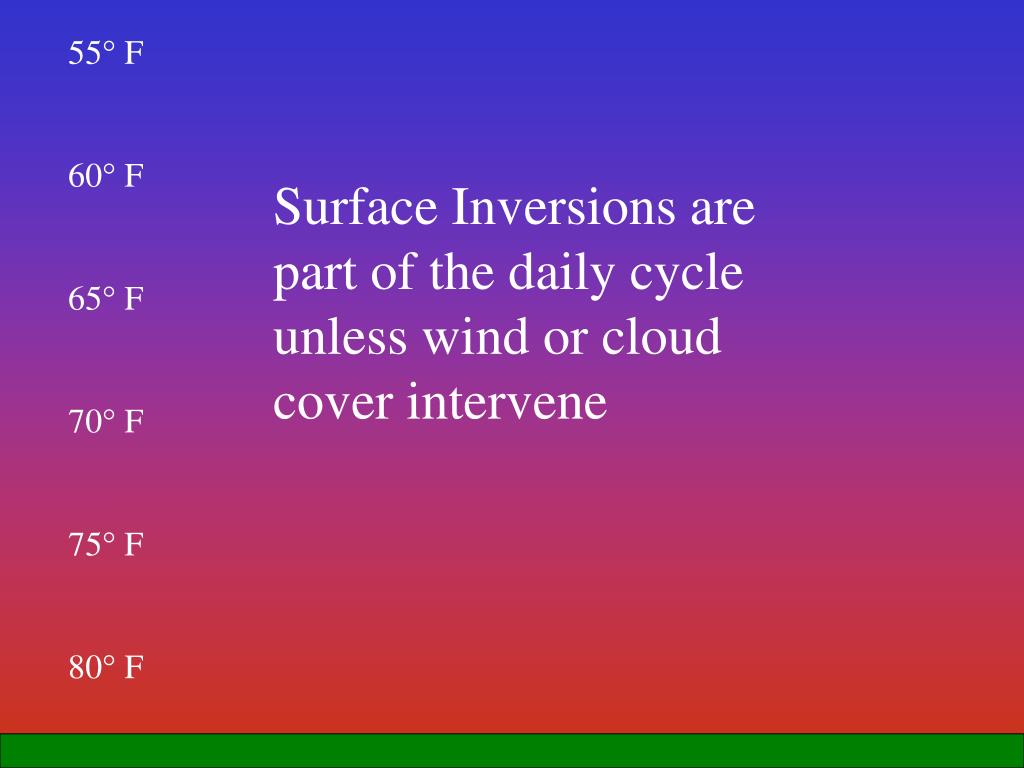

  23. 55 F 60 F 65 F 70 F 75 F 80 F Surface Inversions are part of the daily cycle unless wind or cloud cover intervene

  24. During the night, unless clouds or wind intervene, the ground loses heat cooling the air above.

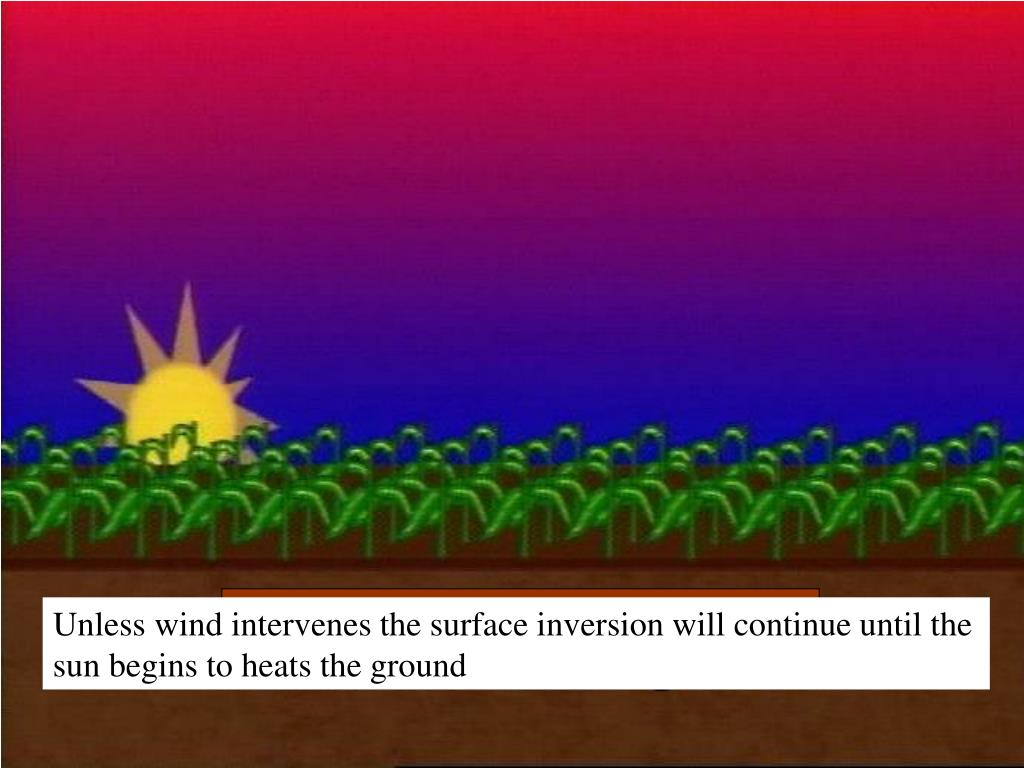

  25. Unless wind intervenes the surface inversion will continue until the sun begins to heats the ground

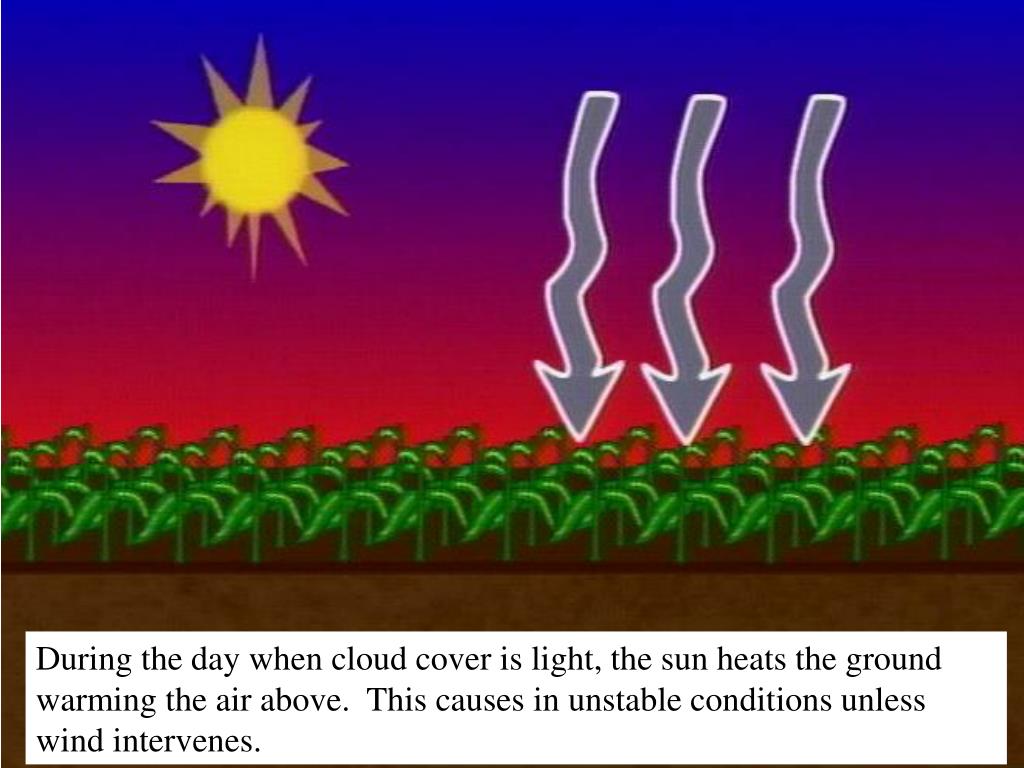

  26. During the day when cloud cover is light, the sun heats the ground warming the air above. This causes in unstable conditions unless wind intervenes.

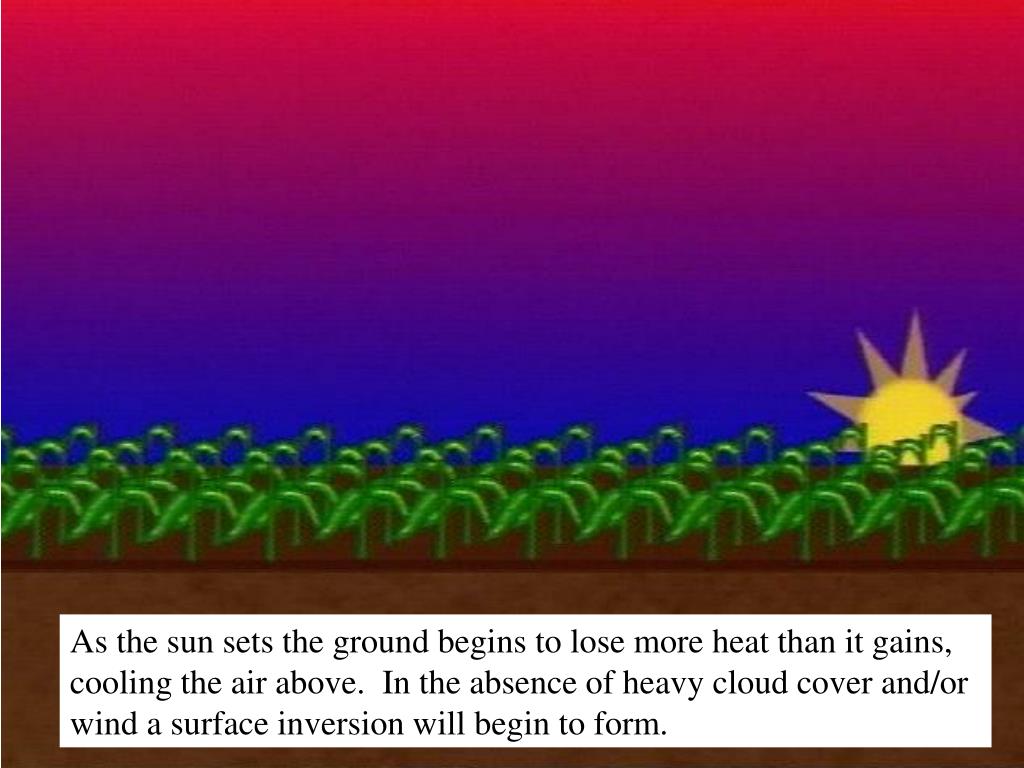

  27. As the sun sets the ground begins to lose more heat than it gains, cooling the air above. In the absence of heavy cloud cover and/or wind a surface inversion will begin to form.

  28. 105’ temperature 64’ temperature 16’ temperature 32’temperature 8’ temperature Solar energy

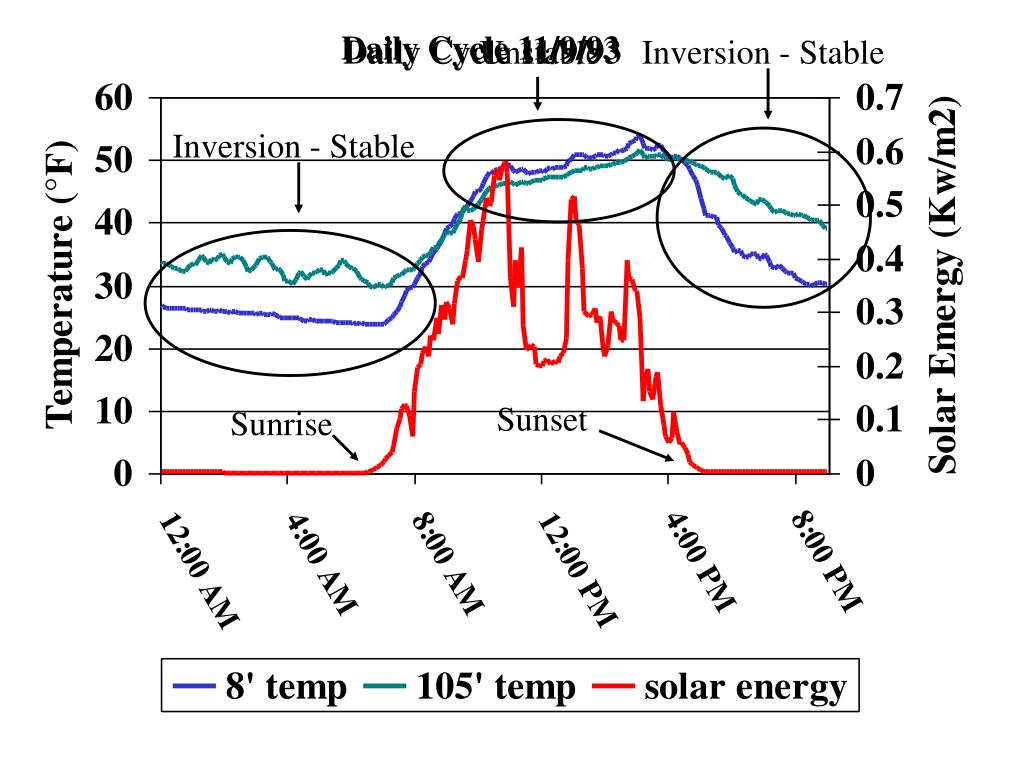

  29. Daily Cycle 11/9/93 Daily Cycle 11/9/93 Unstable Inversion - Stable Inversion - Stable Sunset Sunrise

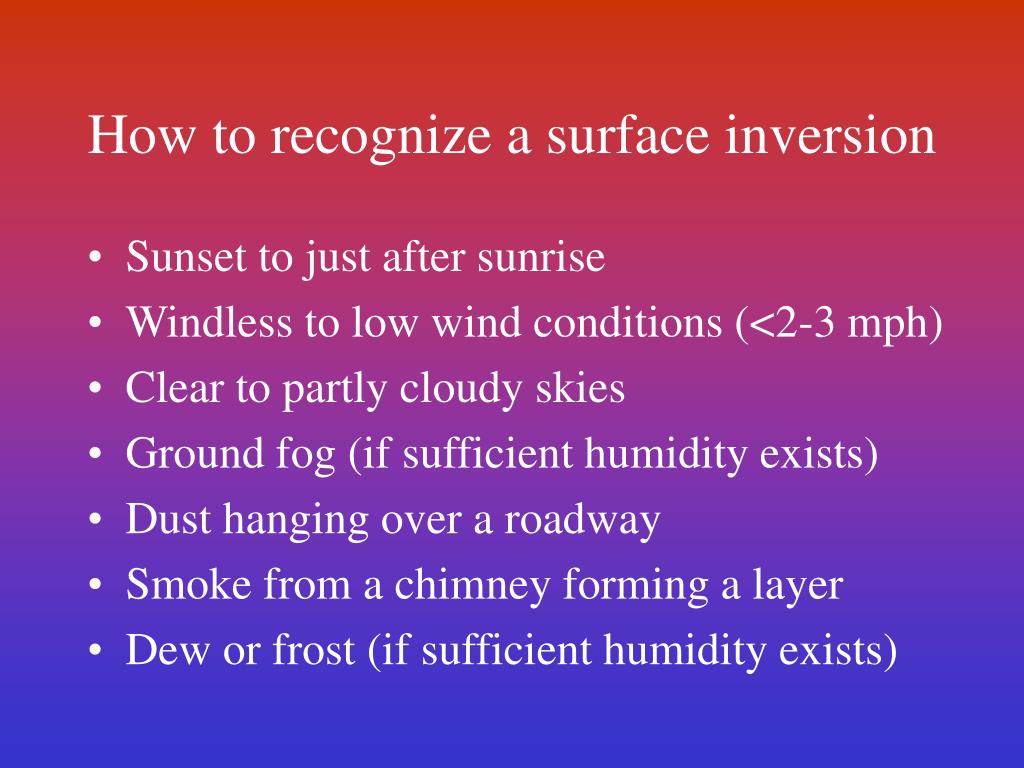

  30. How to recognize a surface inversion • Sunset to just after sunrise • Windless to low wind conditions (<2-3 mph) • Clear to partly cloudy skies • Ground fog (if sufficient humidity exists) • Dust hanging over a roadway • Smoke from a chimney forming a layer • Dew or frost (if sufficient humidity exists)

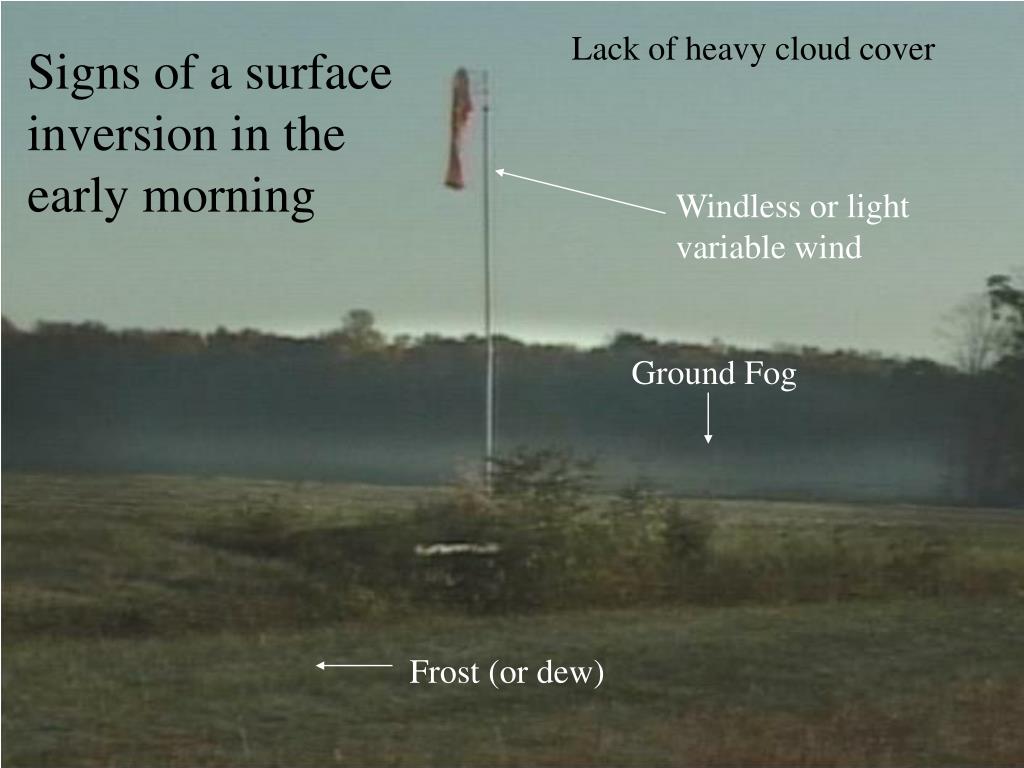

  31. Lack of heavy cloud cover Signs of a surface inversion in the early morning Windless or light variable wind Ground Fog Frost (or dew)

  32. Smoke from a chimney forming a layer Surface inversion - early morning

  33. How to recognize the potential for a surface inversion • Sun is getting low in the sky • Wind is becoming light and variable • Clear to partly cloudy skies

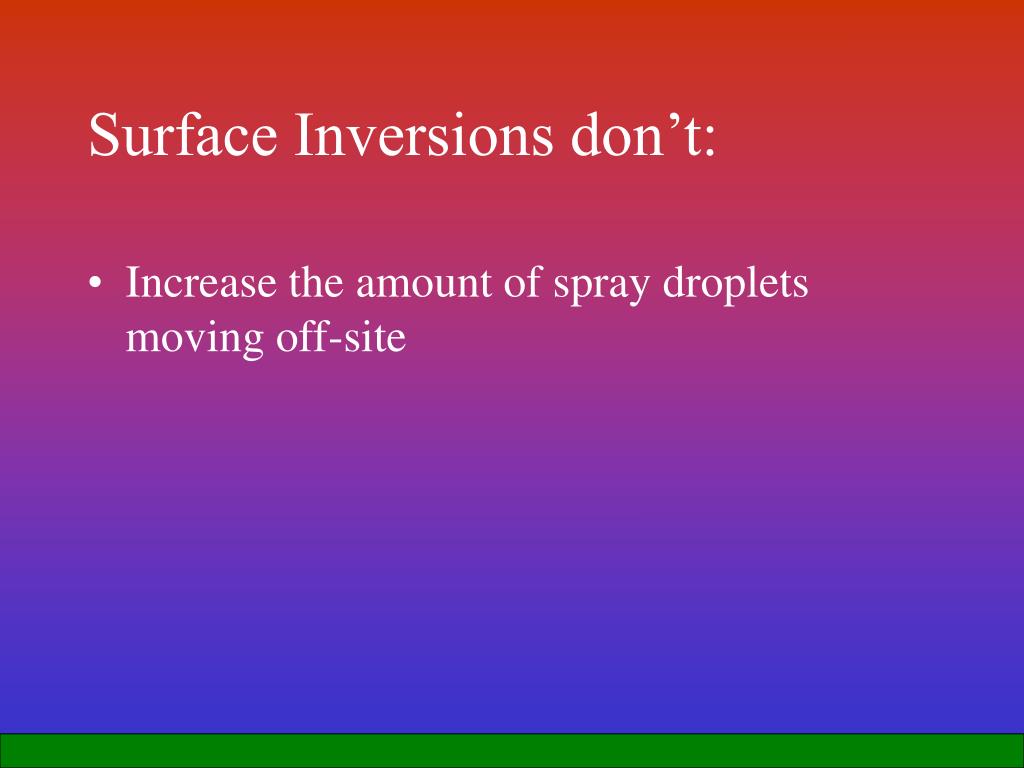

  34. Surface Inversions don’t: • Increase the amount of spray droplets moving off-site

  35. Surface Inversions can: • Decrease the dispersion of droplets too small to quickly settle out. • Result in a higher air concentration of these small droplets. • Increase the potential for off-target effects. • Increase the distance at which off-target effects can be observed. • Increase the size of the area affected. • Cause the direction of drift to be unpredictable

  36. Reducing the effects of Surface Inversions on Spray Drift • Minimizing production of very small drops • Using equipment the minimizes the number of small drops suspended in the air • Morning applications are likely to have shorter exposure to STABLE conditions than evening applications

  37. 80 o F 80 o F 80 o F 80 o F 80 o F 80 o F When the atmospheric stability is NEUTRAL, there is little or change in temperature with height. Low heavy cloud cover and/or wind contribute to NEUTRAL conditions. Vertical mixing is not suppressed as under STABLE conditions, and the turbulence of even a 5 mph wind is effective in dispersing suspended small droplets.

  38. Temperature Profile 105’ 32°F 64’ 33°F 32’ 33°F 16’ 33°F 8’ 32°F Wind 4.5 mph NEUTRAL CONDITIONS

  39. Temperature Profile 105’ 32°F 64’ 33°F 32’ 33°F 16’ 33°F 8’ 32°F Wind 4.5 mph NEUTRAL CONDITIONS

  40. Surface Inversion No wind Temperature Profile 105’ 43°F 64’ 36°F 32’ 32°F 16’ 30°F 8’ 28°F 7:00 AM Neutral Conditions 4.5 mph wind Temperature Profile 105’ 32°F 64’ 33°F 32’ 33°F 16’ 33°F 8’ 32°F 8:30 AM

  41. Neutral conditions can be the best time to spray • Wind direction if often consistent • Good dispersion of droplets too small to quickly settle out.

  42. 50°F 48°F 46°F 44°F 42°F 40°F 38°F 40°F 42°F 44°F 46°F 48°F 30 o F 40 o F 50 o F 60 o F 70 o F 80 o F Aloft Inversions A temperature inversion is an area where temperature increases with height, this is area is the inversion layer • Are not likely to effect applications to agricultural crops • Low altitude aloft inversions can affect aerial forestry application • Low altitude aloft inversions are often surface inversions in the process of dissipating & are therefore short lived 55

  43. Surface Temperature Inversions: • Are very common • Are easy to recognize • Affect the dispersal of very small spray droplets suspended in the air • Do not increase the amount of off-site movement • Can increase the potential for offsite affects & the distance at which affects can be observed
