  1. Infrastructure & M2M eWON Remote Access Products and Solutions For Infrastructure & Utilities Markets

  2. Agenda • eWON Solutions • eWON Products • eWON Software Suite • eWON Technology • eWON Miscellaneous information • Conclusion

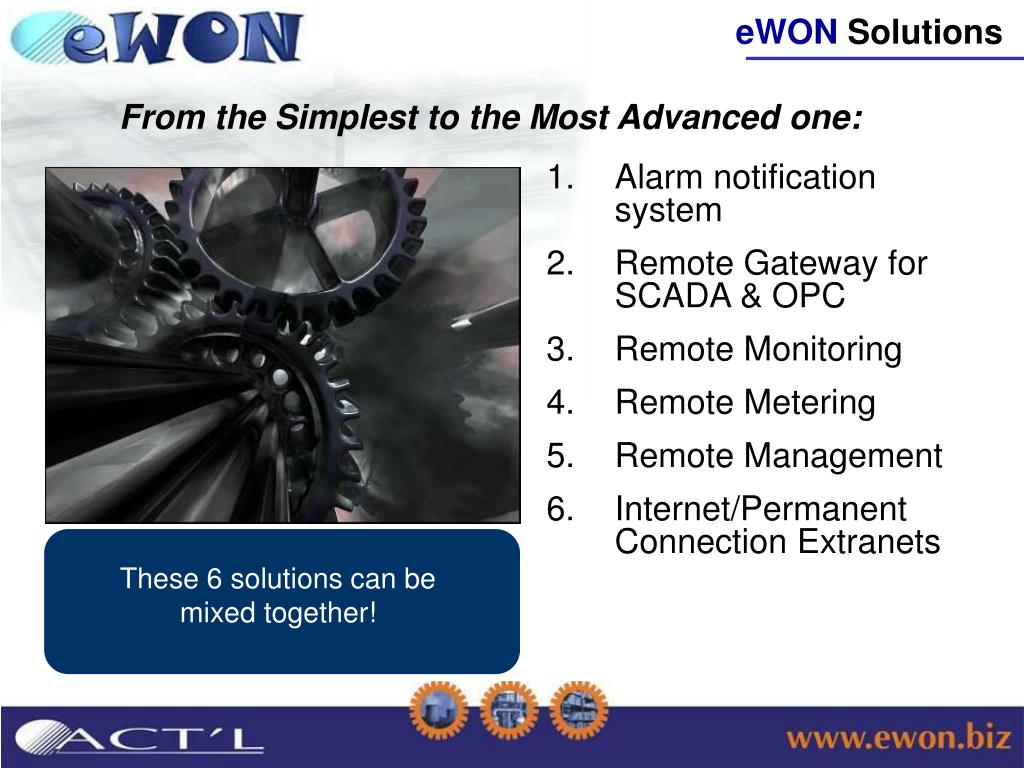

  3. These 6 solutions can be mixed together! eWON Solutions From the Simplest to the Most Advanced one: • Alarm notification system • Remote Gateway for SCADA & OPC • Remote Monitoring • Remote Metering • Remote Management • Internet/Permanent Connection Extranets

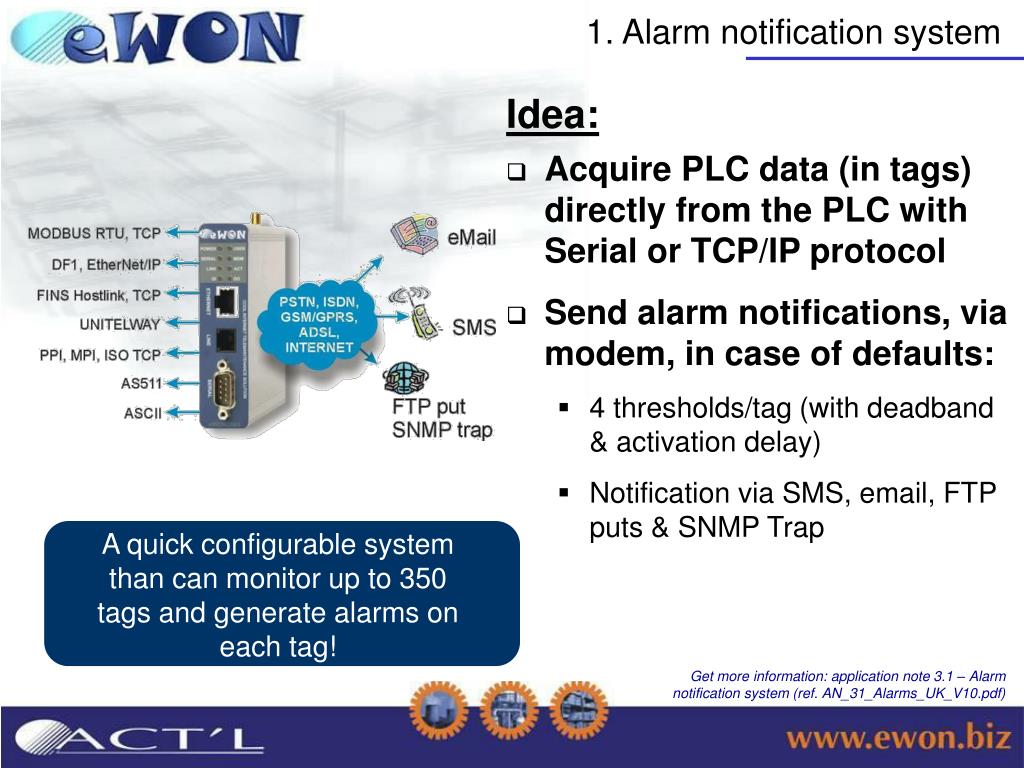

  4. A quick configurable system than can monitor up to 350 tags and generate alarms on each tag! 1. Alarm notification system Idea: • Acquire PLC data (in tags) directly from the PLC with Serial or TCP/IP protocol • Send alarm notifications, via modem, in case of defaults: • 4 thresholds/tag (with deadband & activation delay) • Notification via SMS, email, FTP puts & SNMP Trap Get more information: application note 3.1 – Alarm notification system (ref. AN_31_Alarms_UK_V10.pdf)

  5. Interfacing your RTUs with SCADA application in Poll or Push data mode 2. Remote Gateway for SCADA & OPC Idea: • Use an eWON remotely to collect PLC data, in two modes, using its built-in modem: • Poll data : • Through Ethernet using PLC TCP/IP protocol • Through Ethernet & gateway using PLC serial protocol • Through Modbus or SNMP Protocol • Push data : • via email and FTP to SCADA or to another eWON, being a collector Get more information: application note 3.2 – Remote Gwy for SCADA & OPC (ref. AN_32_SCADA_UK_V10.pdf)

  6. eWON is the perfect tool to monitor a remote asset, on its own! 3. Remote Monitoring Idea: • Acquire PLC data (in tags) • Log these data 130k points available: • 2 data logging files: real time or historical • 2 modes: recurrent or deadband • Regularly send these data to a central system Get more information: application note 3.3 – Remote Monitoring (ref. AN_33_RemoteMonitoring_UK_V10.pdf)

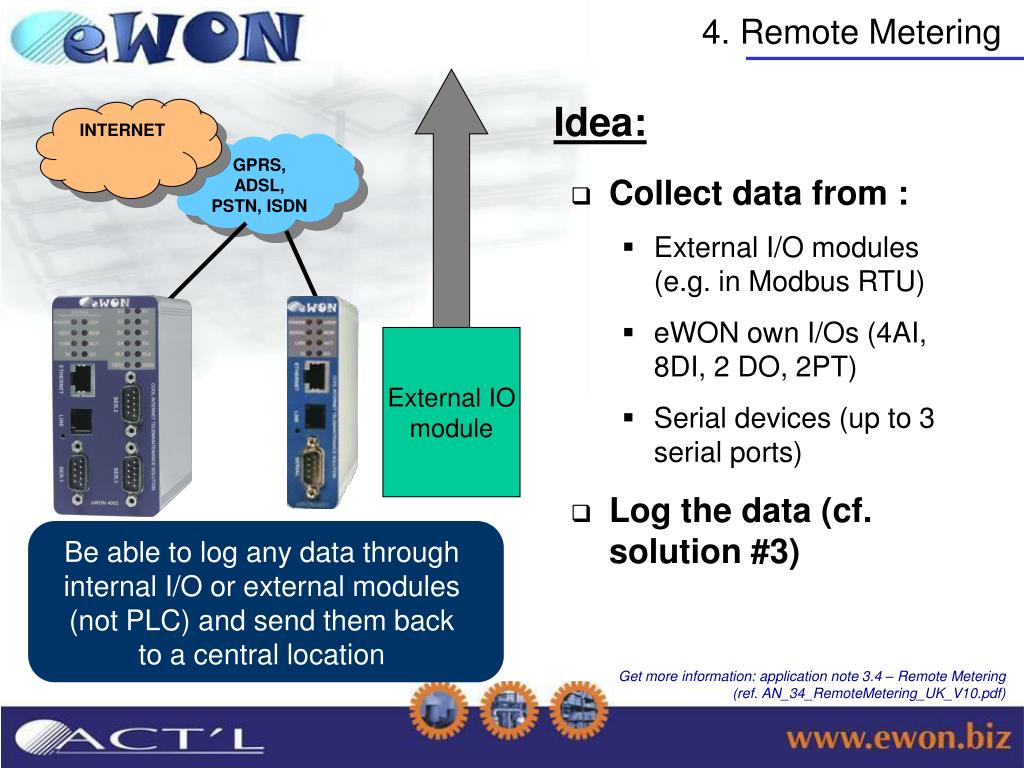

  7. Be able to log any data through internal I/O or external modules (not PLC) and send them back to a central location 4. Remote Metering Idea: INTERNET • Collect data from : • External I/O modules (e.g. in Modbus RTU) • eWON own I/Os (4AI, 8DI, 2 DO, 2PT) • Serial devices (up to 3 serial ports) • Log the data (cf. solution #3) GPRS, ADSL, PSTN, ISDN External IO module Get more information: application note 3.4 – Remote Metering (ref. AN_34_RemoteMetering_UK_V10.pdf)

  8. Using your eWON to manage your assets for all kind of operations, anytime, anywhere! 5. Remote Management Idea: • Control & Monitor a remote asset: • Alarms management • Data logging • PLC maintenance • Dynamic HMI • On a non-permanent communication basis Get more information: application note 3.5 – Remote Management (ref. AN_35_RemoteManagement_UK_V10.pdf)

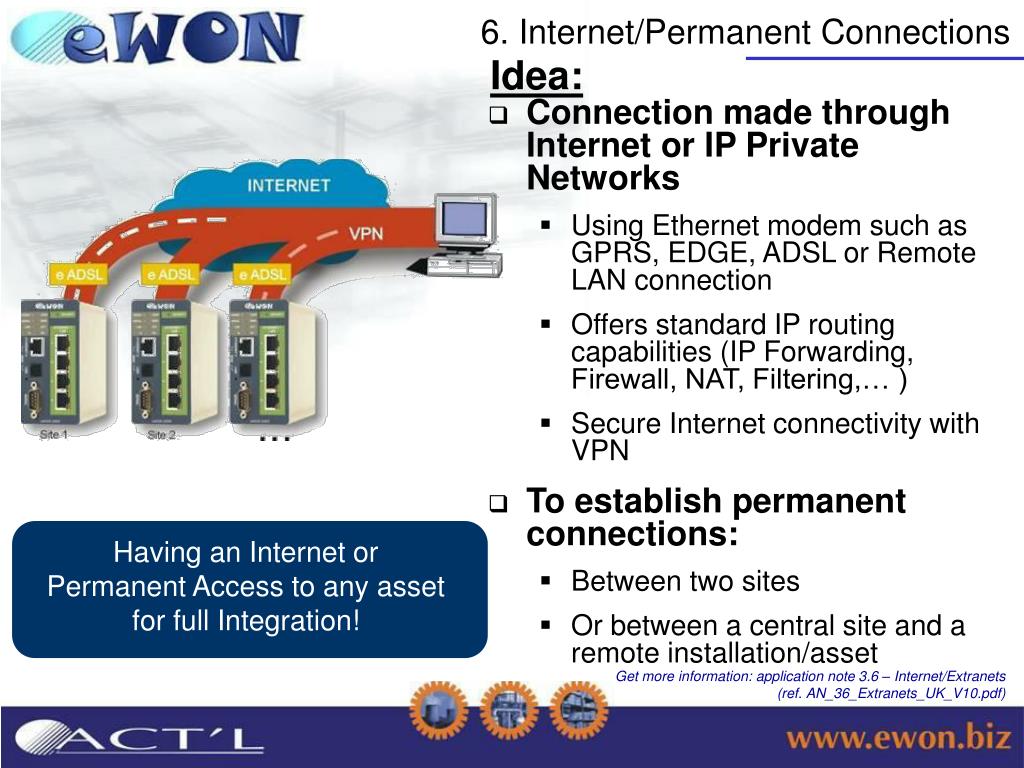

  9. Having an Internet or Permanent Access to any asset for full Integration! 6. Internet/Permanent Connections Idea: • Connection made through Internet or IP Private Networks • Using Ethernet modem such as GPRS, EDGE, ADSL or Remote LAN connection • Offers standard IP routing capabilities (IP Forwarding, Firewall, NAT, Filtering,… ) • Secure Internet connectivity with VPN • To establish permanent connections: • Between two sites • Or between a central site and a remote installation/asset Get more information: application note 3.6 – Internet/Extranets (ref. AN_36_Extranets_UK_V10.pdf)

  10. Designed for: • Alarm Notification System (#1) • Remote Gateway for SCADA & OPC (#2) eWON products: eWON 2001 • Entry product = cost effective! • Basic hardware features: • 1 Ethernet port • 1 Serial port • Build-in PSTN, ISDN & GSM Modems + router • Ethernet-to-Serial Gateway • Basic services: • Alarm Management • Basic Scripting • Web & FTP server for fast deployment

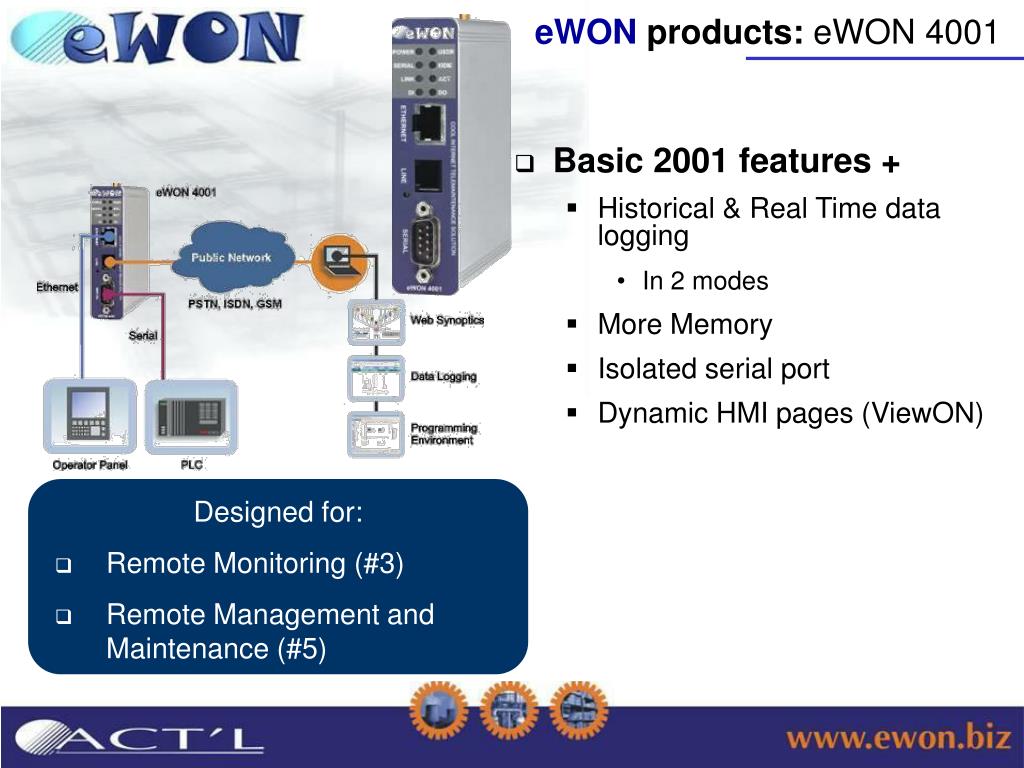

  11. Designed for: • Remote Monitoring (#3) • Remote Management and Maintenance (#5) eWON products: eWON 4001 • Basic 2001 features + • Historical & Real Time data logging • In 2 modes • More Memory • Isolated serial port • Dynamic HMI pages (ViewON)

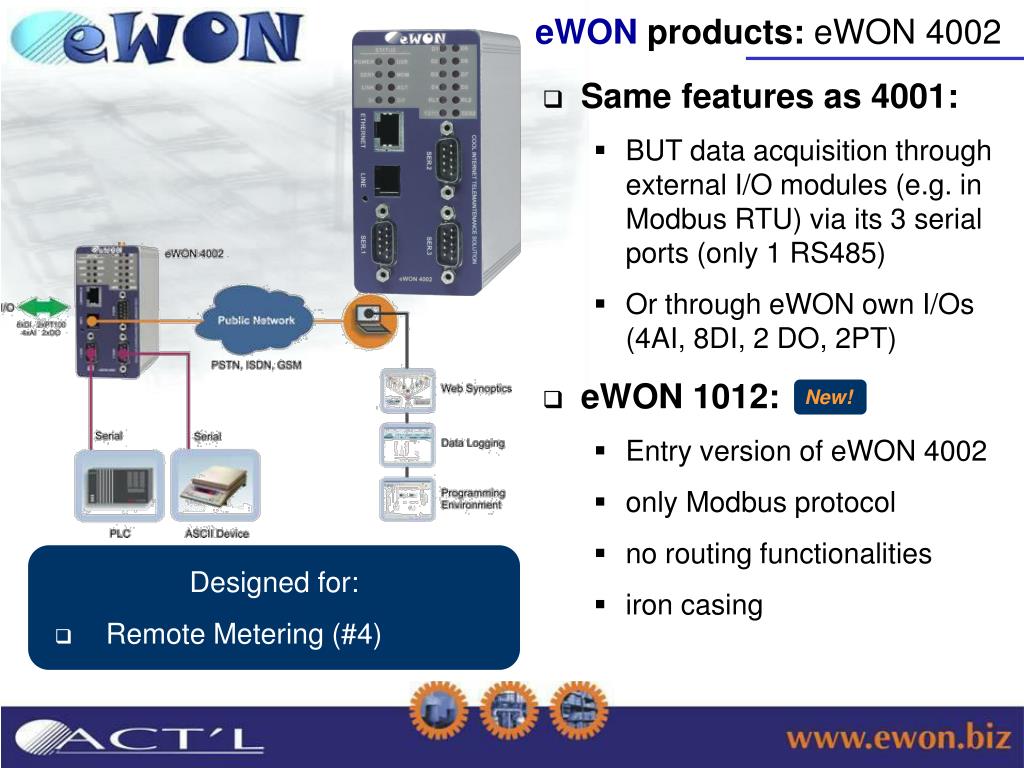

  12. New! • Designed for: • Remote Metering (#4) eWON products: eWON 4002 • Same features as 4001: • BUT data acquisition through external I/O modules (e.g. in Modbus RTU) via its 3 serial ports (only 1 RS485) • Or through eWON own I/Os (4AI, 8DI, 2 DO, 2PT) • eWON 1012: • Entry version of eWON 4002 • only Modbus protocol • no routing functionalities • iron casing

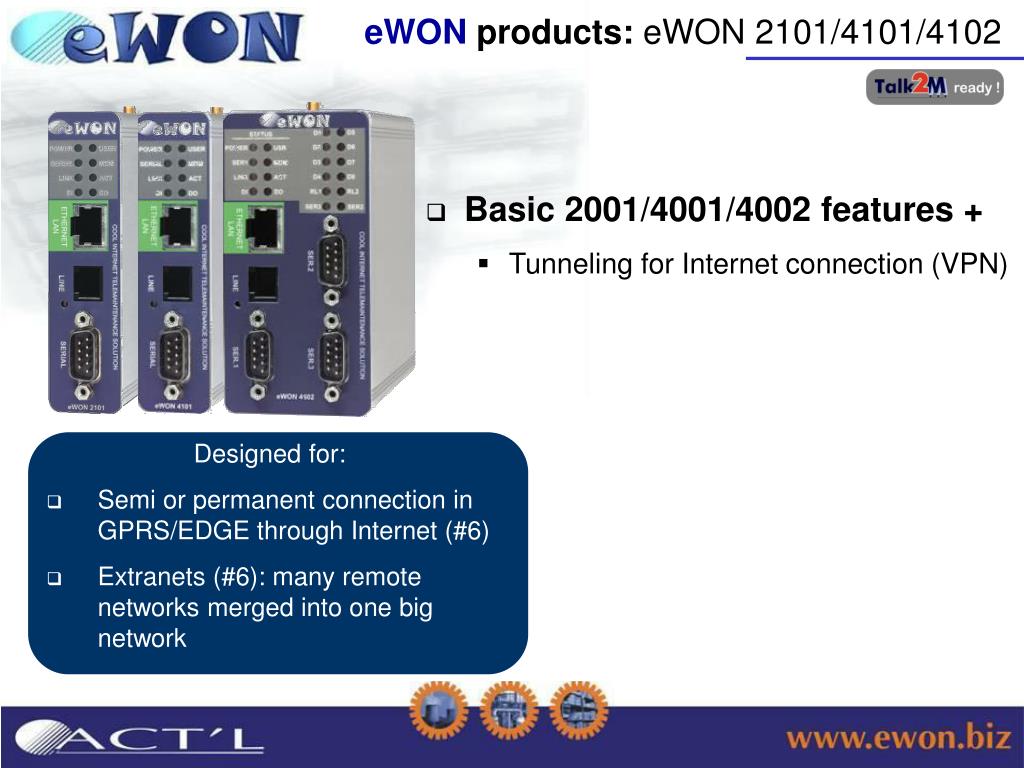

  13. Designed for: • Semi or permanent connection in GPRS/EDGE through Internet (#6) • Extranets (#6): many remote networks merged into one big network eWON products: eWON 2101/4101/4102 • Basic 2001/4001/4002 features + • Tunneling for Internet connection (VPN)

  14. eWON products: eWON 2005 • Basic 2001 Features + • 4-Port Ethernet Switch (Machine LAN) • 1 Ethernet WAN port (Factory LAN or ADSL Router) • VPN for Internet Connectivity • Versatile connectivity • 2 to 3 Ethernet cards + Switch • Designed for: • Permanent connection or extranets (#6)

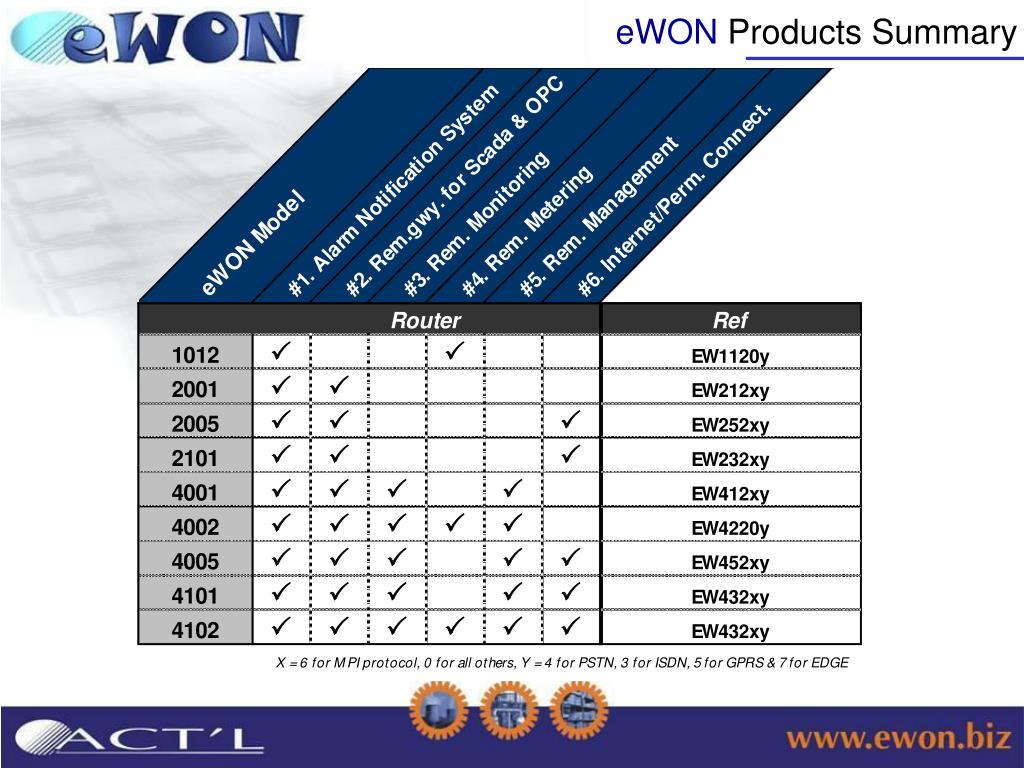

  15. eWON Products Summary

  16. eWON offer the right technology for the right application! eWON Features Summary SSL VPN, PSTN, ISDN, GSM/GPRS/EDGE, ADSL You Select We Connect Embedded Services Web Server FTP client&Server Alarms management Datalogging,… Modbus RTU, FINS Hostlink, AS511, DF1, MPI, PPI, Unitelway, ASCII, VCOM Modbus TCP, FINS TCP/UDP, ISOTCP, XIP, EtherNet/IP™, SNMP Schneider – Rockwell – Omron – Siemens -…

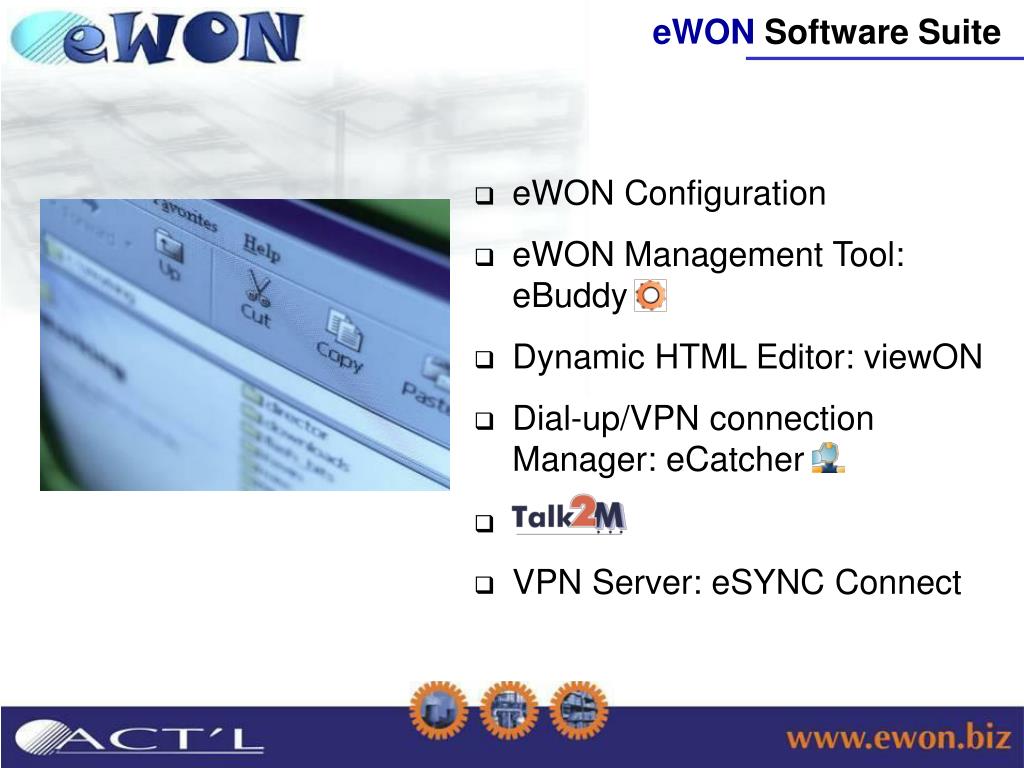

  17. eWON Configuration eWON Management Tool: eBuddy Dynamic HTML Editor: viewON Dial-up/VPN connection Manager: eCatcher VPN Server: eSYNC Connect eWON Software Suite

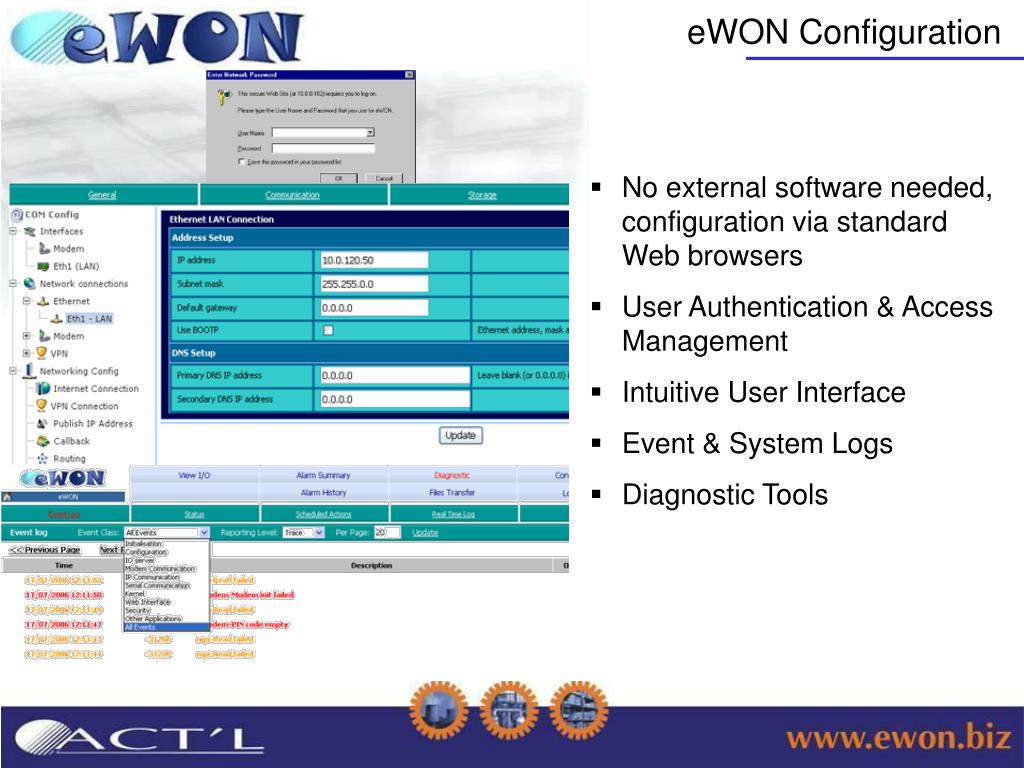

  18. eWON Configuration • No external software needed, configuration via standard Web browsers • User Authentication & Access Management • Intuitive User Interface • Event & System Logs • Diagnostic Tools

  19. Free download www.ewon.biz eWON Management Tool: eBuddy • Free eWON add-on tool to easily: • Set-up eWON IP Address • Upload eWON firmware upgrades • Backup/Restore data & config • For advanced users : everything is available through FTP protocol

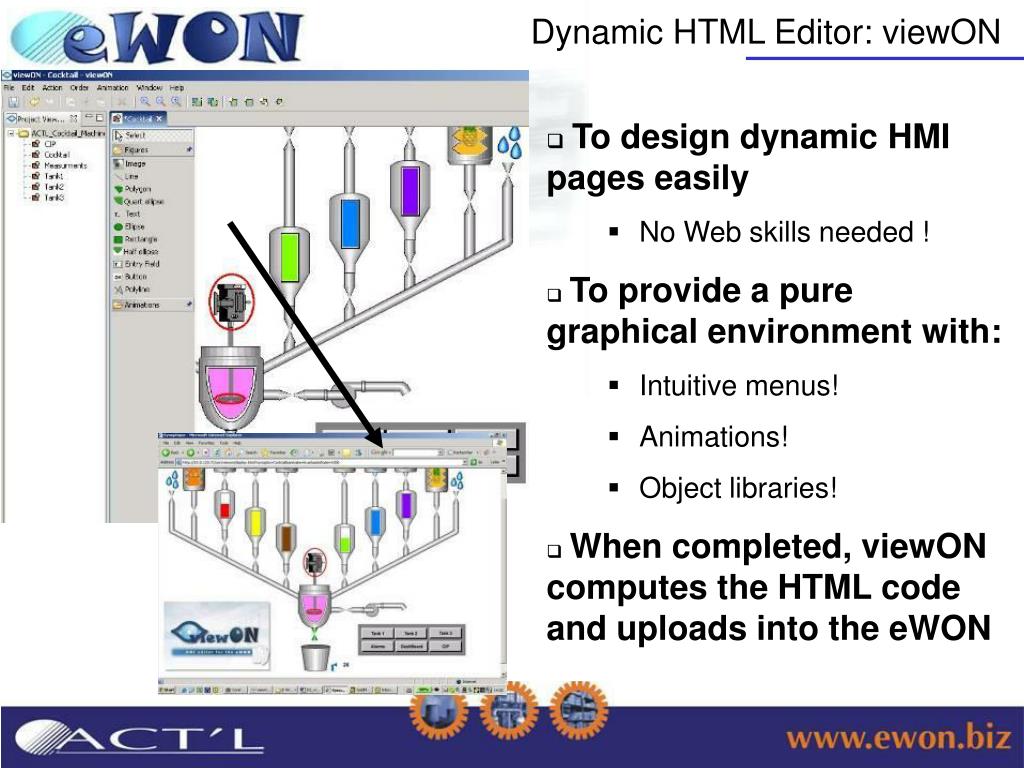

  20. Dynamic HTML Editor: viewON • To design dynamic HMI pages easily • No Web skills needed ! • To provide a pure graphical environment with: • Intuitive menus! • Animations! • Object libraries! • When completed, viewON computes the HTML code and uploads into the eWON

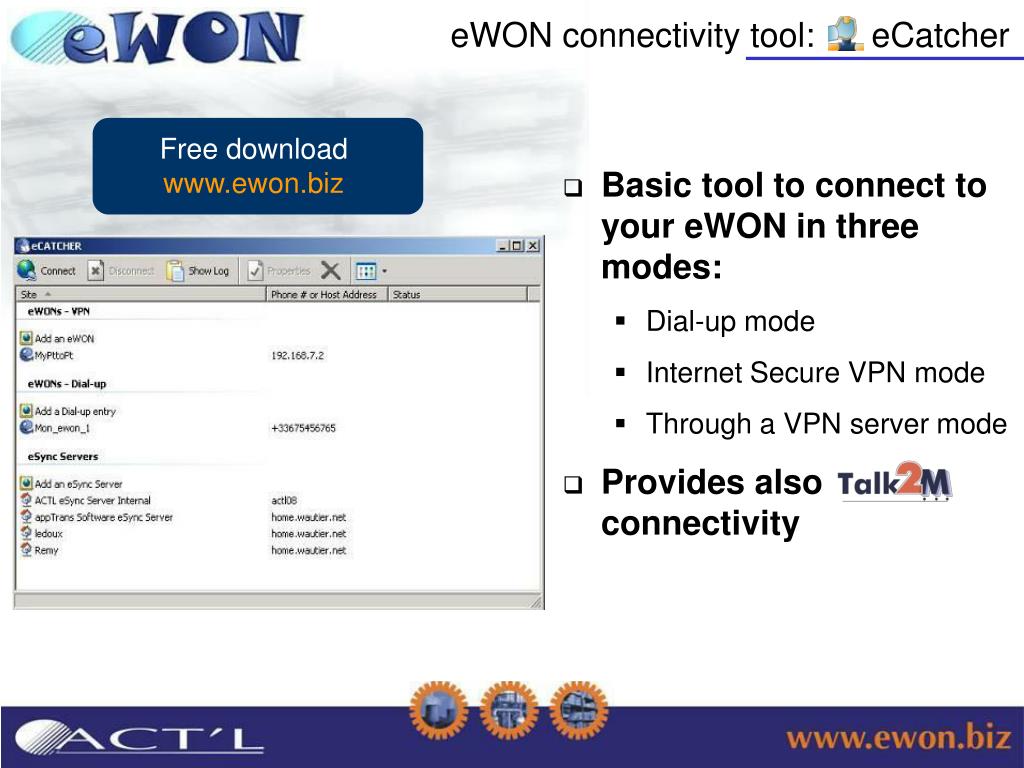

  21. Free download www.ewon.biz eWON connectivity tool: eCatcher • Basic tool to connect to your eWON in three modes: • Dial-up mode • Internet Secure VPN mode • Through a VPN server mode • Provides also connectivity

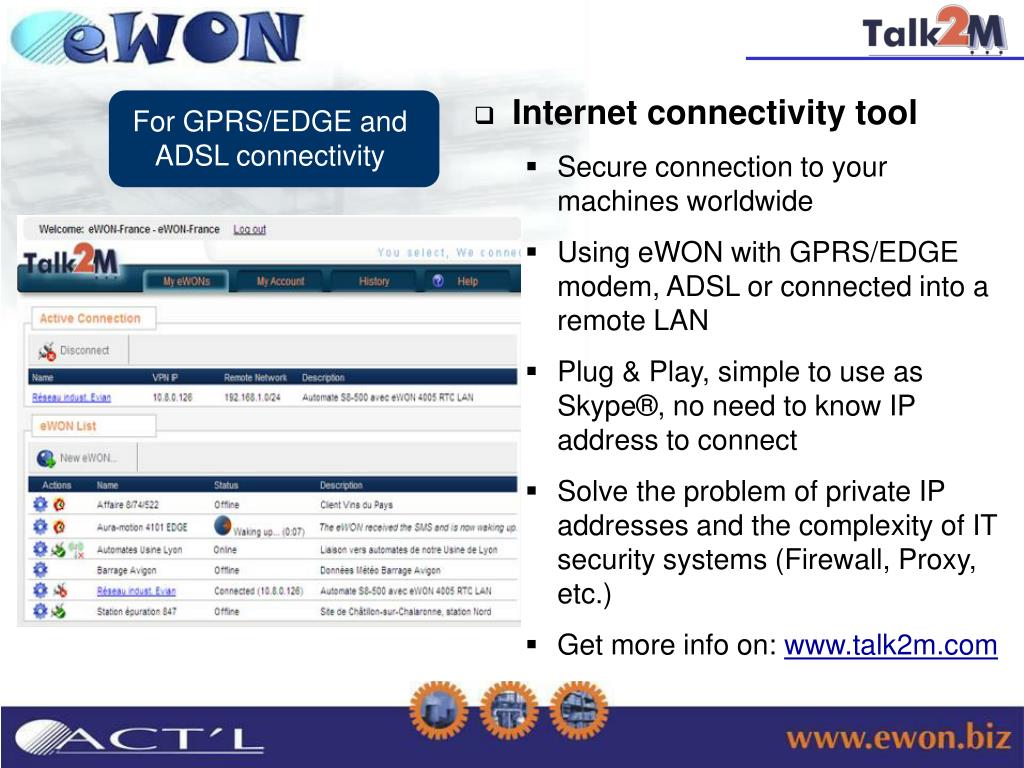

  22. For GPRS/EDGE and ADSL connectivity • Internet connectivity tool • Secure connection to your machines worldwide • Using eWON with GPRS/EDGE modem, ADSL or connected into a remote LAN • Plug & Play, simple to use as Skype®, no need to know IP address to connect • Solve the problem of private IP addresses and the complexity of IT security systems (Firewall, Proxy, etc.) • Get more info on: www.talk2m.com

  23. Tool for creating Permanent Connection towards remote networks, leading to Extranets! VPN Server: eSYNC Connect • Web-based Software with: • VPN Server • Management of VPN IP Addresses, including IP Route Tables • eWON & Users DB • PKI Management & Database • Apache, MySQL & OpenVPN fully integrated

  24. eWON Technology • Hardware • General architecture

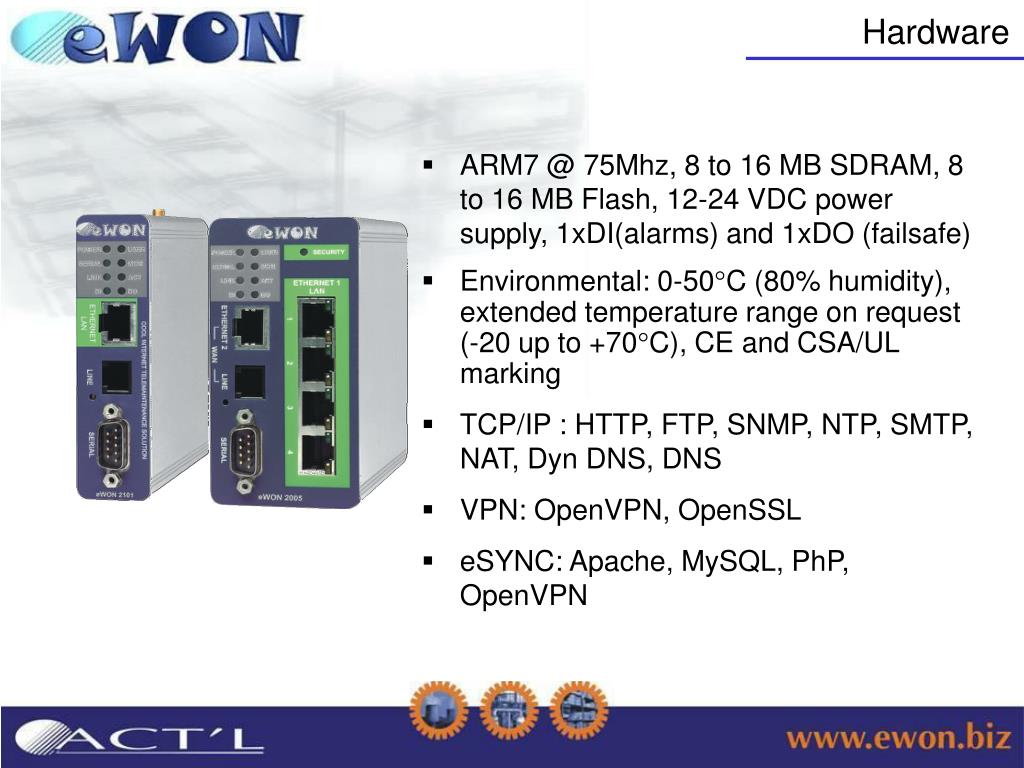

  25. Hardware • ARM7 @ 75Mhz, 8 to 16 MB SDRAM, 8 to 16 MB Flash, 12-24 VDC power supply, 1xDI(alarms) and 1xDO (failsafe) • Environmental: 0-50°C (80% humidity), extended temperature range on request (-20 up to +70°C), CE and CSA/UL marking • TCP/IP : HTTP, FTP, SNMP, NTP, SMTP, NAT, Dyn DNS, DNS • VPN: OpenVPN, OpenSSL • eSYNC: Apache, MySQL, PhP, OpenVPN

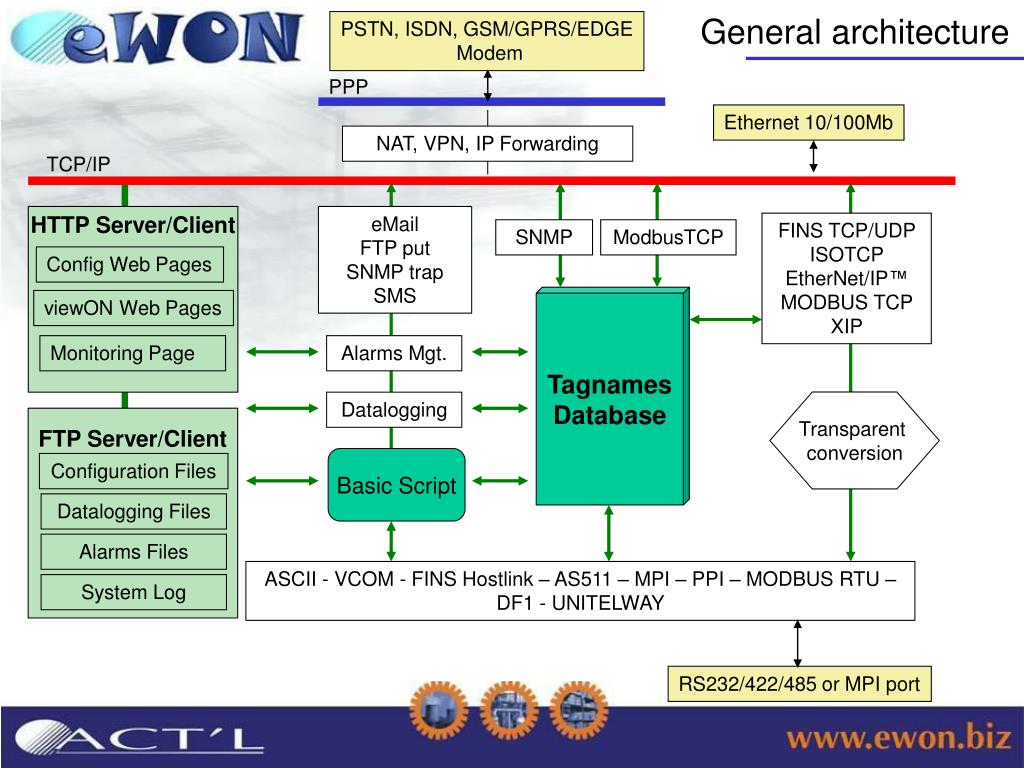

  26. General architecture PSTN, ISDN, GSM/GPRS/EDGE Modem PPP Ethernet 10/100Mb NAT, VPN, IP Forwarding TCP/IP HTTP Server/Client eMail FTP put SNMP trap SMS FINS TCP/UDP ISOTCP EtherNet/IP™ MODBUS TCP XIP SNMP ModbusTCP Config Web Pages Tagnames Database viewON Web Pages Monitoring Page Alarms Mgt. Transparent conversion Datalogging FTP Server/Client Basic Script Configuration Files Datalogging Files Alarms Files ASCII - VCOM - FINS Hostlink – AS511 – MPI – PPI – MODBUS RTU – DF1 - UNITELWAY System Log RS232/422/485 or MPI port

  27. Distribution Industrial Partners References eWON Miscellaneous Information

  28. Rockwell Automation eWON supports both DF1 and EtherNet/IP™ communication protocols to PLC5, SLC5, Micro Logix and Logix PLCs. WebPort, the rebranded version of eWON, distributed by Spectrum Controls, is also listed as Encompass Partner for the Americas. More information: MPT_eWON&Rockwell_UK.ppt Schneider Electric eWON is affiliated to the Collaborative Automation Partner Program (ex- Schneider Alliance) since 2002.  eWON supports Unitelway, XIP, Modbus RTU and Modbus TCP to TSX Micro, Premium, Momentum and Twido. OMRON eWON support FINS Hostlink and FINS TCP/UDP protocol. It has been tested with CS & CJ PLC. More information: MPT_eWON&Omron_UK.ppt SIEMENS eWON support AS511, PPI, MPI & ISO TCP Siemens protocols. It has been tested on S5 & S7-200/300/400 PLC. More information: MPT_eWON&Siemens_UK.ppt AND…Zenecca, Qualitrol-LEM (QWAVE), SOCOMEC, Leroy Automation, Toledo, Mettler,… eWON has been tested successfully with the IO WAGO module family. Industrial Partners

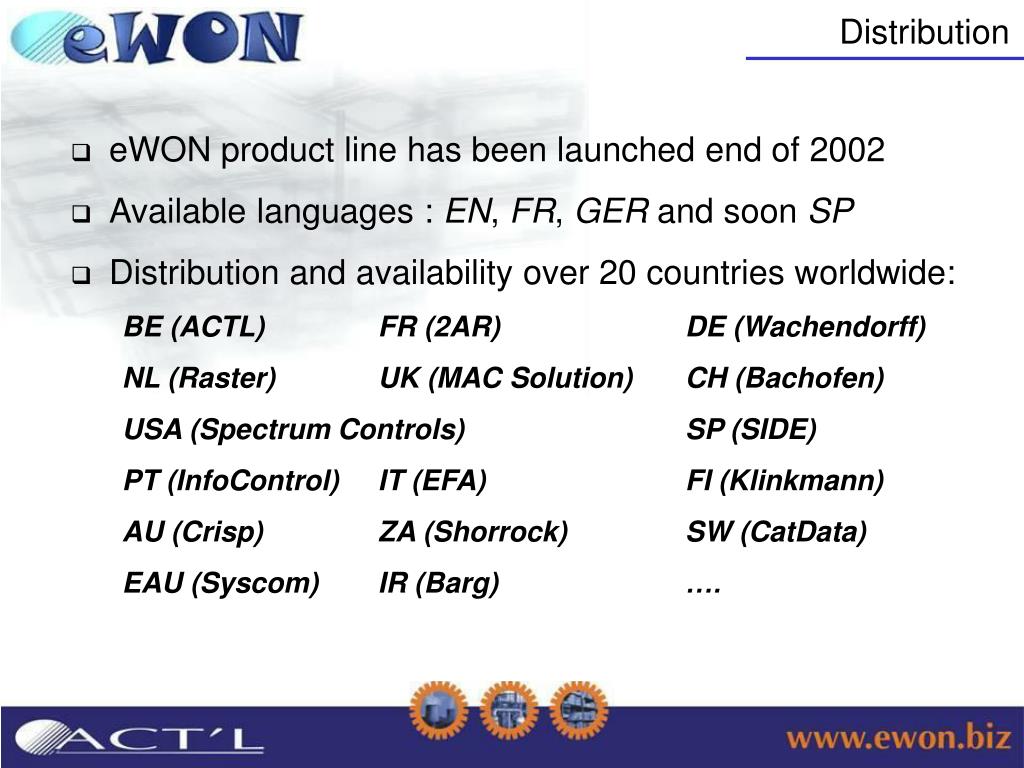

  29. Distribution • eWON product line has been launched end of 2002 • Available languages : EN, FR, GER and soon SP • Distribution and availability over 20 countries worldwide: BE (ACTL) FR (2AR) DE (Wachendorff) NL (Raster) UK (MAC Solution) CH (Bachofen) USA (Spectrum Controls) SP (SIDE) PT (InfoControl) IT (EFA) FI (Klinkmann) AU (Crisp) ZA (Shorrock) SW (CatData) EAU (Syscom) IR (Barg) ….

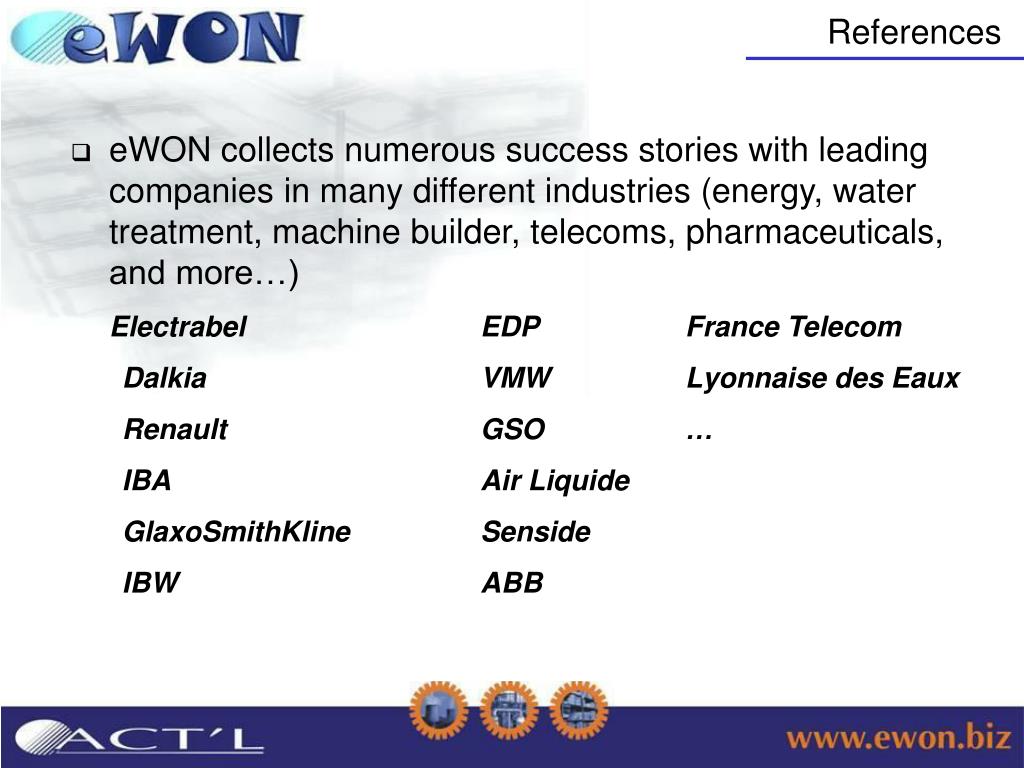

  30. References • eWON collects numerous success stories with leading companies in many different industries (energy, water treatment, machine builder, telecoms, pharmaceuticals, and more…) Electrabel EDP France Telecom Dalkia VMW Lyonnaise des Eaux Renault GSO … IBA Air Liquide GlaxoSmithKline Senside IBW ABB

  31. Thank You Get more information about eWON
