Installation Guide for Aluminium Elbow Bends: Cutting, Gluing, and Assembly Techniques

This guide outlines the step-by-step process for installing aluminium elbow bends using appropriate cutting and gluing techniques. Starting with drawing templates for cover pieces, the guide emphasizes the importance of following "EXTERNAL" and "INTERIOR" markings for precision cutting. It details the necessary angles for cutting walls and covers, as well as the application of adhesive at 45º for secure assembly. Step-by-step instructions facilitate the proper alignment and pressing of internal and external components, ensuring a successful installation of aluminium elbow bends.

loc
Download Presentation

Installation Guide for Aluminium Elbow Bends: Cutting, Gluing, and Assembly Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 003-i CHAPTER -Round Elbow -Bend of the panels

  2. Aluminium tape Aluminium tape W+200mm Elbow W+350mm W+350mm Cover bottom Cover top 1 • Draw the template of the cover bottom and cut toward “EXTERNAL”.

  3. Cover top Elbow Cover bottom 2 • Copy the template and to cut on the contrary: toward the “INTERIOR”.

  4. Bent of the panels 50mm 50mm Interior face 20mm 50mm 50mm Exterior face 20mm

  5. Bent of the panels • Possibility to bend with different forms.

  6. Elbow 3 • Cut the walls and make the female before of to glue.

  7. Elbow Glue 4 • Glue all the sides cut at 45º

  8. Elbow 5 • Paste the covers on the external wall.

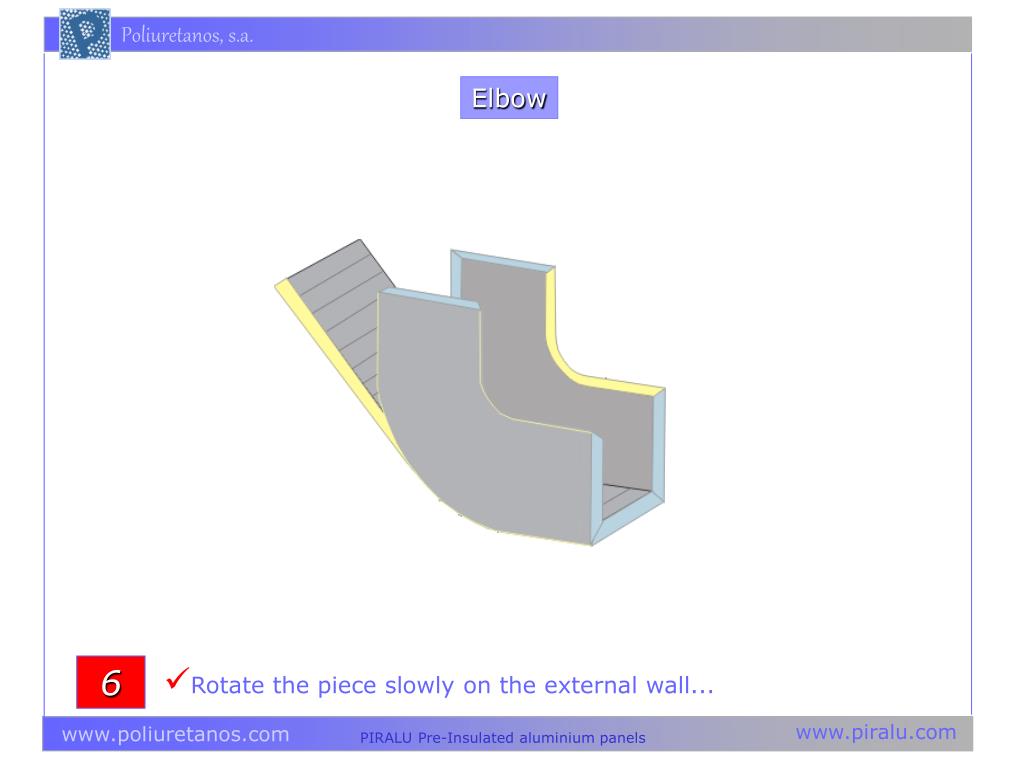

  9. Elbow 6 • Rotate the piece slowly on the external wall...

  10. Elbow 7 • ...until the end.

  11. Elbow 8 • Paste the internal wall beginning with the same place.

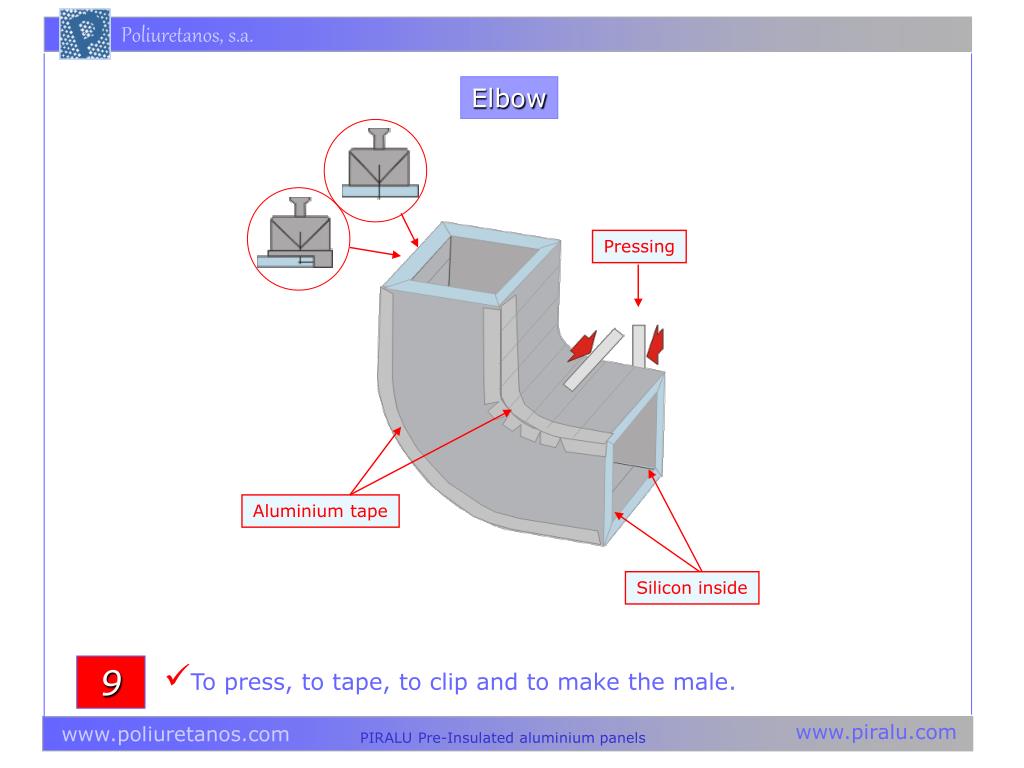

  12. Pressing Aluminium tape Silicon inside Elbow 9 • To press, to tape, to clip and to make the male.
