  1. Operational numerical models Meteorology 415

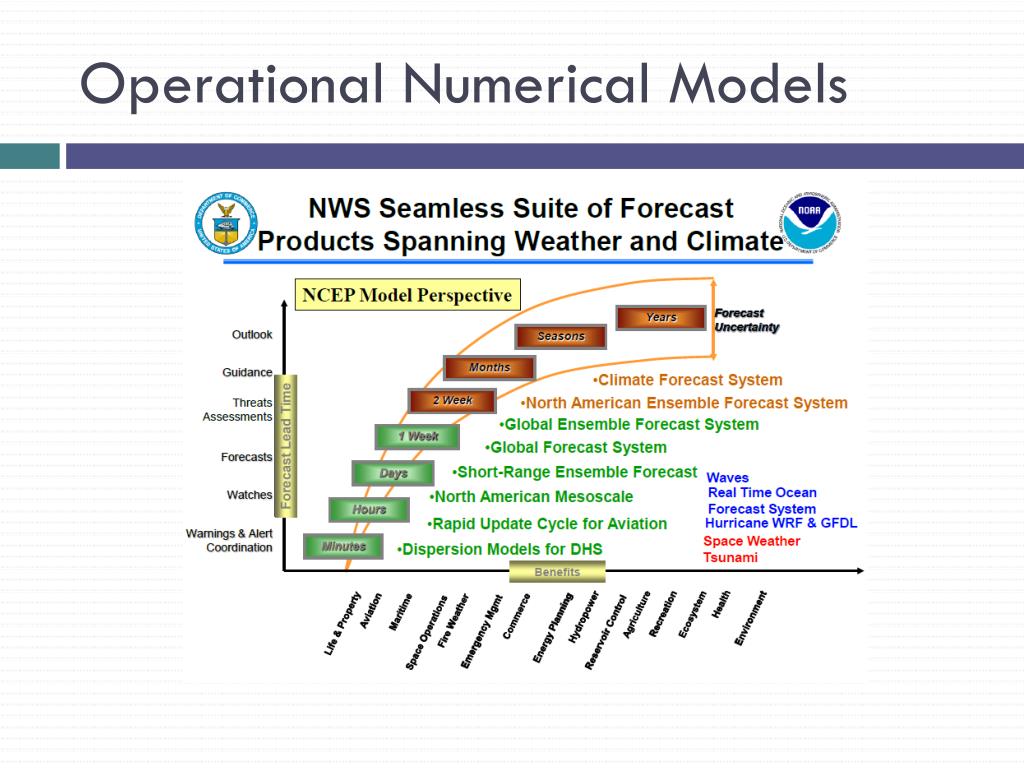

  2. Operational Numerical Models

  3. Operational Numerical Models

  4. Operational Numerical Models

  5. SREF Upgrade – August 21, 2012 • SREF Modeling System Changes: • 1. Remove two of the four models currently used in the SREF: the Eta and the Regional Spectral Model (RSM). A new model will be added: the Non-hydrostatic Multiscale Meteorological Model on the B grid (NMMB). • 2. Upgrade two Weather Research and Forecasting (WRF) model cores in model version from WRF v2.2 to WRF v3.3: Non-hydrostatic MultiscaleMeteorological Model (NMM) and Advanced Research WRF (ARW). • 3. Increase the NMM and ARW horizontal resolution from 32/35km to 16km. The NMMB will also have a 16km horizontal resolution. • 4. Increase the number of WRF members for NMM and ARW from 5 to 7. There will be 7 members for the new NMMB model.

  6. SREF Upgrade – August 21, 2012 • 5. Increase diversity by selecting physics schemes used in existing models: NAM, GFS, NCAR, HWRF and Rapid Refresh (RAP). • 6. Increase Initial Condition (IC) diversity by: -Using RAP analysis as a control analysis for the ARW, NAM analysis used for the NMMB, and GFS analysis used for the NMM. -Mixing IC perturbation schemes by using a mix of the Global Ensemble Transform with Rescaling (ETR), regional Breeding and blending between the two. • -Increasing the Land Surface Initial States (LSIS) diversity by using the LSIS from the NAM, GFS, and RAP. • 7. New capabilities will be added in post-processing SREF data: • -Bias correction (by frequency matching) of the precipitation forecasts for both individual members and the ensemble mean. • -Clustering with two methods, NCEP and University of Oklahoma, with output including a text table about each cluster's membership and size, a GRIB output of probability of each cluster, and a GRIB output of cluster products for the mean and spread of thirty-nine fields, as well as the probabilities for 2-meter temperature and 3hr-accumulated precipitation. • -Performance ranking of each ensemble member, providing different weights for different members in both text and GRIB format. • -Statistical surface down-scaling from 16km SREF to 5km NDGD grid using the 5km Real-Time Mesoscale Analysis (RTMA) fields. • 8. Modified the snow liquid ratio from being fixed at 10:1 to a surface temperature dependency method.

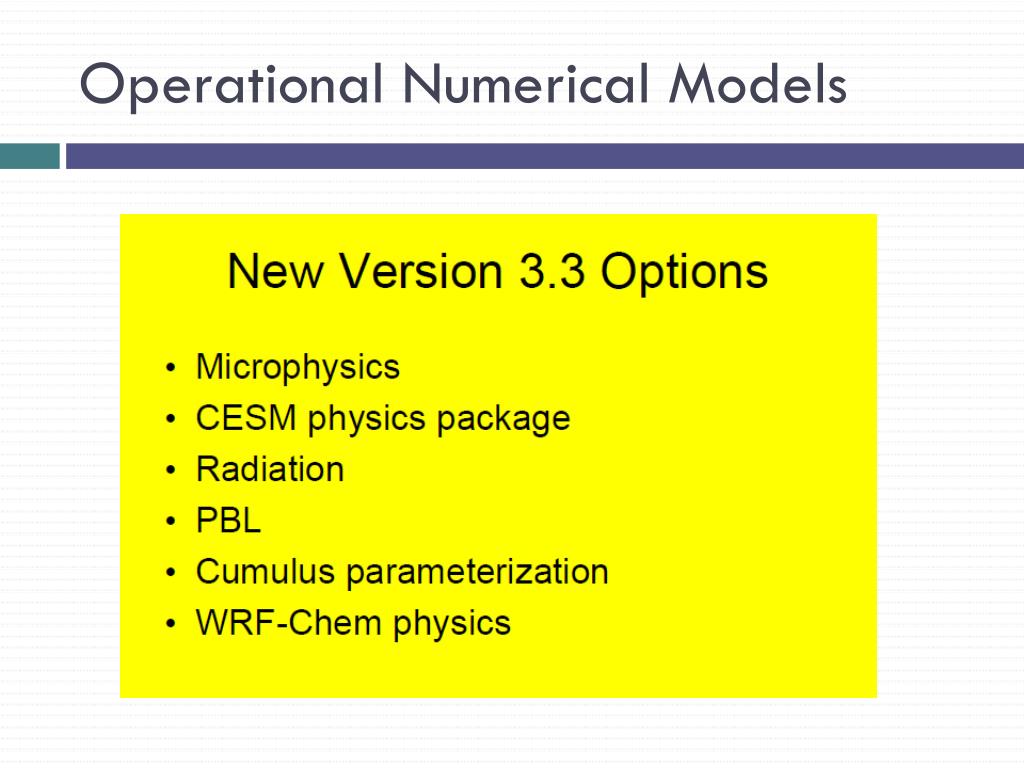

  7. Operational Numerical Models

  8. Operational Numerical Models

  9. Operational Numerical Models

  10. Operational Numerical Models

  11. Operational Numerical Models

  12. Operational Numerical Models

  13. Operational Numerical Models

  14. Operational Numerical Models

  15. Operational Numerical Models

  16. Operational Numerical Models

  17. Operational Numerical Models

  18. Operational Numerical Models

  19. Operational Numerical Models

  20. Operational Numerical Models

  21. Operational Numerical Models

  22. Operational Numerical Models

  23. Operational Numerical Models

  24. Operational Numerical Models

  25. HRRR summary – part 2 • High-frequency (every 1h) 3-d objective analyses over all of North America, assimilating the following types of observations: • Commercial aircraft (including moisture data from WVSS-II sensors) • Profiler related • Wind profilers (404 and boundary-layer 915 MHz) • VAD (velocity-azimuth display) winds from NWS WSR-88D radars • RASS (Radio Acoustic Sounding System) • Rawinsondes and special dropwinsondes • Radar reflectivity (3-d) • Surface • Surface reporting stations and buoys (including cloud, visibility, current weather) • Mesonet (defer to RAP version 2) • Satellite • AMSU-A/B satellite radiances • GOES satellite radiances (defer to RAP version 2) • GPS total precipitable water estimates • GOES cloud-top data (pressure and temperature) • GOES high-density visible and IR cloud drift winds • Experimental • Lightning - defer to RAPv2 (used in ESRL RAP since Jan 2012) • Special wind-energy observations - defer to RAPv2 (used in ESRL RAP)

  26. Conclusion • RUC will be replaced with the RR in late May, 2012 • HRRR can be found at: http://rapidrefresh.noaa.gov/hrrrconus/ • NAM-NMMB can be found at: • http://www.emc.ncep.noaa.gov/mmb/mpyle/cent4km/conus/bgrid/ (implemented – Oct 18, 2011) • NAM-DNG will be a downscaled version of NAM(B) to 2.5 km (will be run to 60 hrs) (Nov-early Dec) • RTMA was downscaled to 2.5 km on Oct 4 12z
