An introduction to issues in environmental geology of oil shale and tar sands

An INTRODUCTION TO ISSUES IN ENVIRONMENTAL GEOLOGY OF OIL SHALE AND TAR Sands

Jeremy Boak, Colorado School of Mines

Justin Birdwell, U. S. Geological Survey

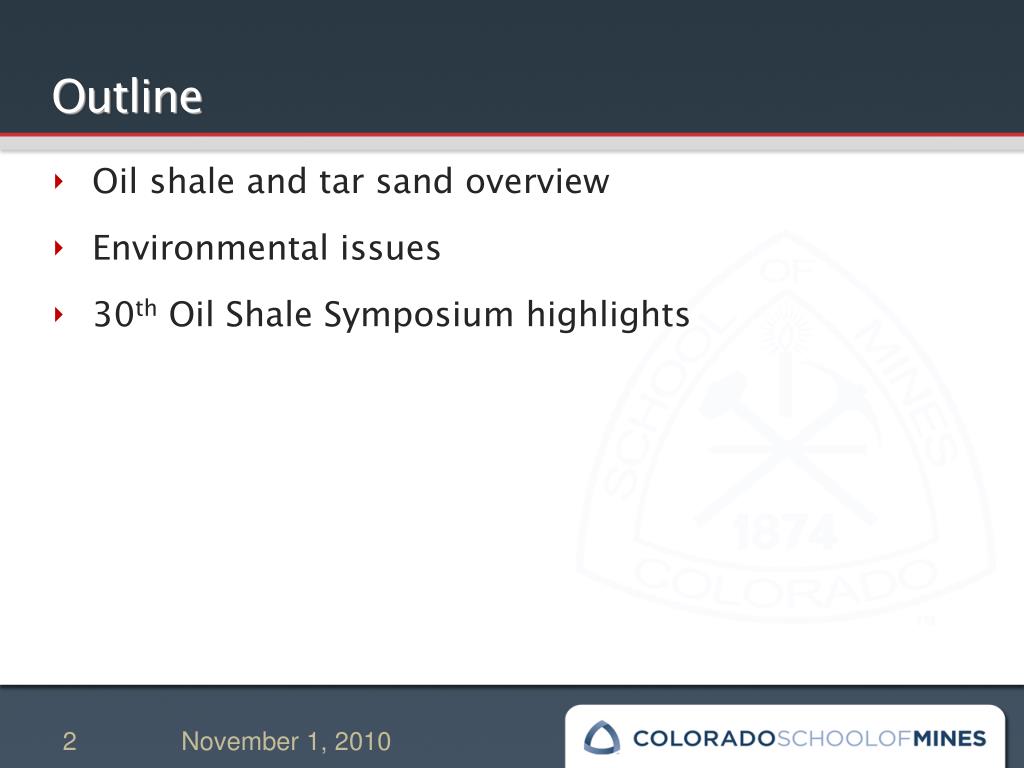

Outline
Outline SHALE AND TAR Sands

  • Oil shale and tar sand overview

  • Environmental issues

  • 30th Oil Shale Symposium highlights

2

November 1, 2010

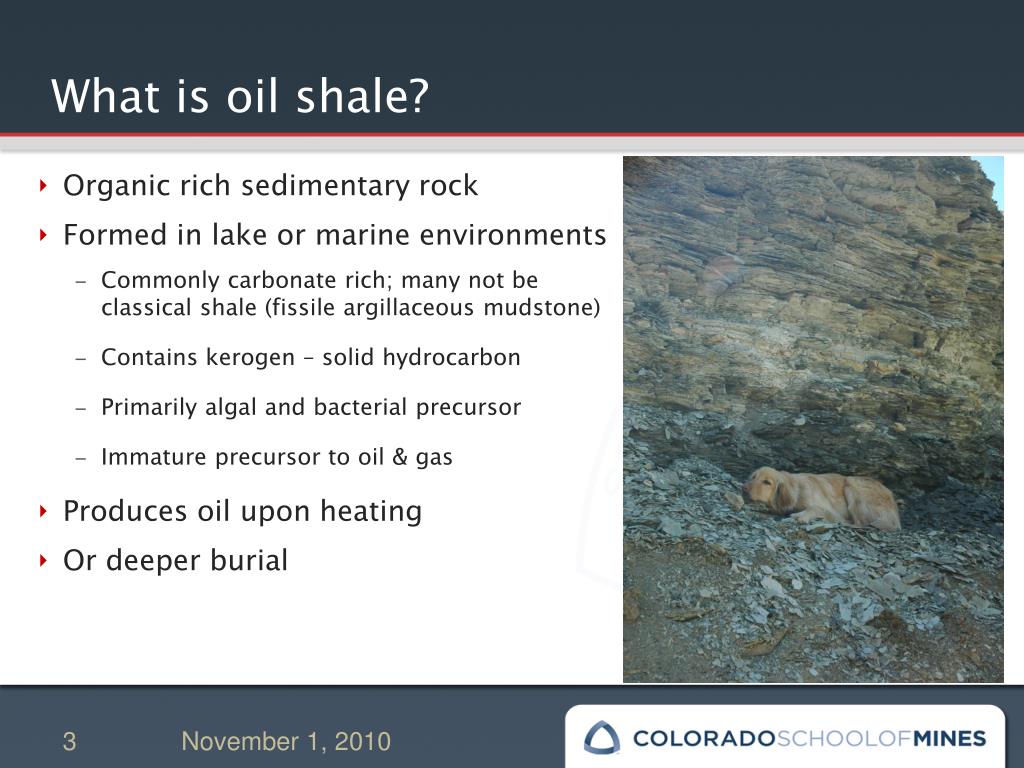

What is oil shale
What is oil shale? SHALE AND TAR Sands

  • Organic rich sedimentary rock

  • Formed in lake or marine environments

    • Commonly carbonate rich; many not be classical shale (fissile argillaceous mudstone)

    • Contains kerogen – solid hydrocarbon

    • Primarily algal and bacterial precursor

    • Immature precursor to oil & gas

  • Produces oil upon heating

  • Or deeper burial

3

November 1, 2010

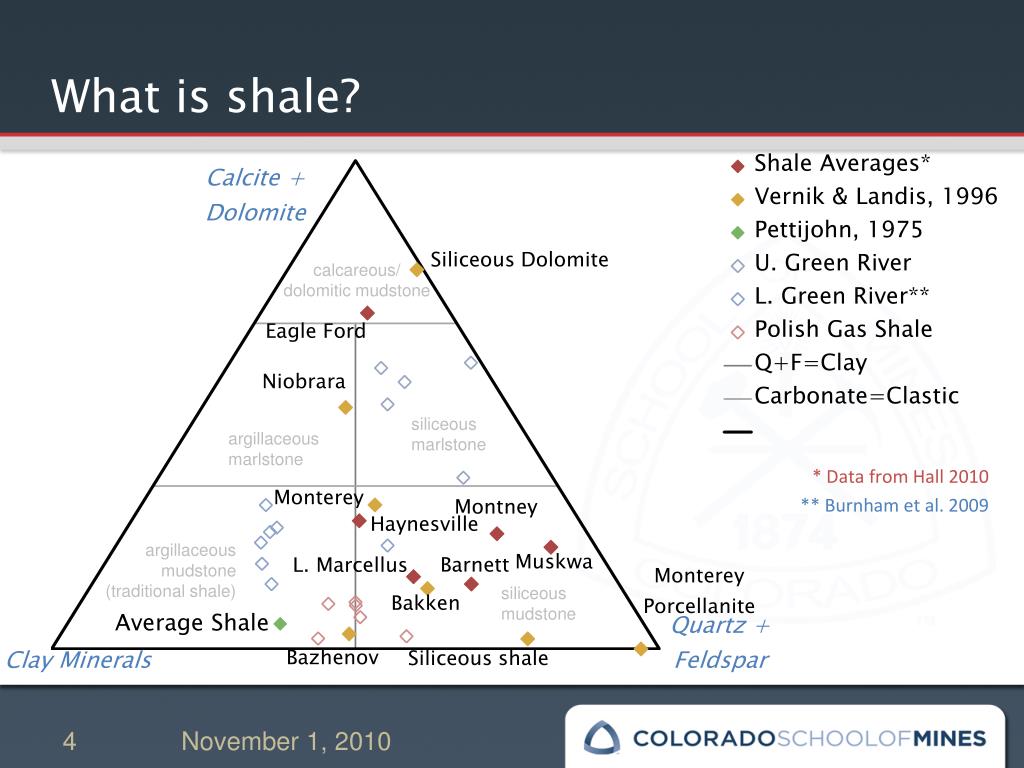

What is shale
What is shale? SHALE AND TAR Sands

4

November 1, 2010

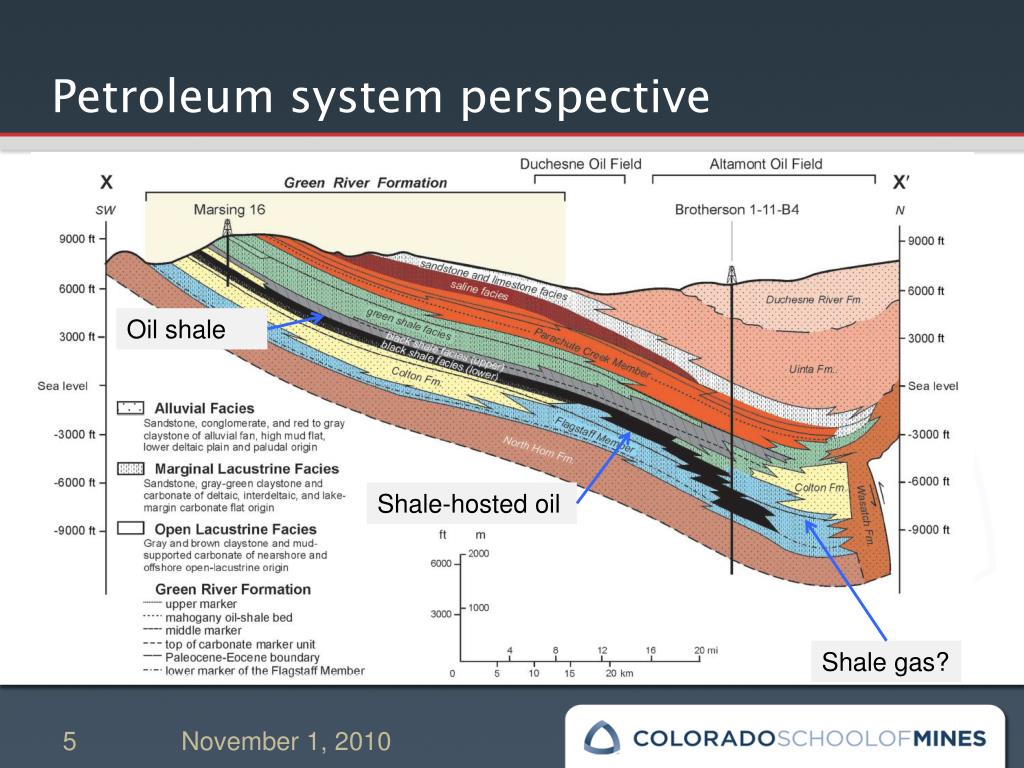

Petroleum system perspective
Petroleum system perspective SHALE AND TAR Sands

Oil shale

Shale-hosted oil

Shale gas?

5

November 1, 2010


Oil shale resource estimates
Oil shale resource estimates SHALE AND TAR Sands

6

November 1, 2010

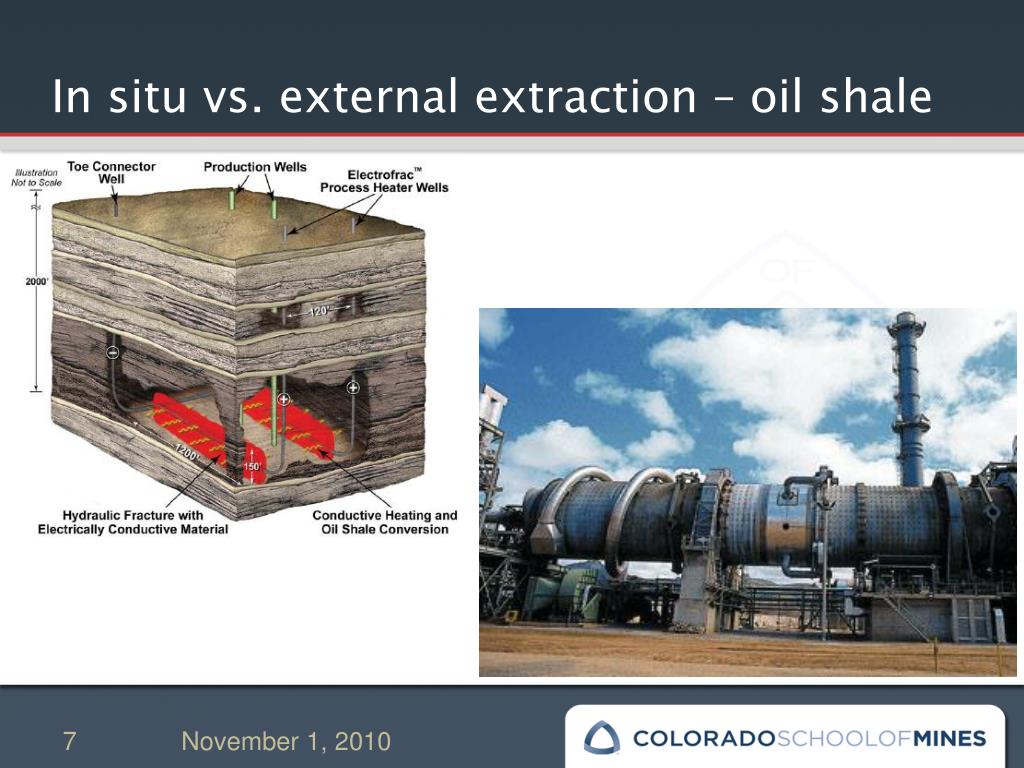

In situ vs external extraction oil shale
In situ vs. external extraction – oil shale SHALE AND TAR Sands

7

November 1, 2010

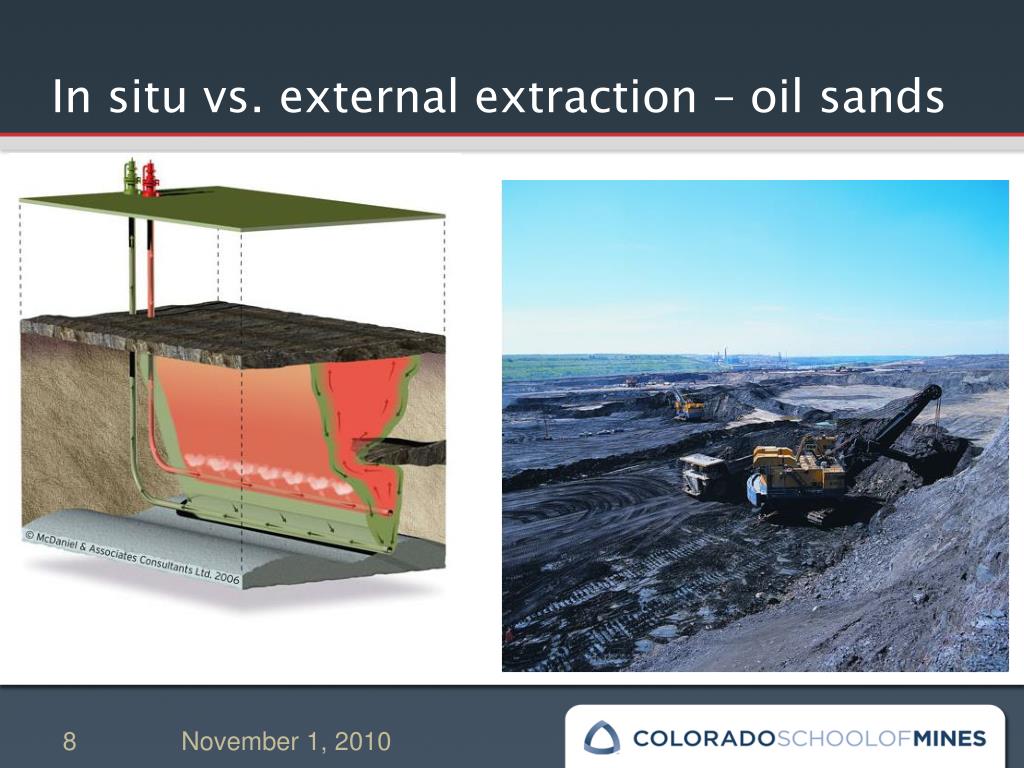

In situ vs external extraction oil sands
In situ vs. external extraction – oil sands SHALE AND TAR Sands

8

November 1, 2010


Environmental issues for oil shale tar sand
Environmental issues for oil shale & tar sand SHALE AND TAR Sands

  • Novel versions and combinations of familiar problems

  • Consumption of water

  • Potential contamination of water & atmosphere

  • Challenges to habitat and range

  • Interactions of ground water, surface water, soil, rock, air and ecosystem create a linked system

    • Exciting challenge to the research community to define & execute

    • Challenge to communicate research results & implications effectively

    • In a politically charged environment

9

November 1, 2010

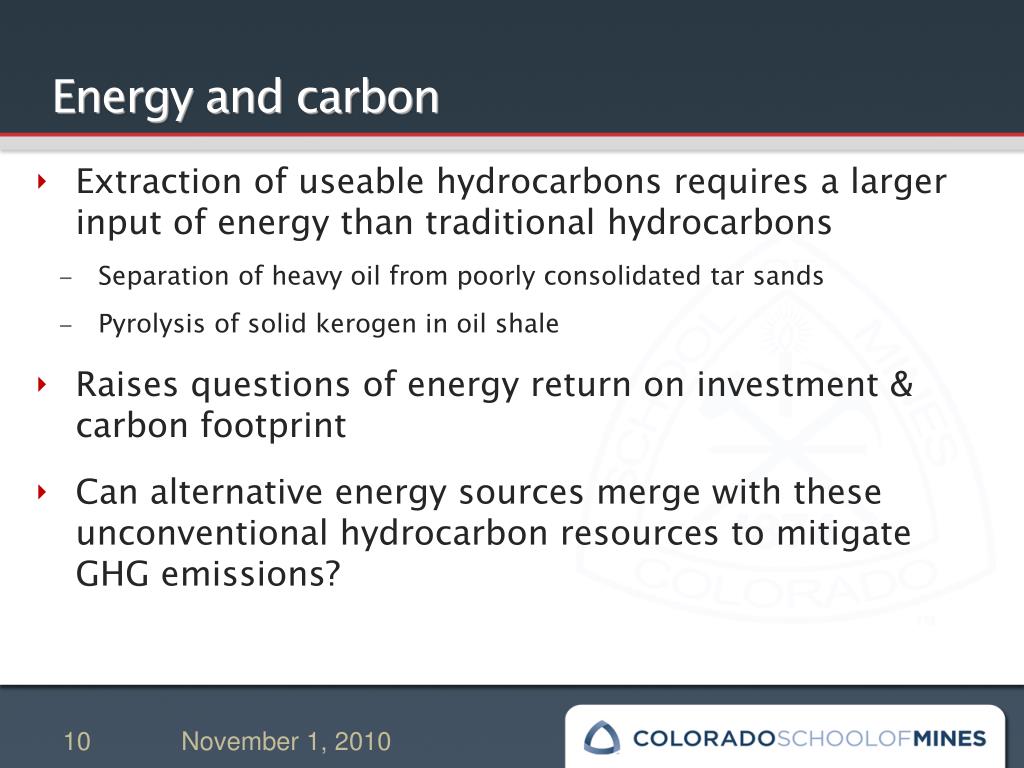

Energy and carbon
Energy and carbon SHALE AND TAR Sands

  • Extraction of useable hydrocarbons requires a larger input of energy than traditional hydrocarbons

    • Separation of heavy oil from poorly consolidated tar sands

    • Pyrolysis of solid kerogen in oil shale

  • Raises questions of energy return on investment & carbon footprint

  • Can alternative energy sources merge with these unconventional hydrocarbon resources to mitigate GHG emissions?

10

November 1, 2010

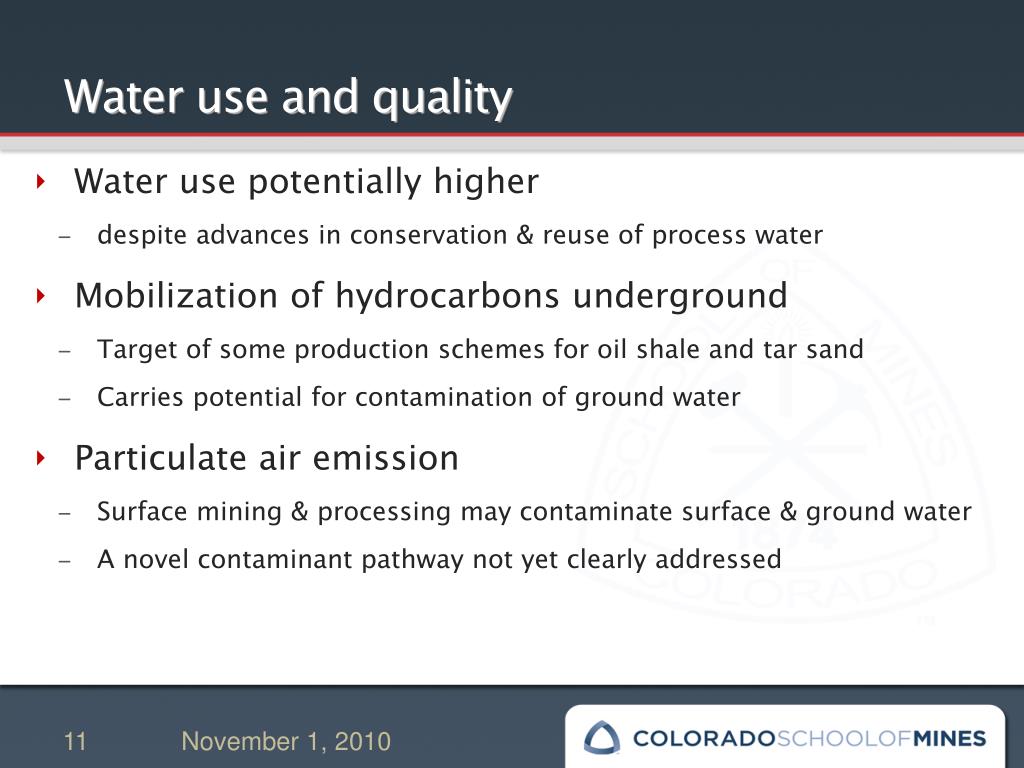

Water use and quality
Water use and quality SHALE AND TAR Sands

  • Water use potentially higher

    • despite advances in conservation & reuse of process water

  • Mobilization of hydrocarbons underground

    • Target of some production schemes for oil shale and tar sand

    • Carries potential for contamination of ground water

  • Particulate air emission

    • Surface mining & processing may contaminate surface & ground water

    • A novel contaminant pathway not yet clearly addressed

11

November 1, 2010


Land and ecosystem issues
Land and ecosystem issues SHALE AND TAR Sands

  • Large areal extent of both types of resources

  • How to manage land to preserve ecosystems where these resources exist

  • Migration corridors of significant concern

  • High areal density of oil shale may mitigate concern

  • Disposition of spent materials

12

November 1, 2010

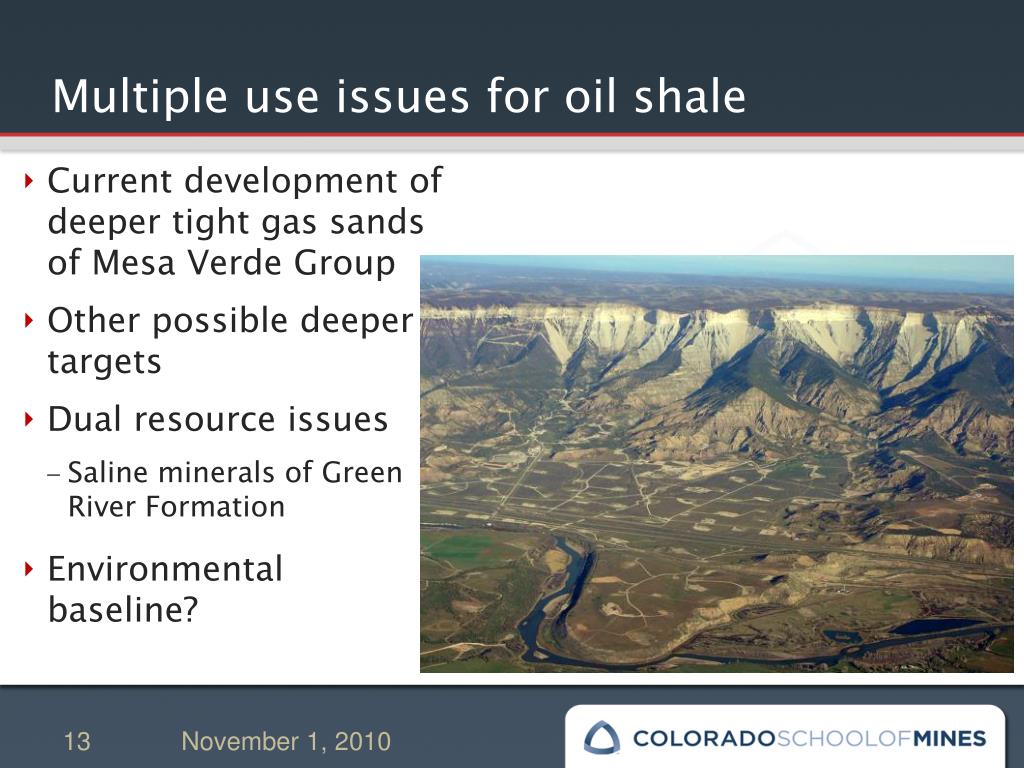

Multiple use issues for oil shale
Multiple use issues for oil shale SHALE AND TAR Sands

  • Current development of deeper tight gas sands of Mesa Verde Group

  • Other possible deeper targets

  • Dual resource issues

    • Saline minerals of Green River Formation

  • Environmental baseline?

13

November 1, 2010


Oil shale symposium environmental themes
Oil Shale Symposium environmental themes SHALE AND TAR Sands

  • Water consumption

  • Groundwater contamination

  • Water systems evaluation

  • Climate change impacts on water supply

  • CO2 emissions from oil shale production

  • Reuse of spent shale

  • Species threats

14

November 1, 2010
