Presentation Transcript
check digit mod 11

Check Digit - Mod 11

Please use speaker notes for additional information!

slide2

Mod 11

Find the check digit for 2530618:

2 5 3 0 6 1 8 digits

x8x7x6x5x4x3x2 multiply by weight

16 + 35 + 18 + 0 + 24 + 3 + 16 = 112

10 remainder 2

11)112

11 - 2 = 9

Number with check digit 25306189

slide3

Mod 11

Validate the check digit for 25306189:

2 5 3 0 6 1 8 9 digits

x8x7x6x5x4x3x2x1 multiply by weight

16 + 35 + 18 + 0 + 24 + 3 + 16 + 9 = 121

11

11)121

Remainder is 0

When the remainder is 0, we know the number with the check digit is valid!

Number with check digit 25306189

slide4

Mod 11

IDENTIFICATION DIVISION.

PROGRAM-ID. MOD11CHK.

AUTHOR. GROCER.

ENVIRONMENT DIVISION.

INPUT-OUTPUT SECTION.

FILE-CONTROL.

DATA DIVISION.

WORKING-STORAGE SECTION.

01 ID-NUM.

05 DGT PIC 9 OCCURS 7 TIMES.

05 CHK-DGT PIC 9.

05 RDF-CHK-DGT REDEFINES CHK-DGT PIC X.

01 RDF-ID-NUM REDEFINES ID-NUM PIC X(8).

01 SUBSCRIPTZ.

05 SUB-DGT PIC 9 VALUE 1.

01 RESPONSEZ.

05 MENU-ANS PIC X VALUE SPACES.

05 RESPNSE PIC X VALUE SPACES.

05 MSG PIC X(29) VALUE SPACES.

01 WORK-ANS.

05 WT PIC 9 VALUE 8.

05 MULT-ANS PIC 99 VALUE 0.

05 SUM-DGTS PIC 999 VALUE 0.

05 DIVIDE-ANS PIC 99 VALUE 0.

05 REM-ANS PIC 99 VALUE 0.

05 SUBT-ANS PIC 99 VALUE 0.

CHK-DGT must be redefined as a character field to accommodate the X that might be there.

I have defined the number in WS as having 7 digits. I have then added the 8th digit which is the check digit and redefined it. I have then redefined the whole so I can move the entire number with the check digit even if the check digit is X.

These are the work areas that I have set up to do the calculation. Note that WT which stands for weight starts with an initial value of 8. This will need to be reset if I am calculated multiple check digits.

slide5

Mod11

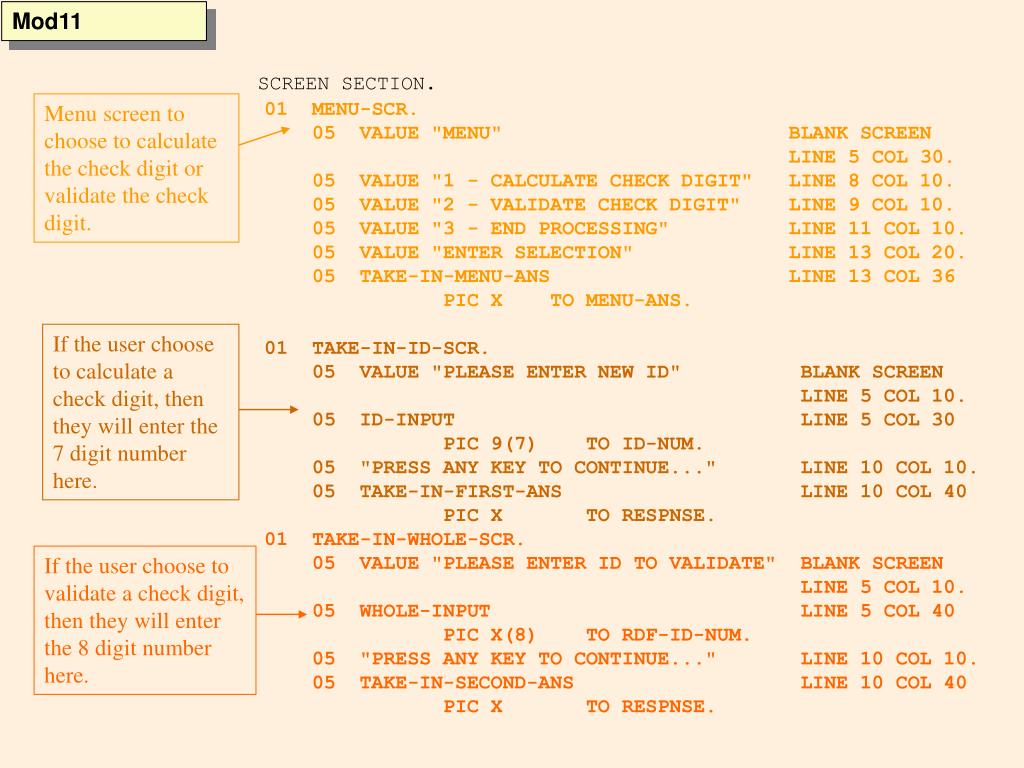

SCREEN SECTION.

01 MENU-SCR.

05 VALUE "MENU" BLANK SCREEN

LINE 5 COL 30.

05 VALUE "1 - CALCULATE CHECK DIGIT" LINE 8 COL 10.

05 VALUE "2 - VALIDATE CHECK DIGIT" LINE 9 COL 10.

05 VALUE "3 - END PROCESSING" LINE 11 COL 10.

05 VALUE "ENTER SELECTION" LINE 13 COL 20.

05 TAKE-IN-MENU-ANS LINE 13 COL 36

PIC X TO MENU-ANS.

01 TAKE-IN-ID-SCR.

05 VALUE "PLEASE ENTER NEW ID" BLANK SCREEN

LINE 5 COL 10.

05 ID-INPUT LINE 5 COL 30

PIC 9(7) TO ID-NUM.

05 "PRESS ANY KEY TO CONTINUE..." LINE 10 COL 10.

05 TAKE-IN-FIRST-ANS LINE 10 COL 40

PIC X TO RESPNSE.

01 TAKE-IN-WHOLE-SCR.

05 VALUE "PLEASE ENTER ID TO VALIDATE" BLANK SCREEN

LINE 5 COL 10.

05 WHOLE-INPUT LINE 5 COL 40

PIC X(8) TO RDF-ID-NUM.

05 "PRESS ANY KEY TO CONTINUE..." LINE 10 COL 10.

05 TAKE-IN-SECOND-ANS LINE 10 COL 40

PIC X TO RESPNSE.

Menu screen to choose to calculate the check digit or validate the check digit.

If the user choose to calculate a check digit, then they will enter the 7 digit number here.

If the user choose to validate a check digit, then they will enter the 8 digit number here.

slide6

Mod 11

01 SHOW-RESULT-SCR.

05 VALUE "THE ID WITH CHECK DIGIT IS" BLANK SCREEN

LINE 5 COL 10.

05 COMPLETED-ID LINE 5 COL 40

PIC X(8) FROM ID-NUM.

05 MSG-AREA LINE 7 COL 20

PIC X(30) FROM MSG.

05 VALUE "PRESS ANY KEY TO CONTINUE..." LINE 10 COL 10.

05 TAKE-IN-THIRD-ANS LINE 10 COL 40

PIC X TO RESPNSE.

The results of calculating the check digit are displayed here along with the check digit.

slide7

Mod11

PROCEDURE DIVISION.

MAINLINE.

PERFORM B-100-PROCESS.

STOP RUN.

B-100-PROCESS.

DISPLAY MENU-SCR.

ACCEPT MENU-SCR.

PERFORM B-200-LOOP

UNTIL MENU-ANS = "3".

B-200-LOOP.

IF MENU-ANS = "1"

PERFORM B-300-CALC

ELSE

IF MENU-ANS = "2"

PERFORM B-310-VALIDATE.

DISPLAY MENU-SCR.

ACCEPT MENU-SCR.

Initial take-in of the choice to calculate or verify from the menu.

Checking of the menu to determine processing.

Display and accept to take in menu choices after the initializing choice.

slide8

Mod11

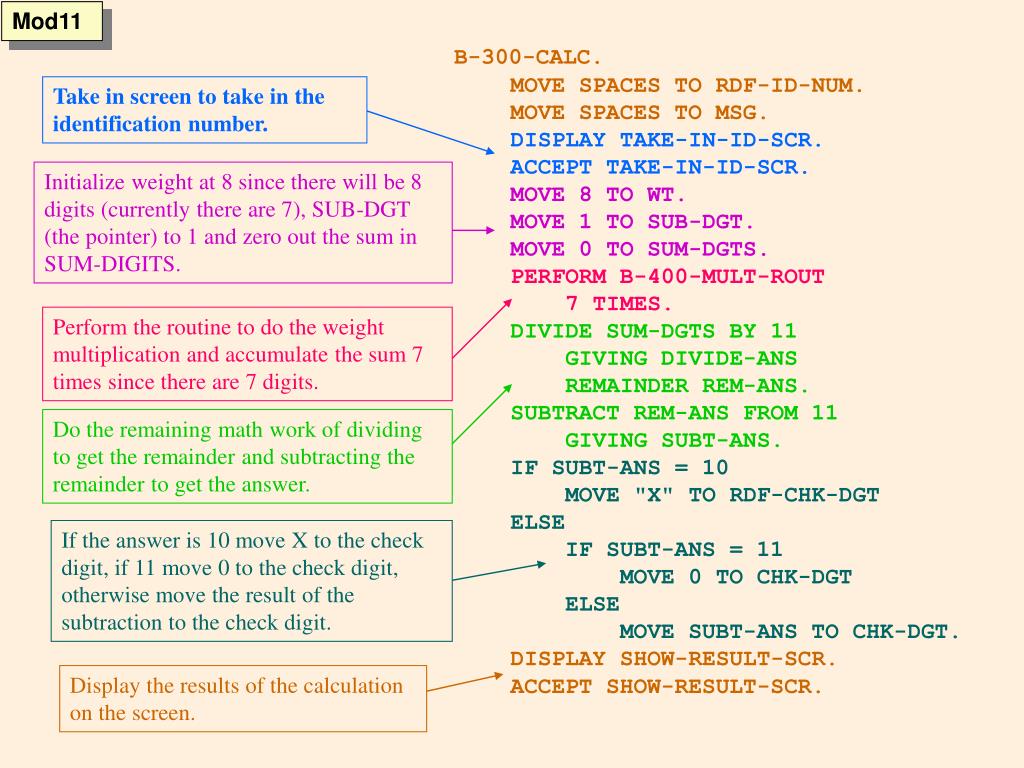

B-300-CALC.

MOVE SPACES TO RDF-ID-NUM.

MOVE SPACES TO MSG.

DISPLAY TAKE-IN-ID-SCR.

ACCEPT TAKE-IN-ID-SCR.

MOVE 8 TO WT.

MOVE 1 TO SUB-DGT.

MOVE 0 TO SUM-DGTS.

PERFORM B-400-MULT-ROUT

7 TIMES.

DIVIDE SUM-DGTS BY 11

GIVING DIVIDE-ANS

REMAINDER REM-ANS.

SUBTRACT REM-ANS FROM 11

GIVING SUBT-ANS.

IF SUBT-ANS = 10

MOVE "X" TO RDF-CHK-DGT

ELSE

IF SUBT-ANS = 11

MOVE 0 TO CHK-DGT

ELSE

MOVE SUBT-ANS TO CHK-DGT.

DISPLAY SHOW-RESULT-SCR.

ACCEPT SHOW-RESULT-SCR.

Take in screen to take in the identification number.

Initialize weight at 8 since there will be 8 digits (currently there are 7), SUB-DGT (the pointer) to 1 and zero out the sum in SUM-DIGITS.

Perform the routine to do the weight multiplication and accumulate the sum 7 times since there are 7 digits.

Do the remaining math work of dividing to get the remainder and subtracting the remainder to get the answer.

If the answer is 10 move X to the check digit, if 11 move 0 to the check digit, otherwise move the result of the subtraction to the check digit.

Display the results of the calculation on the screen.

slide9

B-310-VALIDATE.

MOVE SPACES TO RDF-ID-NUM.

MOVE SPACES TO MSG.

DISPLAY TAKE-IN-WHOLE-SCR.

ACCEPT TAKE-IN-WHOLE-SCR.

MOVE 8 TO WT.

MOVE 1 TO SUB-DGT.

MOVE 0 TO SUM-DGTS.

PERFORM B-400-MULT-ROUT

7 TIMES.

IF RDF-CHK-DGT = "X"

ADD 10 TO SUM-DGTS

ELSE

ADD CHK-DGT TO SUM-DGTS.

DIVIDE SUM-DGTS BY 11

GIVING DIVIDE-ANS

REMAINDER REM-ANS.

IF REM-ANS > 0

MOVE "****** ERROR IN ID ******" TO MSG

ELSE

MOVE "****** VALID ID ******" TO MSG.

DISPLAY SHOW-RESULT-SCR.

ACCEPT SHOW-RESULT-SCR.

Mod 11

Take in screen to take in the whole identification number including the check digit..

If the check digit is X, 10 is added to the sum otherwise the value of the check digit is added to the sum.

Initialize weight at 8 since there are 8 digits, SUB-DGT (the pointer) to 1 and zero out the sum in SUM-DIGITS.

Perform the routine to do the weight multiplication and accumulate the sum 7 times since there are 7 digits before the check digit.

Divide the sum of all 8 digits (including the check digit by 11 and get the remainder. If the remainder is 0 then the check digit is valid.

If the remainder is greater than 0 an error message is moved to the screen. If the remainder is 0 a valid message is moved to the screen.

The screen is displayed showing the number and a message confirming validity or highlighting an error.

slide10

Mod 11

This is the routine that multiplies each digit by its weight and as each is multiplied, adds it to the total.

It than subtracts 1 from the weight to prepare for the next pass through the routine and increments the subscript by 1 to again prepare for the next pass.

B-400-MULT-ROUT.

MULTIPLY DGT (SUB-DGT) BY WT

GIVING MULT-ANS.

ADD MULT-ANS TO SUM-DGTS.

SUBTRACT 1 FROM WT.

ADD 1 TO SUB-DGT.
