achieving high performance 2d graphics with direct2d
PLAT-769T

Achieving high performance 2D graphics with Direct2D

Megha Jain

Program Manager II

Microsoft Corporation

agenda

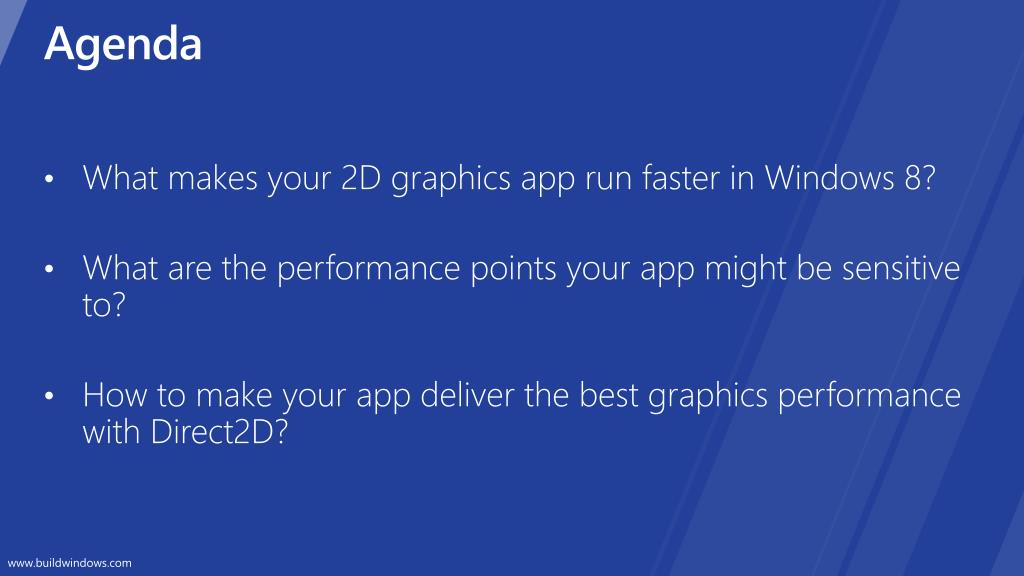

Agenda
  • What makes your 2D graphics app run faster in Windows 8?
  • What are the performance points your app might be sensitive to?
  • How to make your app deliver the best graphics performance with Direct2D?
how to
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
how to1
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
caching techniques

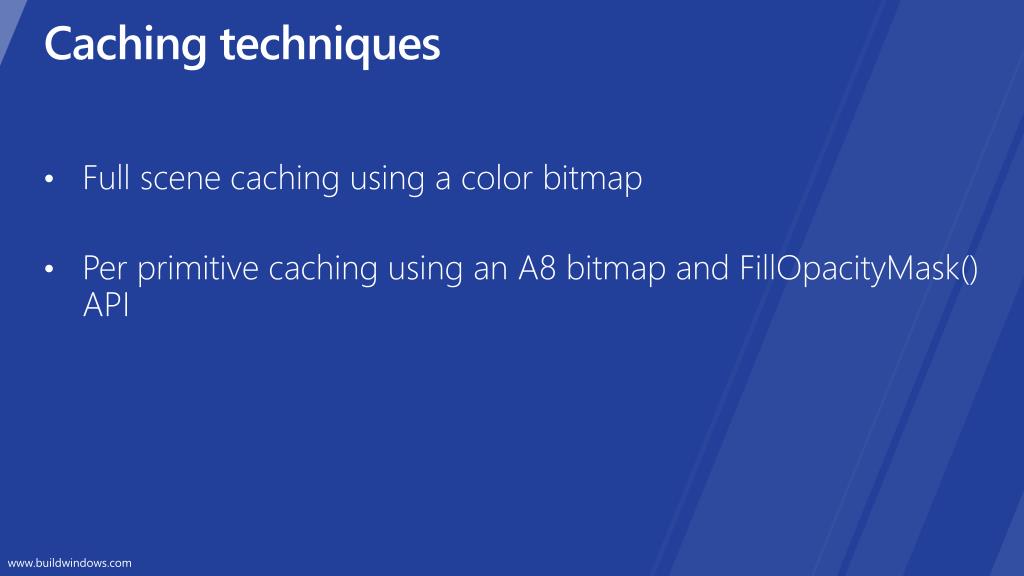

Caching techniques
  • Full scene caching using a color bitmap
  • Per primitive caching using an A8 bitmap and FillOpacityMask() API
full s cene caching
Full scene caching
  • // create a bitmap
  • m_d2dContext->CreateBitmap(size, nullptr, 0,
  • D2D1::BitmapProperties(
  • D2D1_BITMAP_OPTIONS_TARGET,
  • D2D1::PixelFormat(
  • DXGI_FORMAT_B8G8R8A8_UNORM,
  • D2D1_ALPHA_MODE_PREMULTIPLIED),
  • dpiX, dpiY),
  • &sceneBitmap);
  • // preserve pre-existing target
  • ComPtr<ID2D1Image> oldTarget;
  • m_d2dContext->GetTarget(&oldTarget);
full s cene caching1
Full scene caching
  • // render to the sceneBitmap
  • m_d2dContext->SetTarget(sceneBitmap.Get());
  • m_d2dContext->BeginDraw();
  • m_d2dContext->EndDraw();
  • // render sceneBitmap to oldTarget
  • m_d2dContext->SetTarget(oldTarget.Get());
  • m_d2dContext->DrawBitmap(sceneBitmap.Get());
per primitive caching using fillopacitymask
Per primitive caching using FillOpacityMask()
  • Reuse pre-rendered static geometry/text
  • Works for caching anti-aliased content
  • Works with changing brush types
  • Create the bitmap alpha only
per primitive caching using fillopacitymask1
Per primitive caching using FillOpacityMask()
  • // create an opacity bitmap
  • m_d2dContext->CreateBitmap(size, nullptr, 0,
  • D2D1::BitmapProperties(
  • D2D1_BITMAP_OPTIONS_TARGET,
  • D2D1::PixelFormat(
  • DXGI_FORMAT_A8_UNORM,
  • D2D1_ALPHA_MODE_PREMULTIPLIED),
  • dpiX, dpiY),
  • &opacityBitmap);
  • // preserve pre-existing target
  • ComPtr<ID2D1Image> oldTarget;
  • m_d2dContext->GetTarget(&oldTarget);
per primitive caching using fillopacitymask2

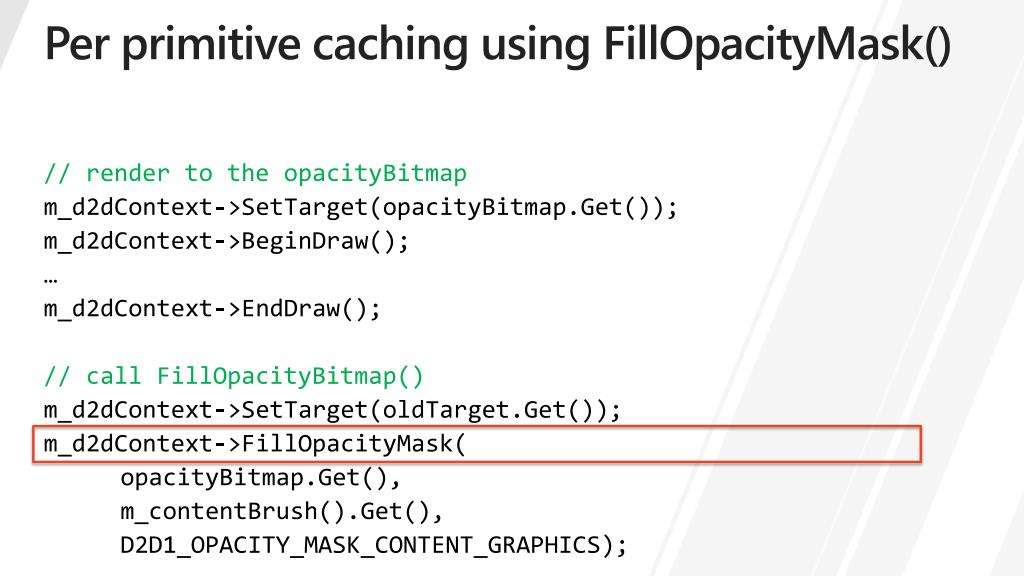

Per primitive caching using FillOpacityMask()
  • // render to the opacityBitmap
  • m_d2dContext->SetTarget(opacityBitmap.Get());
  • m_d2dContext->BeginDraw();
  • m_d2dContext->EndDraw();
  • // call FillOpacityBitmap()
  • m_d2dContext->SetTarget(oldTarget.Get());
  • m_d2dContext->FillOpacityMask(
  • opacityBitmap.Get(),
  • m_contentBrush().Get(),
  • D2D1_OPACITY_MASK_CONTENT_GRAPHICS);
handling s croll animation

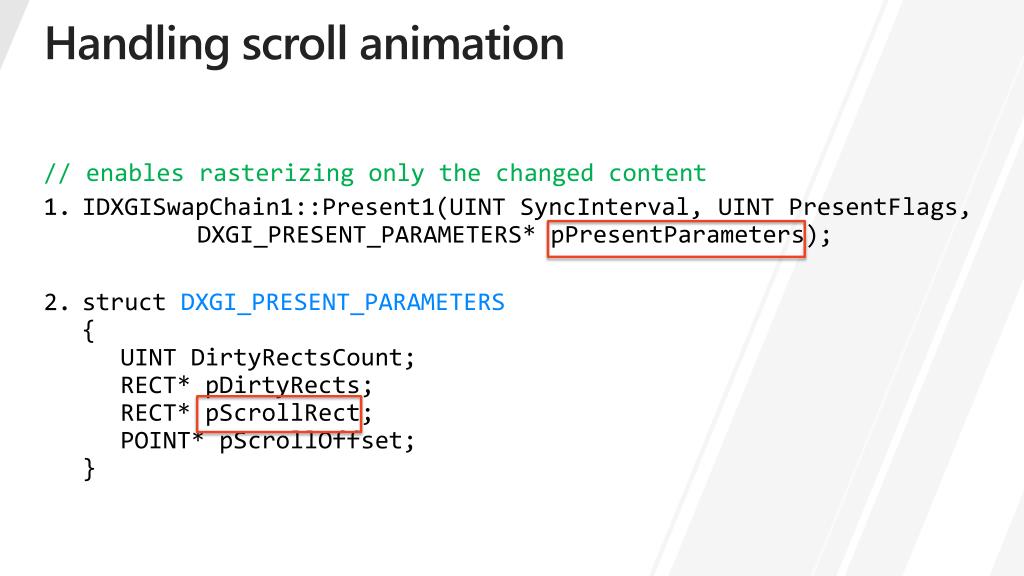

Handling scroll animation
  • // enables rasterizing only the changed content
  • IDXGISwapChain1::Present1(UINT SyncInterval, UINT PresentFlags, DXGI_PRESENT_PARAMETERS* pPresentParameters);
  • structDXGI_PRESENT_PARAMETERS{ UINT DirtyRectsCount; RECT* pDirtyRects; RECT* pScrollRect; POINT* pScrollOffset;}
printing a nd caching

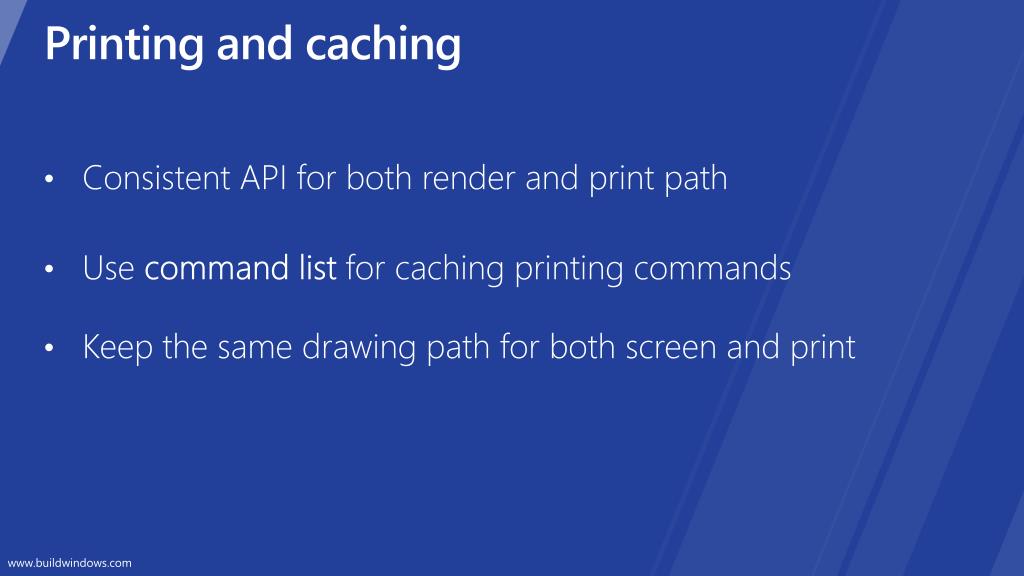

Printing and caching
  • Consistent API for both render and print path
  • Use command list for caching printing commands
  • Keep the same drawing path for both screen and print
how to2
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
clipping t o a rbitrary g eometry layers

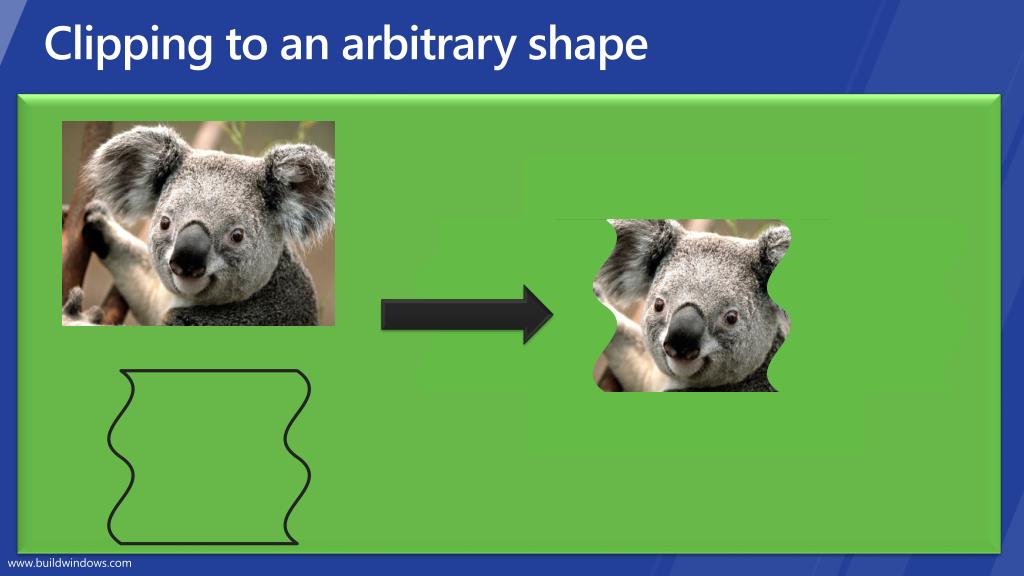

Clipping to arbitrary geometry- layers
  • // create the layer resource
  • ComPtr<ID2D1Layer> m_layer;
  • m_d2dContext->CreateLayer(&m_layer);
  • // render to the layer with the clipping geometry
  • m_d2dContext->PushLayer(
  • D2D1::LayerParameters(
  • boundsRect,
  • geometricMask),
  • m_layer.Get());
clipping t o a rbitrary geometry fillgeometry
Clipping to arbitrary geometry– FillGeometry()
  • // create opacity bitmap and render content
  • // create opacity brush from the opacity bitmap
  • // call FillGeometry() by passing in the clip geometry and the opacity brush to
  • m_d2dContext->FillGeometry(
  • clipGeometry.Get(),
  • brush.Get(),
  • opacityBrush.Get());
use id2d1layer instead of intermediate surfaces whenever possible use null layers when possible
Use ID2D1Layer instead of intermediate surfaces whenever possible.Use NULL layers when possible
how to3
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
draw t ext fast

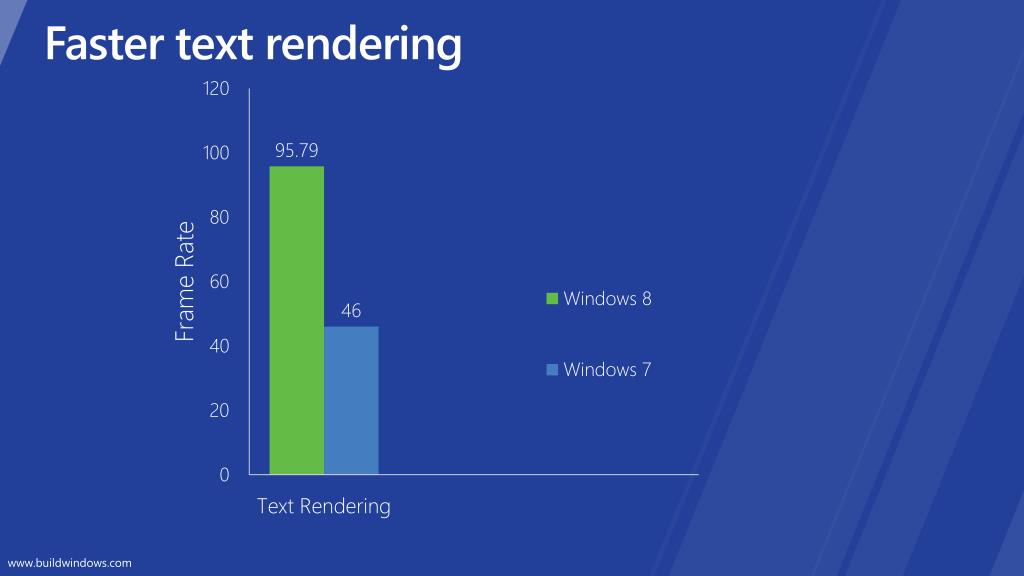

Draw text fast

Cache text layout

Explicitly set text rendering mode to grayscale

Cache text

cache t ext layout

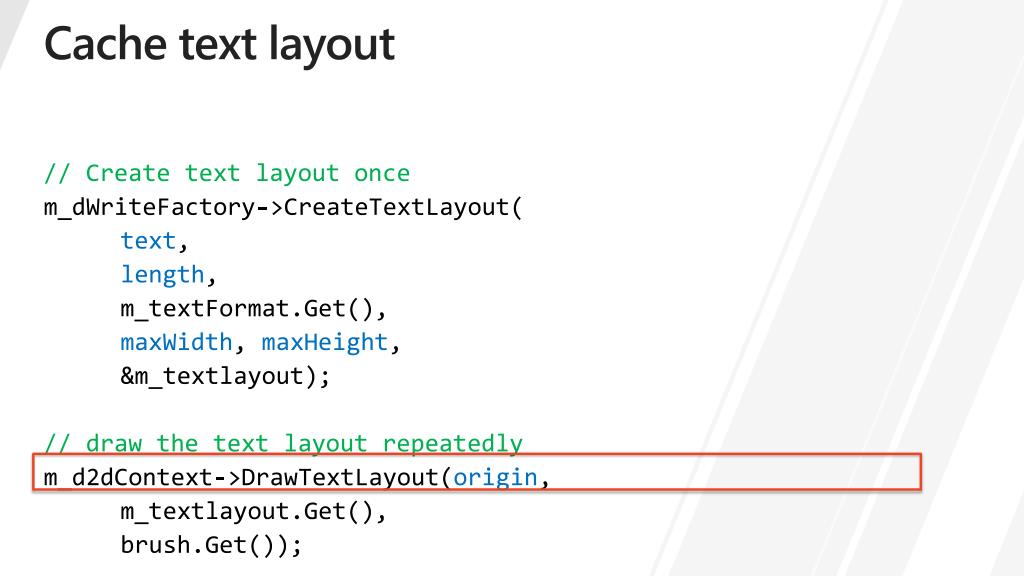

Cache text layout
  • // Create text layout once
  • m_dWriteFactory->CreateTextLayout(
  • text,
  • length,
  • m_textFormat.Get(),
  • maxWidth, maxHeight,
  • &m_textlayout);
  • // draw the text layout repeatedly
  • m_d2dContext->DrawTextLayout(origin,
  • m_textlayout.Get(),
  • brush.Get());
grayscale t ext r endering mode

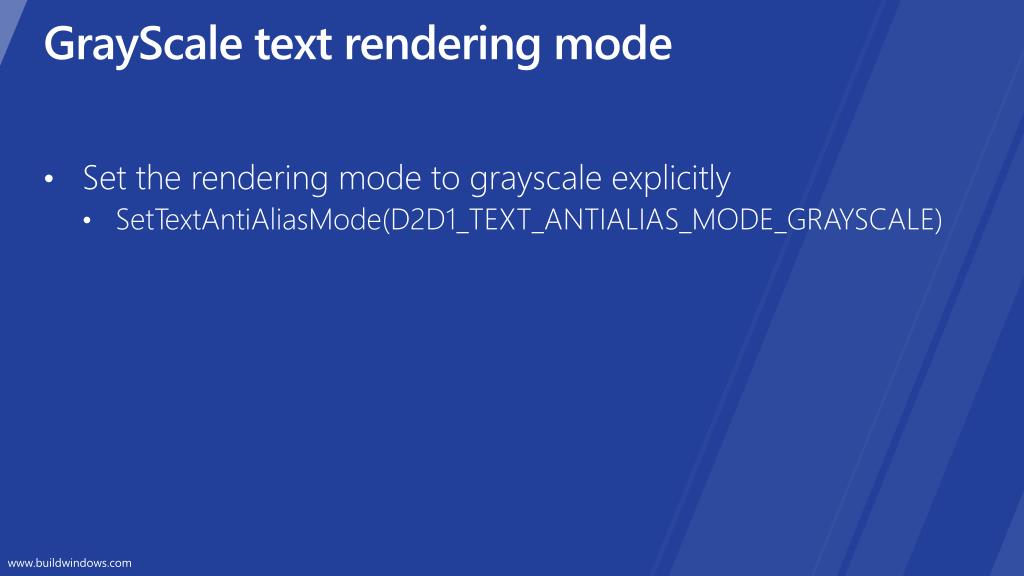

GrayScaletext rendering mode
  • Set the rendering mode to grayscale explicitly
    • SetTextAntiAliasMode(D2D1_TEXT_ANTIALIAS_MODE_GRAYSCALE)
how to4
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
render direct2d e ffects fast
Render Direct2D effects fast

Cache effect output

Group rendering of effects together

caching effect o utput

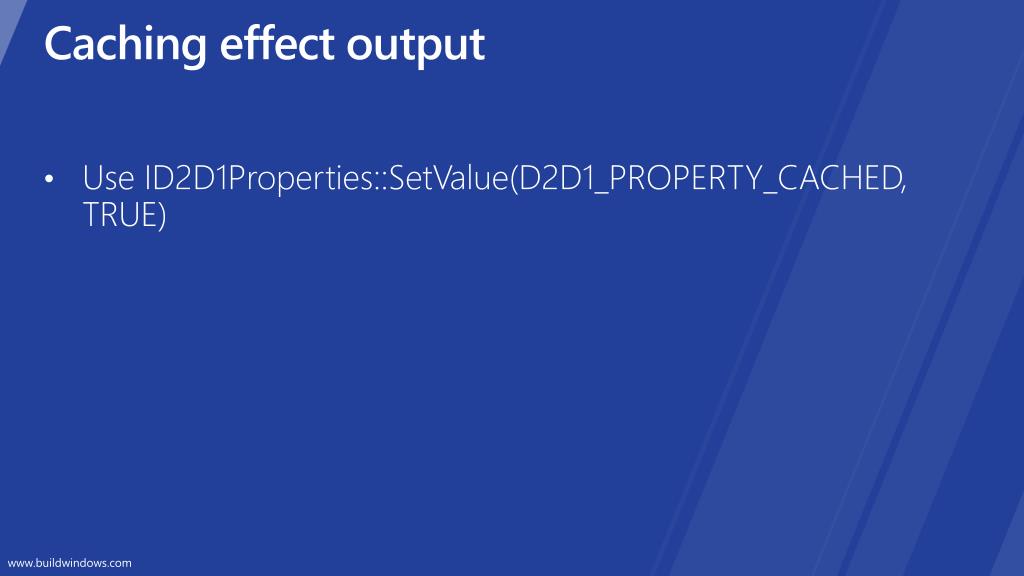

Caching effect output
  • Use ID2D1Properties::SetValue(D2D1_PROPERTY_CACHED, TRUE)
grouping effect r endering
Grouping effect rendering

Button 2

Button 1

Button 3

Button 4

render b utton text
Render button text

Button 2

Button 1

Button 3

Button 4

how to5
How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
enable multi threaded o ptimizations
Enable multi-threaded optimizations
  • m_d2dDevice->CreateDeviceContext(
  • D2D1_DEVICE_CONTEXT_OPTIONS_ENABLE_MULTITHREADED_OPTIMIZATIONS,
  • m_d2dContext);
how to6

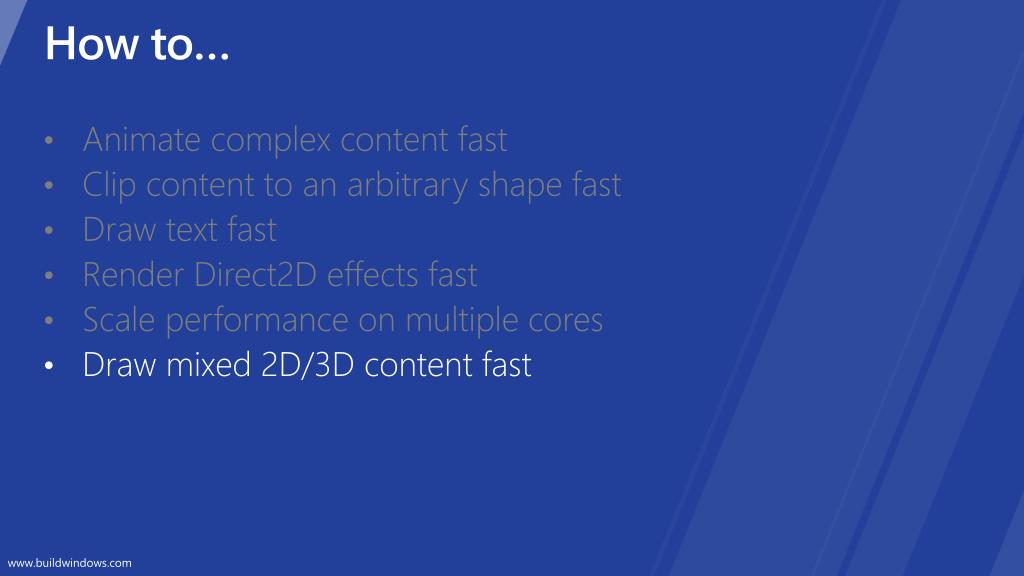

How to…
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
mixing 2d and 3d content
Mixing 2D and 3D content
  • Reduce state transitions
  • Minimize switching between 2D and 3D drawing
recap
Recap
  • Animate complex content fast
  • Clip content to an arbitrary shape fast
  • Draw text fast
  • Render Direct2D effects fast
  • Scale performance on multiple cores
  • Draw mixed 2D/3D content fast
wrap up

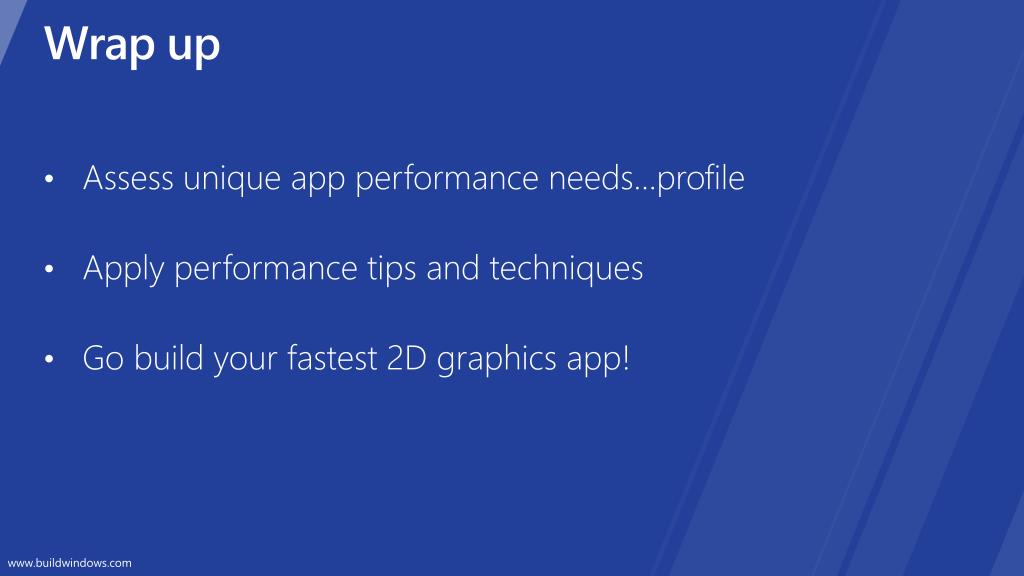

Wrap up
  • Assess unique app performance needs…profile
  • Apply performance tips and techniques
  • Go build your fastest 2D graphics app!
related sessions
Related sessions
  • [PLAT-766T] Introduction to DirectX for Metro style apps
  • [PLAT-750T] Build your first Metro style game
  • [PLAT-752T] Tuning GPU usage for any form factor
  • [PLAT-770T] Create cool image effects with Direct2D
  • [PLAT-754T] From touch to gamepads: master player input in your Metro style game
  • [SAC-217T] Graphics on the server
  • [TOOL-761T] A lap around DirectX game development tools
further reading and documentation
Further reading and documentation
  • Channel 9 PDC’10 talk: Adopting D2D and Dwrite for hardware acceleration in Native Windows Applications
  • Channel 9 PDC=09 talk: Advanced graphics functionality using DirectX
feedback and q uestions http forums dev windows com session f eedback http bldw in sessionfeedback
thank you

Feedback and questions http://forums.dev.windows.com

Session feedbackhttp://bldw.in/SessionFeedback
