  1. Coupling Constants

  2. Review of Splitting • Caused by shift due to magnetic fields of adjacent protons • We say that these protons are “coupled”

  3. Protons may be coupled to different degrees • Coupling constant • Typically 7 Hz for adjacent sp3 carbons • Tree diagram

  4. Tree diagram • Shortcut: N+1 if all protons coupled with same constant • Look at tree • Coupling constant is 7.1-7.2 Hz

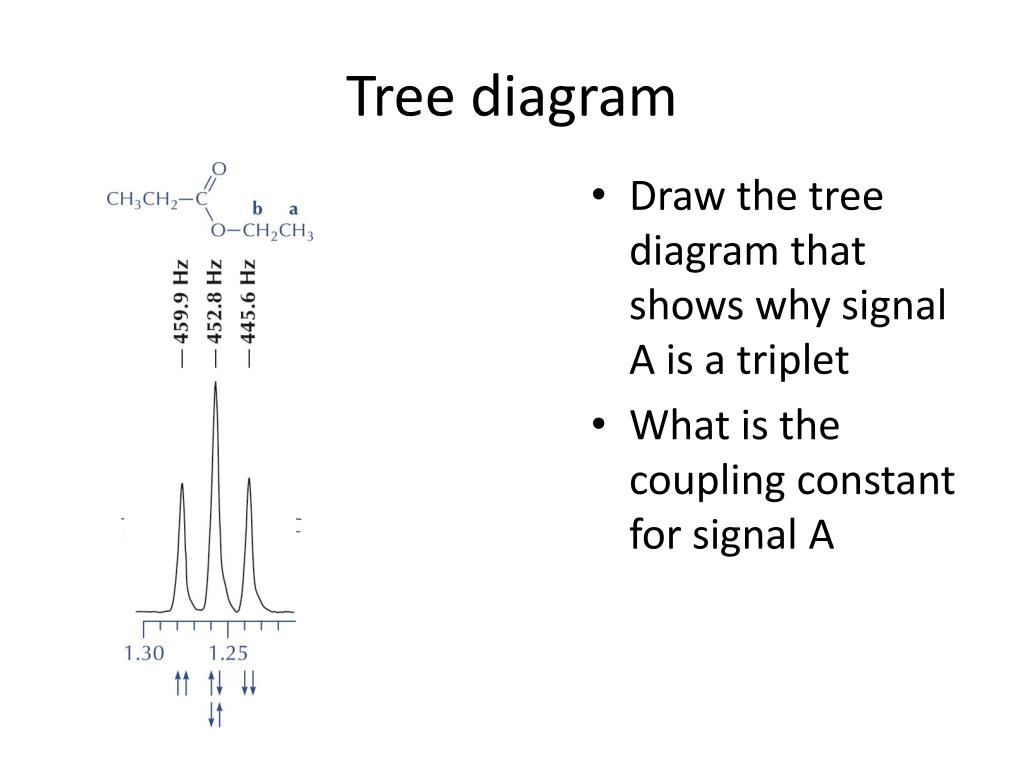

  5. Tree diagram • Draw the tree diagram that shows why signal A is a triplet • What is the coupling constant for signal A

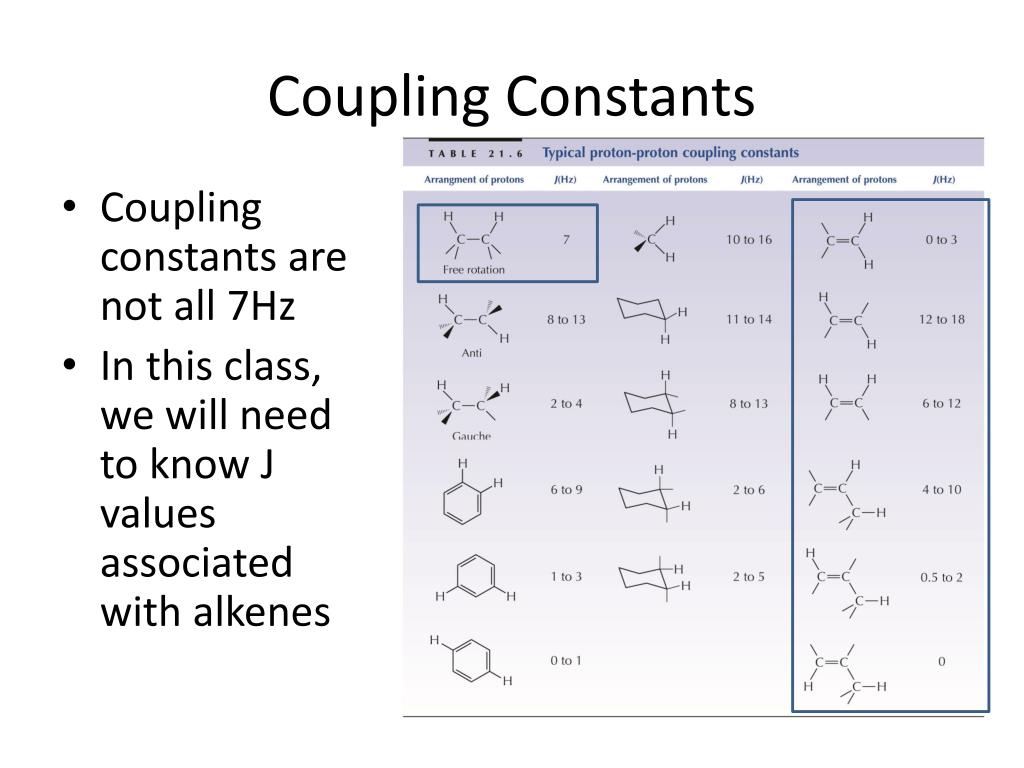

  6. Coupling Constants • Coupling constants are not all 7Hz • In this class, we will need to know J values associated with alkenes

  7. Typical Constants • Use the table to predict typical coupling constants

  8. Example: Cinnamic Acid • In lab, you made transcinnamic acid • Can the trans and cis isomers be differentiated using proton NMR? • Yes—with coupling constants

  9. 400 MHz NMR: Doublet at 6.310ppm and 6.355ppm 400 MHz NMR: Doublet at 5.925ppm and 5.950ppm Calculate the coupling constants for these doublets

  10. Spectra that are not N+1 • Consider the allylic methyl group • Coupled to two protons—but not with the same coupling constant • Not N+1 • Split into a doublet by Ha • That doublet is split into doublet by Hb • It is doublet of doublets

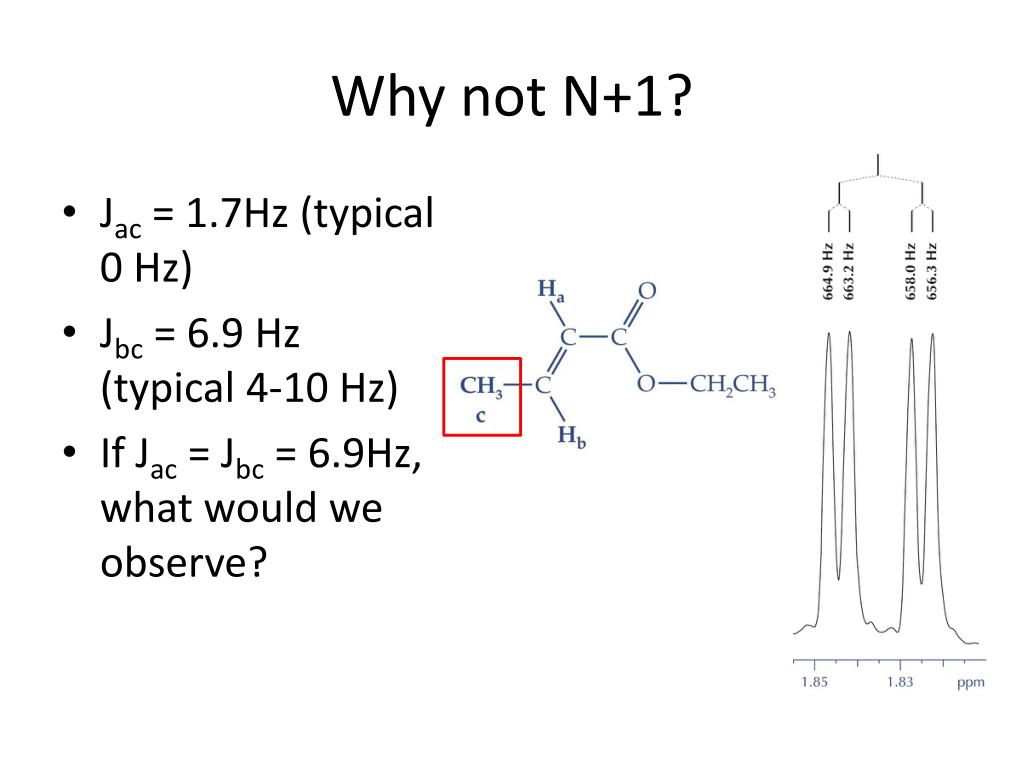

  11. Why not N+1? • Jac = 1.7Hz (typical 0 Hz) • Jbc = 6.9 Hz (typical 4-10 Hz) • If Jac = Jbc = 6.9Hz, what would we observe?

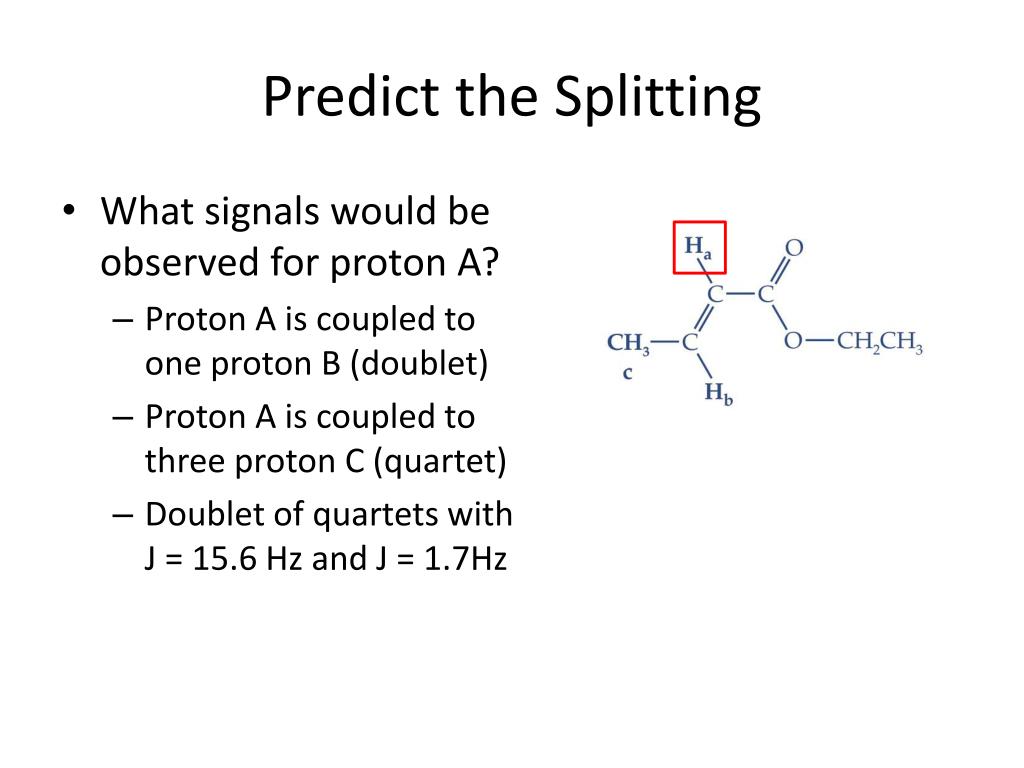

  12. Predict the Splitting • What signals would be observed for proton A? • Proton A is coupled to one proton B (doublet) • Proton A is coupled to three proton C (quartet) • Doublet of quartets with J = 15.6 Hz and J = 1.7Hz

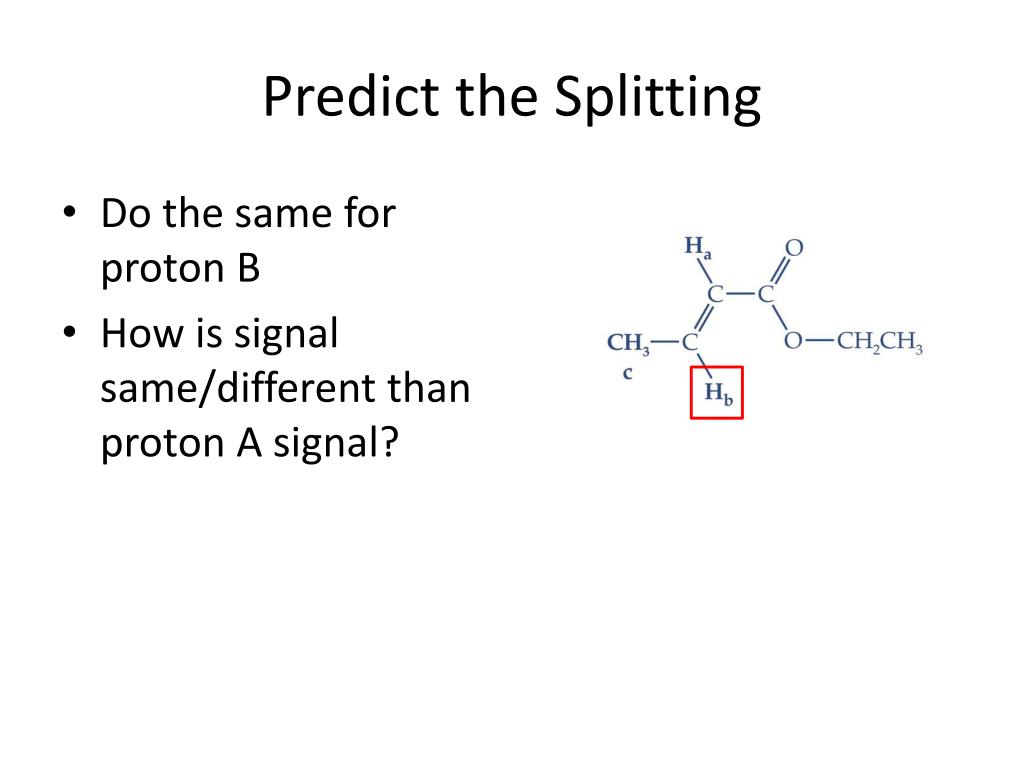

  13. Predict the Splitting • Do the same for proton B • How is signal same/different than proton A signal?

  14. Proton B • Also a doublet of quartets • But coupling constants are 15.6 and 6.9Hz

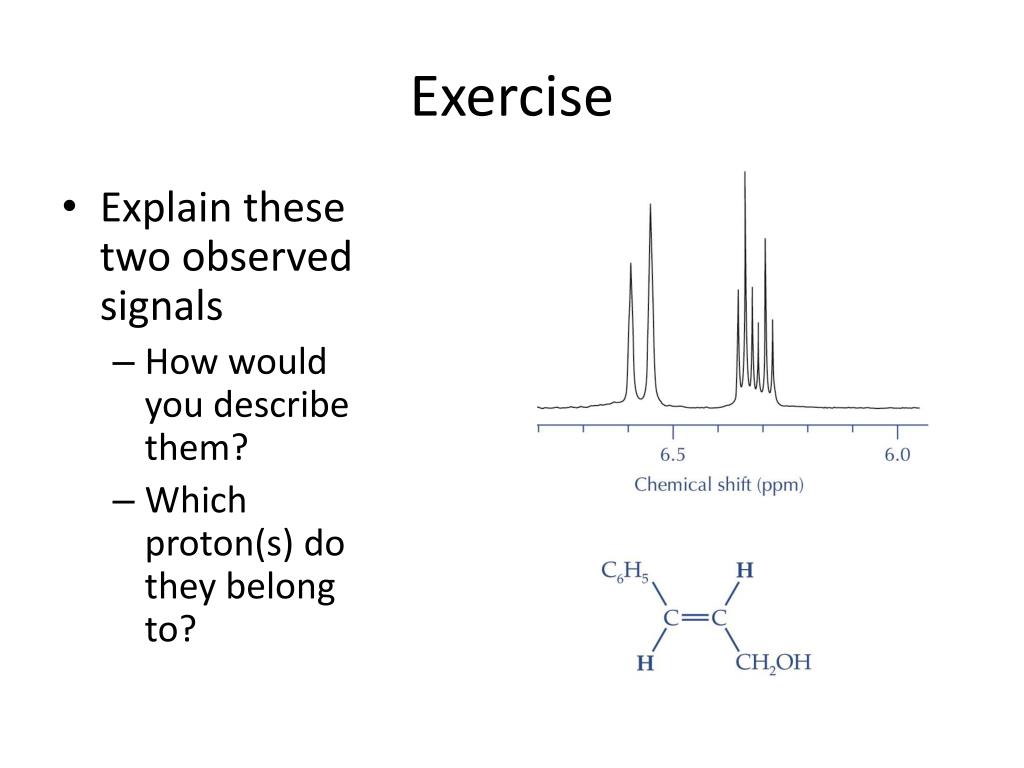

  15. Exercise • Explain these two observed signals • How would you describe them? • Which proton(s) do they belong to?

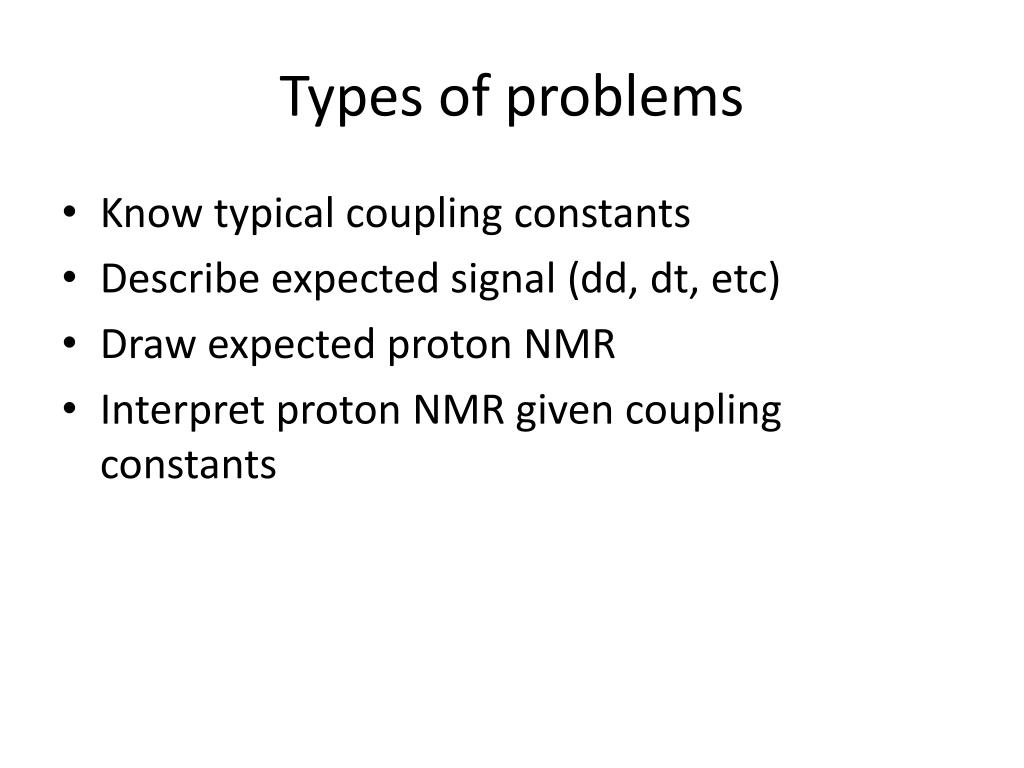

  16. Types of problems • Know typical coupling constants • Describe expected signal (dd, dt, etc) • Draw expected proton NMR • Interpret proton NMR given coupling constants

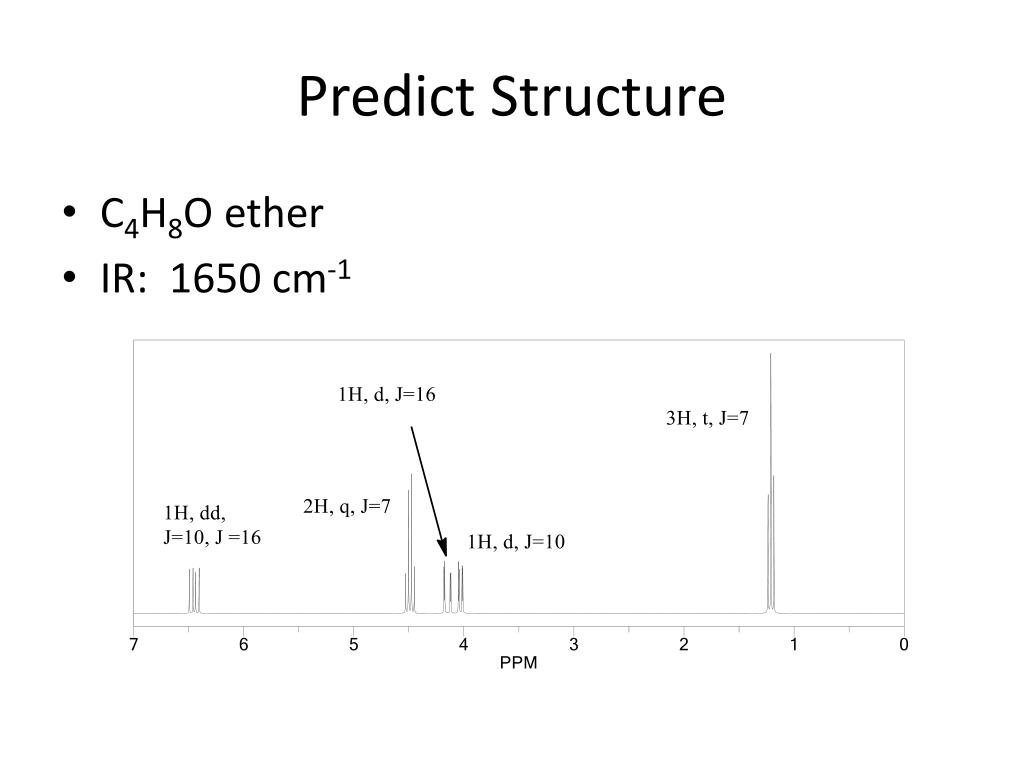

  17. Predict Structure • C4H8O ether • IR: 1650 cm-1
