system on an sfp miniature converters in an sfp module mitop pseudowire gateway

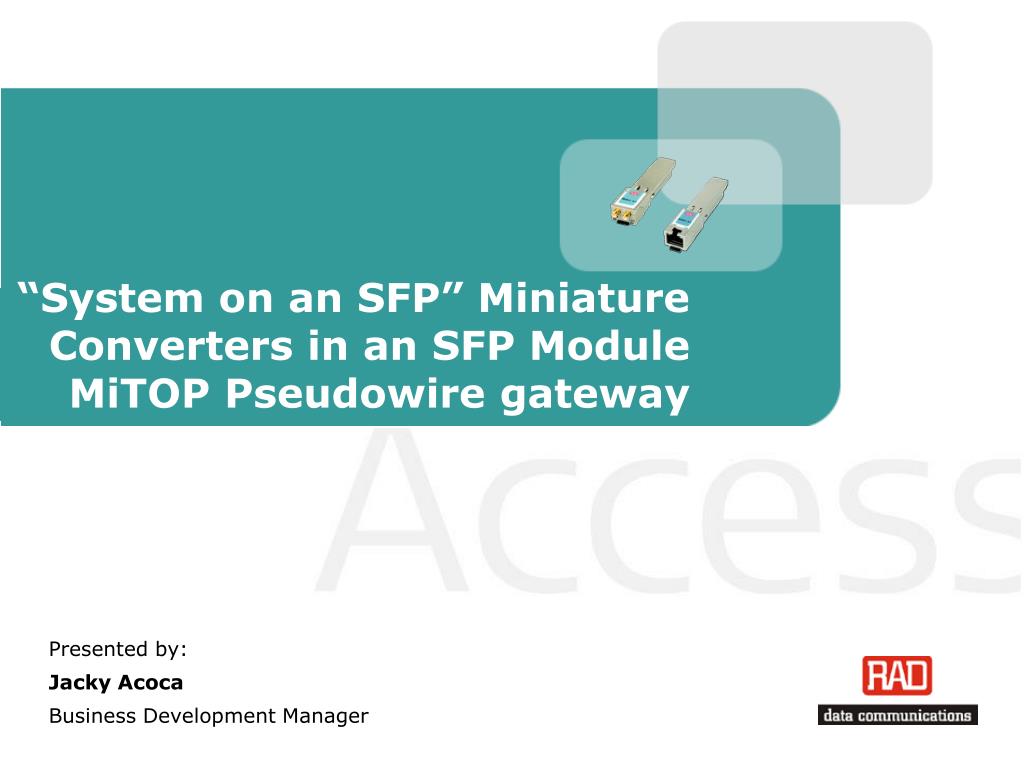

“System on an SFP” Miniature Converters in an SFP ModuleMiTOPPseudowire gateway

Presented by:

Jacky Acoca

Business Development Manager

rad s system on an sfp
RAD’s “System on an SFP”
  • System housed in standard SFP cage
  • Quick and simple way to add different interfaces to most of Ethernet devices, with MSA-compatible socket
  • Saves on space, power, cabling, and simplifies management and deployment
  • Simple, cost-effective alternative to standalone boxes
  • MiTOP-E1/T1 is a Pseudowire gateway
mitop miniature tdm over packet product features

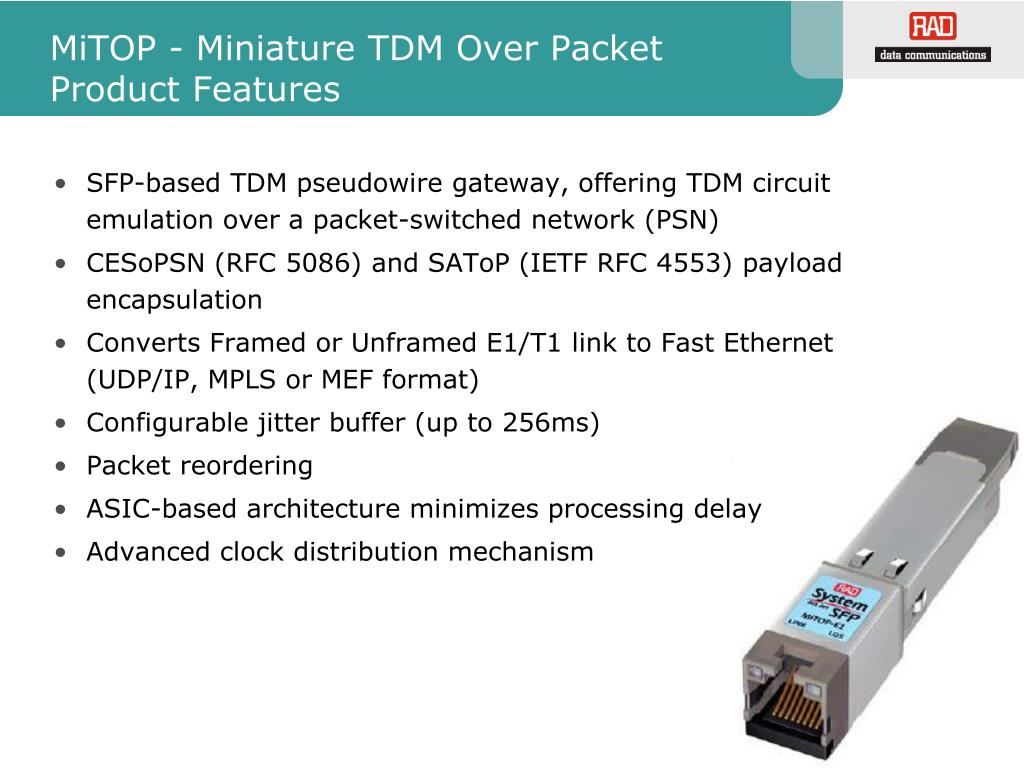

MiTOP - Miniature TDM Over Packet Product Features
  • SFP-based TDM pseudowire gateway, offering TDM circuit emulation over a packet-switched network (PSN)
  • CESoPSN (RFC 5086) and SAToP (IETF RFC 4553) payload encapsulation
  • Converts Framed or Unframed E1/T1 link to Fast Ethernet (UDP/IP, MPLS or MEF format)
  • Configurable jitter buffer (up to 256ms)
  • Packet reordering
  • ASIC-based architecture minimizes processing delay
  • Advanced clock distribution mechanism
mitop product features cont
MiTOPProduct Features Cont.

LAN connectivity

  • Done through the SFP edge connector (100BaseFX)
  • Maximum Ethernet frame length supported is 2k bytes

Flow Control and Fault propagation

  • Optional Flow control mechanism is activated when packet traffic exceeds the E1/T1 capacity (pause packets sent towards 100BaseFX port) (Could effect clock and jitter performance)
  • E1/T1 loss of signal (LOS/LOF) is propagated to LAN:
    • Sends an electrical LOS signal to the 100BaseFx port
    • Visually indicated by the LOS LED (red) turning on.
    • Automatically turns off the LAN (If feature is enabled, the Ethernet PHY will be shut down)
tdm over ethernet connectivity cutting opex and capex
TDM over Ethernet ConnectivityCutting OPEX and CAPEX

E1/T1 Extension over Packet-switched Networks

Remote Site

  • Enterprises are able to migrate their Inter site TDM traffic to a packet switched network
  • Service providers can offer leased line service over PSN
  • Continued use of existing PBX and legacy data services
  • Reduce expenses of leased lines E1/T1, voice or data

E1/T1

Ethernet Switch-router

With MiTOP

Central Site

Remote Site

n x E1/T1

Channelized T3

Channelized STM-1/OC-3

ETH

Packet

Network

E1/T1

Ethernet Switch-router

With MiTOP

Gateway

CESoPSN

ETH

Remote Site

NMS

ETH

E1/T1

Ethernet Switch-router

With MiTOP

ETH

system on sfp management options

CPU

Packet Engine

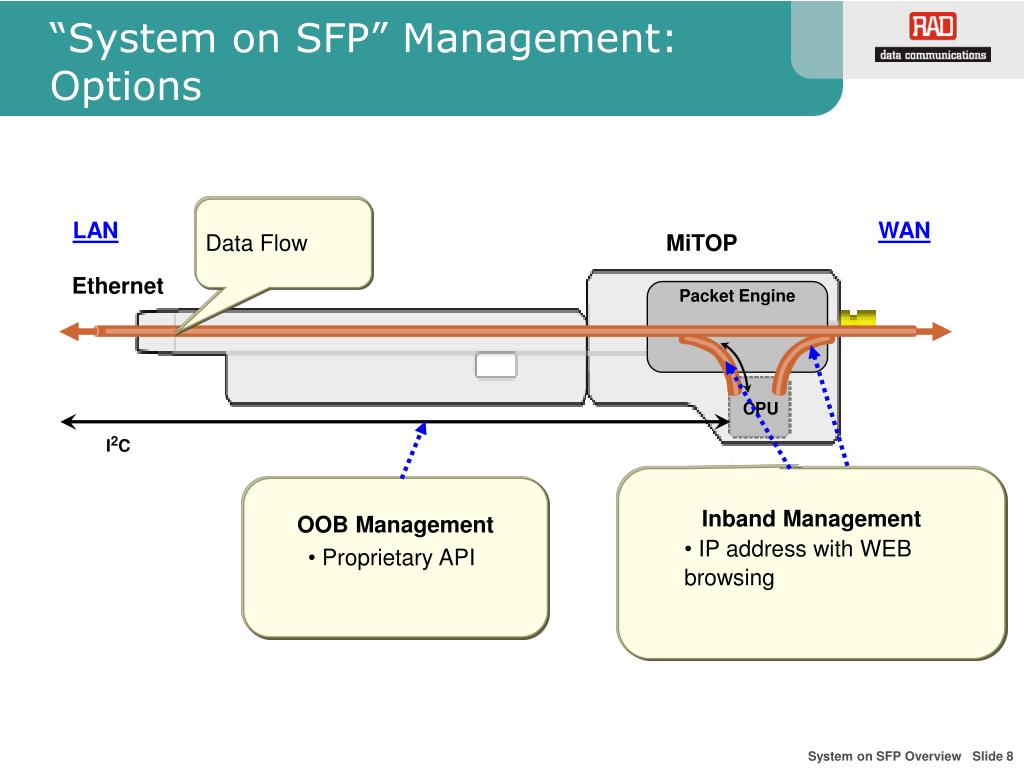

“System on SFP” Management:Options

Data Flow

LAN

WAN

MiTOP

Ethernet

I2C

  • Inband Management
    • IP address with WEB browsing
  • OOB Management
    • Proprietary API
management

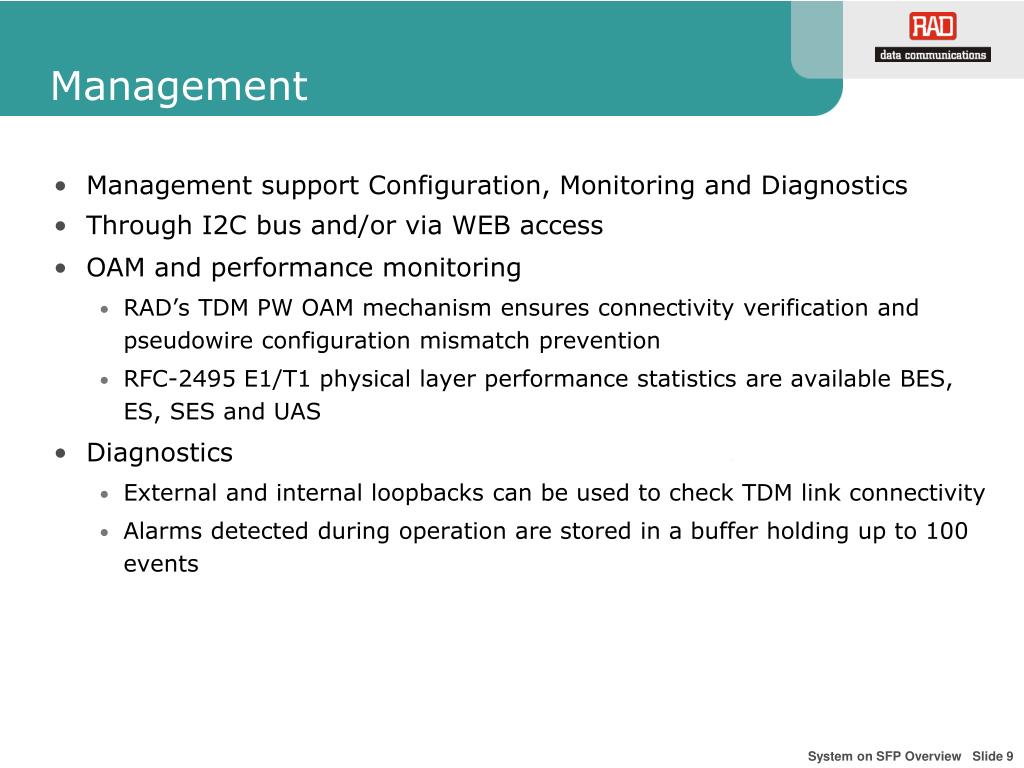

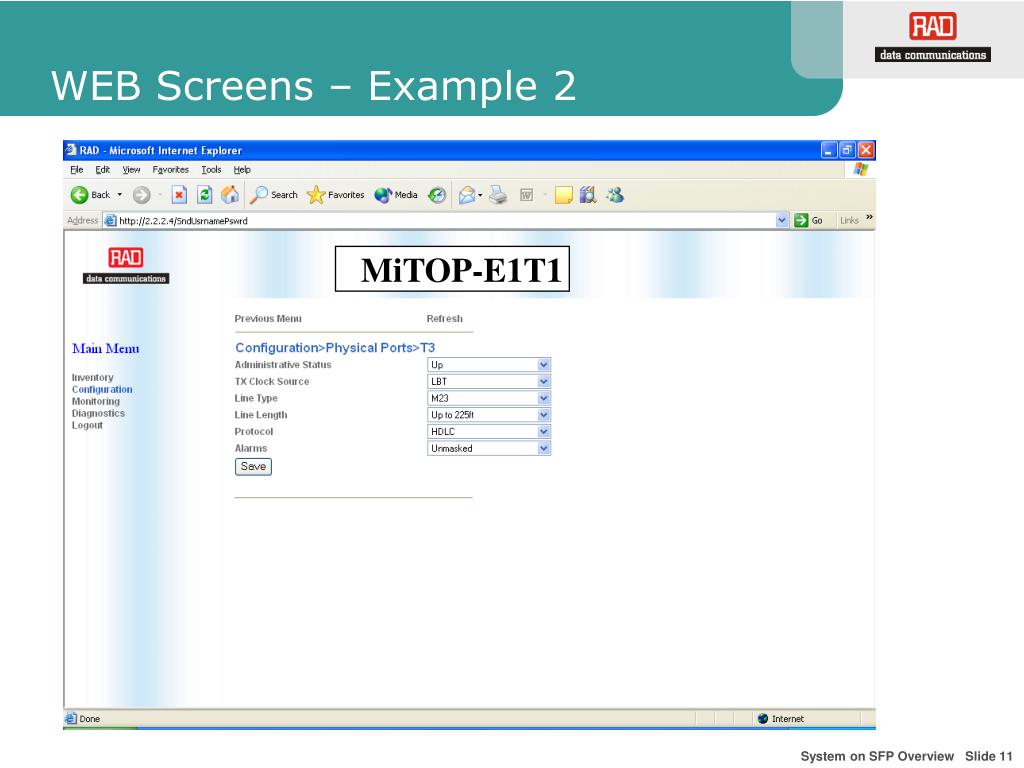

Management
  • Management support Configuration, Monitoring and Diagnostics
  • Through I2C bus and/or via WEB access
  • OAM and performance monitoring
    • RAD’s TDM PW OAM mechanism ensures connectivity verification and pseudowire configuration mismatch prevention
    • RFC-2495 E1/T1 physical layer performance statistics are available BES, ES, SES and UAS
  • Diagnostics
    • External and internal loopbacks can be used to check TDM link connectivity
    • Alarms detected during operation are stored in a buffer holding up to 100 events
sfp ca usb configuration adaptor for sfp configuration

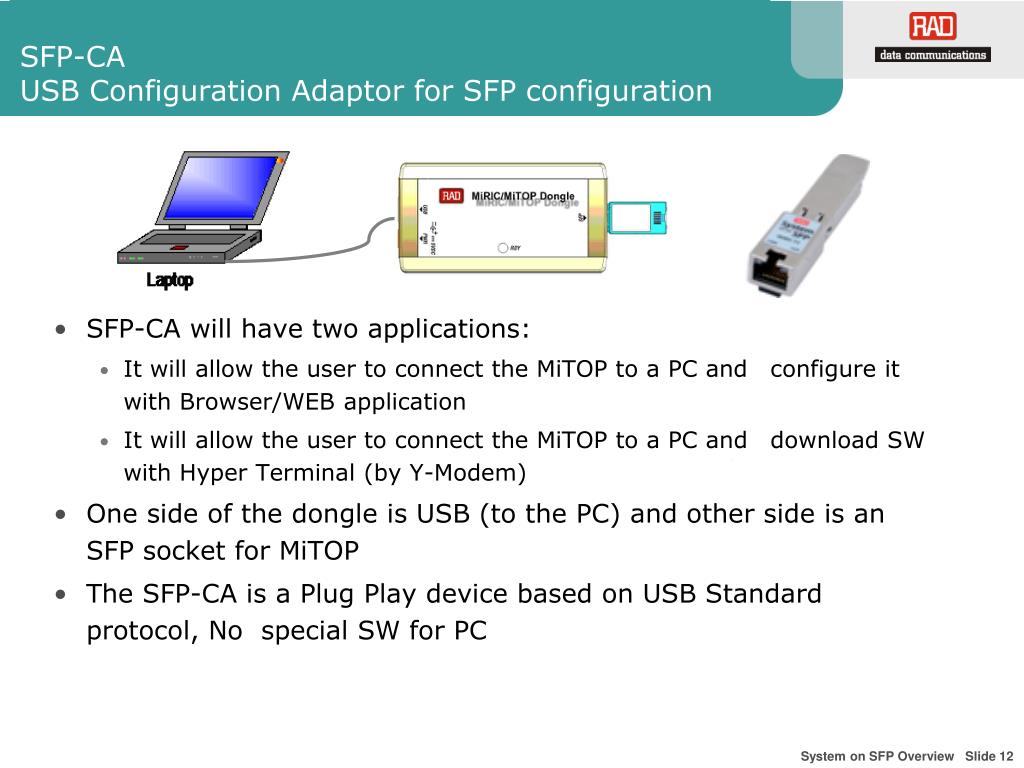

SFP-CAUSB Configuration Adaptor for SFP configuration
  • SFP-CA will have two applications:
    • It will allow the user to connect the MiTOP to a PC and configure it with Browser/WEB application
    • It will allow the user to connect the MiTOP to a PC and download SW with Hyper Terminal (by Y-Modem)
  • One side of the dongle is USB (to the PC) and other side is an SFP socket for MiTOP
  • The SFP-CA is a Plug Play device based on USB Standard protocol, No special SW for PC
slide13

Innovative Access Solutions

For more information, contact:

Email: jacky_a@rad.com

Business Development Manager
