bayesian networks for modeling gene expression data

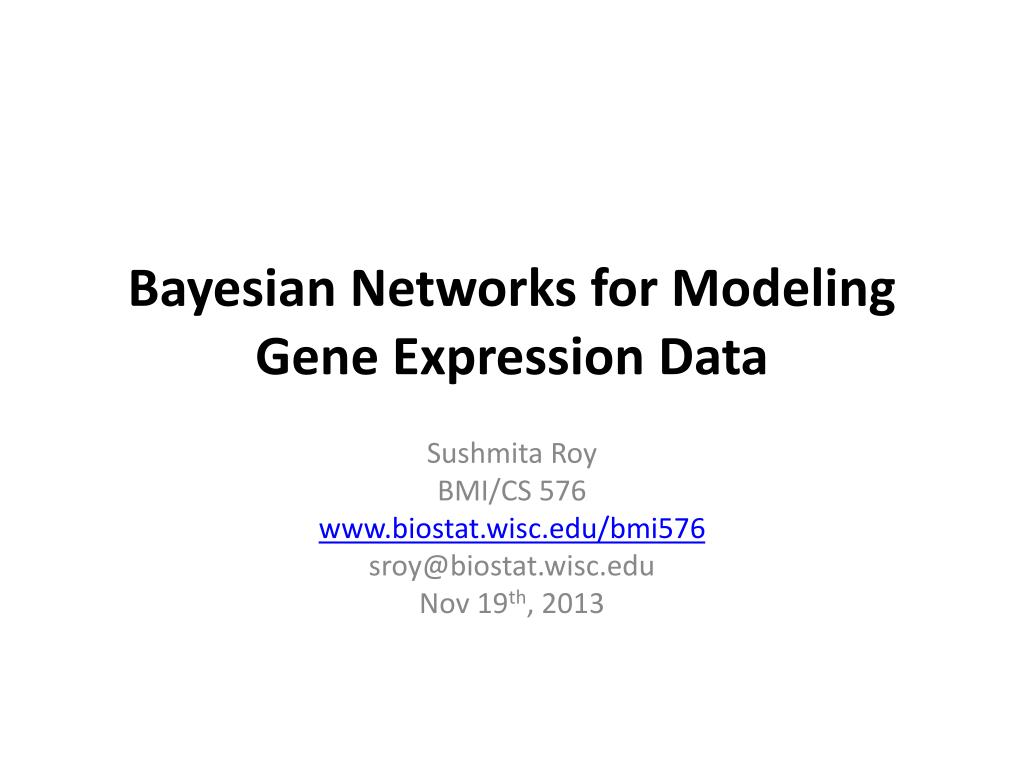

Bayesian Networks for Modeling Gene Expression Data

Sushmita Roy

BMI/CS 576

www.biostat.wisc.edu/bmi576

sroy@biostat.wisc.edu

Nov 19th, 2013

bayesian networks bn

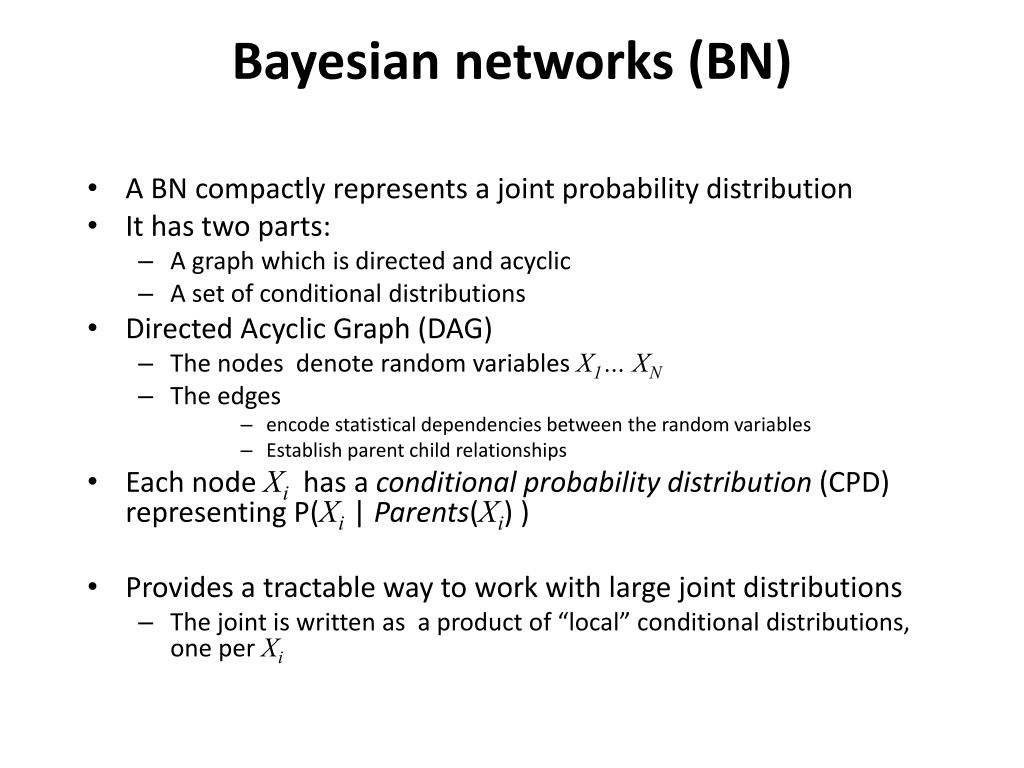

Bayesian networks (BN)

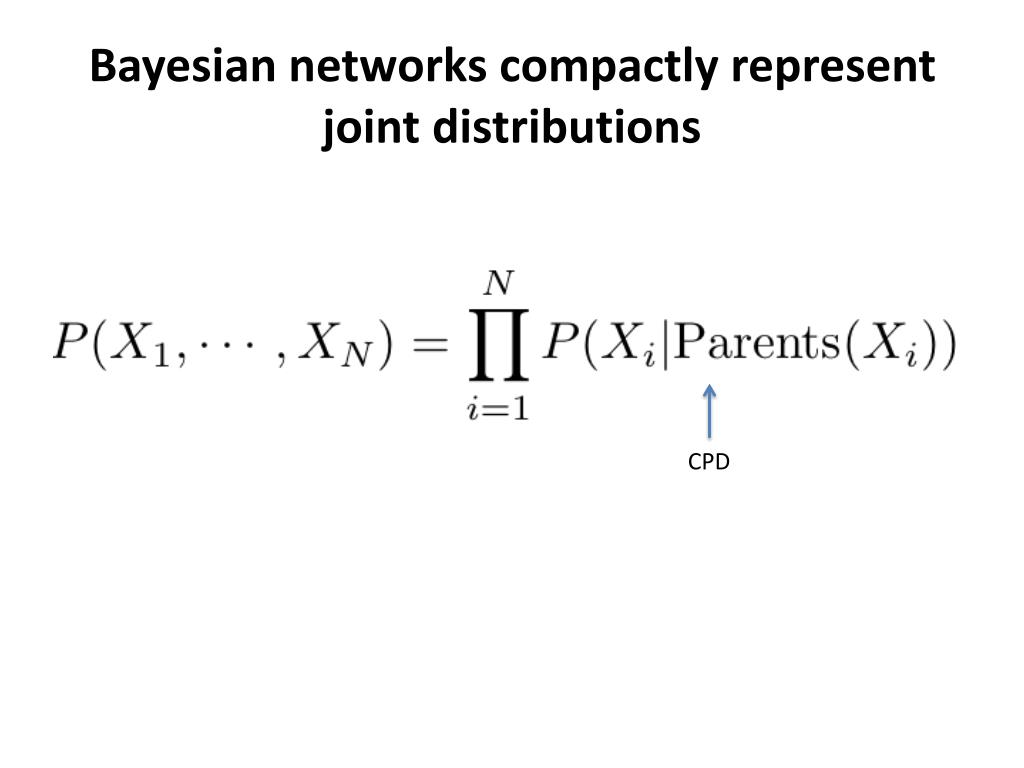

  • A BN compactly represents a joint probability distribution
  • It has two parts:
    • A graph which is directed and acyclic
    • A set of conditional distributions
  • Directed Acyclic Graph (DAG)
    • The nodes denote random variables X1… XN
    • The edges
        • encode statistical dependencies between the random variables
        • Establish parent child relationships
    • Each node Xi has a conditional probability distribution (CPD) representing P(Xi| Parents(Xi))
  • Provides a tractable way to work with large joint distributions
    • The joint is written as a product of “local” conditional distributions, one per Xi
bayesian network representation of a regulatory network

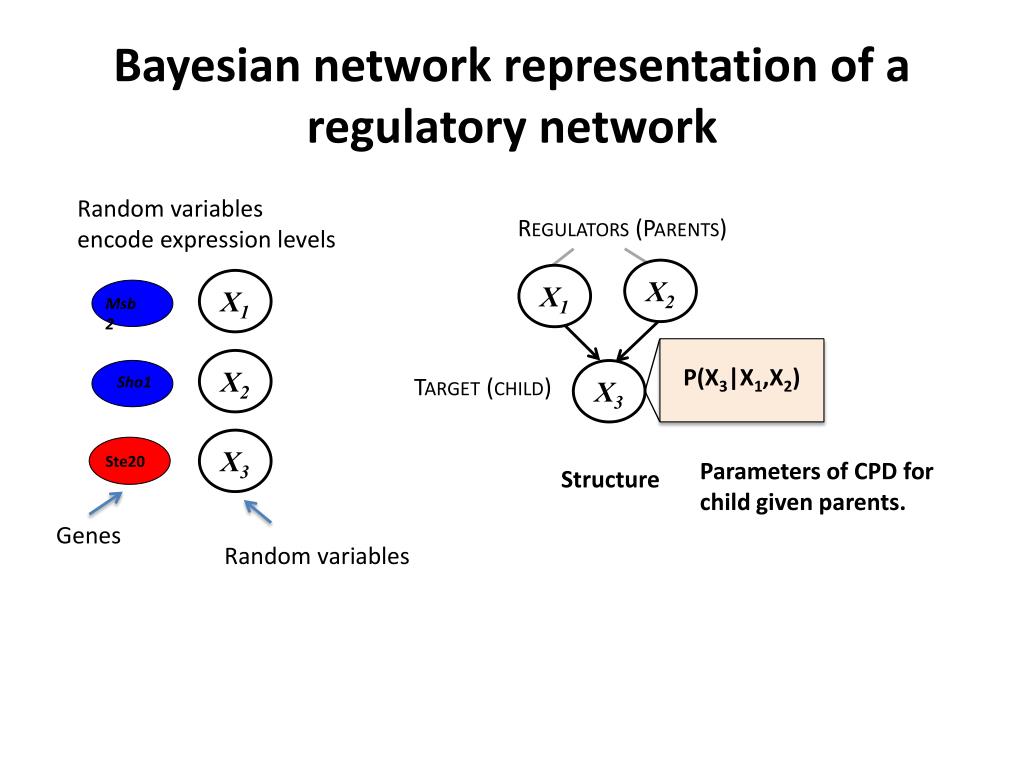

Bayesian network representation of a regulatory network

Random variables encode expression levels

Regulators (Parents)

X2

X1

X1

Sho1

X2

Msb2

P(X3|X1,X2)

X3

Target (child)

X3

Ste20

Parameters of CPD for child given parents.

Structure

Genes

Random variables

example bayesian network of 5 variables

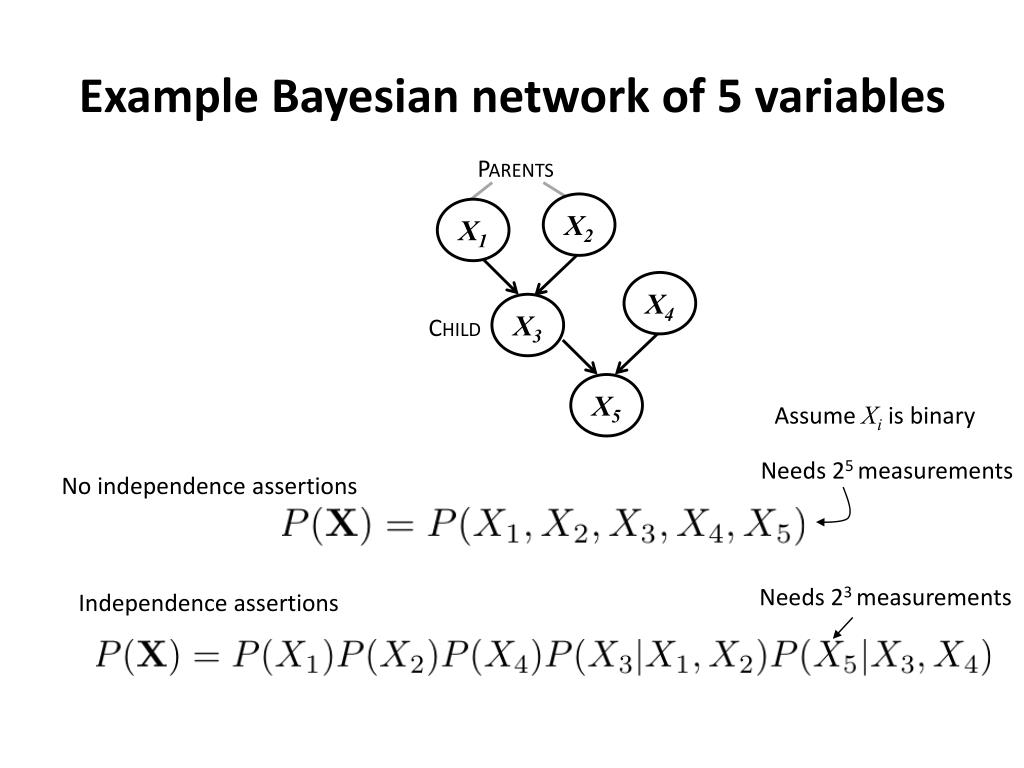

Example Bayesian network of 5 variables

Parents

X2

X1

X4

X3

Child

X5

Assume Xi is binary

Needs 25 measurements

No independence assertions

Needs 23 measurements

Independence assertions

cpd in bayesian networks
CPD in Bayesian networks
  • The same structure can be parameterized in different ways
  • For example for discrete variables we can have table or tree representations
representing cpds as tables
Representing CPDs as tables
  • Consider the following case with Boolean variablesX1, X2, X3, X4

P( X4|X1, X2,X3 ) as a table

X4

Parents of X4

X2

X1

X3

X4

estimating cpd table from data
Estimating CPD table from data
  • Consider the four RVs from the previous slide
  • Assume we observe the following data

X1

X2

X3

X4

For each joint assignment to X1, X2, X3,

estimate the probabilities for each possible value of X4

For example, consider X1=T, X2=F, X3=T

P(X4=T|X1=T, X2=F, X3=T)=2/4

P(X4=F|X1=T, X2=F, X3=T)=2/4

a tree representation of a cpd

P( X4|X1, X2,X3 ) as a tree

X1

f

t

Pr(X4=t) = 0.9

X2

f

t

Pr(X4=t) = 0.5

X3

f

t

Pr(X4=t) = 0.8

Pr(X4=t) = 0.5

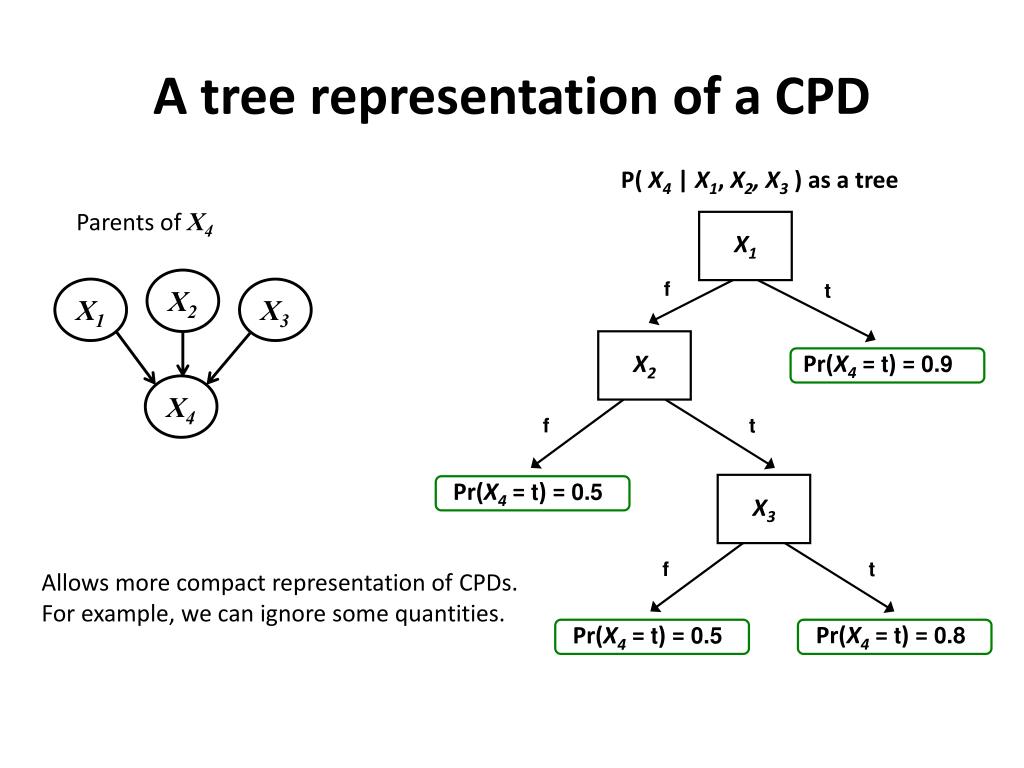

A tree representation of a CPD

Parents of X4

X2

X1

X3

X4

Allows more compact representation of CPDs.

For example, we can ignore some quantities.

the learning problems

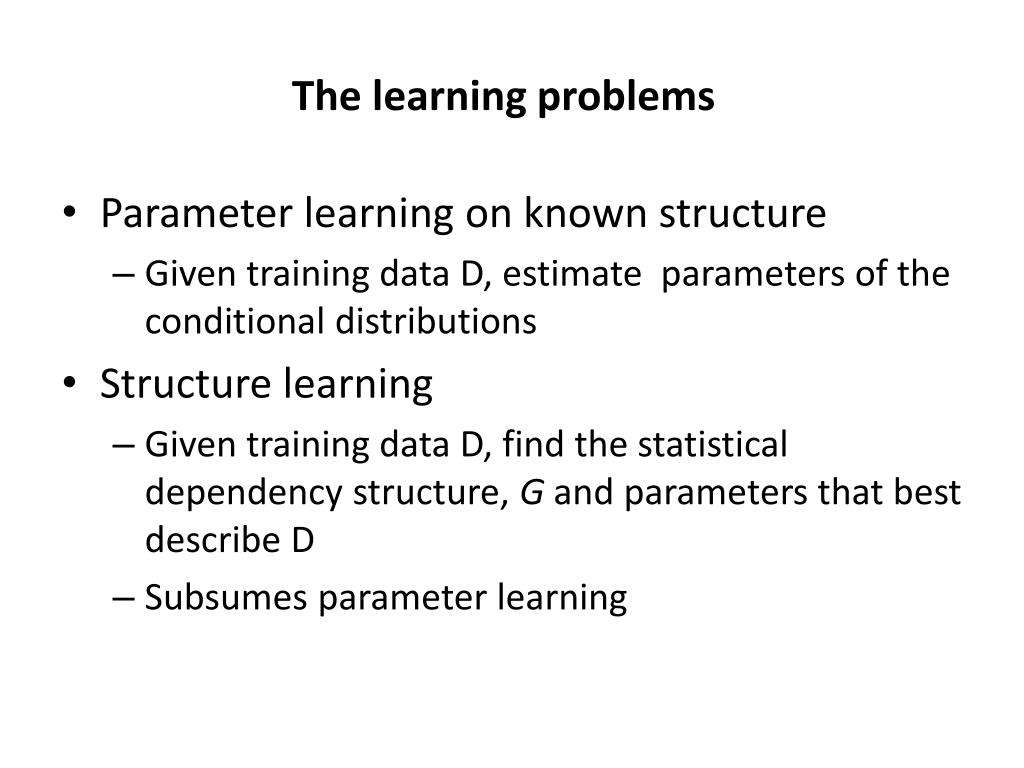

The learning problems
  • Parameter learning on known structure
    • Given training data D, estimate parameters of the conditional distributions
  • Structure learning
    • Given training data D, find the statistical dependency structure, G and parameters that best describe D
    • Subsumes parameter learning
structure learning using score based search

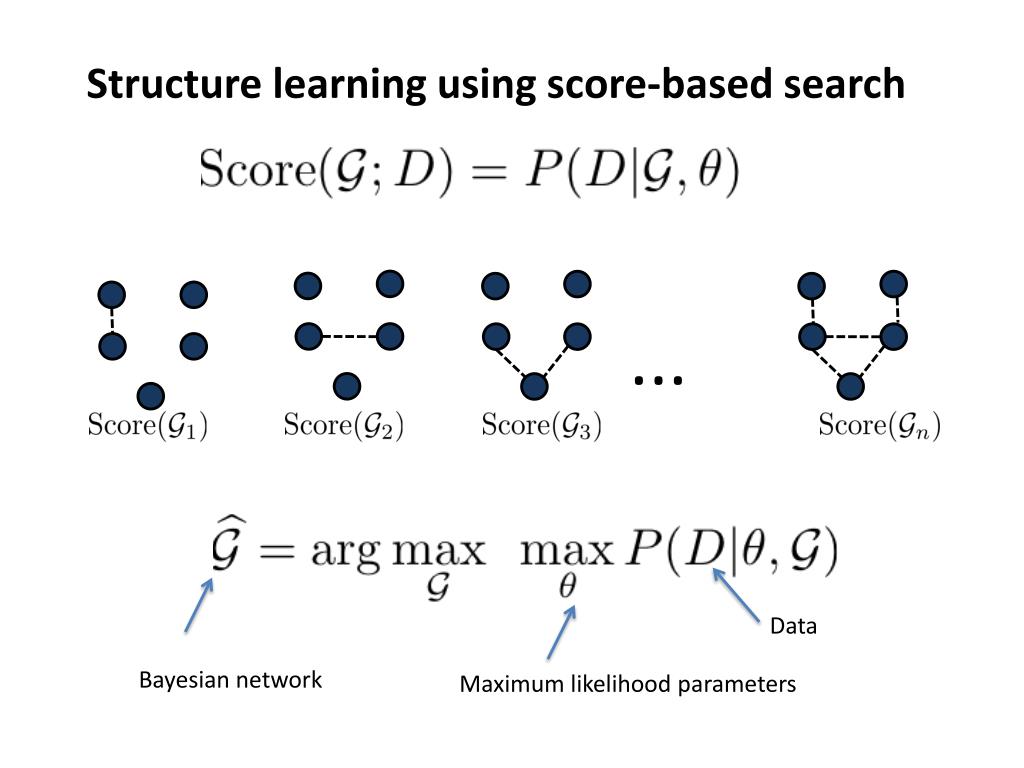

Structure learning using score-based search

...

Data

Bayesian network

Maximum likelihood parameters

learning network structure is computationally expensive
Learning network structure is computationally expensive
  • For N variables there are possible networks:
  • Set of possible networks grows super exponentially

Need approximate methods to search the space of networks

heuristic search of bayesian network structures
Heuristic search of Bayesian network structures
  • Make local changes to the network
    • Add an edge
    • Delete an edge
    • Reverse an edge
  • Evaluate score and select the network configuration with best score
  • We just need to check for cycles
  • Working with gene expression data requires additional considerations
structure search operators

D

D

D

C

C

C

B

B

B

A

A

A

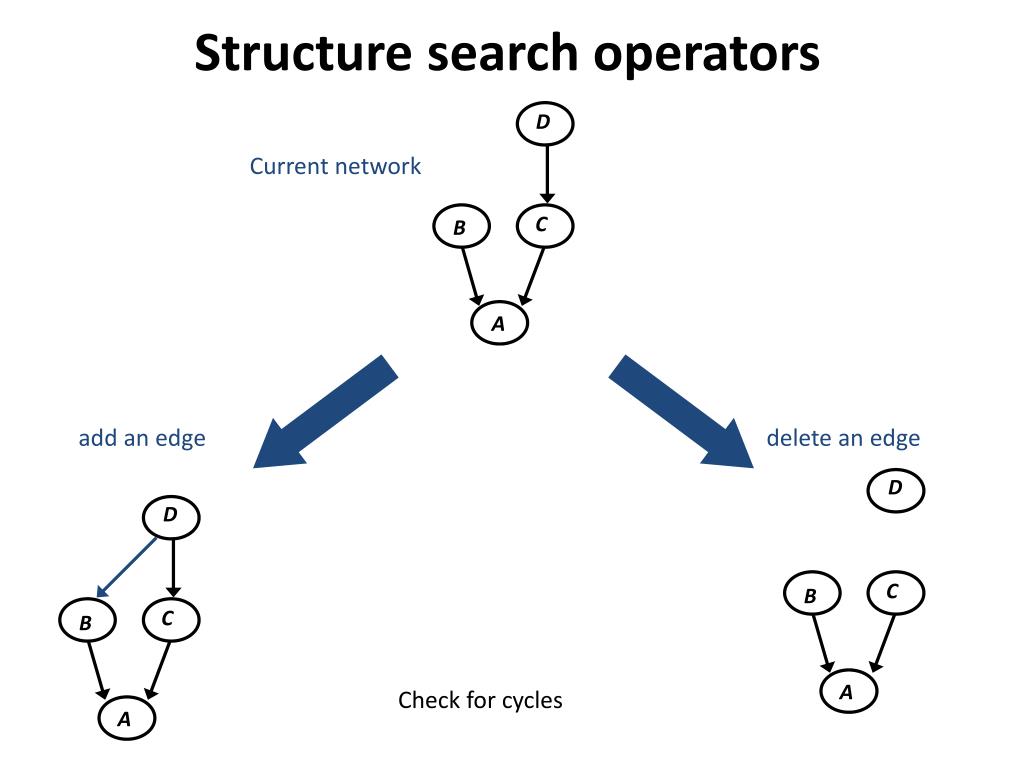

Structure search operators

Current network

add an edge

delete an edge

Check for cycles

decomposability of scores
Decomposability of scores
  • Score of a graph G decomposes over individual variables
  • This enables us to efficiently compute the score effect of local changes
  • However, network inference from expression data is very challenging
    • Lots of nodes and not enough data
    • Good heuristics to prune the search space are highly desirable
    • Assess statistical significance of learned network structures
extensions to bayesian networks to handle large number of random variables
Extensions to Bayesian networks to handle large number of random variables
  • Sparse candidate algorithm
  • Bootstrap-based ideas to score high confidence network
  • Module networks (subsequent lecture)
the sparse candidate structure learning in bayesian networks

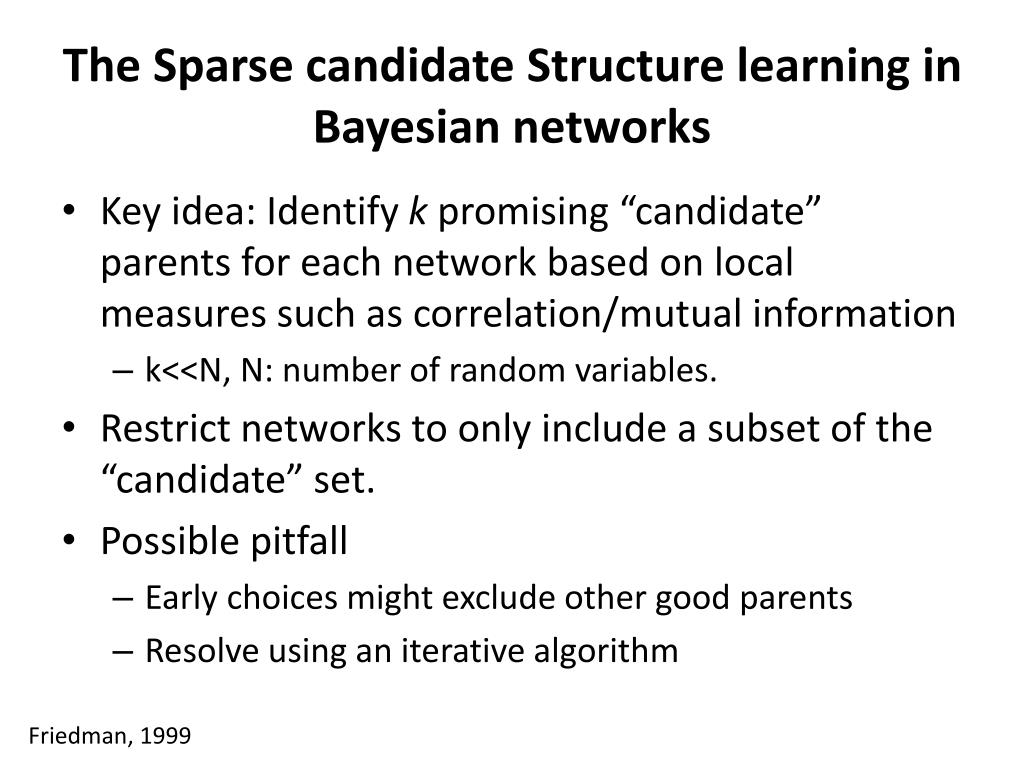

The Sparse candidate Structure learning in Bayesian networks
  • Key idea: Identify k promising “candidate” parents for each network based on local measures such as correlation/mutual information
    • k<<N, N: number of random variables.
  • Restrict networks to only include a subset of the “candidate” set.
  • Possible pitfall
    • Early choices might exclude other good parents
    • Resolve using an iterative algorithm

Friedman, 1999

sparse candidate algorithm notation

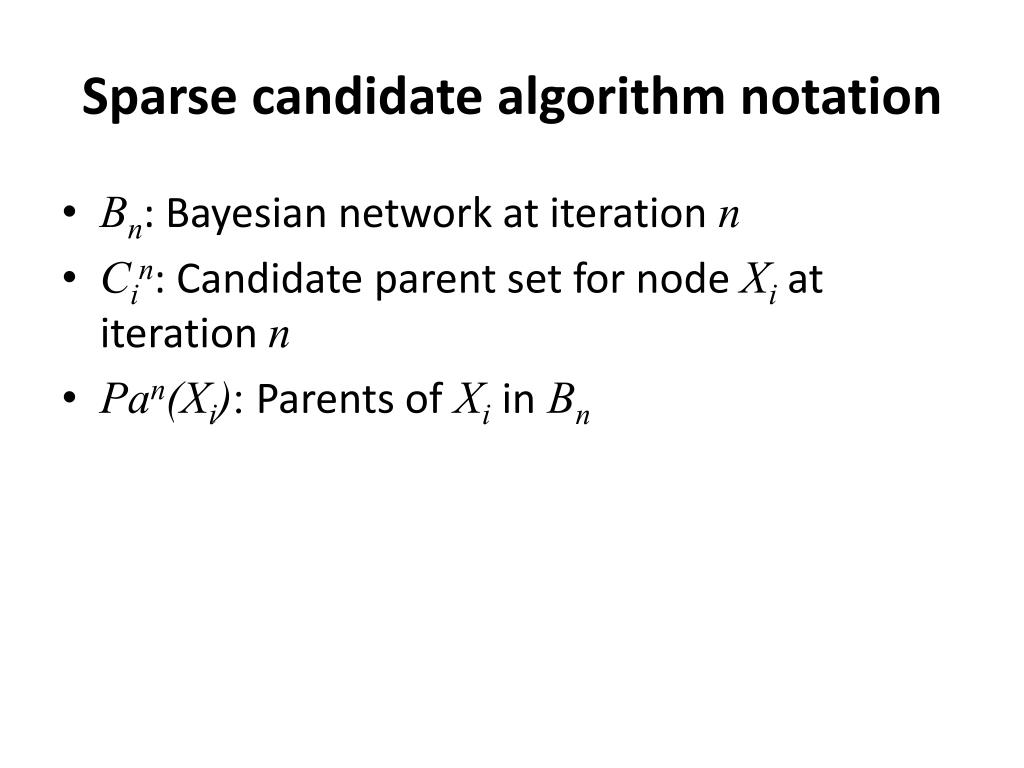

Sparse candidate algorithm notation
  • Bn: Bayesian network at iteration n
  • Cin: Candidate parent set for node Xi at iteration n
  • Pan(Xi): Parents ofXiinBn
sparse candidate algorithm

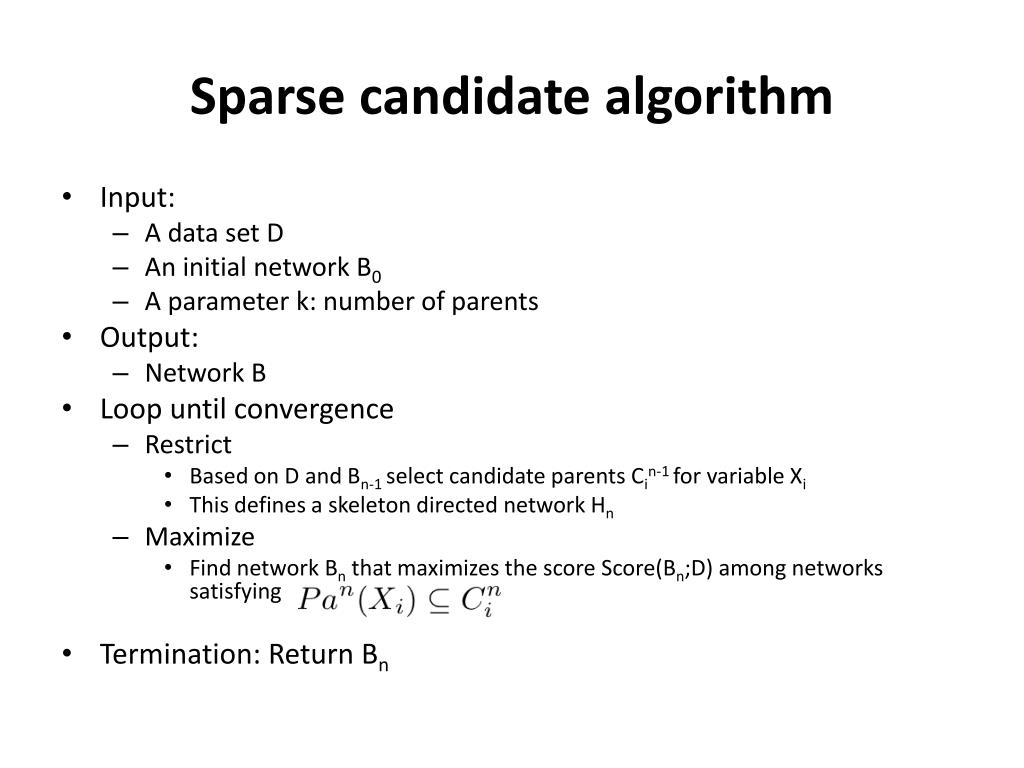

Sparse candidate algorithm
  • Input:
    • A data set D
    • An initial network B0
    • A parameter k: number of parents
  • Output:
    • Network B
  • Loop until convergence
    • Restrict
      • Based on D and Bn-1 select candidate parents Cin-1 for variable Xi
      • This defines a skeleton directed network Hn
    • Maximize
      • Find network Bn that maximizes the score Score(Bn;D) among networks satisfying
  • Termination: Return Bn
the restrict step

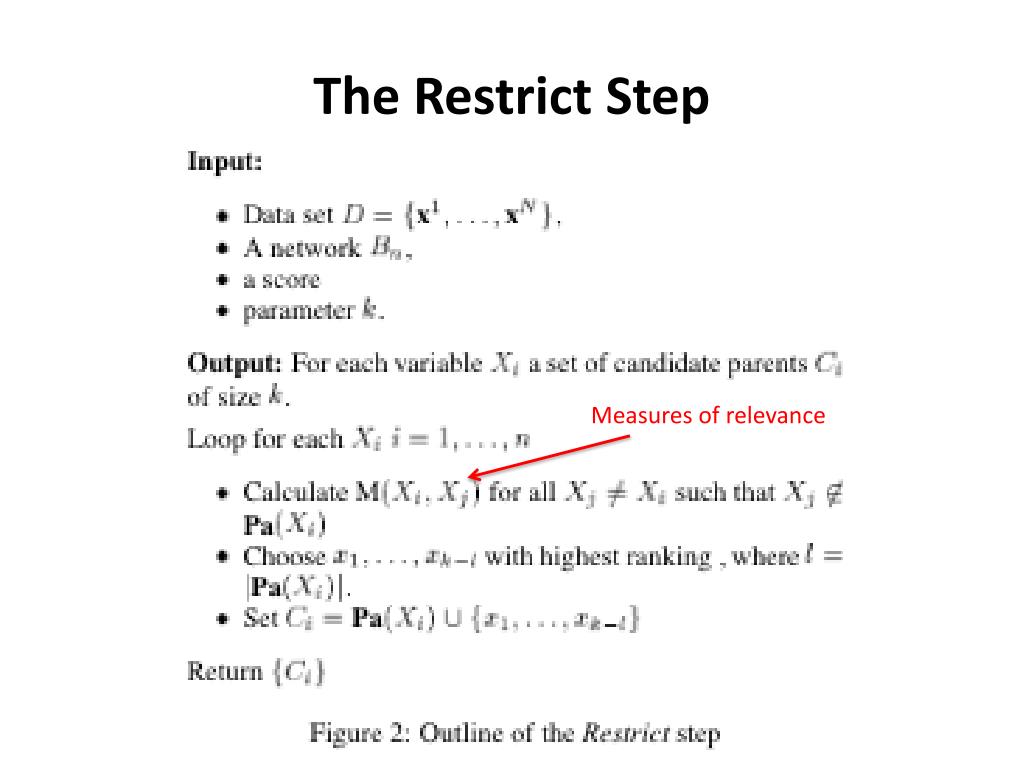

The Restrict Step

Measures of relevance

information theoretic concepts
Information theoretic concepts
  • KullbackLeibler (KL) Divergence
    • Distance between two distributions
  • Mutual information
    • Mutual information between two random variables X and Y measures statistical dependence between X and Y
    • Also the KL Divergence between the P(X,Y) and P(X)P(Y)
  • Conditional Mutual information
    • Measures the information between two variables given a third
kl divergence
KL Divergence

P(X), Q(X) are two distributions over X

mutual information
Mutual Information
  • Measure of statistical dependence between two random variables, X and Y
  • KL Divergence between the joint and product of marginals
    • DKL(P(X,Y)||P(X)P(Y))
conditional mutual information
Conditional Mutual Information

Measures the mutual information between X and Y, given Z

If Z captures everything about X, knowing Y gives no more information about X.

Thus the conditional mutual information would be zero.

measuring relevance of candidate parents in the restrict step
Measuring relevance of candidate parents in the Restrict Step
  • A good parent for node Xi is one that has a strong statistical dependence with Xi
  • Mutual information provides a good measure of statistical dependence I(Xi; Xj)
  • Mutual information should be used only as a first approximation
    • Candidate parents need to be iteratively refined to avoid missing important dependences
mutual information can miss some parents

D

C

B

A

Mutual information can miss some parents
  • Consider the following true network
  • If I(A;C)>I(A;D)>I(A;B) and we are selecting two candidate parents, B will never be selected as a parent
  • How do we get B as a candidate parent?
  • Note if we used mutual information alone to select candidates, we might be stuckwith C and D
sparse candidate restrict step
Sparse candidate restrict step
  • Three strategies to handle the effect of greedy choices in the beginning
  • One can estimate the discrepancy between the (in)dependencies in the network vs those in the data
    • KL Divergence between P(A,D) in the data vs P(A,D) from the network.
  • Measure how much the current parent set shields A from D
    • Conditional mutual information between A and D given the current parent set of A.
  • Measure how much the score improves on adding D
measuring relevance of y to x
Measuring relevance of Y to X
  • MDisc(X,Y)
    • DKL(P(X,Y)||PB(X,Y))
  • MShield(X,Y)
    • I(X;Y|Pa(X))
  • Mscore(X,Y)
    • Score(X;Y,Pa(X),D)
performance of sparse candidate over simple hill climbing
Performance of Sparse candidate over simple hill-climbing

Score 15 seems to perform the best

Dataset 2

Dataset 1

200 variables

100 variables

assessing confidence in the learned network

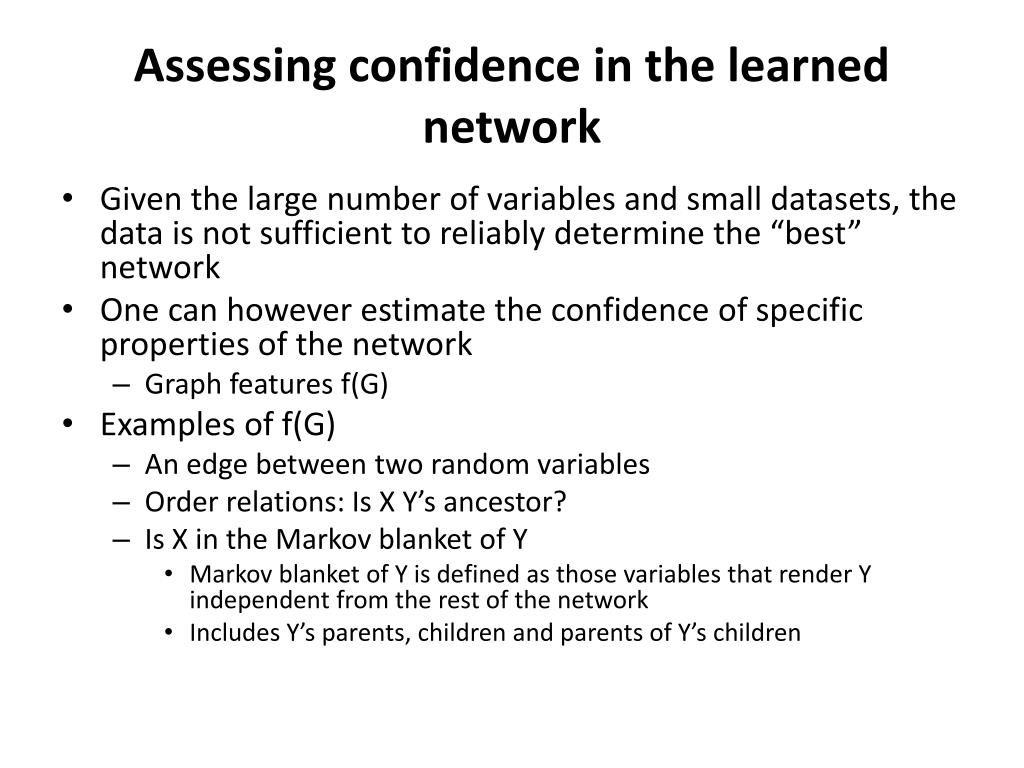

Assessing confidence in the learned network
  • Given the large number of variables and small datasets, the data is not sufficient to reliably determine the “best” network
  • One can however estimate the confidence of specific properties of the network
    • Graph features f(G)
  • Examples of f(G)
    • An edge between two random variables
    • Order relations: Is X Y’s ancestor?
    • Is X in the Markov blanket of Y
      • Markov blanket of Y is defined as those variables that render Y independent from the rest of the network
      • Includes Y’s parents, children and parents of Y’s children
markov blanket

B

C

D

A

F

E

Markov blanket
  • If MB(X) is the Markov blanket of X then P(X|MB(X),Y)=P(X|MB(X)).

X

X’s Markov blanket

how to assess confidence in graph features

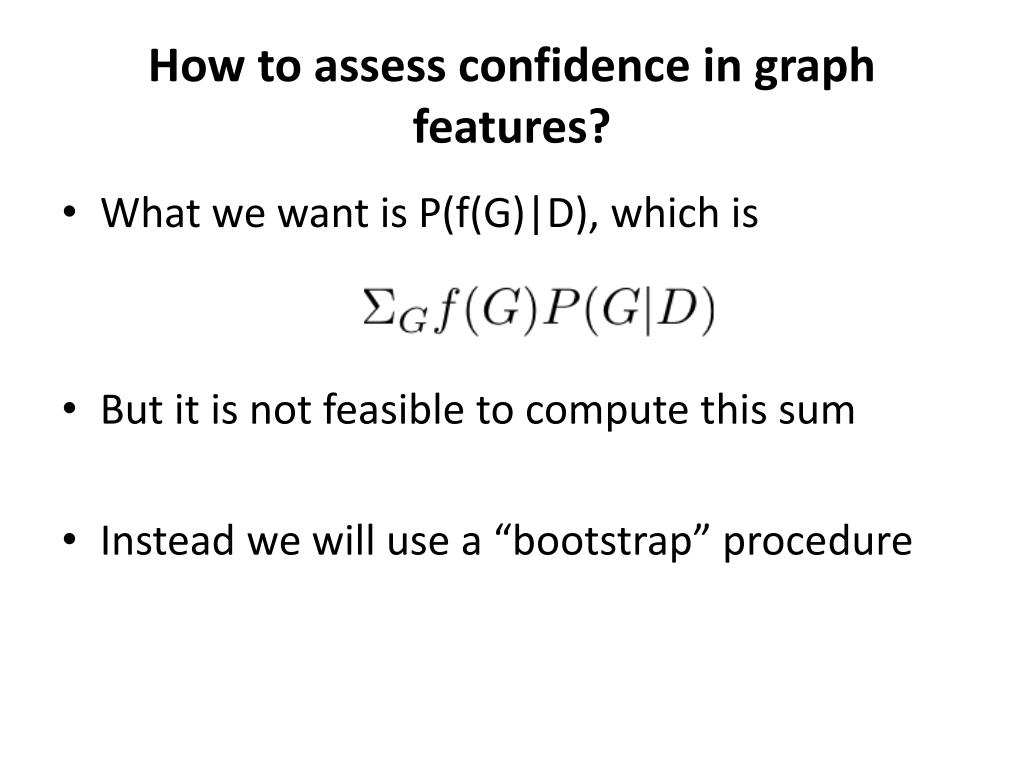

How to assess confidence in graph features?
  • What we want is P(f(G)|D), which is
  • But it is not feasible to compute this sum
  • Instead we will use a “bootstrap” procedure
bootstrap to assess graph feature confidence

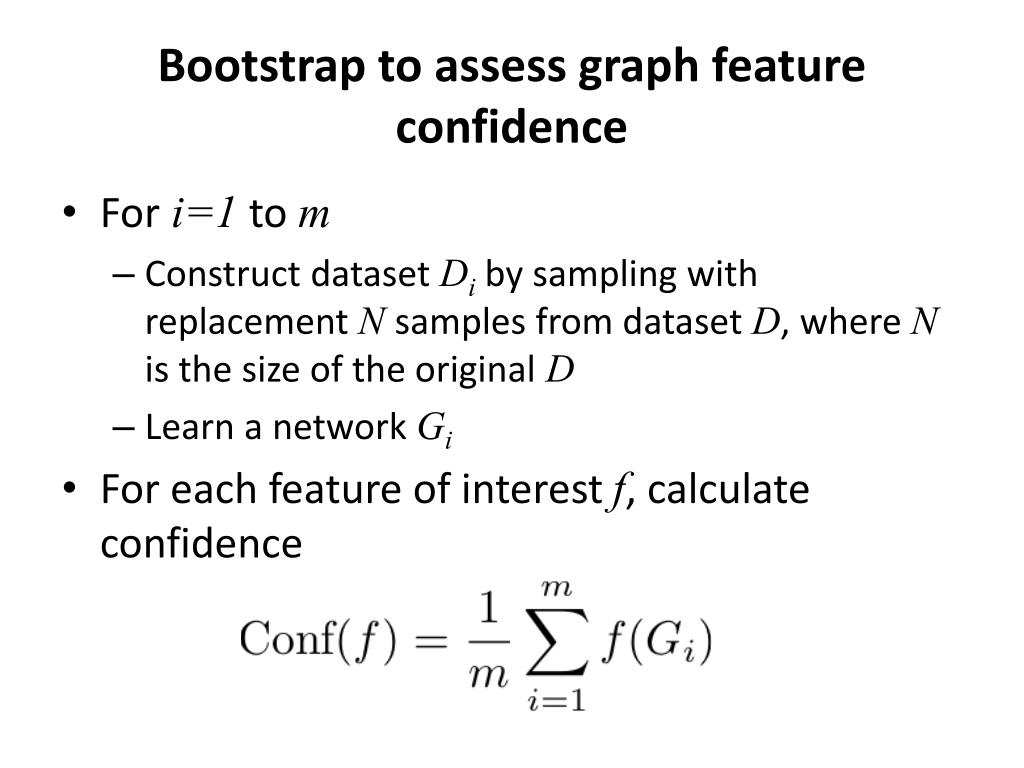

Bootstrap to assess graph feature confidence
  • Fori=1 to m
    • Construct dataset Di by sampling with replacement N samples from dataset D, where N is the size of the original D
    • Learn a network Gi
  • For each feature of interest f, calculate confidence
does the confidence estimated from bootstrap procedure represent real relationships

randomize each

row independently

Does the confidence estimated from bootstrap procedure represent real relationships?
  • Compare the confidence distribution to that obtained from randomized data
  • Shuffle the columns of each row (gene) separately.
  • Repeat the bootstrap procedure

conditions

genes

application of bayesian network to yeast expression data

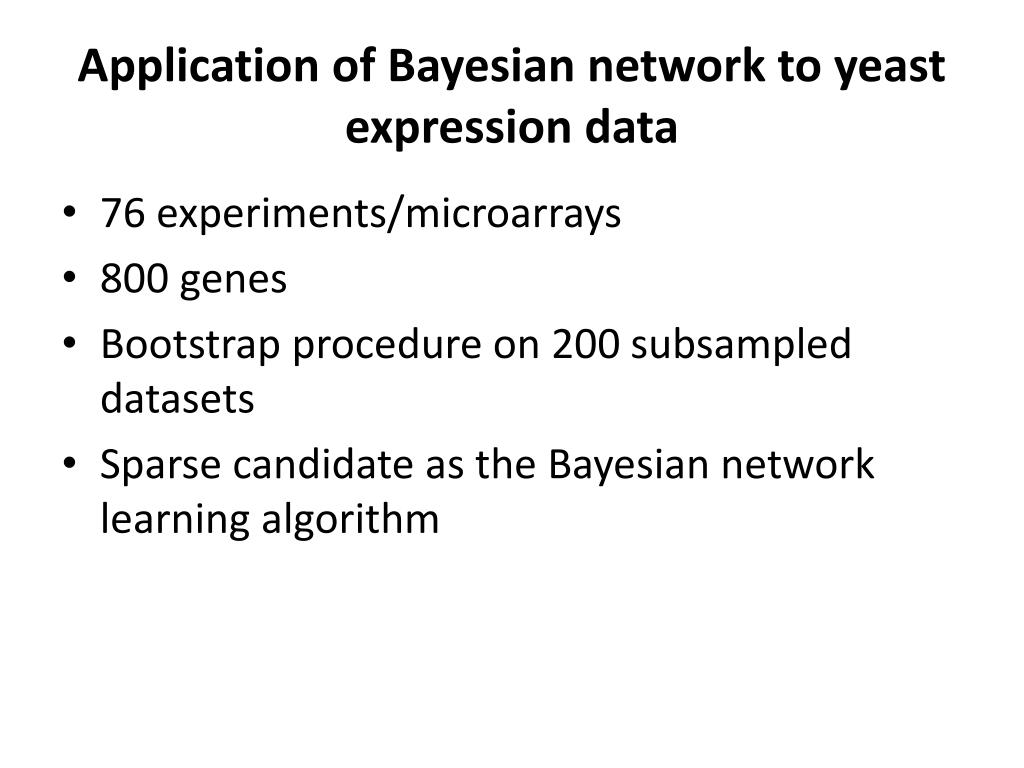

Application of Bayesian network to yeast expression data
  • 76 experiments/microarrays
  • 800 genes
  • Bootstrap procedure on 200 subsampled datasets
  • Sparse candidate as the Bayesian network learning algorithm
bootstrap based confidence differs between original and randomized data

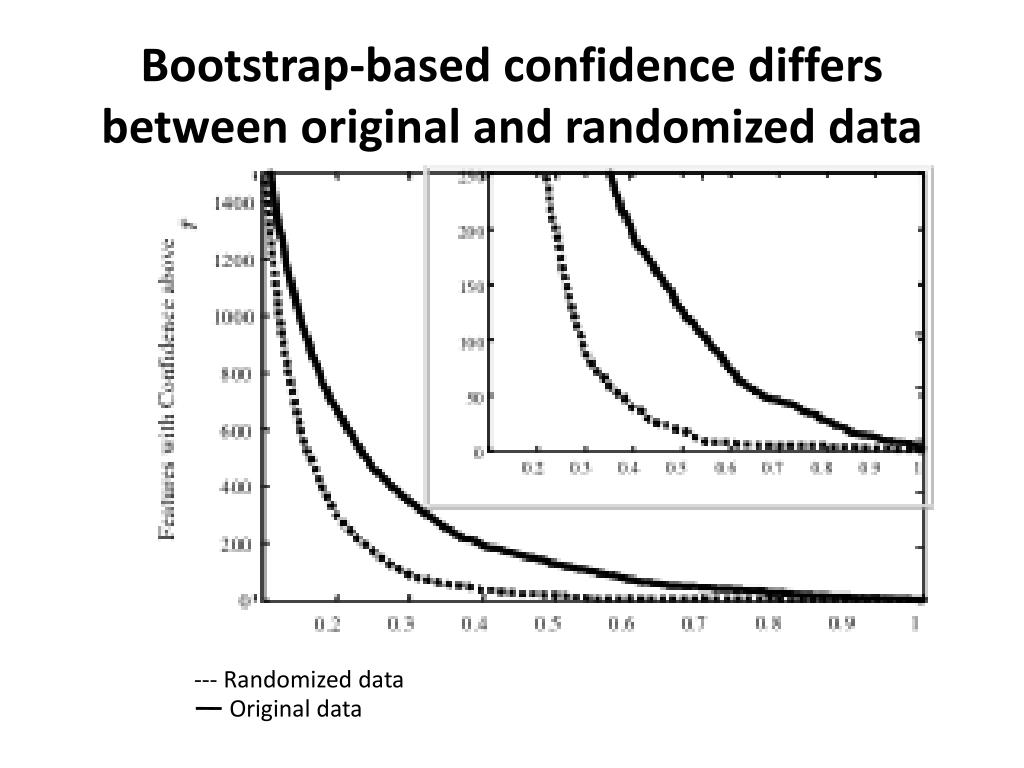

Bootstrap-based confidence differs between original and randomized data

--- Randomized data

Original data

example of a high confidence sub network
Example of a high confidence sub-network

One learned Bayesian network

Bootstrapped confidence Bayesian network

Highlights a subnetwork associated with yeast mating

summary
Summary
  • Network inference from expression provides a promising approach to identify cellular networks
  • Bayesian networks are one representation of networks that have a probabilistic and graphical component
  • Network inference naturally translates to learning problems in Bayesian networks.
    • Network inference is computationally challenge
  • Successful application of Bayesian network learning algorithms to expression data requires additional considerations
    • Reduce potential parents: statistically or using biological knowledge
    • Bootstrap based confidence estimation
    • Permutation based assessment of confidence
