INLINE BLENDING SYSTEM (ILB)

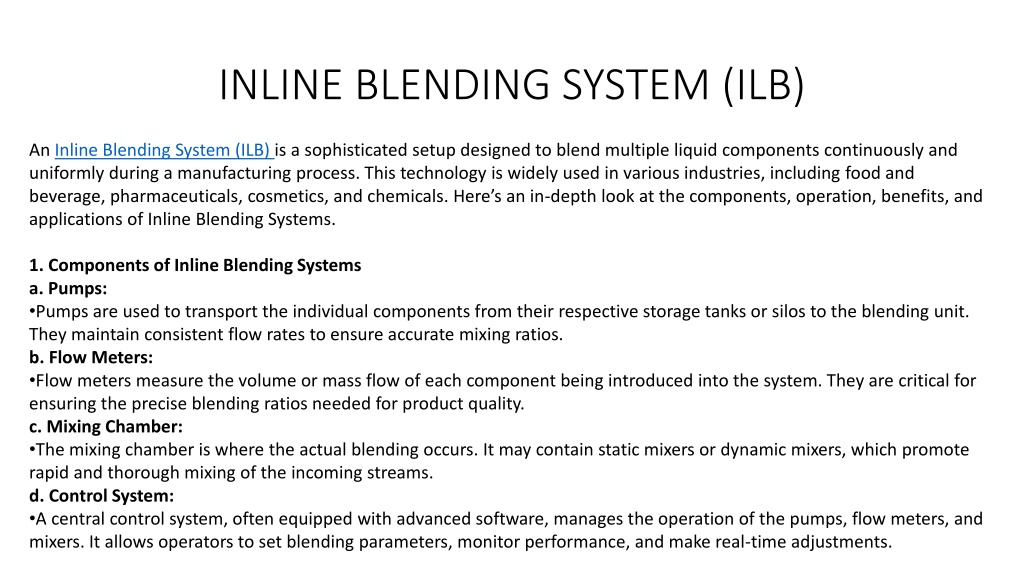

2. INLINE BLENDING SYSTEM (ILB) • An Inline Blending System (ILB) is a sophisticated setup designed to blend multiple liquid components continuously and uniformly during a manufacturing process. This technology is widely used in various industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals. Here’s an in-depth look at the components, operation, benefits, and applications of Inline Blending Systems. • 1. Components of Inline Blending Systems • a. Pumps: • Pumps are used to transport the individual components from their respective storage tanks or silos to the blending unit. They maintain consistent flow rates to ensure accurate mixing ratios. • b. Flow Meters: • Flow meters measure the volume or mass flow of each component being introduced into the system. They are critical for ensuring the precise blending ratios needed for product quality. • c. Mixing Chamber: • The mixing chamber is where the actual blending occurs. It may contain static mixers or dynamic mixers, which promote rapid and thorough mixing of the incoming streams. • d. Control System: • A central control system, often equipped with advanced software, manages the operation of the pumps, flow meters, and mixers. It allows operators to set blending parameters, monitor performance, and make real-time adjustments.

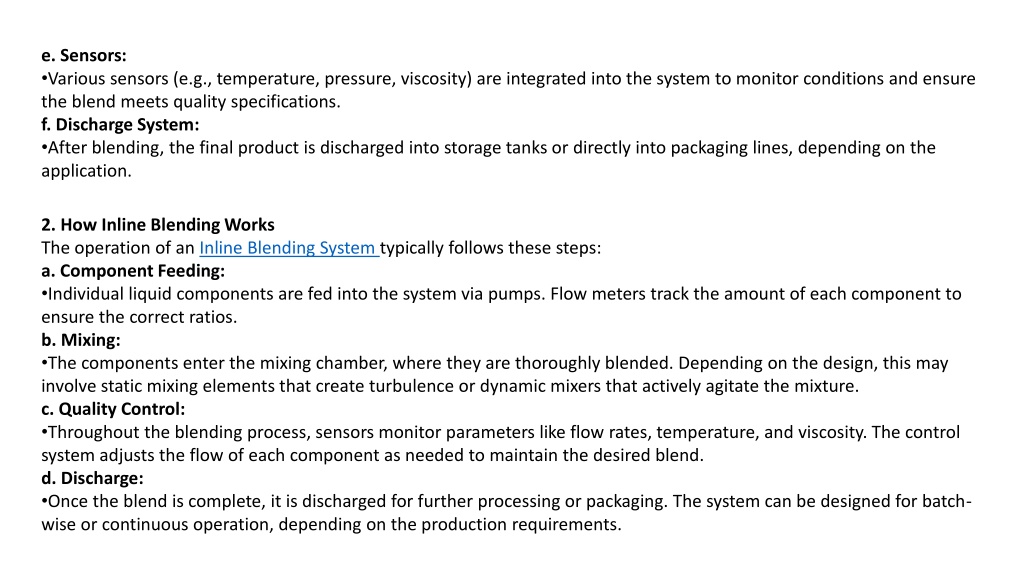

3. e. Sensors: • Various sensors (e.g., temperature, pressure, viscosity) are integrated into the system to monitor conditions and ensure the blend meets quality specifications. • f. Discharge System: • After blending, the final product is discharged into storage tanks or directly into packaging lines, depending on the application. • 2. How Inline Blending Works • The operation of an Inline Blending System typically follows these steps: • a. Component Feeding: • Individual liquid components are fed into the system via pumps. Flow meters track the amount of each component to ensure the correct ratios. • b. Mixing: • The components enter the mixing chamber, where they are thoroughly blended. Depending on the design, this may involve static mixing elements that create turbulence or dynamic mixers that actively agitate the mixture. • c. Quality Control: • Throughout the blending process, sensors monitor parameters like flow rates, temperature, and viscosity. The control system adjusts the flow of each component as needed to maintain the desired blend. • d. Discharge: • Once the blend is complete, it is discharged for further processing or packaging. The system can be designed for batch-wise or continuous operation, depending on the production requirements.

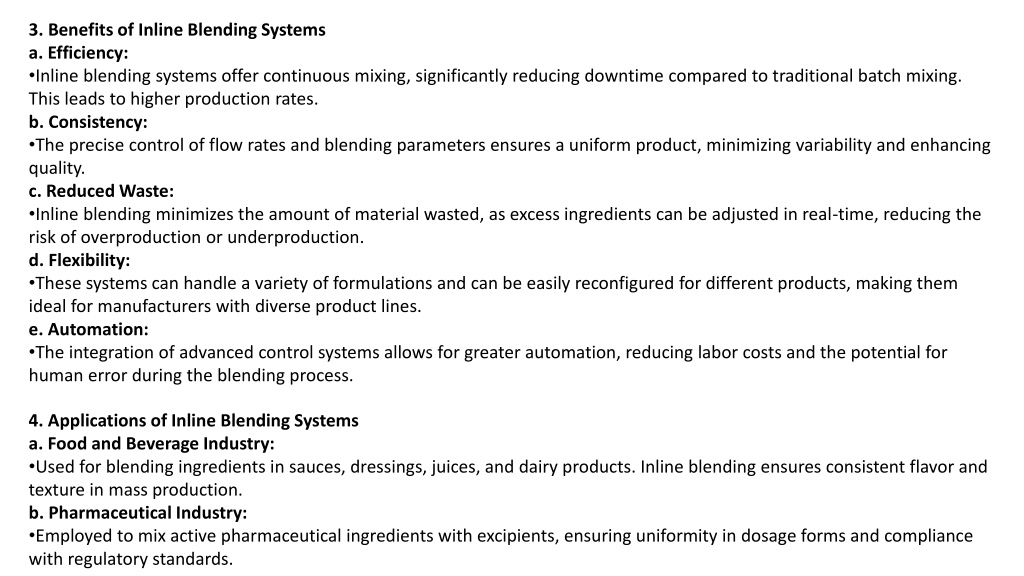

4. 3. Benefits of Inline Blending Systems • a. Efficiency: • Inline blending systems offer continuous mixing, significantly reducing downtime compared to traditional batch mixing. This leads to higher production rates. • b. Consistency: • The precise control of flow rates and blending parameters ensures a uniform product, minimizing variability and enhancing quality. • c. Reduced Waste: • Inline blending minimizes the amount of material wasted, as excess ingredients can be adjusted in real-time, reducing the risk of overproduction or underproduction. • d. Flexibility: • These systems can handle a variety of formulations and can be easily reconfigured for different products, making them ideal for manufacturers with diverse product lines. • e. Automation: • The integration of advanced control systems allows for greater automation, reducing labor costs and the potential for human error during the blending process. • 4. Applications of Inline Blending Systems • a. Food and Beverage Industry: • Used for blending ingredients in sauces, dressings, juices, and dairy products. Inline blending ensures consistent flavor and texture in mass production. • b. Pharmaceutical Industry: • Employed to mix active pharmaceutical ingredients with excipients, ensuring uniformity in dosage forms and compliance with regulatory standards.

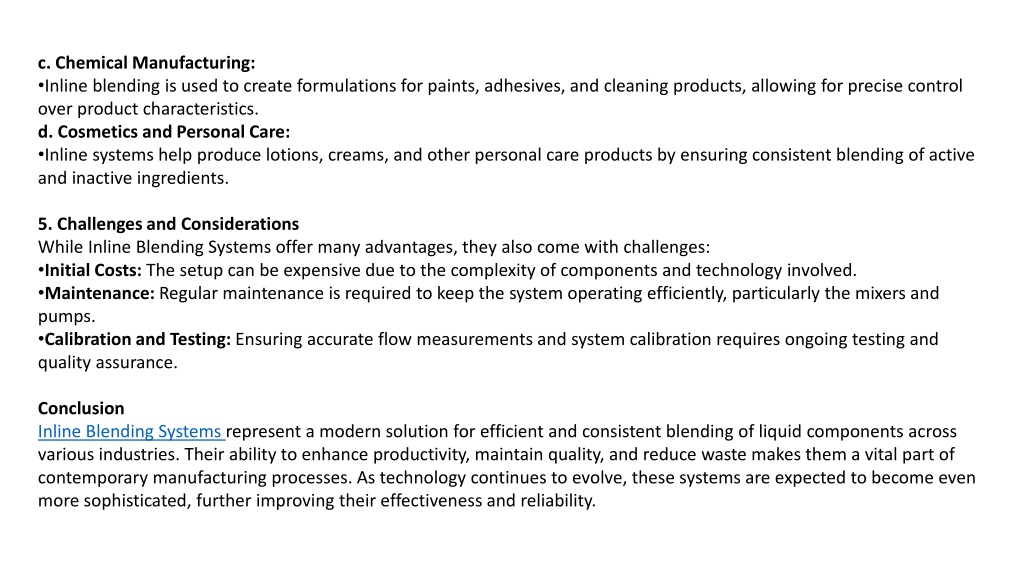

5. c. Chemical Manufacturing: • Inline blending is used to create formulations for paints, adhesives, and cleaning products, allowing for precise control over product characteristics. • d. Cosmetics and Personal Care: • Inline systems help produce lotions, creams, and other personal care products by ensuring consistent blending of active and inactive ingredients. • 5. Challenges and Considerations • While Inline Blending Systems offer many advantages, they also come with challenges: • Initial Costs: The setup can be expensive due to the complexity of components and technology involved. • Maintenance: Regular maintenance is required to keep the system operating efficiently, particularly the mixers and pumps. • Calibration and Testing: Ensuring accurate flow measurements and system calibration requires ongoing testing and quality assurance. • Conclusion • Inline Blending Systems represent a modern solution for efficient and consistent blending of liquid components across various industries. Their ability to enhance productivity, maintain quality, and reduce waste makes them a vital part of contemporary manufacturing processes. As technology continues to evolve, these systems are expected to become even more sophisticated, further improving their effectiveness and reliability.
