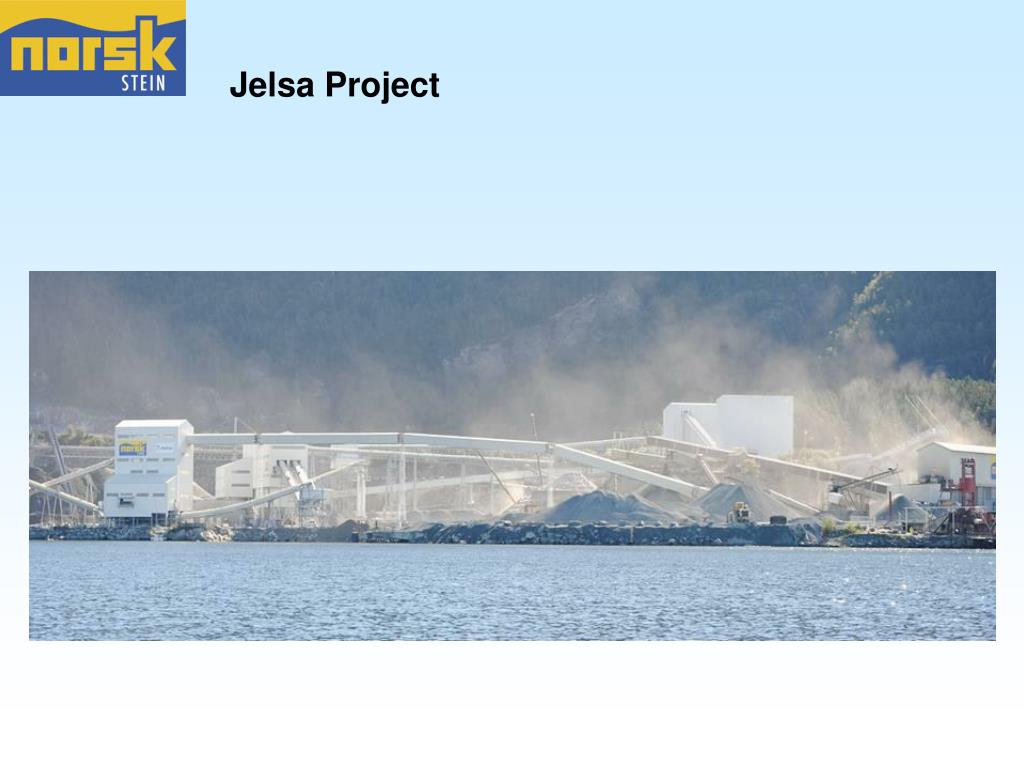

  1. Jelsa Project 25.06.2009

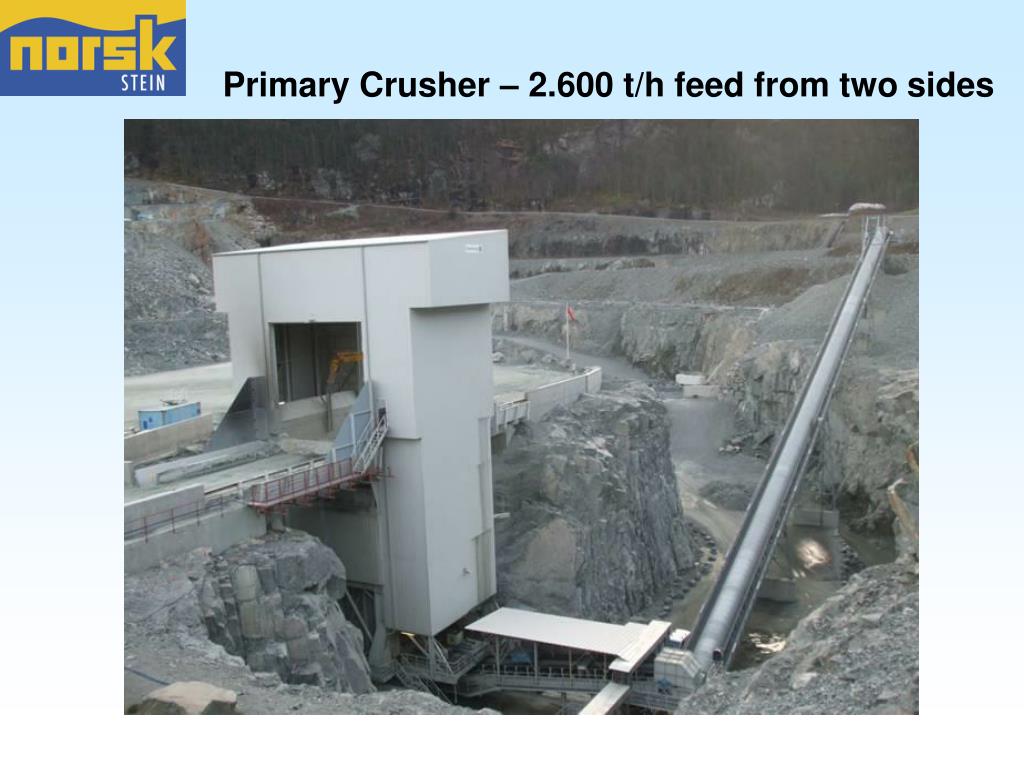

  2. Primary Crusher – 2.600 t/h feed from two sides 25.06.2009

  3. Material flow from PPP to SPP – mostly direct feed

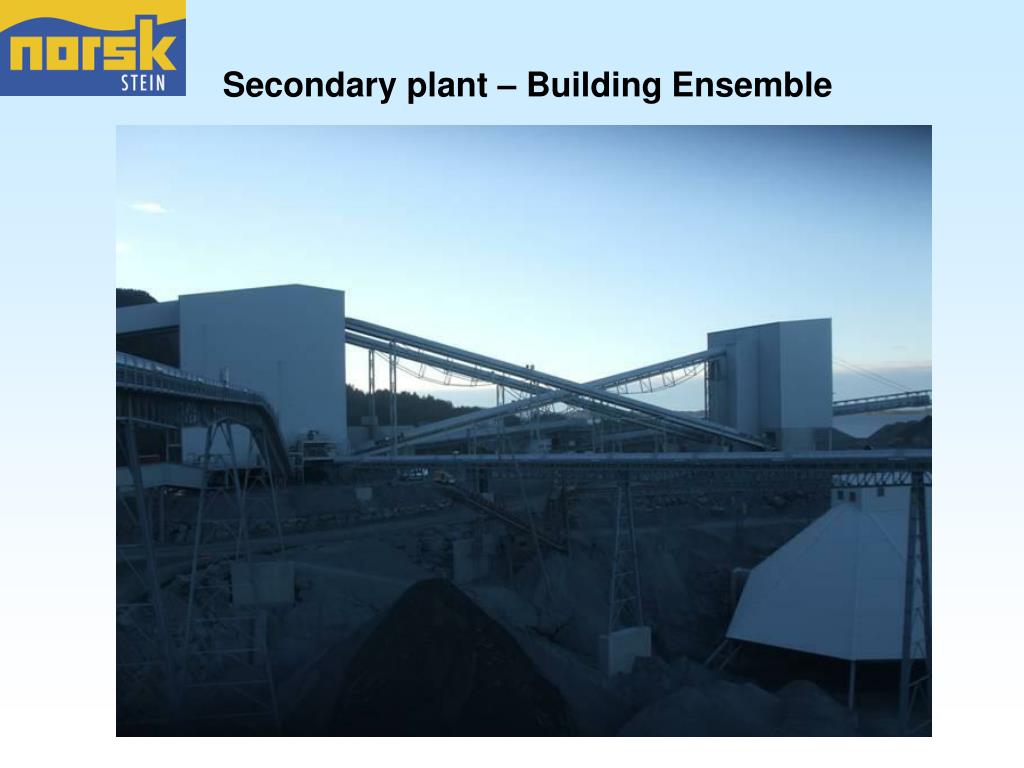

  4. Secondary plant – Building Ensemble

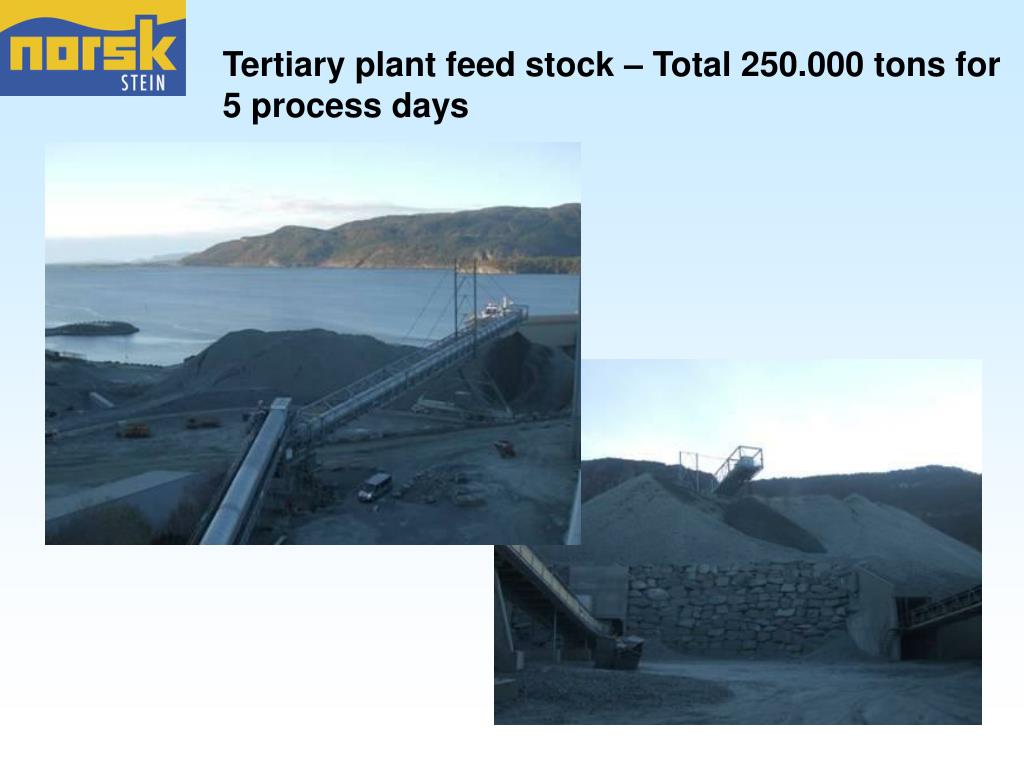

  5. Tertiary plant feed stock – Total 250.000 tons for 5 process days

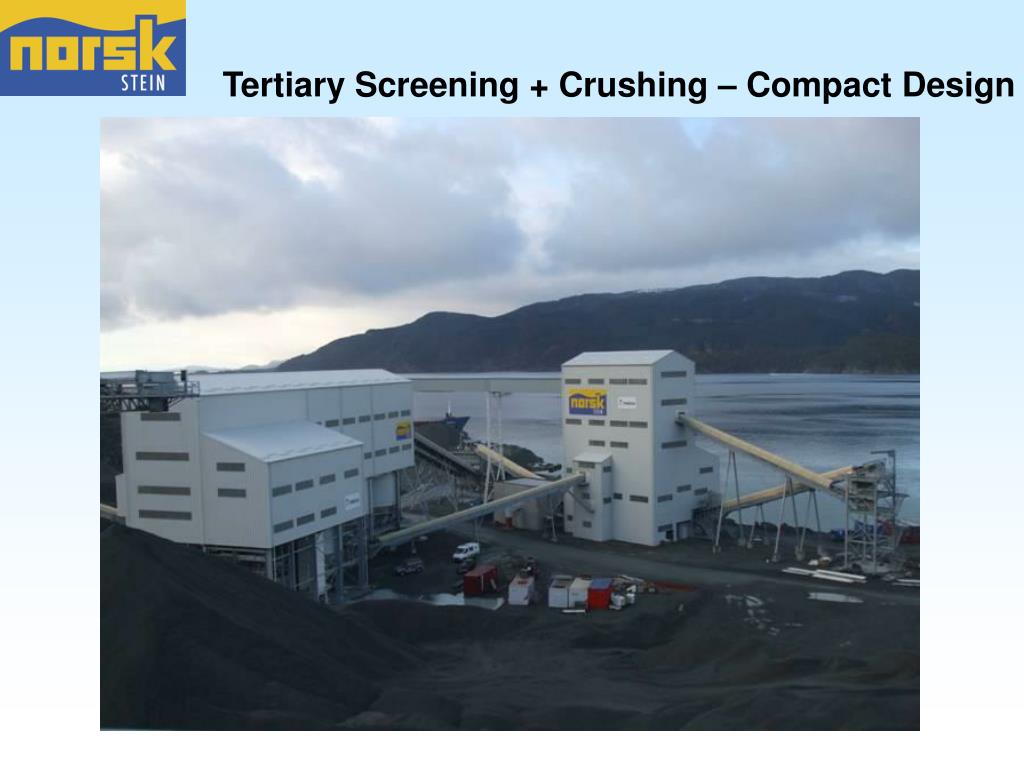

  6. Tertiary Screening + Crushing – Compact Design

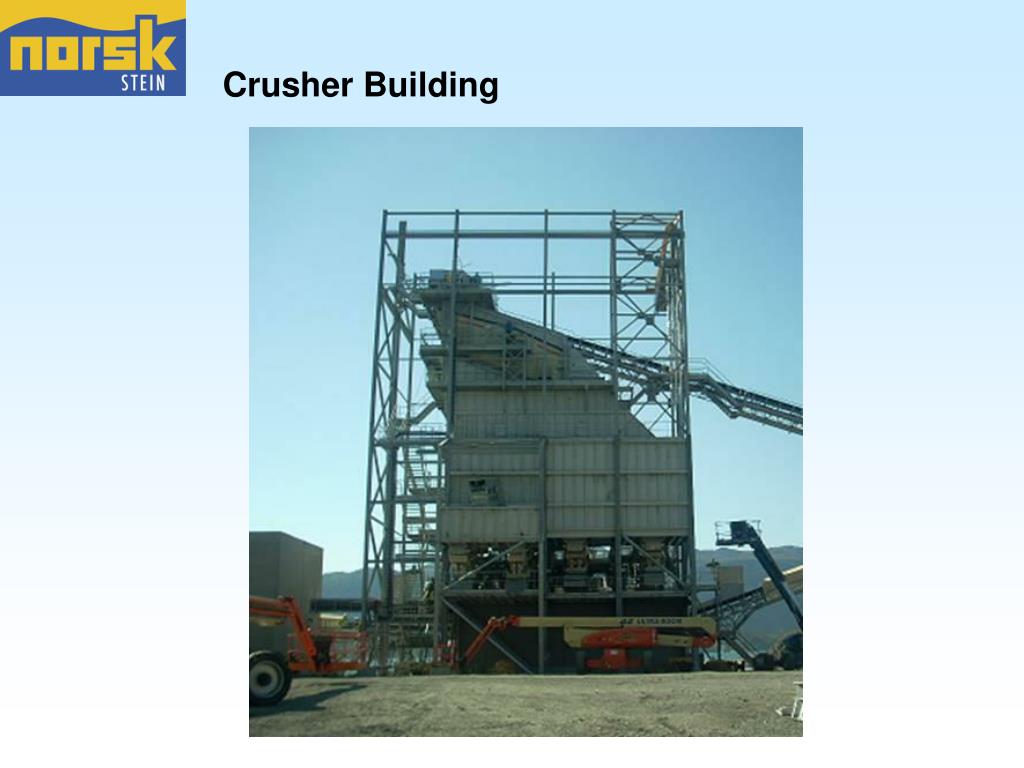

  7. Crusher Building

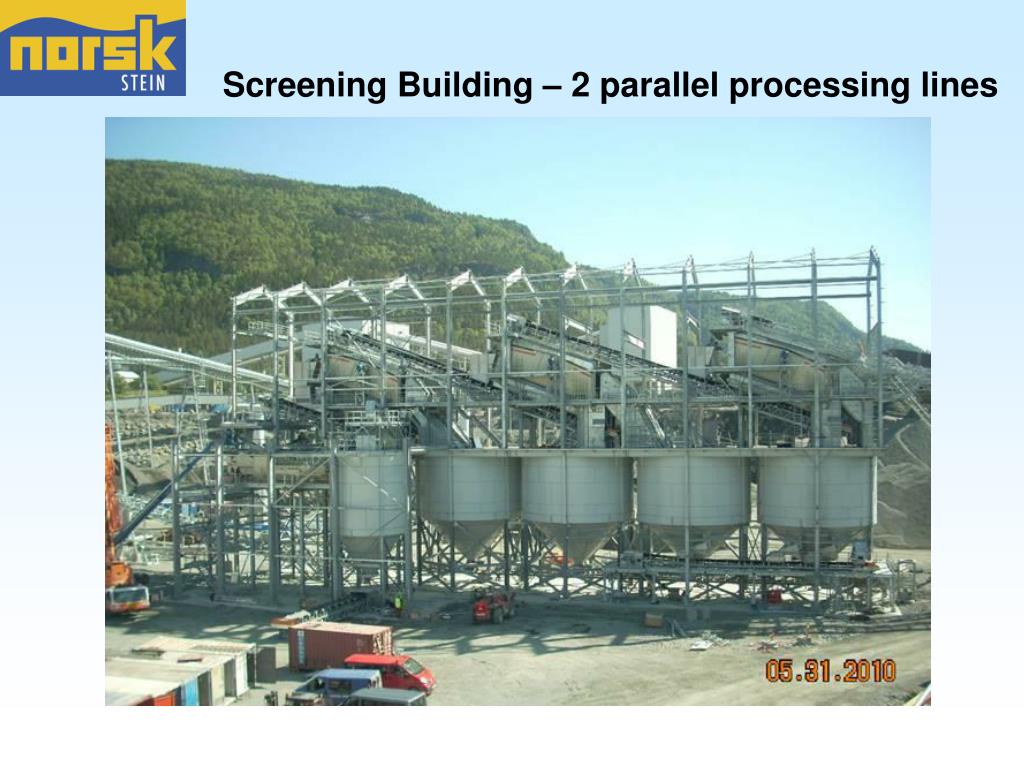

  8. Screening Building – 2 parallel processing lines

  9. Wet Sand – Free loading access from all sides

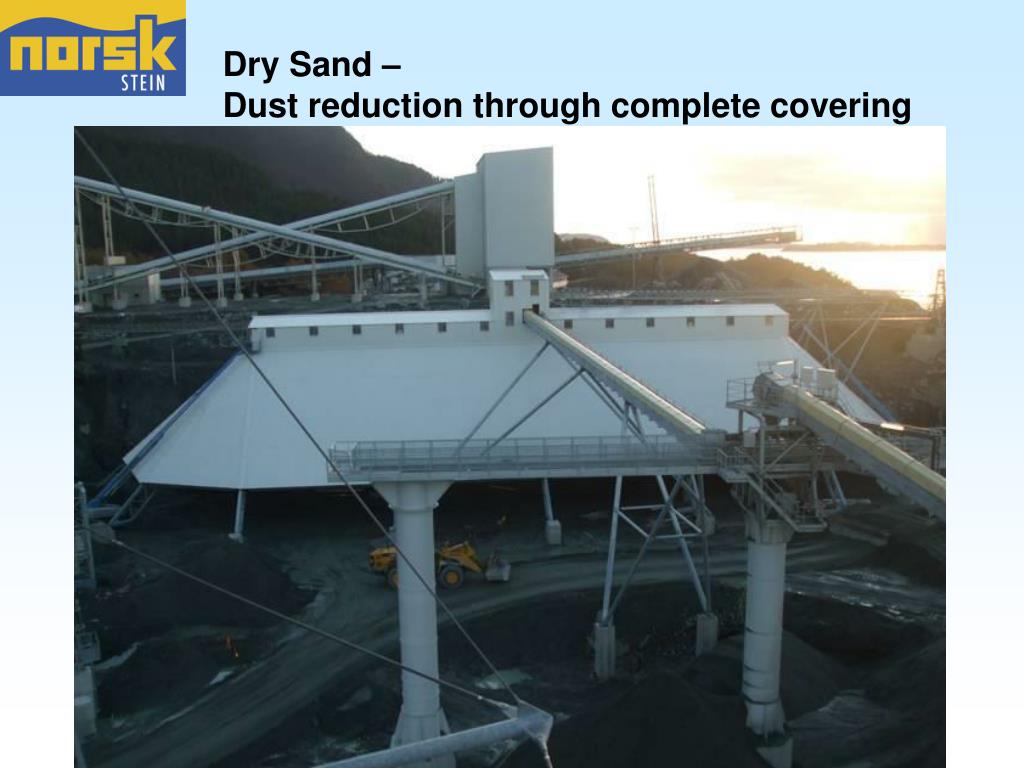

  10. Dry Sand – Dust reduction through complete covering

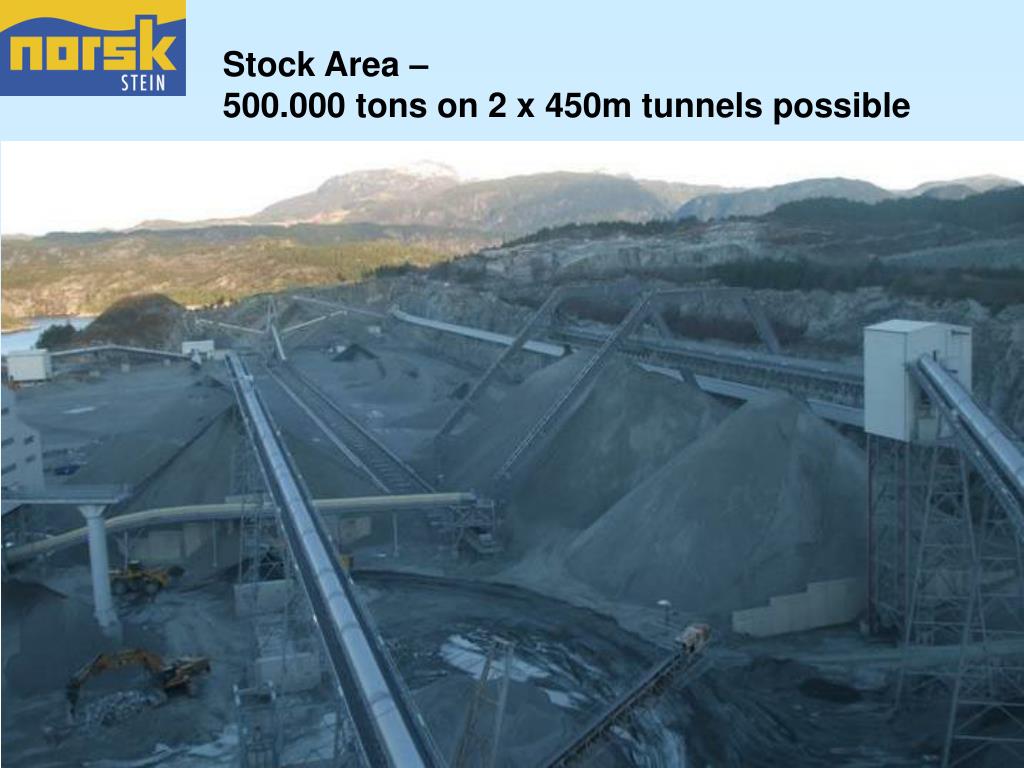

  11. Stock Area – 500.000 tons on 2 x 450m tunnels possible

  12. Stacker – Flexible two arm stock feeding

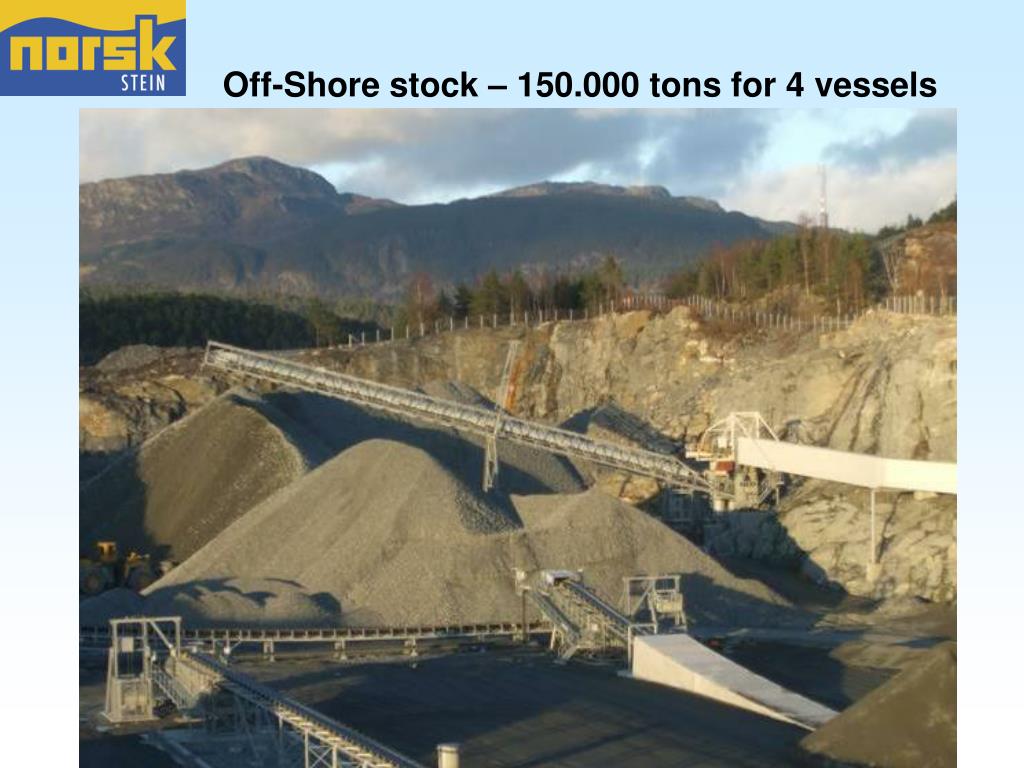

  13. Off-Shore stock – 150.000 tons for 4 vessels

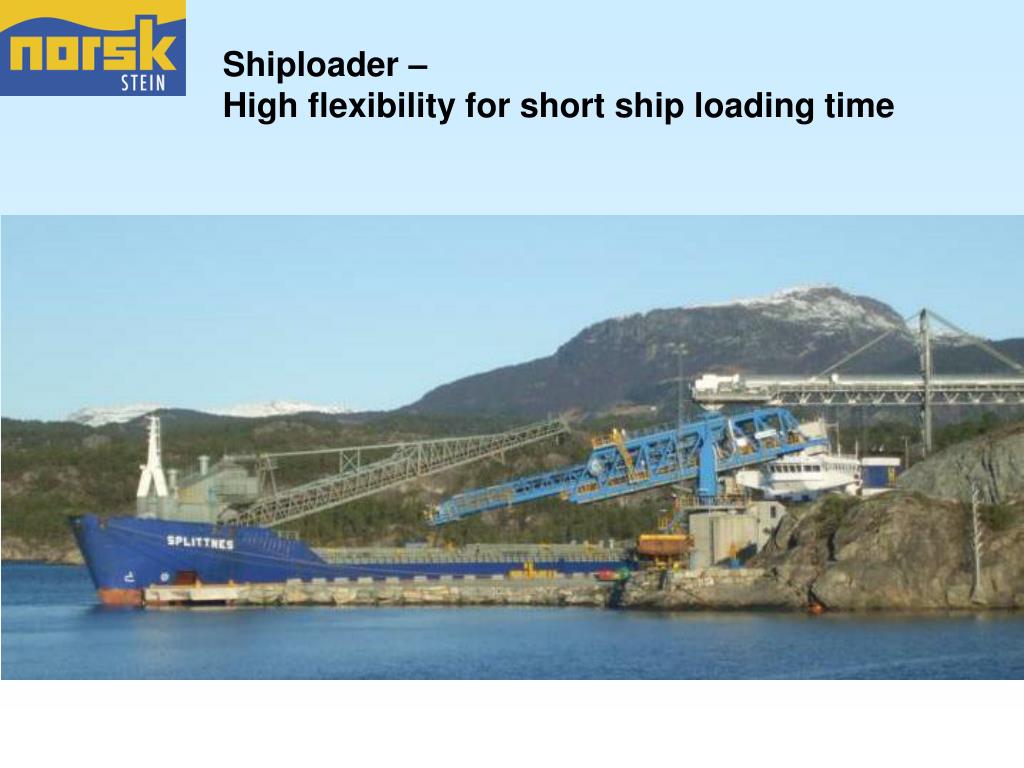

  14. Shiploader – High flexibility for short ship loading time
