Skyware Global Antenna

The Skyware Global Type 125TX 1.2M Class I TxRx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and sustains its critical parabolic shape necessary for transmit performance.

lillypulitzeer
Download Presentation

Skyware Global Antenna

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

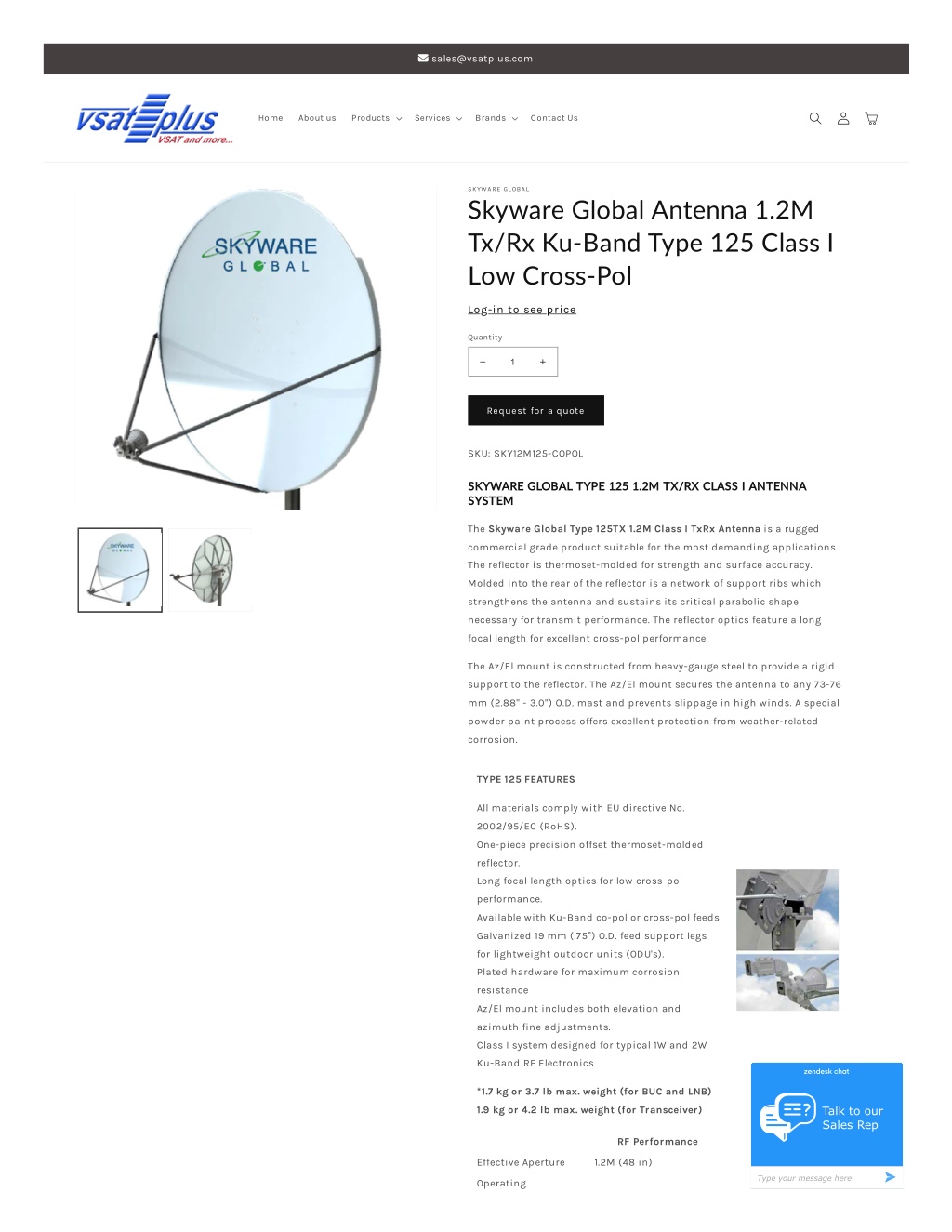

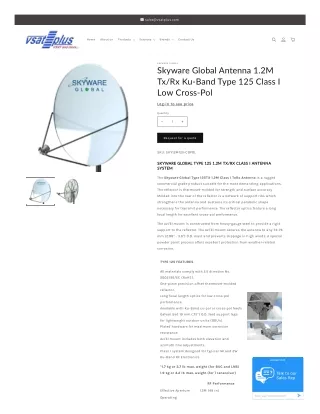

  1. ✉ sales@vsatplus.com Home About us Products Services Brands Contact Us SKYWARE GLOBAL Skyware Global Antenna 1.2M Tx/Rx Ku-Band Type 125 Class I Low Cross-Pol Log-in to see price Quantity 1 Request for a quote SKU: SKY12M125-COPOL SKYWARE GLOBAL TYPE 125 1.2M TX/RX CLASS I ANTENNA SYSTEM The Skyware Global Type 125TX 1.2M Class I TxRx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and sustains its critical parabolic shape necessary for transmit performance. The reflector optics feature a long focal length for excellent cross-pol performance. The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to any 73-76 mm (2.88" - 3.0") O.D. mast and prevents slippage in high winds. A special powder paint process offers excellent protection from weather-related corrosion. TYPE 125 FEATURES All materials comply with EU directive No. 2002/95/EC (RoHS). One-piece precision offset thermoset-molded reflector. Long focal length optics for low cross-pol performance. Available with Ku-Band co-pol or cross-pol feeds Galvanized 19 mm (.75”) O.D. feed support legs for lightweight outdoor units (ODU's). Plated hardware for maximum corrosion resistance Az/El mount includes both elevation and azimuth fine adjustments. Class I system designed for typical 1W and 2W Ku-Band RF Electronics       *1.7 kg or 3.7 lb max. weight (for BUC and LNB) Talk to our Sales Rep Sales Rep Sales Rep Talk to our Talk to our 1.9 kg or 4.2 lb max. weight (for Transceiver) RF Performance Effective Aperture 1.2M (48 in) » » » Type your message here Type your message here Type your message here Operating

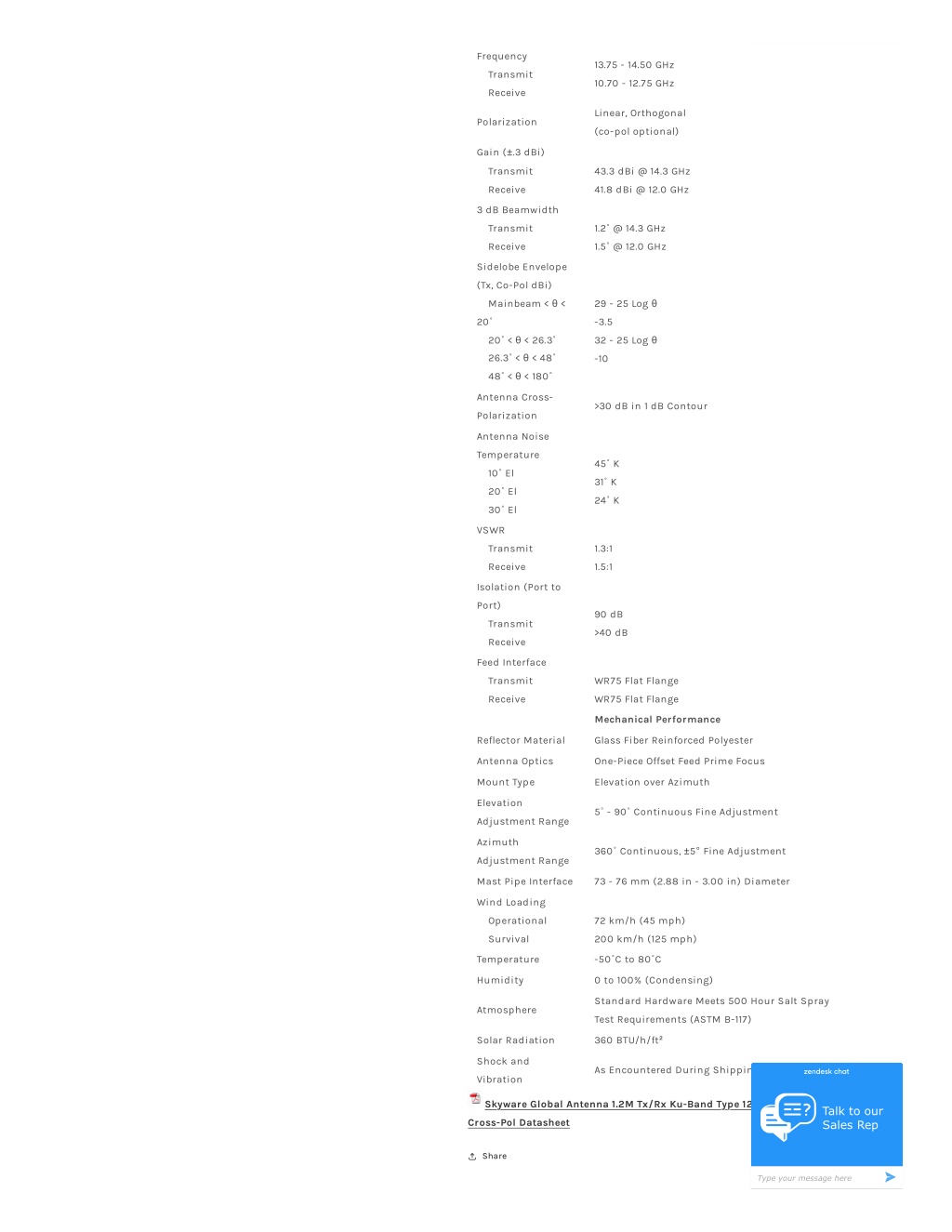

  2. Frequency 13.75 - 14.50 GHz Transmit 10.70 - 12.75 GHz Receive Linear, Orthogonal Polarization (co-pol optional) Gain (±.3 dBi) Transmit 43.3 dBi @ 14.3 GHz Receive 41.8 dBi @ 12.0 GHz 3 dB Beamwidth Transmit 1.2˚ @ 14.3 GHz Receive 1.5˚ @ 12.0 GHz Sidelobe Envelope (Tx, Co-Pol dBi) Mainbeam < θ < 29 - 25 Log θ 20˚ -3.5 20˚ < θ < 26.3˚ 32 - 25 Log θ 26.3˚ < θ < 48˚ -10 48˚ < θ < 180˚ Antenna Cross- >30 dB in 1 dB Contour Polarization Antenna Noise Temperature 45˚ K 10˚ El 31˚ K 20˚ El 24˚ K 30˚ El VSWR Transmit 1.3:1 Receive 1.5:1 Isolation (Port to Port) 90 dB Transmit >40 dB Receive Feed Interface Transmit WR75 Flat Flange Receive WR75 Flat Flange Mechanical Performance Reflector Material Glass Fiber Reinforced Polyester Antenna Optics One-Piece Offset Feed Prime Focus Mount Type Elevation over Azimuth Elevation 5˚ - 90˚ Continuous Fine Adjustment Adjustment Range Azimuth 360˚ Continuous, ±5° Fine Adjustment Adjustment Range Mast Pipe Interface 73 - 76 mm (2.88 in - 3.00 in) Diameter Wind Loading Operational 72 km/h (45 mph) Survival 200 km/h (125 mph) Temperature -50˚C to 80˚C Humidity 0 to 100% (Condensing) Standard Hardware Meets 500 Hour Salt Spray Atmosphere Test Requirements (ASTM B-117) Solar Radiation 360 BTU/h/ft² Shock and As Encountered During Shipping and Handling   Vibration   Skyware Global Antenna 1.2M Tx/Rx Ku-Band Type 125 Class I Low Talk to our Sales Rep Sales Rep Talk to our Cross-Pol Datasheet Share » » Type your message here Type your message here
