MGISAC - NGEA & MO GIT Briefing Tim Haithcoat Missouri Spatial Data Information Service

1. N S D I National Spatial Data Infrastructure Missouri Adaptive Enterprise ArchitectureInformation DomainGeographic Information Technology Discipline MGISAC - NGEA & MO GIT Briefing Tim Haithcoat Missouri Spatial Data Information Service HaithcoatT@missouri.edu Eliot Christian, USGS/FGDC August 11, 2005

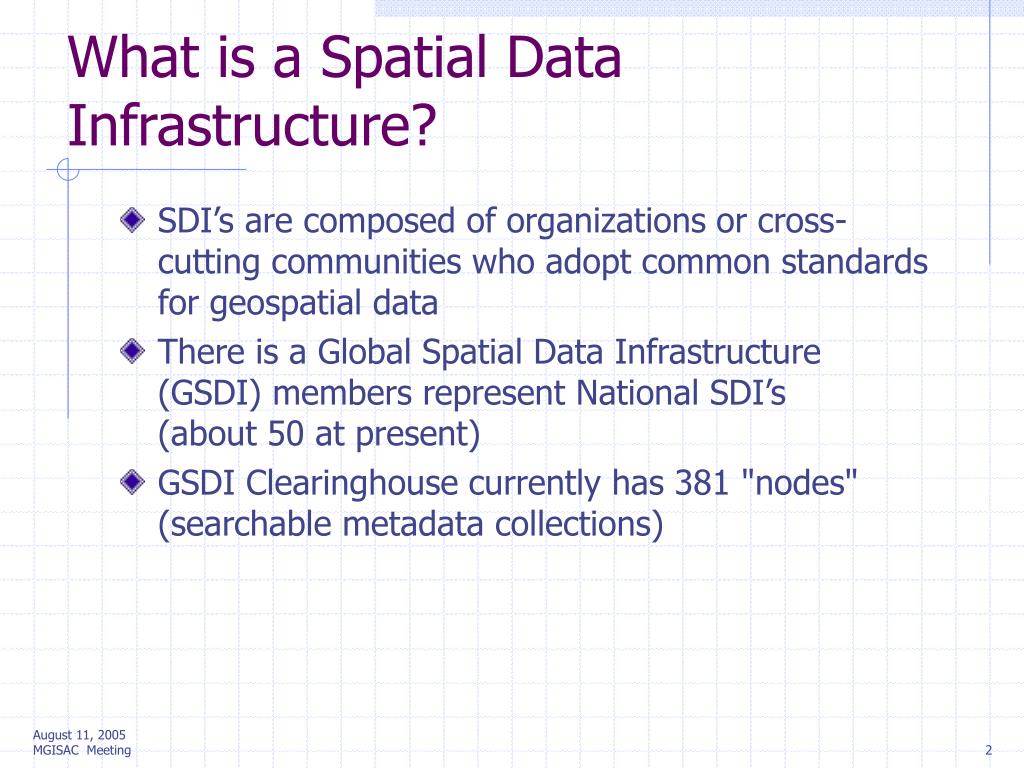

2. What is a Spatial Data Infrastructure? • SDI’s are composed of organizations or cross-cutting communities who adopt common standards for geospatial data • There is a Global Spatial Data Infrastructure (GSDI) members represent National SDI’s (about 50 at present) • GSDI Clearinghouse currently has 381 "nodes" (searchable metadata collections)

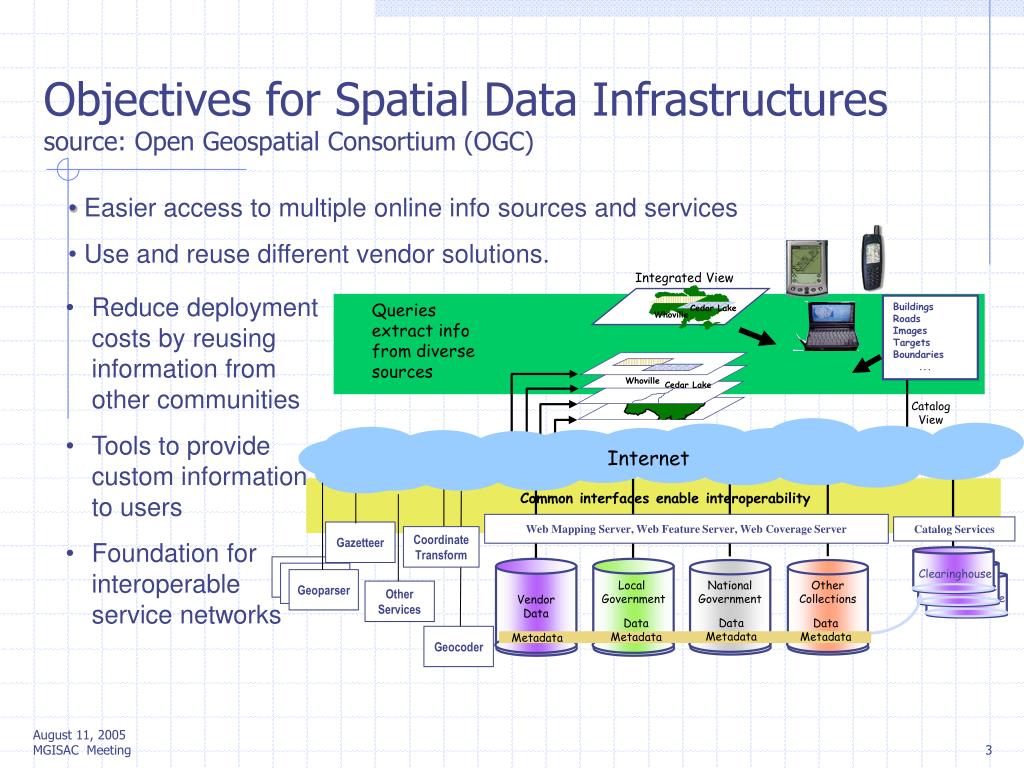

3. Easier access to multiple online info sources and services • Use and reuse different vendor solutions. • Reduce deployment costs by reusing information from other communities • Tools to provide custom information to users • Foundation for interoperable service networks Whoville Cedar Lake Clearinghouse Clearinghouse Data Metadata Data Metadata Data Metadata Metadata Objectives for Spatial Data Infrastructuressource: Open Geospatial Consortium (OGC) Integrated View Queries extract info from diverse sources Buildings Roads Images Targets Boundaries ... Cedar Lake Whoville CatalogView Internet Common interfaces enable interoperability Web Mapping Server, Web Feature Server, Web Coverage Server Catalog Services Gazetteer Coordinate Transform Geoparser Clearinghouse Geoparser Geoparser Local Government National Government Other Collections Vendor Data Other Services Geocoder

4. Requirements of Law and Policy Federal Policy (Circular A-16) OMB Circular A-16 (as revised August 19, 2002): "establishes a coordinated approach to electronically develop the National Spatial Data Infrastructure" Purpose of the NSDI:To encourage the collection, processing, archiving, integration, and sharing of geospatial data and information using common standards and interoperable systems and techniques

5. Requirements of Law and Policy Federal Policy (Circular A-16) "provides direction for federal agencies that produce, maintain or use spatial data either directly or indirectly" directs such agencies, "both internally and through their activities involving partners, grants, and contracts" to: (1) Prepare, maintain, publish, and implement a strategy for advancing geographic information and related spatial data activities appropriate to their mission, in support of the NSDI Strategy. [...] (2) Collect, maintain, disseminate, and preserve spatial information such that the resulting data, information, or products can be readily shared with other federal agencies and non-federal users, and promote data integration between all sources. [...]

6. Requirements of Law and Policy Federal Policy (Circular A-16) (4) Use FGDC data standards, FGDC Content Standards for Digital Geospatial Metadata, and other appropriate standards, documenting spatial data with the relevant metadata, and making metadata available online through a registered NSDI-compatible Clearinghouse node. [...] Before the obligation of funds, ensure that all expenditures for spatial data and related systems activities financed directly or indirectly, in whole or in part, by federal funds are compliant with the standards and provisions of the FGDC. All Information Technology systems which process spatial data should identify planned investments for spatial data and compliance with FGDC standards within the Exhibit 300 capital asset and business plan submission (see OMB Circular A-11, sec. 300).

7. Enterprise GISvs.Spatially Enabled Enterprise • Enterprise GIS • Focus is on widespread access to (limited) technology • Deployment of GIS web applications to the Enterprise • Often Proprietary to a Specific GIS • Often Focused on Frequently Asked Questions • Spatially Enabled Enterprise • Focus Is on Integration of Geospatial Technology Throughout the Enterprise • Maximises Use of Geospatial Data Through Enterprise Repository • Embeds Spatial Data & Technologies in Enterprise Applications • May Allow Mixed Development Tools • Architecture Supports GIS and “Traditional” Business Applications

8. Integrating Spatial Data into Enterprise Data Resources • It’s Already There, but No One Noticed! • So, How to Make Effective? • Add Graphical Representations • Use Server-side Technology to Link Graphic to Non-graphic Spatial Data • Use Client-side GIS Query & Visualization Tools • Then, What Gets in the Way? Obstacles Include: • Issues of Database Design • Issues of ETL Procedures • Issues of Data Conflation • Issues of Knowledge Mismatch Among Technical Staff

9. Do More With Less Fundamental Business Drivers Have Not Changed Improved Services Improve Efficiencies Fundamental Business Drivers What is changing: • Internet computing • Service Delivery • Expectations • End-users • Service Providers • Citizens

10. Internet Technology ChangesSpatial • Proprietary to Open • Files to Data • Fragile to Flexible • Few to Many • Experts to Anyone • Workstations to Any Client Device • Slow to Fast • Expensive to Bargain • Point application to Strategic • Cost Center toProfit Center

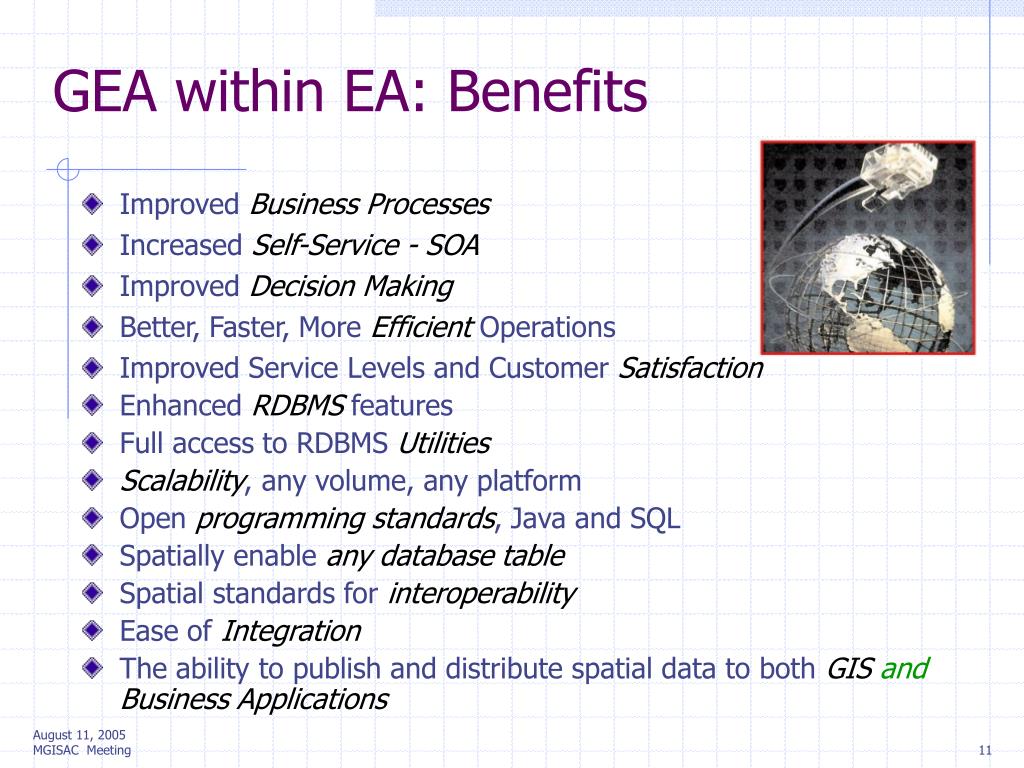

11. GEA within EA: Benefits • Improved Business Processes • Increased Self-Service - SOA • Improved DecisionMaking • Better, Faster, More Efficient Operations • Improved Service Levels and Customer Satisfaction • Enhanced RDBMS features • Full access to RDBMS Utilities • Scalability, any volume, any platform • Open programming standards, Java and SQL • Spatially enable any database table • Spatial standards for interoperability • Ease of Integration • The ability to publish and distribute spatial data to both GISandBusiness Applications

12. Enterprise GIT / IT Architecture • The citizen oriented e-government approach to improve information sharing across governmental boundaries and support service oriented applications can be catalyzed through a spatially enabled EA. • NASCIO’s EA effort is adaptive as it must be able to support a wide variety of applications and also must morph and evolve as technologies change. As such, it’s goal is to provide described methodologies for developing an organization’s IT support functions - to include geospatial data and analysis. • Increased implementation of GIT at federal, state and local levels necessitates the need for guidance and direction in promoting the interoperability of the IT and GIT domains that are necessary for addressing the complex business needs of government. • NASCIO EA is currently lacking a geospatial template that would outline the governance, business, and technical components and processes for allowing data to be related and queried via their spatial context.

13. Enterprise GIT / IT Architecture • By sharing horizontally and vertically among organizations these developed GIT templates will empower each governmental sector participating to leverage their investments in geospatial data to create new information for support of decision-making and their business processes.

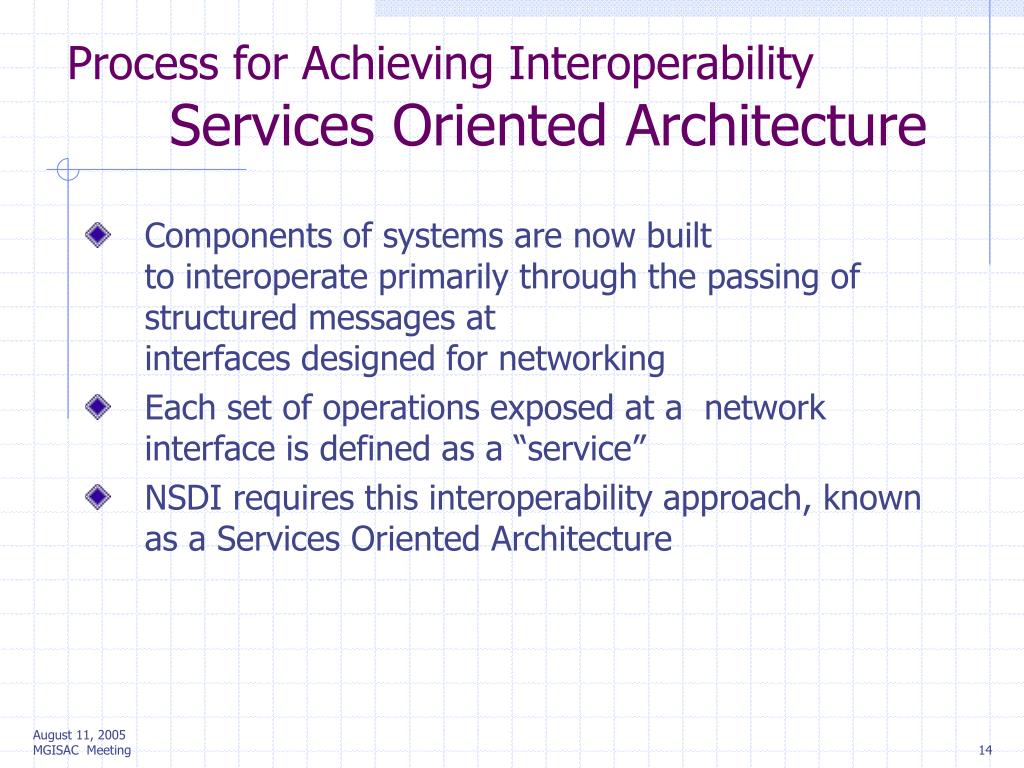

14. Process for Achieving Interoperability Services Oriented Architecture • Components of systems are now built to interoperate primarily through the passing of structured messages at interfaces designed for networking • Each set of operations exposed at a network interface is defined as a “service” • NSDI requires this interoperability approach, known as a Services Oriented Architecture

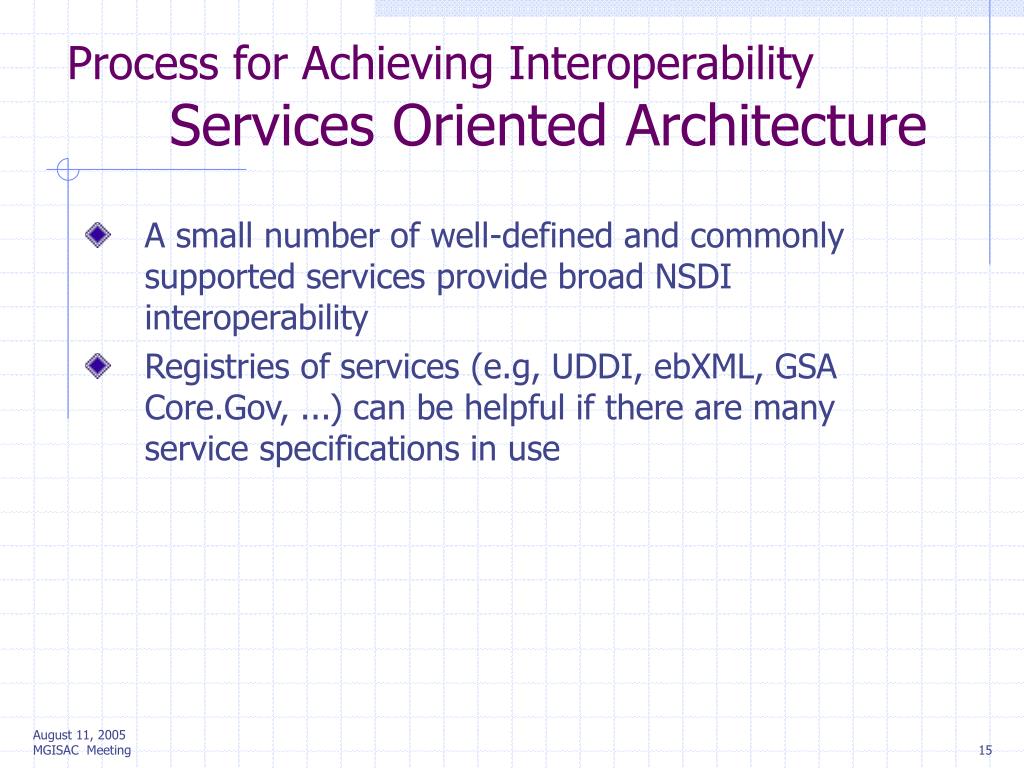

15. Process for Achieving Interoperability Services Oriented Architecture • A small number of well-defined and commonly supported services provide broad NSDI interoperability • Registries of services (e.g, UDDI, ebXML, GSA Core.Gov, ...) can be helpful if there are many service specifications in use

16. Process for Achieving Interoperability Technical Standards U.S. NSDI employs various standards, e.g., • OGC Web Map Service, Web Coverage Service, Web Feature Service • ISO 23950 (information search and retrieval service) • ISO/IEC 11179 (metadata registries) • ISO 19115 (documentation and representation) • ISO 3166 (place codes) • ... among others

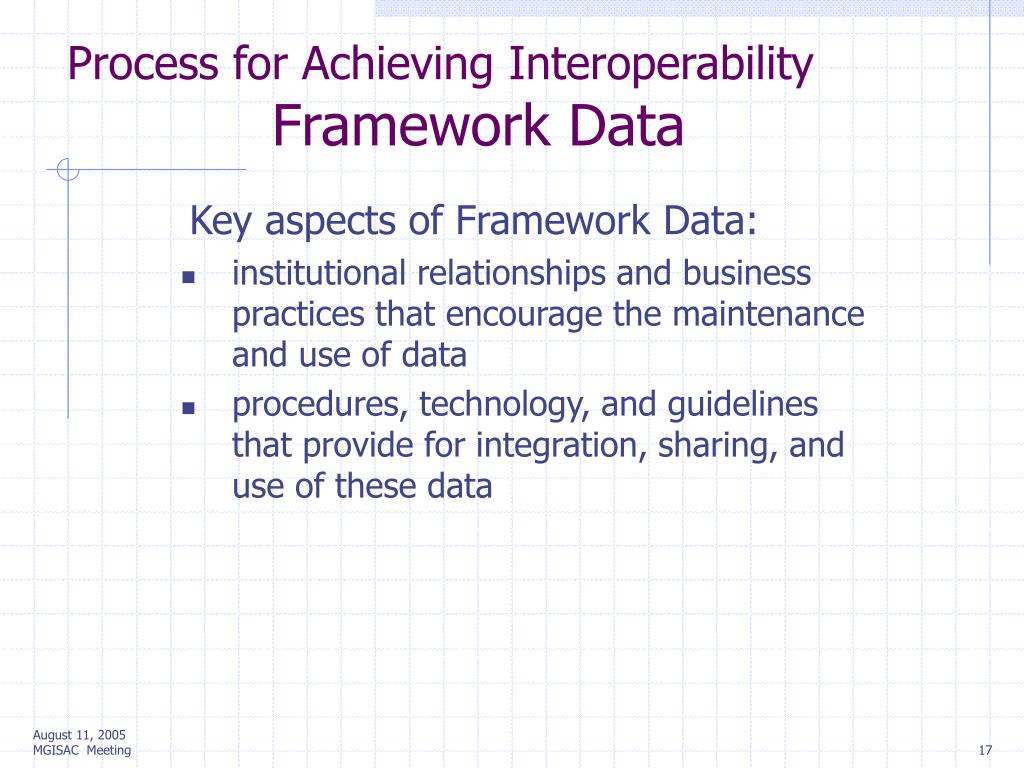

17. Process for Achieving Interoperability Framework Data Key aspects of Framework Data: • institutional relationships and business practices that encourage the maintenance and use of data • procedures, technology, and guidelines that provide for integration, sharing, and use of these data

18. General Principles for Geospatial Interoperability Geospatial interoperability should be inclusive, spanning levels of Government (Local, State, Tribal and Federal), as well as academic, commercial, and other non-Government organizations Hence the term "National Geospatial Enterprise Architecture"

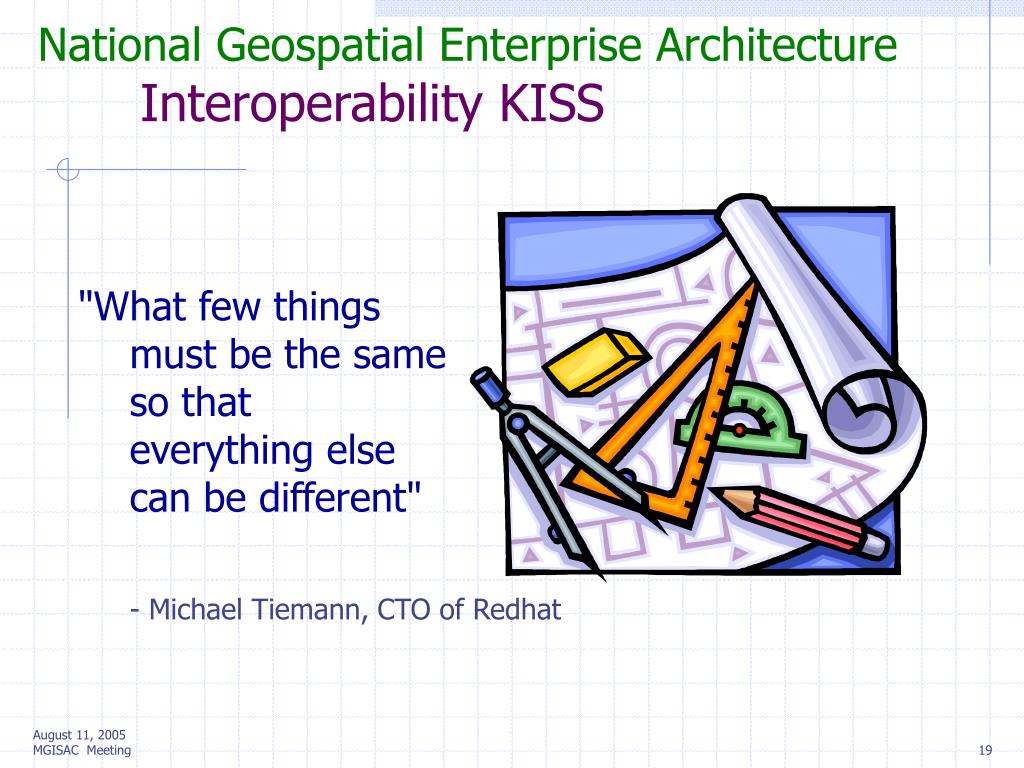

19. National Geospatial Enterprise ArchitectureInteroperability KISS "What few things must be the same so that everything else can be different" - Michael Tiemann, CTO of Redhat

20. Missouri Architecture Governance Processes • Architecture Review Process - The process that allows the ARC to review, debate, discuss, & make decisions about the changes to the Architecture Blueprint & Manual • Architecture Communication Process - The process that insures the architecture contents are communicated in a timely and accurate manner • Architecture Compliance Process - The process to request a variance from the approved product or compliance components • Architecture Vitality Process - The process that insures the Enterprise Architecture Blueprint contents remain current and accurate • Architecture Change Management Process - The process that insures the architecture Manual contents remain current and accurate

21. Architecture Blueprint / Document Structure * Compliance Components apply at these 3 levels

22. Missouri Adaptive Enterprise Architecture – GIT Discipline • Descriptive Introductory Materials associated with the Geographic Information Technology (GIT) Discipline • Description – ‘What it is’ with brief examples • Rationale – ‘Why it is important to Missouri government’ with examples • Benefits – Why it is important to Missouri citizens and other constituencies’ with examples

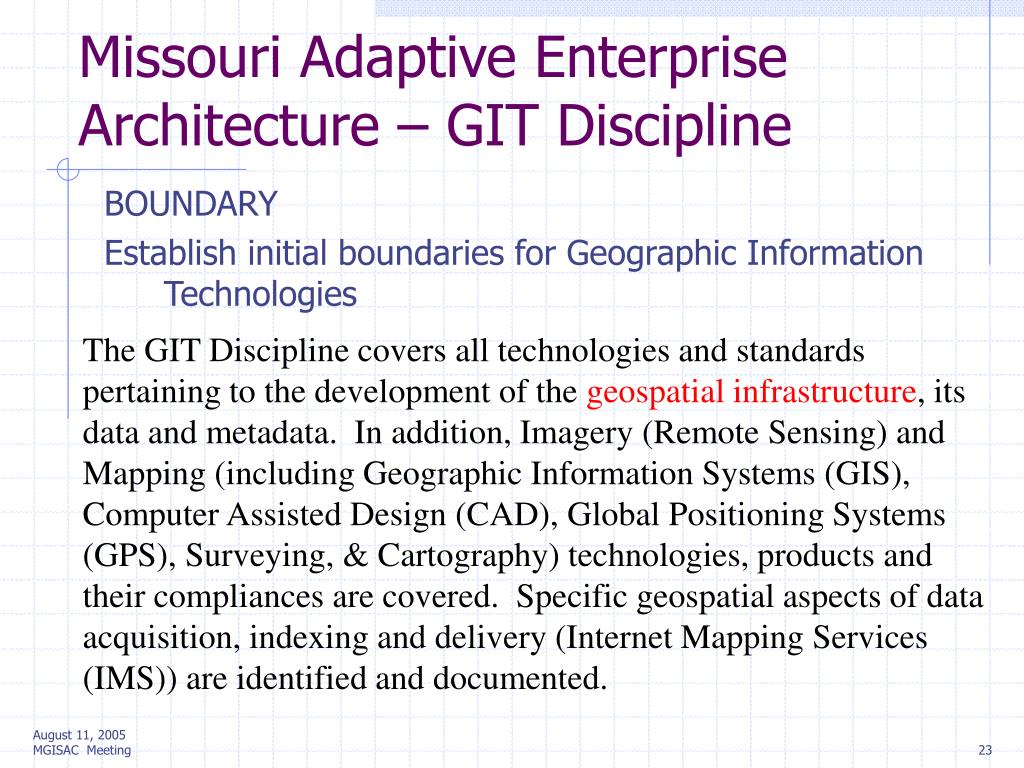

23. Missouri Adaptive Enterprise Architecture – GIT Discipline BOUNDARY Establish initial boundaries for Geographic Information Technologies The GIT Discipline covers all technologies and standards pertaining to the development of the geospatial infrastructure, its data and metadata. In addition, Imagery (Remote Sensing) and Mapping (including Geographic Information Systems (GIS), Computer Assisted Design (CAD), Global Positioning Systems (GPS), Surveying, & Cartography) technologies, products and their compliances are covered. Specific geospatial aspects of data acquisition, indexing and delivery (Internet Mapping Services (IMS)) are identified and documented.

24. Missouri Adaptive Enterprise Architecture – GIT Discipline CRITICAL REFERENCES Initially identify the Domains/Disciplines that either will affect the GIT Discipline or vice versa. Further develop and document these possible relationships.

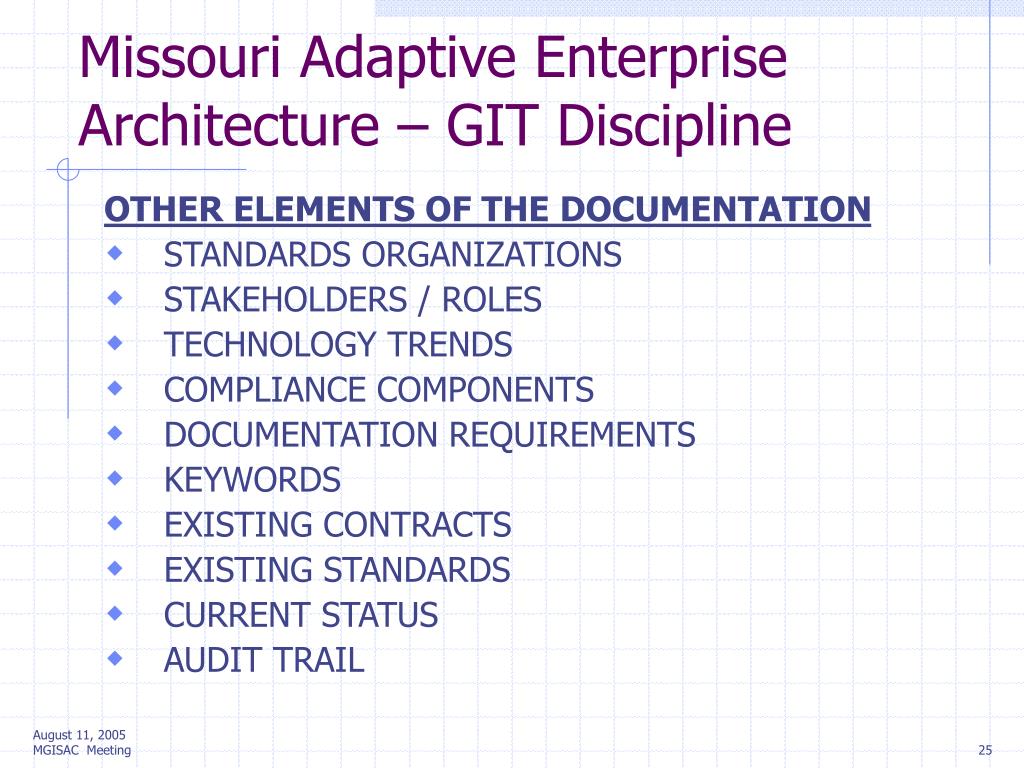

25. Missouri Adaptive Enterprise Architecture – GIT Discipline OTHER ELEMENTS OF THE DOCUMENTATION • STANDARDS ORGANIZATIONS • STAKEHOLDERS / ROLES • TECHNOLOGY TRENDS • COMPLIANCE COMPONENTS • DOCUMENTATION REQUIREMENTS • KEYWORDS • EXISTING CONTRACTS • EXISTING STANDARDS • CURRENT STATUS • AUDIT TRAIL

26. Technology Areas Geographic Information Technology (GIT) Geographic Information Technology provides the ability to acquire and manage information about the location and characteristics of man-made and natural features and events above, on and beneath the surface of the earth and to assess their impact on citizens. Geographic Information Technology provides the ability to utilize locational information to model and analyze relationships and present results to enable better decision-making. Geographic Information Technology provides the ability to track man-made and natural features as they change over time and space. For example, GIT can track urban growth and its impacts on both the municipal infrastructures and on the surrounding rural communities. Geospatial Information Technology Geospatial Metadata Global Positioning Systems (GPS) Geospatial Data Development Standards Interactive Internet Mapping Service Computer Aided Drafting and Design (CAD) Remote Sensing & Image Processing Spatial Indexing Cartography Analog to Digital Capture Geographic Information Systems (GIS) Compliance Content Standard for Geospatial Metadata Fit Matrix Fit Matrix Compliance Survey Grade Mapping Grade Recreational Grade Geospatial Positional Accuracy Standard Open Geospatial Consortium Standards Standards Fit Matrix Fit Matrix Product Product Fit Matrix Product ArcGIS 8.x ArcView 3.x Autodesk Map Geomedia Product Product ArcCatalog CorpsMet SMMS M3Cat Tkme Xtme Compliance Compliance Product National Standard for Spatial Data Accuracy Product Compliance Compliance Compliance Product Standards Digital Ortho Geodetic Control Elevation Addressing Centerline Transport Hydrography Gov Units Critical Infrastructure Land Use / Cover Cadastral Soils Geology Compliance Standards Compliance

27. Product Component Classification • Emerging - Indicates new technology, which has the potential to become current. • Current - Indicates recommended technology. Technology meets the requirements of the architecture. • Twilight - Items that do not conform the Principles, Best Practices and Technology Trends • Sunset - Items that do not conform to the Principles, Best Practices and Technology Trends, and a discontinuation date has been set.

28. Compliance Component Types • Guidelines • General statements of direction • Recommended but not mandated • Standards • Mandated compliance criteria • May be more than one standard to allow flexibility • Must seek variance to deviate • Mandates • Legislated compliance criteria • Cannot deviate; variance not applicable • Includes policy, executive order, statute, state or federal regulation

29. Repository Procedures A system for managing the Architecture documents at all stages of the Architecture Lifecycle • Creating Architecture Blueprint Details • Domain, Discipline, Technology Areas, Product/ Compliance Components • Reviewed by Architecture Office • Templates • Blueprint • Communication • Miscellaneous • Check-Out/Check-In • In Review • Work on document halts
