  1. EML Analysis Tools Introduction Ecoinformatics Working Group Taiwan Forestry Research Institute (TFRI)

  2. EML Analysis Tools – Statistical Tool Metadata (EML) Web Base Interfaces ( Local or URL ) Raw data XSLT / DOM Database QA/QC R - PHP ( MySQL ) Output ( Web )

  3. R-PHP – Open Source Program • http://dssm.unipa.it/R-php/

  4. Statistical Tool • http://shanping.twecoinformatics.org/modules/ ( Workshop ) • http://eml.twecoinformatics.org/modules/

  5. Statistical Tool – The First Module

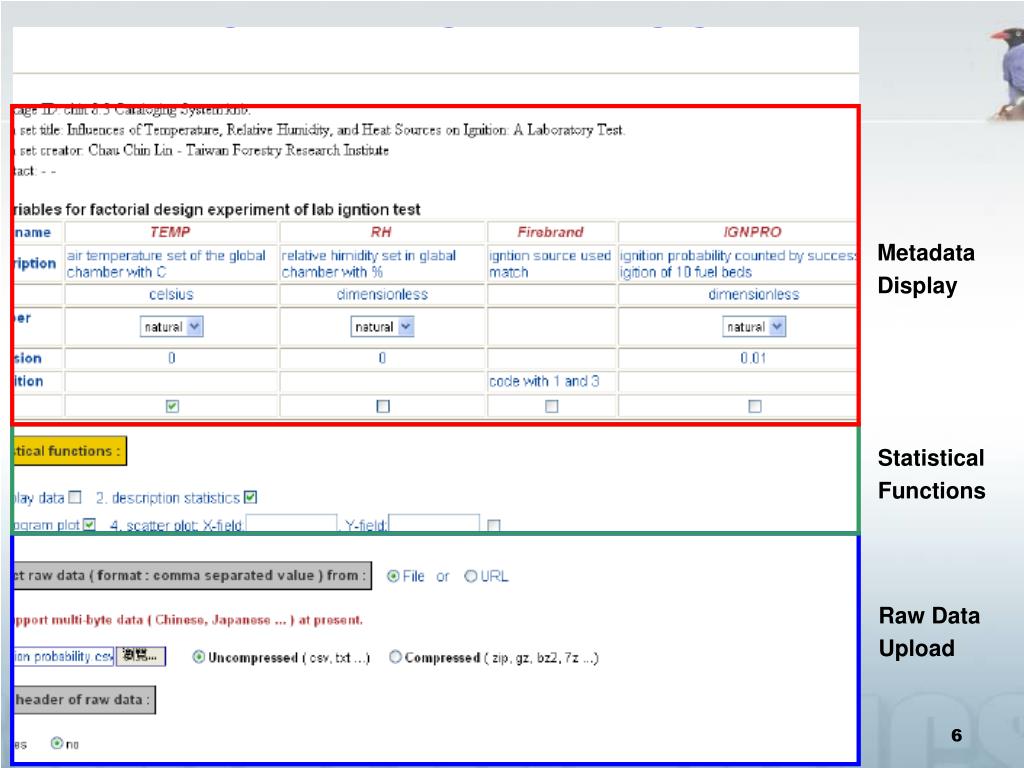

  6. Metadata Display Statistical Functions Raw Data Upload

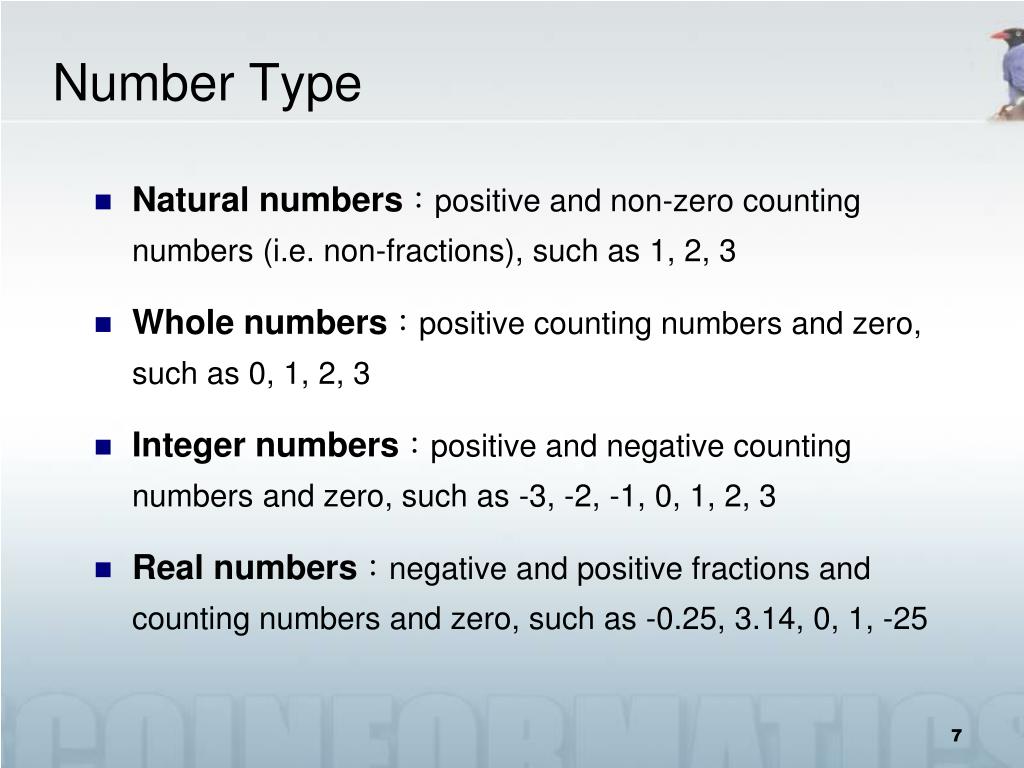

  7. Number Type • Natural numbers：positive and non-zero counting numbers (i.e. non-fractions), such as 1, 2, 3 • Whole numbers：positive counting numbers and zero, such as 0, 1, 2, 3 • Integer numbers：positive and negative counting numbers and zero, such as -3, -2, -1, 0, 1, 2, 3 • Real numbers：negative and positive fractions and counting numbers and zero, such as -0.25, 3.14, 0, 1, -25

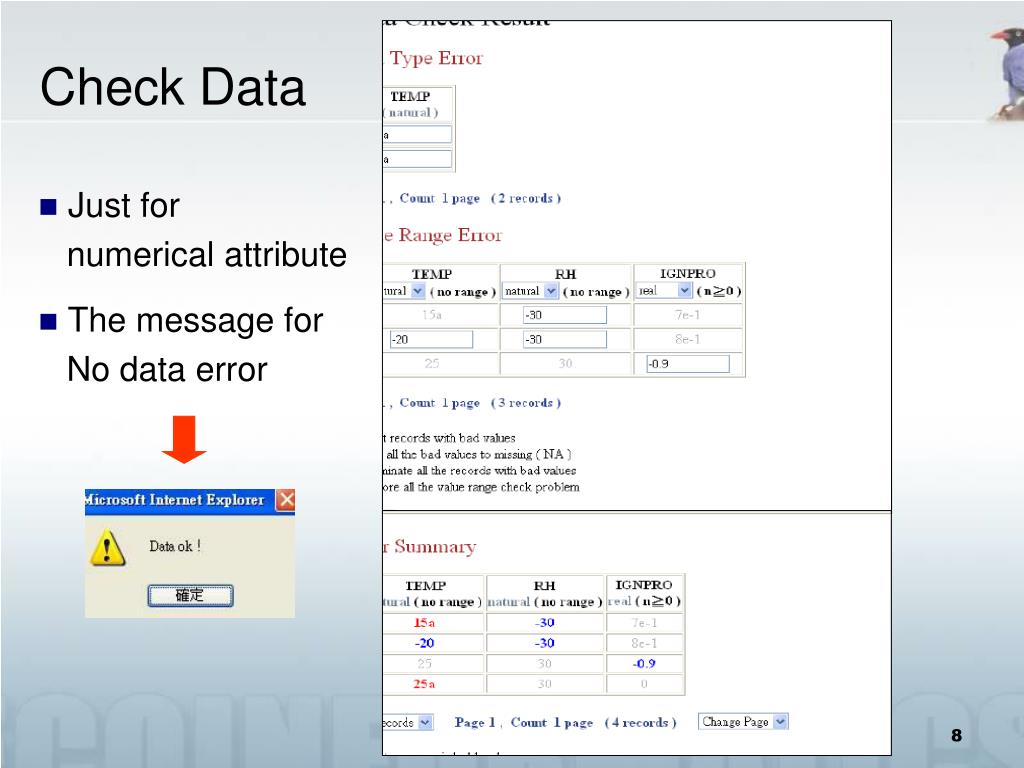

  8. Check Data • Just for numerical attribute • The message for No data error

  9. Edit R Code

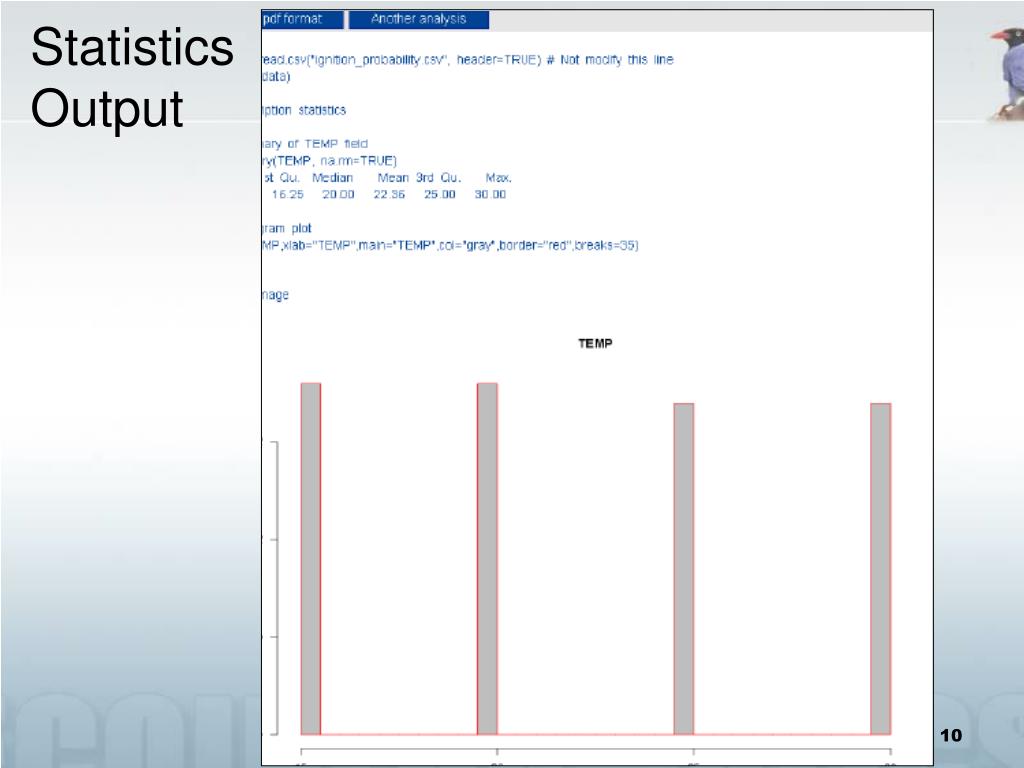

  10. StatisticsOutput

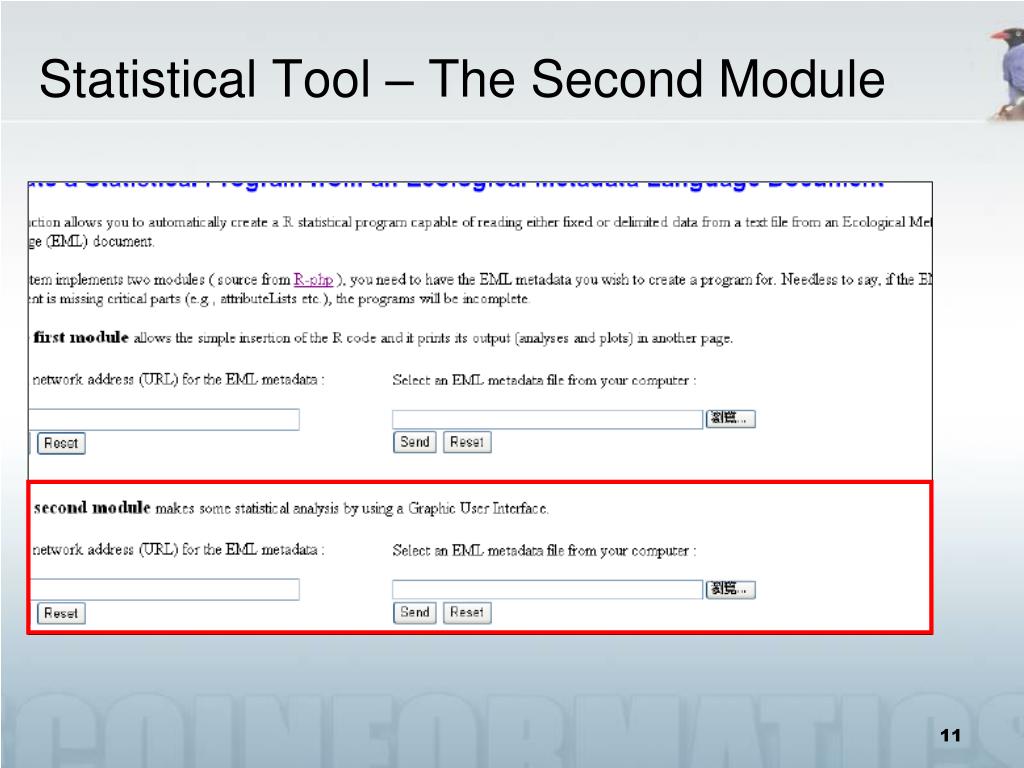

  11. Statistical Tool – The Second Module

  12. Metadata Display Raw Data Upload

  13. Check Data • Just for numerical attribute • The message for No data error

  14. Statistical Functions

  15. Statistics Output

  16. EML Analysis Tools – Source Code • http://imteam.twecoinformatics.org
