1 / 15

EML 4230 Introduction to Composite Materials

EML 4230 Introduction to Composite Materials. Chapter 4 Macromechanical Analysis of a Laminate Dr . Autar Kaw Department of Mechanical Engineering University of South Florida, Tampa, FL 33620 Courtesy of the Textbook Mechanics of Composite Materials by Kaw.

jorryn
Download Presentation

EML 4230 Introduction to Composite Materials

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. EML 4230 Introduction to Composite Materials Chapter 4 Macromechanical Analysis of a Laminate Dr. Autar Kaw Department of Mechanical Engineering University of South Florida, Tampa, FL 33620 Courtesy of the Textbook Mechanics of Composite Materials by Kaw

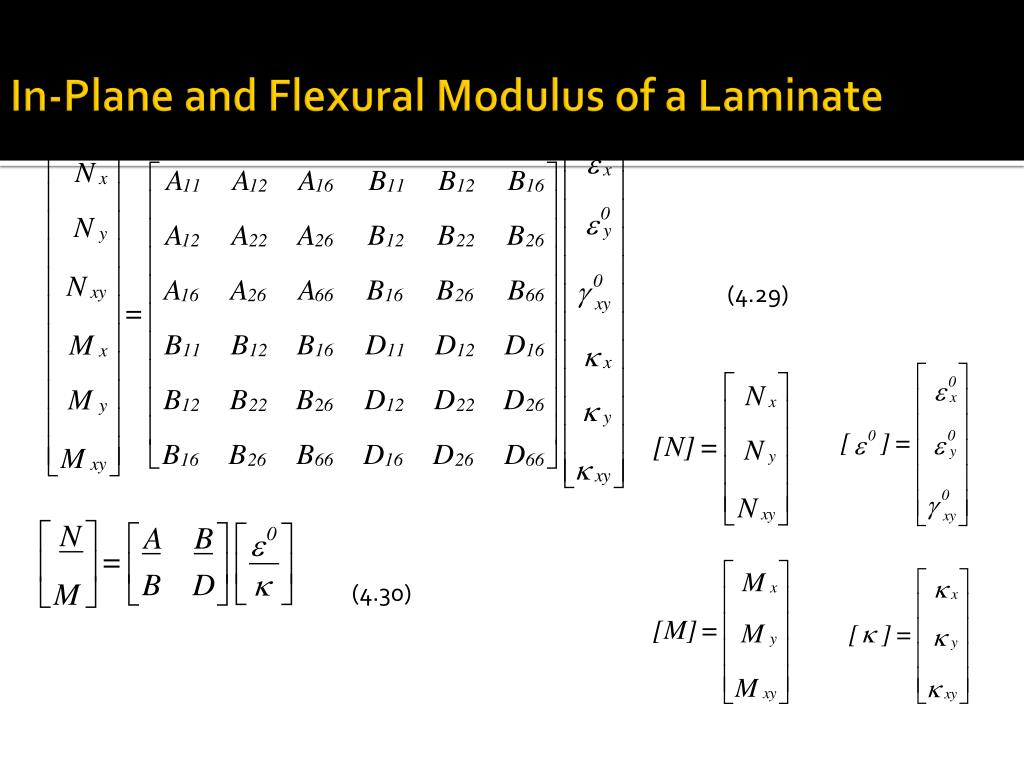

  2. In-Plane and Flexural Modulus of a Laminate (4.29) (4.30)

  3. In-Plane and Flexural Modulus of a Laminate (4.31) (4.32a) (4.32b) The [A*], [B*], and [D*] matrices are called the extensional compliance matrix, coupling compliance matrix, and bending compliance matrix respectively.

  4. In-Plane Engineering Constants of a Laminate For a symmetric laminate:

  5. In-Plane Engineering Constants of a Laminate (4.31) (4.33)

  6. In-Plane Engineering Constants of a Laminate Effective in-plane longitudinal modulus (4.34) (4.35)

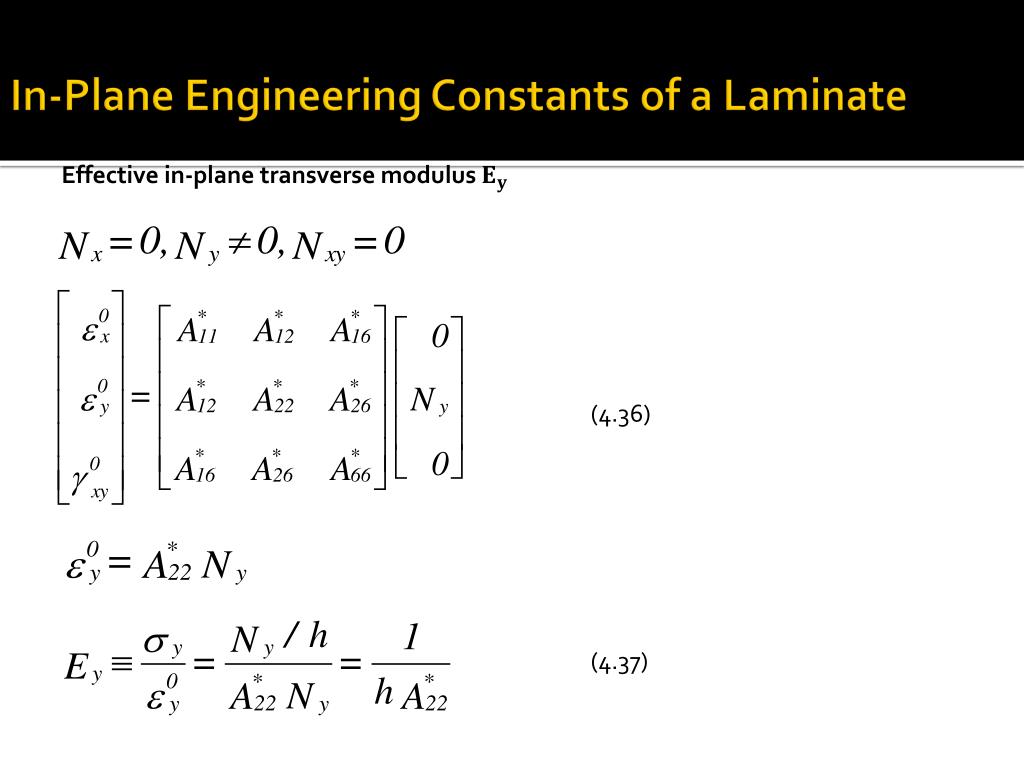

  7. In-Plane Engineering Constants of a Laminate Effective in-plane transverse modulus (4.36) (4.37)

  8. In-Plane Engineering Constants of a Laminate Effective in-plane shear modulus (4.38) (4.39)

  9. In-Plane Engineering Constants of a Laminate Effective in-plane shear modulus (4.34) (4.40) (4.41) (4.42)

  10. In-Plane Engineering Constants of a Laminate Effective in-plane Poisson’s ratio (4.36) (4.43) (4.45) (4.44)

  11. In-Plane Engineering Constants of a Laminate (4.46a) (4.46b) (4.47)

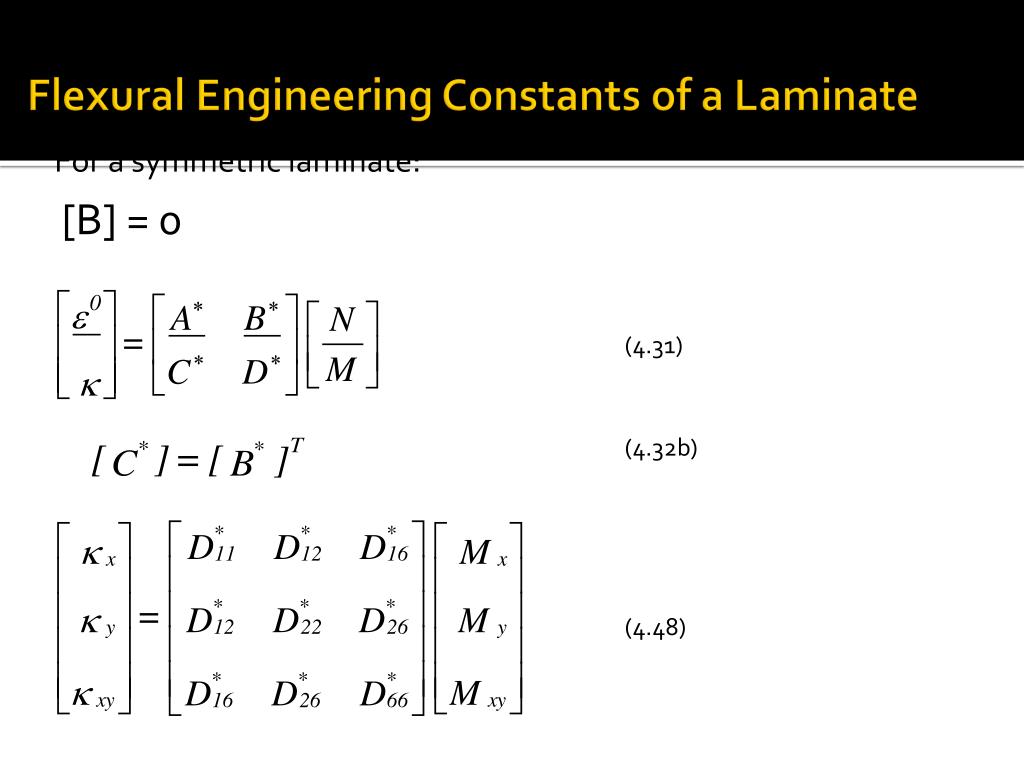

  12. Flexural Engineering Constants of a Laminate For a symmetric laminate: [B] = 0 (4.31) (4.32b) (4.48)

  13. Flexural Engineering Constants of a Laminate Effective flexural longitudinal modulus: (4.49) (4.50) (4.51)

  14. Flexural Engineering Constants of a Laminate (4.52) (4.53) (4.54) (4.55) (4.56)

  15. END

More Related
