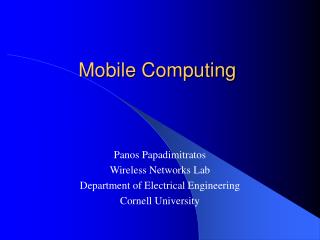

mobile computing

Mobile Computing

Panos Papadimitratos

Wireless Networks Lab

Department of Electrical Engineering

Cornell University

mobile computing environment
Mobile Computing Environment
  • Limited Bandwidth
  • High Latency
  • Intermittent Connectivity
  • Lower Reliability
  • Low Physical Security
  • Lower Processing Capability
  • Higher Degree of Heterogeneity
despite the adversity
Despite the adversity..
  • Run Distributed Applications
  • Provide Distributed Services
  • Share Data
  • Remain Consistent
  • Remain Efficient
why are things more difficult
Why are things more difficult?
  • Connectivity is NOT continuous
    • Topological Changes
  • Less Resources
  • Consequently:
    • Lower Availability
    • Potential Inconsistencies
two aspects
Two aspects
  • “…Replicated, Highly Available, Weakly Consistent Storage System…”
  • “Develop Mobile Applications … minimize the dependence upon continuous connectivity…”
bayou
Bayou
  • Distributed Data Storage System
  • Designed for a Mobile Computing Environment
  • Non-Transparent
  • Weakly-Consistent Replication
  • Application-Specific Mechanisms to Detect & Resolve Conflicts
  • Low Usage of the Network
previous work
Previous Work
  • Theory of Epidemics
    • Eventual Consistency
  • Coda
    • Disconnected Operation
    • Optimistic Replication
    • Consistency
      • Application-specific resolvers
      • Conflicts resolution based on file type
      • Log unresolved conflicts, create error message
  • Ficus
  • Notes, Oracle, MS Access
system model
System Model
  • Client/Server Architecture -Transactional System
  • Data are replicated to a set of servers
  • Applications run as clients
  • Two Basic Operations: Read and Write
  • Replication is Weakly Consistent
    • Read-Any-Write-Any Model
system model10
System Model

Server State

Storage

System

Storage

System

Server State

Anti-Entropy

Read or

Write

Application

Bayou API

Client Stub

Server State

Storage

System

Application

Bayou API

Client Stub

conflict detection resolution
Conflict Detection & Resolution
  • Application-Specific
    • Notion of Conflict
      • Semantics
      • Granularity – example: Scheduling Application
    • Resolution Policy
      • Semantics
  • Automated Mechanisms
    • Dependency Checks
    • Merge Procedures
dependency checks
Dependency Checks
  • Application-Supplied Query & Expected Result
  • Query is Run at the Server against its current data
  • If Check Fails, invoke Merge procedure
merge procedures
Merge Procedures
  • High-level programs with application-specific knowledge
  • Run by the Server
  • Performed Atomically as part of Writes
  • Attempt to Resolve the Conflict
  • Produce a Revised Update to Apply
basic anti entropy
Basic Anti-Entropy
  • Goal: the reconciliation of replicas’ data
  • Pair-wise manner
  • One-way Operation
  • Propagate Write Operations
  • Accept-Order Constraint
  • Prefix Property
  • Version Vectors
basic anti entropy continued
Basic Anti-Entropy (continued)

S

R.V Version Vector

All Writes

unknown to R

R

For each w in S.Write_log

if (R.V(w.server_ID) < w.accept_stamp)

SendWrite(R,w)

a more reasonable approach
A More Reasonable Approach
  • Without an ever-growing Write Log
    • Need a method for Truncating the Write Log
  • Idea: An Update that is received by all Replicas need not be logged any more.
  • Allow for an independent, aggressive pruning by each Replica
  • The notion of Stable or Committed Write is pivotal in the pruning process
write stability
Write Stability
  • Stable Write: iff it has been executed for the last time by a server.
  • Intuitively equivalent to Confirmation or Commitment
  • Primary Commit Scheme
    • Designate a Replica as Primary
    • Primary determines the order (position) of a Write when it first receives it.
    • Stable Order
  • Any Non-CommittedWrite is called Tentative
anti entropy revisited

R.CSN Highest Commit Sequence Number

R.V Version Vector

First, All Committed

Writes unknown to R

Second, All Tentative

Writes unknown to R

if R.CSN < S.CSN

for each w in S.Write_log

if (w.accept_stamp < R.V(w.server_ID))

SendCommitNotification(…)

else

SendWrite(…)

For each w in S.Write_log

if (R.V(w.server_ID) < w.accept_stamp)

SendWrite(R,w)

Anti-Entropy (Revisited)

S

R

write log truncation
Write-Log Truncation
  • Stable Order maintains the Prefix Property
    • Replicas can truncate any stable prefix from their Write Logs
  • Incremental Reconciliation may not be possible
  • Each Replica needs to remember the omittedWrite Operations
  • Full-Database Transfer
extended anti entropy
‘Extended’ Anti-Entropy
  • Session Guarantees
    • Causal Order – Accept Stamp
    • Reduce Client-Observed inconsistencies
  • Eventual Consistency
    • Define a Total Order using the Server ID and the Causal Order
    • Propagate Updates in this Total Order
    • Provide Guarantees on the ‘quality’ of the Replicas Data Content
other issues
Other issues
  • Light-Weight Server Creation
  • Security
  • Update through transportable storage media, i.e. floppy disks
  • Link quality determines the frequency of the performed anti-entropies
experiments
Experiments
  • Measurements on a modified EXMH (e-mailer) that uses Bayou for storing messages
    • Only Committed Writes are propagated
    • Measure the execution time for an Anti-Entropy (100 Writes) over different network links
  • Network Transfer
  • Inserting Newly Received Writes
bayou summary
Bayou - Summary
  • Support for Arbitrary Communication Topologies
  • Operation over Low-Bandwidth Networks
  • Incremental Progress
  • Eventual Consistency
  • Efficient Storage Management
  • Propagation through Transportable Media
  • Light-weight Management of Dynamic Replica Sets
  • Arbitrary Policy Choices
rover toolkit
Rover Toolkit
  • Set of Software Tools for Development of Mobile Applications
  • Two approaches:
    • Mobile-Transparent Applications
    • Mobile-Aware Applications
goals
Goals:
  • Minimize Dependence on
    • Continuous Connectivity
    • Remotely Stored files
  • Optimize Utilization of Bandwidth
  • Dynamic Division of Work
previous work28
Previous Work
  • Cedar
    • Check-in Check-out Data Sharing
  • Locus
    • Type-specific Conflict Resolution
  • Coda
    • Optimistic Concurrency Control
    • Pre-Fetching
  • Bayou
    • Tentative Data
    • Session Guarantees
toolkit design
Toolkit Design
  • Client-Server architecture
  • Mobile Communication Support
    • Re-locatable Dynamic Objects (RDO)
      • Reduce Client/Server communication
      • Update Shared Objects
      • Code Shipping
    • Queued Remote Procedure Call (QRPC)
      • Non-Blocking Calls When Disconnected
toolkit design30
Toolkit Design
  • Application code & data are RDOs
  • Rover-Applications Interface Primary Functions
    • Create Session
    • Import
    • Invoke
    • Export
  • RDOs are cahced
  • RDOs are lazily fetched
toolkit design31
Toolkit Design

Client-Side

Application

Modify/

Resolve

Object

Conflict?

Rover

Library

Import RDO

RDO Cache

RDO

Network

Scheduler

Export Log

QRPC Log

Mobile Host

Server

Resolved Log

design issues
Design Issues
  • Communication Scheduling
  • Computation Relocation
    • Separate application from data
    • Move computation/data: client server
  • Object Replication – Pre-fetching
  • Consistency
    • Primary Copy, Tentative-Update Optimistic Concurrency Control
    • Type-Specific Concurrency Control
architecture
Architecture

App3

App 1

App 2

App3

App 1

App 2

Access

Manager

Operation

Log

Access

Manager

Operation

Log

Object

Cache

Object

Cache

Network

Scheduler

Network

Scheduler

Server

Mobile Host

Network

implementation issues
Implementation Issues
  • Rover starts as a minimal kernel
  • Failure Recovery – Access Manager
  • Log Size
  • Batching of QPRCs
  • Promises – Callback
  • User Notification
  • Application-Specific Conflict Resolution
experiments35
Experiments
  • Single Server, Multiple Clients
  • Different Network Options
  • TCP over wireless links
  • Three setups:
    • Compressed or Batched QRPCs
    • Mobile-Transparent Application
    • Mobile-Aware Applications
rover summary
Rover - Summary
  • QRPC benefits:
    • RPCs are scheduled, batched, compressed
    • Increased Network Performance
  • RDOs migrate functionality
    • Minimize Data Transfer
  • Porting of Applications to Rover is relatively easy
  • Measurements show significant improvement from both approaches
topics for discussion
Topics for Discussion
  • Are there ‘missing’ features?
    • What if the semantics are not that ‘strong’?
    • Or, if the uncertainty about data values is not accepted?
    • Should Rover support some replication service?
  • Do we really know what should be an ‘interesting’ mobile application ?
topics for discussion ii
Topics for Discussion - II
  • In other words, are the assumptions made reasonable ?
  • How secure are these architectures ? How about the ‘mobile’ data ?
  • Nomadic Computing: Can these schemes support Nomads ?
  • Other peer-to-peer models? E.g. Sensor Networks?
