Presentation Transcript
Slide1 l.jpg

HAZMAT

Review

Wes Adams


Slide2 l.jpg

Hazardous Materials Basics

DOT Regulations

Common Elements

Chemical Reactions

Chemistry

1

1

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

4

4

5

5

5

5

5


Slide3 l.jpg

Flammable Solids

Gases and Liquids

Oxidizers

Corrosives

Toxic Substances

1

1

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

4

4

5

5

5

5

5


Slide4 l.jpg

Organics

Polymers

Explosives

Miscellaneous Hazards

Radioactive Materials

1

1

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

4

4

5

5

5

5

5


Slide5 l.jpg

Hazardous Materials Basics for 1

The most common element in the Earth’s crust.

Check Your Answer


Slide6 l.jpg

Hazardous Materials Basics for 1

What is oxygen?

Back to the Game Board


Slide7 l.jpg

Hazardous Materials Basics for 2

In 1986 Congress, as a result of the Bhopal, India incident, enacted this.

Check Your Answer


Slide8 l.jpg

Hazardous Materials Basics for 2

What is EPCRA?

Back to the Game Board


Slide9 l.jpg

Hazardous Materials Basics for 3

The red section of an NFPA placard indicates this.

Check Your Answer

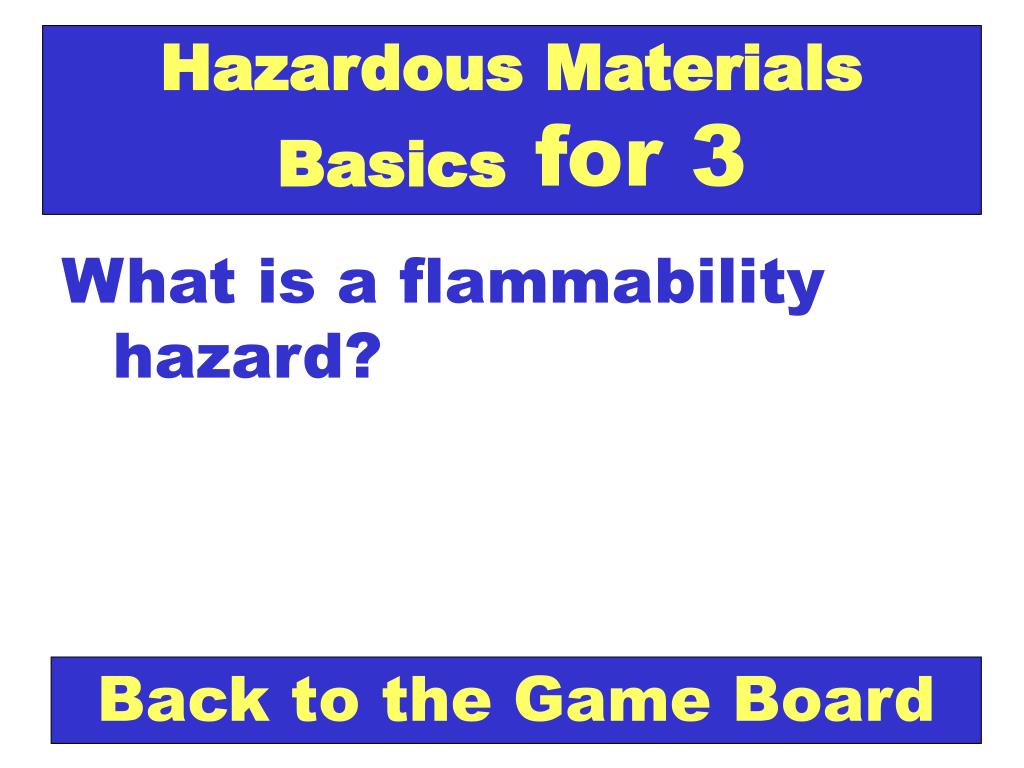

Slide10 l.jpg

Hazardous Materials Basics for 3

What is a flammability hazard?

Back to the Game Board


Slide11 l.jpg

Hazardous Materials Basics for 4

This is performed prior to site entry in order to aid in the selection of appropriate personal protective equipment.

Check Your Answer


Slide12 l.jpg

Hazardous Materials Basics for 4

What is a preliminary evaluation?

Back to the Game Board


Slide13 l.jpg

Hazardous Materials Basics for 5

This is the highest level of hazardous materials responder and should be aware things like of route of exposure to hazardous materials, acute and delayed toxicity, local and systemic effects, dose response, and synergistic effects in addition to the requirements of the previous levels.

Check Your Answer


Slide14 l.jpg

Hazardous Materials Basics for 5

What is the incident commander?

Back to the Game Board


Slide15 l.jpg

Chemistry for 1

Brass is an alloy of copper and zinc is this.

Check Your Answer


Slide16 l.jpg

Chemistry for 1

What is a mixture?

Back to the Game Board


Slide17 l.jpg

Chemistry for 2

This is the change between the solid and liquid states.

Check Your Answer


Slide18 l.jpg

Chemistry for 2

What is melting?

Back to the Game Board


Slide19 l.jpg

Chemistry for 3

This is the symbol for the element iron.

Check Your Answer


Slide20 l.jpg

Chemistry for 3

What is Fe?

Back to the Game Board


Slide21 l.jpg

Chemistry for 4

The number of neutrons in an atom of phosphorus-31.

Check Your Answer


Slide22 l.jpg

Chemistry for 4

What is 16?

Back to the Game Board


Slide23 l.jpg

Chemistry for 5

The seventh column of the periodic chart containing the elements fluorine, chlorine, bromine, iodine, and astatine are referred to as this.

Check Your Answer


Slide24 l.jpg

Chemistry for 5

What are halogens?

Back to the Game Board


Slide25 l.jpg

DOT Regulations for 1

Class 4.3 hazardous materials refer to these materials.

Check Your Answer


Slide26 l.jpg

DOT Regulations for 1

What is dangerous when wet?

Back to the Game Board


Slide27 l.jpg

DOT Regulations for 2

A liquid or solid that even in small quantities and without external ignition source can ignite within five minutes after coming in contact with air.

Check Your Answer


Slide28 l.jpg

DOT Regulations for 2

What are pyrophoric materials?

Back to the Game Board


Slide29 l.jpg

DOT Regulations for 3

These pages in the ERG list the materials in alphabetical order.

Check Your Answer


Slide30 l.jpg

DOT Regulations for 3

What are the blue pages?

Back to the Game Board


Slide31 l.jpg

DOT Regulations for 4

The placard below indicates this kind of material.

Check Your Answer

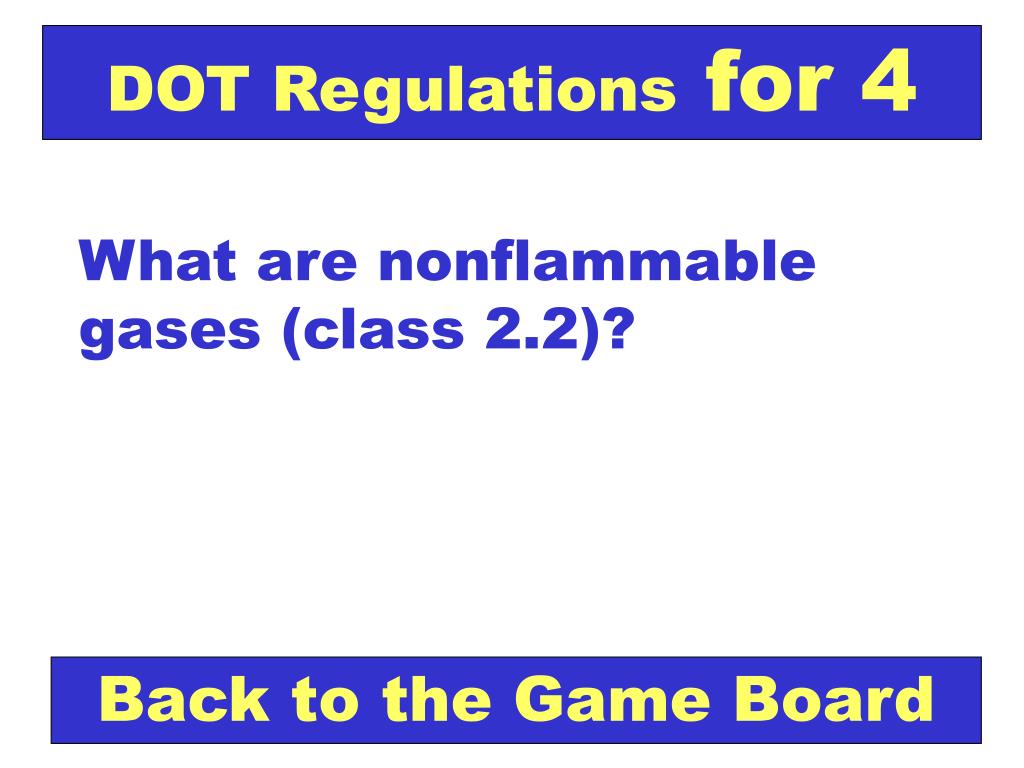

Slide32 l.jpg

DOT Regulations for 4

What are nonflammable gases (class 2.2)?

Back to the Game Board


Slide33 l.jpg

DOT Regulations for 5

The placard below indicates this kind of material.

Check Your Answer


Slide34 l.jpg

DOT Regulations for 5

What are Miscellaneous Hazardous materials (class 9)?

Back to the Game Board


Slide35 l.jpg

Common Elements for 1

This gaseous element comprises about 21% of the atmosphere.

Check Your Answer


Slide36 l.jpg

Common Elements for 1

What is oxygen?

Back to the Game Board


Slide37 l.jpg

Common Elements for 2

This element is the most chemically active nonmetal and forms compounds with all elements except the lighter noble gases.

Check Your Answer

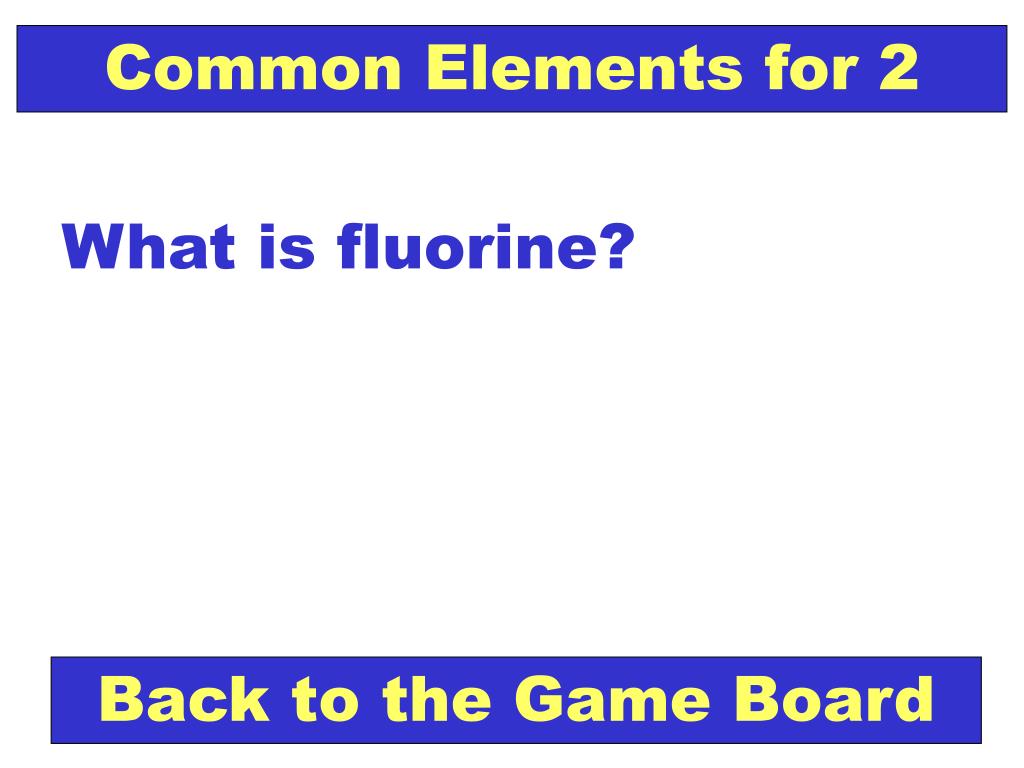

Slide38 l.jpg

Common Elements for 2

What is fluorine?

Back to the Game Board

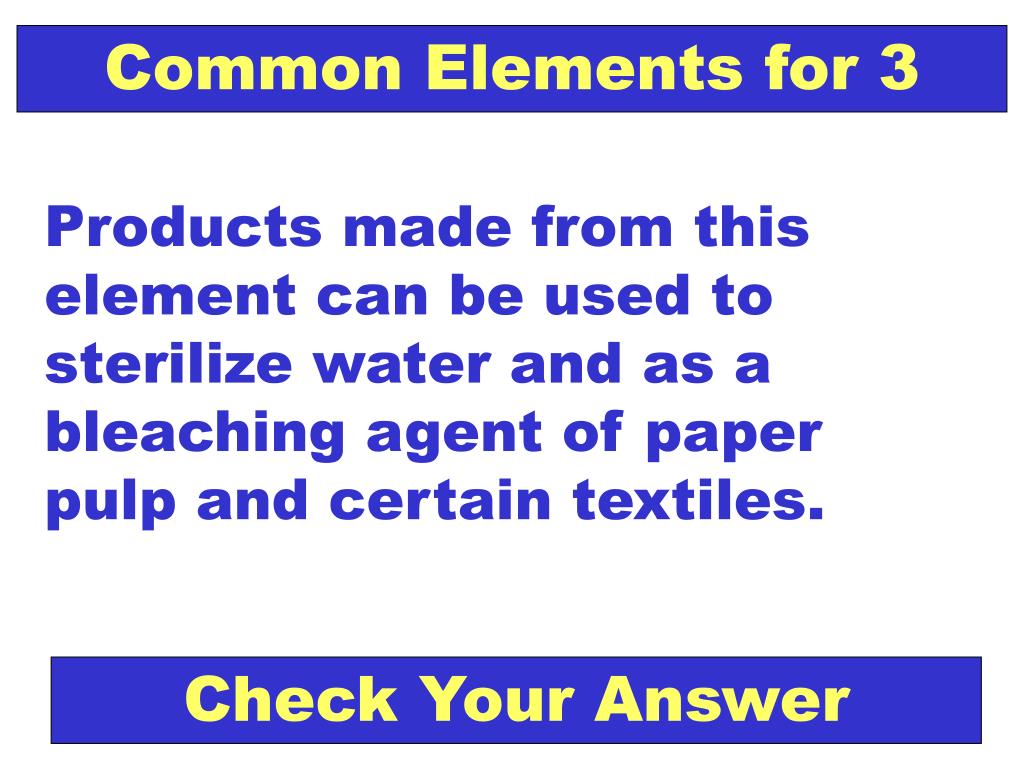

Slide39 l.jpg

Common Elements for 3

Products made from this element can be used to sterilize water and as a bleaching agent of paper pulp and certain textiles.

Check Your Answer


Slide40 l.jpg

Common Elements for 3

What is chlorine?

Back to the Game Board


Slide41 l.jpg

Common Elements for 4

4/5 of this element used annually is used to make sulfuric acid.

Check Your Answer


Slide42 l.jpg

Common Elements for 4

What is sulfur?

Back to the Game Board


Slide43 l.jpg

Common Elements for 5

Coal, diamond, and graphite are allotropes of this element.

Check Your Answer

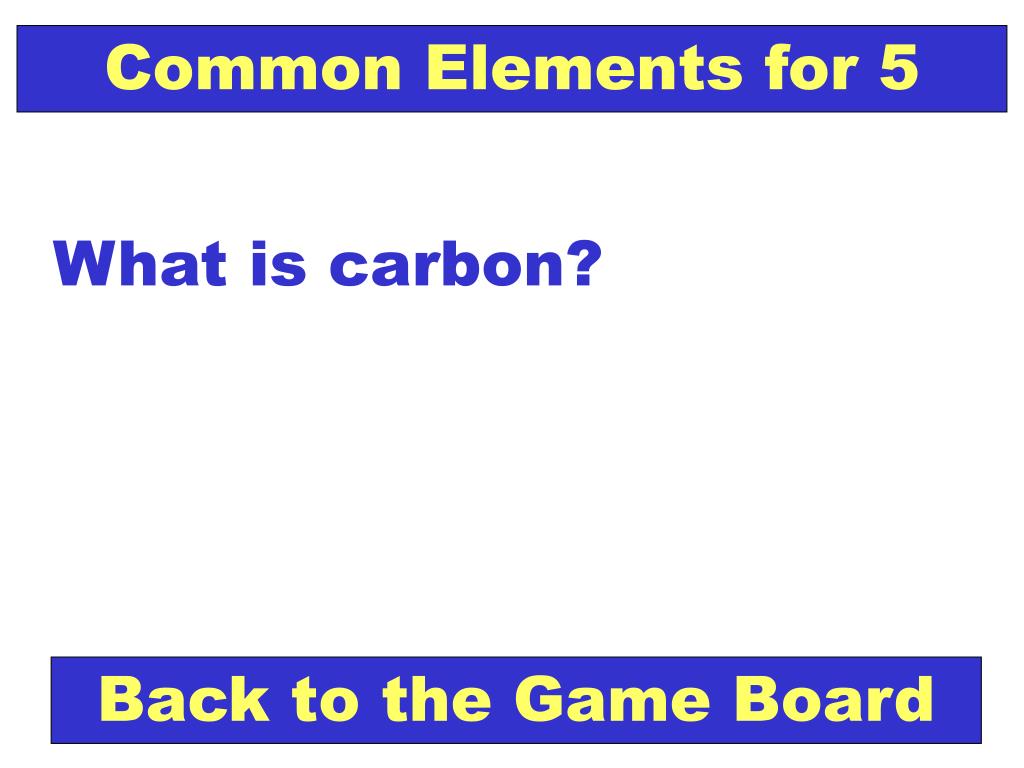

Slide44 l.jpg

Common Elements for 5

What is carbon?

Back to the Game Board


Slide45 l.jpg

Chemical Reactions for 1

This class of fire results when flammable gases and flammable (organic) liquids burn.

Check Your Answer


Slide46 l.jpg

Chemical Reactions for 1

What is class B?

Back to the Game Board

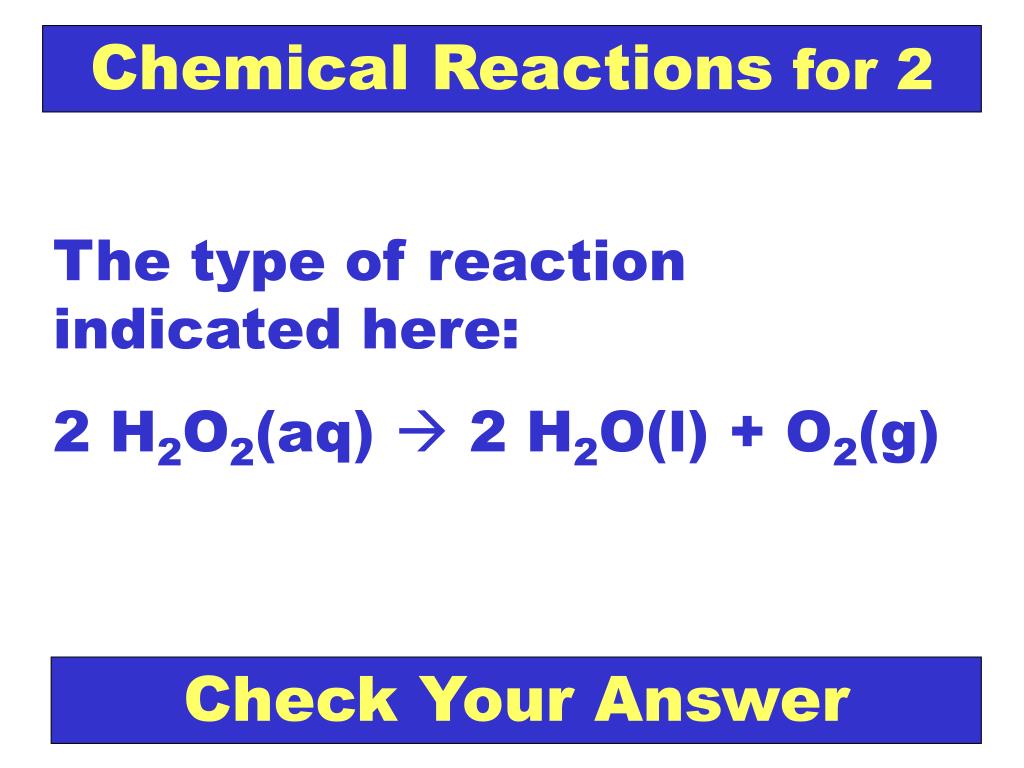

Slide47 l.jpg

Chemical Reactions for 2

The type of reaction indicated here:

2 H2O2(aq)  2 H2O(l) + O2(g)

Check Your Answer


Slide48 l.jpg

Chemical Reactions for 2

What is a decomposition reaction?

Back to the Game Board


Slide49 l.jpg

Chemical Reactions for 3

This factor that affects reaction rates causes combustion reactions to occur much more quickly if the oxygen content of the air is elevated.

Check Your Answer


Slide50 l.jpg

Chemical Reactions for 3

What is reactant concentration?

Back to the Game Board


Slide51 l.jpg

Chemical Reactions for 4

Applying water is the most common way of putting out a fire. Water is useful mostly because it takes away this away from the fire.

Check Your Answer


Slide52 l.jpg

Chemical Reactions for 4

What is heat?

Back to the Game Board


Slide53 l.jpg

Chemical Reactions for 5

A KHCO3 extinguisher is sometimes called this.

Check Your Answer


Slide54 l.jpg

Chemical Reactions for 5

What is purple K?

Back to the Game Board


Slide55 l.jpg

Gases and Liquids for 1

Since corn oil has a specific gravity of 0.91 it do this on water.

Check Your Answer


Slide56 l.jpg

Gases and Liquids for 1

What is float?

Back to the Game Board


Slide57 l.jpg

Gases and Liquids for 2

Since propane has a vapor density of 1.5 it do this in air.

Check Your Answer


Slide58 l.jpg

Gases and Liquids for 2

What is sink into low lying areas?

Back to the Game Board


Slide59 l.jpg

Gases and Liquids for 3

This is the minimum temperature at which a flammable liquid first forms an ignitable mixture with air.

Check Your Answer


Slide60 l.jpg

Gases and Liquids for 3

What is the flash point?

Back to the Game Board


Slide61 l.jpg

Gases and Liquids for 4

This is the largest amount of a gas or vapor that will burn when exposed to an ignition source.

Check Your Answer


Slide62 l.jpg

Gases and Liquids for 4

What is the Upper Explosive Limit (UEL)?

Back to the Game Board


Slide63 l.jpg

Gases and Liquids for 5

A liquid that has a flash point below 73oF and a boiling point below 100oF is referred to as a this of class of flammable liquid.

Check Your Answer


Slide64 l.jpg

Gases and Liquids for 5

What is class IA?

Back to the Game Board


Slide65 l.jpg

Flammable Solids for 1

This group of elements from the periodic chart reacts violently with room temperature water.

Check Your Answer


Slide66 l.jpg

Flammable Solids for 1

What are alkali metals?

Back to the Game Board


Slide67 l.jpg

Flammable Solids for 2

A W with a line drawn through it on the white section of an NFPA placard cautions against adding this.

Check Your Answer


Slide68 l.jpg

Flammable Solids for 2

What is water?

Back to the Game Board


Slide69 l.jpg

Flammable Solids for 3

Sodium Burns with this color of flame.

Check Your Answer


Slide70 l.jpg

Flammable Solids for 3

What is yellow/orange?

Back to the Game Board


Slide71 l.jpg

Flammable Solids for 4

Most combustible metal fires are this class of fire.

Check Your Answer


Slide72 l.jpg

Flammable Solids for 4

What is class D?

Back to the Game Board


Slide73 l.jpg

Flammable Solids for 5

When water is added to calcium carbide it liberates this gas.

Check Your Answer


Slide74 l.jpg

Flammable Solids for 5

What is acetylene?

Back to the Game Board


Slide75 l.jpg

Oxidizers for 1

Oxidizers are in this class of hazardous materials.

Check Your Answer


Slide76 l.jpg

Oxidizers for 1

What is class 5.1?

Back to the Game Board


Slide77 l.jpg

Oxidizers for 2

The following reaction illustrates this “redox” pair partner:

Mg  Mg+2 + 2e-

Check Your Answer


Slide78 l.jpg

Oxidizers for 2

What is an oxidation?

Back to the Game Board


Slide79 l.jpg

Oxidizers for 3

The fluorine in the following reaction is this:

F2 + 2 I-1 I2 + 2 F-1

Check Your Answer


Slide80 l.jpg

Oxidizers for 3

What is the oxidizing agent (oxidizer)?

Back to the Game Board


Slide81 l.jpg

Oxidizers for 4

The bombing of the Federal Building in Oklahoma City on April 19, 1995 involved mixing this oxidizer with diesel fuel.

Check Your Answer


Slide82 l.jpg

Oxidizers for 4

What is ammonium nitrate?

Back to the Game Board


Slide83 l.jpg

Oxidizers for 5

This often explosively unstable oxidizing organic material can form in old ether bottles.

Check Your Answer


Slide84 l.jpg

Oxidizers for 5

What are organic peroxides?

Back to the Game Board


Slide85 l.jpg

Corrosives for 1

A solution with a ph 5.4 is considered this.

Check Your Answer


Slide86 l.jpg

Corrosives for 1

What is acidic?

Back to the Game Board


Slide87 l.jpg

Corrosives for 2

One hazard of this acid is that it will extract water from organic materials like sugar for one.

Check Your Answer


Slide88 l.jpg

Corrosives for 2

What is sulfuric acid?

Back to the Game Board


Slide89 l.jpg

Corrosives for 3

This oxidizing acid causes yellow burns on contact with exposed skin.

Check Your Answer


Slide90 l.jpg

Corrosives for 3

What is nitric acid?

Back to the Game Board


Slide91 l.jpg

Corrosives for 4

Grades of this acid above 73% are not offered for transportation because they are explosively unstable.

Check Your Answer


Slide92 l.jpg

Corrosives for 4

What is perchloric acid?

Back to the Game Board


Slide93 l.jpg

Corrosives for 5

The best way to deal with a large spill of a corrosive material is to do this.

Check Your Answer


Slide94 l.jpg

Corrosives for 5

What is to neutralize it with an appropriate material?

Back to the Game Board


Slide95 l.jpg

Toxic Substances for 1

This route of exposure refers to a substance that penetrates the epidermis into the dermis and the blood stream.

Check Your Answer


Slide96 l.jpg

Toxic Substances for 1

What is skin absorption?

Back to the Game Board


Slide97 l.jpg

Toxic Substances for 2

These are toxic substances that cause liver damage, alcoholic beverages for one.

Check Your Answer


Slide98 l.jpg

Toxic Substances for 2

What are hepatoxins?

Back to the Game Board


Slide99 l.jpg

Toxic Substances for 3

This is an injury, disease or death caused by continued or repeated short-term exposures over a period of a few days, weeks, or longer periods.

Check Your Answer


Slide100 l.jpg

Toxic Substances for 3

What is chronic effect?

Back to the Game Board


Slide101 l.jpg

Toxic Substances for 4

The dosage of a toxic substance when administered to laboratory animals kills half of them is referred to as this.

Check Your Answer


Slide102 l.jpg

Toxic Substances for 4

What is Lethal Dose 50% kill (LD50)?

Back to the Game Board


Slide103 l.jpg

Toxic Substances for 5

This is the time weighted average TLV of a toxic substance that workers can be continuously exposed for eight hours in conformance with OSHA regulations.

Check Your Answer


Slide104 l.jpg

Toxic Substances for 5

What is the Permissible Exposure Limit (PEL)?

Back to the Game Board


Slide105 l.jpg

Organics for 1

This type of hydrocarbon has at least one carbon-carbon triple bond .

Check Your Answer


Slide106 l.jpg

Organics for 1

What is alkyne?

Back to the Game Board


Slide107 l.jpg

Organics for 2

These three aromatic compounds make up the BTX family.

Check Your Answer


Slide108 l.jpg

Organics for 2

What are benzene, toluene, and xylene?

Back to the Game Board


Slide109 l.jpg

Organics for 3

The functional group in this molecule for example.

Check Your Answer


Slide110 l.jpg

Organics for 3

What is an aldehyde?

Back to the Game Board


Slide111 l.jpg

Organics for 4

This type of organic solvent is typically not flammable.

Check Your Answer


Slide112 l.jpg

Organics for 4

What are halogenated hydrocarbons?

Back to the Game Board


Slide113 l.jpg

Organics for 5

Drinking as little as 0.6 pints of this alcohol can cause death while lesser amounts cause irreversible blindness.

Check Your Answer


Slide114 l.jpg

Organics for 5

What is methanol?

Back to the Game Board


Slide115 l.jpg

Polymers for 1

These polymers are materials that if a moderate amount of deforming force is added will return to its original shape.

Check Your Answer


Slide116 l.jpg

Polymers for 1

What are elastomers?

Back to the Game Board


Slide117 l.jpg

Polymers for 2

This type of polymerization has alternating types of units (A-B-A-B).

Check Your Answer


Slide118 l.jpg

Polymers for 2

What is a co-polymer?

Back to the Game Board


Slide119 l.jpg

Polymers for 3

This is written next to the guide book number in the ERG to indicated a material will hazardously polymerize.

Check Your Answer


Slide120 l.jpg

Polymers for 3

What is a “P”?

Back to the Game Board


Slide121 l.jpg

Polymers for 4

This decomposition and formation of flammable vapor away from the heat source can cause this in which the fire spreads to another room with out direct contact from the fire.

Check Your Answer


Slide122 l.jpg

Polymers for 4

What is flashover?

Back to the Game Board


Slide123 l.jpg

Polymers for 5

This is the most common polymer made in the US.

Check Your Answer


Slide124 l.jpg

Polymers for 5

What is polyethylene?

Used to make milk jugs, trash bags, plastic wrap etc.

Back to the Game Board


Slide125 l.jpg

Explosives for 1

These shock waves are associated with the explosives shattering power called this.

Check Your Answer


Slide126 l.jpg

Explosives for 1

What is the brisance?

Back to the Game Board


Slide127 l.jpg

Explosives for 2

The type of explosion that can occur in a grain elevator is called this.

Check Your Answer


Slide128 l.jpg

Explosives for 2

What is a dust explosion?

Back to the Game Board


Slide129 l.jpg

Explosives for 3

All explosive materials are stored in these buildings by Federal, state, and local regulations.

Check Your Answer


Slide130 l.jpg

Explosives for 3

What are magazines?

Back to the Game Board


Slide131 l.jpg

Explosives for 4

According to DOT regulations, the hazard class that houses explosives there are this many divisions.

Check Your Answer


Slide132 l.jpg

Explosives for 4

What is 6?

Back to the Game Board


Slide133 l.jpg

Explosives for 5

The bombers of the USS Cole used this as an explosive.

Check Your Answer


Slide134 l.jpg

Explosives for 5

What is C-4?

Back to the Game Board


Slide135 l.jpg

Miscellaneous Hazards for 1

OSHA specifies this Level of PPE as the minimum protection for workers in danger of exposure to unknown chemical hazards.

Check Your Answer


Slide136 l.jpg

Miscellaneous Hazards for 1

What is Level B?

Back to the Game Board


Slide137 l.jpg

Miscellaneous Hazards for 2

The area immediately around the spill is called this.

Check Your Answer


Slide138 l.jpg

Miscellaneous Hazards for 2

What is the hot zone (exclusion zone)?

Back to the Game Board


Slide139 l.jpg

Miscellaneous Hazards for 3

The mail attacks that followed the September 11 terrorist attacks involved this biological agent.

Check Your Answer


Slide140 l.jpg

Miscellaneous Hazards for 3

What is anthrax?

Back to the Game Board


Slide141 l.jpg

Miscellaneous Hazards for 4

This hazardous material is a waste, or reusable material, that contains an infectious substance and is generated in the diagnosis, treatment, or research of humans or animals.

Check Your Answer


Slide142 l.jpg

Miscellaneous Hazards for 4

What is an regulated medical waste?

Back to the Game Board


Slide143 l.jpg

Miscellaneous Hazards for 5

A Japanese doomsday cult, used this chemical agent in a terrorist attack on the Tokyo subway system that killed 12 and sent more than 5,000 people to hospitals.

Check Your Answer


Slide144 l.jpg

Miscellaneous Hazards for 5

What is Sarin? (used by Aum Shinrikyo)

Back to the Game Board


Slide145 l.jpg

Radioactive Materials for 1

The number of protons does Uranium-238 has.

Check Your Answer


Slide146 l.jpg

Radioactive Materials for 1

What is 92?

Back to the Game Board


Slide147 l.jpg

Radioactive Materials for 2

This is the time it takes for ½ of a radioactive material to decay.

Check Your Answer


Slide148 l.jpg

Radioactive Materials for 2

What is the half life?

Back to the Game Board


Slide149 l.jpg

Radioactive Materials for 3

This type of radiation types causes the most damage from an external source .

Check Your Answer


Slide150 l.jpg

Radioactive Materials for 3

What is gamma radiation?

Back to the Game Board


Slide151 l.jpg

Radioactive Materials for 4

Exposure to this radioactive material accounts for on average 50% the 360 mrem annual exposure to ionizing radiation.

Check Your Answer


Slide152 l.jpg

Radioactive Materials for 4

What is radon?

Back to the Game Board


Slide153 l.jpg

Radioactive Materials for 5

This nuclear power plant disaster that occurred in 1986 which is still known as the worst peace-time nuclear disaster on record.

Check Your Answer


Slide154 l.jpg

Radioactive Materials for 5

What is Chernobyl?

Back to the Game Board
