Chapter 6 Energy and States of Matter

Chapter 6 Energy and States of Matter. Energy Measuring Temperature. Energy. Makes objects move Makes things stop Energy from sun plants foods we eat energy to live We need energy to “do work”. Work is done when . Go up stairs Play soccer Lift a bag of groceries

libitha
Download Presentation

Chapter 6 Energy and States of Matter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 6Energy and States of Matter Energy Measuring Temperature LecturePLUS Timberlake

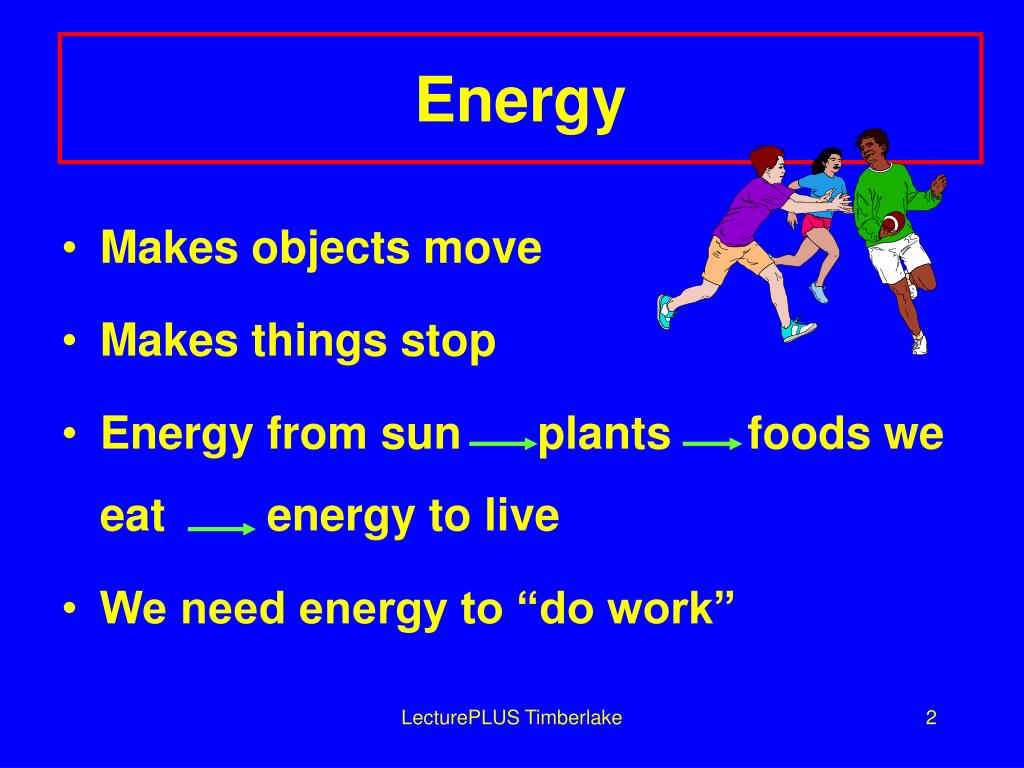

  2. Energy • Makes objects move • Makes things stop • Energy from sun plants foods we eat energy to live • We need energy to “do work” LecturePLUS Timberlake

  3. Work is done when • Go up stairs • Play soccer • Lift a bag of groceries • Ride a bicycle • Breathe • Heart pumps blood • Water goes over a dam LecturePLUS Timberlake

  4. Potential Energy Is stored energy Examples • Water behind a dam • Compressed spring • Chemical bonds in gasoline or coal • Food LecturePLUS Timberlake

  5. Kinetic Energy Is energy of motion Examples • Hammering a nail • Water flowing over a dam • Working out • Boxing • Burning gasoline LecturePLUS Timberlake

  6. Some Forms of Energy • Mechanical • Electrical • Thermal (heat) • Chemical • Radiant (light) LecturePLUS Timberlake

  7. Learning Check E1 A. A car uses more fuel when the air conditioner is on. True (1) or False (2) B. An apple hanging on a tree has potential energy that can turn into both mechanical or chemical energy. True (1) or False (2) LecturePLUS Timberlake

  8. Solution E1 A. A car uses more fuel when the air conditioner is on. True (1) B. An apple hanging on a tree has potential energy that can turn into both mechanical or chemical energy. True(1) LecturePLUS Timberlake

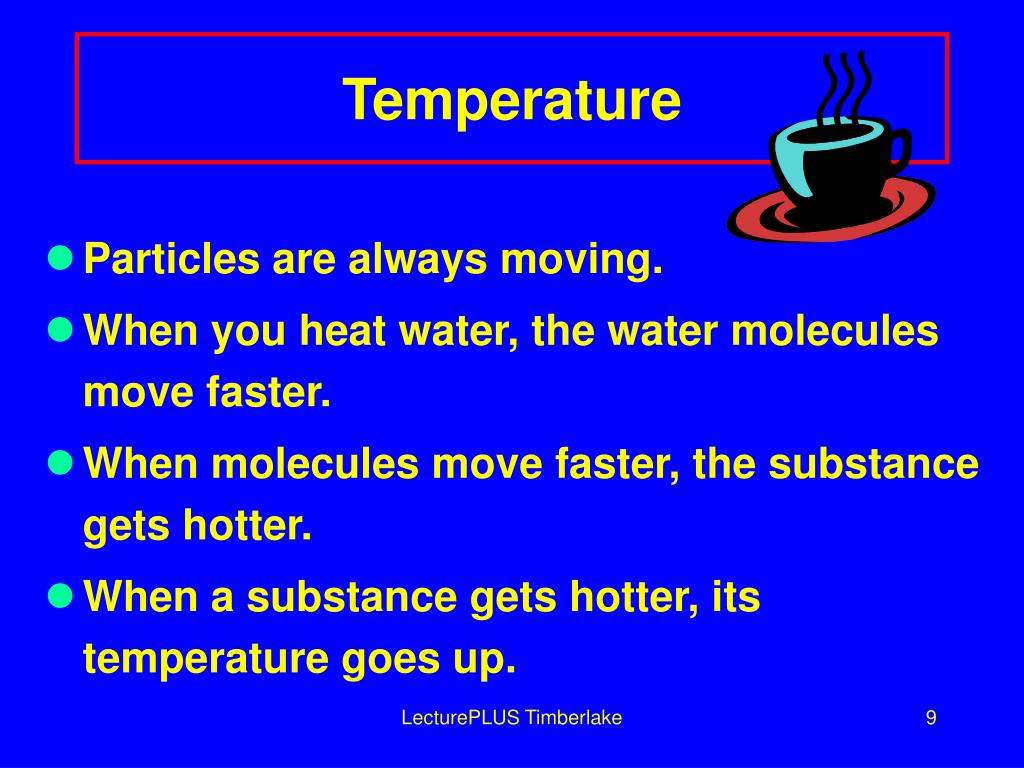

  9. Temperature • Particles are always moving. • When you heat water, the water molecules move faster. • When molecules move faster, the substance gets hotter. • When a substance gets hotter, its temperature goes up. LecturePLUS Timberlake

  10. Learning Check E2 Suppose you place water in a freezer. A. The water particles move 1) faster 2) slower 3) the same B. The water will get 1) hotter 2) colder 3) stay the same C. The temperature of the water will be 1) higher 2) lower 3) the same LecturePLUS Timberlake

  11. Solution E2 Suppose you place water in a freezer. A. The water particles move 2) slower B. The water will get 2) colder C. The temperature of the water will be 2) lower LecturePLUS Timberlake

  12. Temperature • Measures the hotness or coldness of an object • Determined by using a thermometer that contains a liquid that expands with heat and contracts with cooling. LecturePLUS Timberlake

  13. Temperature Scales LecturePLUS Timberlake

  14. Temperature Scales Fahrenheit Celsius Kelvin Water boils 212°F 100°C 373 K Water freezes 32°F 0°C 273 K LecturePLUS Timberlake

  15. Units of Temperature between Boiling and Freezing Fahrenheit Celsius Kelvin Water boils 212°F 100°C 373 K 180° 100°C 100K Water freezes 32°F 0°C 273 K LecturePLUS Timberlake

  16. Learning Check E3 A. Temperature of freezing water 1) 0°F 2) 0°C 3) 0 K B. Temperature of boiling water 1) 100°F 2) 32°F 3) 373K C. Number of Celsius units between the boiling and freezing points of water 1) 100 2) 180 3) 273 LecturePLUS Timberlake

  17. Solution E3 A. Temperature of freezing water 2) 0°C B. Temperature of boiling water 3) 373K C. Number of Celsius units between the boiling and freezing points of water 1) 100 LecturePLUS Timberlake

  18. Fahrenheit Formula 180°F = 9°F = 1.8°F 100°C 5°C 1°C Zero point:0°C = 32°F °F = 9/5 T°C + 32 or °F = 1.8 T°C + 32 LecturePLUS Timberlake

  19. Celsius Formula Rearrange to find T°C °F = 1.8 T°C + 32 °F - 32 = 1.8T°C ( +32 - 32) °F - 32 = 1.8 T°C 1.8 1.8 °F - 32 = T°C 1.8 LecturePLUS Timberlake

  20. Temperature Conversions A person with hypothermia has a body temperature of 29.1°C. What is the body temperature in °F? °F = 1.8 (29.1°C) + 32 exact tenth's exact = 52.4 + 32 = 84.4°F tenth’s LecturePLUS Timberlake

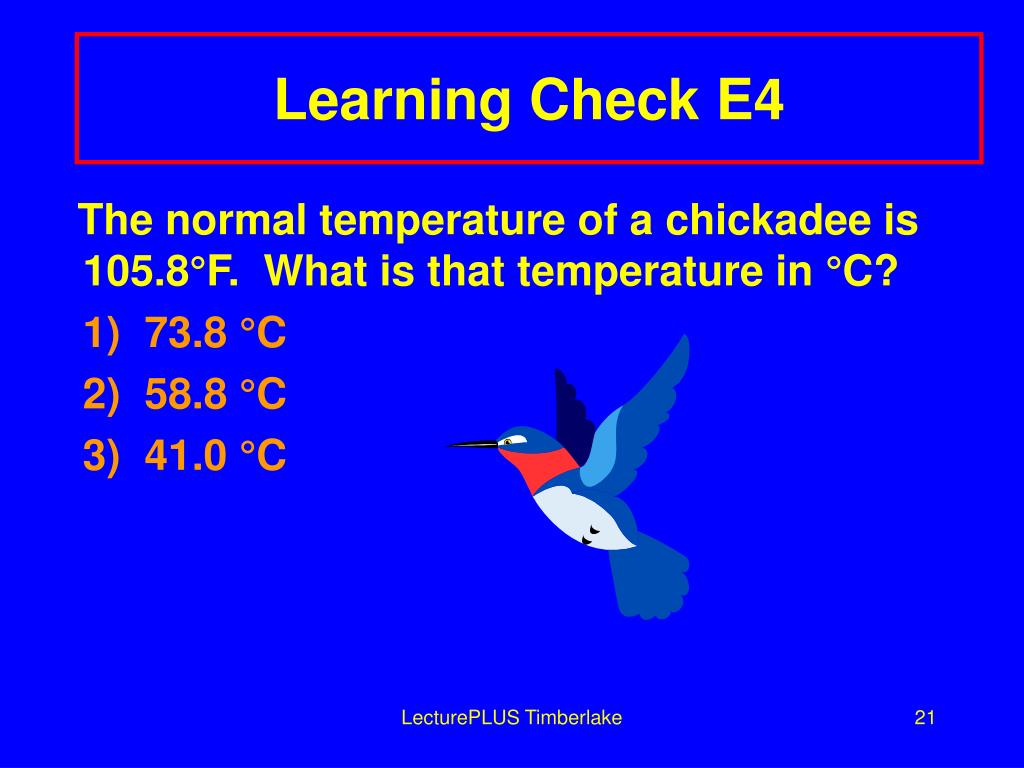

  21. Learning Check E4 The normal temperature of a chickadee is 105.8°F. What is that temperature in °C? 1) 73.8 °C 2) 58.8 °C 3) 41.0 °C LecturePLUS Timberlake

  22. Solution E4 3) 41.0 °C Solution: °C = (°F - 32) 1.8 = (105.8 - 32) 1.8 = 73.8°F 1.8° = 41.0°C LecturePLUS Timberlake

  23. Learning Check E5 Pizza is baked at 455°F. What is that in °C? 1) 437 °C 2) 235°C 3) 221°C LecturePLUS Timberlake

  24. Solution E5 Pizza is baked at 455°F. What is that in °C? 2) 235°C (455 - 32) = 235°C 1.8 LecturePLUS Timberlake

  25. Learning Check E6 On a cold winter day, the temperature falls to -15°C. What is that temperature in °F? 1) 19 °F 2) 59°F 3) 5°F LecturePLUS Timberlake

  26. Solution E6 3) 5°F Solution: °F = 1.8(-15°C) + 32 = -27 + 32 = 5°F LecturePLUS Timberlake

  27. Kelvin Scale On the Kelvin Scale 1K = 1°C 0 K is the lowest temperature 0 K = - 273°C K °C K = °C + 273 LecturePLUS Timberlake

  28. Learning Check E7 What is normal body temperature of 37°C in kelvins? 1) 236 K 2) 310 K 3) 342 K LecturePLUS Timberlake

  29. Solution E7 What is normal body temperature of 37°C in kelvins? 2) 310 K K = °C + 273 = 37 °C + 273 = 310. K LecturePLUS Timberlake
