Presentation Transcript
Video streaming l.jpg

Video Streaming

Ali Saman Tosun

Computer Science Department


Broadcast to true media on demand l.jpg
Broadcast to True Media-on-Demand

  • Broadcast (No-VoD)

    • Traditional, no control

  • Pay-per-view (PPV)

    • Paid specialized service

  • Near Video On Demand (N-VoD)

    • Same media distributed in regular time intervals

    • Simulated forward / backward

  • True Video On Demand (T-VoD)

    • Full control for the presentation, VCR capabilities

    • Bi-directional connection


Streaming stored video l.jpg
Streaming Stored Video

Streaming

  • media stored at source

  • transmitted to client

  • streaming: client playout begins before all data has arrived

  • timing constraint for still-to-be transmitted data: in time for playout


Streaming video l.jpg

client video

reception

constant bit

rate video

playout at client

variable

network

delay

buffered

video

client playout

delay

Streaming Video

  • Client-side buffering, playout delay compensate for network-added delay, delay jitter

constant bit

rate video

transmission

Cumulative data

time


Smoothing stored video l.jpg
Smoothing Stored Video

For prerecorded video streams:

  • All video frames stored in advance at server

  • Prior knowledge of all frame sizes (fi, i=1,2,..,n)

  • Prior knowledge of client buffer size (b)

  • workahead transmission into client buffer

2

1

b bytes

n

Client

Server


Smoothing constraints l.jpg
Smoothing Constraints

Given frame sizes {fi} and buffer size b

  • Buffer underflow constraint (Lk = f1 + f2 + … + fk)

  • Buffer overflow constraint (Uk = min(Lk + b, Ln))

  • Find a schedule Sk between the constraints

  • Algorithm minimizes peak and variability

  • U

    number of bytes

    rate changes

    S

    L

    time (in frames)


    Proxy based video distribution l.jpg

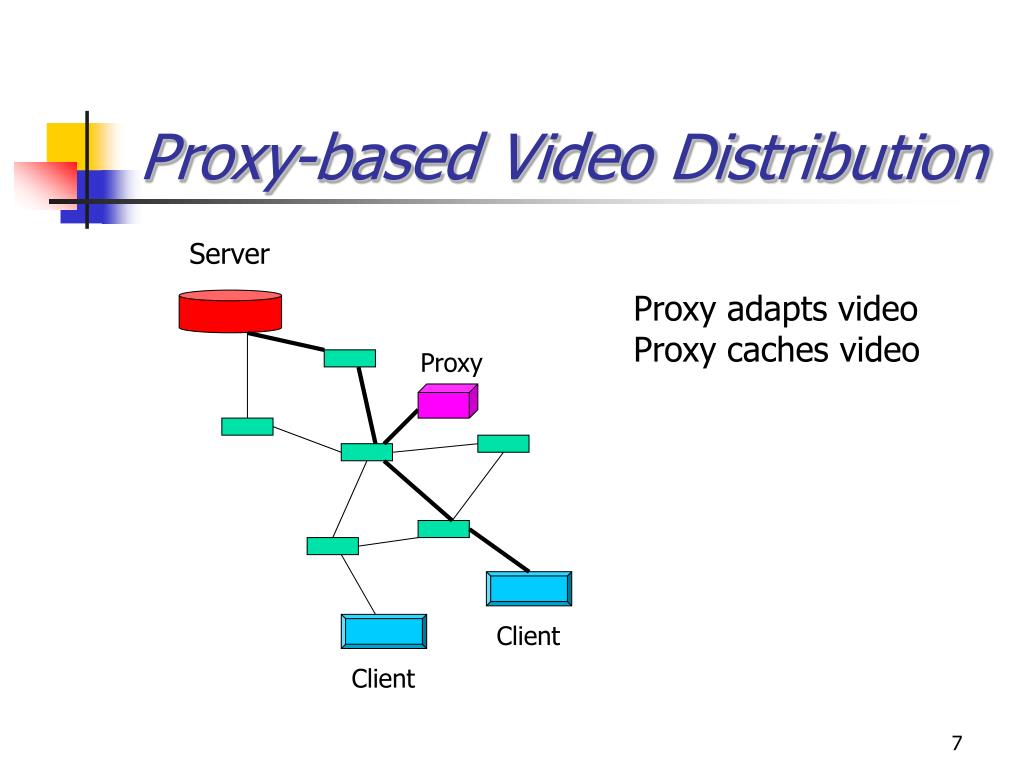

    Proxy-based Video Distribution

    Server

    Proxy adapts video

    Proxy caches video

    Proxy

    Client

    Client


    Proxy operations l.jpg
    Proxy Operations

    • Drop frames

      • Drop B,P frames if not enough bandwidth

    • Quality Adaptation

      • Transcoding

        • Change quantization value

        • Most of current systems don’t support

    • Video staging, caching, patching

      • Staging: store partial frames in proxy

      • Prefix caching: store first few minutes of movie

      • Patching: multiple users use same video


    Online smoothing l.jpg
    Online Smoothing

    Source or proxy can delay the stream by w time units:

    Larger window w reduces burstiness, but…

    • Larger buffer at the source/proxy

    • Larger processing load to compute schedule

    • Larger playback delay at the client

    stream with

    delay w

    streaming

    video

    b bytes

    Client

    Source/Proxy


    Slide10 l.jpg

    proxy

    client

    Ai

    Si

    Di-w

    B

    b

    Online Smoothing Model

    • Arrival of Aibits to proxy by time i in frames

    • Smoothing buffer of B bits at proxy

    • Smoothing window (playout delay) of w frames

    • Playout of Di-w bits by client by time i

    • Playout buffer of b bits at client

      Transmission of Si bits by proxy by time i


    Online smoothing11 l.jpg
    Online Smoothing

    • Must send enough to avoid underflow at client

      • Si must be at least Di-w

    • Cannot send more than the client can store

      • Si must be at most Di-w + b

    • Cannot send more than the data that has arrived

      • Si must be at most Ai

    • Must send enough to avoid overflow at proxy

      • Si must be at least Ai - B

    max{Di-w, Ai - B} <= Si <= min{Di-w + b, Ai}


    Online smoothing constraints l.jpg

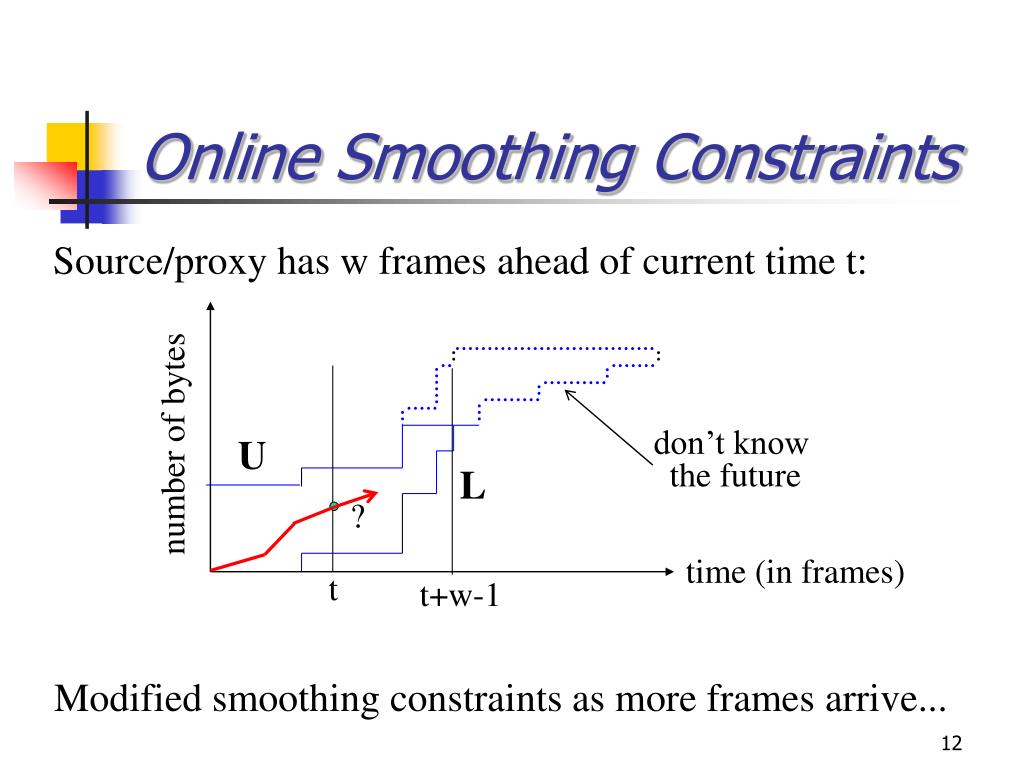

    Online Smoothing Constraints

    Source/proxy has w frames ahead of current time t:

    don’t know

    the future

    number of bytes

    U

    L

    ?

    time (in frames)

    t

    t+w-1

    Modified smoothing constraints as more frames arrive...


    Smoothing star wars l.jpg
    Smoothing Star Wars

    GOP averages

    30-second window

    2-second window

    • MPEG-1 Star Wars,12-frame group-of-pictures

    • Max frame 23160 bytes, mean frame 1950 bytes

    • Client buffer b=512 kbytes


    Prefix caching to avoid start up delay l.jpg
    Prefix Caching to Avoid Start-Up Delay

    • Avoid start-up delay for prerecorded streams

      • Proxy caches initial part of popular video streams

      • Proxy starts satisfying client request more quickly

      • Proxy requests remainder of the stream from server

    • smooth over large window without large delay

    • Use prefix caching to hide other Internet delays

      • TCP connection from browser to server

      • TCP connection from player to server

      • Dejitter buffer at the client to tolerate jitter

      • Retransmission of lost packets

    • apply to “point-and-click” Web video streams


    Changes to smoothing model l.jpg

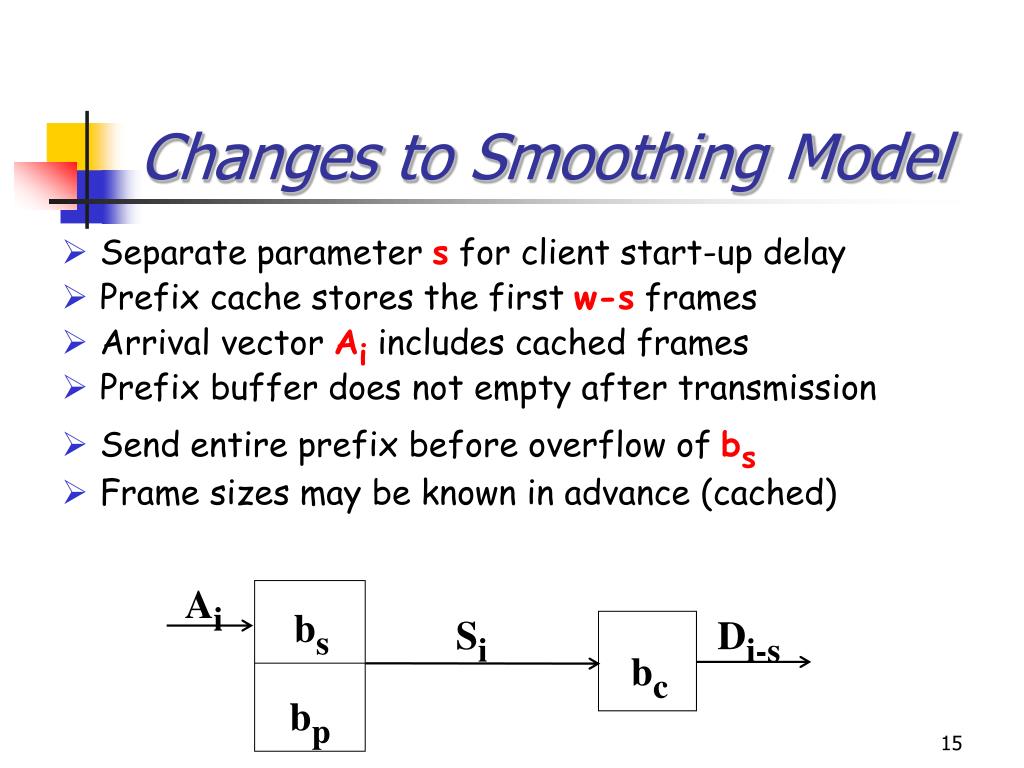

    Changes to Smoothing Model

    • Separate parameter s for client start-up delay

    • Prefix cache stores the first w-s frames

    • Arrival vector Ai includes cached frames

    • Prefix buffer does not empty after transmission

    • Send entire prefix before overflow of bs

    • Frame sizes may be known in advance (cached)

    Ai

    bs

    Si

    Di-s

    bc

    bp


    Scalable coding l.jpg

    Enhancement layer

    Best possible quality at possible sending rate

    Quality

    Base layer

    Sending rate

    Scalable coding

    • Typically used asLayered coding

    • A base layer

      • Provides basic quality

      • Must always be transferred

    • One or moreenhancement layers

      • Improve quality

      • Transferred if possible


    Temporal scalability l.jpg
    Temporal Scalability

    • Frames can be dropped

      • In a controlled manner

      • Frame dropping does not violate dependancies

      • Low gain example: B-frame dropping in MPEG-1


    Spatial scalability l.jpg

    73

    72

    61

    75

    83

    -1

    2

    -12

    10

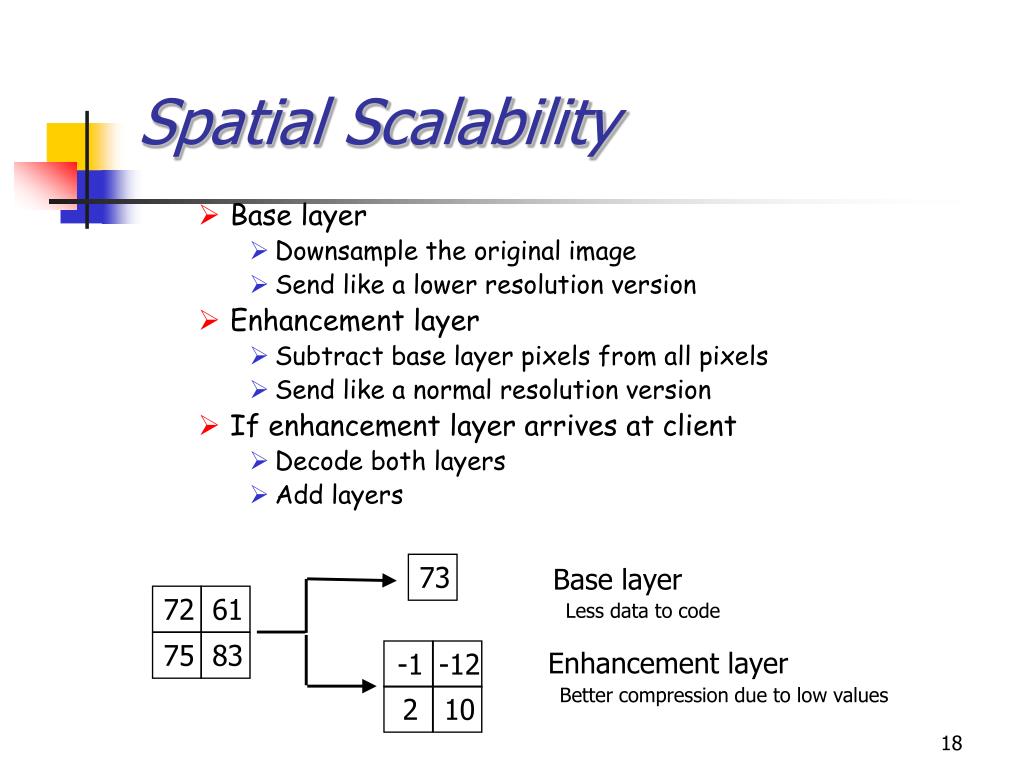

    Spatial Scalability

    • Base layer

      • Downsample the original image

      • Send like a lower resolution version

    • Enhancement layer

      • Subtract base layer pixels from all pixels

      • Send like a normal resolution version

    • If enhancement layer arrives at client

      • Decode both layers

      • Add layers

    Base layer

    Less data to code

    Enhancement layer

    Better compression due to low values


    Snr scalability l.jpg
    SNR Scalability

    • SNR – signal-to-noise ratio

    • Idea

      • Base layer

        • Is regularly DCT encoded

        • A lot of data is removed using quantization

      • Enhancement layer is regularly DCT encoded

        • Run Inverse DCT on quantized base layer

        • Subtract from original

        • DCT encode the result

      • If enhancement layer arrives at client

        • Add base and enhancement layer before running Inverse DCT


    Multiple description coding l.jpg
    Multiple Description Coding

    • Idea

      • Encode data in two streams

      • Each stream has acceptable quality

      • Both streams combined have good quality

      • The redundancy between both streams is low

    • Problem

      • The same relevant information must exist in both streams

      • Old problem: started for audio coding in telephony

      • Currently a hot topic


    Delivery systems developments l.jpg
    Delivery Systems Developments

    Several Programs or Timelines

    Network

    Saving network resources:

    Stream scheduling


    Patching l.jpg
    Patching

    • Server resource optimization is possible

    Central server

    Join !

    Unicast patch stream

    multicast

    cyclicbuffer

    1st client

    2nd client


    Proxy prefix caching l.jpg
    Proxy Prefix Caching

    Central server

    • Split movie

      • Prefix

      • Suffix

    • Operation

      • Store prefix in prefix cache

        • Coordination necessary!

      • On demand

        • Deliver prefix immediately

        • Prefetch suffix from central server

    • Goal

      • Reduce startup latency

      • Hide bandwidth limitations, delay and/or jitter in backbone

      • Reduce load in backbone

    Unicast

    Prefix cache

    Unicast

    Client


    Interval caching ic l.jpg

    S33

    S34

    S32

    S11

    S31

    S11

    S12

    S12

    S11

    S13

    S21

    S22

    Video clip 1

    Video clip 1

    Video clip 1

    Video clip 3

    Video clip 2

    I12

    I11

    I21

    I33

    I32

    I31

    Interval Caching (IC)

    • caches data between requests

    • following requests are thus served from the cache

    • sort intervals on length

    I32

    I33

    I12

    I31

    I11

    I21


    Receiver driven layered multicast rlm l.jpg

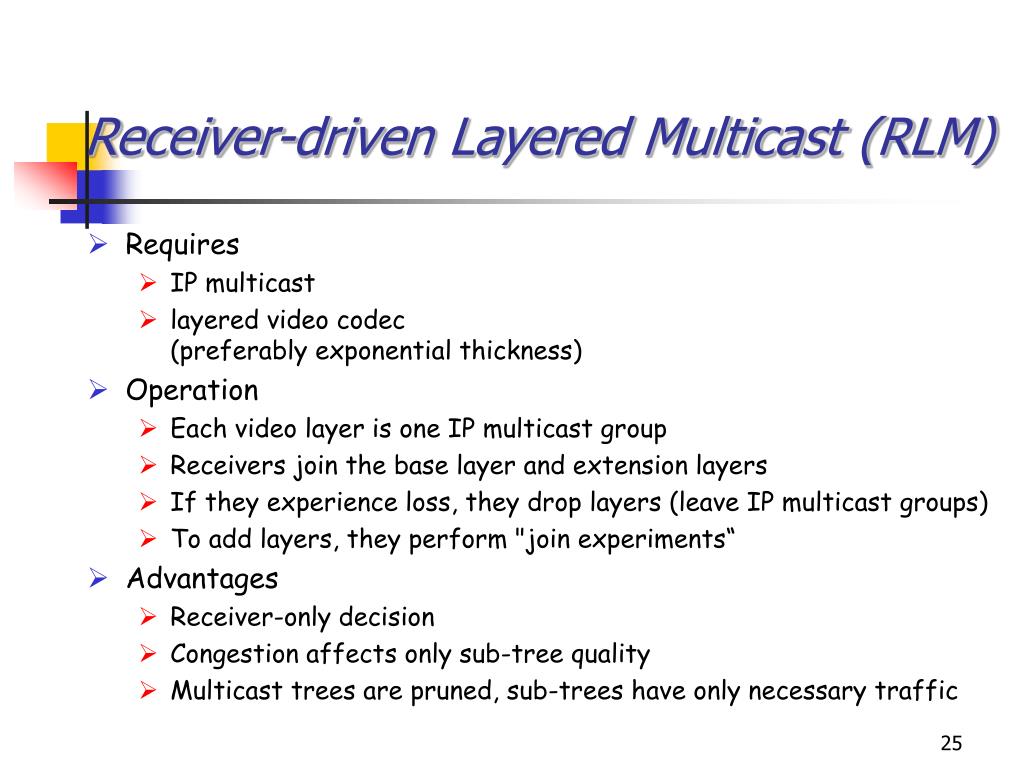

    Receiver-driven Layered Multicast (RLM)

    • Requires

      • IP multicast

      • layered video codec (preferably exponential thickness)

    • Operation

      • Each video layer is one IP multicast group

      • Receivers join the base layer and extension layers

      • If they experience loss, they drop layers (leave IP multicast groups)

      • To add layers, they perform "join experiments“

    • Advantages

      • Receiver-only decision

      • Congestion affects only sub-tree quality

      • Multicast trees are pruned, sub-trees have only necessary traffic
