Paul Fleming Vanderbilt University. Hydrogen Generation in Submerged Friction Stir Welding of Aluminum. Overview. Background FSW, SFSW, Aluminum and Hydrogen Experiment Discussions Future Research. Friction Stir Welding. Recently (1991) developed solid state welding technique

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Hydrogen Generation in Submerged Friction Stir Welding of Aluminum' - liam


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
overview
Overview
  • Background
    • FSW, SFSW, Aluminum and Hydrogen
  • Experiment
  • Discussions
  • Future Research
friction stir welding

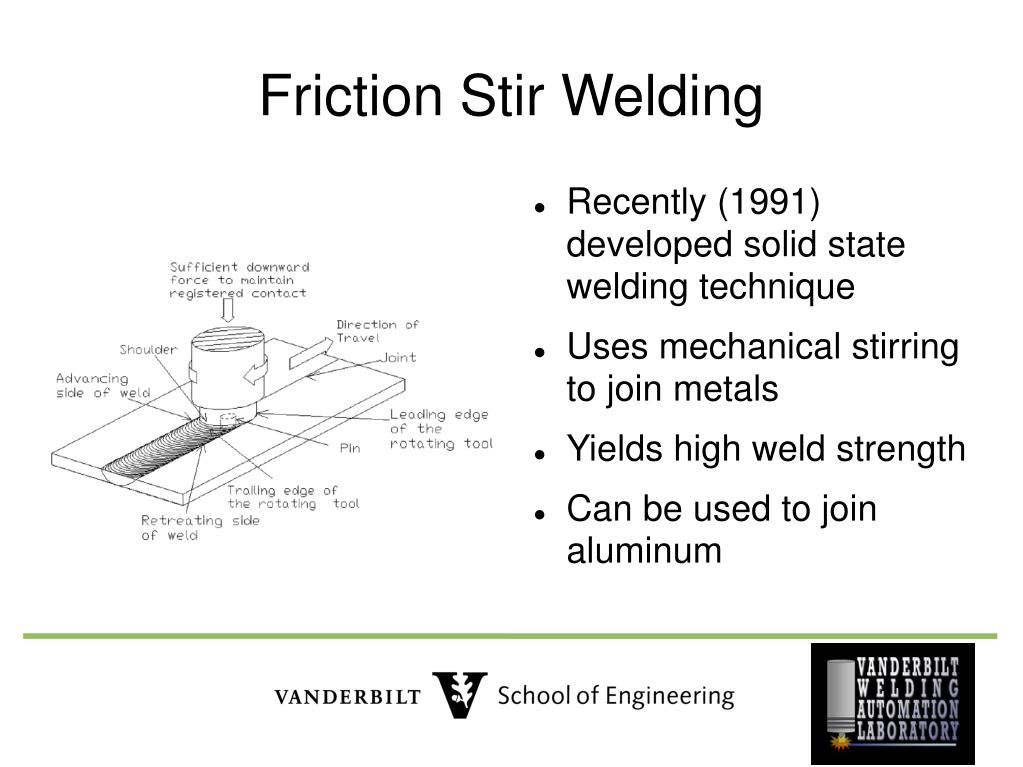

Friction Stir Welding
  • Recently (1991) developed solid state welding technique
  • Uses mechanical stirring to join metals
  • Yields high weld strength
  • Can be used to join aluminum
submerged friction stir welding

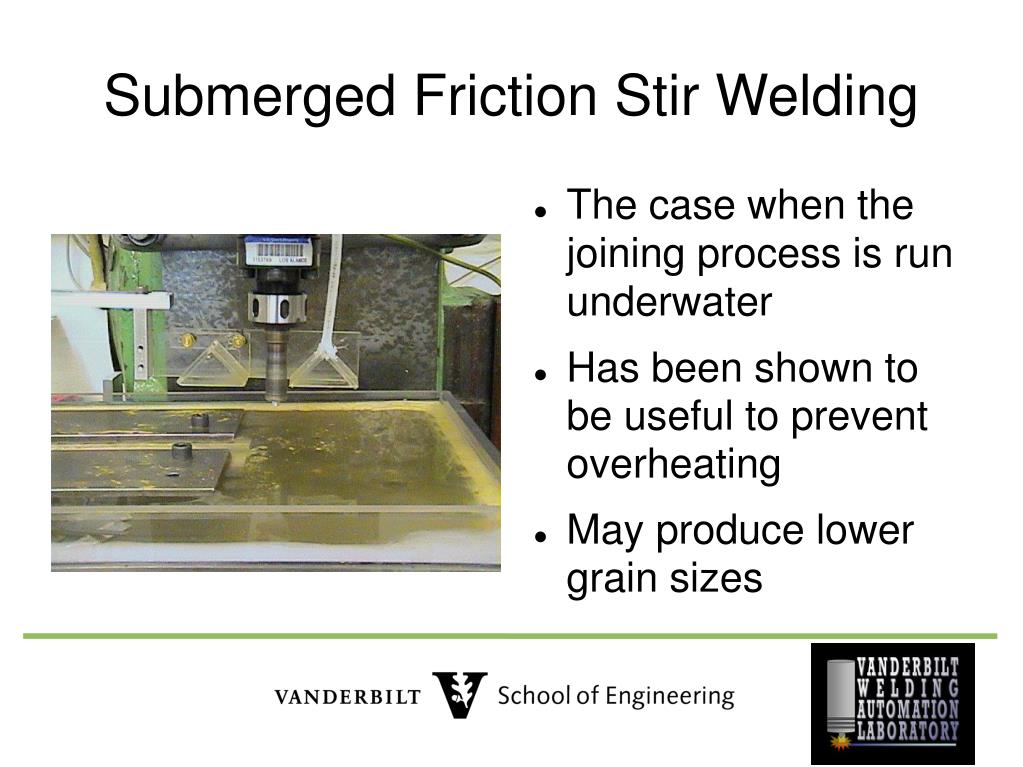

Submerged Friction Stir Welding
  • The case when the joining process is run underwater
  • Has been shown to be useful to prevent overheating
  • May produce lower grain sizes
aluminum and hydrogen

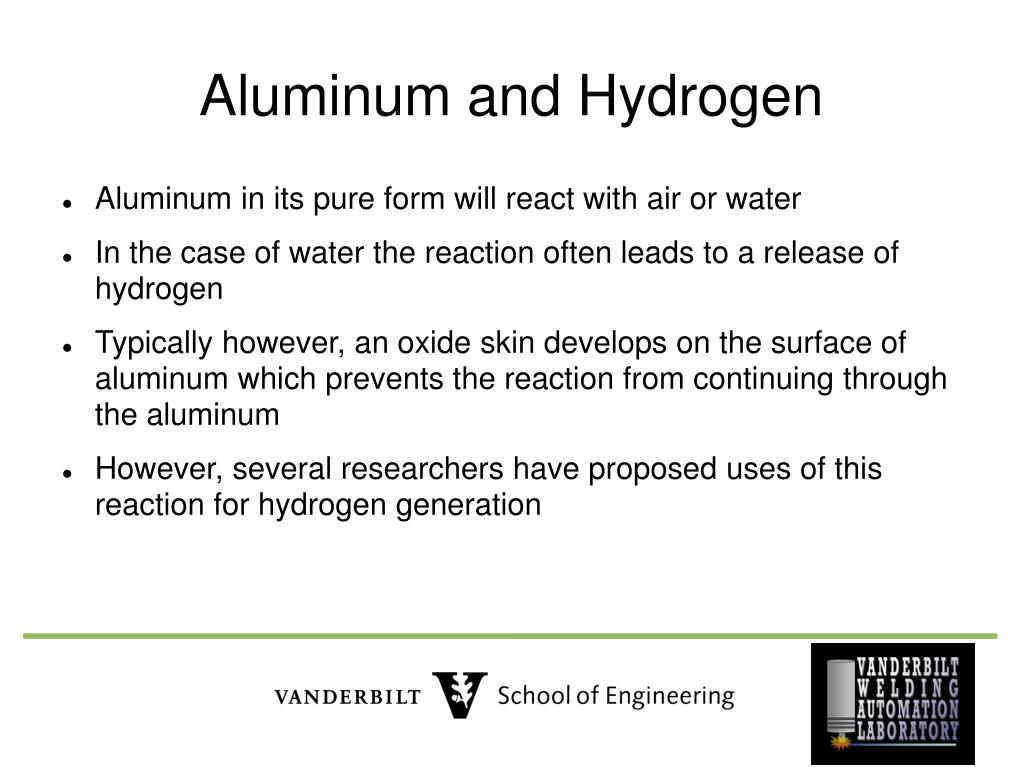

Aluminum and Hydrogen
  • Aluminum in its pure form will react with air or water
  • In the case of water the reaction often leads to a release of hydrogen
  • Typically however, an oxide skin develops on the surface of aluminum which prevents the reaction from continuing through the aluminum
  • However, several researchers have proposed uses of this reaction for hydrogen generation
an example technology
An example technology
  • Article from physics.com (May 16, 2007):
    • “New process generates hydrogen from aluminum alloy to run engines, fuel cells”
  • Jerry Woodall at Purdue uses gallium to prevent the development of the “skin” or oxide layer.
  • The reaction continues therefore until all aluminum is used
another example
Another example
  • The paper, “Hydrogen gas generation in the wet cutting of aluminum and its alloys”, shows that when aluminum is cut underwater there is a fresh surface revealed which reacts with the water and hydrogen is released.
  • Experiments were conducted in the paper and the gas released during underwater cutting was confirmed to be hydrogen.
  • Also provides a probable chemical reaction:
    • 2Al + 3H2O → Al2O3 + 3H2
our research

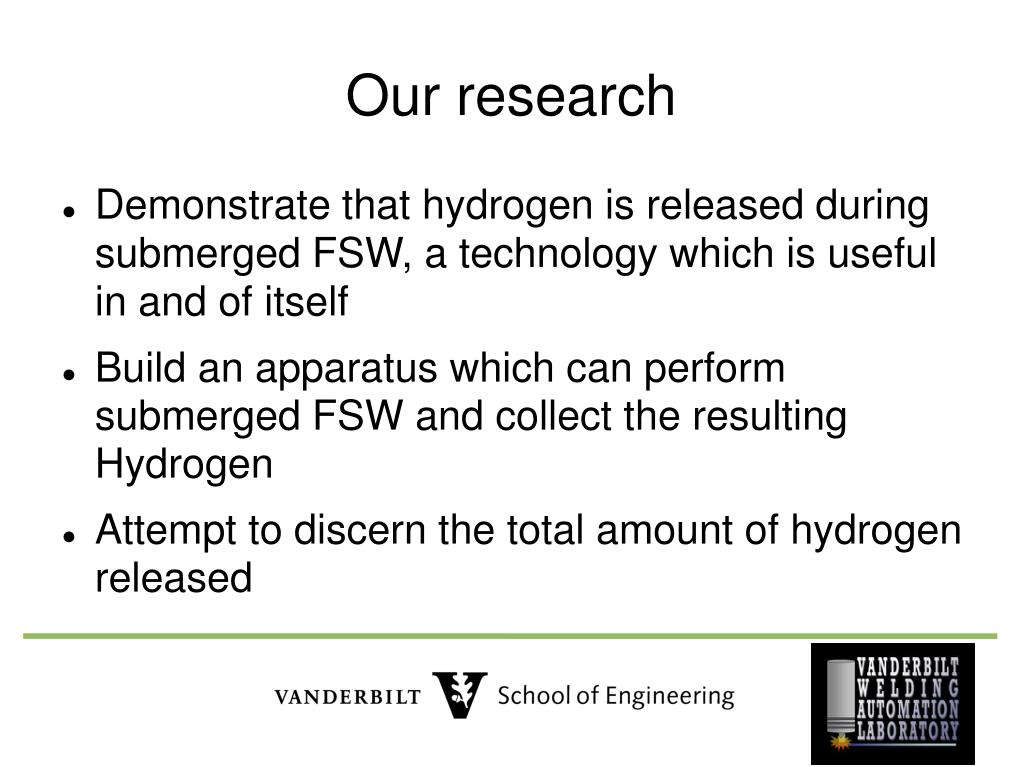

Our research
  • Demonstrate that hydrogen is released during submerged FSW, a technology which is useful in and of itself
  • Build an apparatus which can perform submerged FSW and collect the resulting Hydrogen
  • Attempt to discern the total amount of hydrogen released
block diagram
Block Diagram

PEMFC 1.2 W

http://www.fuelcellstore.com/products/h2interpower/bz12-16.html

experiment 1
Experiment 1
  • Weld reprocessed three times
  • Voltage on fuel cell recorded
    • (Play Video)
experiment 2

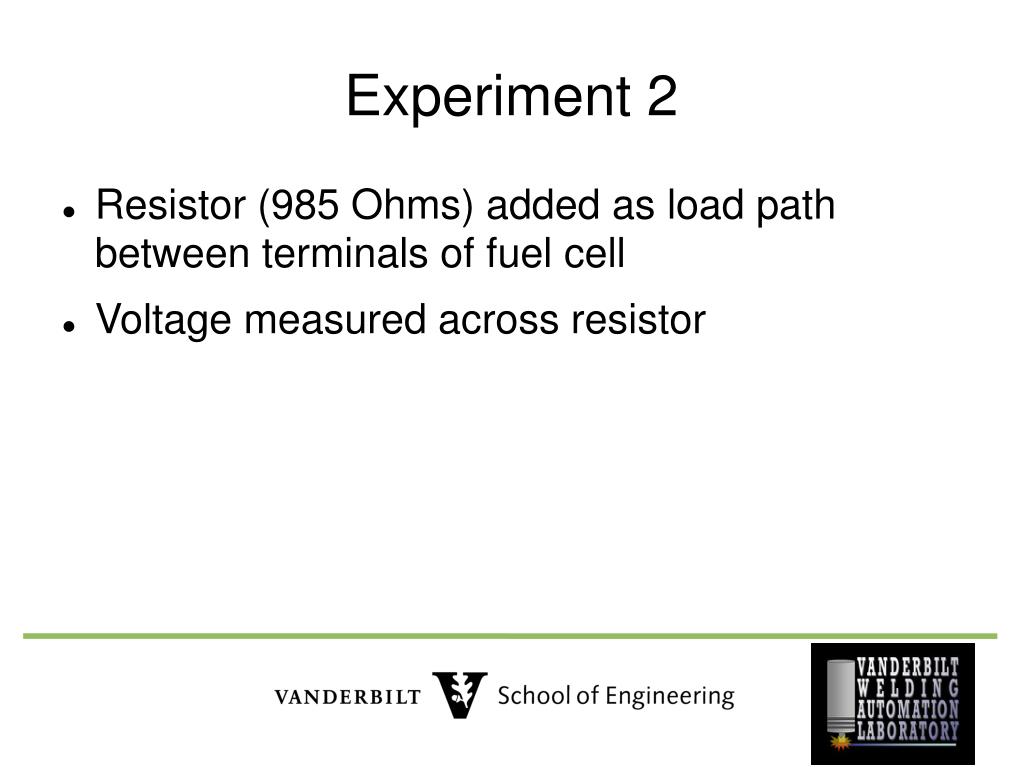

Experiment 2
  • Resistor (985 Ohms) added as load path between terminals of fuel cell
  • Voltage measured across resistor
discussion

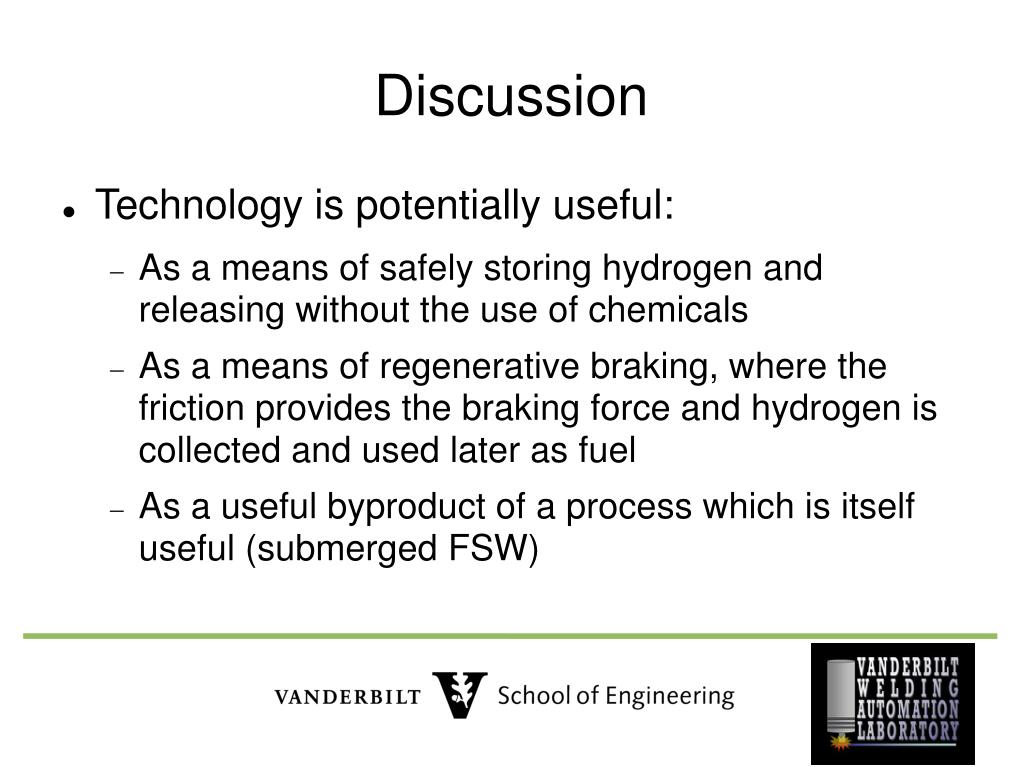

Discussion
  • Technology is potentially useful:
    • As a means of safely storing hydrogen and releasing without the use of chemicals
    • As a means of regenerative braking, where the friction provides the braking force and hydrogen is collected and used later as fuel
    • As a useful byproduct of a process which is itself useful (submerged FSW)
future research

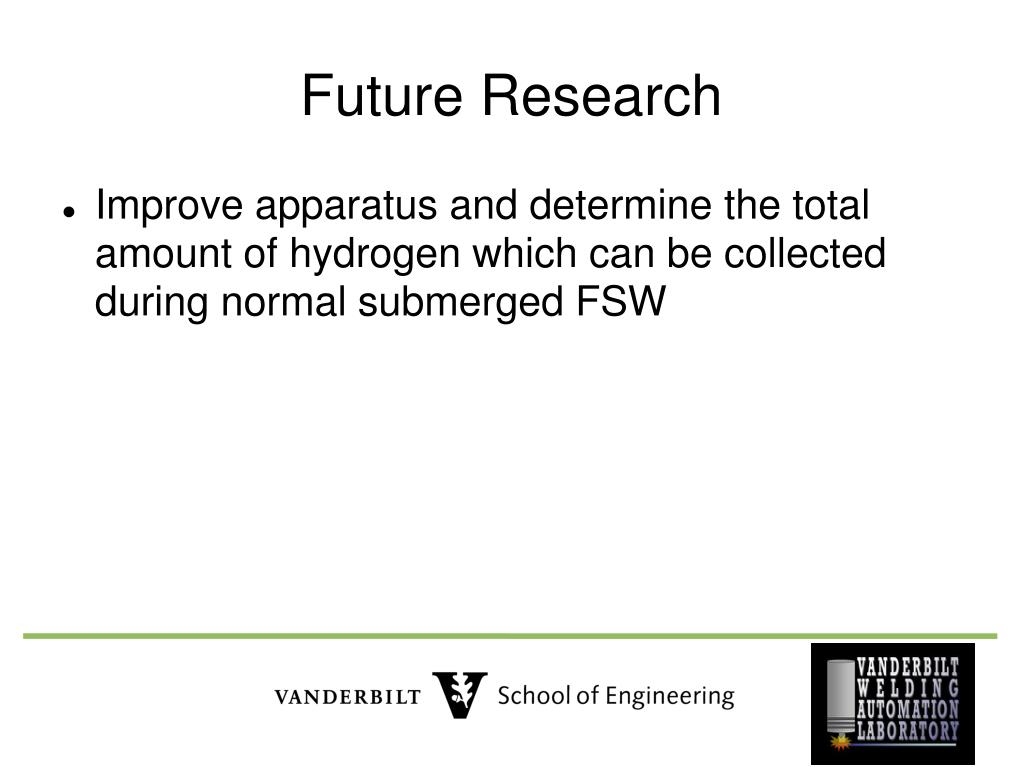

Future Research
  • Improve apparatus and determine the total amount of hydrogen which can be collected during normal submerged FSW
references

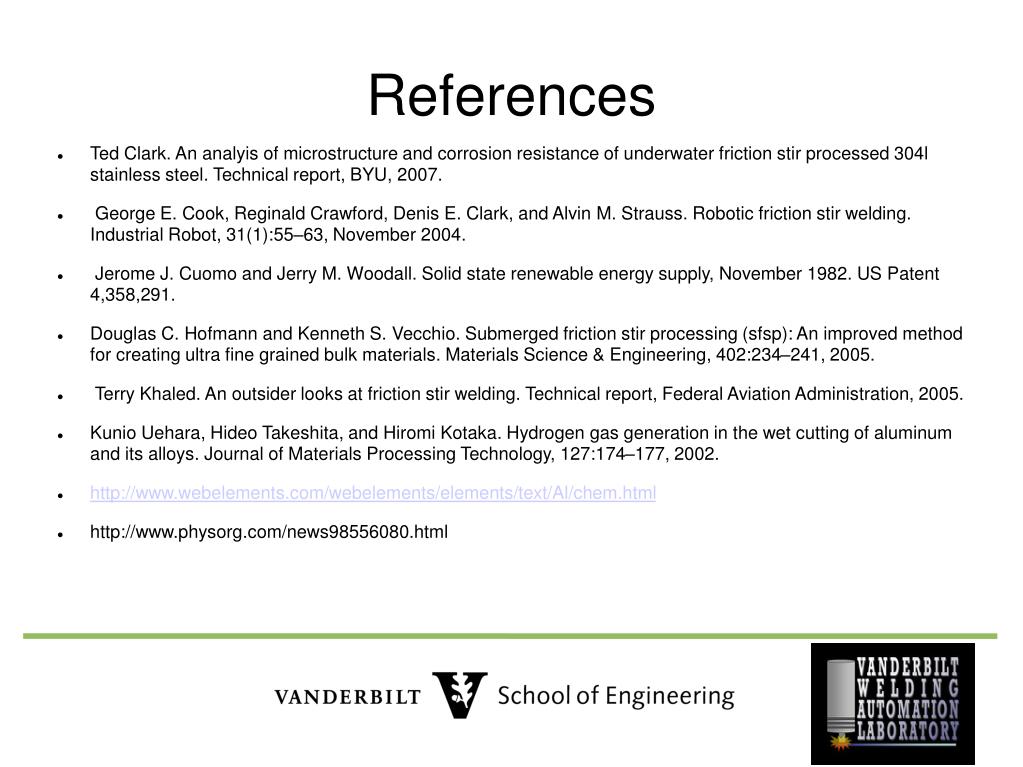

References
  • Ted Clark. An analyis of microstructure and corrosion resistance of underwater friction stir processed 304l stainless steel. Technical report, BYU, 2007.
  • George E. Cook, Reginald Crawford, Denis E. Clark, and Alvin M. Strauss. Robotic friction stir welding. Industrial Robot, 31(1):55–63, November 2004.
  • Jerome J. Cuomo and Jerry M. Woodall. Solid state renewable energy supply, November 1982. US Patent 4,358,291.
  • Douglas C. Hofmann and Kenneth S. Vecchio. Submerged friction stir processing (sfsp): An improved method for creating ultra fine grained bulk materials. Materials Science & Engineering, 402:234–241, 2005.
  • Terry Khaled. An outsider looks at friction stir welding. Technical report, Federal Aviation Administration, 2005.
  • Kunio Uehara, Hideo Takeshita, and Hiromi Kotaka. Hydrogen gas generation in the wet cutting of aluminum and its alloys. Journal of Materials Processing Technology, 127:174–177, 2002.
  • http://www.webelements.com/webelements/elements/text/Al/chem.html
  • http://www.physorg.com/news98556080.html
