gibbs biclustering of microarray data

Gibbs biclustering of microarray data

Yves Moreau

& Qizheng Sheng

Katholieke Universiteit LeuvenESAT-SCD (SISTA)

on leave at Center for Biological Sequence analysis, Danish Technical University

clustering
Clustering
  • Form coherent groups of
    • Genes
    • Patient samples (e.g., tumors)
    • Drug or toxin response
  • Study these groups to get insight into biological processes
    • Diagnostic and prognostic classes
    • Genes in same clusters can have same function or same regulation
  • Clustering algorithms
    • Hierarchical clustering
    • K-means
    • Self-Organizing Maps
    • ...

CBS Microarray Course

what s wrong with clustering
What’s wrong with clustering?
  • Clustering is a long-solved problem ?!?
  • Many problems with current clustering algorithms
    • PCA does not do any form of grouping
    • Hierarchical clustering does not produce distinct groups
      • Only a tree; it is then up to the user to pick nodes from the tree
    • K-means does not tell you how many clusters really are present in the data
    • ...

CBS Microarray Course

a wish list for clustering
A wish list for clustering
  • We expect a lot from a clustering algorithm
    • Fast and not memory hungry
      • Can run easily on a large microarray data set
        • 10-100.000 genes, >100 experiments
    • Partitioning of genes into distinct groups and automatically determine the “right” number of groups
    • Robust
      • If you remove some genes and some experiments, you want to obtain roughly the same groups
    • Rejection of outliers (genes that do not clearly belong to any group)
    • Probabilistic cluster membership
      • One gene can belong to several clusters
    • Incorporation of biological knowledge into account
      • Maybe you want some known genes to cluster together
      • Meaning of the clusters?
    • Heterogeneous microarray data sources

CBS Microarray Course

slide5
Biclustering microarray data

CBS Microarray Course

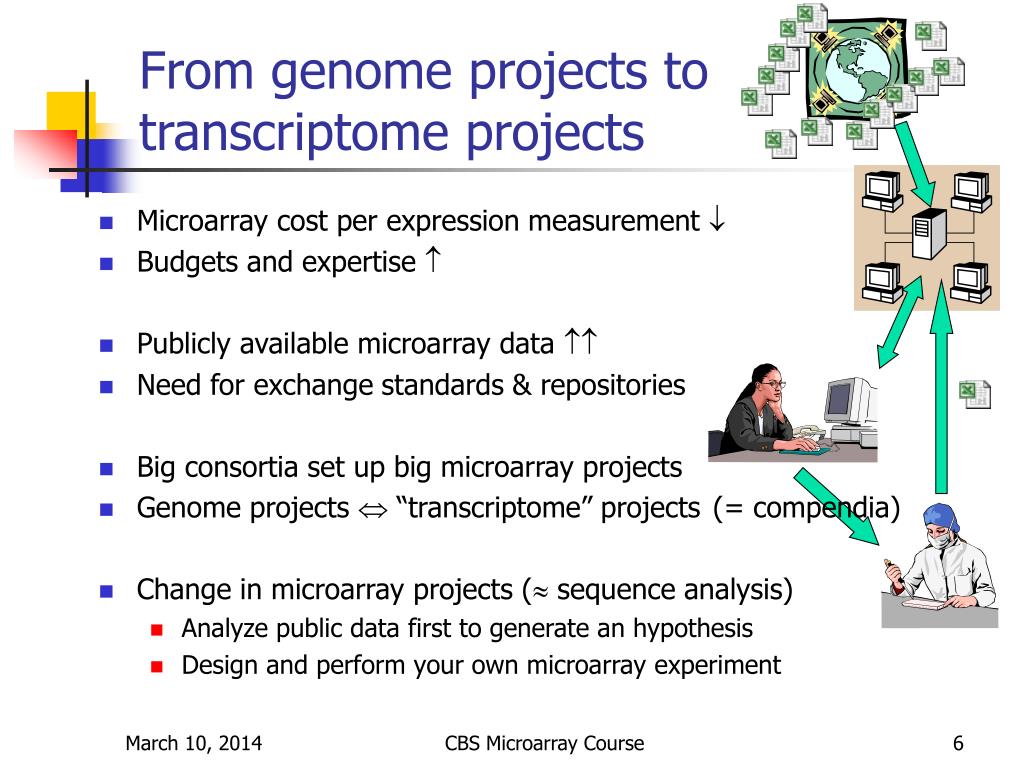

from genome projects to transcriptome projects
From genome projects to transcriptome projects
  • Microarray cost per expression measurement 
  • Budgets and expertise 
  • Publicly available microarray data 
  • Need for exchange standards & repositories
  • Big consortia set up big microarray projects
  • Genome projects  “transcriptome” projects (= compendia)
  • Change in microarray projects ( sequence analysis)
    • Analyze public data first to generate an hypothesis
    • Design and perform your own microarray experiment

CBS Microarray Course

why biclustering
Why biclustering?
  • Data becomes more heterogeneous
    • Gene clustering
      • Group genes that behave similarly over all conditions
    • Gene biclustering
      • Group genes that behave similarlyover a subset of conditions
      • “Feature selection”
      • More suitable for heterogeneous compendium

CBS Microarray Course

probabilistic graphical models

Genetics

Sequence analysis

Linkage analysis

Phylogeny

Modeling protein families

Gene prediction

Regulatory sequence analysis

Graphicalmodels

Biostatistics

Expression analysis

Bayesian stats

Clustering

Decision support

Clustering

Genetic network inference

Probabilistic graphical models

CBS Microarray Course

bicluster
Discretized microarray data set

Discretizing microarray data

Microarray data is continuous

Discretize by equal frequency

High

Medium

Low

Distribution of expression values

for a given gene

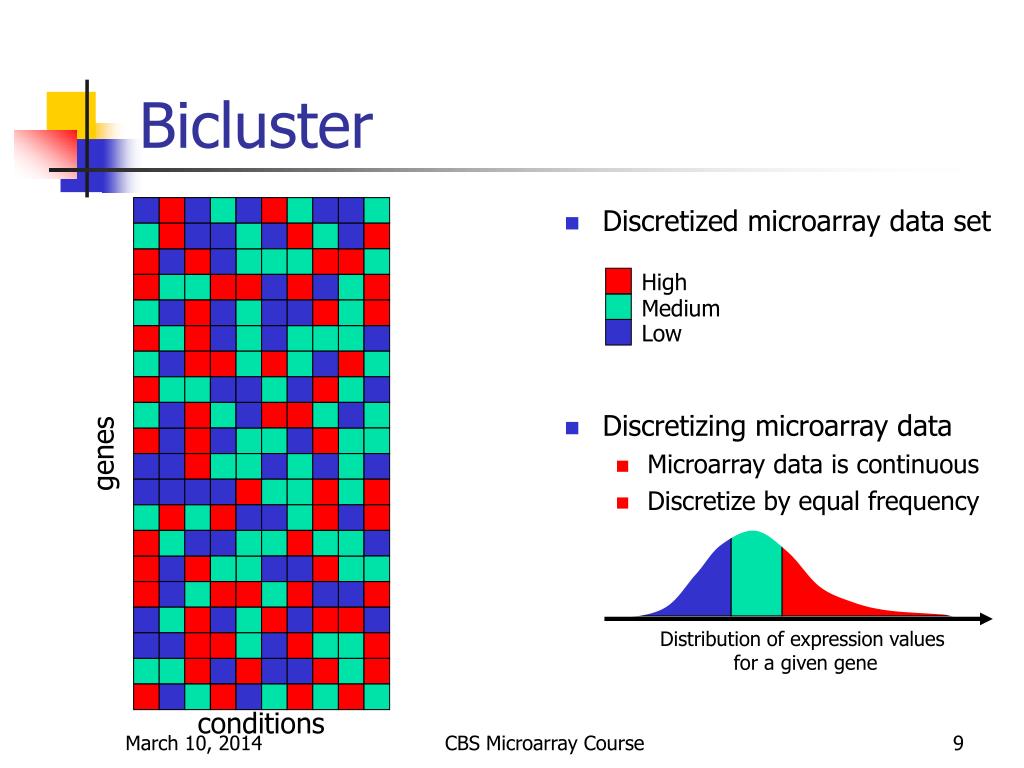

Bicluster

genes

conditions

CBS Microarray Course

bicluster10
Bicluster

CBS Microarray Course

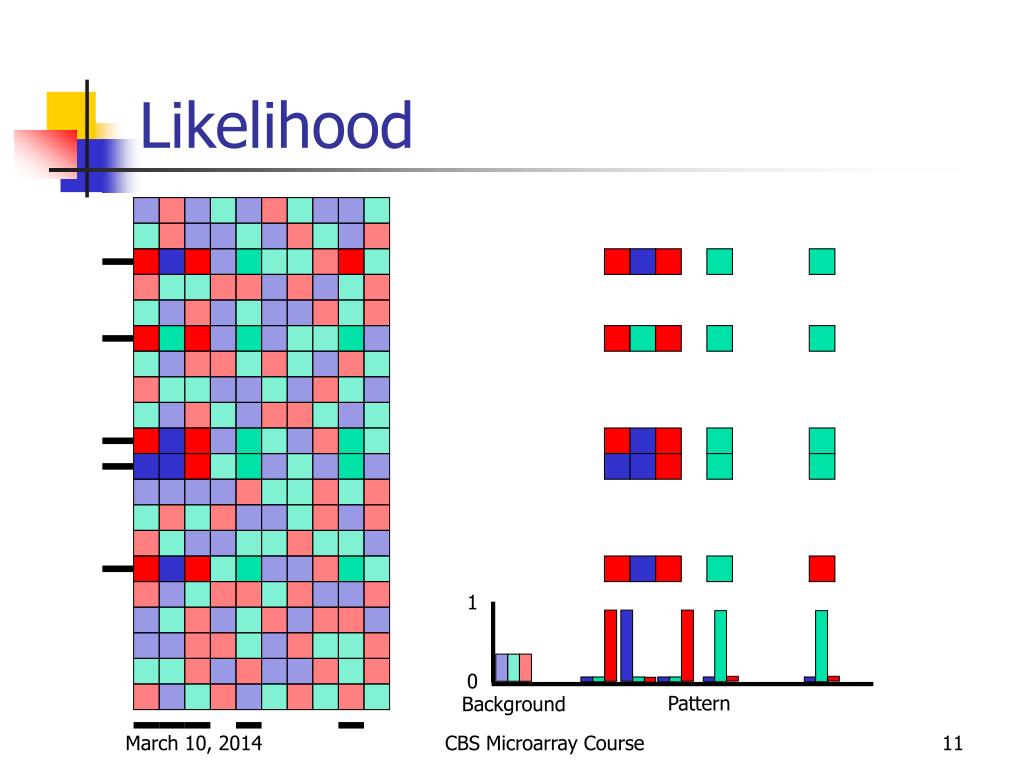

likelihood

1

0

Pattern

Background

Likelihood

CBS Microarray Course

likelihood12

1

0

Likelihood





.9.9.9.9.9





.9.05.9.9.9







.9.9.9.9.9

.05.9.9.9.9







.9.9.9.9.05











CBS Microarray Course

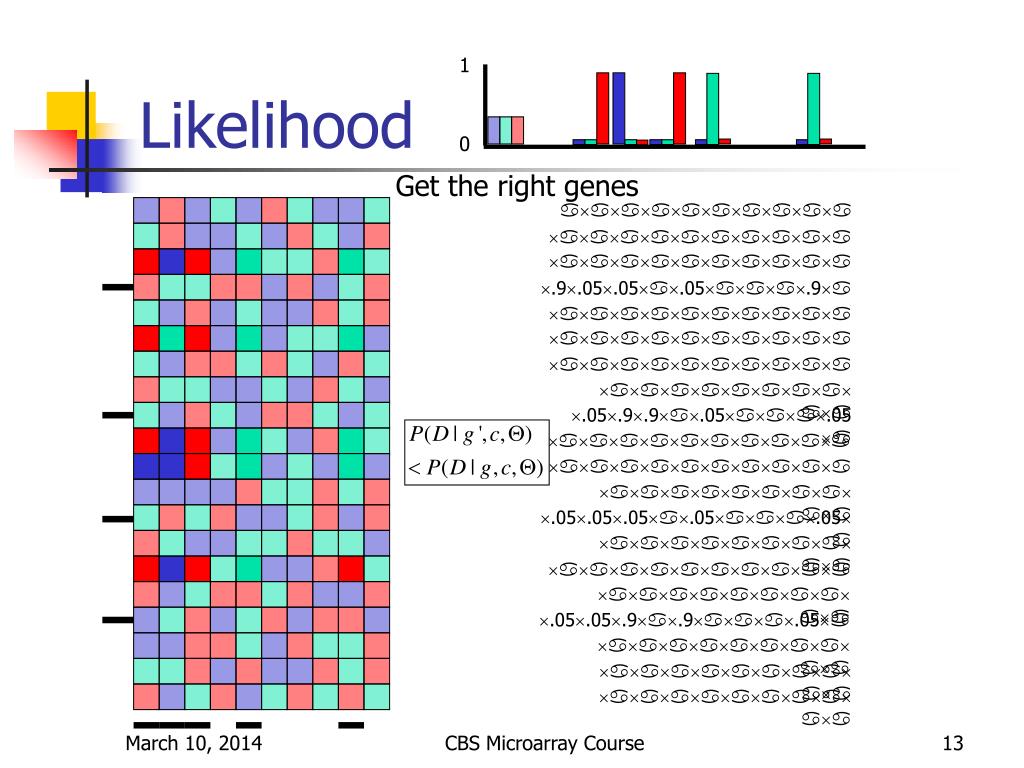

likelihood13

1

0

Likelihood

Get the right genes







.9.05.05.05.9









.05.9.9.05.05







.05.05.05.05.05







.05.05.9.9.05







CBS Microarray Course

likelihood14

1

Likelihood

0

Get the right conditions





.9.9.05.05.9





.9.05.05.9.9







.9.9 .05 .05.9

.05.9.05 .05.9







.9.9 .05 .05.05











CBS Microarray Course

likelihood15

1

Likelihood

0

Get the right frequency pattern





.6.6.2.2.6





.6.2.2.2.6







.6.6.2.2.6

.2.6.2.2.6







.2.6.2.2.2











CBS Microarray Course

optimizing the bicluster
Optimizing the bicluster
  • Find the right bicluster
    • Genes
    • Conditions
    • Pattern
  • For a given choice of genes and conditions, the “best” pattern is given by the frequencies found in the extracted pattern
    • No more need to optimize over the pattern
  • Maximum likelihood: find genes and conditions that maximize
  • Gibbs sampling: find genes and conditions that optimize

CBS Microarray Course

slide17
Gibbs sampling

CBS Microarray Course

markov chain monte carlo
Markov Chain Monte-Carlo
  • Markov chain with transition matrix T

A C G T

A0.0643 0.8268 0.0659 0.0430

C 0.0598 0.0484 0.8515 0.0403

G 0.1602 0.3407 0.1736 0.3255

T 0.1507 0.1608 0.3654 0.3231

X=A

X=T

X=C

X=G

CBS Microarray Course

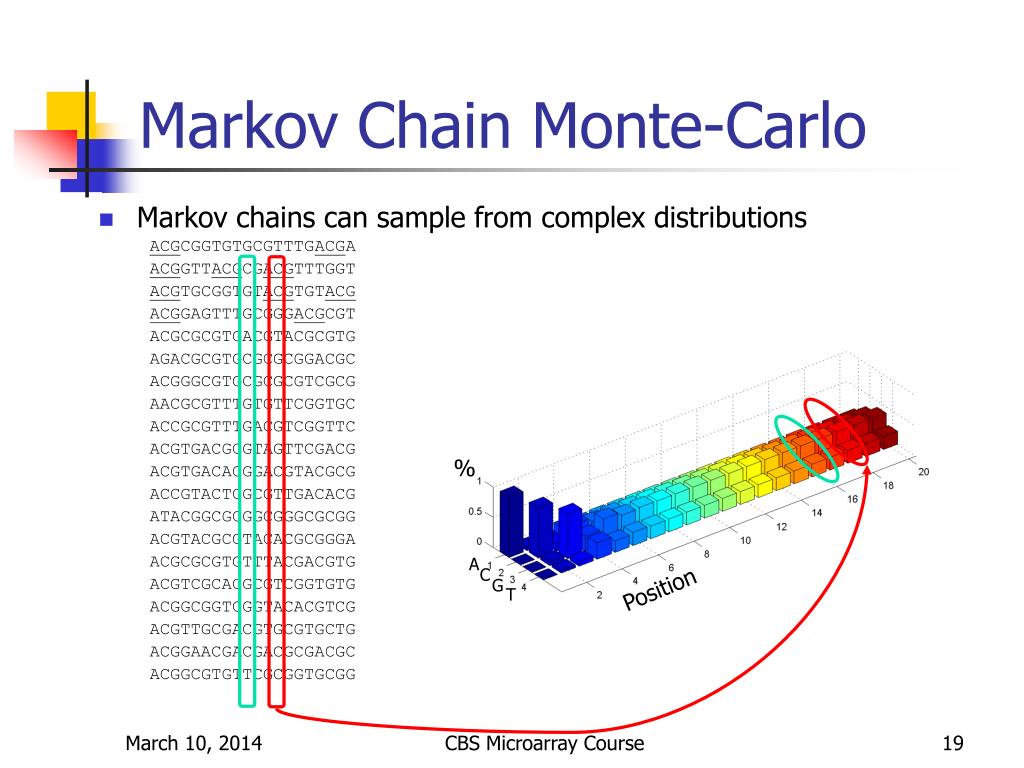

markov chain monte carlo19
Markov Chain Monte-Carlo
  • Markov chains can sample from complex distributions

ACGCGGTGTGCGTTTGACGA

ACGGTTACGCGACGTTTGGT

ACGTGCGGTGTACGTGTACG

ACGGAGTTTGCGGGACGCGT

ACGCGCGTGACGTACGCGTG

AGACGCGTGCGCGCGGACGC

ACGGGCGTGCGCGCGTCGCG

AACGCGTTTGTGTTCGGTGC

ACCGCGTTTGACGTCGGTTC

ACGTGACGCGTAGTTCGACG

ACGTGACACGGACGTACGCG

ACCGTACTCGCGTTGACACG

ATACGGCGCGGCGGGCGCGG

ACGTACGCGTACACGCGGGA

ACGCGCGTGTTTACGACGTG

ACGTCGCACGCGTCGGTGTG

ACGGCGGTCGGTACACGTCG

ACGTTGCGACGTGCGTGCTG

ACGGAACGACGACGCGACGC

ACGGCGTGTTCGCGGTGCGG

%

A

C

G

Position

T

CBS Microarray Course

gibbs sampling
Gibbs sampling
  • Markov chain for Gibbs sampling

CBS Microarray Course

gibbs sampling21
Gibbs sampling
  • True target distribution (2D normal N(m,s))

CBS Microarray Course

gibbs sampling22

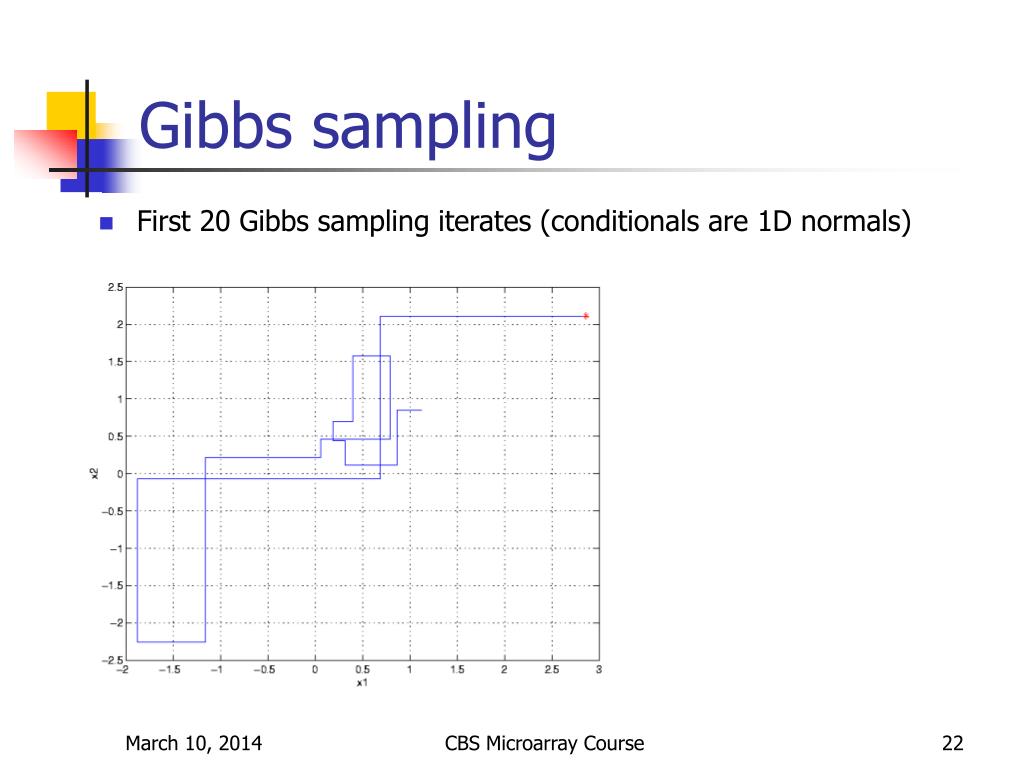

Gibbs sampling
  • First 20 Gibbs sampling iterates (conditionals are 1D normals)

CBS Microarray Course

gibbs sampling23
Gibbs sampling
  • Burn-in samples (1000 samples)

CBS Microarray Course

gibbs sampling24

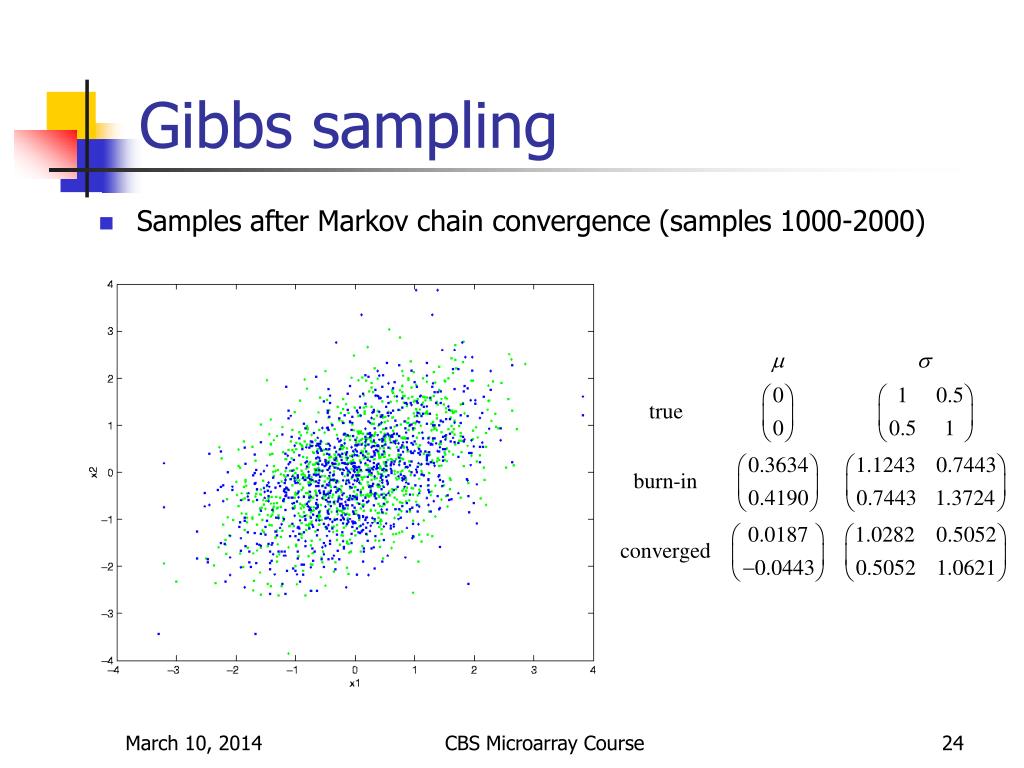

Gibbs sampling
  • Samples after Markov chain convergence (samples 1000-2000)

CBS Microarray Course

data augmentation gibbs sampling

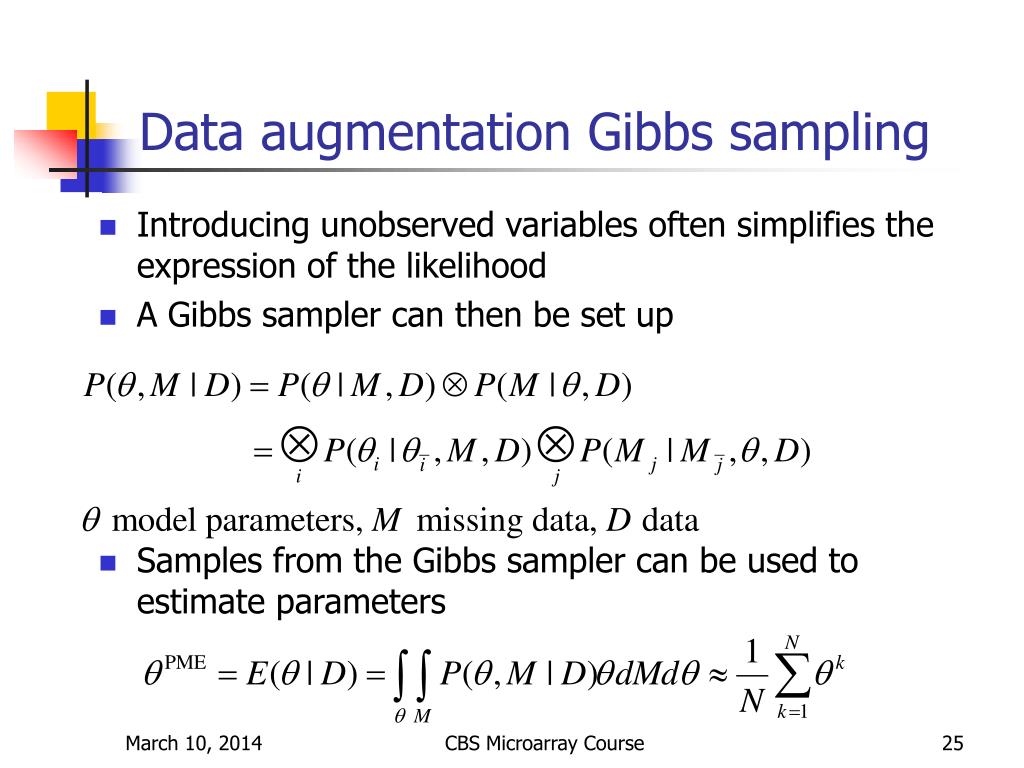

Data augmentation Gibbs sampling
  • Introducing unobserved variables often simplifies the expression of the likelihood
  • A Gibbs sampler can then be set up
  • Samples from the Gibbs sampler can be used to estimate parameters

CBS Microarray Course

pros and cons
Pros and cons
  • Gibbs sampling
    • Explore the space of configuration of a probabilistic model of the data according to the probability of each configuration
    • Based on incrementaly perturbing the configuration one variable at a time, preferably choosing more likely configurations
  • Pros
    • Clear probabilistic interpretation
    • Bayesian framework
    • “Global optimization”
  • Cons
    • Mathematical details not easy to work out
    • Relatively slow

CBS Microarray Course

slide27

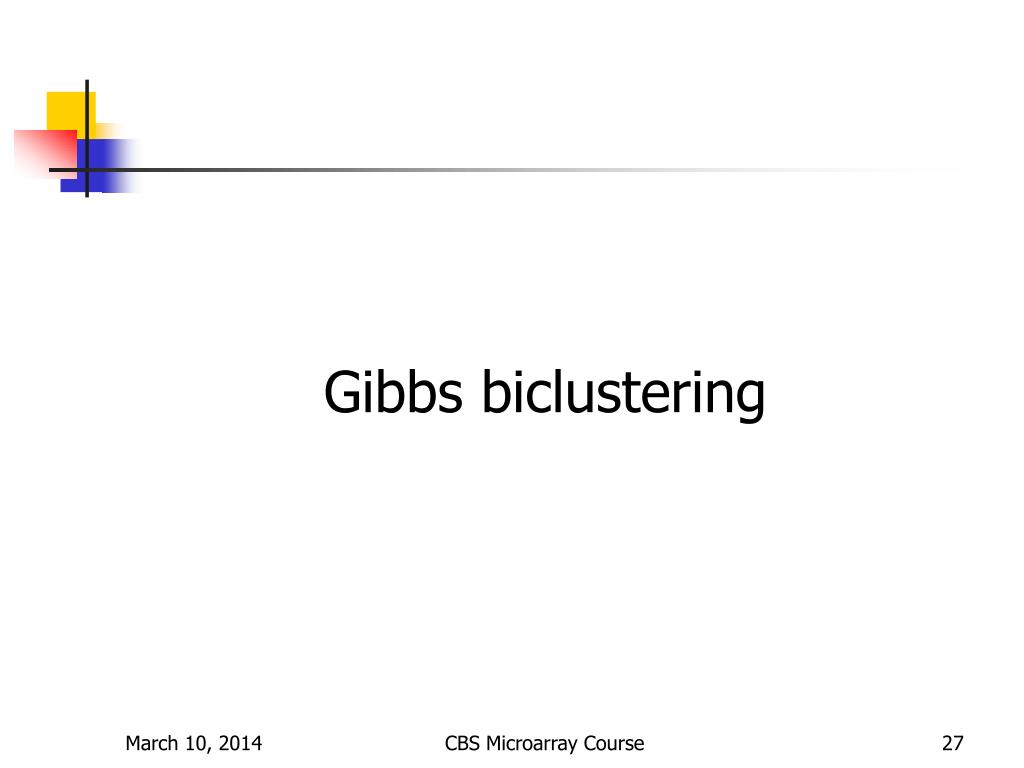

Gibbs biclustering

CBS Microarray Course

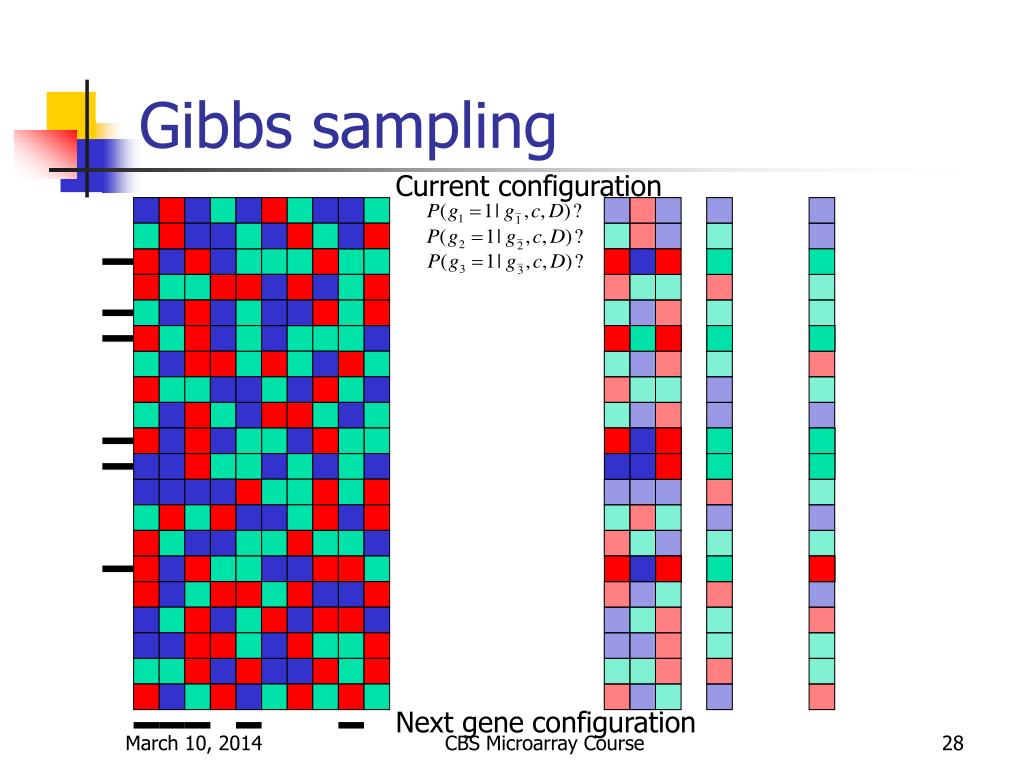

gibbs sampling28
Gibbs sampling

Current configuration

Next gene configuration

CBS Microarray Course

slide29

Updated gene configuration

Next complete configuration

 iterate many times

CBS Microarray Course

gibbs biclustering
Gibbs biclustering

CBS Microarray Course

simulated data
Simulated data

CBS Microarray Course

remarks
Remarks
  • Gibbs biclustering allows noisy patterns
  • Optimized configuration is obtained by averaging successive iterated configurations
  • Biclustering is oriented
    • Find subset of samples for which a subset of genes is consistenly expressed across genes
    • Find subset of genes that are consistently expressed across a subset of samples
  • Searching for multiple patterns
    • For gene biclustering, remove the data of the genes from the current bicluster
    • Search for a new pattern
    • Stop if only empty pattern repeatedly found

CBS Microarray Course

multiple biclusters
Multiple biclusters

CBS Microarray Course

slide34
Leukemia fingerprints

CBS Microarray Course

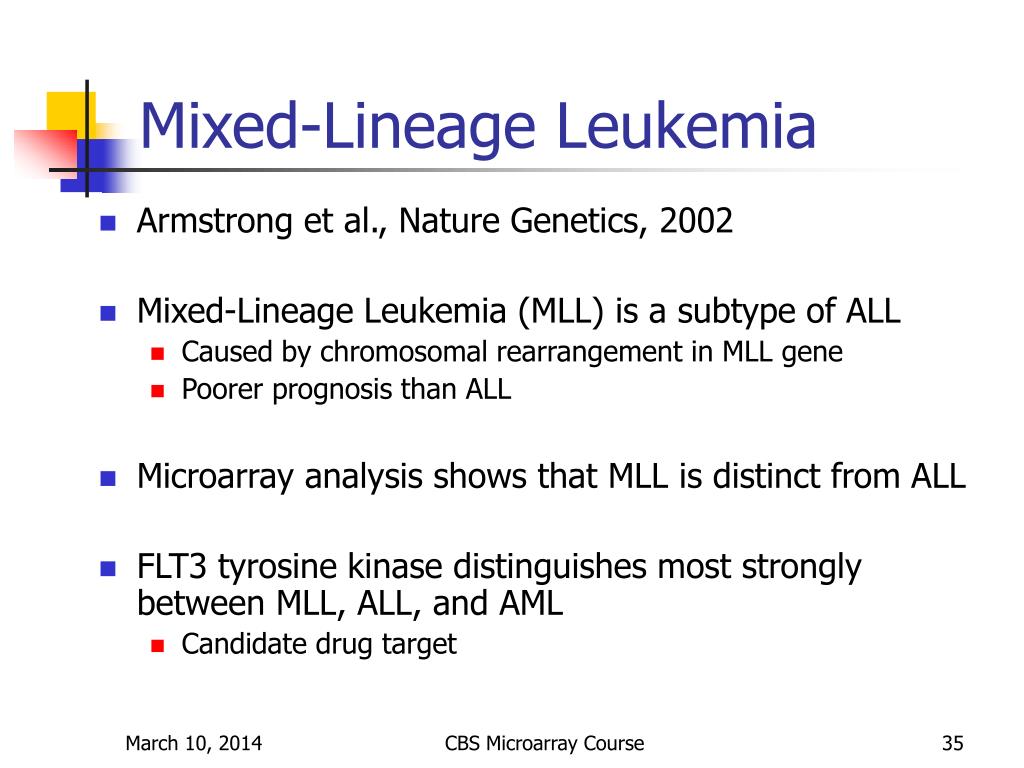

mixed lineage leukemia
Mixed-Lineage Leukemia
  • Armstrong et al., Nature Genetics, 2002
  • Mixed-Lineage Leukemia (MLL) is a subtype of ALL
    • Caused by chromosomal rearrangement in MLL gene
    • Poorer prognosis than ALL
  • Microarray analysis shows that MLL is distinct from ALL
  • FLT3 tyrosine kinase distinguishes most strongly between MLL, ALL, and AML
    • Candidate drug target

CBS Microarray Course

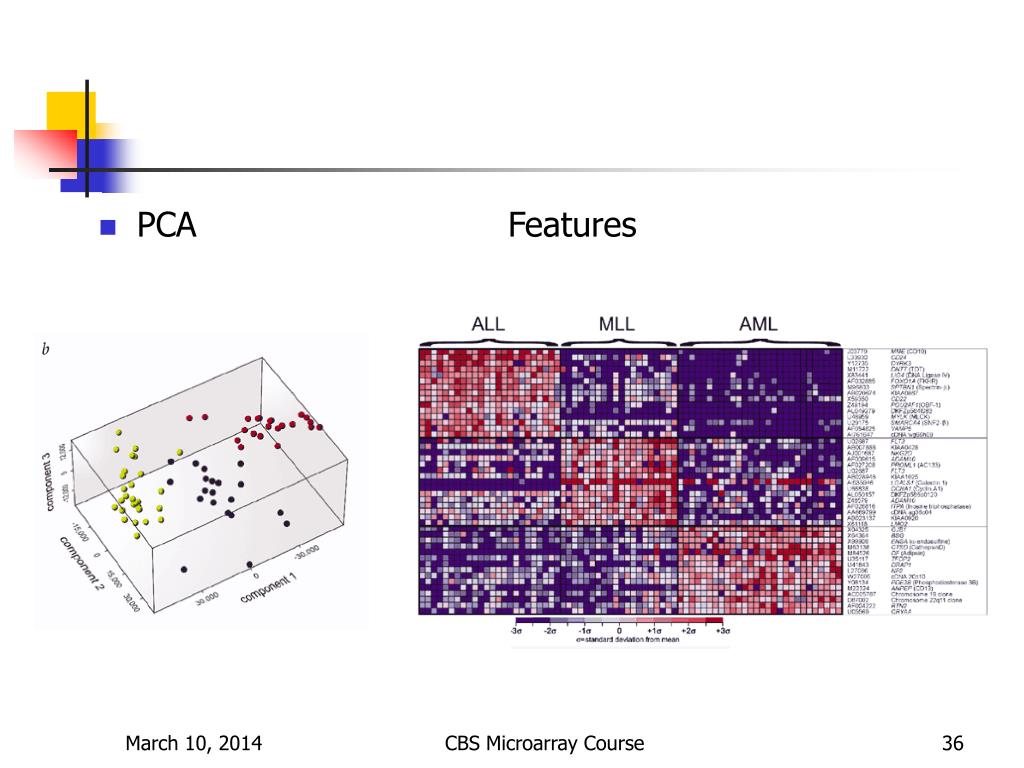

slide36
PCA Features

CBS Microarray Course

biclustering leukemia data
Biclustering leukemia data
  • Bicluster patients
    • Find patients for which a subset of genes has a consistent expression profile across this group of patients
  • Discovery set
    • 21 ALL, 17 MLL, 25 AML
  • Validation set
    • 3 ALL, 3 MLL, 3 AML

CBS Microarray Course

discovering all
Discovering ALL
  • Bicluster 1: 18 out of 21 ALL patients

CBS Microarray Course

discovering mll

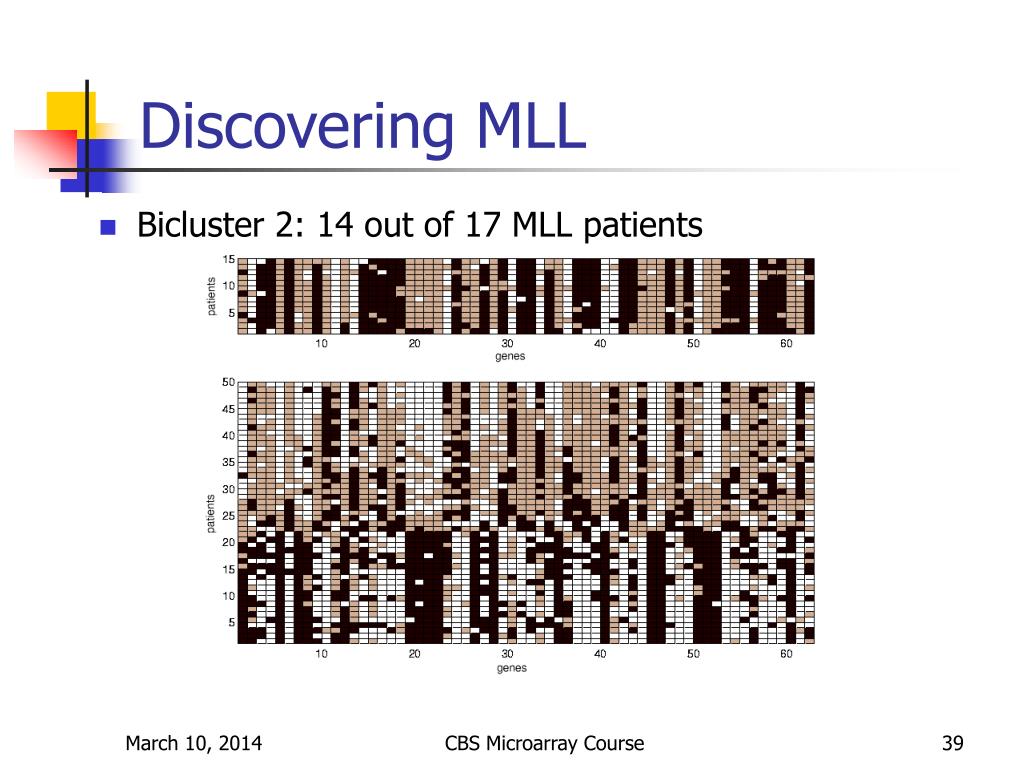

Discovering MLL
  • Bicluster 2: 14 out of 17 MLL patients

CBS Microarray Course

discovering aml
Discovering AML
  • Bicluster 3: 19 out of 25 AML patients

CBS Microarray Course

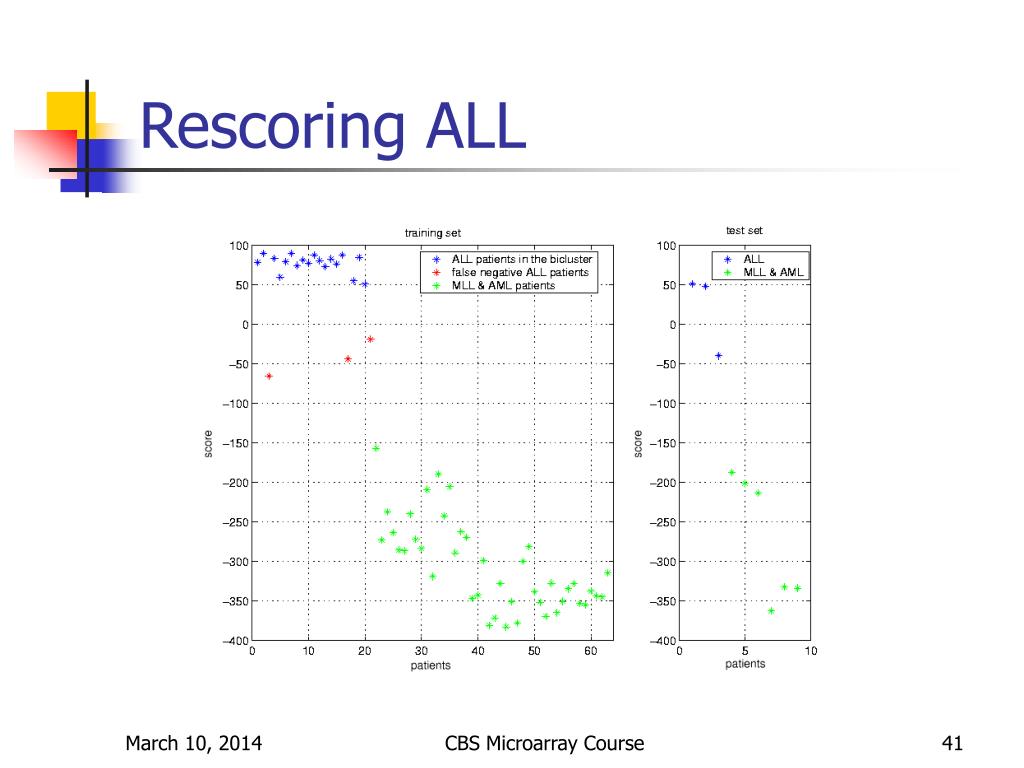

rescoring all
Rescoring ALL

CBS Microarray Course

rescoring mll
Rescoring MLL

CBS Microarray Course

rescoring aml
Rescoring AML

CBS Microarray Course
