  1. Digital Data Sources For Family Forests Paul Gessler Remote Sensing & GIS Research Laboratory College of Natural Resources, University of Idaho www.cnr.uidaho.edu/remotesensing

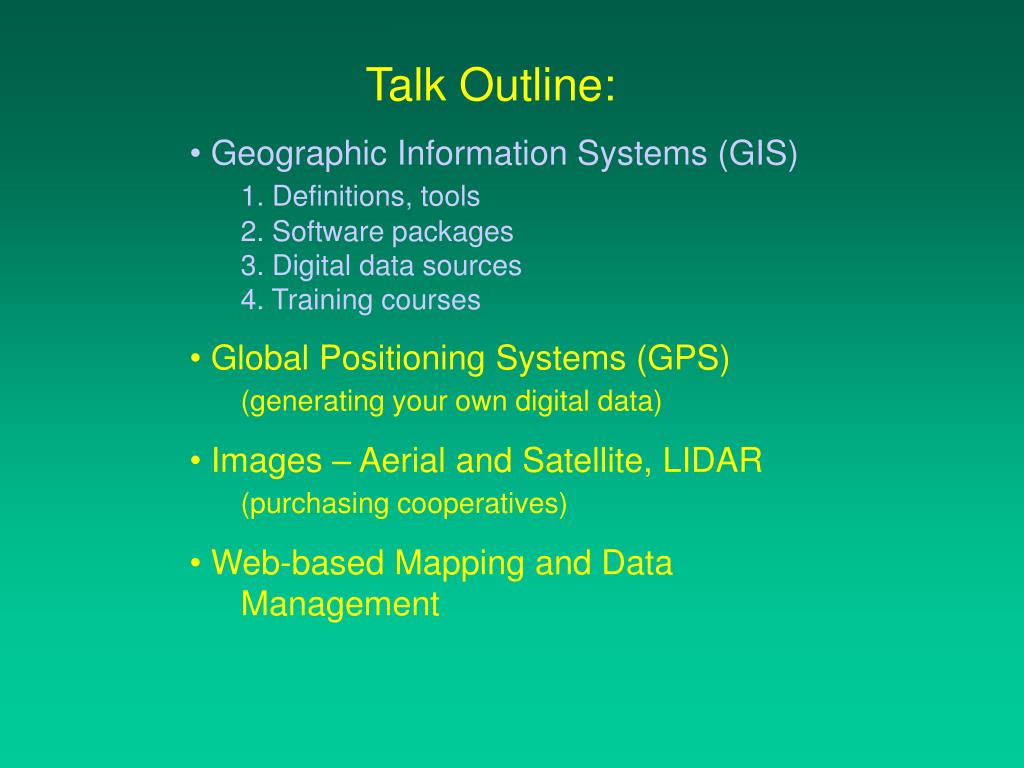

  2. Talk Outline: • Geographic Information Systems (GIS)1. Definitions, tools 2. Software packages 3. Digital data sources 4. Training courses • Global Positioning Systems (GPS)(generating your own digital data) • Images – Aerial and Satellite, LIDAR (purchasing cooperatives) • Web-based Mapping and Data Management

  3. Talk Outline: • Geographic Information Systems (GIS)1. Definitions, tools 2. Software packages 3. Digital data sources 4. Training courses • Global Positioning Systems (GPS)(generating your own digital data) • Images – Aerial and Satellite, LIDAR (purchasing cooperatives) • Web-based Mapping and Data Management

  4. A Geographic Information System (GIS) is defined as: A system for capturing, storing, checking, integrating, manipulating, analyzing, and displaying data which are spatially referenced to the Earth. Computer & software

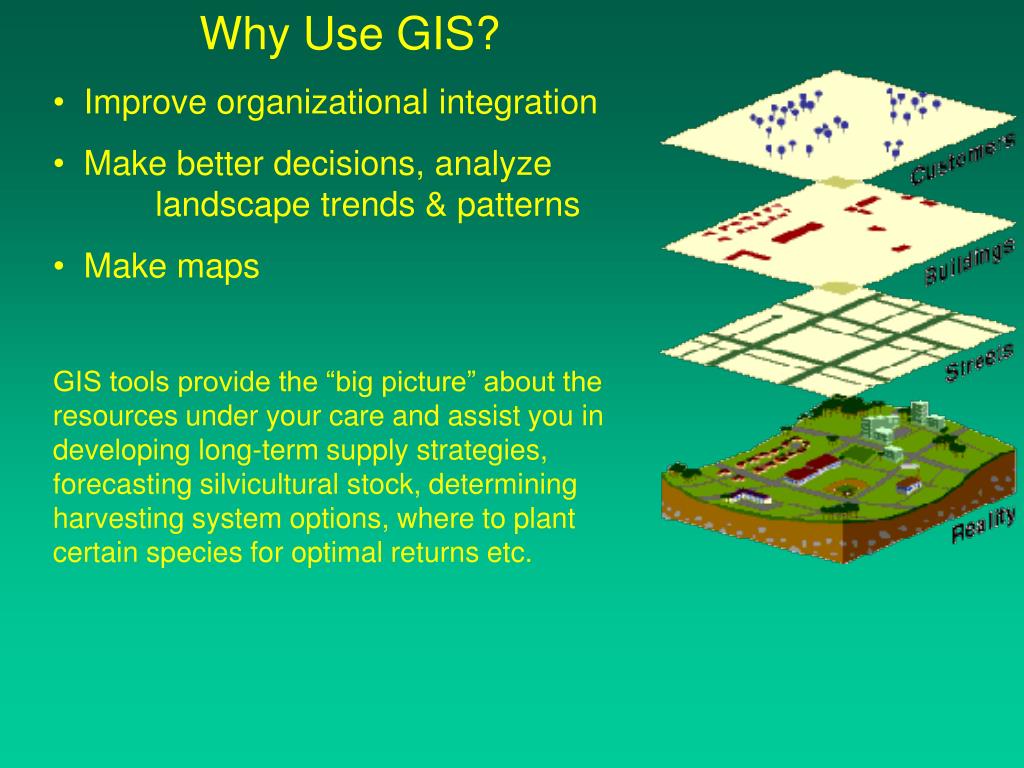

  5. Why Use GIS? • Improve organizational integration • Make better decisions, analyze landscape trends & patterns • Make maps • GIS tools provide the “big picture” about the resources under your care and assist you in developing long-term supply strategies, forecasting silvicultural stock, determining harvesting system options, where to plant certain species for optimal returns etc.

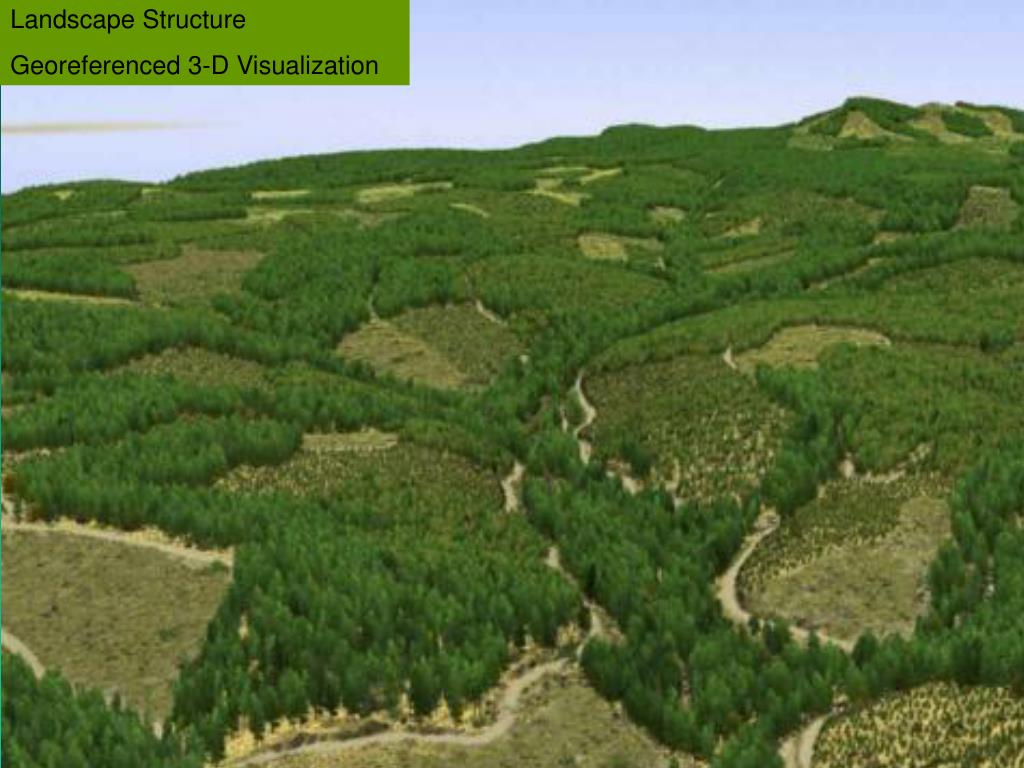

  6. Landscape Structure Georeferenced 3-D Visualization

  7. Rick LovellSpatialTec

  8. Where to start? • Basic hardware, software: $1350 - $10,000 • Expertise training: short courses • Private Contractors: provide hardcopy maps, digital data, Internet Map Services (IMS) • www.mines.uidaho.edu/geography/ - UI GIS Certificate Program • www.gis.com – ESRI (Arc/Info, ArcGIS, ArcView…) • www.consulting-foresters.com - Northwest Management, private company • www.digitalgrove.net - Private site with lots of useful resources • www.digitshare.org - Sentry Dynamics, private company located at UI Research Park in Post Falls • www.cnr.uidaho.edu/rsgis/education.htm - UI College of Natural Resources • www.cnr.uidaho.edu/remotesensing - UI Remote Sensing & GIS Research Lab

  9. Software Packages – many!

  10. Where to get data? Many places: local, state, federal government agencies, Universities… inside.idaho.edu wagda.lib.washington.edu/ www.ecy.wa.gov/services/gis/data/data.htm www.wsdot.wa.gov/mapsdata/geodatacatalog/default.htm www.dnr.wa.gov/dataandmaps/

  11. Talk Outline: • Geographic Information Systems (GIS)1. Definitions, tools 2. Software packages 3. Digital data sources 4. Training courses • Global Positioning Systems (GPS)(generating your own digital data) • Images – Aerial and Satellite, LIDAR (purchasing cooperatives) • Web-based Mapping and Data Management

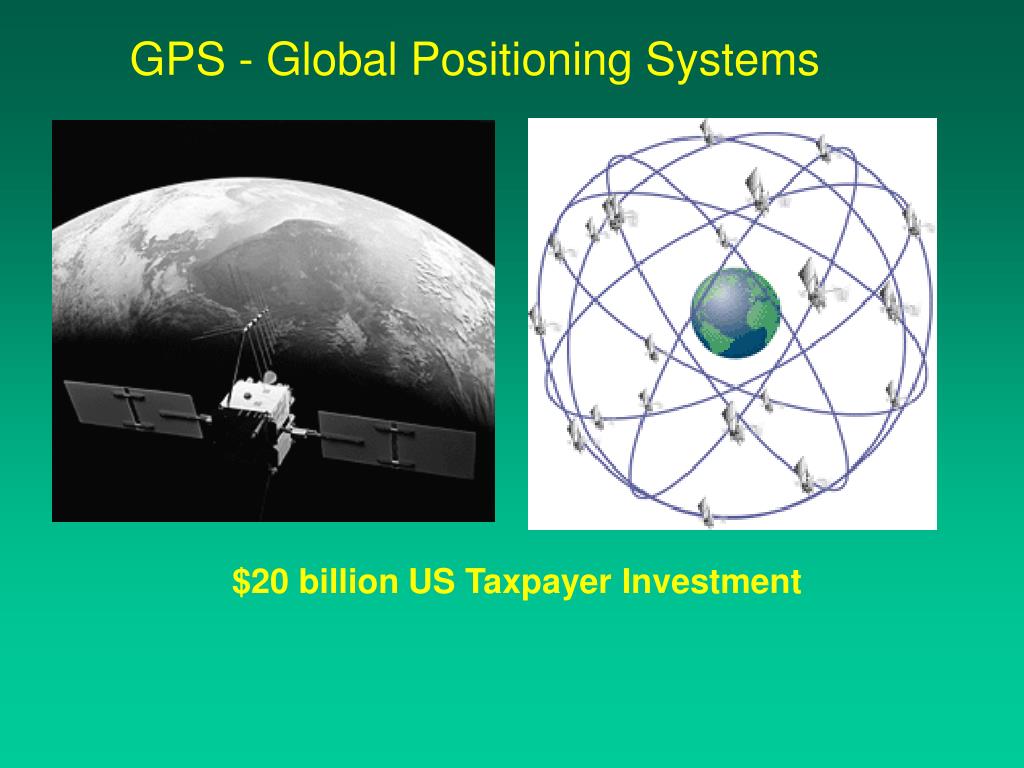

  12. GPS - Global Positioning Systems $20 billion US Taxpayer Investment

  13. GPS Equipment - Receivers Price range: $150 - $25,000 GPS Equipment - Antennas Mounted on a roof, a pole, a truck, or a person.

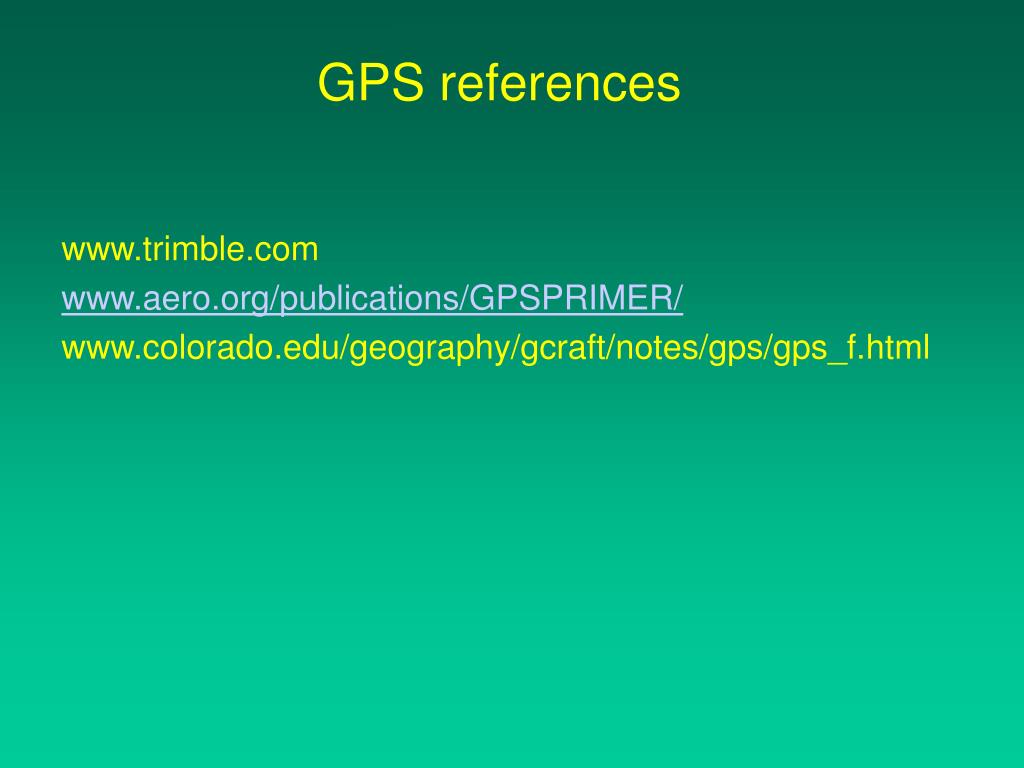

  14. GPS references www.trimble.com www.aero.org/publications/GPSPRIMER/ www.colorado.edu/geography/gcraft/notes/gps/gps_f.html

  15. Laser Rangefinders • Distance and Height Measurement • GPS Offset Mapping & GIS Data Capture (many units interface directly with GPS through built-in RS232 interfaces) • Timber Cruising • GIS data capture • Wildlife locations Wireless integration w/GPS & use with data dictionaries

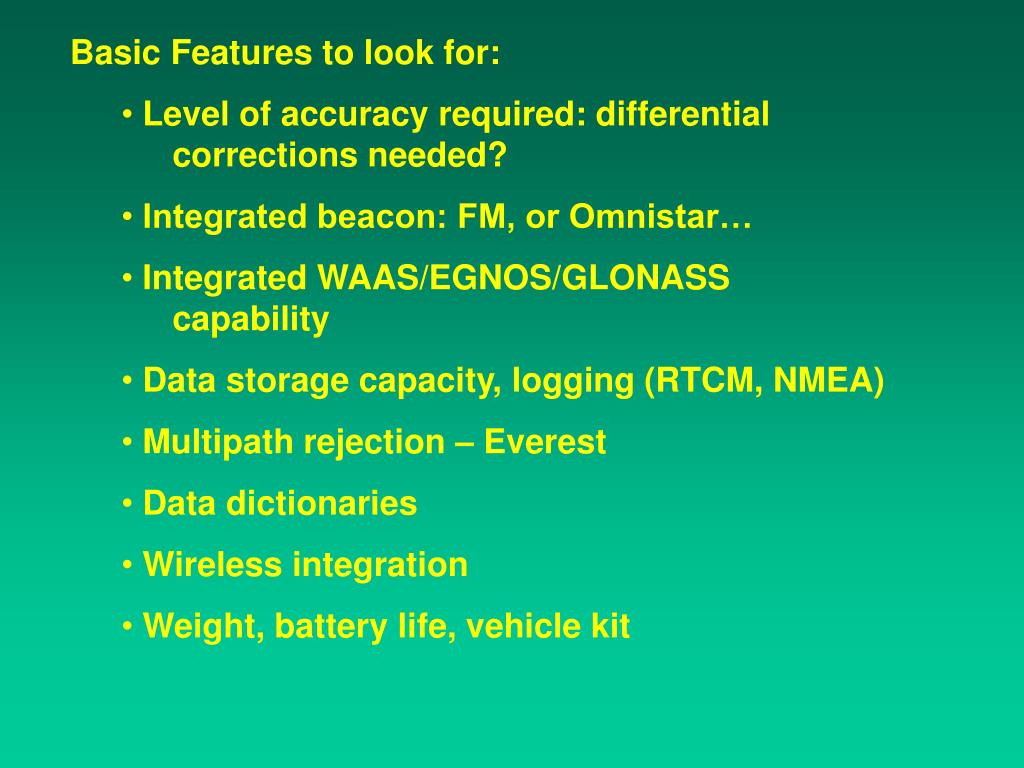

  16. Basic Features to look for: • Level of accuracy required: differential corrections needed? • Integrated beacon: FM, or Omnistar… • Integrated WAAS/EGNOS/GLONASS capability • Data storage capacity, logging (RTCM, NMEA) • Multipath rejection – Everest • Data dictionaries • Wireless integration • Weight, battery life, vehicle kit

  17. Talk Outline: • Geographic Information Systems (GIS)1. Definitions, tools 2. Software packages 3. Digital data sources 4. Training courses • Global Positioning Systems (GPS)(generating your own digital data) • Images – Aerial and Satellite, LIDAR (purchasing cooperatives) • Web-based Mapping and Data Management

  18. Traditional film-based aerial image capture will shortly become a historical technology – replaced by digital cameras Reasons: resolution, digital format convenience, inexpensive good quality printers, satellite capabilities

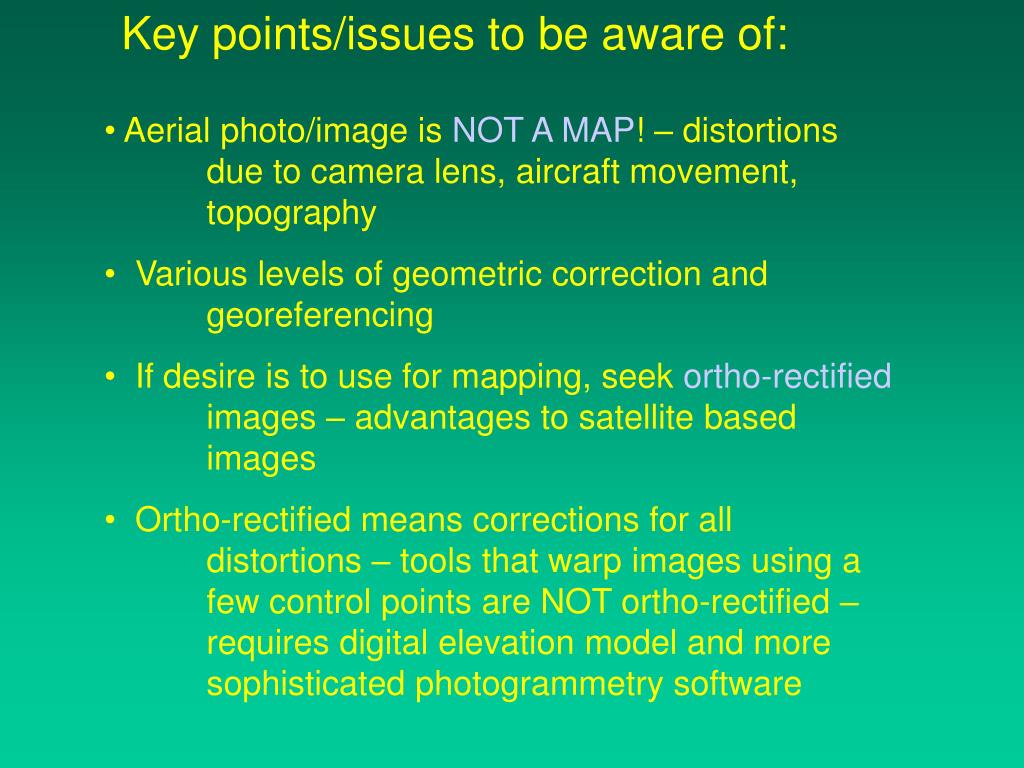

  19. Key points/issues to be aware of: • Aerial photo/image is NOT A MAP! – distortions due to camera lens, aircraft movement, topography • Various levels of geometric correction and georeferencing • If desire is to use for mapping, seek ortho-rectified images – advantages to satellite based images • Ortho-rectified means corrections for all distortions – tools that warp images using a few control points are NOT ortho-rectified – requires digital elevation model and more sophisticated photogrammetry software

  20. Some providers: http://www.cnr.uidaho.edu/remotesensing/rs_courses/for375/375.htm www.asprs.org - American Society for Photogrammetry and Remote Sensing http://www.possys.com/ http://edcsns17.cr.usgs.gov/EarthExplorer/ - USGS Earth Explorer http://www.nima.mil/ - National Geospatial Intelligence Agency Many value-added image products are being developed and more are on the horizon

  21. Forest Health/Status Index Pilot Study Potlatch Corp and Forest Capital – initial end user pilot study

  22. NIR - R Normalized Difference Vegetation Index: NDVI = NIR + R

  23. Image purchasing cooperatives: Potlatch Corp., County Govt., AVISTA, Coeur d’Alene Tribe

  24. LIght Detection And Ranging (LIDAR) • 1st developed in 1960 by Hughes Aircraft inc. • Modern computers and DGPS make it practical: requires extremely accurate timing • Measures distance to surfaces by timing a laser pulse and it’s corresponding return(s) • Lidar data are the X, Y, Z positions of each return • Typically used in very accurate mapping of topography

  25. Discrete return lidar: Millions of X,Y,Z points Area of 1.0 X 0.75mi. includes ~ 440,000 returns (canopy)

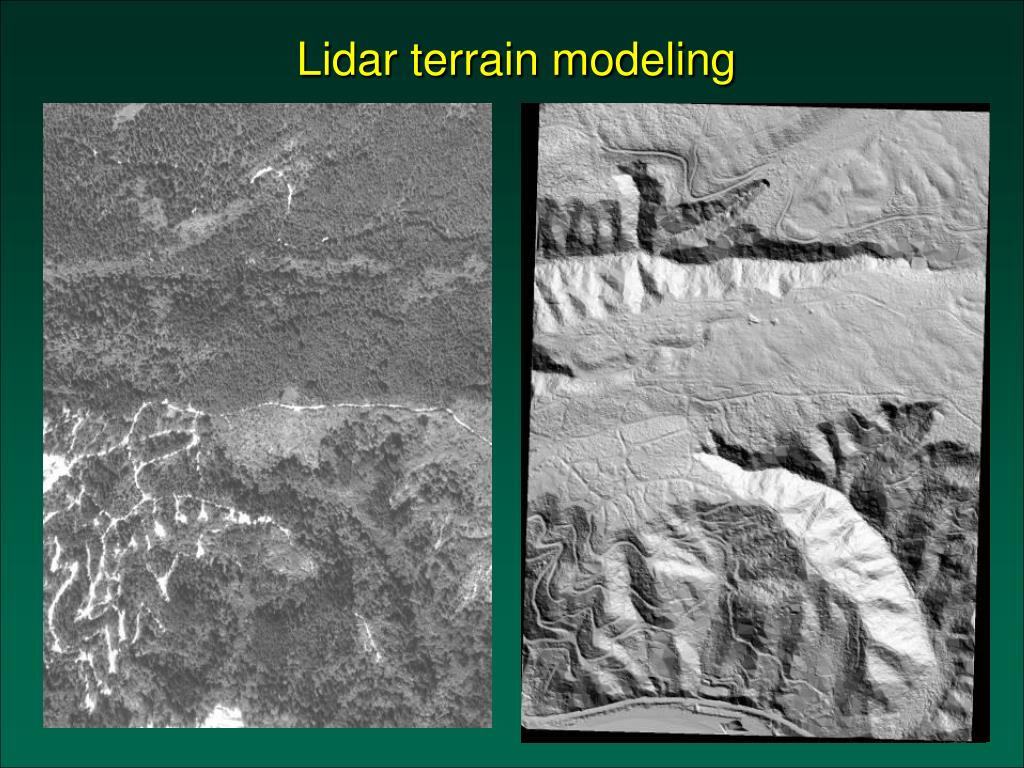

  26. Lidar terrain modeling

  27. Lidar captures 3D information

  28. Talk Outline: • Geographic Information Systems (GIS)1. Definitions, tools 2. Software packages 3. Digital data sources 4. Training courses • Global Positioning Systems (GPS)(generating your own digital data) • Images – Aerial and Satellite, LIDAR (purchasing cooperatives) • Web-based Mapping and Data Management

  29. SUMMARY • Many digital data sources and tools – touched on several (GIS, GPS, Imagery, Web-based) • Should private landowners invest in these tools? Web mapping is on the horizon, subscription based – will require high speed internet connections • Value added products are becoming available (fire fuels, forest health/status index…) • Many training opportunities exist – some online • New mapping technologies on the horizon for assessing forests Lidar, value-added image products – forest health

  30. Using spatial 3-PG to predict carbon sequestration over the Priest River Experimental Forest

  31. 3-PG (Physiological Principles Predicting Growth) is forest growth process model based upon physiological processes • Empirical vs. Process models: • empirical - based on statistical relationships, predicting • outcomes (i.e. Predicting forest growth based on past growth) • process - based on processes, understanding relationships • (i.e.Predicting forest growth based on physiological processes) Process models can incorporate empirical models
