  1. PBS Job Management and Taskfarming Joachim Wagner 2008-07-24

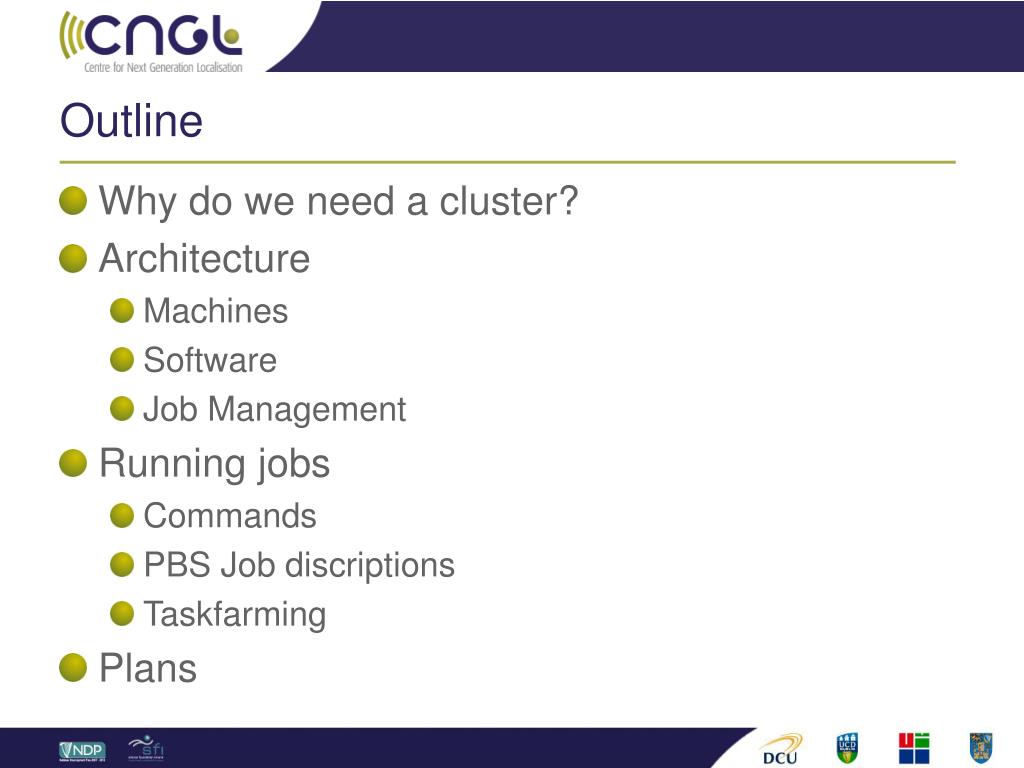

  2. Outline • Why do we need a cluster? • Architecture • Machines • Software • Job Management • Running jobs • Commands • PBS Job discriptions • Taskfarming • Plans

  3. Why do we need a cluster? • Resource conflicts • Waiting for colleague’s job to finish • Trouble, e.g. disk full • Medium-size jobs • Too big for desktop PC • Too small for ICHEC • Preparation of ICHEC runs • Learning

  4. Cluster Architecture maia.computing.dcu.ie Nodes SeparateNetwork SchoolNetwork LoginsHomeSoftware Job Queue

  5. Installed Software • OpenMPI • SRILM • MaTrEx, Moses, GIZA++ • XLE, Sicstus • Johnson & Charniak’s reranking parser • In progress: • LFG AA, incl. function labeller

  6. PBS Job Management User: JobDescription Job Submission Job Queue Job Scheduler Nodes are allocatedjob-exclusive for theduration of the job Job Execution

  7. PBS Job Management Commands • qsub myjob.pbs • submits a job • PBS description: shell script with #PBS commands(ignored by shell, see next slide) • qstat, qstat –f jobnumber • qdel jobnumber • pbsnodes –a • list all nodes with status and properties

  8. PBS Job Description Number of nodesCPUs/node Notification: end,begin and abort Maximum runtime

  9. Example: Memory-Intensive Job

  10. Node Properties • min4GB, min8GB: at least this much • mem4GB, mem8GB: exactly this much • long: please use this property for long jobs • will leave nodes that do not have this property available for other jobs • no limit enforced, but 24 h seems reasonable • Future: • 16 and 32 GB • CPU • local disk space (/tmp and swap)

  11. CPU-Intensive Jobs • Parallelisable, for example • Sentence by sentence processing • Cross-validation runs • Parameter search • Split into parts • Run each part on a different CPU

  12. Taskfarming TaskfarmingExecutable(n instances) PBS JobDescription childprocess reading 1 Master n-1 Worker MPICommunication Task file(.tfm):one taskper line Taskexecution

  13. Taskfarming Executable • If Instance ID == 0 • Run master code loop: • Read .tfm file (arg 1) • Send lines to worker • Exit if no more task and all worker finished • Else • Run worker loop: • Ask master for a task • Execute task • Exit if master has no more tasks

  14. Example: Taskfarming PBS File

  15. Example: Taskfarming TFM File

  16. Example: Taskfarming Helper Script run-package.sh

  17. Example: Taskfarming in Action 000 003 006 011 CPU 1 001 005 008 009 012 CPU 2 idle 002 004 007 010 CPU 3 Master: reads .tfm and distributes tasks CPU 4 time

  18. Example: Non-Terminating Task 000 003 006 (does not terminate) CPU 1 idle 001 005 008 009 011 CPU 2 idle 002 004 007 010 012 CPU 3 Master: reads .tfm and distributes tasks CPU 4 Killed atWalltimeLimit

  19. Estimating the PBS Walltime Parameter • Collect durations from test run • Usually high variance of execution time • Long sentences • Parameters • Don’t use #packages x avg. time per package • High risk (~50 %) that more time is needed • Instead: Random sampling with observed package durations: /home/jwagner/tools/walltime.py

  20. Effect of Task Size • Job will wait for last task to finish (or be killed when walltime limit is reached) • What if a task crashes? • Results are incomplete • Next tasks is executed • What if a task does not terminate? • Results are incomplete • Fewer CPUs available for remaining tasks • Overhead of starting tasks

  21. Considering Multiple CPUs per Node • 4 CPU cores per node • 8 GB node -> 2 GB per core • CPUs compete for RAM • Swapping of one task effects the 3 other tasks • Relatively slow CPUs in nodes • Compared to new desktop PCs • Optimise throughput of cluster / EUR • Not: throughput of node or CPU • Depends on application

  22. Plans • Fix sporadic errors of taskfarm.py • re-implentation in C • XML-RPC-based taskfarming • http-based • Run master on maia • Run workers also outside the cluster • Set parameters at runtime • Add more nodes (CNGL) • Install additional software

  23. Questions ? Contact: Joachim Wagner CNGL System Administrator jwagner@computing.dcu.ie (01) 700 6915
