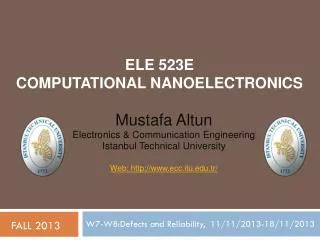

ele 523e computational nanoelectronics

MustafaAltun

Electronics & Communication Engineering

Istanbul Technical University

  • Web: http://www.ecc.itu.edu.tr/

ELE 523E COMPUTATIONALNANOELECTRONICS

W7-W8:Defects and Reliability, 11/11/2013-18/11/2013

FALL 2013

outline

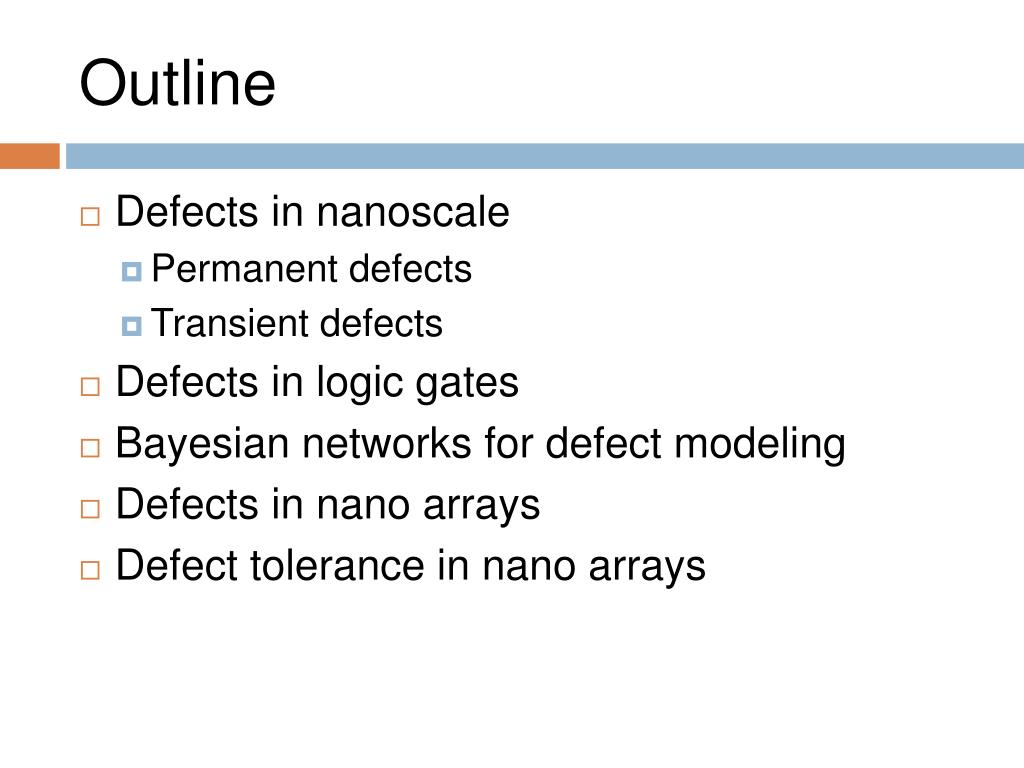

Outline
  • Defects in nanoscale
    • Permanent defects
    • Transient defects
  • Defects in logic gates
  • Bayesian networks for defect modeling
  • Defects in nano arrays
  • Defect tolerance in nano arrays
defects
Defects
  • Defects are the main headache in nanoscale.
    • Up to 10% defect ratio
    • Defects are inevitable and must be handled

Defects in self-assembled nano arrays

defects1
Defects

Permanent

  • Happens before first usage.
  • Happens mostly in the fabrication and packaging level.
  • Results in hard error.
  • Relatively easier to fix
    • Detecting the defect followed by reconfiguration.
  • Transient
  • Happens any time.
  • Result in hard error.
  • Result in soft error.
  • Random defects are harder to fix.
    • The only way is redundancy.
    • Dummy devices added.

1

1

0

at any

time

1

at t=10s

0

at t=0s

0

at t=2s

AND

AND

1

1

Hard error

Softerror

soft defects in gates
SoftDefectsin Gates

Errorprobabilityϵ: a gateevaluates the incorrect result, the complement of the correct Boolean value, withϵ.

Ideally

With a defect

0

AND

0

0

0 with a probability of 1-ϵ

1with a probability ofϵ

0

AND

0

1

1

AND

0

0

1 with a probability of 1-ϵ

0with a probability ofϵ

1

AND

1

1

soft defects in gates1
SoftDefectsin Gates

Errorprobabilityϵ: eachgateevaluates the incorrect result, the complement of the correct Boolean value, withϵ.

Example:

What is the probabilityPx that the circuit produces an incorrect result.

a

OR

b

x

AND

c

Px = ϵ - (2ϵ2- ϵ)c

soft defects in gates2
SoftDefectsin Gates

Errorprobabilityϵ: eachgateevaluates the incorrect result, the complement of the correct Boolean value, withϵ.

Example:

What is the probability Pythat the circuit produces an incorrect result.

a

AND

c

y

OR

b

AND

c

Py = 3ϵ - 5ϵ2 + 2ϵ3- (ϵ - 2ϵ2)(a+b)c + (2ϵ2 -4ϵ3)abc

soft defects in gates3
SoftDefectsin Gates

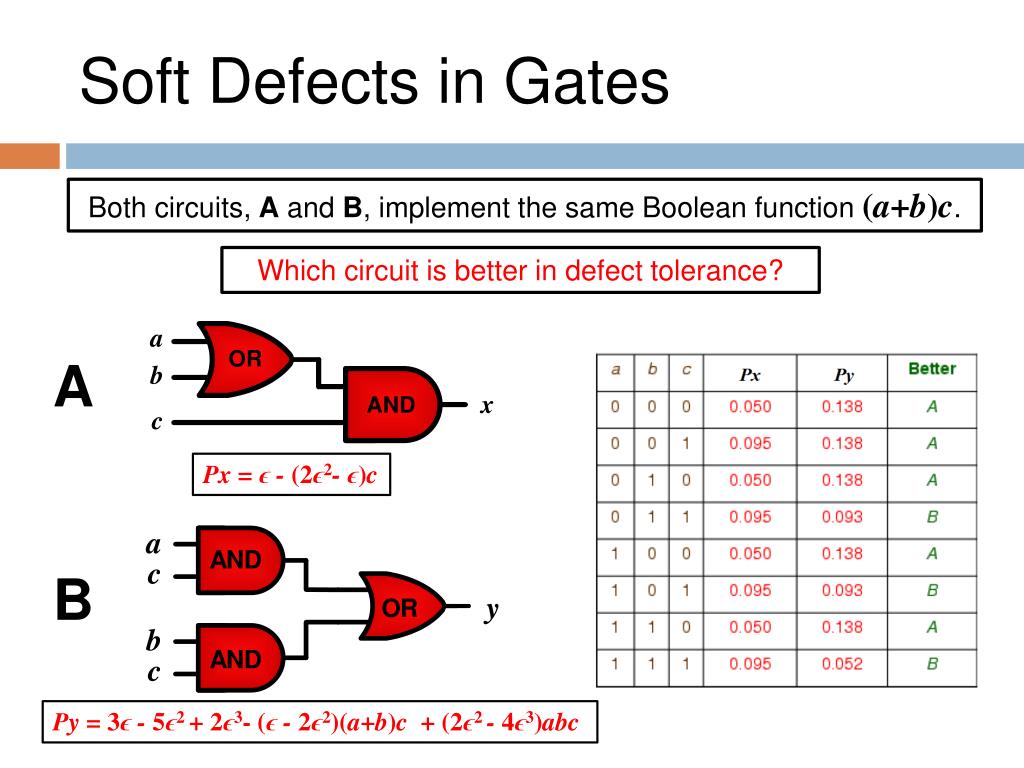

Both circuits, A and B, implement the same Boolean function (a+b)c.

Whichcircuit is better in defecttolerance?

A

Px = ϵ - (2ϵ2- ϵ)c

B

Py = 3ϵ - 5ϵ2 + 2ϵ3- (ϵ - 2ϵ2)(a+b)c + (2ϵ2 -4ϵ3)abc

bayesian networks for errors
Bayesian Networks for Errors
  • A, B, C, D, and E can be any circuit part.
  • Suppose that A, B, C, D, and E are gates.
  • P(A): Probability that there is an error at the output of A, i.e., the output of A is incorrect.
  • P(B|A): Probability that theoutput of B is incorrect, given that the output of the gate A is incorrect.
  • P(E|A,C): Probability that theoutput of E is incorrect, given that the output of the gatesA and C are both incorrect.

One-directionalBayesian network to model

errors/defects in circuits

defects in nano arrays
Defectsin Nano Arrays

Ideally

f = A B +CD

With a defect

f = A B + B CD

With a defect

f = A +CD

Howtotoleratedefects?

Each crosspoint is either closed (diode connected) or open.

What if a crosspoint is closed when it is supposed to be open?

What if a crosspoint is open when it is supposed to be closed?

defects in nano arrays1
Defectsin Nano Arrays

Ideally

f = (A B +CD)ꞌ

With a defect

f =0

Howtotoleratedefects?

Each crosspoint is either closed (MOS orshorted) or open.

What if a crosspoint is closed when it is supposed to be open?

defects in nano arrays2
Defectsin Nano Arrays

Ideally

f = x1 x2ꞌx3+ x1 x4ꞌ+ x2 x3 x4ꞌ+ x2 x4 x5 + x3 x5

0

With a defect

f = x1 x2ꞌx3+ x1 x4ꞌ+ x2 x3 x4ꞌ+ x2 x4 x5 + x3 x5

1

With a defect

f = x1 x2ꞌx3+ x1 x4ꞌ+ x2 x3 x4ꞌ+ x2 x4 x5 + x3 x5

Howtotoleratedefects?

Each crosspointis either closed or opendepending on theappliedliteral.

What if a crosspoint is alwaysclosed when it is supposed to switch?

What if a crosspoint is alwaysopen when it is supposed to switch?

tolerating defects in nano arrays
Tolerating Defects in NanoArrays
  • OFF-to-ON defect: The switch is ON when it is supposed to be OFF; x1=0.
  • ON-to-OFF defect: The switch is OFF when it is supposed to be ON; x1=1.
  • Each switch of the lattice has independent defect rates.
tolerating defects in nano arrays1
Tolerating Defects in NanoArrays
  • Ideally, ifx1=0then all the switches are OFF.
  • Ideally, ifx1=1then all the switches are ON.
  • We use redundancy in tolerating defects powered by percolation.
percolation theory
Percolation Theory

Rich mathematical topic that forms the basis of explanations of physical phenomena such as diffusion and phase changes in materials.

Broadbent & Hammersley (1957).

percolation theory1
Percolation Theory

Sharp non-linearity in global connectivity as a function of random local connectivity.

percolation theory2
Percolation Theory

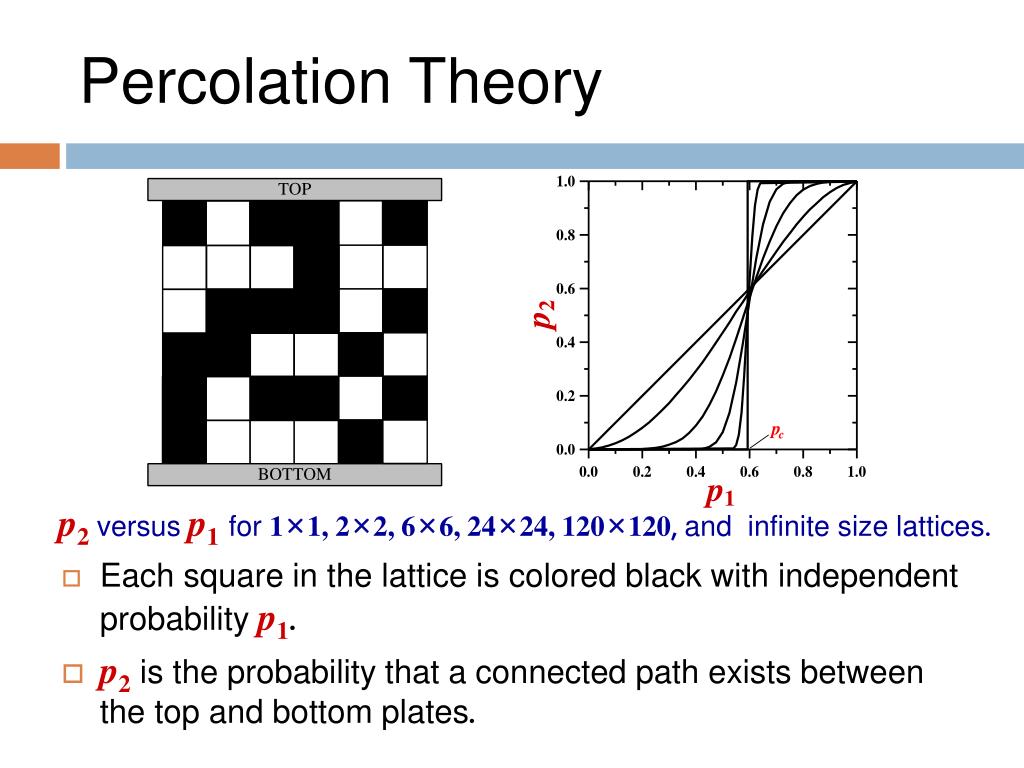

p2versusp1for1×1, 2×2, 6×6, 24×24, 120×120, and infinite size lattices.

  • Each square in the lattice is colored black with independent probabilityp1.
  • p2is the probability that a connected path exists between the top and bottom plates.
margins
Margins
  • One-margin: Tolerable p1ranges for which we interpret p2as logical one.
  • Zero-margin: Tolerable p1ranges for which we interpret p2as logical zero.

Margins correlate with the degree of defect tolerance.

implementing boolean functions
Implementing Boolean Functions

signals in:xi’s

signals out: connectivity top-to-bottom / left-to-right.

an example with 16 boolean inputs
An Example with 16 Boolean Inputs

A path exists between top and bottom, fL= 1

margin performance with a 2 2 lattice
Margin Performance with a 2×2 Lattice

fL=x1x3+x2x4 gL=x1x2+x3x4

Different assignments of input variables to the regions of the network affect the margins.

one margins always good
One-margins (always good)

ONE-MARGIN

fL=0

fL=1

Defect probabilities exceeding the one-margin would likely cause an (1→0) error.

good zero margins

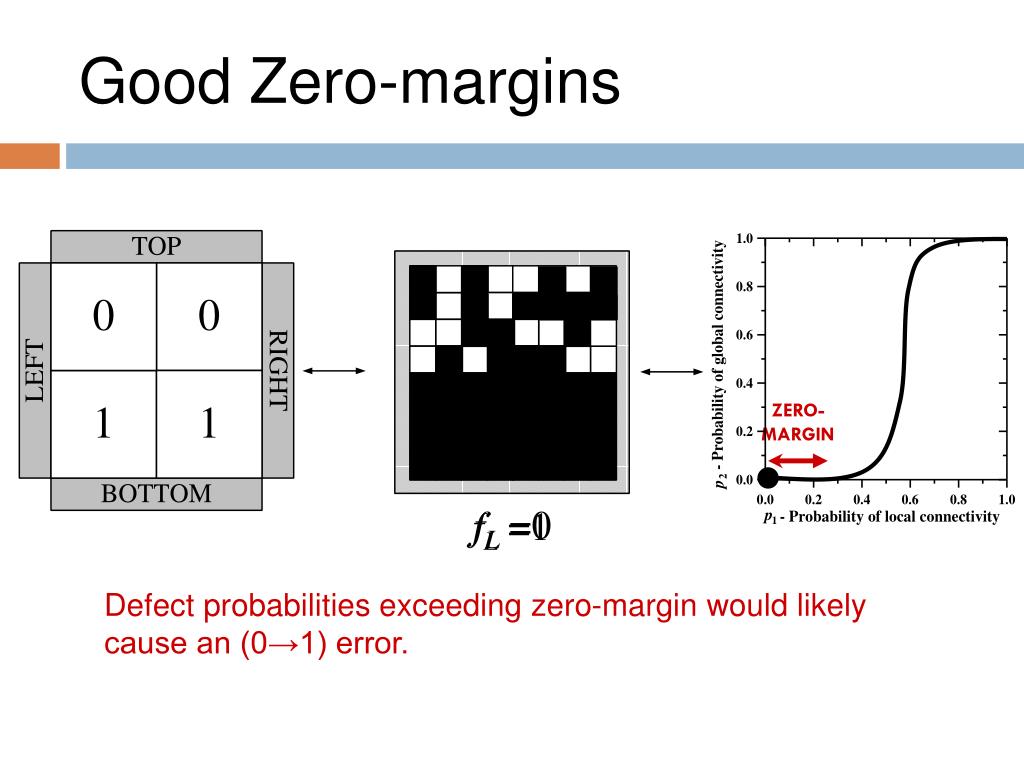

Good Zero-margins

ZERO-MARGIN

fL=0

fL=1

Defect probabilities exceeding zero-margin would likely cause an (0→1) error.

poor zero margins
Poor Zero-margins

POOR

ZERO-MARGIN

fL=1

fL=0

Assignments that evaluate to 0 but have diagonally adjacent assignments of blocks of 1's result in poor zero-margins

lattice duality
Lattice Duality

A necessary and sufficient condition for good error margins is that the Boolean functions fLand gLare dual functions.

lattice duality1
Lattice Duality

fL=x1x3+x2x4 gL=x1x2+x3x4

fL ≠ gLD

suggested readings
Suggested Readings
  • Moore, E. F., & Shannon, C. E. (1956). Reliable circuits using less reliable relays. Journal of the Franklin Institute, 262(3), 191-208.
  • Von Neumann, J. (1956). Probabilistic logics and the synthesis of reliable organisms from unreliable components. Automata studies, 34, 43-98.
  • DeHon, A. (2003). Array-based architecture for FET-based, nanoscale electronics. Nanotechnology, IEEE Transactions on, 2(1), 23-32.
  • Altun, M., & Riedel, M. D. (2011). Robust Computation through Percolation: Synthesizing Logic with Percolation in Nanoscale Lattices. International Journal of Nanotechnology and Molecular Computation (IJNMC), 3(2), 12-30.
