slide1

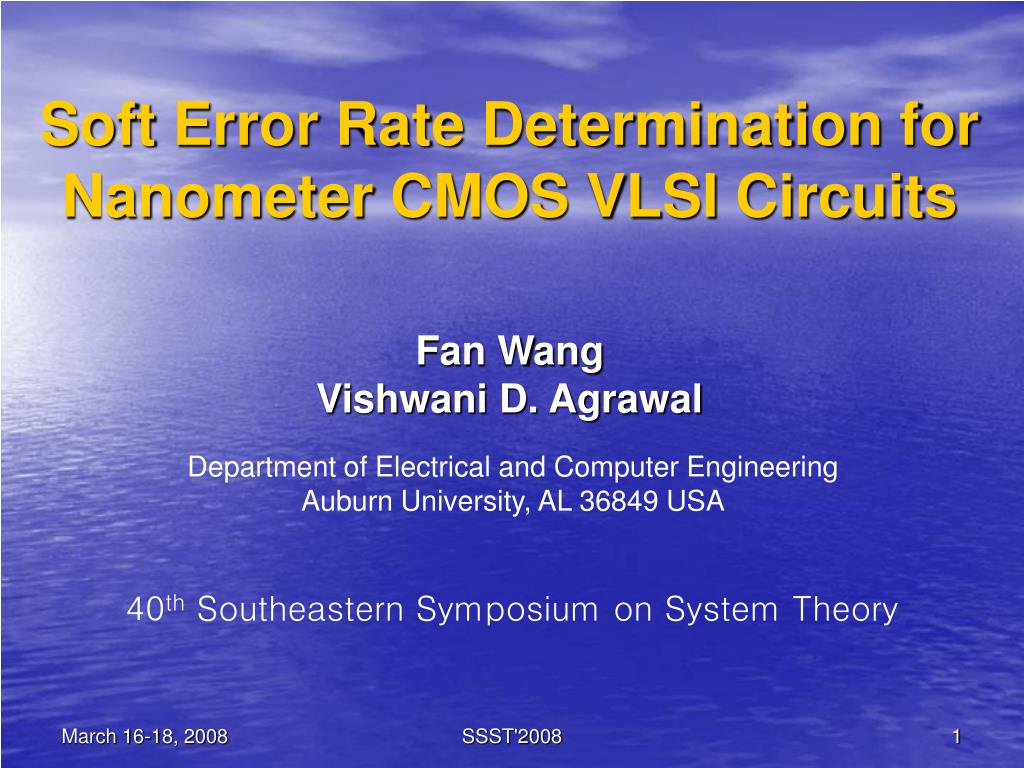

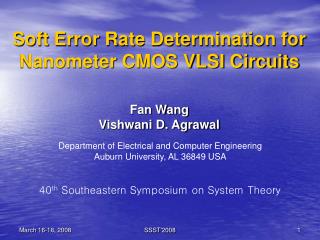

Soft Error Rate Determination for Nanometer CMOS VLSI Circuits

Fan Wang

Vishwani D. Agrawal

Department of Electrical and Computer Engineering

Auburn University, AL 36849 USA

40th Southeastern Symposium on System Theory

SSST'2008

outline
Outline
  • Background
  • Problem Statement
  • Analysis
  • Results and Discussion
  • Conclusion

SSST'2008

motivation for this work
Motivation for This Work
  • With the continuous downscaling of CMOS technologies, the device reliability has become a major bottleneck.
  • The sensitivity of electronic systems can potentially become a major cause of soft (non-permanent) failures.
  • The determination of soft error rate in logic circuits is a complex problem.
  • It is necessary to analyze circuit reliability. However, there is no comprehensive work that considers all the factors that influence the soft error rate.

SSST'2008

strike changes state of a single bit

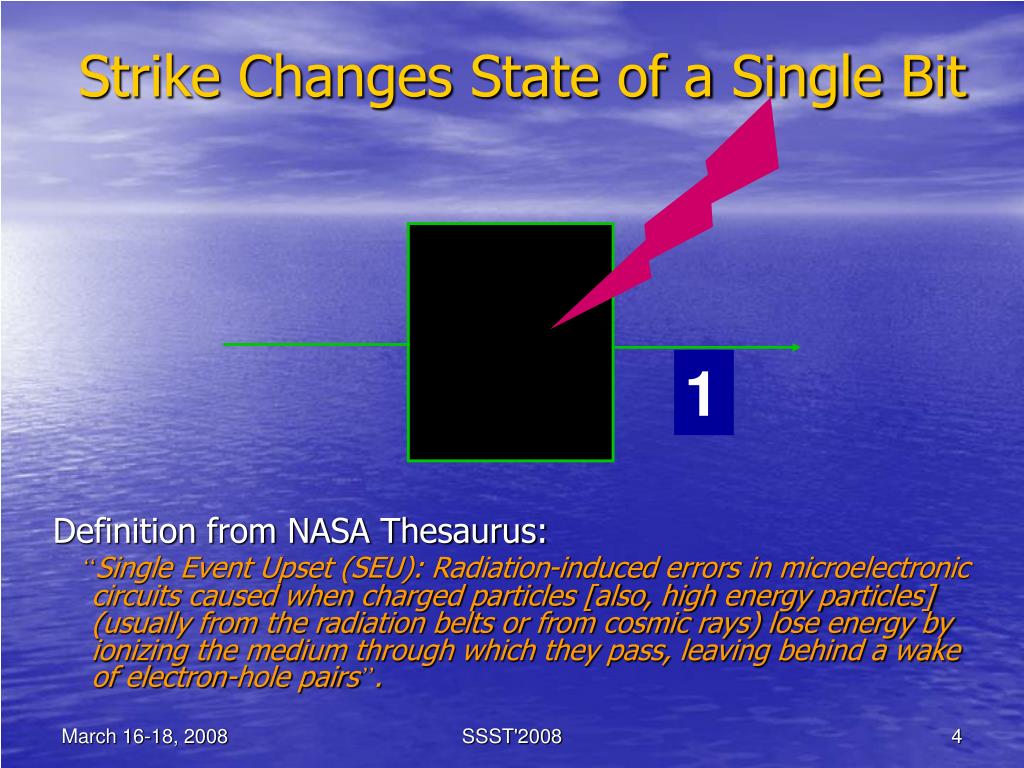

Strike Changes State of a Single Bit

1

0

Definition from NASA Thesaurus:

“Single Event Upset (SEU): Radiation-induced errors in microelectronic circuits caused when charged particles [also, high energy particles] (usually from the radiation belts or from cosmic rays) lose energy by ionizing the medium through which they pass, leaving behind a wake of electron-hole pairs”.

SSST'2008

slide5

source

drain

Impact of Neutron Strike on a Silicon Transistor

neutron strike

Strikes release electron & hole pairs that can be absorbed by source & drain to alter the state of the device

+

+

-

+

+

-

-

-

Transistor Device

  • Neutron is a major cause of electronic failures at ground level.
  • Another source of upsets: alpha particles from impurities in packaging materials.

SSST'2008

slide6

p

p

n

n

p

n

n

p

n

p

n

Earth’s Surface

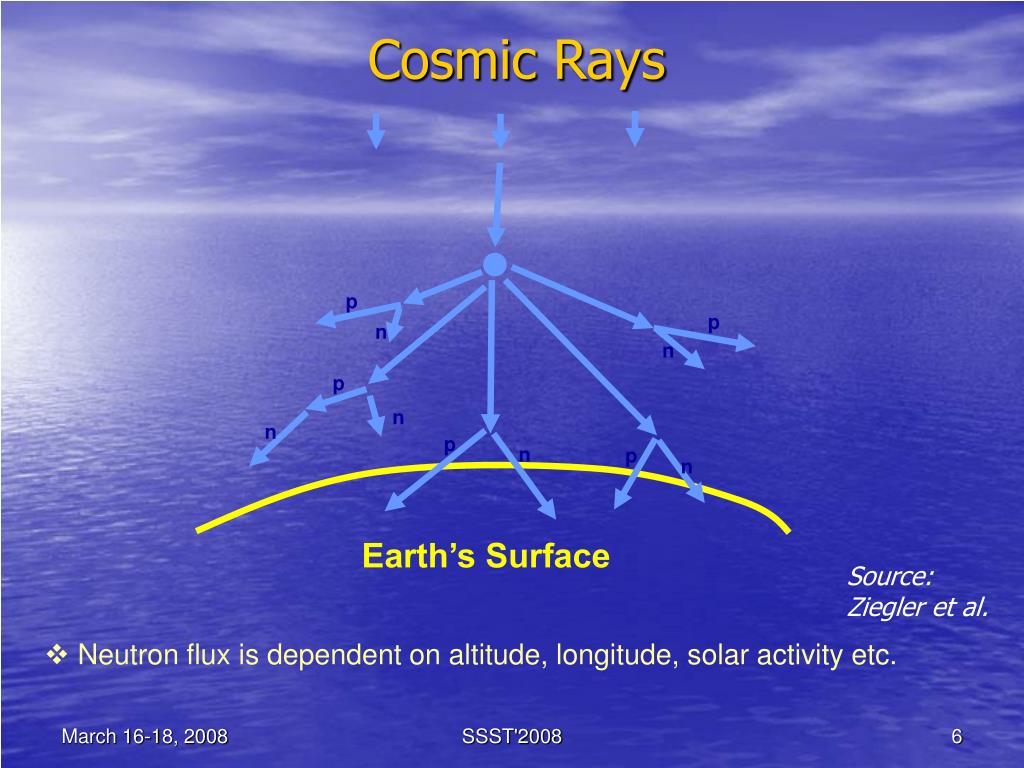

Cosmic Rays

Source: Ziegler et al.

  • Neutron flux is dependent on altitude, longitude, solar activity etc.

SSST'2008

problem statement

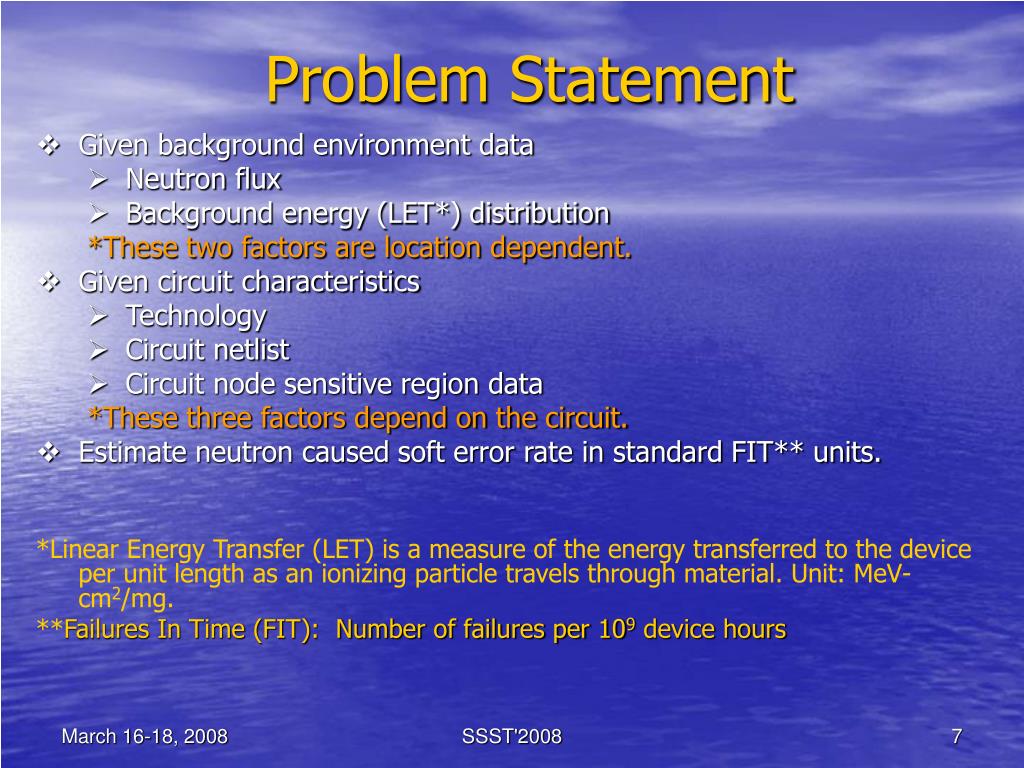

Problem Statement
  • Given background environment data
    • Neutron flux
    • Background energy (LET*) distribution

*These two factors are location dependent.

  • Given circuit characteristics
    • Technology
    • Circuit netlist
    • Circuit node sensitive region data

*These three factors depend on the circuit.

  • Estimate neutron caused soft error rate in standard FIT** units.

*Linear Energy Transfer (LET) is a measure of the energy transferred to the device per unit length as an ionizing particle travels through material. Unit: MeV-cm2/mg.

**Failures In Time (FIT): Number of failures per 109 device hours

SSST'2008

measured environmental data

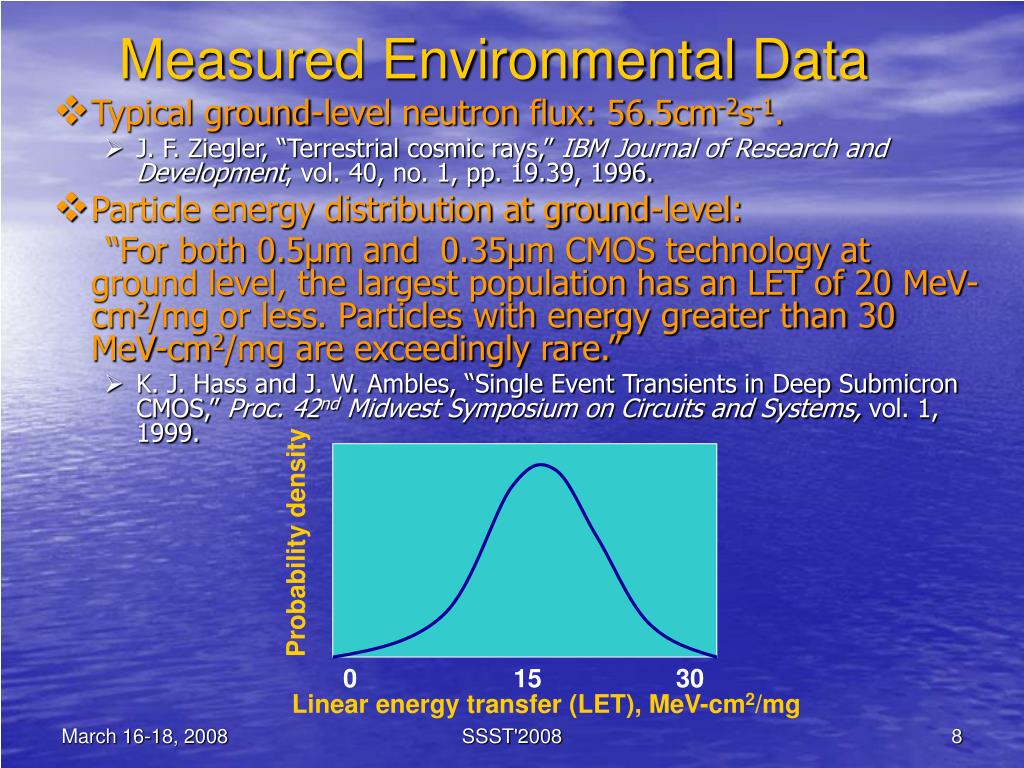

Measured Environmental Data
  • Typical ground-level neutron flux: 56.5cm-2s-1.
    • J. F. Ziegler, “Terrestrial cosmic rays,” IBM Journal of Research and Development, vol. 40, no. 1, pp. 19.39, 1996.
  • Particle energy distribution at ground-level:

“For both 0.5μm and 0.35μm CMOS technology at ground level, the largest population has an LET of 20 MeV-cm2/mg or less. Particles with energy greater than 30 MeV-cm2/mg are exceedingly rare.”

    • K. J. Hass and J. W. Ambles, “Single Event Transients in Deep Submicron CMOS,” Proc.42nd Midwest Symposium on Circuits and Systems, vol. 1, 1999.

Probability density

0 15 30

Linear energy transfer (LET), MeV-cm2/mg

SSST'2008

pulse widths probability density propagation

X

Y

1

Dout

0

τp

2τp

Din

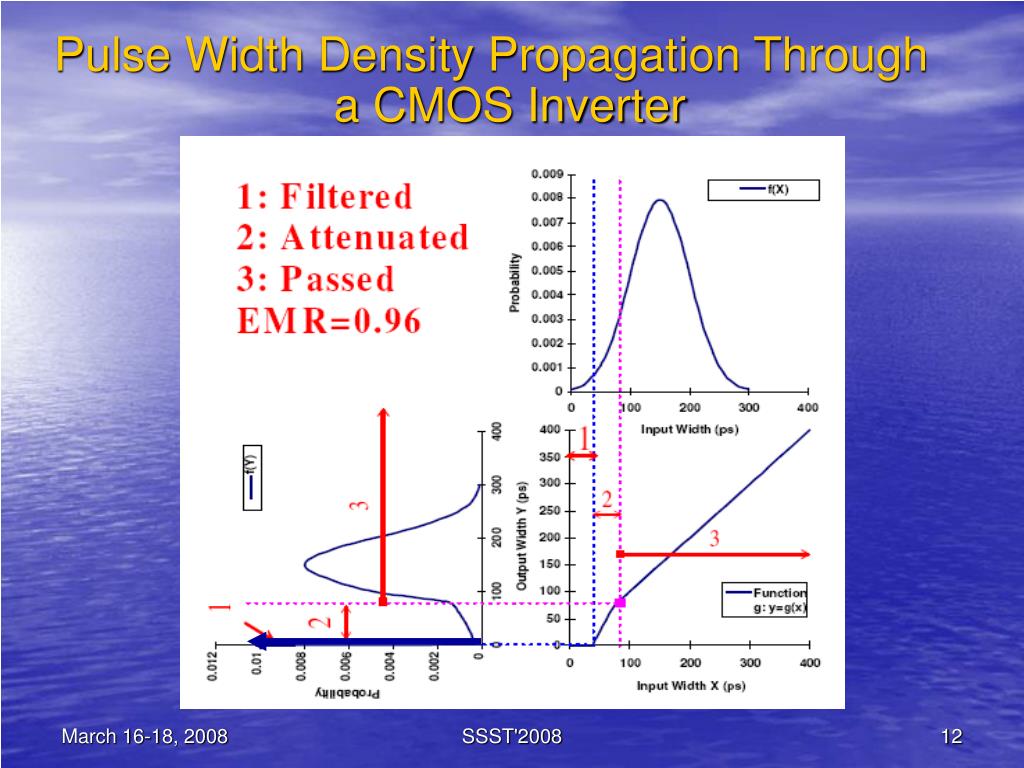

Pulse Widths Probability Density Propagation

fX(x)

Delay

τp

fY(y)

We use a “3-interval piecewise linear” propagation model

  • Non-propagation, if Din ≤τp.
  • Propagation with attenuation, ifτp < Din <2τp.
  • Propagation with no attenuation, if Din 2τp.

Where

    • Din: input pulse width
    • Dout: output pulse width
    • τp : gate input output delay

SSST'2008

validating propagation model using hspice simulation
Validating Propagation Model Using HSPICE Simulation
  • Simulation of a CMOS inverter in TSMC035 technology with load capacitance 10fF

SSST'2008

result comparison
Result Comparison
  • The altitude is not mentioned for these data.
  • [1] R. R. Rao, K. Chopra, D. Blaauw, and D. Sylvester, “An Efficient Static Algorithm for Computing the Soft Error Rates of Combinational Circuits," Proceedings of the conference on Design automation and test in Europe, pp. 164-169, 2006.

SSST'2008

conclusion
Conclusion
  • SER in logic and memory chips will continue to increase as devices become more sensitive to soft errors at sea level.
  • By modeling the soft errors by two parameters, the occurrence rate and single event transient pulse width density, we are able to effectively account for the electrical masking of circuit.
  • Our approach considers more factors and thus gives more realistic soft error rate estimation.

SSST'2008

references
References

[2] J. Graham, “Soft errors a problem as SRAM geometries shrink,“http://www.ebnews.com/story/OEG20020128S0079, ebn, 28 Jan 2002.

[3] Wingyu Leung; Fu-Chieh Hsu; Jones, M. E., "The ideal SoC memory: 1T-SRAMTM," Proc.13th Annual IEEE International on ASIC/SOC Conference, pp. 32-36, 2000

[4] Report, “Soft Errors in Electronic Memory-A White Paper," Technical report, Tezzaron Semiconductor, 2004.

SSST'2008
