  1. Procedural Circuit Simulationwith decida Richard V. H. Booth Agere Systems, Allentown, PA

  2. decida • Device and Circuit Data Analysis • http://decida.org • Platform for Procedural Circuit Simulation • M.S. Toth and R.V. Booth, “A Designer-Customizable Design Environment for Analog/Mixed-Signal Circuit Design,” presented at the 2001 O’Reilly Open-Source Convention, San Diego CA, July 2001. • http://conferences.oreillynet.com/cs/os2001/view/e_sess/1351 • Compact Model Compiler (AMC) • R.V.H. Booth, “An Extensible Compact Model Description Language and Compiler,” presented at the 2001 International Behavioral Modeling and Simulation Workshop, Santa Rosa CA, October 2001. • http://www.bmas-conf.org/web-docs/Repository/y2001/FinalPapers/Pdf/Booth.pdf • Device Measurements and Parameter Extraction • Data Analysis and Visualization

  3. decida procedural simulation

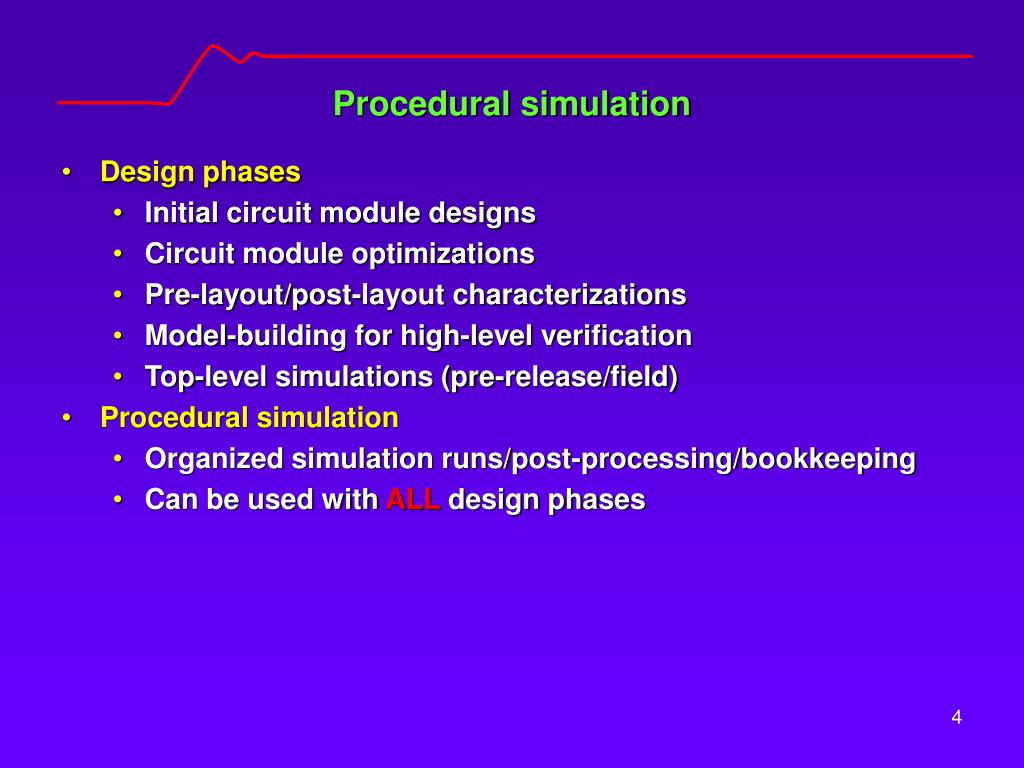

  4. Procedural simulation • Design phases • Initial circuit module designs • Circuit module optimizations • Pre-layout/post-layout characterizations • Model-building for high-level verification • Top-level simulations (pre-release/field) • Procedural simulation • Organized simulation runs/post-processing/bookkeeping • Can be used with ALL design phases

  5. Procedural Simulation • Advantages of Procedural Simulation Approach • All variations over processing, supply voltage, operating temperature, control register/divider settings can be performed • Simulation results are post-processed in-line, and can be evaluated before the entire range of variations are done • Simulations can be farmed out to compute farm • Script is ready for simulations with post-layout netlists or revised process files • Simulation approach is exactly documented • Scripts can be re-used for similar modules • Simulator independence

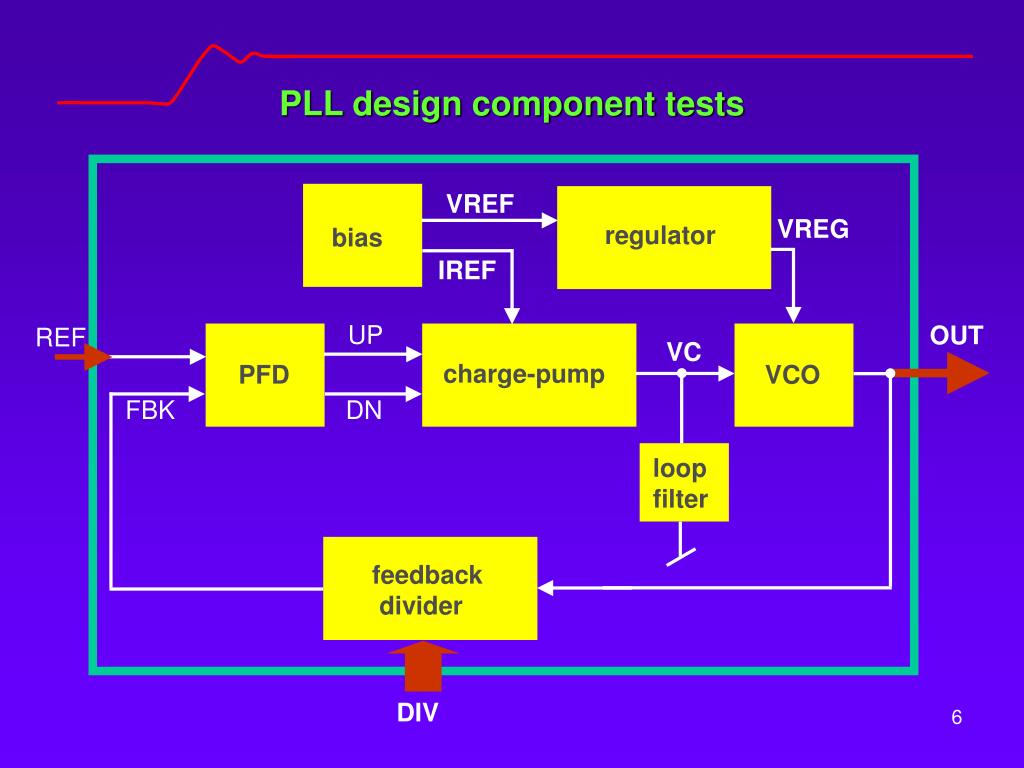

  6. PLL design component tests VREF VREG regulator bias IREF UP OUT REF VC charge-pump PFD VCO FBK DN loop filter feedback divider DIV

  7. dc analysis (T, Vdd) stability line-rejection load-rejection startup dropout compact model PLL design component tests VREF VREG regulator bias IREF UP OUT REF VC charge-pump PFD VCO FBK DN loop filter feedback divider DIV

  8. frequency versus VC jitter analysis range design gain design operating current powerdown current compact model PLL design component tests VREF VREG regulator bias IREF UP OUT REF VC charge-pump PFD VCO FBK DN loop filter feedback divider DIV

  9. locking time stability analysis phase/frequency hit operating current powerdown current compact model PLL design component tests VREF VREG regulator bias IREF UP OUT REF VC charge-pump PFD VCO FBK DN loop filter feedback divider DIV

  10. Open Source How do you develop a procedural circuit simulation platform while doing real work? • Using the tool immediately for real work can make it exactly the right solution for the problem at hand. But: • the solutions must be generalized appropriately • infrastructure specifics promote hacking • Most people do it (shell scripts, etc.) • If it’s just one person using the platform, then updating it doesn’t make anyone angry. But if more than one (a few): • extensibility and incremental development doesn’t require major code releases, just feature-adding • spin-off tools can be used by others • Open Source! • customers can use it • tool becomes more general • tool benefits from real code development expertise

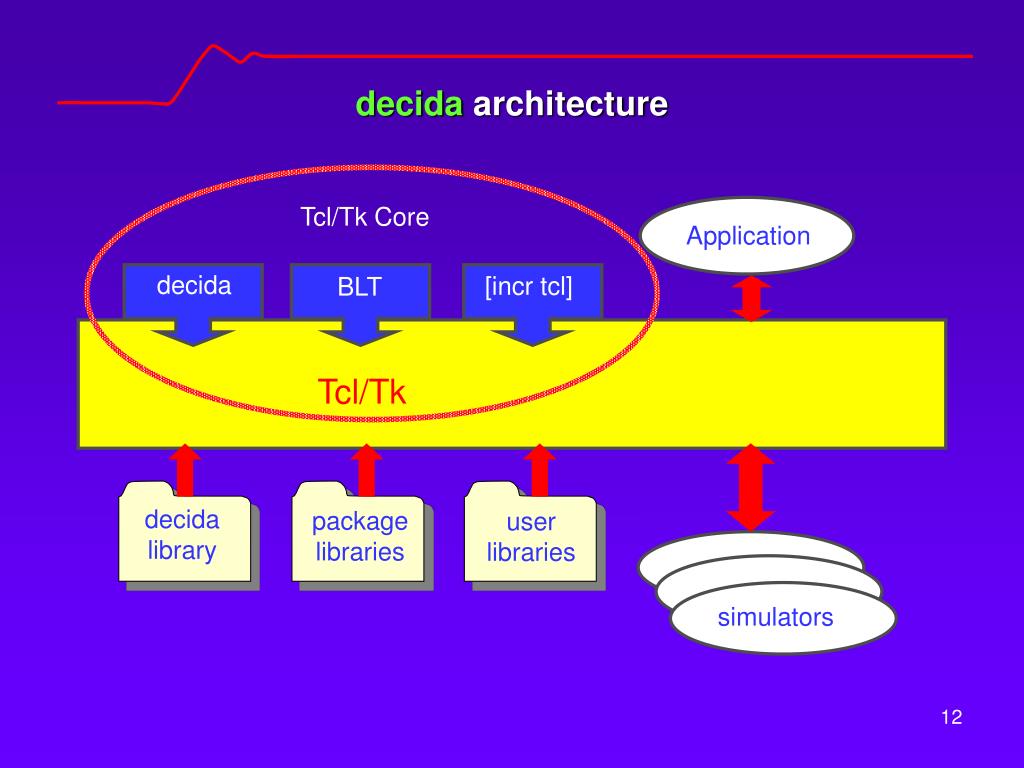

  11. decida BLT [incr tcl] decida library user libraries package libraries decida architecture Application Tcl/Tk simulators

  12. decida BLT [incr tcl] decida library user libraries package libraries decida architecture Tcl/Tk Core Application Tcl/Tk simulators

  13. decida BLT [incr tcl] decida library user libraries package libraries decida architecture Application Tcl/Tk simulators Extensibility

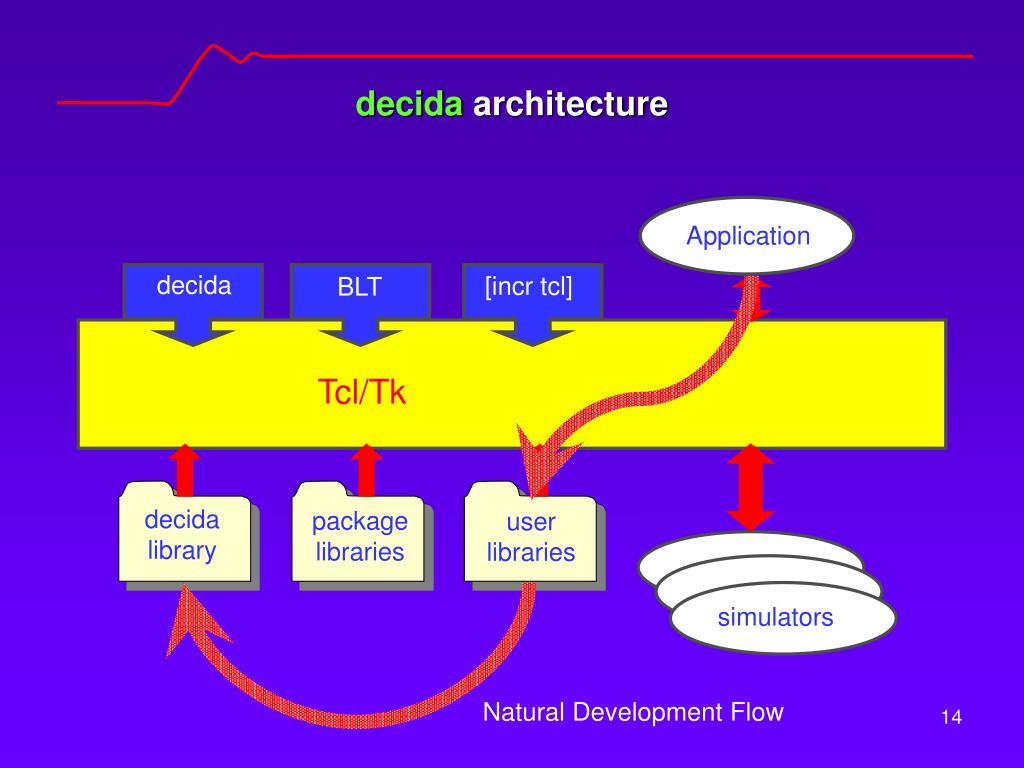

  14. decida BLT [incr tcl] decida library user libraries package libraries decida architecture Application Tcl/Tk simulators Natural Development Flow

  15. decida extension Data object data dat1 dat1 read vco.prelayout.out dat1 plot Time Vco dat1 jitter Vco

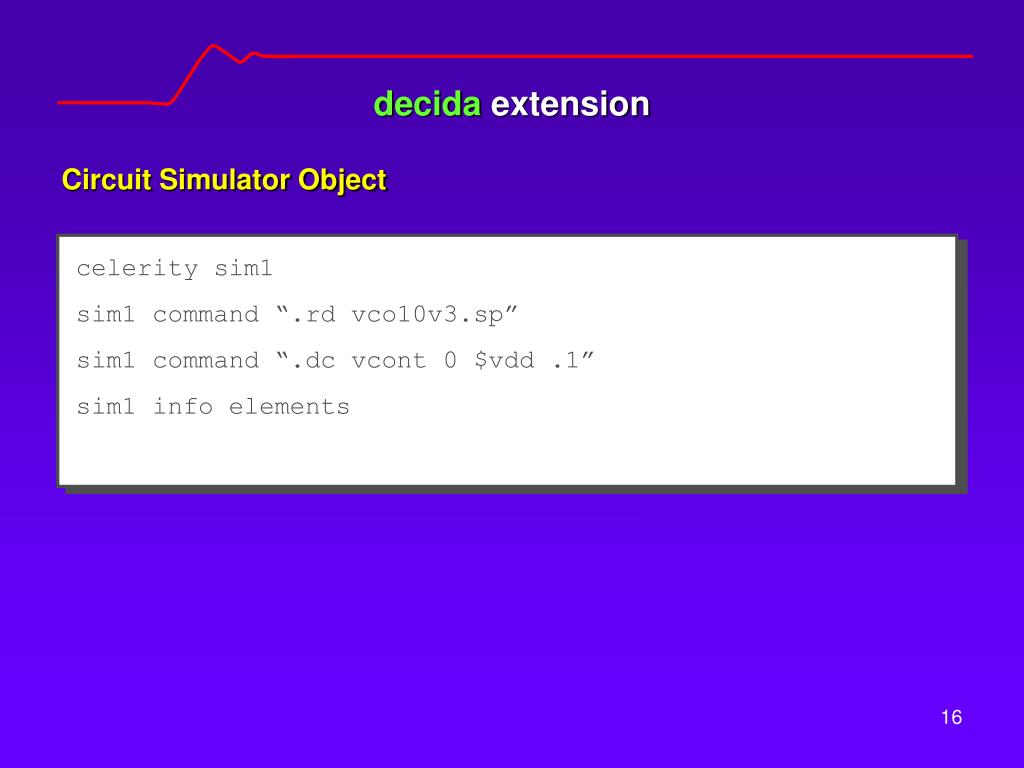

  16. decida extension Circuit Simulator Object celerity sim1 sim1 command “.rd vco10v3.sp” sim1 command “.dc vcont 0 $vdd .1” sim1 info elements

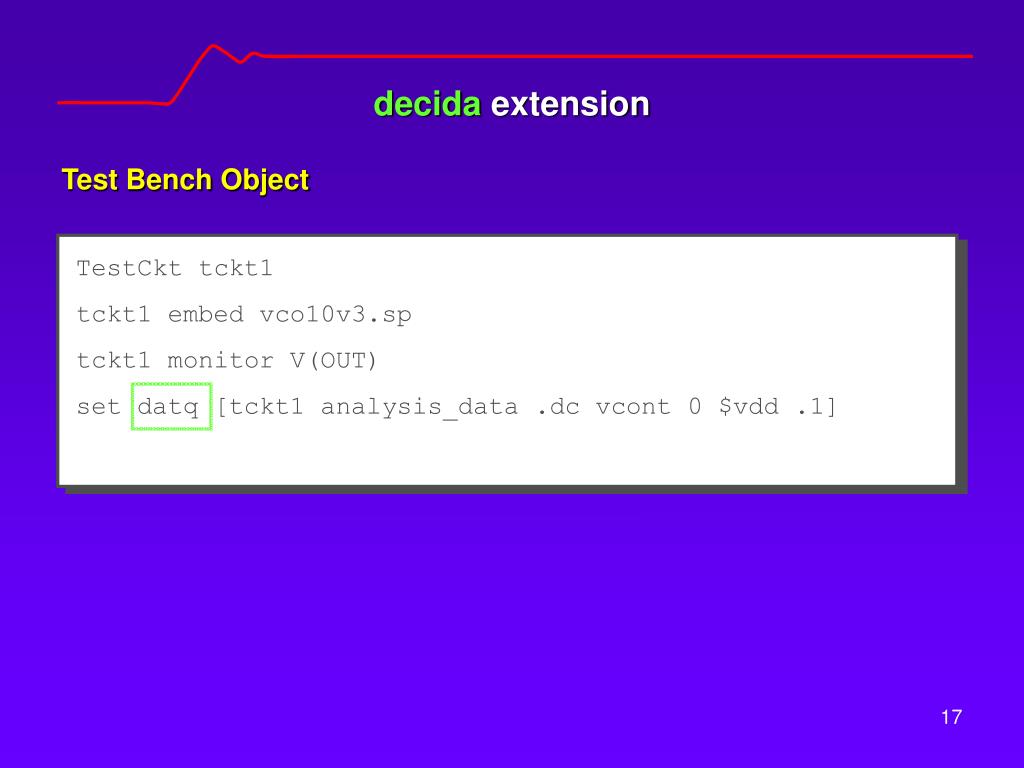

  17. decida extension Test Bench Object TestCkt tckt1 tckt1 embed vco10v3.sp tckt1 monitor V(OUT) set datq [tckt1 analysis_data .dc vcont 0 $vdd .1]

  18. decida extension Test Suite Object TestSuite ts1 ts1 add-test temp-sweep { . . .} {. . .} ts1 configure –simulator hspice ts1 go

  19. TestSuite Script example TestSuite ts1 –mode prelayout –simulator hspice \ -modeldir /home/models/lv090g/sim \ –netlistdir /home/mgb1/work/proj1 \ -vnom 3.3 –vlow 3.0 –vhigh 3.6 #----------------------------------------------------- # test definitions #----------------------------------------------------- ts1 go –gui exit 0

  20. TestSuite test menu

  21. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Specify a Test named “dc”

  22. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Specify list of netlists to embed

  23. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Specify list of node voltages and element currents to monitor

  24. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Create Report object to collect simulation results

  25. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Perform analysis for each Case combination (process/temperature/voltage)

  26. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Simulator-independent reference to Processing-case library

  27. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Loop over range of supply voltages (over-ride case-combination setting)

  28. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Simulator-independent power-supply setting

  29. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } Perform analysis and collect the results In an auxiliary data object

  30. Bandgap temperature sweep test ts1 add-test dc { prelayout {bgfra_test.sp bgfra.sp} postlayout {bgfrq_test.sp bgfra.extract.sp} } { tckt monitor {V(VBG) IBG=I(MN1) @XBGFRA: V(Q1E)} Report rpt $test.$mode.report –verbose 1 rpt header “Case Temp Vdd VBG IBG VQ1E” foreachcase {WCS WCF} { tckt setlibs $lib foreach vdd [range-sample $vlow $vhigh .1 –step] { tckt setsupply VDD $vdd set d [tckt analysis_data .dc temp -40 125 5] rpt report-data $d key TEMP vdd VBG IBG VQ1E $d delete } } delete object rpt } No post-processing required: Dump the results to the report object

  31. dataview of test results

  32. Last Words • analysis/visualization • dataview • X-Y/histogram/smith-chart • FFT/IFFT • eye/scope diagrams • jitter analysis • signal analysis • simulator-independence • speed/accuracy • pre-layout/post-layout • verification • convergence

  33. decida Open-Source project http://decida.org executables for Solaris and Linux
