itrace dynamic laser refraction clinical application

iTrace Dynamic Laser Refraction: Clinical Application

Joe S. Wakil, M.D.

Chairman, Tracey Technologies, LLC

and EyeSys Vision, Inc.

Speaker has a Financial Interest

why dynamic ray tracing because the eye is not a telescope
Why Dynamic Ray Tracing?Because… the Eye is NOT a Telescope!

Effects Refraction (ex. Night Myopia)

Refraction is NOT a FIXED Number!

Effects Refraction (Instrument Myopia)

Effects Quality of Vision (Aberrations)

Pupil Size:

Accommodation:

Tear Film:

Where are the Sources of Aberrations?

How do they change with Surgery?

Astigmatism (Irreg.), Sph & other HOA

Astigmatism, Coma & other HOA

Cornea:

Lens:

aberrometer wavefront technologies

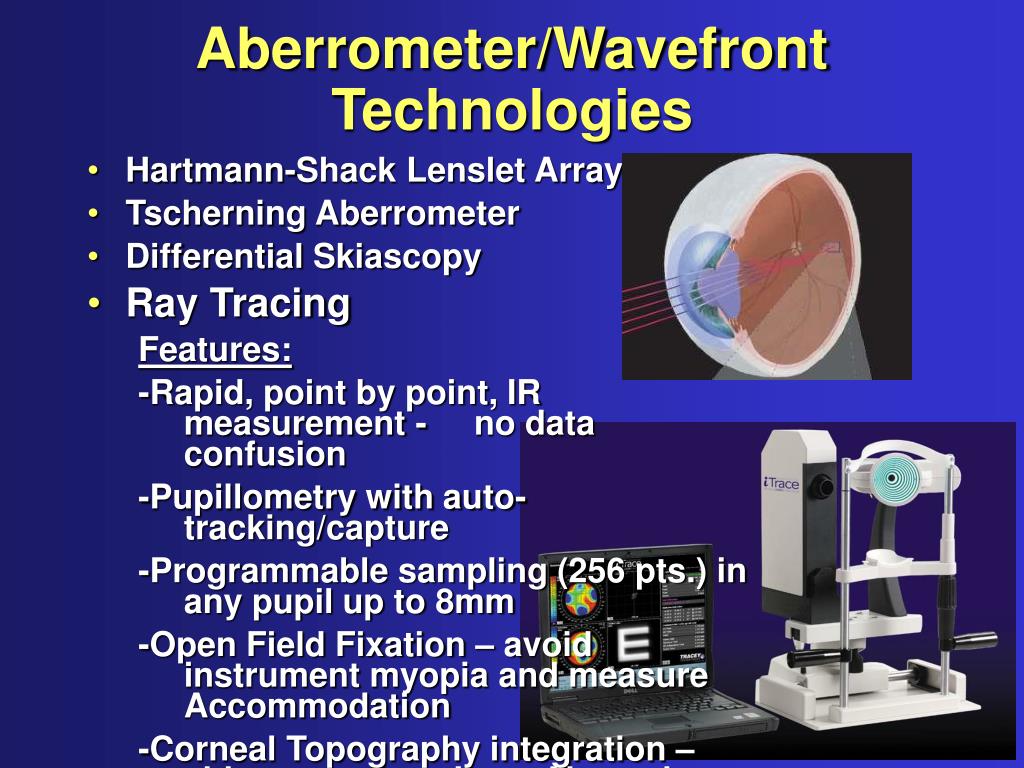

Aberrometer/Wavefront Technologies
  • Hartmann-Shack Lenslet Array
  • Tscherning Aberrometer
  • Differential Skiascopy
  • Ray Tracing

Features:

-Rapid, point by point, IR measurement - no data confusion

-Pupillometry with auto-tracking/capture

-Programmable sampling (256 pts.) in any pupil up to 8mm

-Open Field Fixation – avoid instrument myopia and measure Accommodation

-Corneal Topography integration – able to measure Lens Aberrations

-VISX license for Custom LASIK

slide10

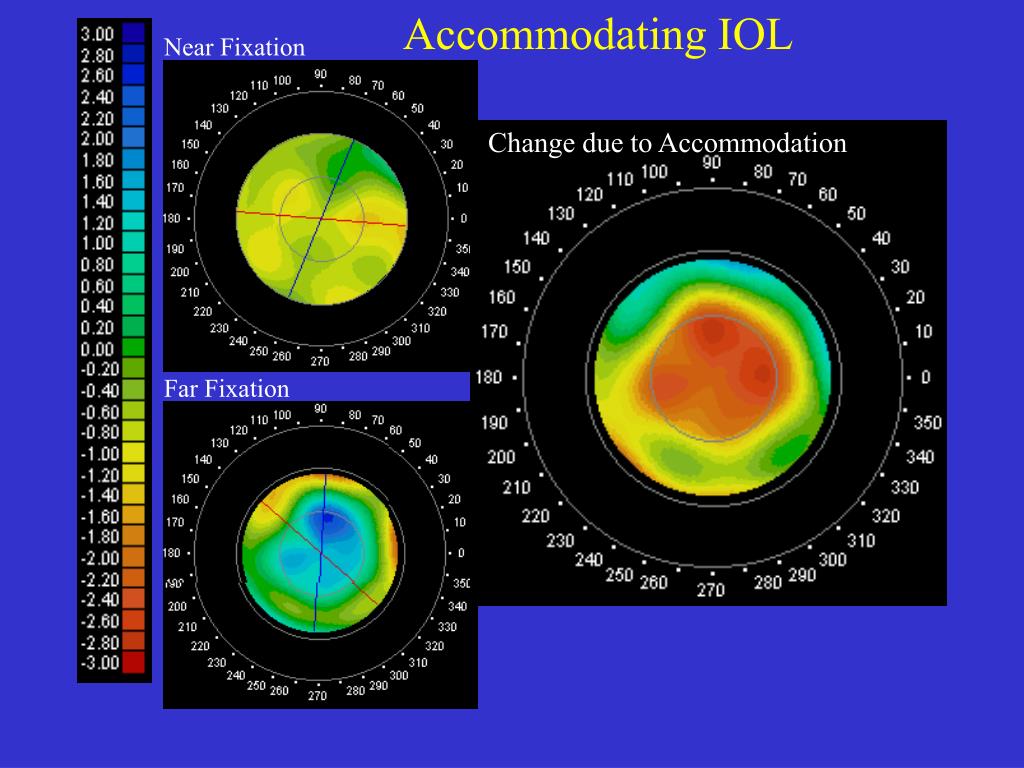

Accommodating IOL

Near Fixation

Change due to Accommodation

Far Fixation

advantages of ray tracing aberrometry combined with corneal topography itrace

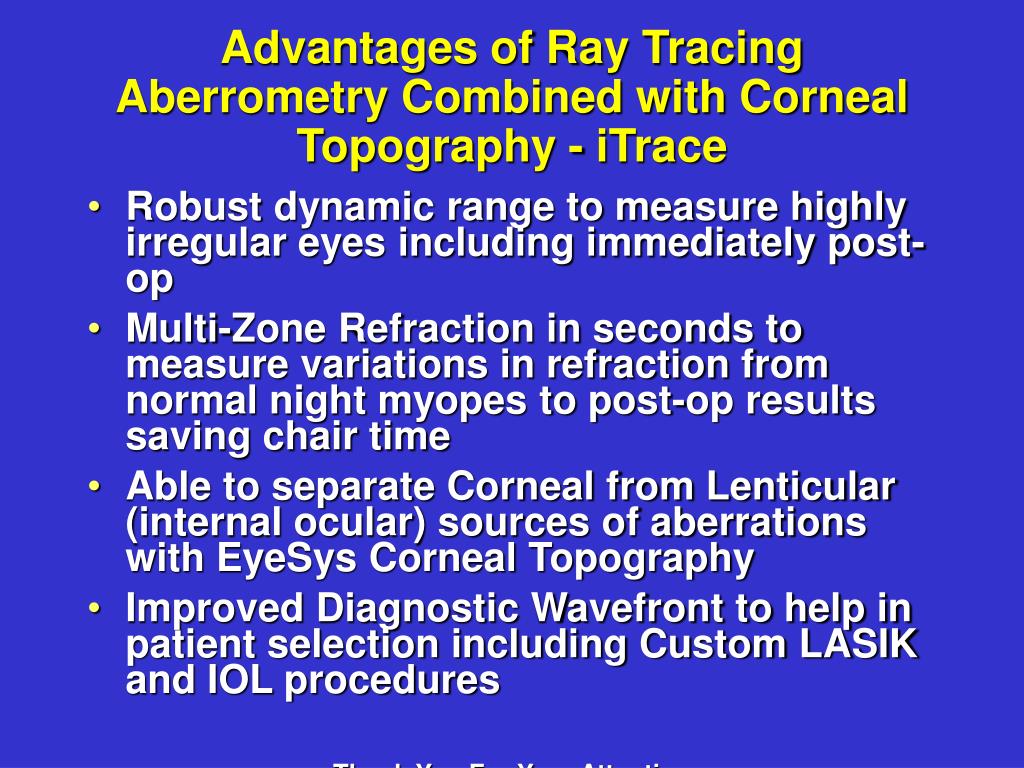

Advantages of Ray Tracing Aberrometry Combined with Corneal Topography - iTrace
  • Robust dynamic range to measure highly irregular eyes including immediately post-op
  • Multi-Zone Refraction in seconds to measure variations in refraction from normal night myopes to post-op results saving chair time
  • Able to separate Corneal from Lenticular (internal ocular) sources of aberrations with EyeSys Corneal Topography
  • Improved Diagnostic Wavefront to help in patient selection including Custom LASIK and IOL procedures

- Thank You For Your Attention -

conclusion

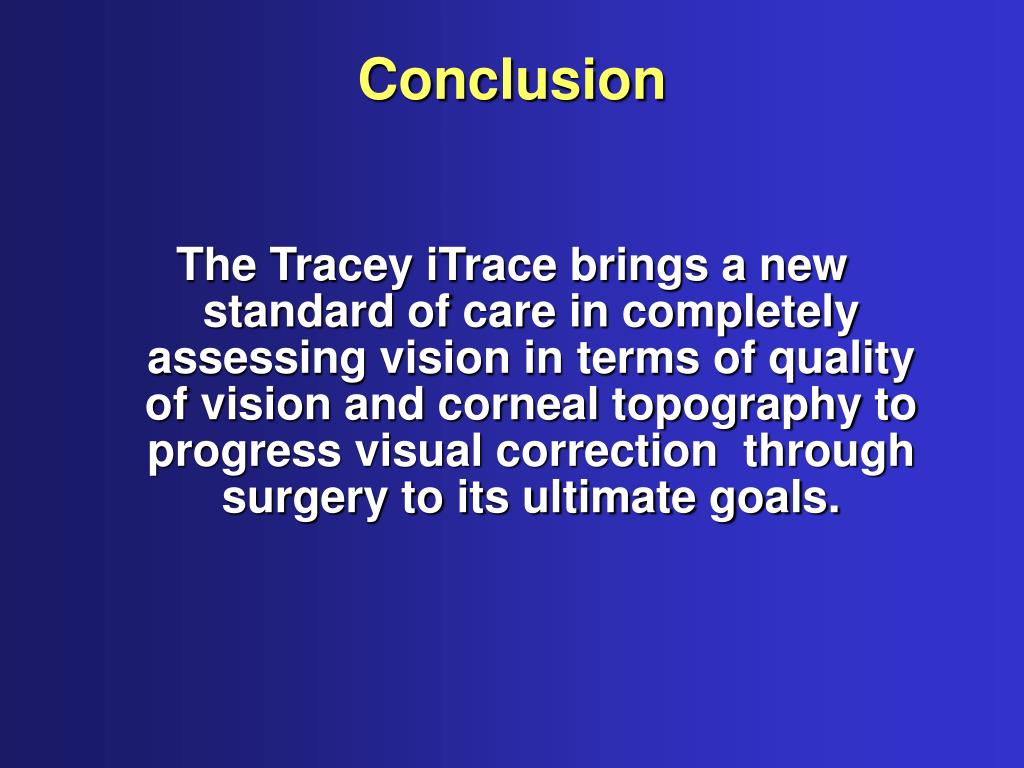

Conclusion

The Tracey iTrace brings a new standard of care in completely assessing vision in terms of quality of vision and corneal topography to progress visual correction through surgery to its ultimate goals.
