Ch7: Linear Systems of Differential Equations

Ch7: Linear Systems of Differential Equations. Sec(7.1+7.2): First-order Systems. Example:. System of DE. Solutions. 2ed order. Independent variable: t. dependent variables: x, y. Example:. Order of the system. First-order. 3ed-order. First-order.

lerato
Download Presentation

Ch7: Linear Systems of Differential Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: System of DE Solutions 2ed order Independent variable: t dependent variables: x, y Example: Order of the system First-order 3ed-order First-order

  2. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Linear system

  3. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Matrix Form

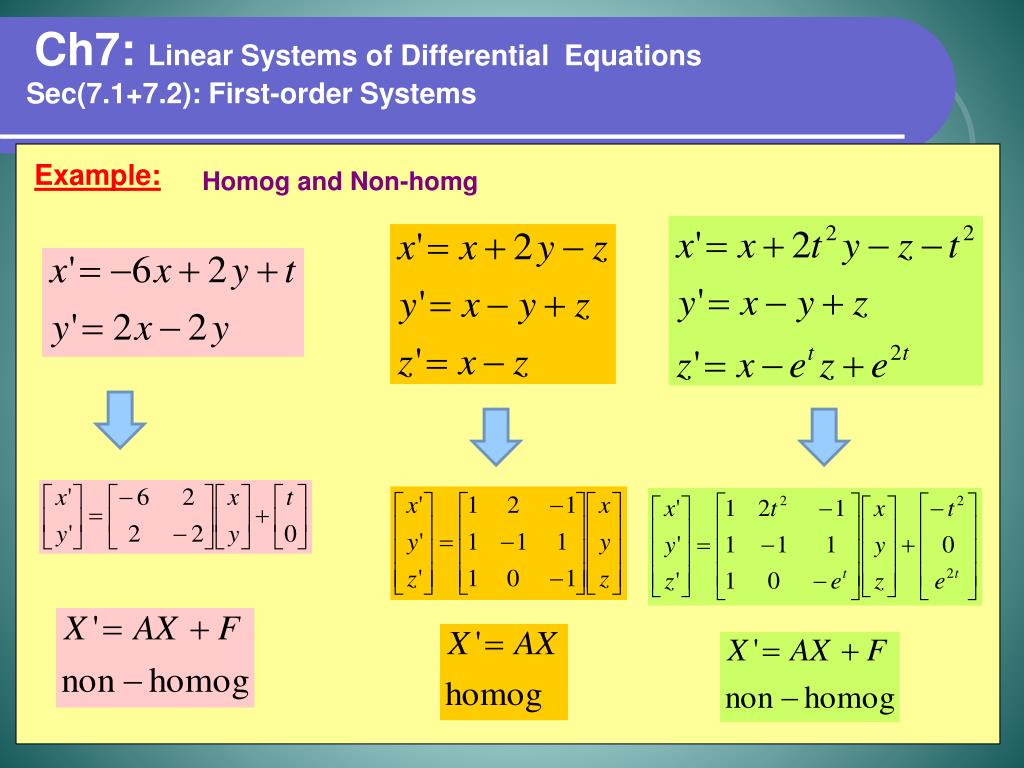

  4. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Homog and Non-homg

  5. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Practical Importance: IVP High-order System Converted Solution First-order System Example: First-order System

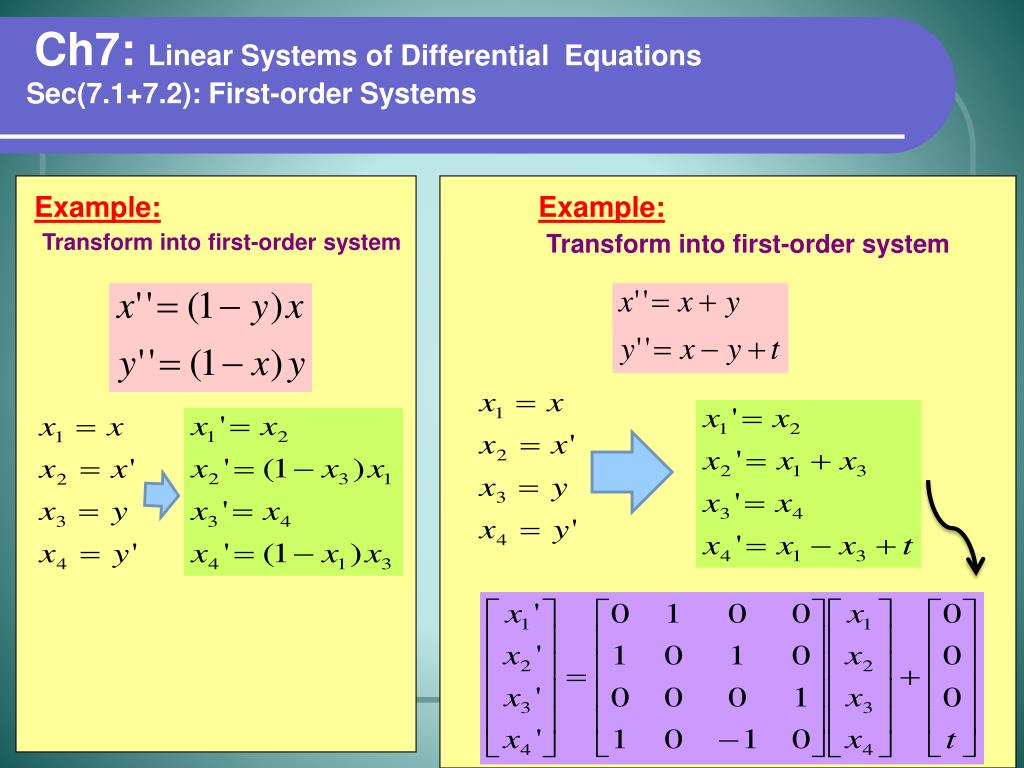

  6. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Example: Transform into first-order system Transform into first-order system

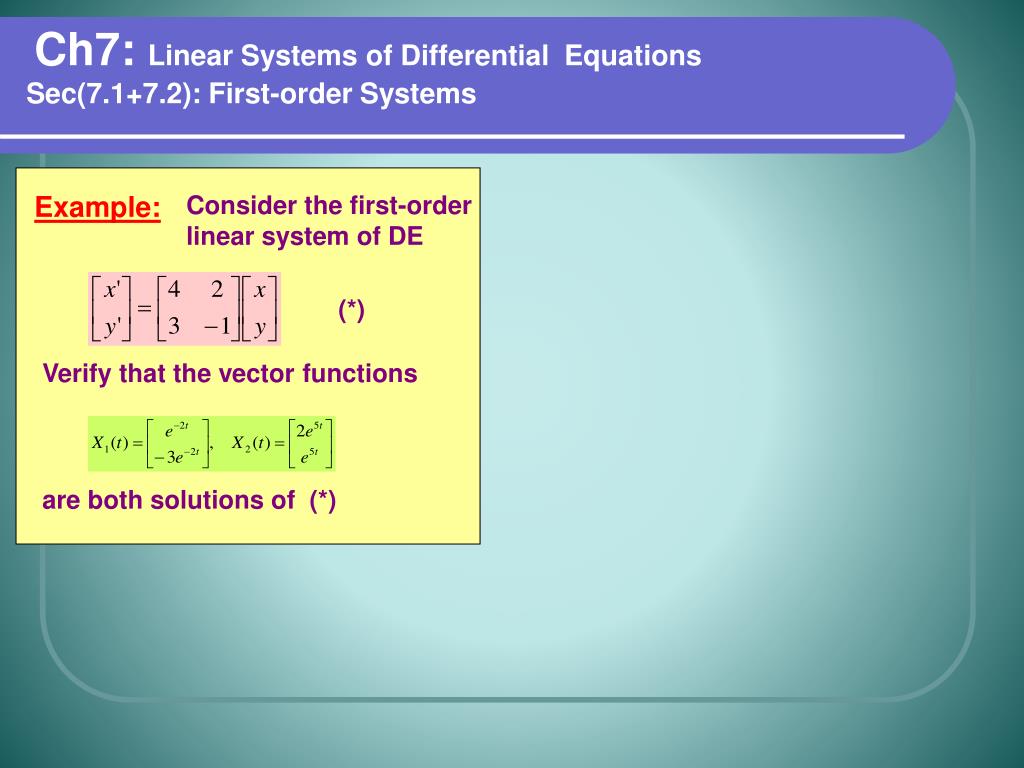

  7. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Example: Consider the first-order linear system of DE (*) Verify that the vector functions are both solutions of (*)

  8. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Def: Therorem ( Existence of a Unique Solution) System of linear first-order DE Matrix Form: There exists a unique solution of IVP(*)

  9. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems Therorem ( Principle of Superposition) Example: (*) Consider the sys of DE: (*) are both solutions of (*) solution of (*) DEF ( Wronskian) Consider the sys of DE: (*) Example: (*) their wronskian is the nxn determinant Find W(X1,X2)

  10. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems THM ( Wronskian) Consider the sys of DE: (*) Example: (*) Linearly dependent or independent ??

  11. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems THM ( general solution for Homog) Consider the sys of DE: (*) The general sol for (*) is Example: Example: (*) Solve IVP (*) Find the general solution for (*)

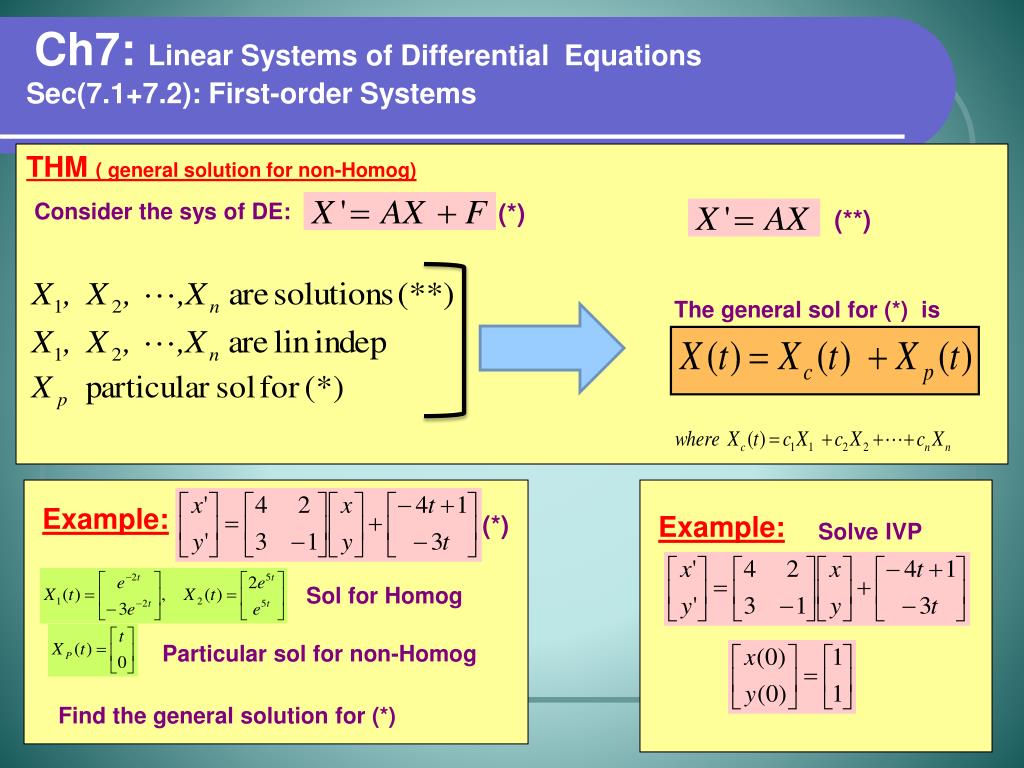

  12. Ch7: Linear Systems of Differential Equations Sec(7.1+7.2): First-order Systems THM ( general solution for non-Homog) Consider the sys of DE: (*) (**) The general sol for (*) is Example: (*) Example: Solve IVP Sol for Homog Particular sol for non-Homog Find the general solution for (*)

  13. How to solve the system of DE System of Linear First-Order DE (constant Coeff) Distinct real Eigenvalues (7.3) repeated real Eigenvalues (7.5) complex Eigenvalues (7.3) Eigenvalue Method System of Linear First-Order DE (Non-homog) Variation of Parameters
