Presentation Transcript
object oriented hw sw system design with systemc and osss

Object Oriented HW/SW System Designwith SystemC and OSSS

Objective Systems Solutions

Christian Stehno

OFFIS – Institute for Information Technology

HW/SW Design Methodology Group

Oldenburg, Germany

outline
Outline

Motivation

Why do we need improvements towards ESL/HLS

Introduction

ESL/HLS

SystemC

Design Process

Design and Simulation Library OSSS

Features and Advantages

Example on Communication exploration

Synthesis tool FOSSY

Features and Advantages

Example on IP core integration

Conclusion

motivation
Motivation

Embedded Systems are ubiquitous, and so is their design

Today's design techniques have matured over decadesbut without major structural changes

Hence, highly specialized skills are required, costs and time are always too high

Compared to SW engineering advancements, HW design is far behind

But, new technologies and methodologies are arising

Electronic System Level lifts the abstraction level

High Level Synthesis closes the gap from abstraction to realization

SysML, System Verilog, and SystemC make use of SE techniques and provide means for enhanced design processes

New generations of design tools show up

introduction

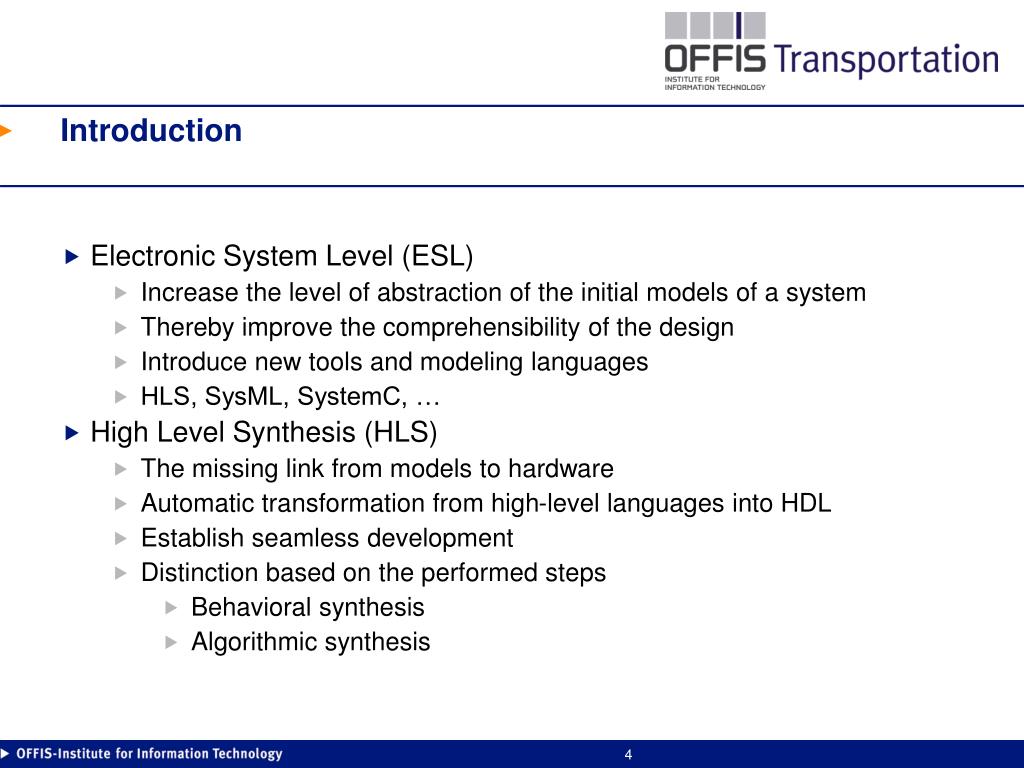

Introduction

Electronic System Level (ESL)

Increase the level of abstraction of the initial models of a system

Thereby improve the comprehensibility of the design

Introduce new tools and modeling languages

HLS, SysML, SystemC, …

High Level Synthesis (HLS)

The missing link from models to hardware

Automatic transformation from high-level languages into HDL

Establish seamless development

Distinction based on the performed steps

Behavioral synthesis

Algorithmic synthesis

systemc

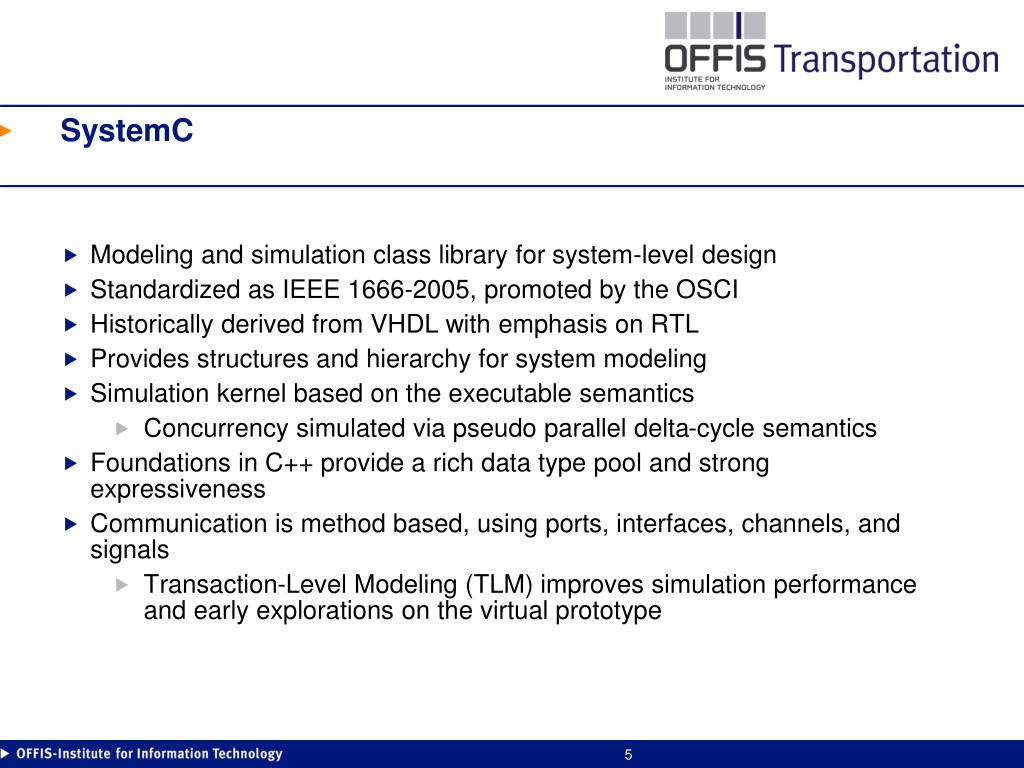

SystemC

Modeling and simulation class library for system-level design

Standardized as IEEE 1666-2005, promoted by the OSCI

Historically derived from VHDL with emphasis on RTL

Provides structures and hierarchy for system modeling

Simulation kernel based on the executable semantics

Concurrency simulated via pseudo parallel delta-cycle semantics

Foundations in C++ provide a rich data type pool and strong expressiveness

Communication is method based, using ports, interfaces, channels, and signals

Transaction-Level Modeling (TLM) improves simulation performance and early explorations on the virtual prototype

systemc example
#include "systemc.h"

SC_MODULE(dff)

{

sc_in<bool> din;

sc_in<bool> clock;

sc_out<bool> dout;

void doit(){

dout = !din;

}

SC_CTOR(dff){

SC_METHOD(doit);

sensitive_pos << clock;

}

};

SystemC Example

Inverting D FlipFlop example

SC_MODULE defines structure, encapsulates strongly related tasks

sc_in and sc_out define ports for connections into and out of this module

Method doit is declared as SC_METHOD with sensitivity on the clock portHence, on each clock high signal the doit method copies the in-signal to the out-port

design flow
Design flow

The proposed design methodology resembles the typical ESL process:

Functional modeling in SystemC/C++

Refinement towards synthesizability

HLS into HDL

Logic synthesis in the backend

System verification is possible before and after synthesis in SystemC

SystemC/C++ Design

Simulation &

Verification

FOSSY

RTL IP

Xilinx

EDK

VHDL

SystemC

RTL Synthesis

(e.g. Xilinx ISE)

design process1
Design process

C++ (golden) model

Algorithmic specification

Fully functional implementation of the reactive and/or computational part

Partitioned/refined into

SystemC based virtual system prototype

Partitioned into independent processes and communication links

As much as possible without any link to the actual platform

Abstractions of actual HW yield simulation performance and enable large exploration spaces

C++ Model

Application Layer

design process2

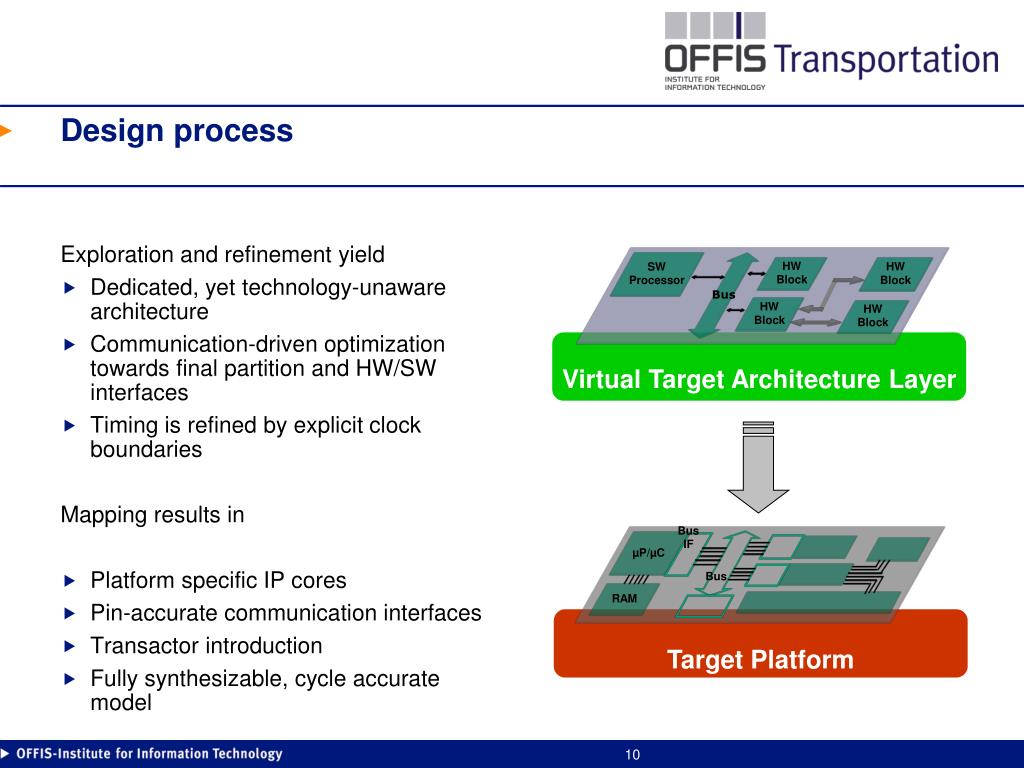

Design process

Exploration and refinement yield

Dedicated, yet technology-unaware architecture

Communication-driven optimization towards final partition and HW/SW interfaces

Timing is refined by explicit clock boundaries

Mapping results in

Platform specific IP cores

Pin-accurate communication interfaces

Transactor introduction

Fully synthesizable, cycle accurate model

Bus

SW

Processor

HW

Block

HW

Block

HW

Block

HW

Block

Bus

µP/µC

Bus

IF

RAM

Virtual Target Architecture Layer

Target Platform

design process3

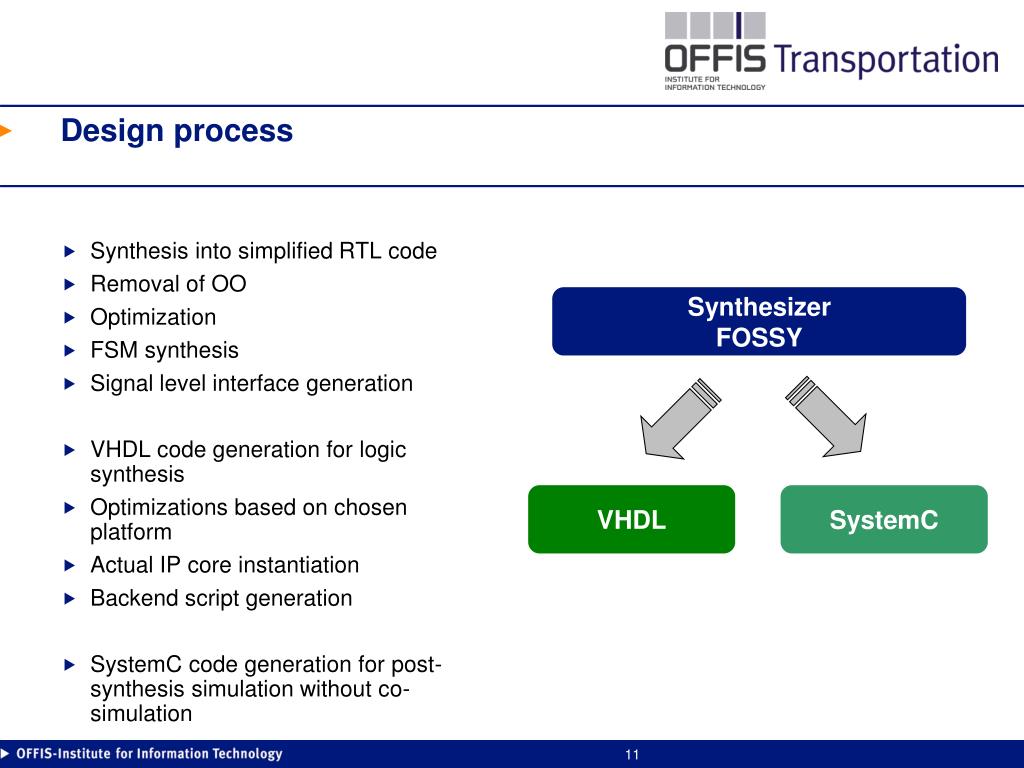

Design process

Synthesis into simplified RTL code

Removal of OO

Optimization

FSM synthesis

Signal level interface generation

VHDL code generation for logic synthesis

Optimizations based on chosen platform

Actual IP core instantiation

Backend script generation

SystemC code generation for post-synthesis simulation without co-simulation

Synthesizer

FOSSY

VHDL

SystemC

design and simulation library osss
Design and Simulation Library OSSS

Object-oriented extension for SystemC, developed at OFFIS

Additional primitive blocks for convenience, simulation speed, and optimal synthesis results

FIFOs, RAMs, ROMs

Full C++ data type support including used-defined classes

Requires serialization techniques for signal decomposition

Provides inheritance, overloading, and polymorphism for increased re-use

Templates allow for efficient and concise designs

SW tasks for processor executed processes

Very similar to SystemC modules, but certain restrictions

OS effects, such as scheduling, can be simulated

Timing is abstracted for simulation performance by Estimated Execution Timesand Required ETs on the block level

design and simulation library osss1

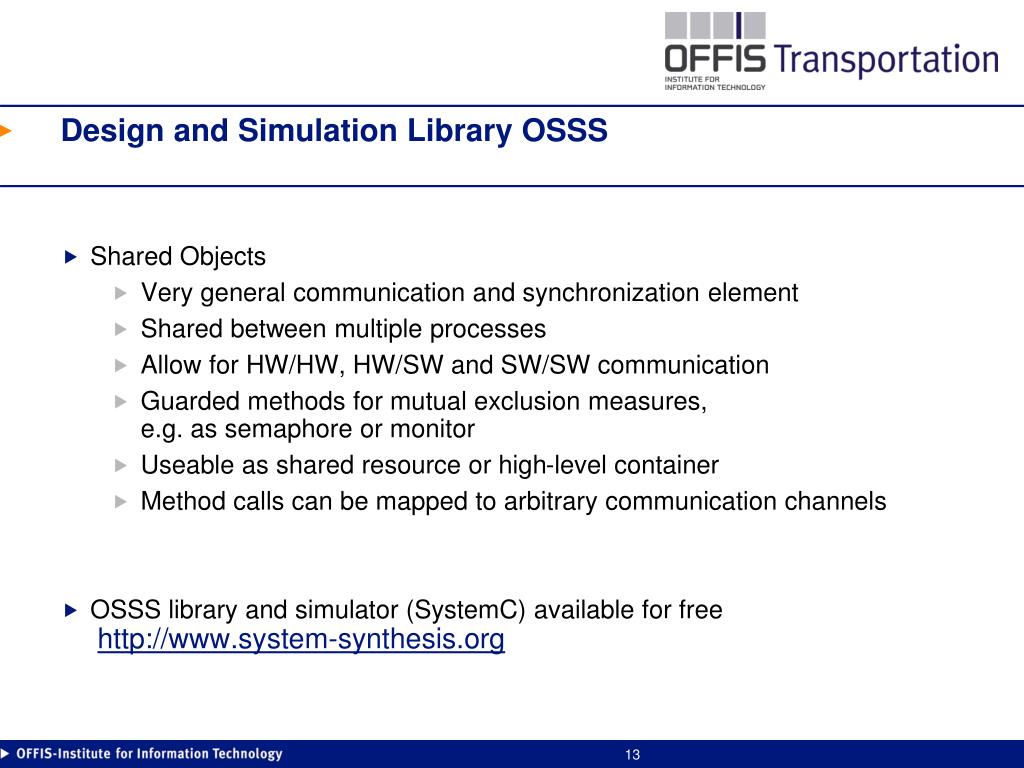

Design and Simulation Library OSSS

Shared Objects

Very general communication and synchronization element

Shared between multiple processes

Allow for HW/HW, HW/SW and SW/SW communication

Guarded methods for mutual exclusion measures,e.g. as semaphore or monitor

Useable as shared resource or high-level container

Method calls can be mapped to arbitrary communication channels

OSSS library and simulator (SystemC) available for freehttp://www.system-synthesis.org

shared object example producer consumer

template<class ItemType>

class put_if : public sc_interface

{

public:

virtual void put(ItemType item) = 0;

virtual bool is_empty() = 0;

virtual bool is_full() = 0;

...

};

template<class ItemType>

class get_if : public sc_interface

{

public:

virtual ItemType get() = 0;

virtual bool is_empty() = 0;

virtual bool is_full() = 0;

...

};

<<implements>>

<<implements>>

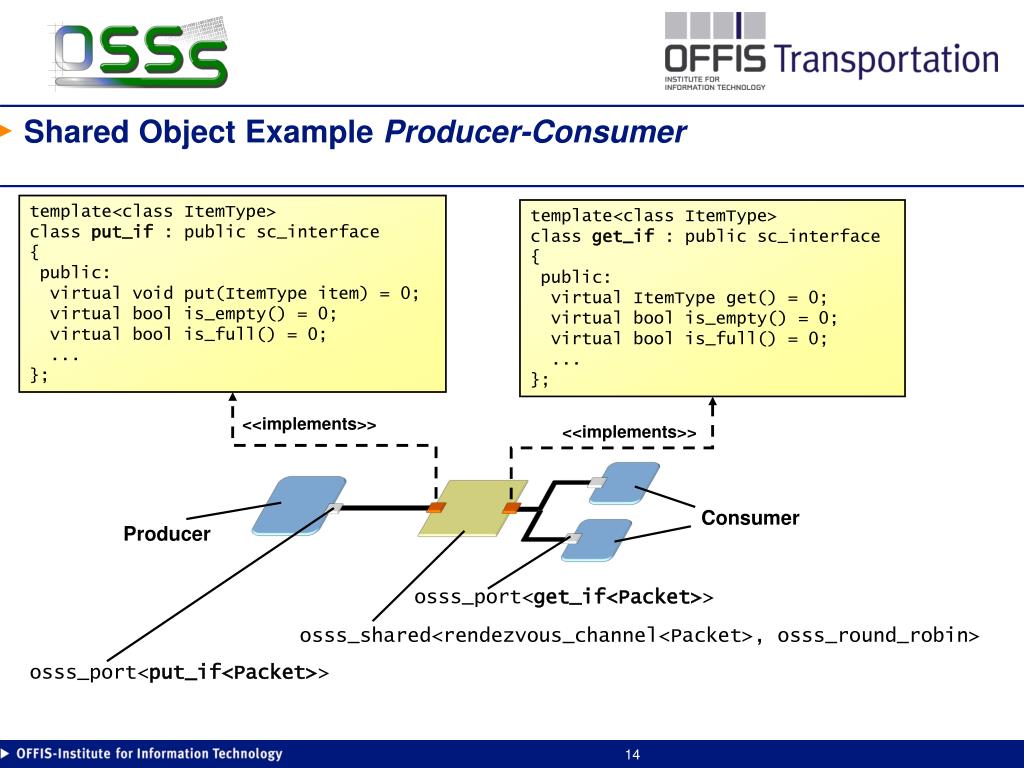

Shared Object Example Producer-Consumer

Consumer

Producer

osss_port<get_if<Packet>>

osss_shared<rendezvous_channel<Packet>, osss_round_robin>

osss_port<put_if<Packet>>

communication mapping alternatives vta 1

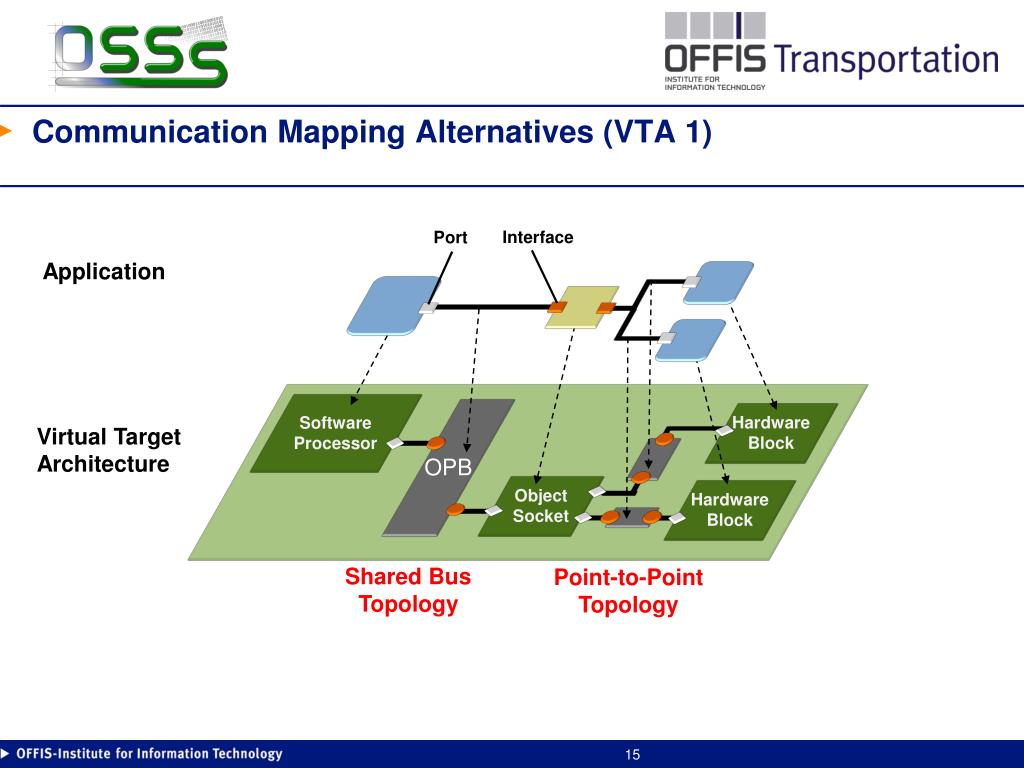

Communication Mapping Alternatives (VTA 1)

Interface

Port

Application

OPB

Software

Processor

Hardware

Block

Virtual Target Architecture

Object

Socket

Hardware

Block

Shared Bus

Topology

Point-to-Point

Topology

communication mapping alternatives vta 2

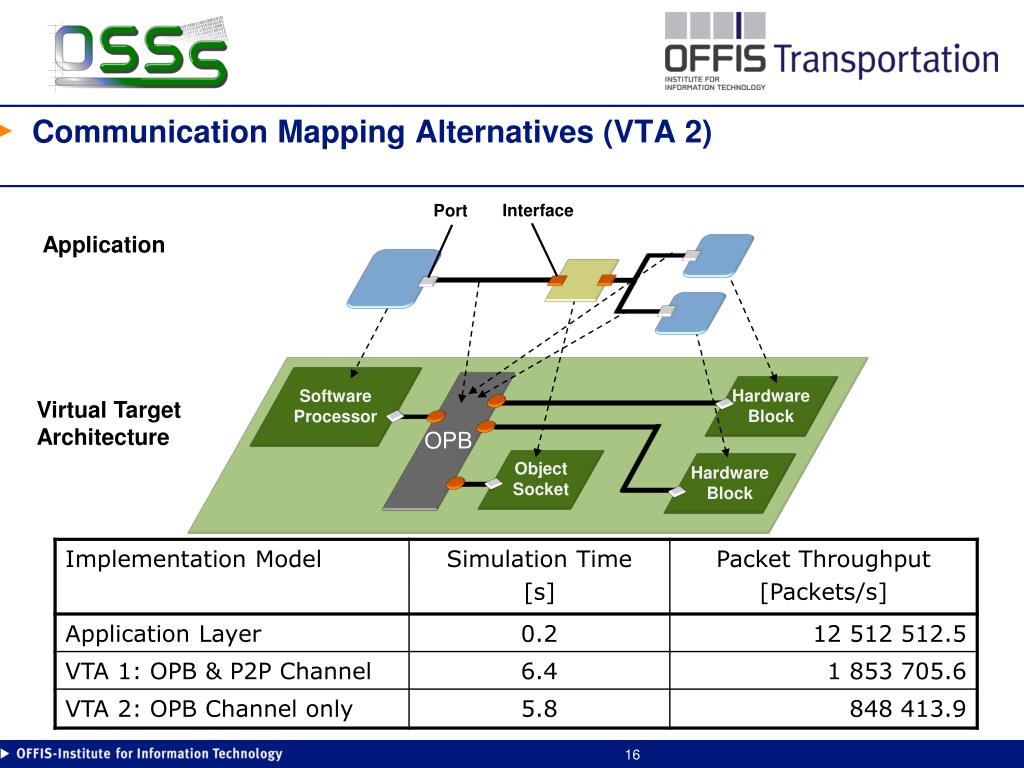

Communication Mapping Alternatives (VTA 2)

Interface

Port

Application

OPB

Software

Processor

Hardware

Block

Virtual Target Architecture

Object

Socket

Hardware

Block

Shared Bus

Topology

synthesis flow

OPB

Xilinx

MicroBlaze

Hardware

Block

Hardware

Partition

Object

Socket

Hardware

Block

Software

Partition

VHDL

C++

VHDL

Xilinx EDK

project

C++

driver lib

VHDL

C++

from Xilinx

IP core library

OPB

Xilinx

MicroBlaze

Synthesised

Consumer

Synthesised

Shared Object

OPB

IF

OPB DDR

Controller

DDR

RAM

Synthesised

Consumer

FOSSY

generated

OPB

Arbiter

e.g. Xilinx ML401 FPGA prototyping board

Synthesis Flow

Board Support

Package

OSSS Flow

OSSS Design

Xilinx IP Lib

Xilinx EDK

3rd party tools

gcc

linker

high level synthesis

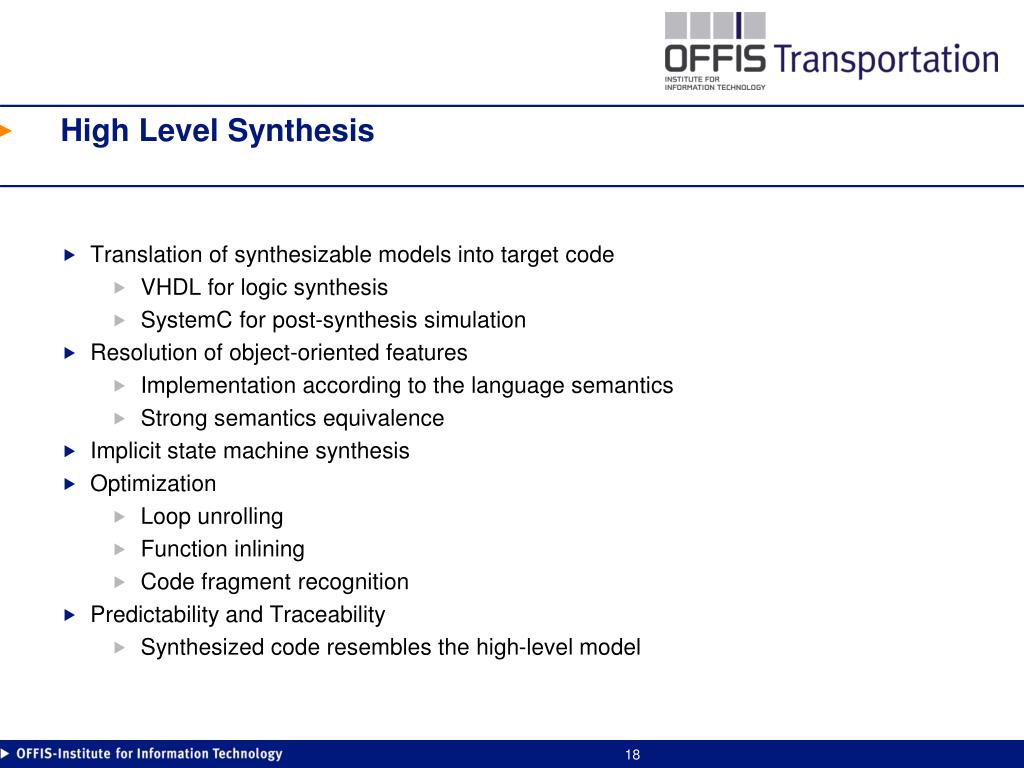

High Level Synthesis

Translation of synthesizable models into target code

VHDL for logic synthesis

SystemC for post-synthesis simulation

Resolution of object-oriented features

Implementation according to the language semantics

Strong semantics equivalence

Implicit state machine synthesis

Optimization

Loop unrolling

Function inlining

Code fragment recognition

Predictability and Traceability

Synthesized code resembles the high-level model

high level synthesis1

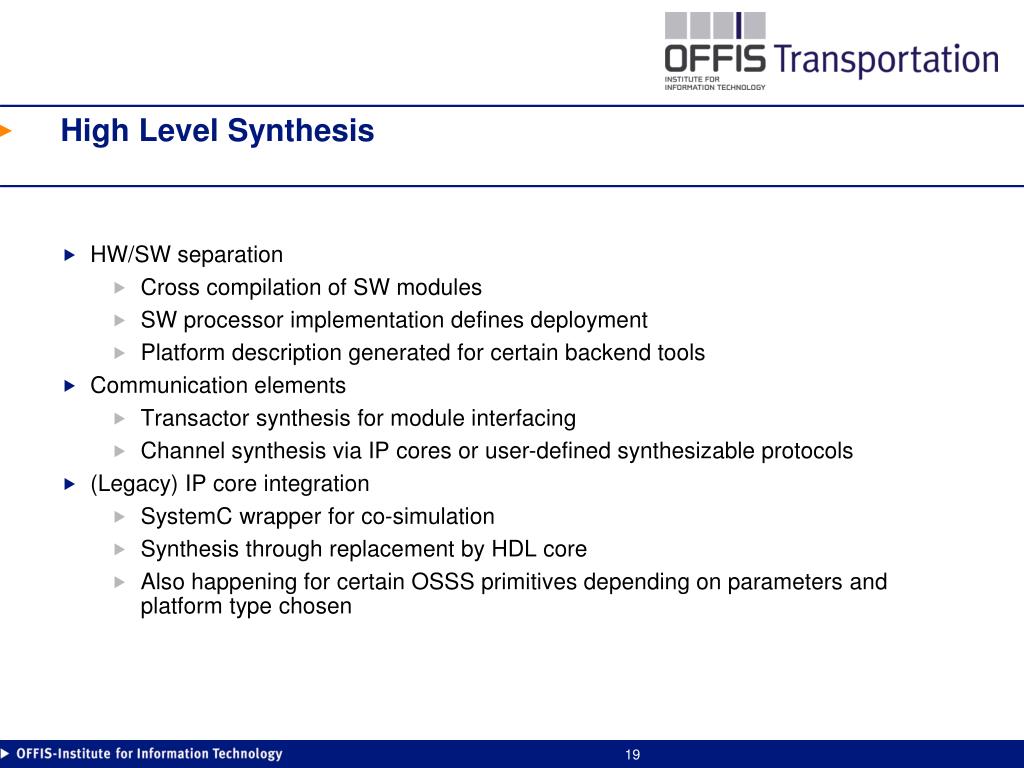

High Level Synthesis

HW/SW separation

Cross compilation of SW modules

SW processor implementation defines deployment

Platform description generated for certain backend tools

Communication elements

Transactor synthesis for module interfacing

Channel synthesis via IP cores or user-defined synthesizable protocols

(Legacy) IP core integration

SystemC wrapper for co-simulation

Synthesis through replacement by HDL core

Also happening for certain OSSS primitives depending on parameters and platform type chosen

algorithmic design

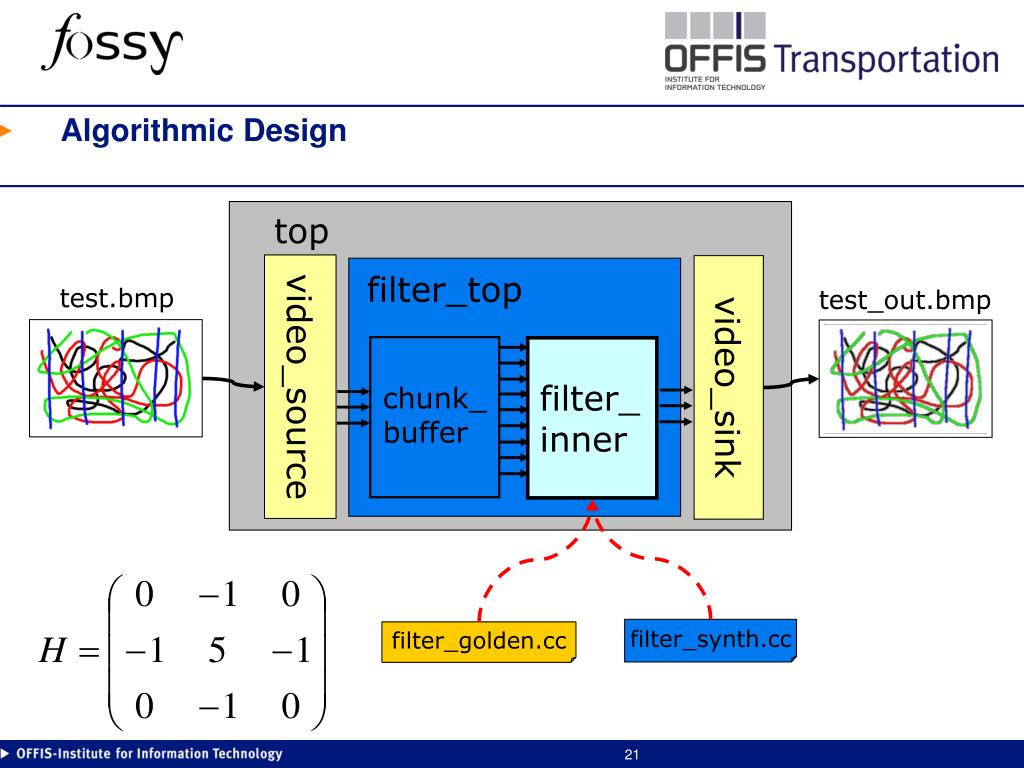

Algorithmic Design

top

video_source

video_sink

filter_top



filter_

inner

chunk_

buffer

filter_synth.cc

filter_golden.cc

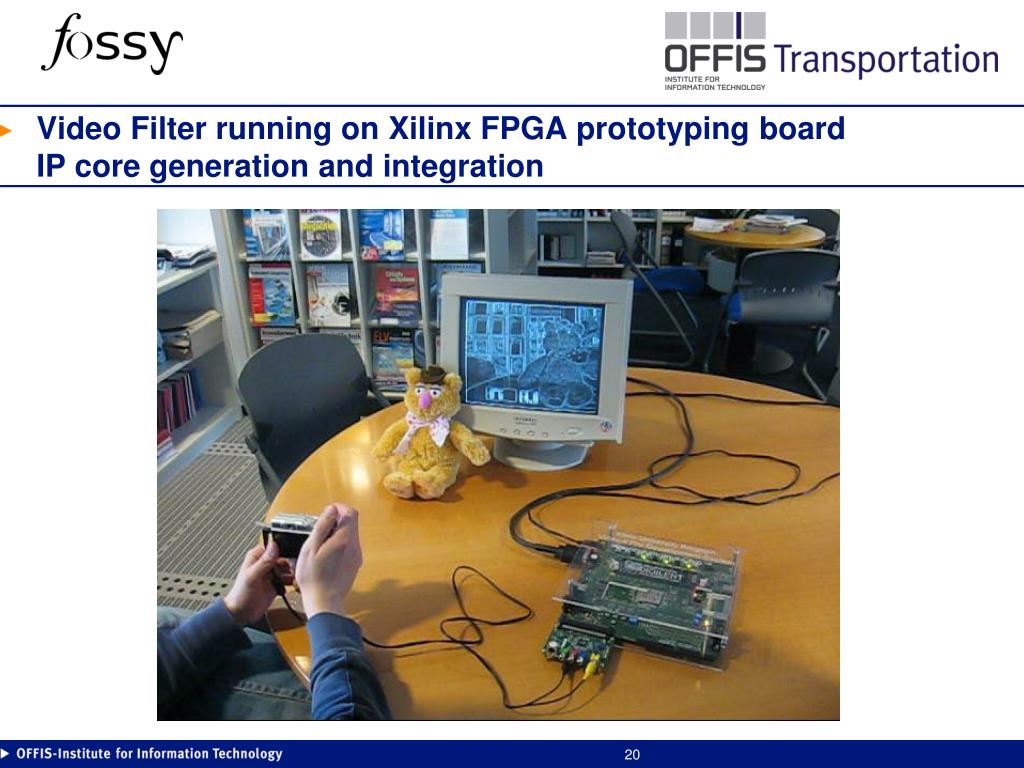

integration into existing architecture

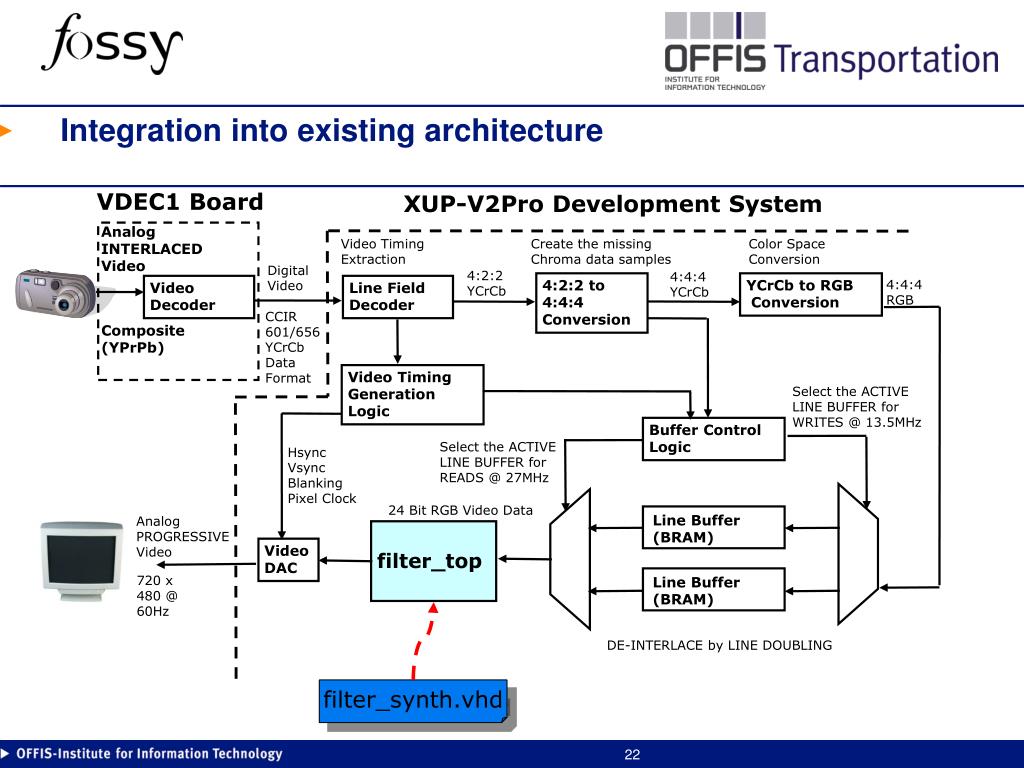

Integration into existing architecture

VDEC1 Board

XUP-V2Pro Development System

Analog INTERLACED Video

Video Timing Extraction

Create the missing Chroma data samples

Color Space Conversion

Digital Video

4:2:2 YCrCb

4:4:4 YCrCb

4:2:2 to 4:4:4

Conversion

YCrCb to RGB

Conversion

4:4:4 RGB

Video

Decoder

Line Field

Decoder

CCIR 601/656

YCrCb Data

Format

Composite

(YPrPb)

Video Timing Generation Logic

Line Buffer (BRAM)

Select the ACTIVE LINE BUFFER for WRITES @ 13.5MHz

Buffer Control

Logic

Select the ACTIVE LINE BUFFER for READS @ 27MHz

Hsync

Vsync

Blanking

Pixel Clock

Line Buffer (BRAM)

24 Bit RGB Video Data

Analog PROGRESSIVE Video

filter_top

Video

DAC

720 x 480 @ 60Hz

DE-INTERLACE by LINE DOUBLING

filter_synth.vhd

the whole design flow

Simulation/Test

SystemC

Testbench

SystemC

g++


run.x


The whole design flow

filter.h

includes

filter.cpp

Synthesis

systemc_synth.h

synthesised_filter.vhd

synthesised_filter.cc

Xilinx XST,

Synopsys Synplify Pro,

etc.

3rd party RTL

synthesis tools

conclusion
Conclusion

The proposed OSSS design process shows major advantages

Strict separation of application, architecture, and platform

Flexible communication means

Simple IP integration

A seamless C++/SystemC design process with end-to-end simulation, automatic synthesis, all in one IDE

Available to all kinds of developers, from SW to HW engineers

The future tasks

Broader support for transactor synthesis

Enhanced simulation modes

More behavioral synthesis elements

objective systems solutions
Objective Systems Solutions

SystemC

C++

FOSSY Live Demo @

www.system-synthesis.org
