emc centralized storage march 14 2003

EMC Centralized StorageMarch 14, 2003

John Scott

Implementation Review

storage requirements
Storage Requirements
  • Highly Available
    • Reduce downtime due to hardware problems
  • EMC has redundant parts, mirrored disks and phone home system
  • EMC support staff will arrive within 4 hours of a hardware failure to fix the problem
  • Easily Manageable
    • Needs less management than current mix of multi-vendor arrays
  • One GUI controls the entire EMC system
  • Scalable without needing more infrastructure changes
  • 2 GB Switch has 64 ports, about half used so far
  • Disks can be upgraded as larger ones are put on market

Implementation Review

integrating with sunfire 15k
Integrating with SunFire 15K
  • Sun and EMC together very common in marketplace
  • Each domain on the SunFire will have separate connections to different EMC partitions as needed

Implementation Review

space allocation
Space Allocation
  • EMC will have enough space for:
    • All POD files for OTFR and other highly requested data
    • Processing data through OPUS, DADS and OTFR
      • Operations, Development and Testing
    • All Databases for the Archive and Data Processing
      • Operations, Development and Testing
    • Catalogs and Surveys Data (CASB)
    • GALEX mission data

Implementation Review

space allocation1

Client

0-18 Months

18-42 Months

Total Allocation (TB)

Archive Operations – Archive Cache

2

6

8

Archive Operations – Verification Store

1

0

1

Archive Operations – Distribution Staging

1

0

1

Data Processing – OTFR, OPUS, Reference disk

2

3

5

ESS – Development and testing

4.6

0.4

5

GALEX Mission Archive

5

0

5

CASB – Object Catalogs

2.5

2.5

5

Development Database

0.5

1.5

2

Totals

16

16

32

Space Allocation

Implementation Review

space allocation2
Space Allocation
  • Putting together a policy to address allocation
    • Will monitor space already allocated
    • Will address new requests for storage
    • Will (re)allocate based on needs

Implementation Review

system capabilities
System Capabilities
  • 32 TB, total usable space – fully mirrored
    • Mirroring allows us to lose a drive and not lose any data or incur downtime
  • Business continuance volumes allow for backups and upgrades with zero downtime
  • PowerPath software balances load across redundant connections
  • Integrated EMC DLT Tape

backup system (EDM) provides data

security

Implementation Review

still writing data to magneto optical media
Still writing data to Magneto Optical Media
  • Disk drives and tapes are not acceptable archive media.
  • Catastrophic crash or building disaster would result in loss of Mission data if only writing to EMC
  • Writing data to MO and storing MO platters in another location provides data security.

Implementation Review

data depot
Data Depot
  • Most Archive data will be written to a portion of the EMC called the “Data Depot”
    • Provides fast access for users (including OTFR) to the data
    • No longer need to wait for jukebox hardware to mount the platter, faster read/write rates
  • Software changes coming soon to implement the Data Depot concept
    • Data will be written to Depot on Ingest
    • Data will be retrieved from Depot if available
    • More on that in the Presentation: Moving Archive Data to the EMC Storage Array

Implementation Review

implementation status

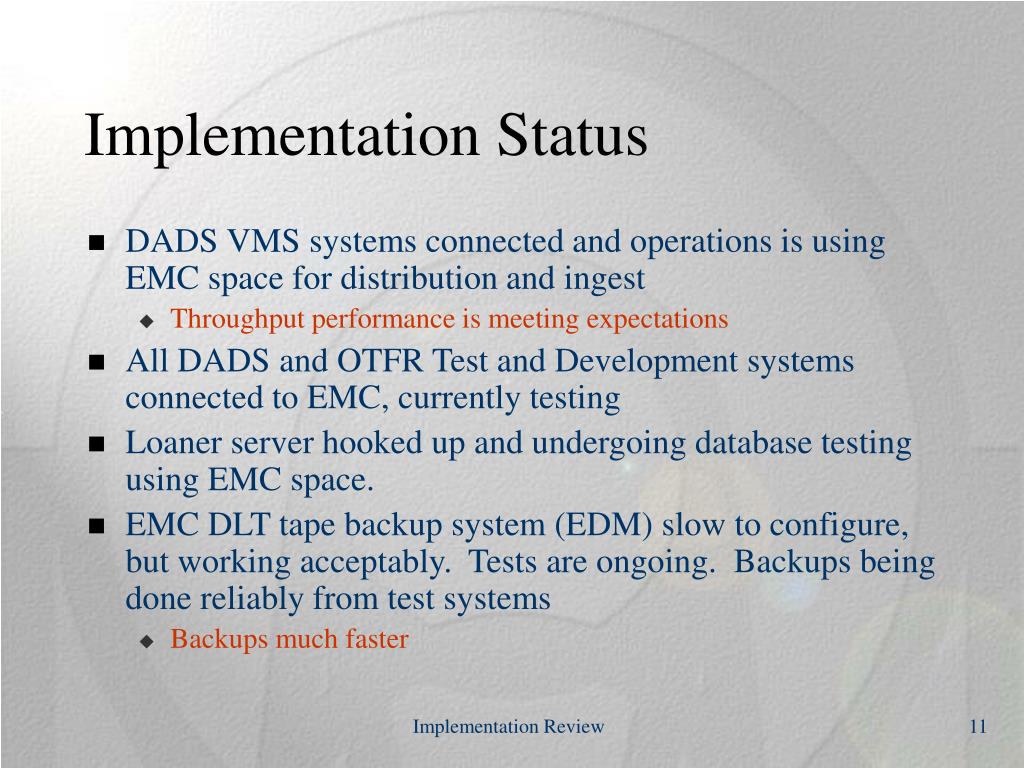

Implementation Status
  • DADS VMS systems connected and operations is using EMC space for distribution and ingest
    • Throughput performance is meeting expectations
  • All DADS and OTFR Test and Development systems connected to EMC, currently testing
  • Loaner server hooked up and undergoing database testing using EMC space.
  • EMC DLT tape backup system (EDM) slow to configure, but working acceptably. Tests are ongoing. Backups being done reliably from test systems
    • Backups much faster

Implementation Review

training progress
Training Progress
  • “Knowledge Transfer” from EMC technical staff as they worked with us configuring system
    • They configured initial systems, we did later systems ourselves
  • Many web-based classes taken by staff
  • Two staff members sent to EMC for classroom training
  • Will develop operational procedures for CPT staff
  • More classes scheduled

Implementation Review

remaining tasks
Remaining Tasks
  • Complete DADS/OTFR/OPUS testing on EMC storage
  • Complete backup and recovery testing/training
  • Test database applications
    • Decide on best strategy for BCV and backup systems
    • Test TimeFinder other specialized database applications
    • More on that in the Presentation: Databases

Implementation Review

remaining tasks con t
Remaining Tasks (con’t)
  • Connect CASB systems
    • Develop efficient path to migrate their data
  • Turn in excess equipment
    • 6 large Cygnet jukeboxes
    • Misc hardware
    • Compaq StorageWorks arrays (to be kept around until the Tru64 machines are retired)

Implementation Review

schedule
Schedule

Implementation Review
