Presentation Transcript
slide1

Internals of SPIN Model Checker

by

Amin Alipour

Software Design Lab

malipour@mtu.edu

slide2

Outline

  • Introduction to SPIN
  • Reachability Analysis of SPIN
    • Assertions
    • Non-progress Cycles
    • Acceptance Cycles
  • SPIN Validator Internals
slide3

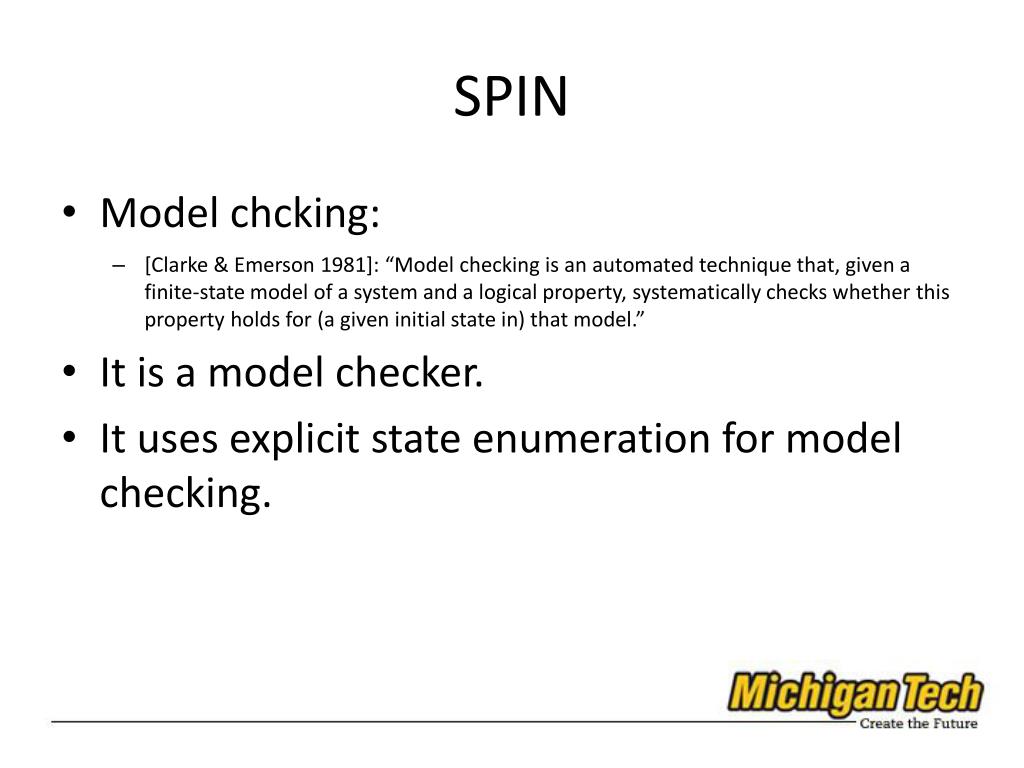

SPIN
  • Model chcking:
    • [Clarke & Emerson 1981]: “Model checking is an automated technique that, given a finite-state model of a system and a logical property, systematically checks whether this property holds for (a given initial state in) that model.”
  • It is a model checker.
  • It uses explicit state enumeration for model checking.
how spin store the states

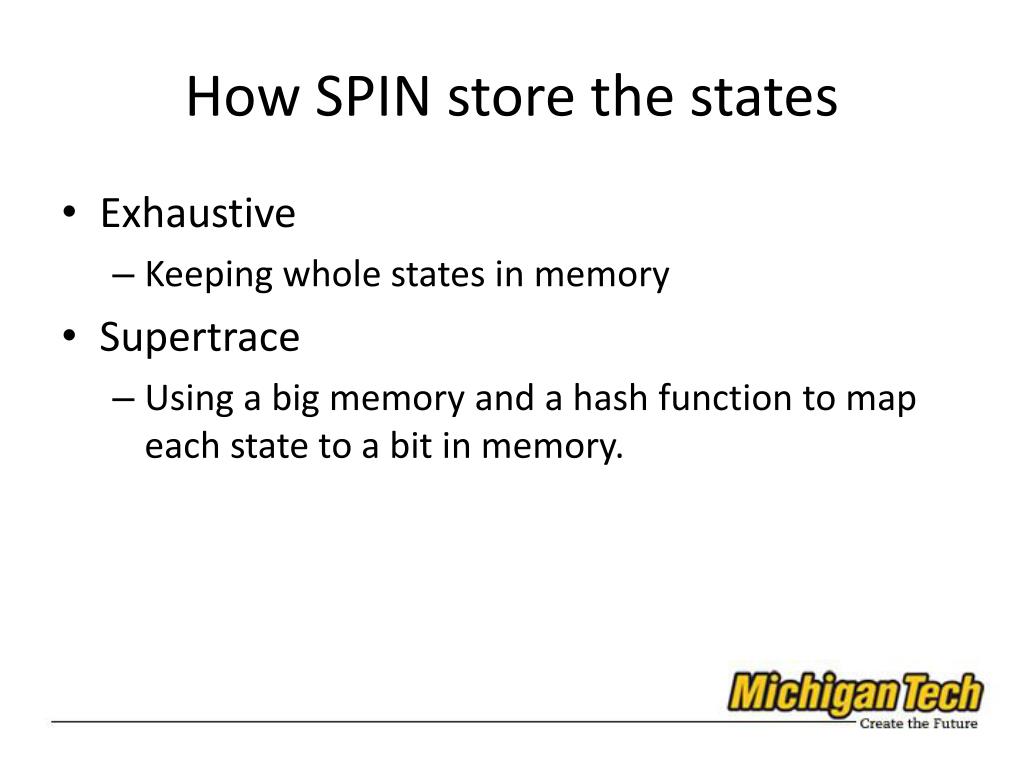

How SPIN store the states
  • Exhaustive
    • Keeping whole states in memory
  • Supertrace
    • Using a big memory and a hash function to map each state to a bit in memory.

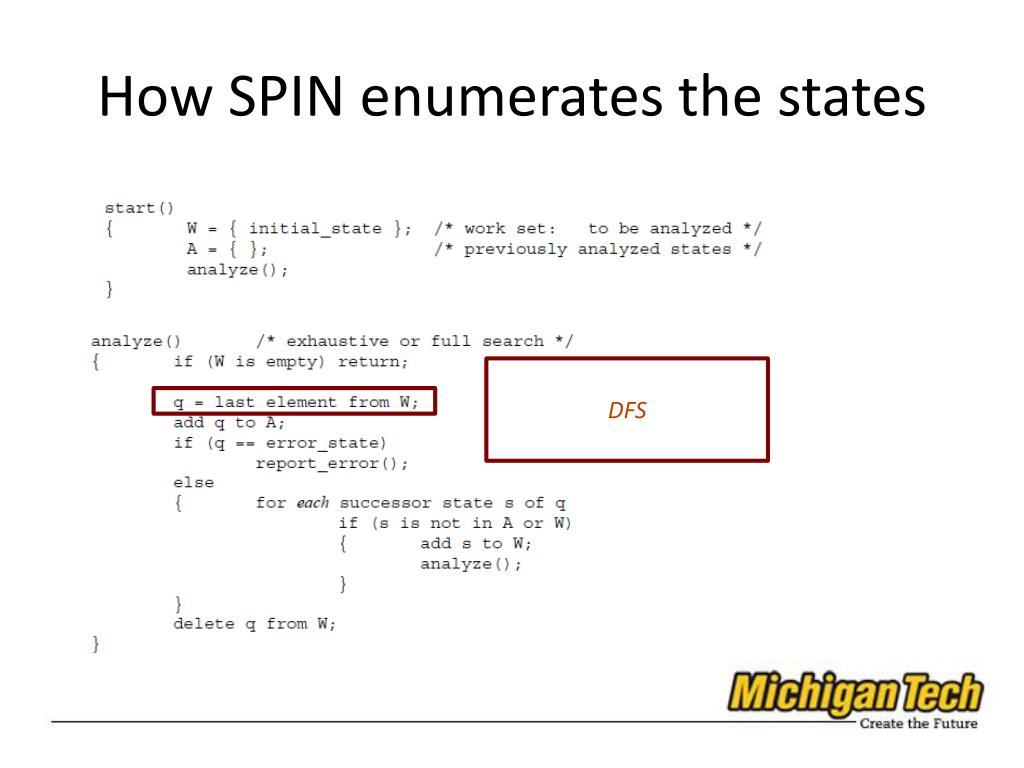

reachability analysis algorithms
Reachability Analysis Algorithms
  • A reachability analysis algorithms given a model of a program and a property to verify, must verify the property in program.
  • Properties could be:
    • Assertions of states
    • Progress Property
    • Non-Progress Property

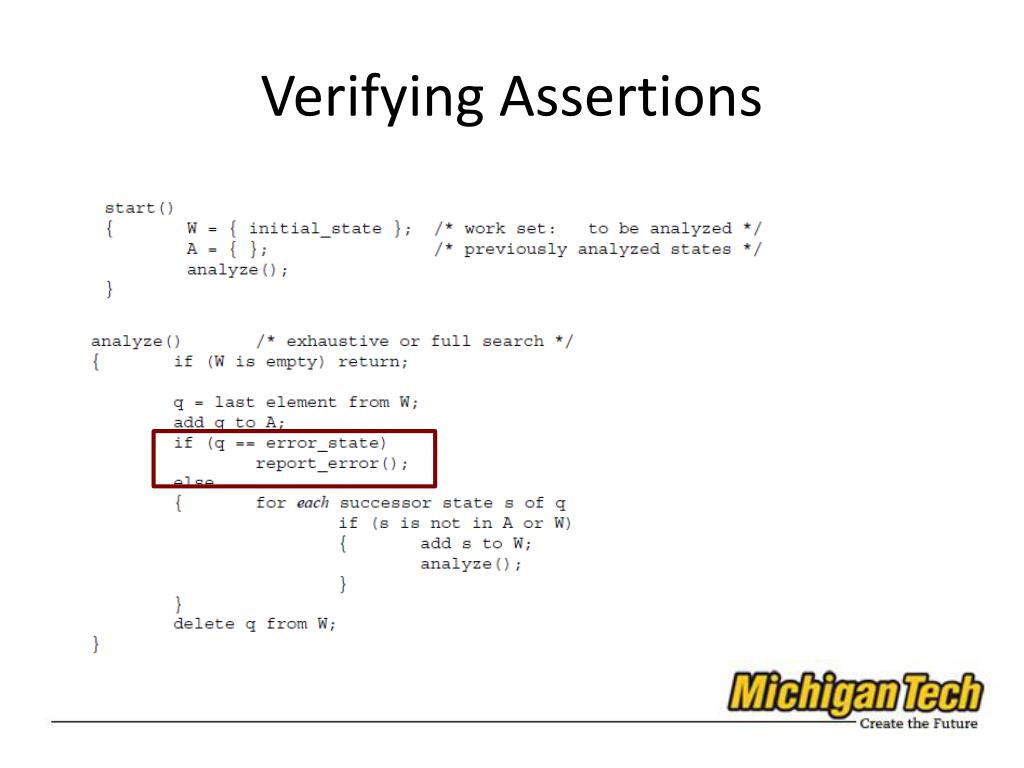

verifying non progress

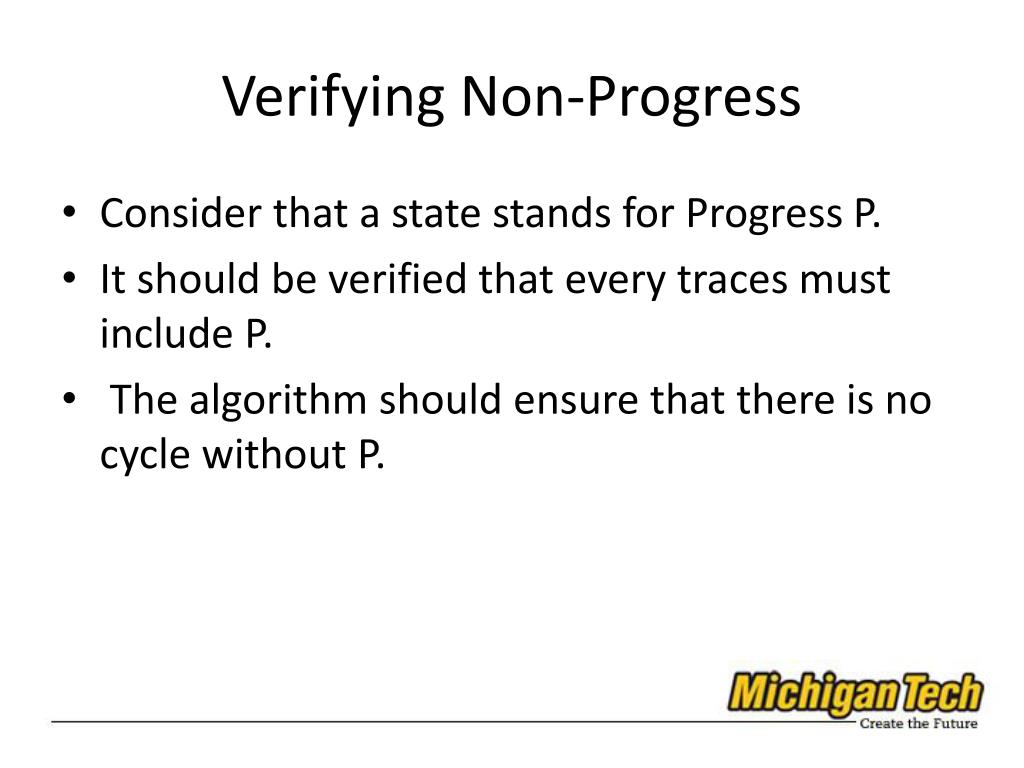

Verifying Non-Progress
  • Consider that a state stands for Progress P.
  • It should be verified that every traces must include P.
  • The algorithm should ensure that there is no cycle without P.

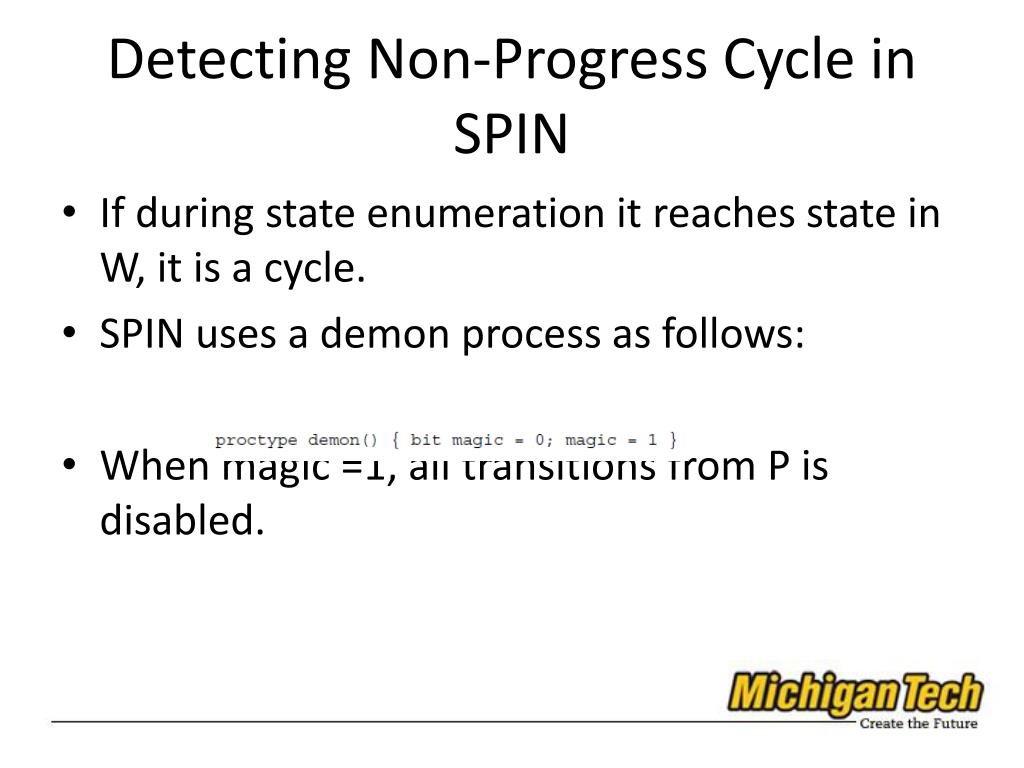

detecting non progress cycle in spin
Detecting Non-Progress Cycle in SPIN
  • If during state enumeration it reaches state in W, it is a cycle.
  • SPIN uses a demon process as follows:
  • When magic =1, all transitions from P is disabled.

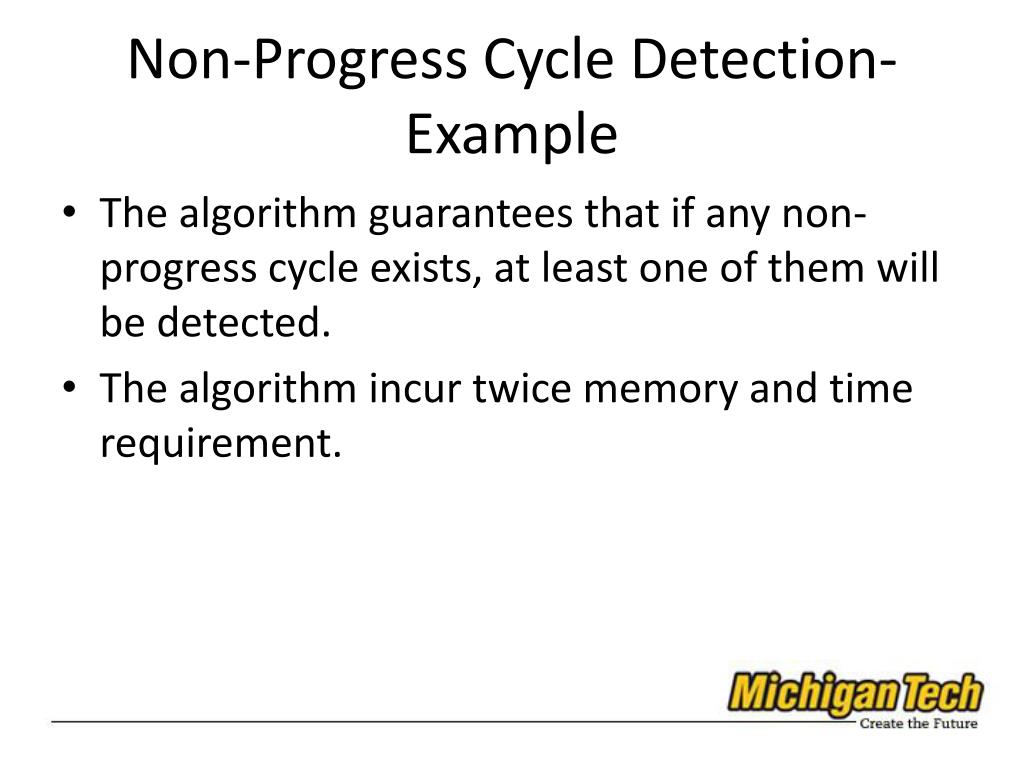

non progress cycle detection example1

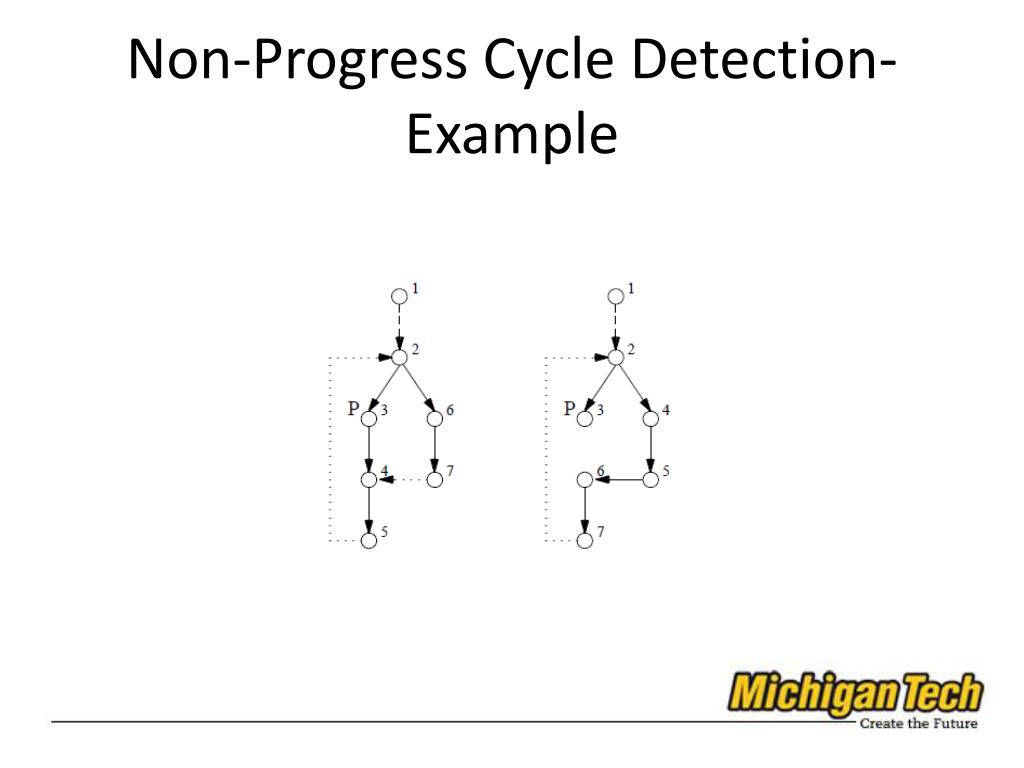

Non-Progress Cycle Detection-Example
  • The algorithm guarantees that if any non-progress cycle exists, at least one of them will be detected.
  • The algorithm incur twice memory and time requirement.
acceptance cycles

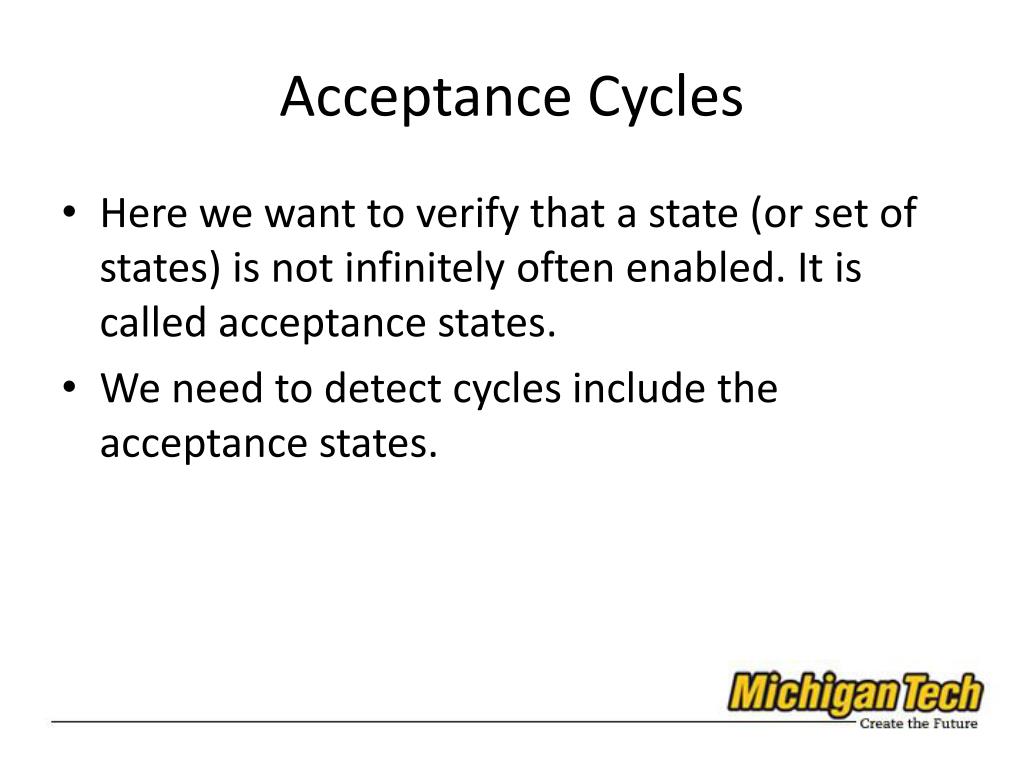

Acceptance Cycles
  • Here we want to verify that a state (or set of states) is not infinitely often enabled. It is called acceptance states.
  • We need to detect cycles include the acceptance states.
detection of acceptance cycles

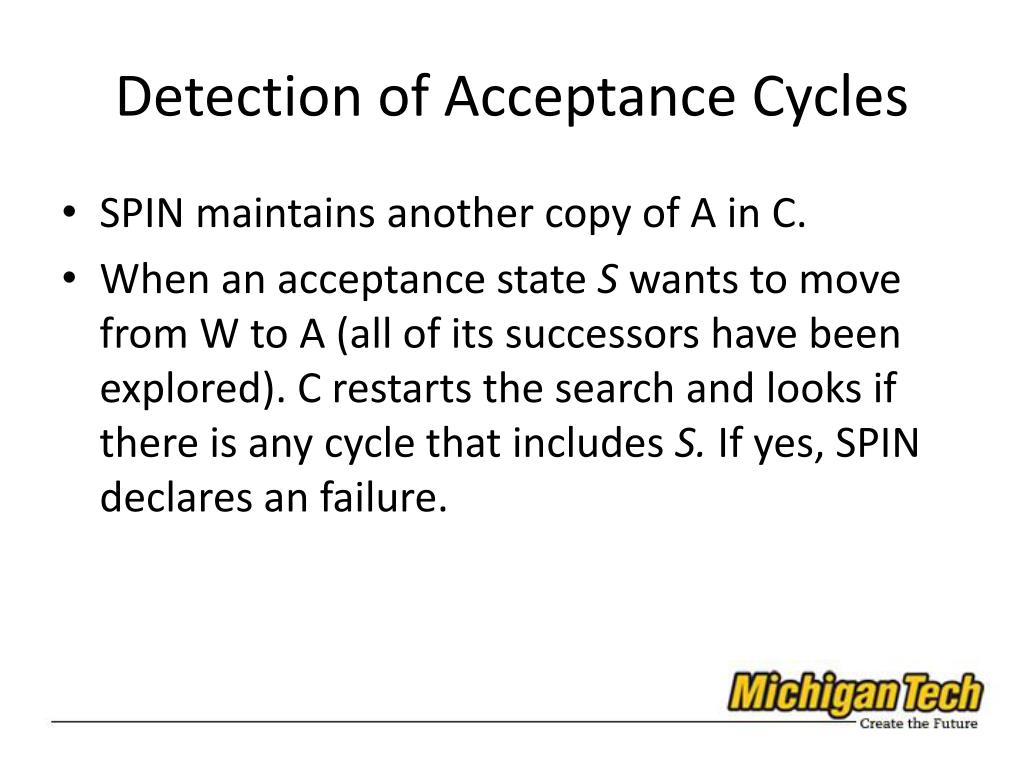

Detection of Acceptance Cycles
  • SPIN maintains another copy of A in C.
  • When an acceptance state S wants to move from W to A (all of its successors have been explored). C restarts the search and looks if there is any cycle that includes S. If yes, SPIN declares an failure.

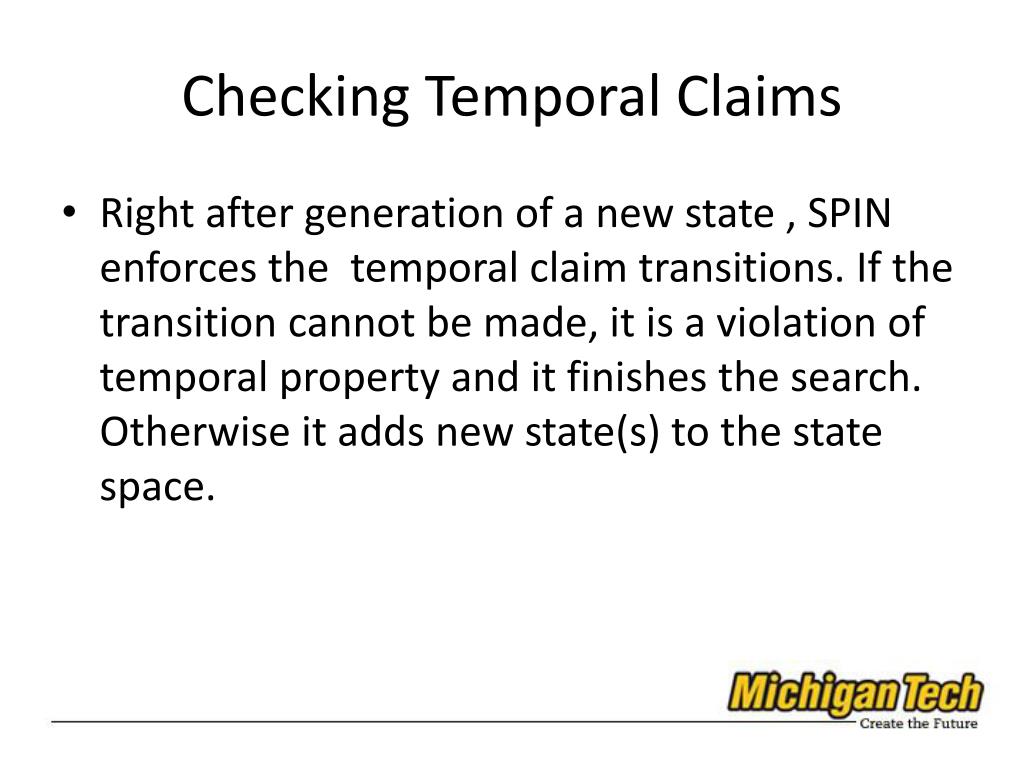

checking temporal claims
Checking Temporal Claims
  • Right after generation of a new state , SPIN enforces the temporal claim transitions. If the transition cannot be made, it is a violation of temporal property and it finishes the search. Otherwise it adds new state(s) to the state space.
validator corresponding files

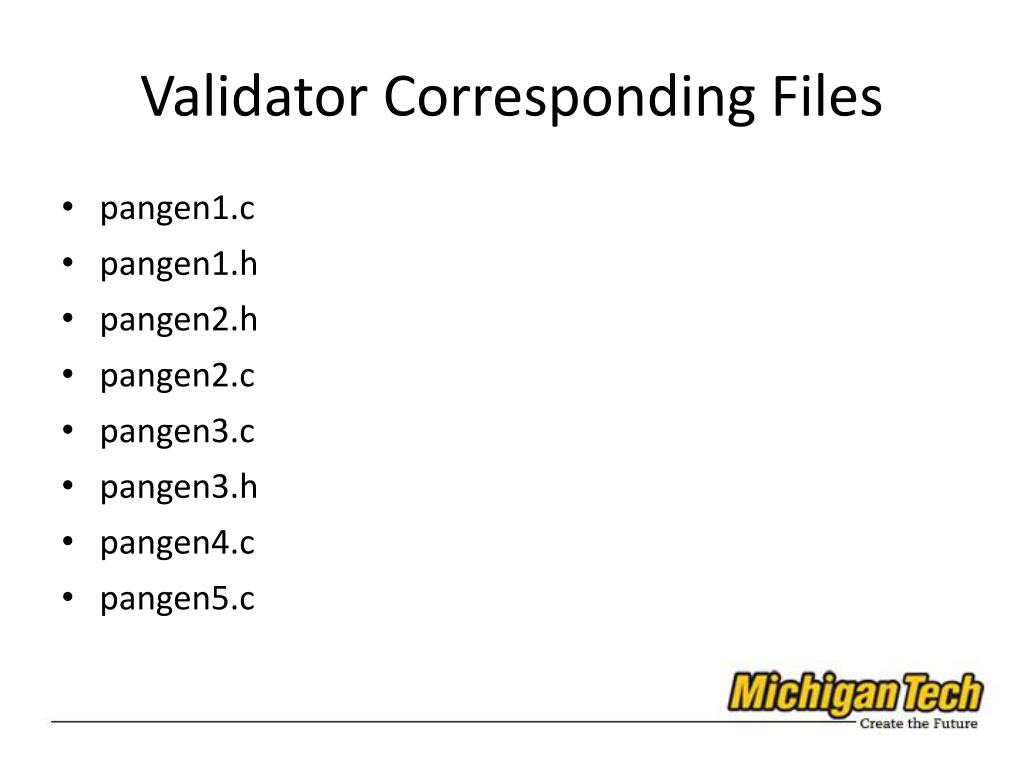

Validator Corresponding Files
  • pangen1.c
  • pangen1.h
  • pangen2.h
  • pangen2.c
  • pangen3.c
  • pangen3.h
  • pangen4.c
  • pangen5.c

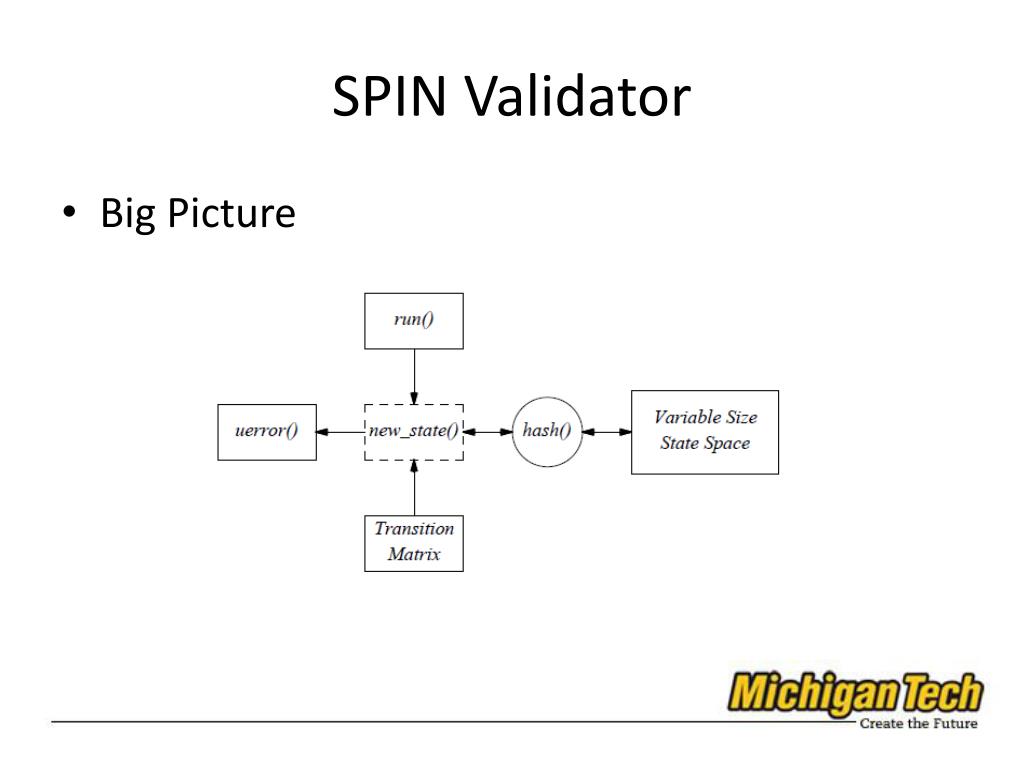

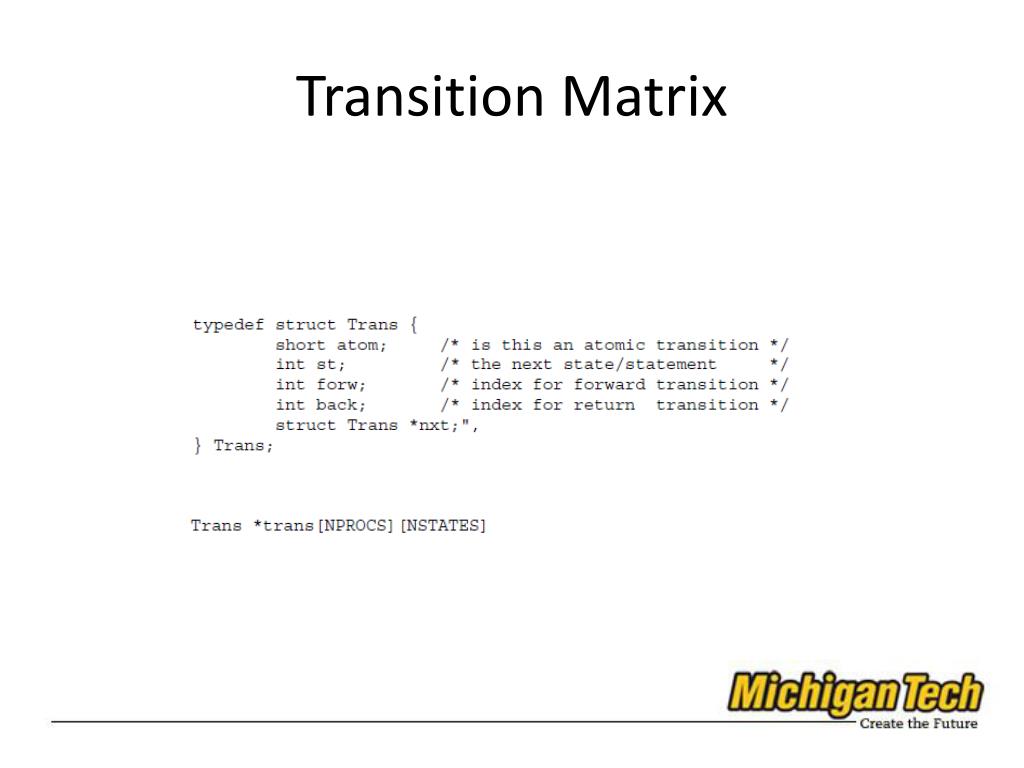

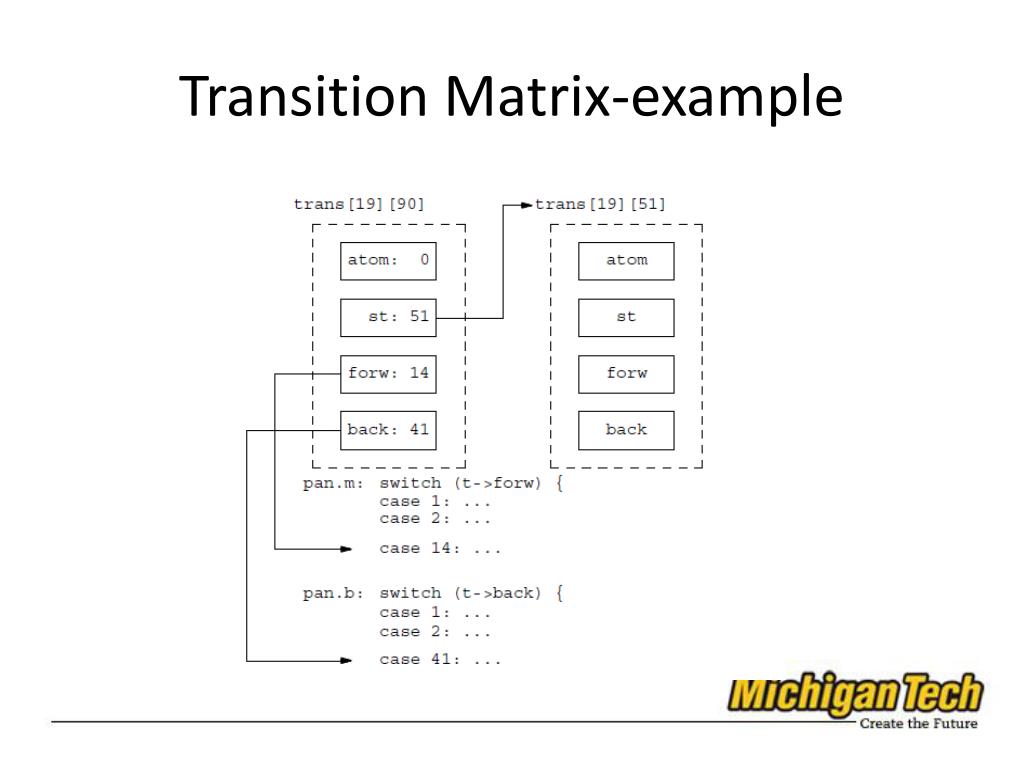

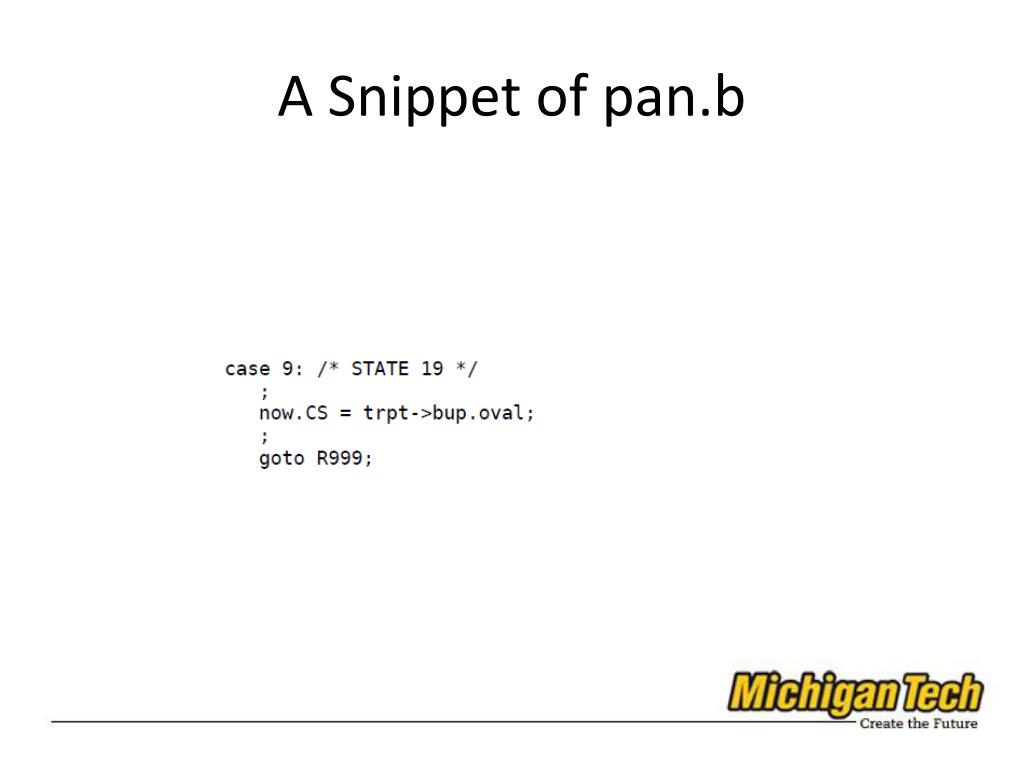

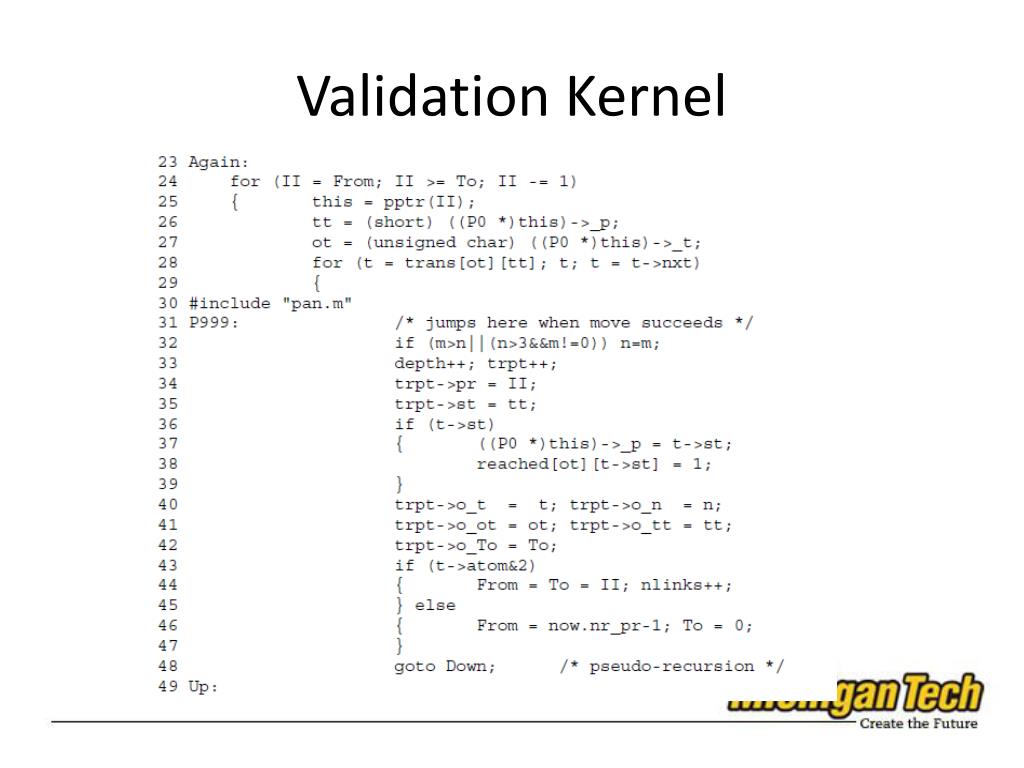

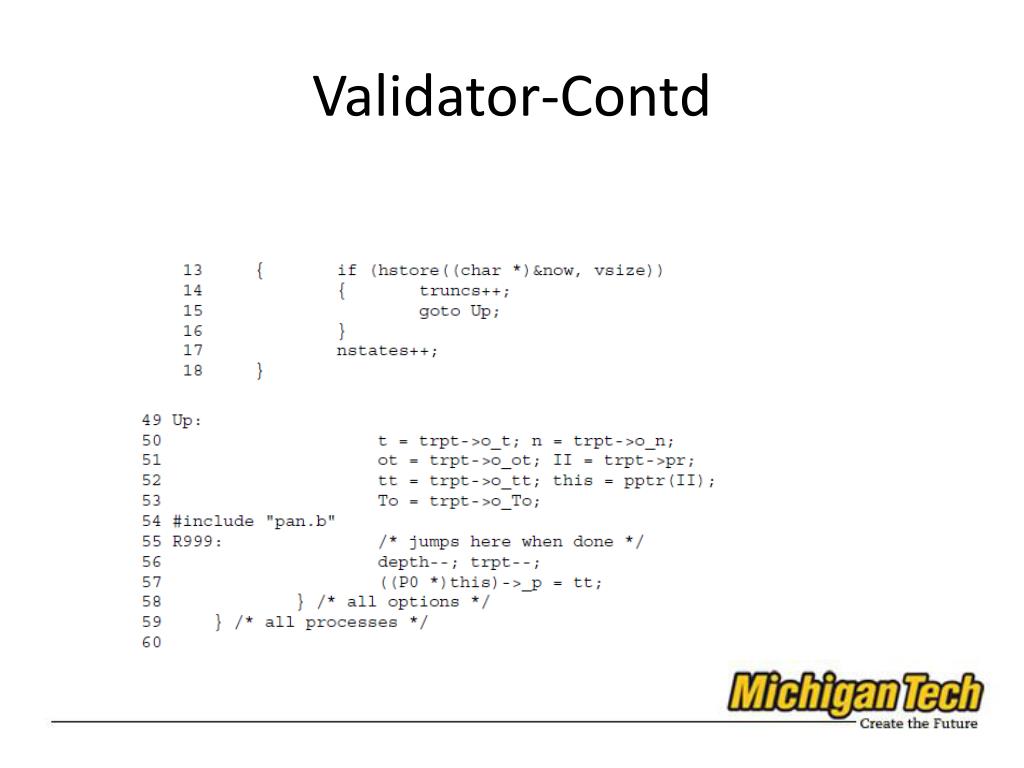

spin validator
SPIN Validator
  • Big Picture
reference
Reference
  • G J Holzmann Design and Validation of Computer Protocols. Prentice-Hall, 1991
further readings
Further Readings
  • Lee, D. and Yannakakis, M. Testing Finite-State Machines: State Identification and Verification. IEEE Trans. Computers. 43, 3 (Mar. 1994), 306-320.
  • Yannakakis, M. . Testing finite state machines. In Proceedings of the Twenty-Third Annual ACM Symposium on theory of Computing (New Orleans, Louisiana, United States, May 05 - 08, 1991). STOC '91.
  • M Yannakakis, D Lee. Testing Finite State Machines: Fault Detection. Journal of Computer and System Sciences, 1995.
  • GJ Holzmann, Design and validation of protocols: a tutorial, Computer Networks and ISDN Systems, 1993.
  • Lee, D.; Yannakakis, M. Principles and methods of testing finite state machines-a survey , Proceedings of the IEEE , vol.84, no.8, pp.1090-1123, Aug 1996.
slide25

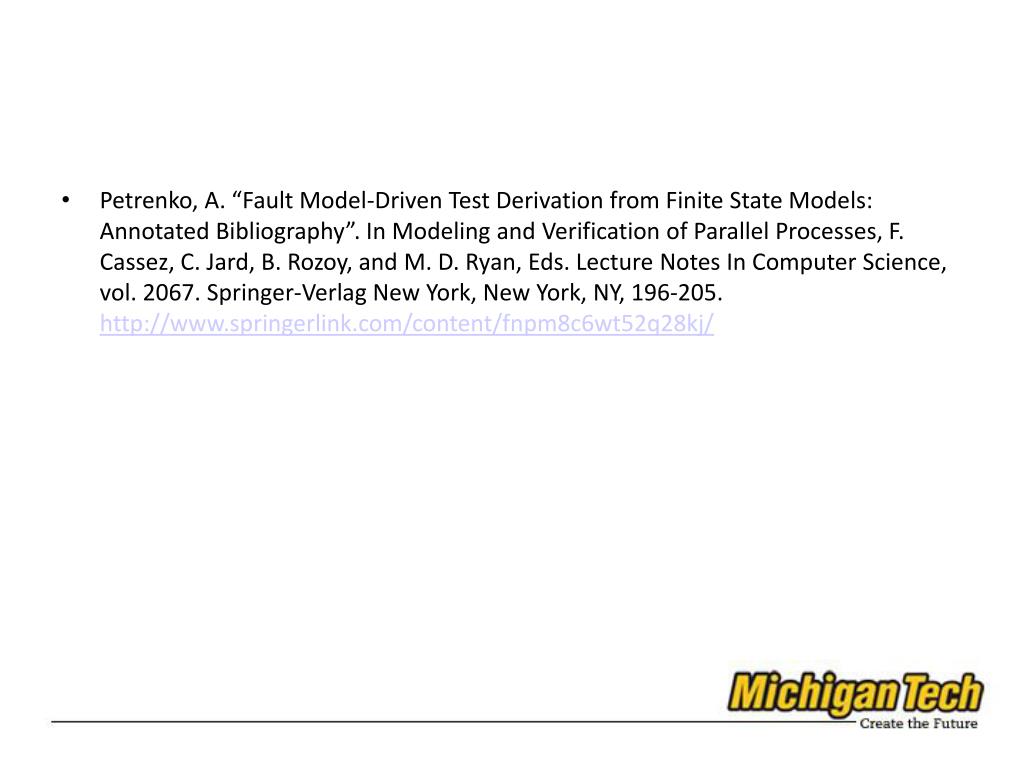

Petrenko, A. “Fault Model-Driven Test Derivation from Finite State Models: Annotated Bibliography”. In Modeling and Verification of Parallel Processes, F. Cassez, C. Jard, B. Rozoy, and M. D. Ryan, Eds. Lecture Notes In Computer Science, vol. 2067. Springer-Verlag New York, New York, NY, 196-205. http://www.springerlink.com/content/fnpm8c6wt52q28kj/
