1. Spin Model Checker Samaneh Navabpour Electrical and Computer Engineering Department University of Waterloo SE-464 Summer 2011

2. Common Design Flaws • Deadlock • Livelock, Starvation • Under-specification • Over-specification • Violation of Constraints • Etc. • Most of the errors caused by these flaws can be detected by model checking.

3. Model Checking and Spin • Model Checking: • Is an automated technique that, given a finite model of a system and a logical property, systematically checks whether this property holds for that model. • Spin is a well known classical model checker. • Aims towards concurrent systems • Only checks functional properties • Does not model real-time, but is capable of modeling timeouts. Abstract Verification Model Implementation Design abstraction refinement Model Checker

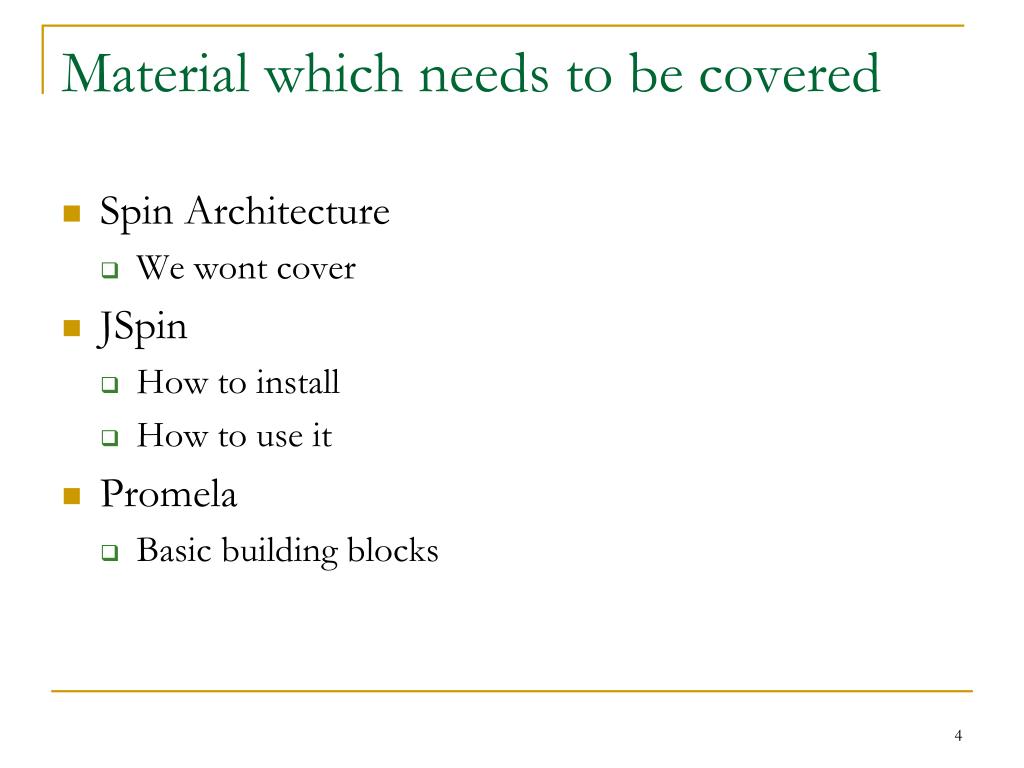

4. Material which needs to be covered • Spin Architecture • We wont cover • JSpin • How to install • How to use it • Promela • Basic building blocks

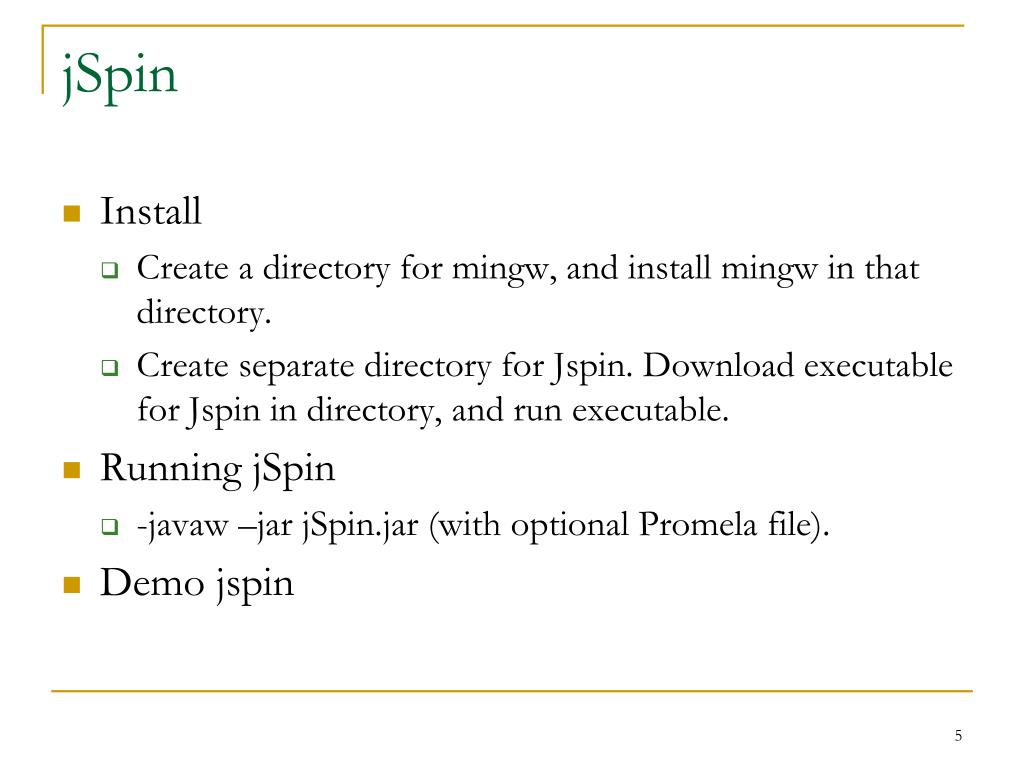

5. jSpin • Install • Create a directory for mingw, and install mingw in that directory. • Create separate directory for Jspin. Download executable for Jspin in directory, and run executable. • Running jSpin • -javaw –jar jSpin.jar (with optional Promela file). • Demo jspin

6. jSpin • Check • Runs a syntax check. • Random • Runs a random simulation. • Interactive • Runs an interactive simulation. • Guided • Runs a guided simulation using the trail file created by the execution of the analyzer.

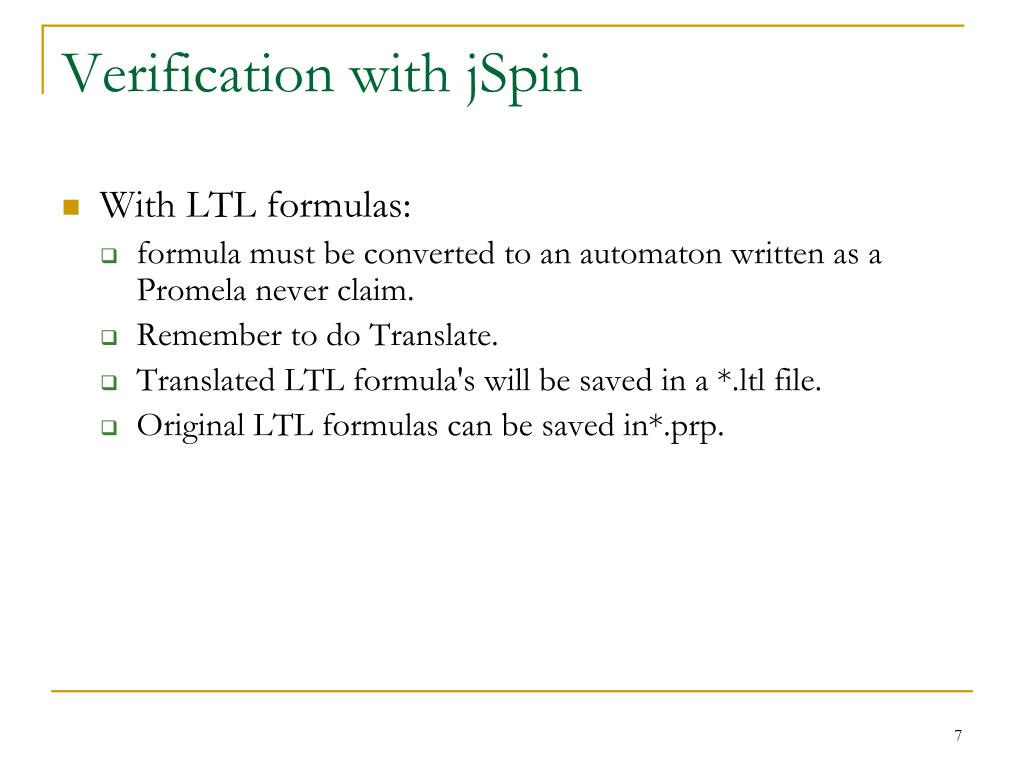

7. Verification with jSpin • With LTL formulas: • formula must be converted to an automaton written as a Promela never claim. • Remember to do Translate. • Translated LTL formula's will be saved in a *.ltl file. • Original LTL formulas can be saved in*.prp.

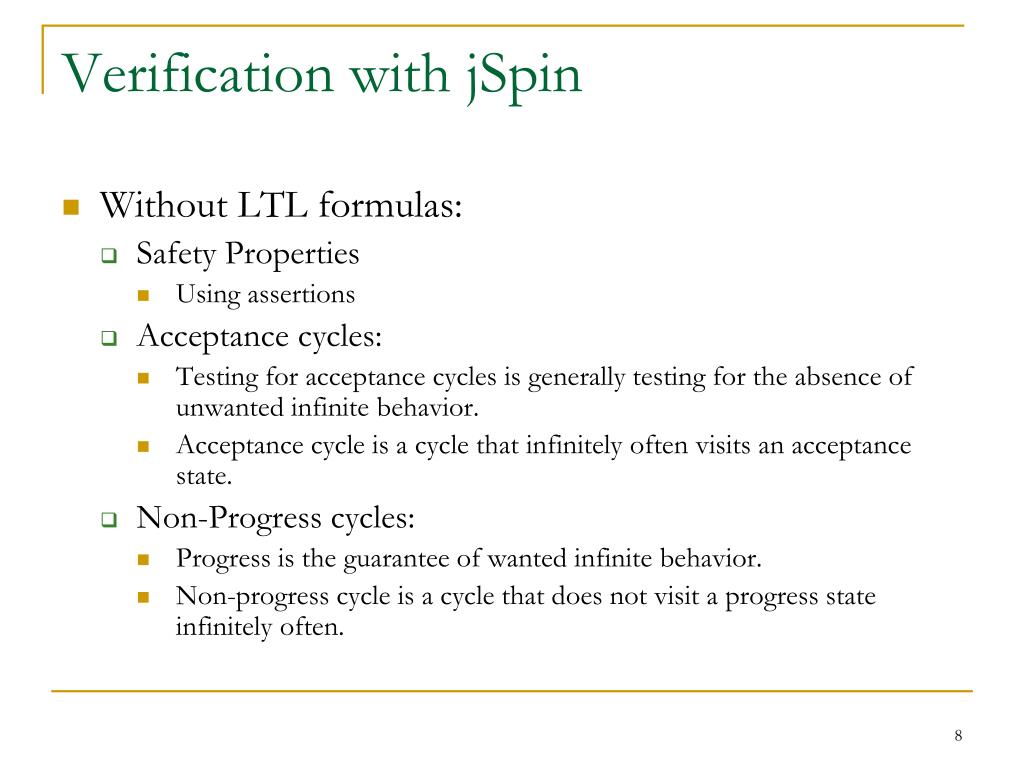

8. Verification with jSpin • Without LTL formulas: • Safety Properties • Using assertions • Acceptance cycles: • Testing for acceptance cycles is generally testing for the absence of unwanted infinite behavior. • Acceptance cycle is a cycle that infinitely often visits an acceptance state. • Non-Progress cycles: • Progress is the guarantee of wanted infinite behavior. • Non-progress cycle is a cycle that does not visit a progress state infinitely often.

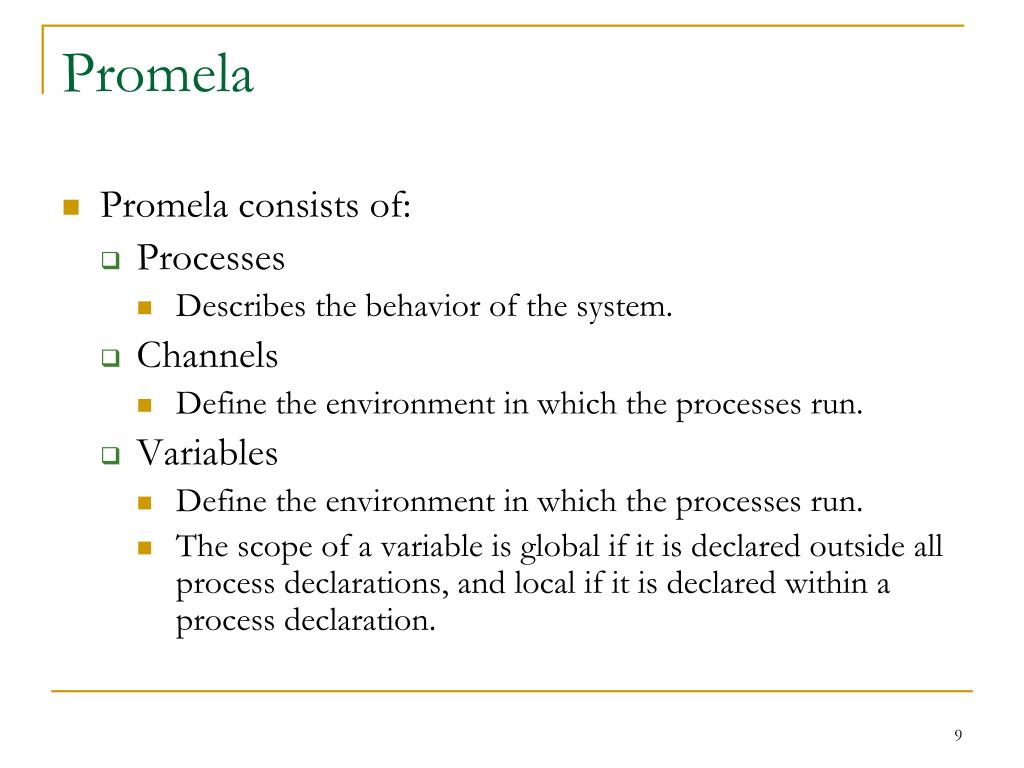

9. Promela • Promela consists of: • Processes • Describes the behavior of the system. • Channels • Define the environment in which the processes run. • Variables • Define the environment in which the processes run. • The scope of a variable is global if it is declared outside all process declarations, and local if it is declared within a process declaration.

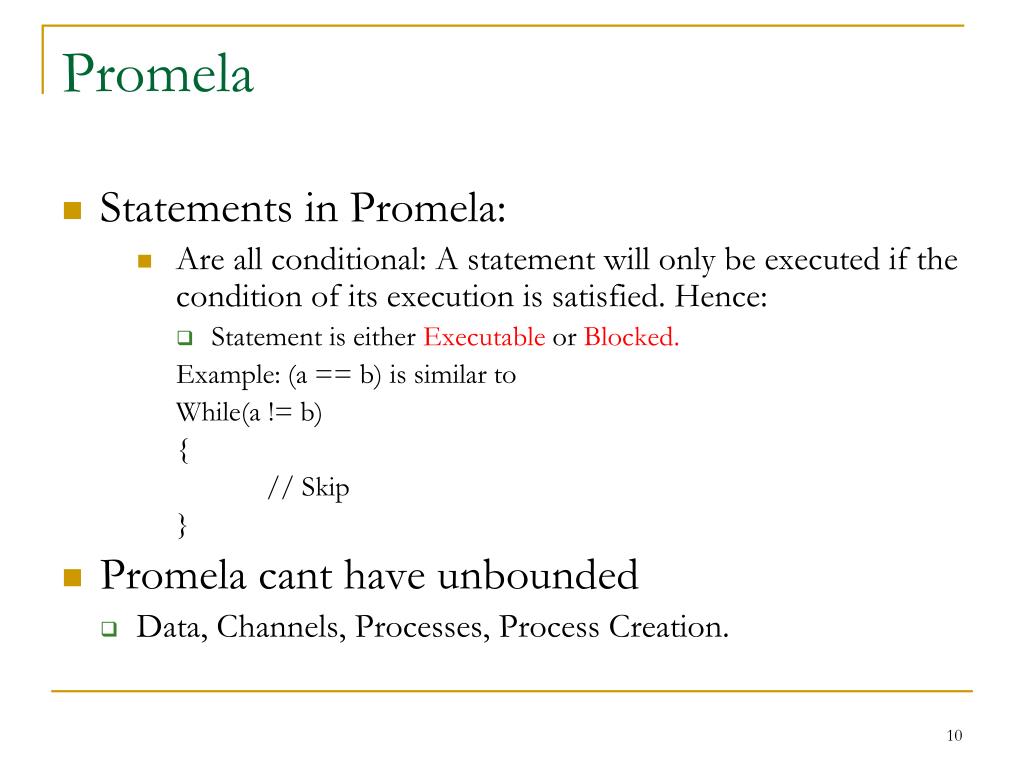

10. Promela • Statements in Promela: • Are all conditional: A statement will only be executed if the condition of its execution is satisfied. Hence: • Statement is either Executable or Blocked. Example: (a == b) is similar to While(a != b) { // Skip } • Promela cant have unbounded • Data, Channels, Processes, Process Creation.

11. Promela-variables • Basic Types: • Bit • Bool • Byte • Short • Int • Arrays • Byte test[9] • Record • Typedef test {int test1, byte test2}

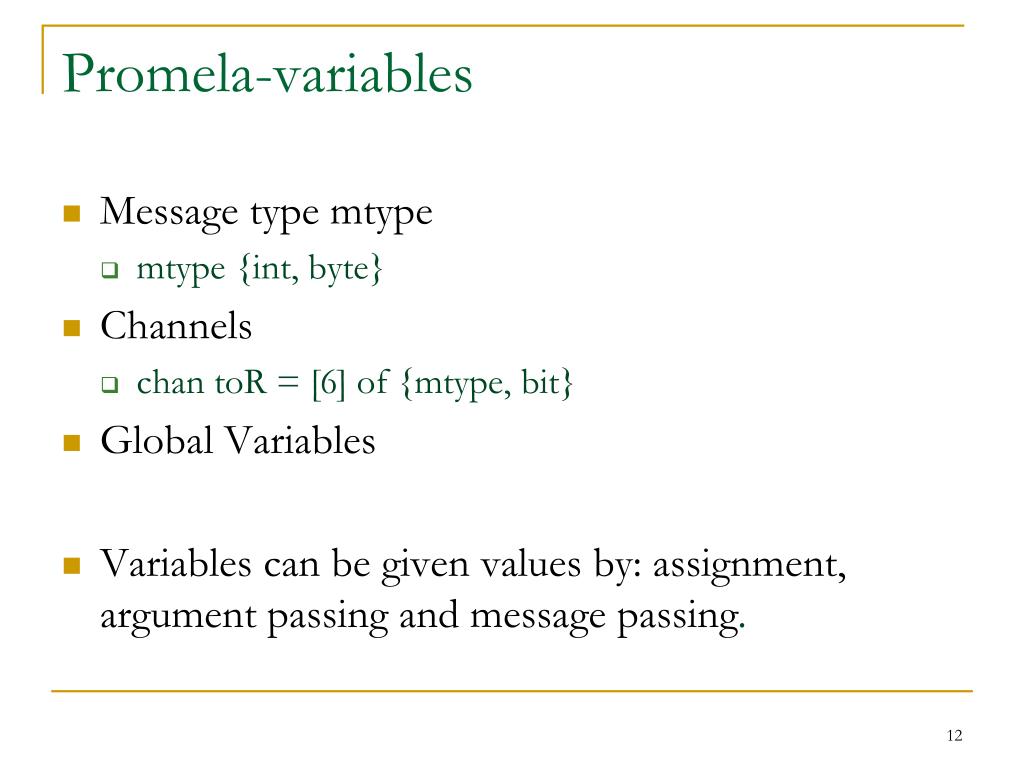

12. Promela-variables • Message type mtype • mtype {int, byte} • Channels • chan toR = [6] of {mtype, bit} • Global Variables • Variables can be given values by: assignment, argument passing and message passing.

13. Promela-processes • Processes • Can be created by run or active. • Can be created at any point. • Processes can interact via channels or global variables. • The run statement can pass parameter values of all basic data types to the new process. proctype P() { … } Init{ Int pid2 = run P(); } name execution number byte state; active [2] proctype P() { (state == 1) -> state = 3 } OR

14. Promela- Advanced Topics • atomic: • Statements in atomic are executed as one indivisible unit, non-interleaved with any other processes. • d_step: • Similar to atomic • Does not save intermediate states • Can not contain non-determinism or blocking statements proctype P() { atomic{ (state==1) -> state = state+1 } }

15. Promela-Statements • If-statement: • If more than one guard is satisfied, we have non- determinism. • If all guards are un-executable the process will block until at least one of them can be selected. • There is no restriction on the type of statements that can be used as a guard. if :: count = count + 1 :: count = count – 1 fi if :: (a >= b ) -> Stmt1 ; Stmt2 ; … :: (a < b ) -> Stmt3 ; Stmt4 ; … :: (a == b ) -> Stmt5 ; Stmt6 ; … :: else -> Stmt7 fi

16. Promela-Statements • Do-statement • Same as if-statement, only in a while loop. do :: count = count + 1 :: count = count – 1 :: (count == 0) -> break od do :: (a >= b ) -> Stmt1 ; Stmt2 ; … :: (a < b ) -> Stmt3 ; Stmt4 ; … :: (a == b ) -> Stmt5 ; Stmt6 ; … :: else -> Stmt7 od

17. Promela-Communication • Processes can communicate in two ways: • Global variables • Channels: • chan <name> = [<dim>] of {<type1>, <type2>, ..,<typen>} • Example: chantoR = [2] of {int, int} • Asynchronously : dimension > 0 • Synchronously : dimension = 0 • Actions: • Sending : ch ! <expr_1>, ..,<expr_n> • Receiving: ch ? var_1,..,var_n • If send and receive can not happen, process will block. toR!(1,5) ……. toR?(x1,x2)

18. Promela-Statements • Special Statements: • goto • skip: same as 1 or true, • run • assert (<expr>) • check whether certain properties hold. Gives an error if violated.

19. Promela- Advanced Topics • Timeout • Promela has no real-time features • The timeout statement can only be executed when no other statement in the system can be executed • Can help get out of deadlock • The timeout models a special condition that allows a process to abort the waiting for a condition that may never become true, e.g. an input from an empty channel. • Example: do :: guard1 -> Stmt1; … :: timeout -> break ;… od

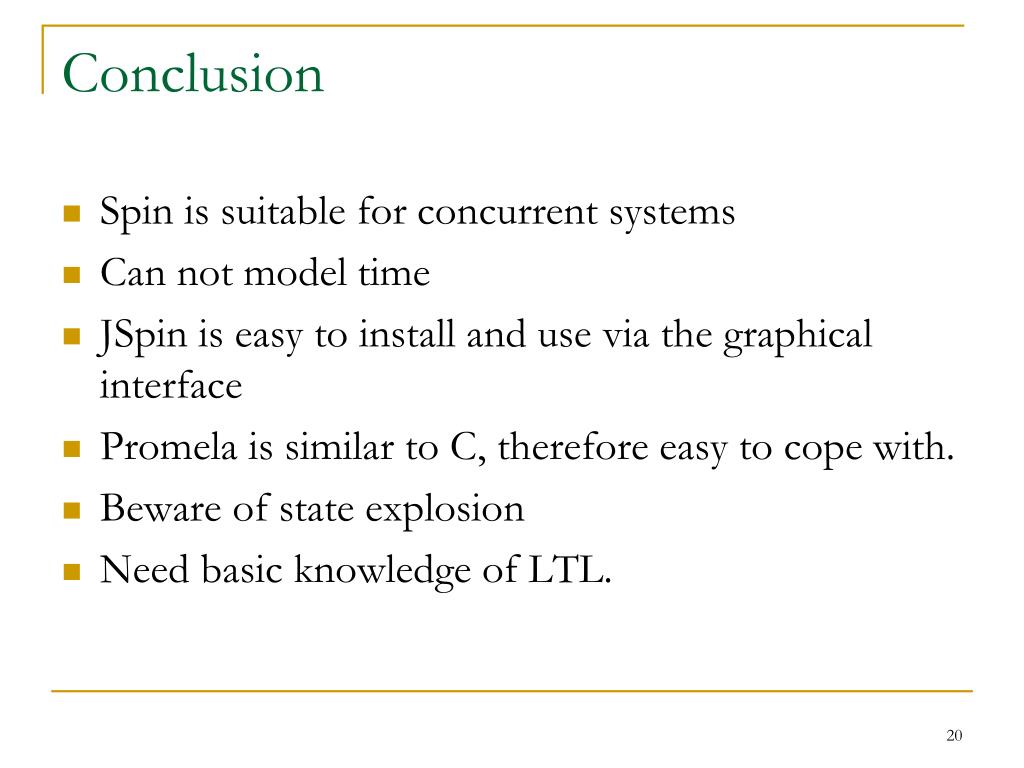

20. Conclusion • Spin is suitable for concurrent systems • Can not model time • JSpin is easy to install and use via the graphical interface • Promela is similar to C, therefore easy to cope with. • Beware of state explosion • Need basic knowledge of LTL.

21. References • Spin official page • http://spinroot.com • Spin online tutorials • http://spinroot.com/spin/Man/index.html • Jspin • http://stwww.weizmann.ac.il/g-cs/benari/spin • Erigone • http://stwww.weizmann.ac.il/g-cs/benari/erigone
