MSK Transmitter

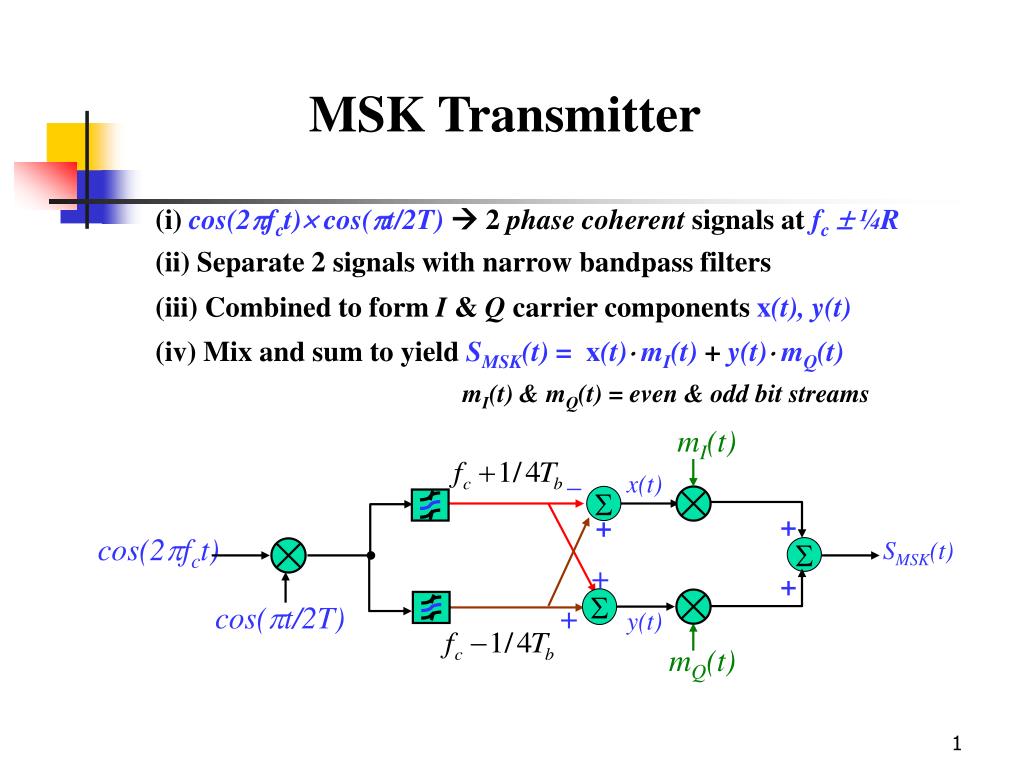

m I (t). _ +. x(t). S MSK (t). + +. y(t). m Q (t). . + +. cos(2 f c t ). . . cos( t/2T ). MSK Transmitter. (i) cos(2 f c t )  cos( t/2T )  2 phase coherent signals at f c  ¼R (ii) Separate 2 signals with narrow bandpass filters

lenka
Download Presentation

MSK Transmitter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. mI(t) _ + x(t) SMSK(t) + + y(t) mQ(t)  + + cos(2fct)   cos(t/2T) MSK Transmitter (i) cos(2fct)cos(t/2T) 2 phase coherent signals atfc ¼R (ii) Separate 2 signals with narrow bandpass filters (iii) Combined to formI & Q carrier components x(t), y(t) (iv) Mix and sum to yield SMSK(t) = x(t)mI(t) + y(t)mQ(t) mI(t) & mQ(t) = even & odd bit streams

  2. Coherent MSK Receiver • (i) SMSK(t) split & multiplied by locally generated • x(t) & y(t) (I & Q carriers) • (ii) mixer outputs are integrated over 2T & dumped • (iii) integrate & dump output fed to decision circuit every 2T • input signal level compared to threshold  decide 1 or 0 • output data streams correspond to mI(t) & mQ(t) • mI(t) & mQ(t) are offset & combined to obtain demodulated signal • *assumes ideal channel – no noise, interference

  3. SMSK(t) Coherent MSK Receiver Threshold Device mI(t) t = 2(k+1)T x(t) y(t) Threshold Device mQ(t) t = 2(k+1)T

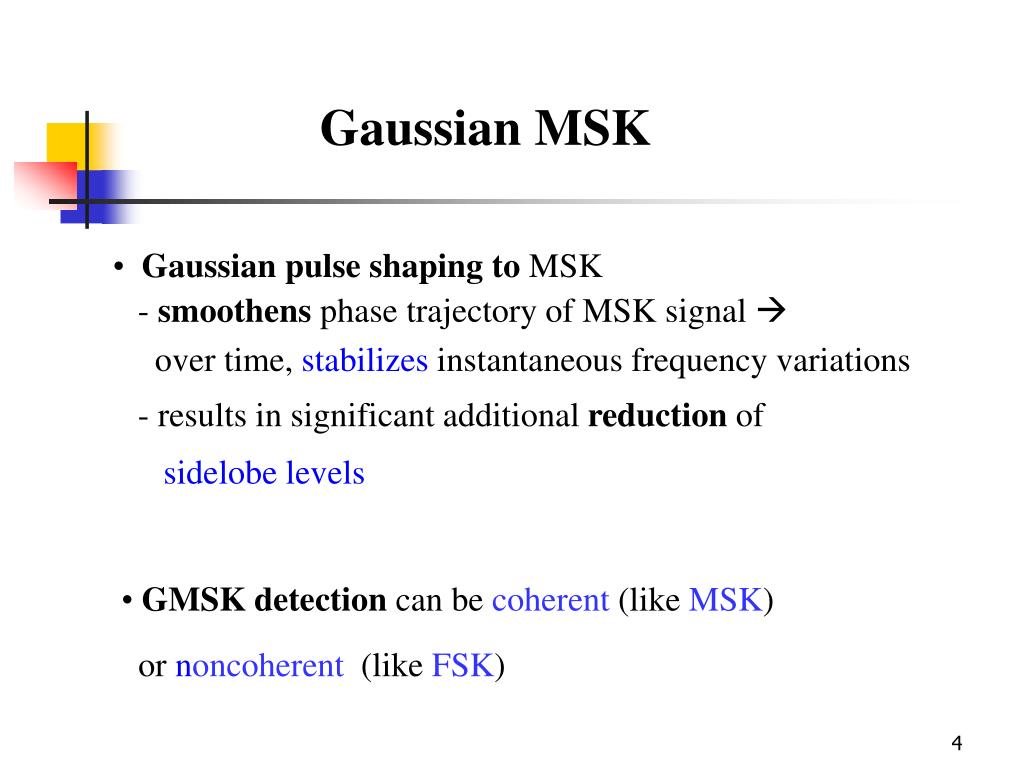

  4. Gaussian MSK • Gaussian pulse shaping to MSK • smoothens phase trajectory of MSK signal  • over time, stabilizes instantaneous frequency variations • results in significant additional reduction of • sidelobe levels • GMSK detection can be coherent (like MSK) • or noncoherent (like FSK)

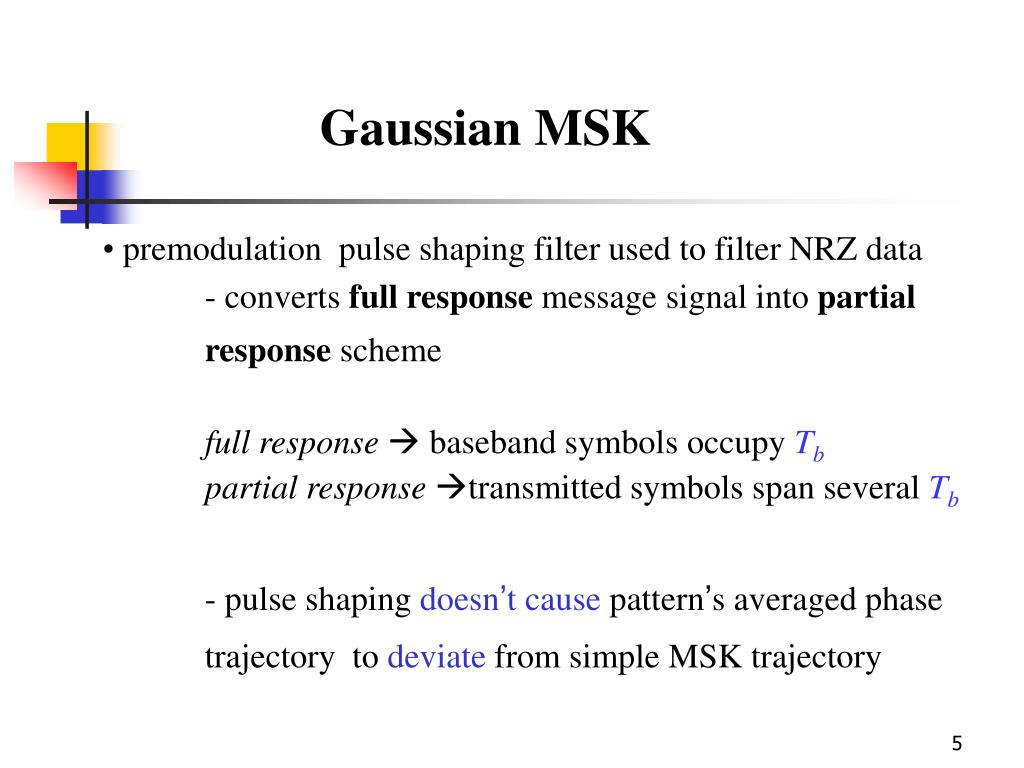

  5. Gaussian MSK • premodulation pulse shaping filter used to filter NRZ data • - converts full response message signal into partial response scheme • full response baseband symbols occupy Tb • partial responsetransmitted symbols span several Tb • - pulse shaping doesn’t cause pattern’s averaged phase trajectory to deviate from simple MSK trajectory

  6. Gaussian MSK • GMSKs main advantages are • power efficiency - from constant envelope (non-linear amplifiers) • excellent spectral efficiency • pre-modulation filtering introduces ISI into transmitted signal • if B3dbTb > 0.5  degradation is not severe • B3dB= 3dB bandwidth of Gaussian Pulse Shaping Filter • Tb= bit duration = baseband symbol duration • irreducible BER caused by partial response signaling is the • cost for spectral efficiency & constant envelope • GMSK filter can be completely defined from B3dB Tb • - customary to define GMSK by B3dBTb

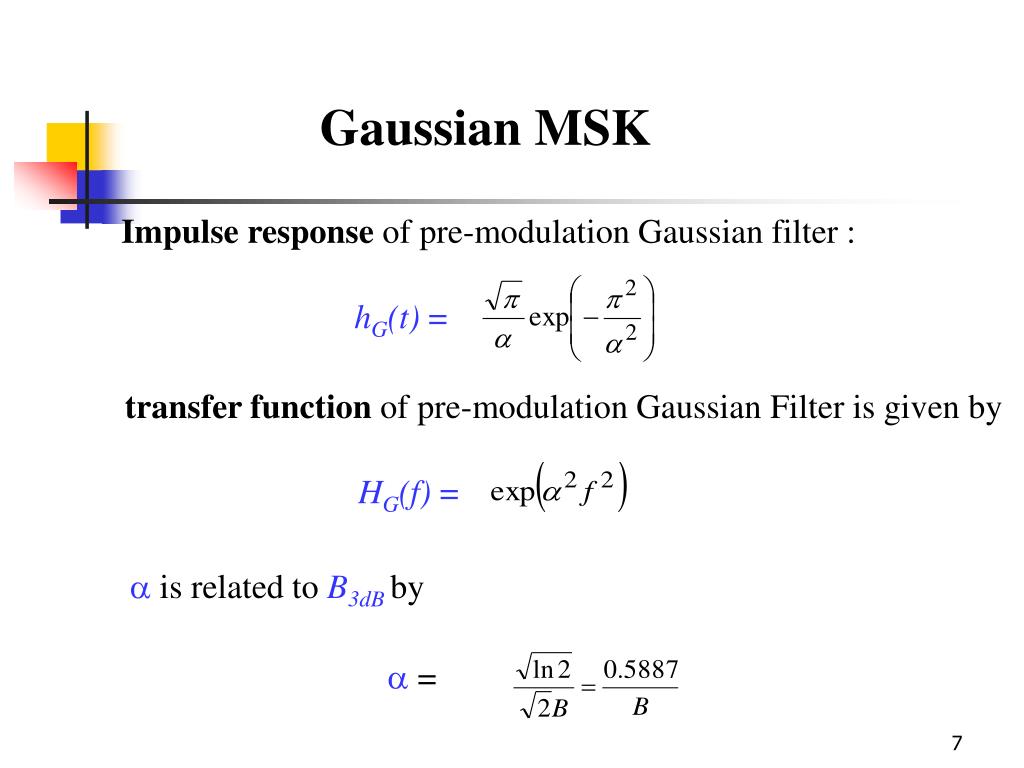

  7. Impulse responseof pre-modulation Gaussian filter : hG(t) = transfer function of pre-modulation Gaussian Filter is given by HG(f) =  is related toB3dB by  = Gaussian MSK

  8. Impact of B3dBTb • (i) ReducingB3dBTb : spectrum becomes more compact (spectral efficiency) • causes sidelobes of GMSK to fall off rapidly • B3dBTb = 0.5  2nd lobe peak is 30dB below main lobe • MSK 2nd peak lobe is 20dB below main lobe • MSK  GMSK with B3dBTb =  • (ii) increases irreducible error rate (IER)due to ISI • ISI degradation caused by pulse shaping increases • however - mobile channels induce IER due to mobile’s velocity • if GMSK IER < mobile channel IER  no penalty for using GMSK

  9. 0 -10 -20 -30 -40 -50 -60 BTb =  (MSK) BTb = 1.0 BTb = 0.5 BTb = 0.2 0 0.5 1.0 1.5 2.0 (f-fc)T PSD of GMSK signals • Increasing BTb • reduces signal spectrum • results in temporal spreading and distortion

  10. RF bandwidth containing % power as fraction of Rb e.g. for BT = 0.2  99% of the power is in the bandwidth of 1.22Rb • [Ish81] BER degradation from ISI caused by GMSK filtering is • minimal at B3dBTb= 0.5887 • degradation in required Eb/N0 = 0.14dB compared to case of no ISI

  11. Pe = BER of GMSK for AWGN channel • [Mur81] shown to perform within 1dB of optimal MSK with B3dBTb = 0.25 • since pulse shaping causes ISI  Peis function of B3dBTb Pe= bit error probability  is constant related to B3dBTb • B3dBTb = 0.25   = 0.68 • B3dBTb =    = 0.85 (MSK)

  12. Gaussian LPF FM Transmitter RF GMSK Output NRZ bits GMSK Transmitter Block Diagram GMSK Transmitter • (i) pass mNRZ(t) through Gaussian base band filter (see figure below) • - mNRZ(t) = NRZ bit stream • output of Gaussian filter passed to FM modulator • used in digital implementation for • - Global System for Mobile (GSM) • - US Cellular Digital Packet Data (CDPD) • (ii) alternate approach is to use standard I/Q modulator

  13. demodulated signal  /2 modulated IF input signal loop filter Q IF LO I  /2  clock recovery • GMSK Receiver • RF GMSK signal can be detected using • (i) orthogonal coherent detectors (block diagram) • (ii) simple non-coherent detectors (e.g. standard FM discriminators) (i) GMSK Receiver Block Diagram-orthogonal coherent detectors

  14. carrier recovery using De Budas method for(similar to Costas loop) • S’(t) = output of frequency doubler that contains 2 discrete frequency • components • - divide S’(t) by four: S’(t) /4 • - equivalent to PLL with frequency doubler

  15. D Q C D Q C D Q C D Q C modulated IF input signal D Q C clock recovery demodulated signal D C Q loop filter VCO • De Budasmethod implemented using digital logic • 2 D flip flops (DFF) act as quadrature product demodulator • XORs act as based band multipliers • mutually orthogonal reference carriers generated using 2 DFFs • VCOcenter frequency set to 4  fc ( fc = carrier center frequency) Logic Circuit for GMSK demodulation

  16. Detecting GMSK signal by sampling output of FM demodulator is a non-optimal, effective method • e.g. • Assume 0.25GMSK: B3dbTb= 0.25 & Rb = 270kbps • then • Tb = Rb-1= 3.7us • B3dB = 0.25/Tb = 67.567kHz • Occupied Spectrum - 90% power 0.57Rb = 153.9kHz • - use table
