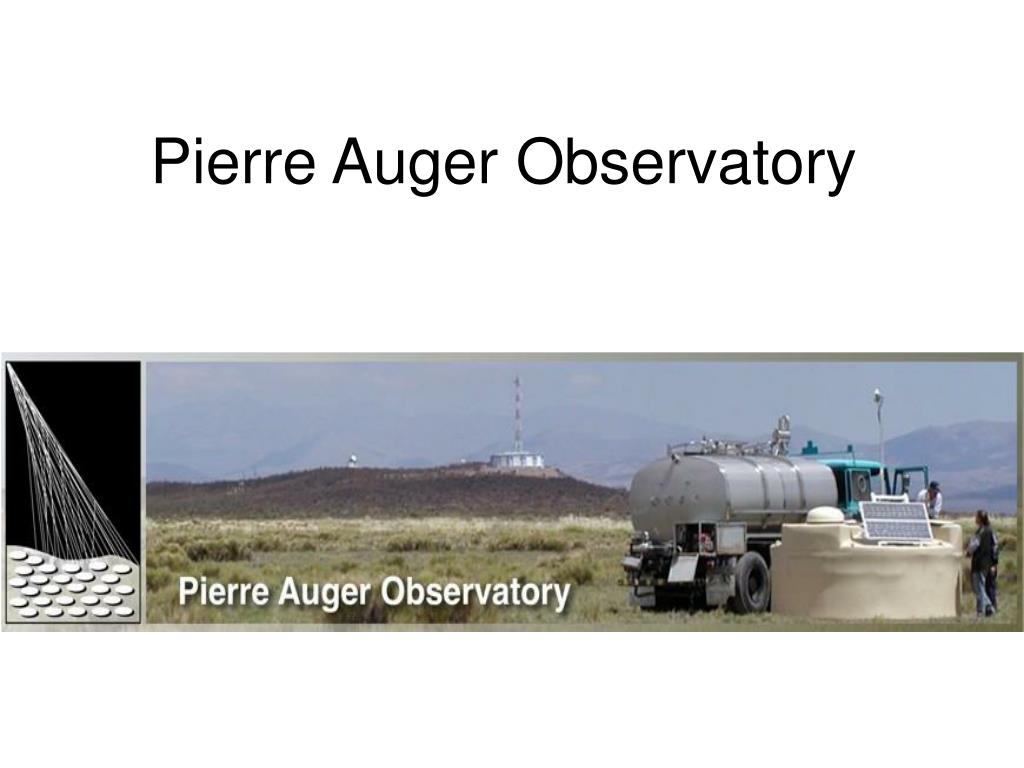

  1. Pierre Auger Observatory

  2. Pierre Auger(1899-1993) • Was a nuclear physics and cosmic ray physics. • Made cosmic ray experiments on the Jungfraujoch • Discovery of extensive air showers (1938) • He estimated the energy to 1015 eV

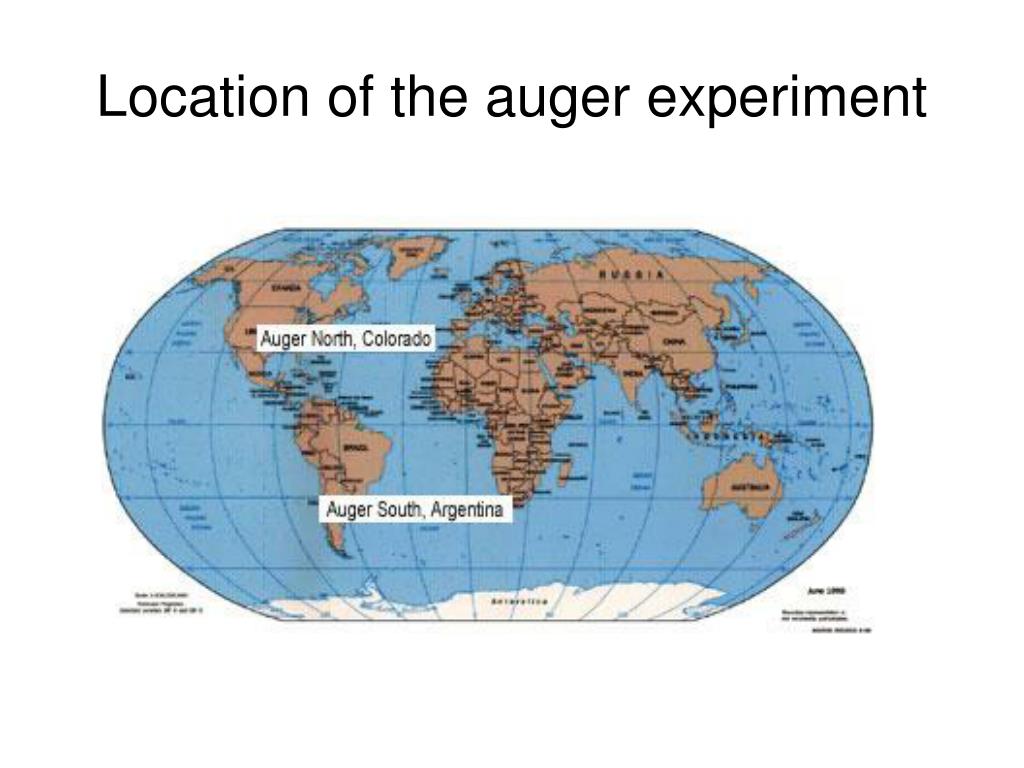

  3. Location of the auger experiment

  4. Involved countries http://www.auger.org/collaboration/

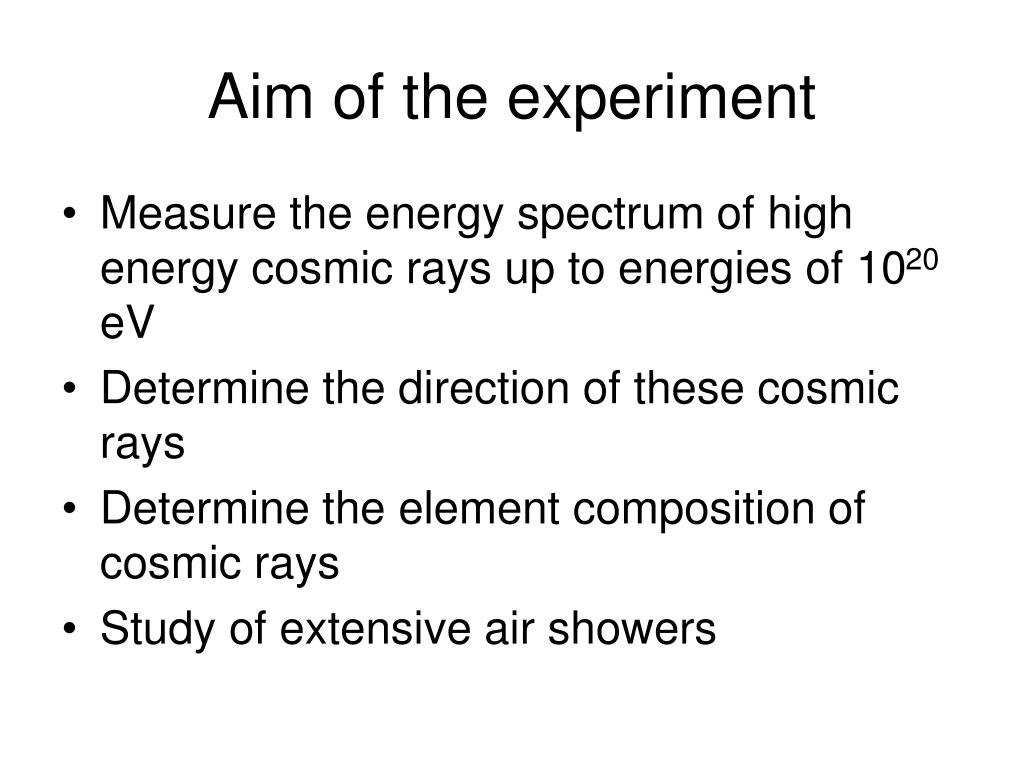

  5. Aim of the experiment • Measure the energy spectrum of high energy cosmic rays up to energies of 1020 eV • Determine the direction of these cosmic rays • Determine the element composition of cosmic rays • Study of extensive air showers

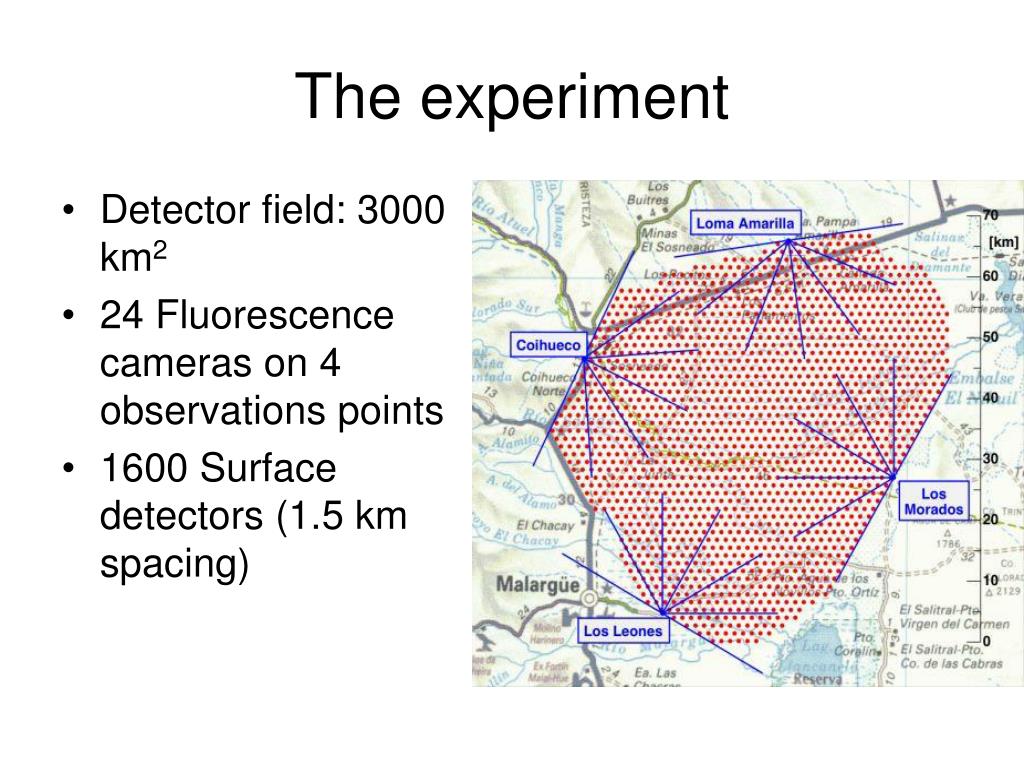

  6. The experiment • Detector field: 3000 km2 • 24 Fluorescence cameras on 4 observations points • 1600 Surface detectors (1.5 km spacing)

  7. Charged particles in an air shower also interact with atmospheric nitrogen (excitation) Emitted ultraviolet light via a process called fluorescence Direction and energy of the cosmic particle can be determined Fluorescence detector

  8. Fluorescence detector Licht auf einer grossen Spiegelfläche von etwa 12 Quadratmetern gesammelt, auf eine Kamera mit 440 Photonenvervielfachern gebündelt und dort alle 0.1 Mikrosekunden aufgezeichnet. Spiegel (links) und Kamera (rechts) eines Fluoreszenzteleskops.

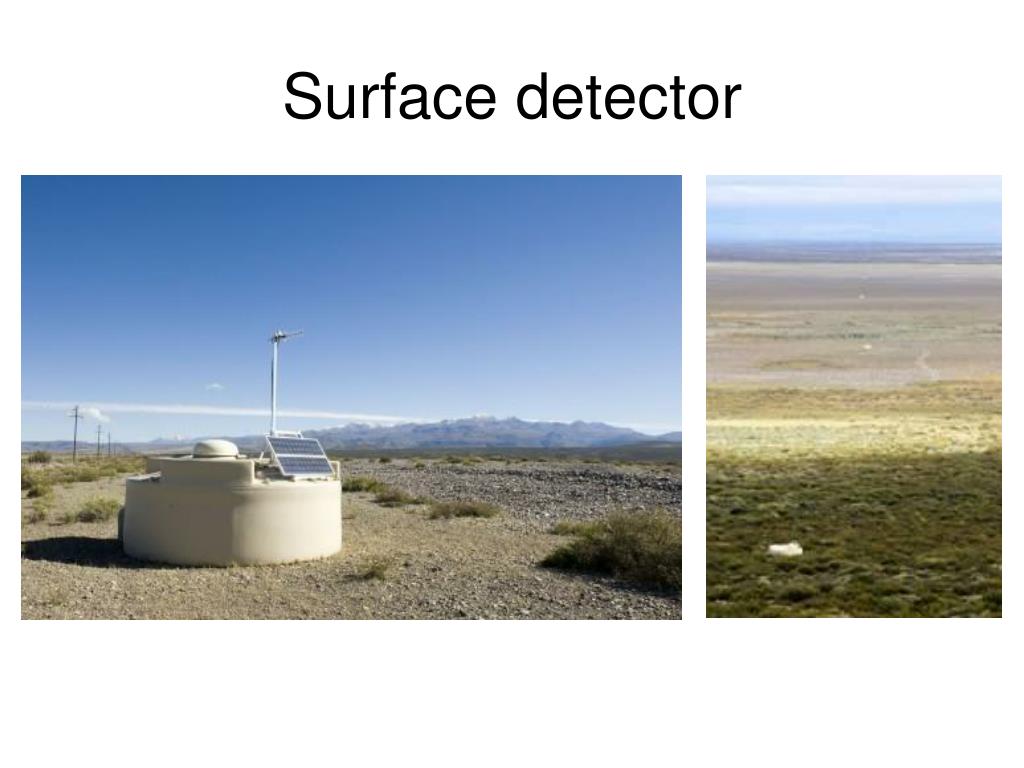

  9. Surface detector

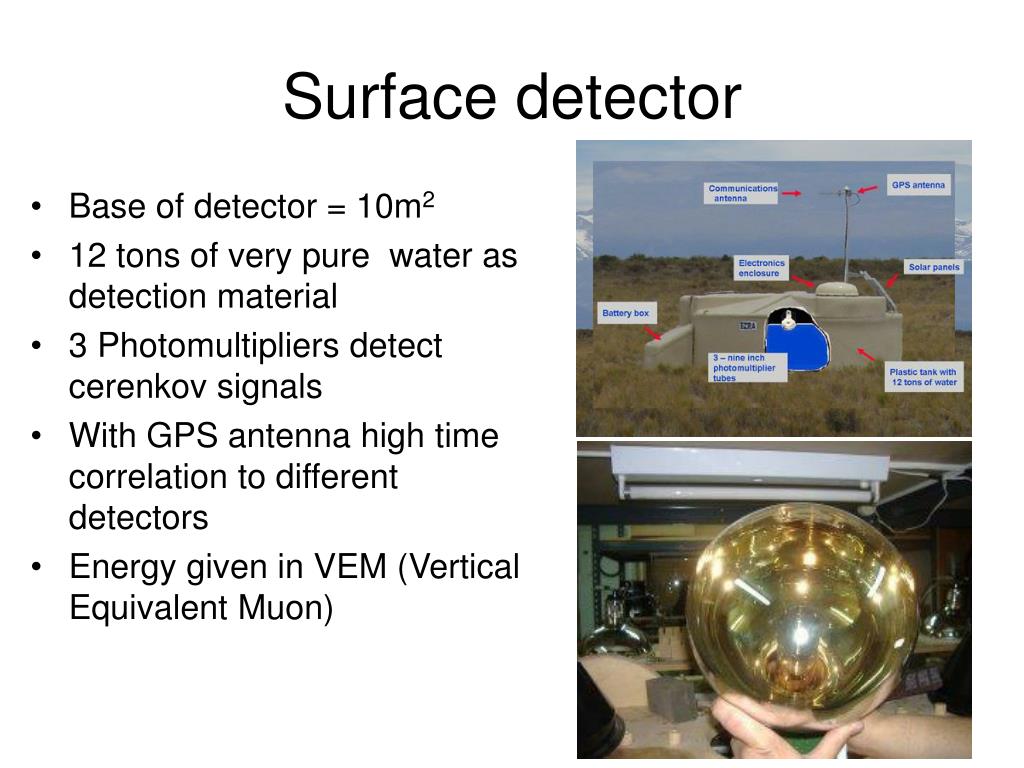

  10. Surface detector • Base of detector = 10m2 • 12 tons of very pure water as detection material • 3 Photomultipliers detect cerenkov signals • With GPS antenna high time correlation to different detectors • Energy given in VEM (Vertical Equivalent Muon)

  11. Cerenkov radiation • Speed of the particle must be higher than the speed of light in the medium • Speed of light in water = 0.75c

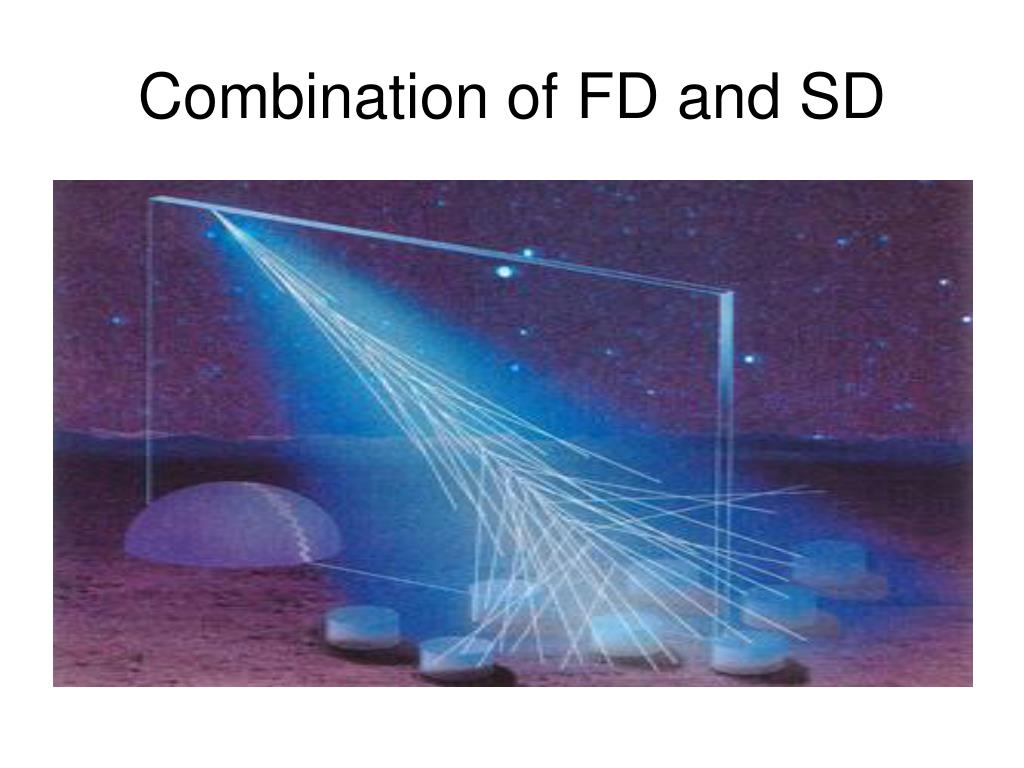

  12. Combination of FD and SD

  13. Results

  14. Results

  15. Results Abb. 1: Korrelation zwischen der kalorimetrischen Energiemessung durch die Fluoreszenzmessung und dem Energieschätzer S38° des Detektorfeldes.

  16. Results

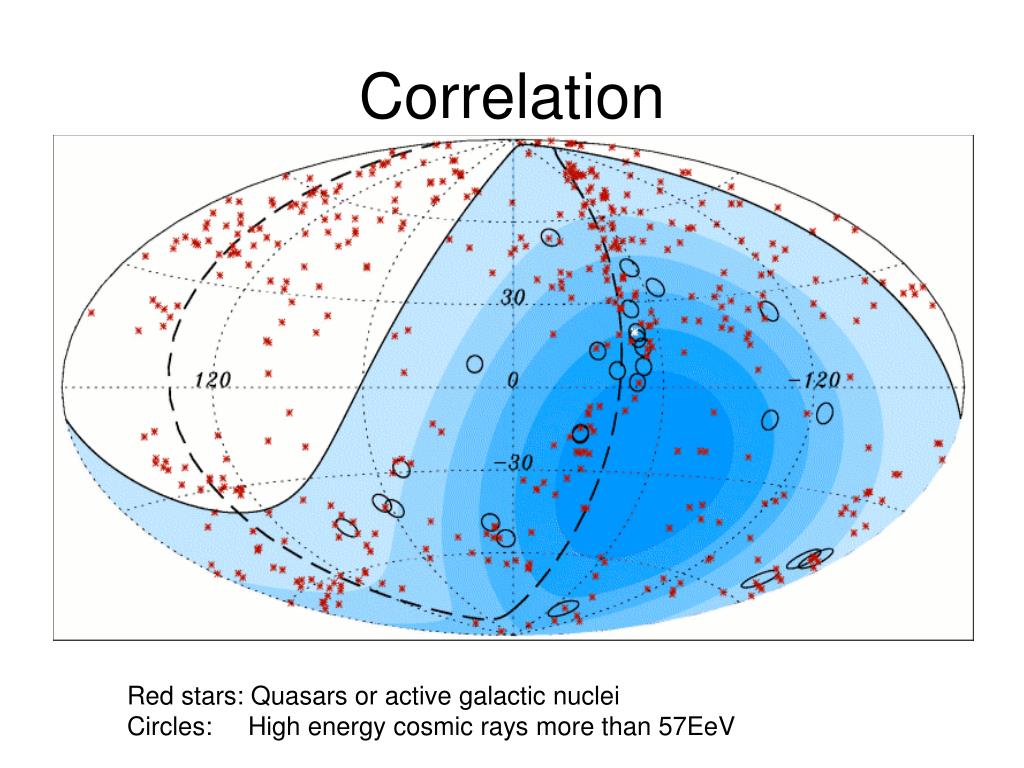

  17. Correlation Red stars: Quasars or active galactic nuclei Circles: High energy cosmic rays more than 57EeV

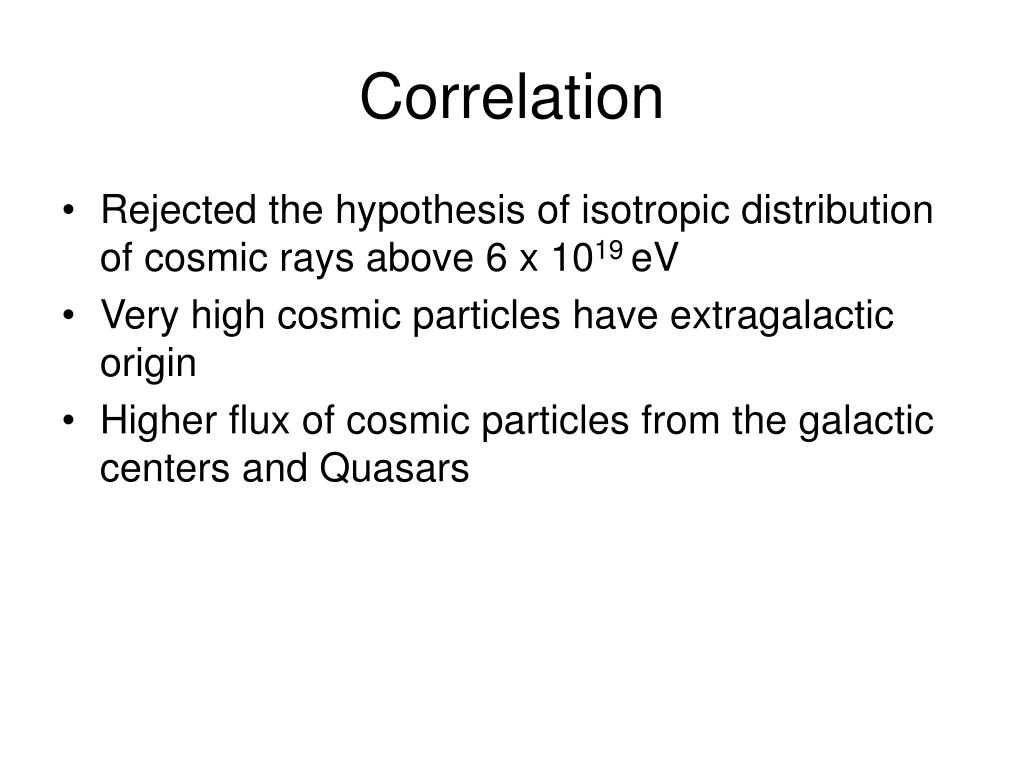

  18. Correlation • Rejected the hypothesis of isotropic distribution of cosmic rays above 6 x 1019 eV • Very high cosmic particles have extragalactic origin • Higher flux of cosmic particles from the galactic centers and Quasars

  19. Eventdisplay und Animationen

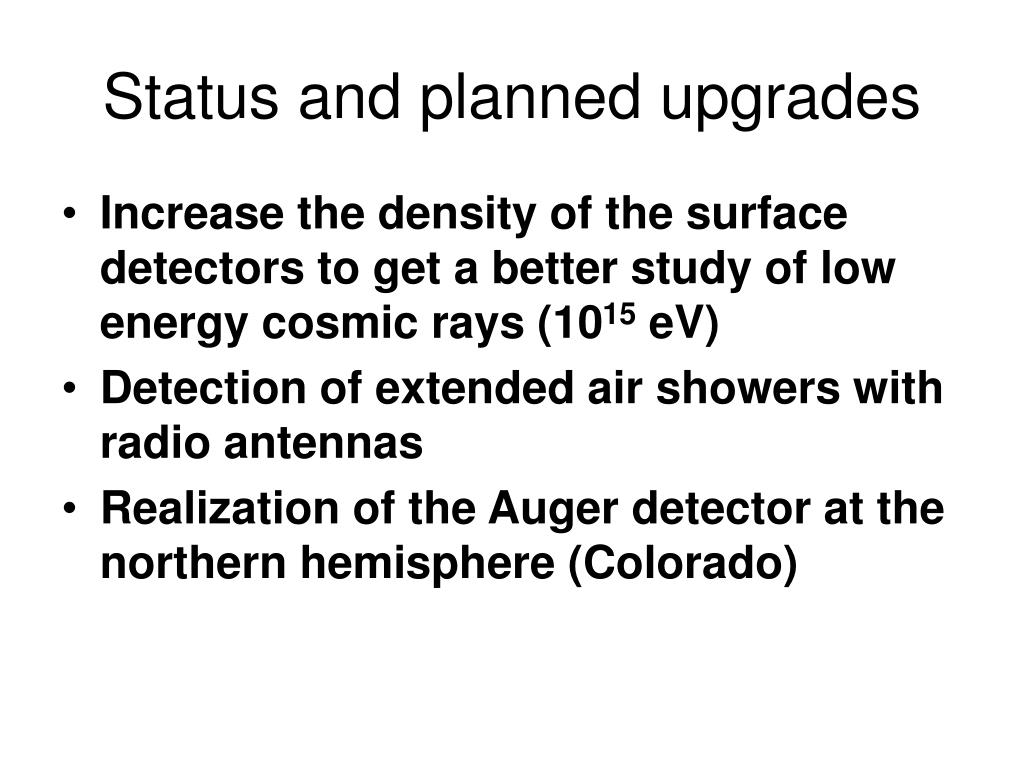

  20. Status and planned upgrades • Increase the density of the surface detectors to get a better study of low energy cosmic rays (1015 eV) • Detection of extended air showers with radio antennas • Realization of the Auger detector at the northern hemisphere (Colorado)

  21. Auger nord
