  1. PETROTECH-CO Offshore Introduction Layout Guide

  2. SAGADRIL-2 HELIDECK DURING SIMOPS

  3. SPD3 PRODUCTION PLATFORM & SAGADRIL-2 DRILLING RIG SAGADRIL-2 (JACK-UP) SPD3 (JACKET) HELIDECK / UPPER DECK MEZZANINE DECK LOWER DECK SUMP DECK JACKET DECK BSP1

  4. WELCOME TO THE RIG !

  5. ROUTE TO SPD3...

  6. BELOW THE SAGADRIL-2 CANTILEVER DECK

  7. SPD3 HELIDECK VIEW F/ SAGADRIL- 2

  8. ESD BUTTON SPD3 HELIDECK VIEW F/ SAGADRIL- 2

  9. SGD-2 CANTILEVER OUT STAIRWAY BETWEEN SPD3 & SGD-2

  10. 21”1/4 BOP STACK ON STUMP SGD-2 BOP DECK 18”5/8 BOP STACK ON SPD3 -10 WELL

  11. DIESEL TOTE TANKS

  12. UPPER PACK CANTILEVER LOWER PACK

  13. SPD3 CRANE (SWL 5mt /20m)

  14. FLARE BRIDGE

  15. SPD4 / SGD-1 FLARE LINE EXPANSION LOOP RP1 PLATFORM BSP1 PLATFORM

  16. SPD4 / SGD-1 IN THE MIST

  17. STAIRWAY TO MEZZANINE DECK

  18. STAIRWAY TO MEZZANINE DECK

  19. MEZZANINE DECK

  20. ACCOMMODATION ROOM ( 2 x2 BEDS )

  21. AIR COMPRESSORS

  22. X-MAS TREE BAY AREA 13”5/8 DRILLING RISER (SIMOPS ON SPD3-10) 8” FLOWLINE GAS+WATER+CONDENSATE TO CHOKE VALVE HYDRAULIC PRODUCTION WING VALVE MANUAL SWAB VALVE X-MAS TREE (SPD3-07) MANUAL WING VALVE HYDRAULIC MASTER VALVE MANUAL MASTER VALVE

  23. X-MAS TREE BAY AREA FLOWLINE X-MAS TREE CAP

  24. FLOWLINE DETAILS GAS+WATER+CONDENSATE TO CHOKE VALVE METHANOL INJECTION + DHSV EQUALIZING LINE PRESSURE GAUGE PRESSURE SWITCH CHOKE VALVE

  25. METHANOL INJECTION SYSTEM METHANOL DRUM (5m³) TRIPLEX PUMP

  26. CHOKE VALVE 8” FLOWLINE GAS+WATER+CONDENSATE F/WELLHEAD METHANOL INJECTION LINE CHOKE VALVE TO ISOLATION VALVE

  27. CHOKE VALVE HYDRAULIC ACTUATOR

  28. GAS+WATER+CONDENSATE F/WELLHEAD CHOKE VALVE ACTUATOR CHOKE VALVE ALIGNMENT (F/BEHIND)

  29. TO ISOLATION VALVE TO PSV F/ CHOKE

  30. TO PSV ISOLATION VALVE WELLHEAD PRESSURE TRANSMITTER WELLHEAD TEMPERATURE TRANSMITTER TO PRODUCTION & TEST MANIFOLDS (LOWER DECK) F/ CHOKE VALVE ISOLATION VALVE ALIGNMENT

  31. PSV ALIGNMENT TO HP RELIEF HEADER & KO DRUM P.S.V. (PRESSURE SAFETY VALVE) CORROSION COUPON TO PSV FLOWLINE TO ISOLATION VALVE

  32. TO HP RELIEF HEADER & KO DRUM P.S.V. (PRESSURE SAFETY VALVE) PSV ALIGNMENT

  33. HP RELIEF HEADER TO HP RELIEF KO DRUM 24” HP RELIEF HEADER

  34. F/ CHOKE VALVE ISOLATION VALVE TO PRODUCTION & TEST MANIFOLDS (LOWER DECK) ISOLATION VALVE ALIGNMENT

  35. F/ CHOKE VALVE ISOLATION VALVE TO PRODUCTION & TEST MANIFOLDS (LOWER DECK) ISOLATION VALVE ALIGNMENT

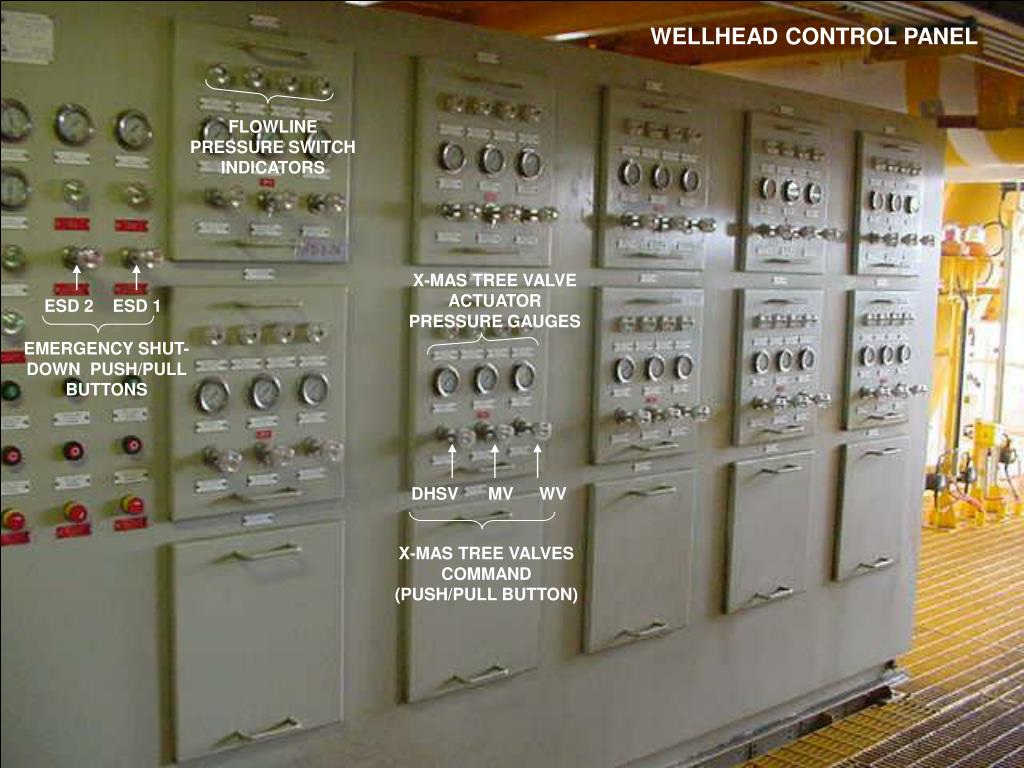

  36. WELLHEAD CONTROL PANEL FLOWLINE PRESSURE SWITCH INDICATORS X-MAS TREE VALVE ACTUATOR PRESSURE GAUGES ESD 2 ESD 1 EMERGENCY SHUT-DOWN PUSH/PULL BUTTONS DHSV MV WV X-MAS TREE VALVES COMMAND (PUSH/PULL BUTTON)

  37. WELLHEAD CONTROL PANEL FUSIBLE LOOP (FIRE PROTECTION) FUSIBLE LOOP STATUS

  38. ALARMS P.A.G.A* SPEAKER HP RELIEF HEADER TO HP RELIEF KO DRUM GAS WARNING LIGHT FIRE WARNING LIGHT P.A.G.A* : PUBLIC ANNOUNCEMENT & GENERAL ALARM

  39. IR / UV DETECTOR

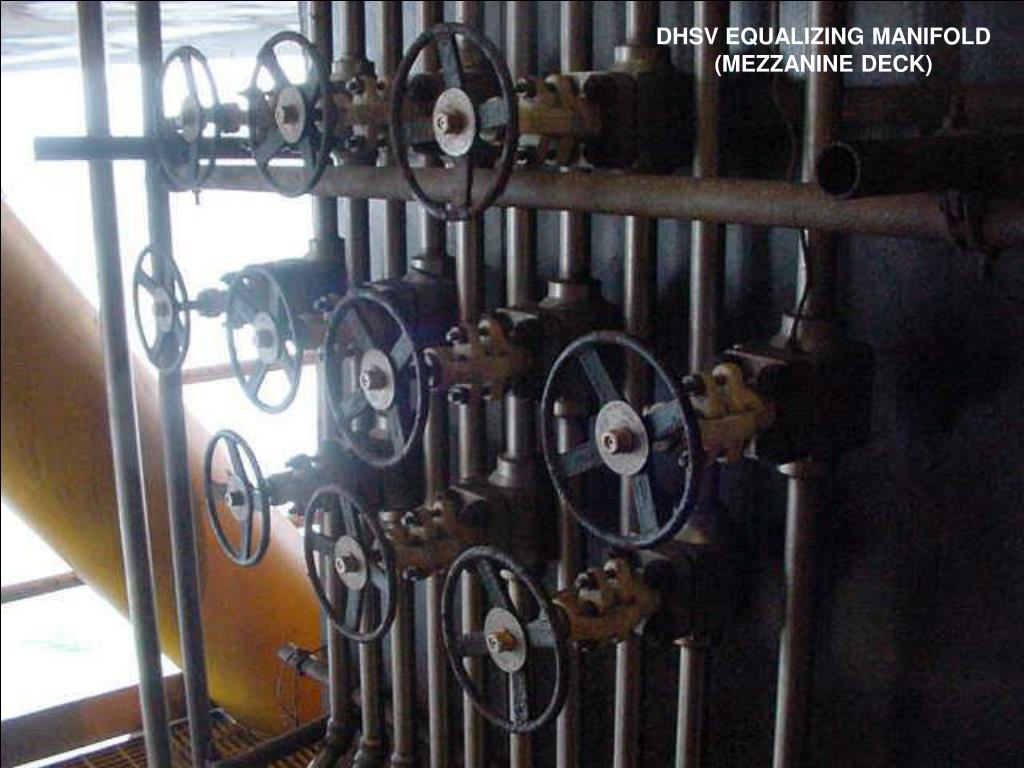

  40. DHSV EQUALIZING MANIFOLD (MEZZANINE DECK)

  41. DHSV EQUALIZING MANIFOLD (LOWER DECK)

  42. 24” PRODUCTION LINE F/ PRODUCTION MANIFOLD (24”) TO SEALINE

  43. F/ PRODUCTION MANIFOLD (24”) TO FWKO* TO SEALINE TO PIG LAUNCHER 12” KICKING LINE FWKO* : Free Water Knock-Out ( Tie-in for future FWKO)

  44. PIG LAUNCHER DOOR TO PIG LAUNCHER KICKING LINE

  45. F/ PRODUCTION MANIFOLD TO SEALINE BLEED-OFF VALVE (8”) F/ TEST SEPARATOR (8”) 24” PRODUCTION LINE TO SEALINE N2 INERTING LINE TO PIG LAUNCHER KICKING LINE

  46. F/ TEST SEPARATOR (8”) FUTUREFWKO INLET TO SEALINE BLEED-OFF VALVE (8”) FUTUREFWKO OUTLET 12” MOV* TO SEALINE 12” MOV* 12” KICKING LINE TO PIG LAUNCHER SPOOL REMOVED (BLIND FLANGE) AFTER FWKO INSTALLATION MOV*: MOTORISED OPERATED VALVE

  47. PRESSURE TRANSMITTER 24” PRODUCTION LINE MEG INJECTION LINE PRESSURE TRANSMITTER VALVE KICKING LINE

  48. 24” MOV MEG INJECTION LINE TO SEALINE (LOWER DECK) METHANOL DRUM VENT(TO SAFE LOCATION)
