2. PSA Methodology - Level1 PSA overview -

2. PSA Methodology - Level1 PSA overview -. Procedure. Initiating Events. Quantification. Event Trees. CDF. Uncertainty analysis Sensitivity analysis Importance Factor. ・ Accident Sequences ・ Success Criteria. Selection Quantification. Fault Trees. System Design

lelia
Download Presentation

2. PSA Methodology - Level1 PSA overview -

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 2. PSA Methodology- Level1 PSA overview - Procedure Initiating Events Quantification Event Trees CDF • Uncertainty analysis • Sensitivity analysis • Importance Factor ・Accident Sequences ・Success Criteria • Selection • Quantification Fault Trees • System Design • Technical Specifications • Operating Procedures • Human Reliability • Component Failure Data CDF: Core Damage Frequency

  2. 2. PSA Methodology- Level1 PSA overview (cont.) - Event Trees Initiating Events Fault Trees CDF Quantification average Failure Probability

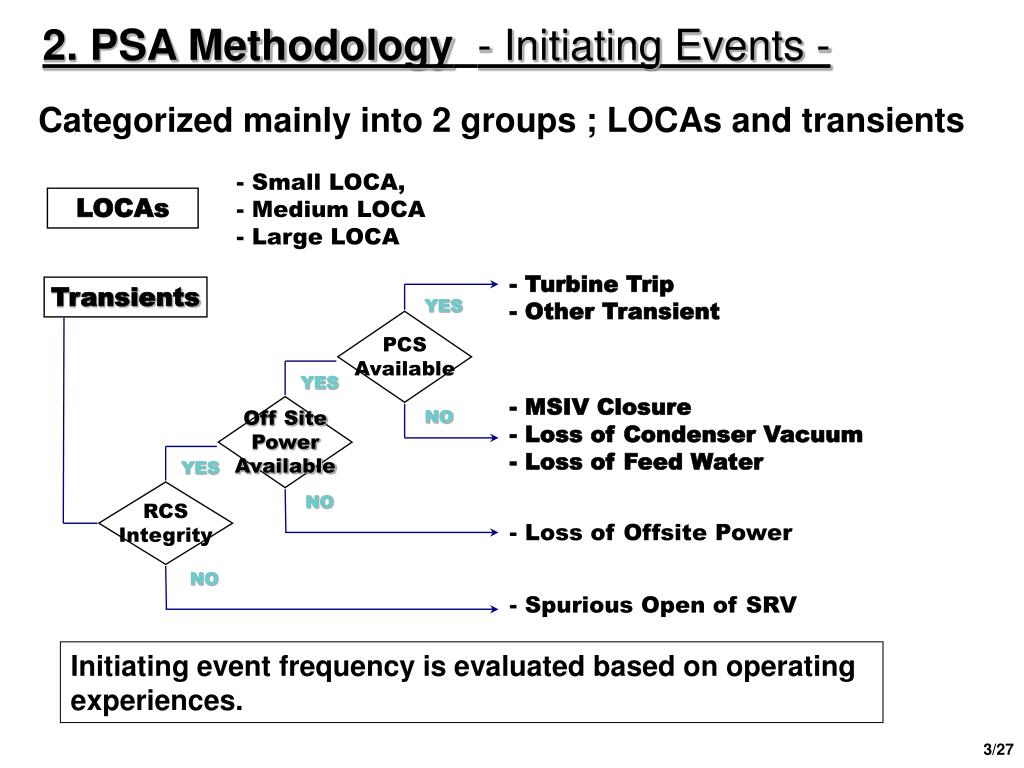

  3. 2. PSA Methodology- Initiating Events - Categorized mainly into 2 groups ; LOCAs and transients - Small LOCA, - Medium LOCA - Large LOCA LOCAs - Turbine Trip - Other Transient Transients YES PCS Available YES - MSIV Closure - Loss of Condenser Vacuum - Loss of Feed Water Off Site Power Available NO YES RCS Integrity NO - Loss of Offsite Power NO - Spurious Open of SRV Initiating event frequency is evaluated based on operating experiences.

  4. 2. PSA Methodology- Event Tree Analysis - Example of Event Tree (Large LOCA) HPCF LPFL Scram Success Fail CD : Core Damage

  5. 2. PSA Methodology- Success Criteria - • Criteria for Core Damage: • Peak Cladding Temp. 1200C “Thermal-hydraulic Analysis” to confirm “minimum combination” of mitigation systems to satisfy the criteria Start to Core Cooling 1200℃ PCT Water Level Time Time
