ontologies for gene expression
Ontologies for Gene Expression
  • History of ontologies in bioinformatics
  • BioOntologies Consortium
  • Ontologies for the biochemical networks that control gene expression

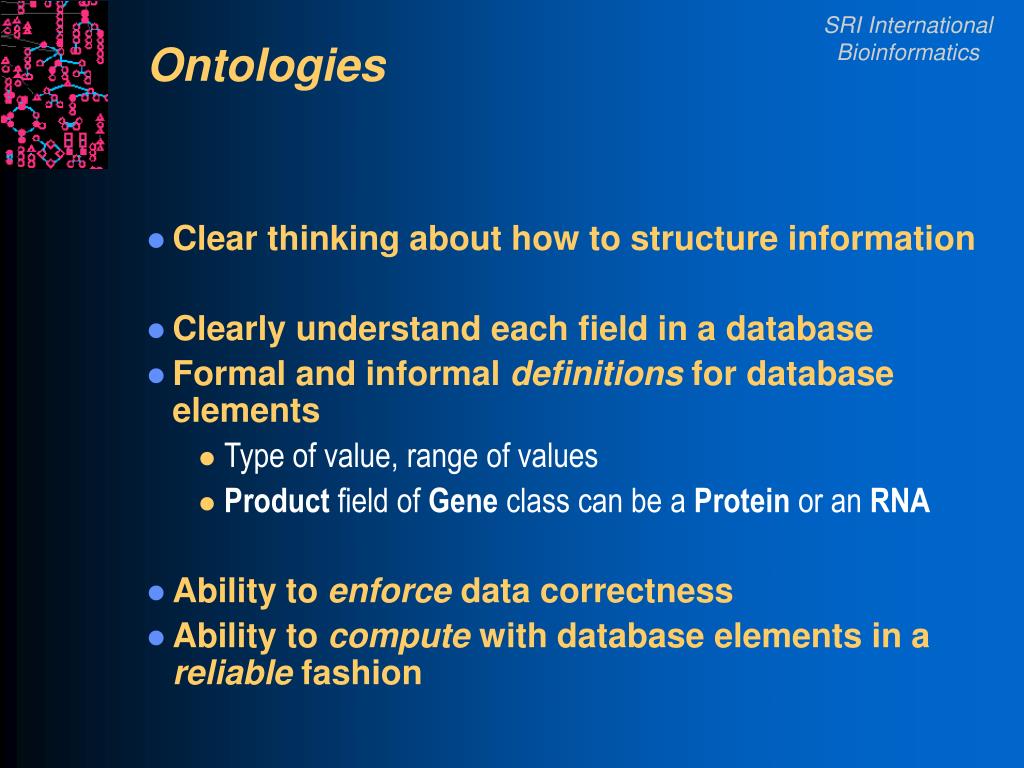

  • Clear thinking about how to structure information
  • Clearly understand each field in a database
  • Formal and informal definitions for database elements
    • Type of value, range of values
    • Product field of Gene class can be a Protein or an RNA
  • Ability to enforce data correctness
  • Ability to compute with database elements in a reliable fashion
history of ontologies in bioinformatics
History of Ontologies inBioinformatics
  • 1994 Meeting on Interoperation of Molecular Biology Databases (MIMBD-94)
  • BioOntologies meetings in 1997, 1998, 1999, 2000, 2001
  • Ontology tutorials at ISMB conference
  • BioOntologies Consortium
bioontologies consortium
BioOntologies Consortium
  • Concerned with ontology infrastructure for bioinformatics
  • Exchange of ontologies
    • Beware: All bioinformatics ontologies expressed in different ontology language
  • Software for constructing, interpreting, applying ontologies
  • http://bioontology.ingenuity.com/
bioontologies consortium1
BioOntologies Consortium
  • ISMB-2000 paper evaluating ontology exchange languages for bioinformatics
bioontologies consortium2

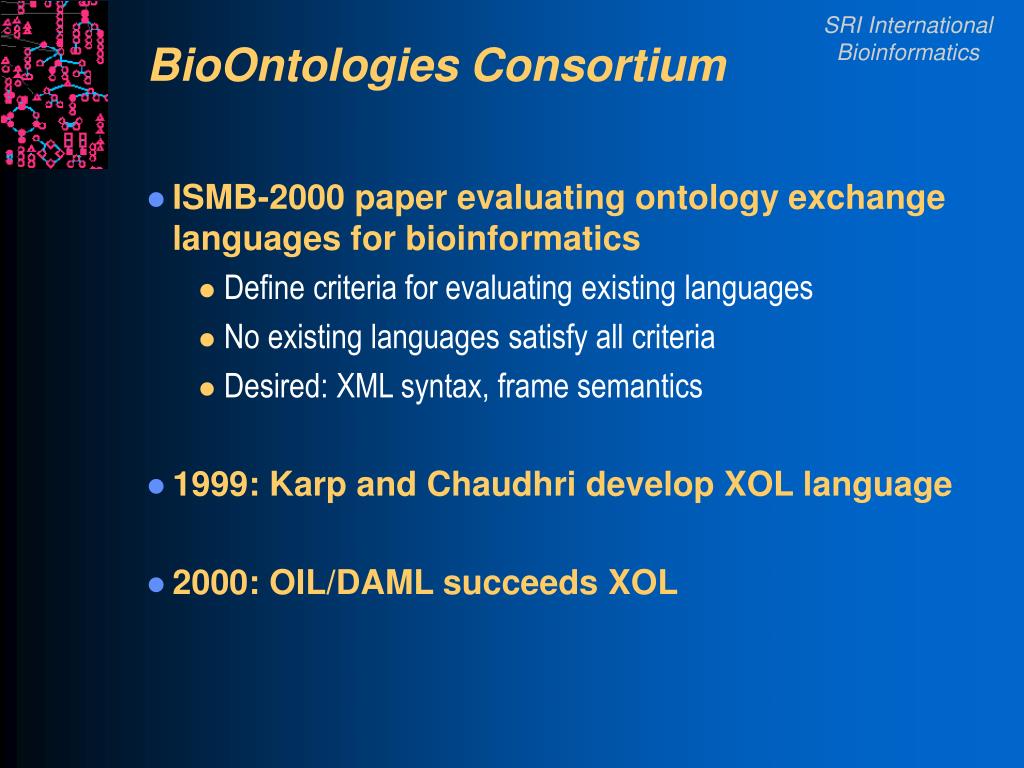

BioOntologies Consortium
  • ISMB-2000 paper evaluating ontology exchange languages for bioinformatics
    • Define criteria for evaluating existing languages
    • No existing languages satisfy all criteria
    • Desired: XML syntax, frame semantics
  • 1999: Karp and Chaudhri develop XOL language
  • 2000: OIL/DAML succeeds XOL
bioontologies consortium potential interactions
BioOntologies Consortium – Potential Interactions
  • Standards and tools
    • DAML/OIL
    • SRI’s GKB Editor ontology editor
  • Collaborate on ontology development
  • Post ontologies on BioOntologies web site
be precise about ontology uses
Be Precise About Ontology Uses
  • Data submission
  • Data exchange among databases
  • High-level database design
  • Mapping from ontologies to database management systems essential
  • Beware of flatfiles
  • Beware of XML
  • Ontology for specifying experiments
  • MAML import and export
  • SQL query access
ecocyc project overview

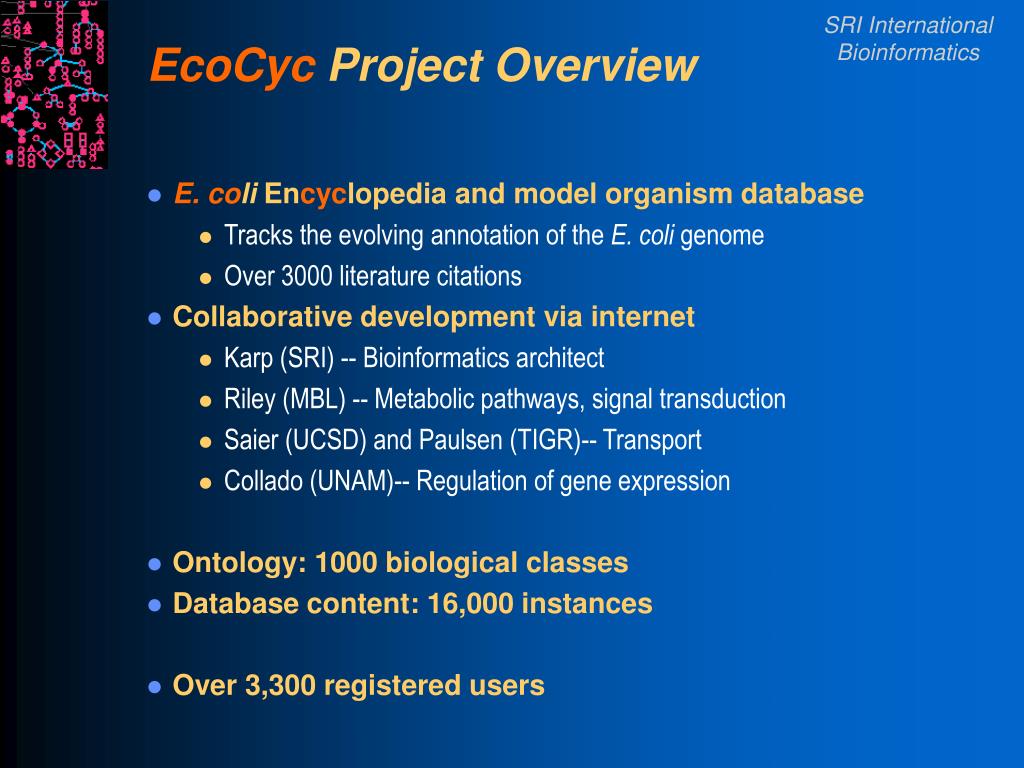

EcoCyc Project Overview
  • E.coli Encyclopedia and model organism database
    • Tracks the evolving annotation of the E. coli genome
    • Over 3000 literature citations
  • Collaborative development via internet
    • Karp (SRI) -- Bioinformatics architect
    • Riley (MBL) -- Metabolic pathways, signal transduction
    • Saier (UCSD) and Paulsen (TIGR)-- Transport
    • Collado (UNAM)-- Regulation of gene expression
  • Ontology: 1000 biological classes
  • Database content: 16,000 instances
  • Over 3,300 registered users

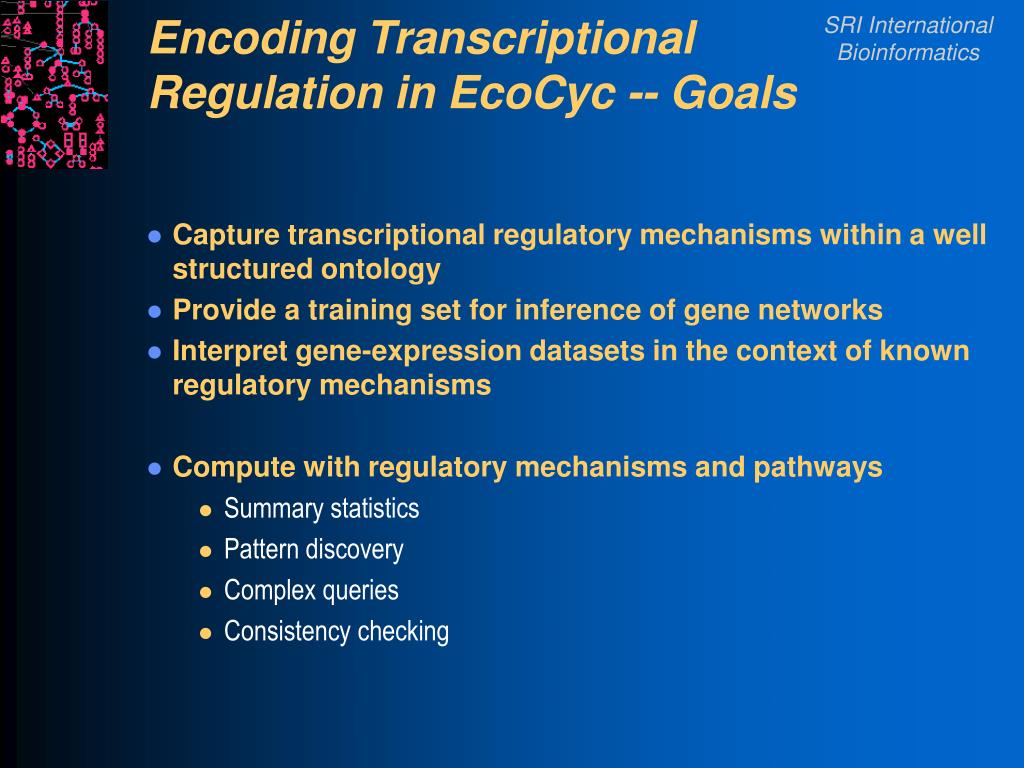

encoding transcriptional regulation in ecocyc goals
Encoding TranscriptionalRegulation in EcoCyc -- Goals
  • Capture transcriptional regulatory mechanisms within a well structured ontology
  • Provide a training set for inference of gene networks
  • Interpret gene-expression datasets in the context of known regulatory mechanisms
  • Compute with regulatory mechanisms and pathways
    • Summary statistics
    • Pattern discovery
    • Complex queries
    • Consistency checking

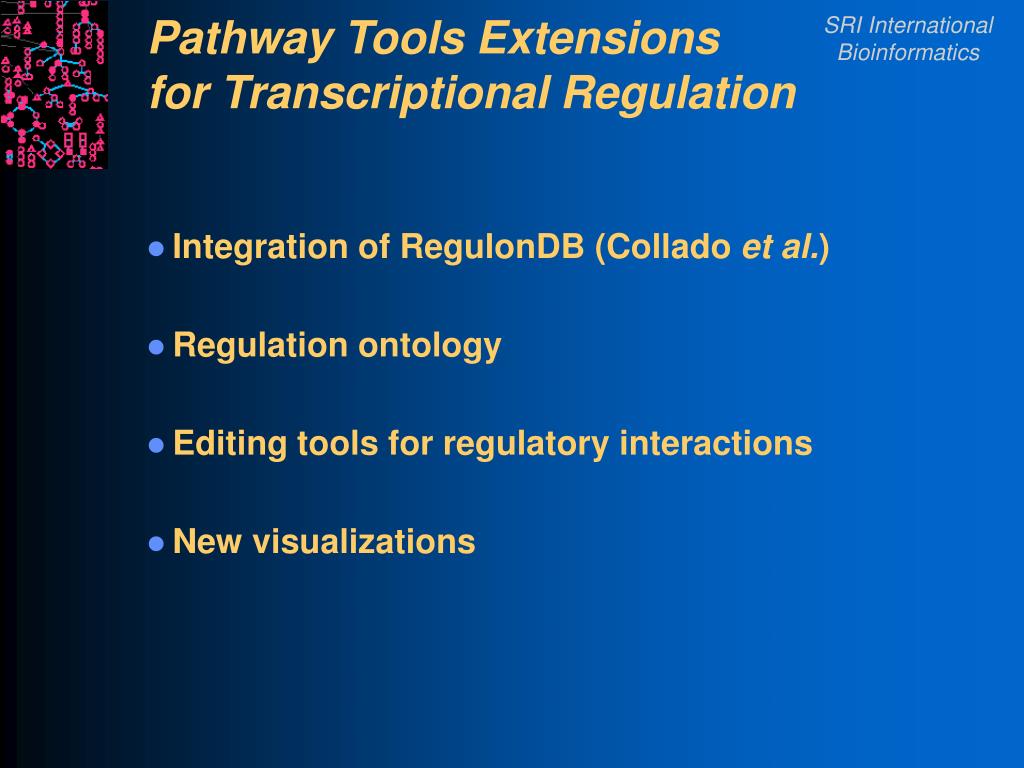

pathway tools extensions for transcriptional regulation
Pathway Tools Extensionsfor Transcriptional Regulation
  • Integration of RegulonDB (Collado et al.)
  • Regulation ontology
  • Editing tools for regulatory interactions
  • New visualizations

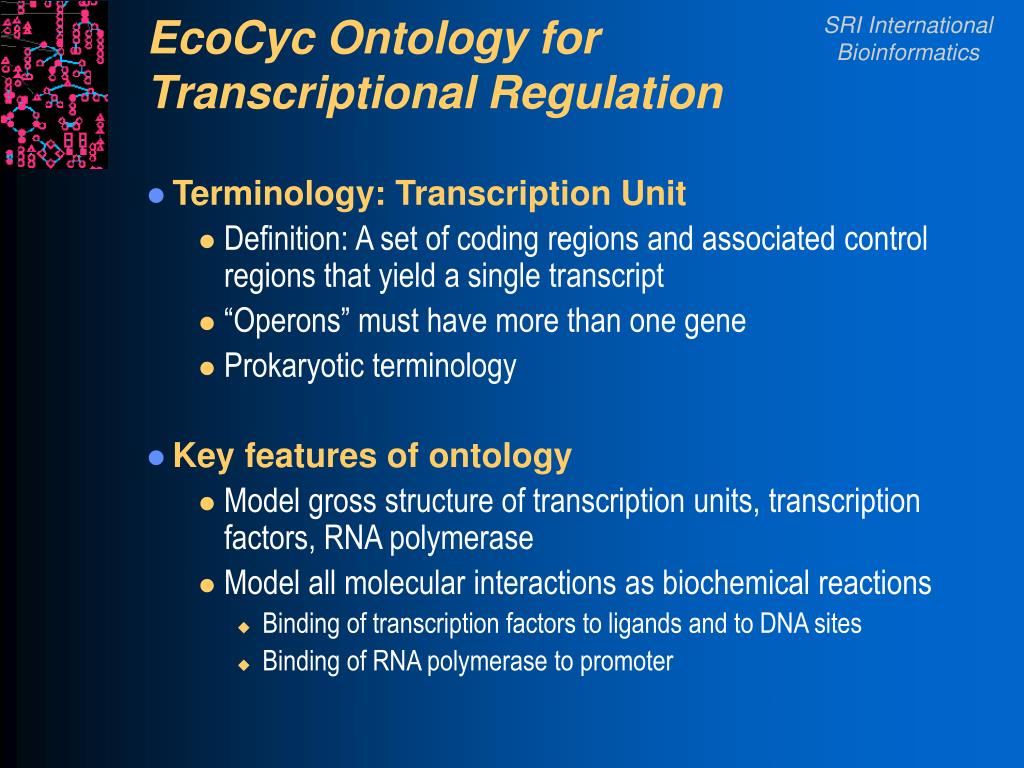

ecocyc ontology for transcriptional regulation
EcoCyc Ontology forTranscriptional Regulation
  • Terminology: Transcription Unit
    • Definition: A set of coding regions and associated control regions that yield a single transcript
    • “Operons” must have more than one gene
    • Prokaryotic terminology
  • Key features of ontology
    • Model gross structure of transcription units, transcription factors, RNA polymerase
    • Model all molecular interactions as biochemical reactions
      • Binding of transcription factors to ligands and to DNA sites
      • Binding of RNA polymerase to promoter
ontology for transcriptional regulation current limitations
Ontology for Transcriptional Regulation – Current Limitations
  • Focused on prokaryotic regulation
  • Mechanisms based on control of transcription initiation only, e.g., no attenuation
ontology for regulatory interactions
Ontology for RegulatoryInteractions
  • Common slots
    • Citations, Comment, Common-Name, Synonyms
  • Class DNA-Regions
    • Left-End-Position, Right-End-Position, Relative-Start-Distance
    • Class Transcription-Units
      • Components (Promoter, transcription-factor binding sites, genes, terminator)
    • Class Promoters
      • Component-Of
      • Promoter-Strength-Exp, Promoter-Strength-Seq
      • Promoter-Evidence
ontology for regulatory interactions1
Ontology for RegulatoryInteractions
  • Class DNA-Binding-Sites
    • Component-Of
    • Regulated-Promoter, Relative-Center-Distance
    • Type-Of-Evidence
  • Classes Protein-Complexes, Polypeptides
    • Components / Component-Of
  • Class Binding-Reactions
    • Reactants
    • Activators
    • Inhibitors
ecocyc ontology for transcriptional regulation1

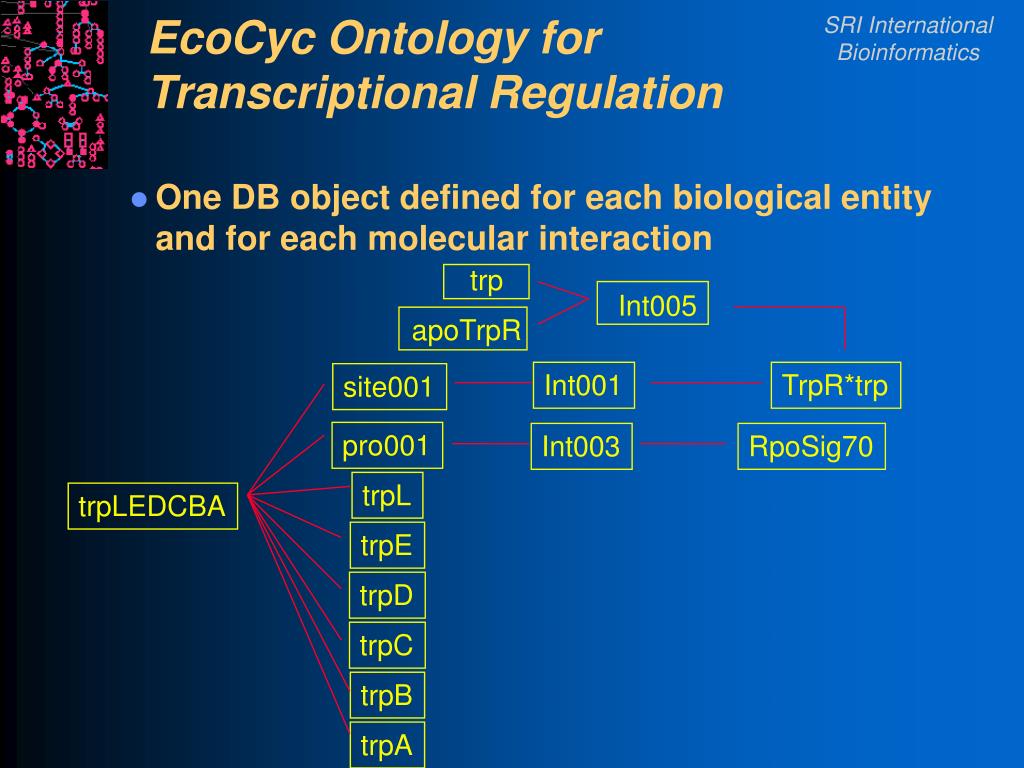

EcoCyc Ontology forTranscriptional Regulation
  • One DB object defined for each biological entity and for each molecular interaction

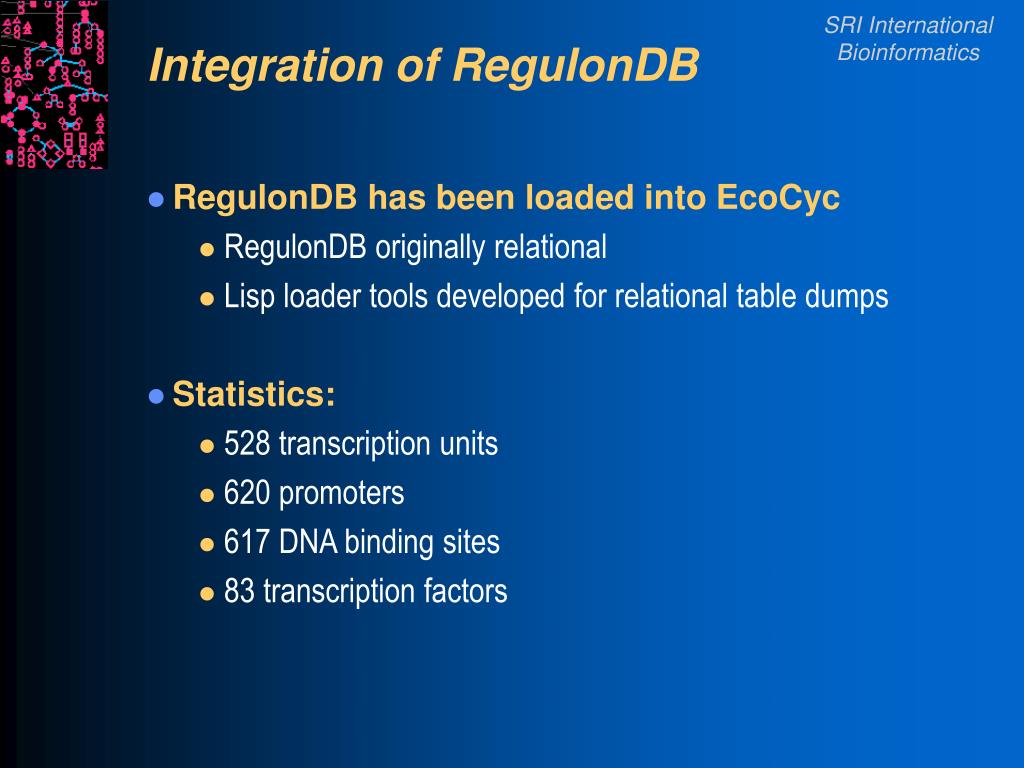

integration of regulondb
Integration of RegulonDB
  • RegulonDB has been loaded into EcoCyc
    • RegulonDB originally relational
    • Lisp loader tools developed for relational table dumps
  • Statistics:
    • 528 transcription units
    • 620 promoters
    • 617 DNA binding sites
    • 83 transcription factors

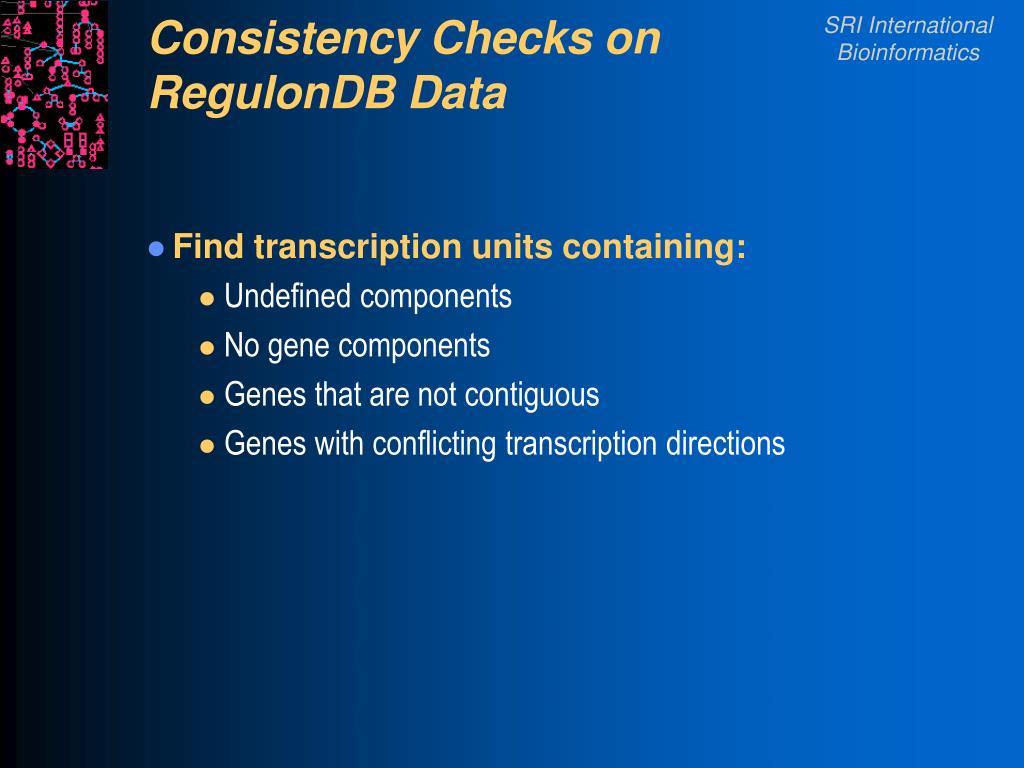

consistency checks on regulondb data
Consistency Checks onRegulonDB Data
  • Find transcription units containing:
    • Undefined components
    • No gene components
    • Genes that are not contiguous
    • Genes with conflicting transcription directions
interactive editing tools

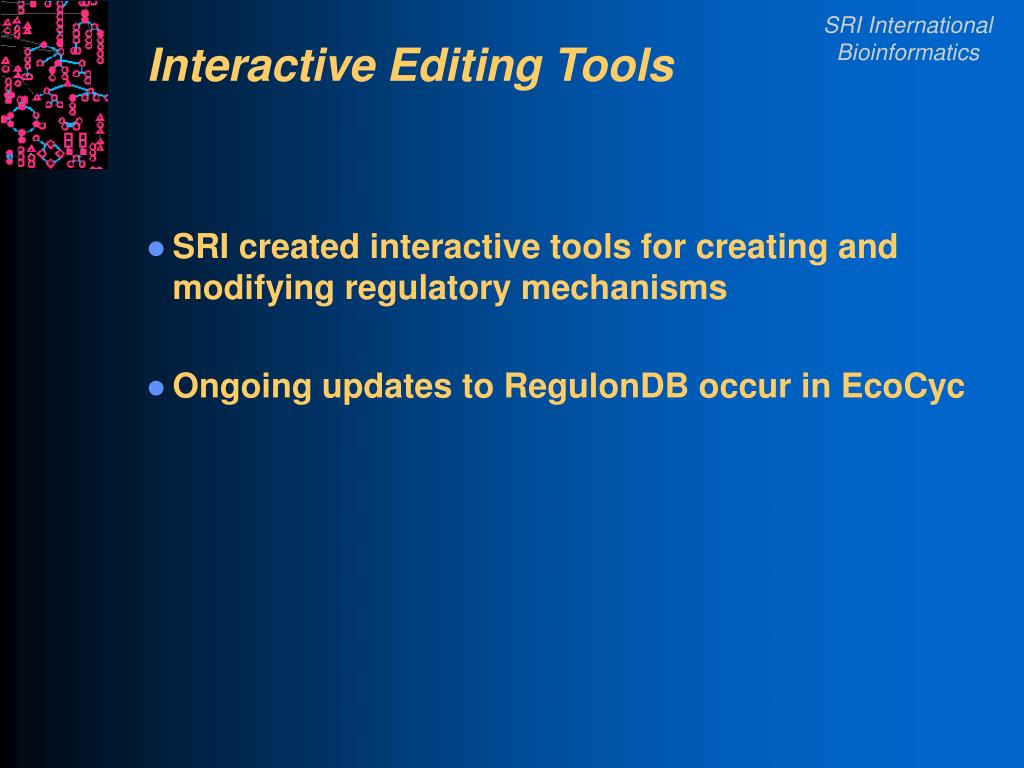

Interactive Editing Tools
  • SRI created interactive tools for creating and modifying regulatory mechanisms
  • Ongoing updates to RegulonDB occur in EcoCyc
visualization capabilities
Visualization Capabilities
  • Transcription units
    • Transcription unit containing a gene: araA
    • Details of a transcription unit
  • Regulons: CRP, NARL
  • Pathway control
    • Overview: show rxns controlled by a TF (CRP, FNR), show other rxns controlled by same TF(s) (use a rxn in purine biosyn)

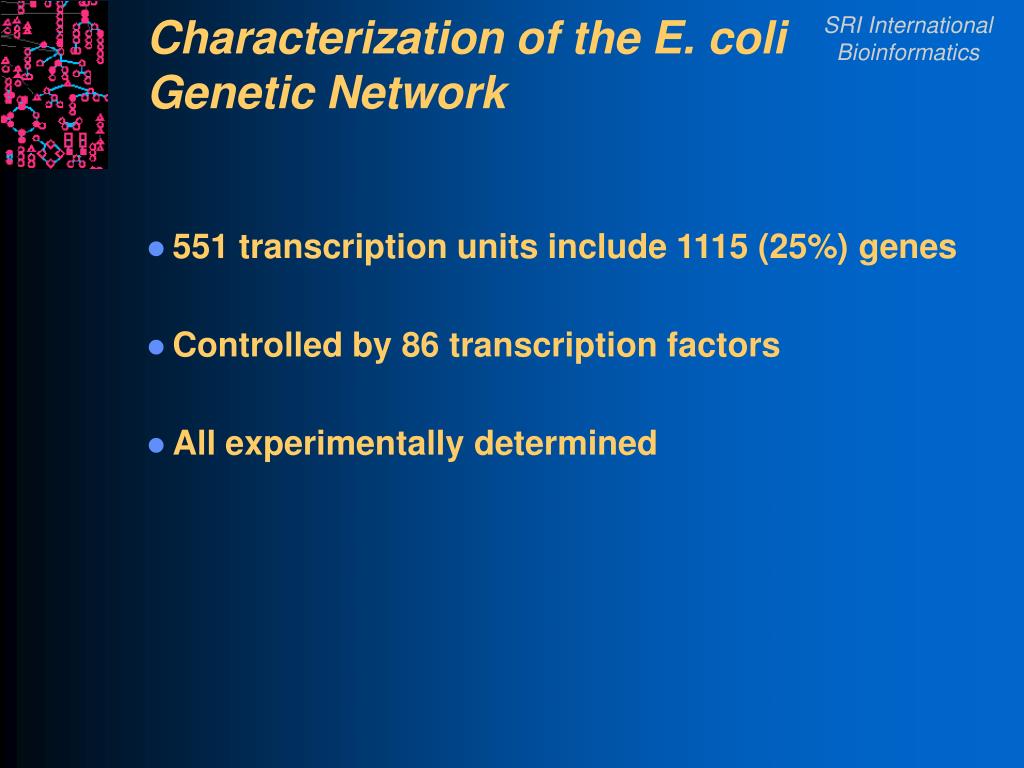

characterization of the e coli genetic network
Characterization of the E. coliGenetic Network
  • 551 transcription units include 1115 (25%) genes
  • Controlled by 86 transcription factors
  • All experimentally determined
visualization of the full e coli genetic network

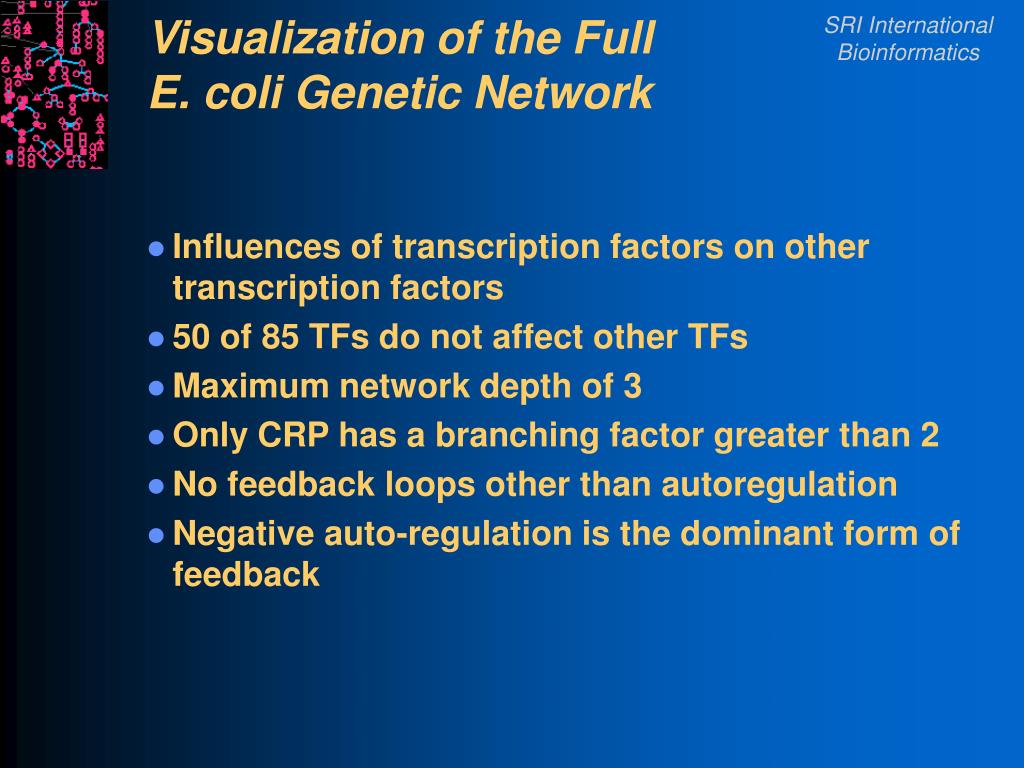

Visualization of the FullE. coli Genetic Network
  • Influences of transcription factors on other transcription factors
  • 50 of 85 TFs do not affect other TFs
  • Maximum network depth of 3
  • Only CRP has a branching factor greater than 2
  • No feedback loops other than autoregulation
  • Negative auto-regulation is the dominant form of feedback
