  1. Server Virtualization with ESXi Harendra Bhandari

  2. Server Virtualization Overview Install OS, Install Software, Reboot etc using VMwareclient. Network Interface System Admins Virtualized servers using VMware Esxi server(private cloud) Use the service through web browser Users

  3. How does ESXi work System Admins Users System admins can access Both OS and ESXi server Users can access openmeetingsusing browser from any of the installed OSes. Applications installed on top of OSes OM OM OM Operating systems are installed on top of hypervisor. The hardware resources are provided on demand. OS1 OS1 OS3 ESXi server (hypervisor) ESXi Layer, it is a resource manager that combinesresources of the physical hardware (CPU cores, memory, HDD,NIC etc) Physical server layer, one or many servers

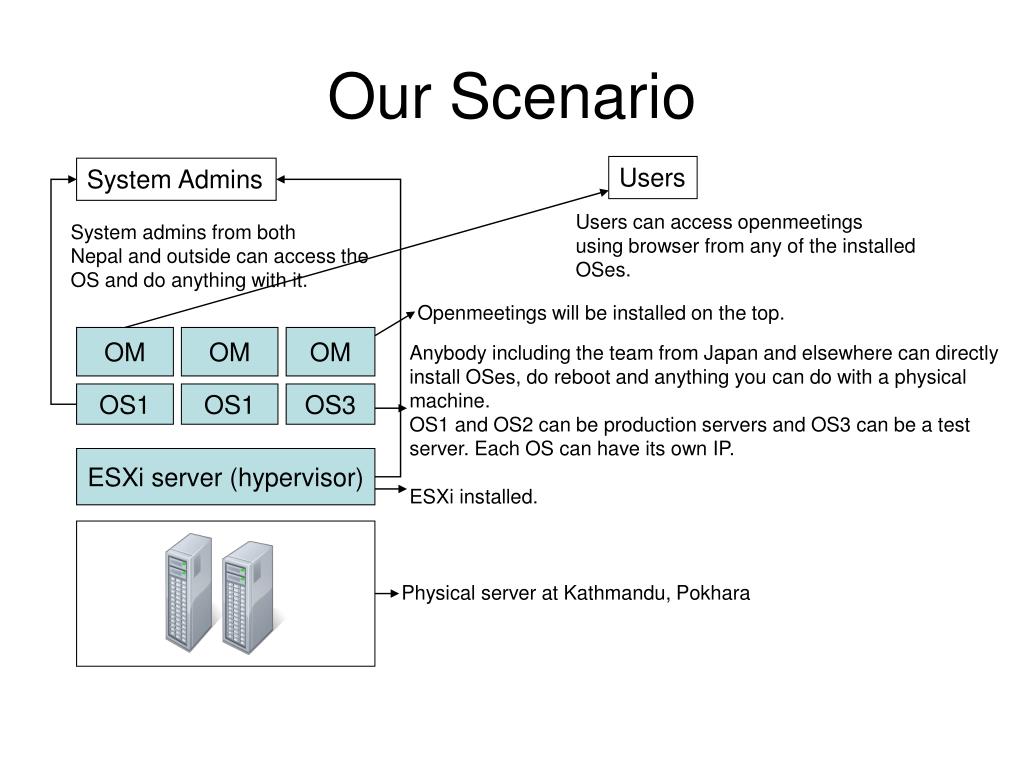

  4. Our Scenario Users System Admins Users can access openmeetingsusing browser from any of the installed OSes. System admins from bothNepal and outside can access the OS and do anything with it. Openmeetings will be installed on the top. OM OM OM Anybody including the team from Japan and elsewhere can directlyinstall OSes, do reboot and anything you can do with a physicalmachine. OS1 and OS2 can be production servers and OS3 can be a testserver. Each OS can have its own IP. OS1 OS1 OS3 ESXi server (hypervisor) ESXi installed. Physical server at Kathmandu, Pokhara

  5. Comparison of ESXi and Physical machine
