  1. ASYMMETRIC EPOXIDATION OF OLEFINS BY SHI’S CATALYST AND SYNTHESIS OF CRYPTOPHYCIN 52 1st seminar Patrick Beaulieu October 30, 2003

  2. OUTLINE

  3. REAGENTS FOR EPOXIDATION PERACIDS Prilezhaev reaction Stereospecific syn addition

  4. EPOXIDATION CATALYZED BY METAL 1- Peroxide metal complex Metal most frequently used : V, Ti High enantioselectivity with allylic alcohols Sharpless, K. B.J. Am. Chem. Soc. 1987, 109, 5765

  5. 2- Oxo-based catalysts (M=O) Jacobsen-Katsuki catalyst Excellent for cis and trisubstituted olefins Poor ee obtained with trans substrates Jacobsen, E. N.J. Org. Chem. 1994, 59, 4378

  6. DIOXIRANES byproduct Stereospecific syn addition Oxone : KHSO5.KHSO4.K2SO4 Yang, D.J. Am. Chem. Soc. 1996, 118, 11311

  7. Generation of Dioxiranes → Isolated species 0.1M solution for DMDO 0.8M solution for TFDO → In situ generation Excess of oxone, NaHCO3 buffer at pH 7-8, in biphasic (CH2Cl2/H2O) or monophasic (CH3CN/H2O) conditions Organic syntheses, CV 9, 288

  8. MECHANISM OF GENERATION AND REACTION WITH OLEFINS Edwards, J. O.Photochem. Photobiol. 1979, 30, 63 Shi, Y.J. Org. Chem.1998, 63, 6425-6426

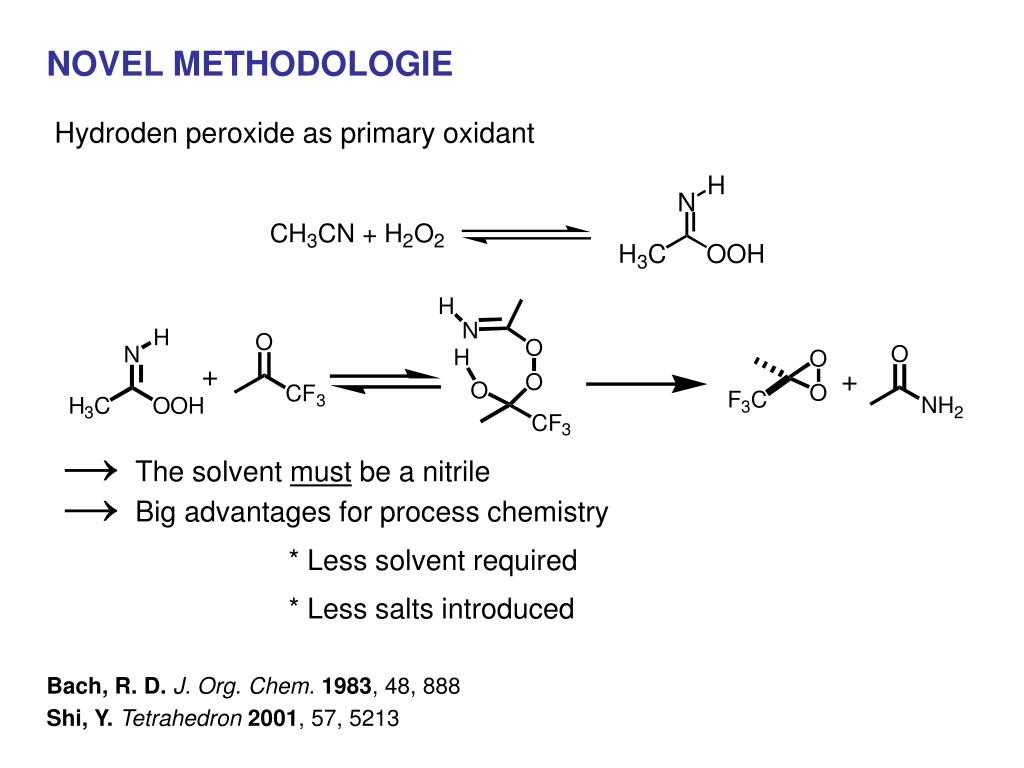

  9. NOVEL METHODOLOGIE Hydroden peroxide as primary oxidant → The solvent must be a nitrile → Big advantages for process chemistry * Less solvent required * Less salts introduced Bach, R. D.J. Org. Chem. 1983, 48, 888 Shi, Y.Tetrahedron 2001, 57, 5213

  10. MECHANISTIC BACKGROUND FMO

  11. TRANSITION STATE Planar Spiro Evidence for spiro mode 1- Experimental observation Epoxidation of cis alkene is 8.3 times faster Peracids have the same reactivity for both alkenes Baumstark, A. L.J. Org. Chem. 1988, 53, 3437

  12. 2- Steric hindrence Cis alkene Trans alkene

  13. 3- Computer calculation Stabilization with the oxygene electron lone pairs and the LUMO 7.4 Kcal/mol more stable Houk. K. N.J. Am. Chem. Soc. 1997, 119, 10147

  14. ASYMMETRIC EPOXIDATION WITH DIOXIRANES First examples Low conversion Days to 1 week reaction 9-12.5% ee High conversion 24h-48h reaction 13-20% ee Curci, R.J. Chem. Soc; Chem. Commun. 1984, 155 Curci, R.Tet. Lett. 1995, 36, 5831

  15. MAJOR BREAKTROUGH THE SHI’S CATALYST Epoxidation of olefins mediated by a fructose-derived ketone → Preparation of the D-enantiomer Commercially available : 106$ / 5g The enantiomer is prepared from a 5 steps procedure from L-sorbose Sugai, S.Tetrahedron, 1991, 47, 2133

  16. Preparation of the L-enantiomer Whistler, R. L.Carbohydr. Res. 1988, 175, 265-271

  17. PRELIMINARY RESULTS Shi, Y.J. Am. Chem. Soc.1996, 118, 9806

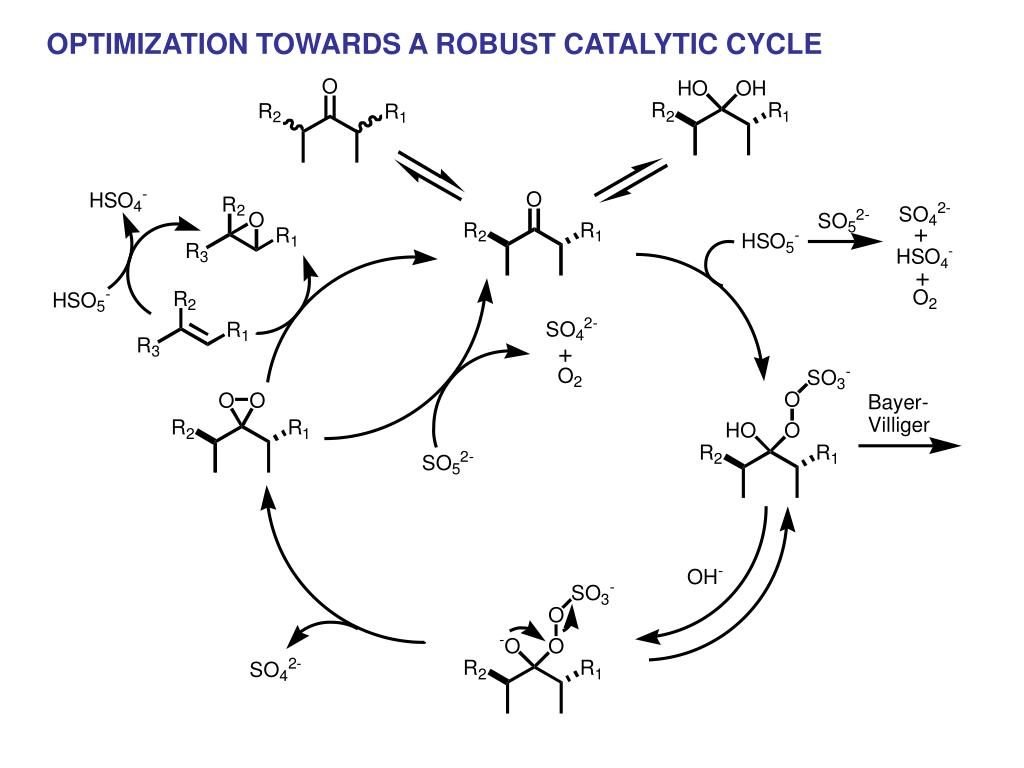

  18. OPTIMIZATION TOWARDS A ROBUST CATALYTIC CYCLE

  19. KETONE CONFIGURATION Hydrate form ? Added steric hindrence?

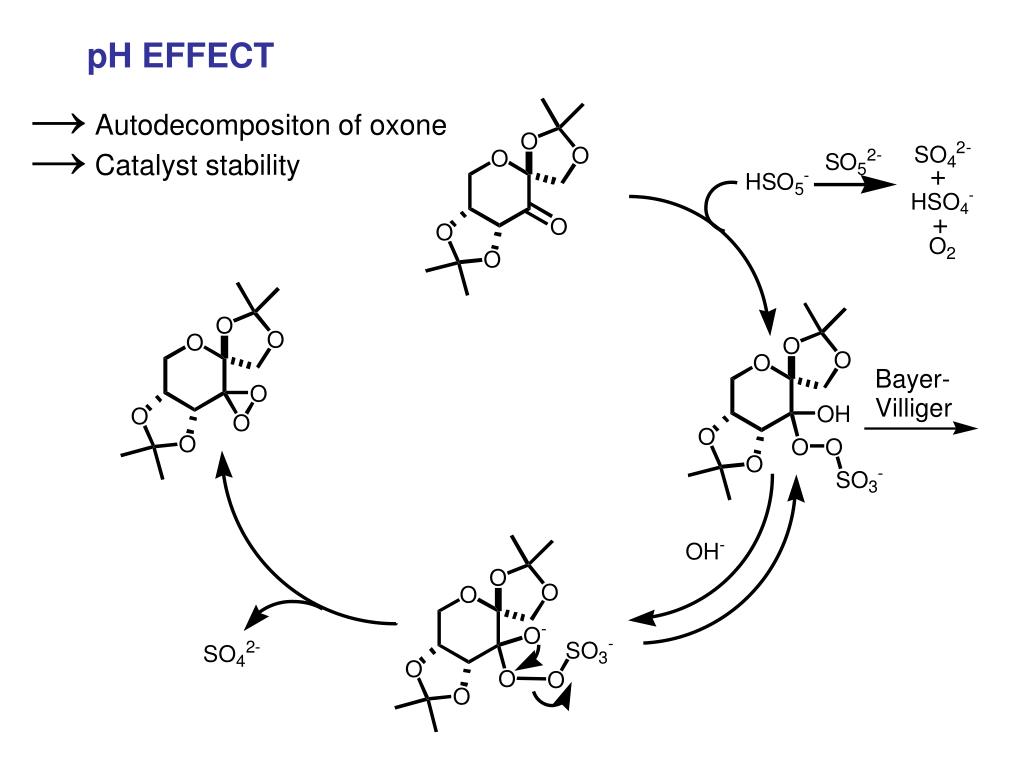

  20. pH EFFECT → Autodecompositon of oxone → Catalyst stability

  21. pH EFFECT Shi, Y.J. Am. Chem. Soc. 1997, 46, 11224

  22. KETONE REACTIVITY → Background reaction with oxone → Catalyst decomposition with oxone

  23. THE BAYER-VILLIGER

  24. THE BAYER-VILLIGER Shi, Y.J. Org. Chem. 2001, 66, 521

  25. OPTIMIZED RESULTS Shi, Y.J. Am. Chem. Soc.1997, 119, 11224

  26. OPTIMIZED RESULTS 82%, 95% ee 94%, 98% ee 94%, 89% ee Shi, Y.J. Am. Chem. Soc.1997, 119, 11224

  27. CONJUGAISON EFFECT ON ENANTIOSELECTIVTY FMO

  28. ORIGINE OF THE ENANTIOSELECTIVITY Major

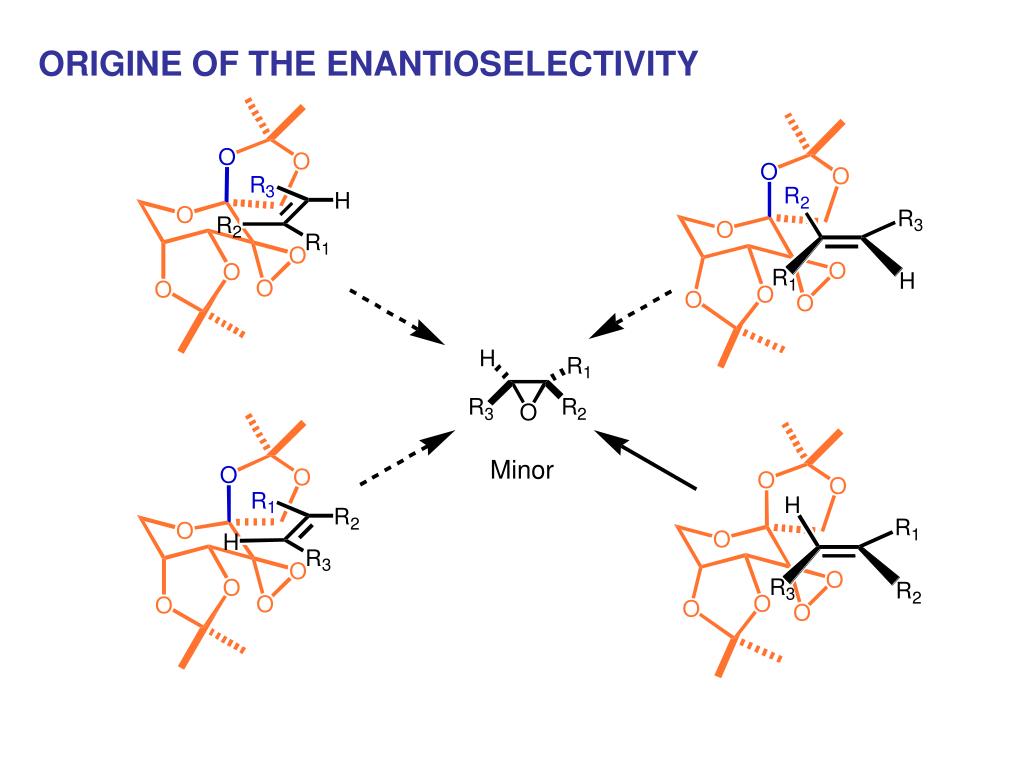

  29. ORIGINE OF THE ENANTIOSELECTIVITY Minor

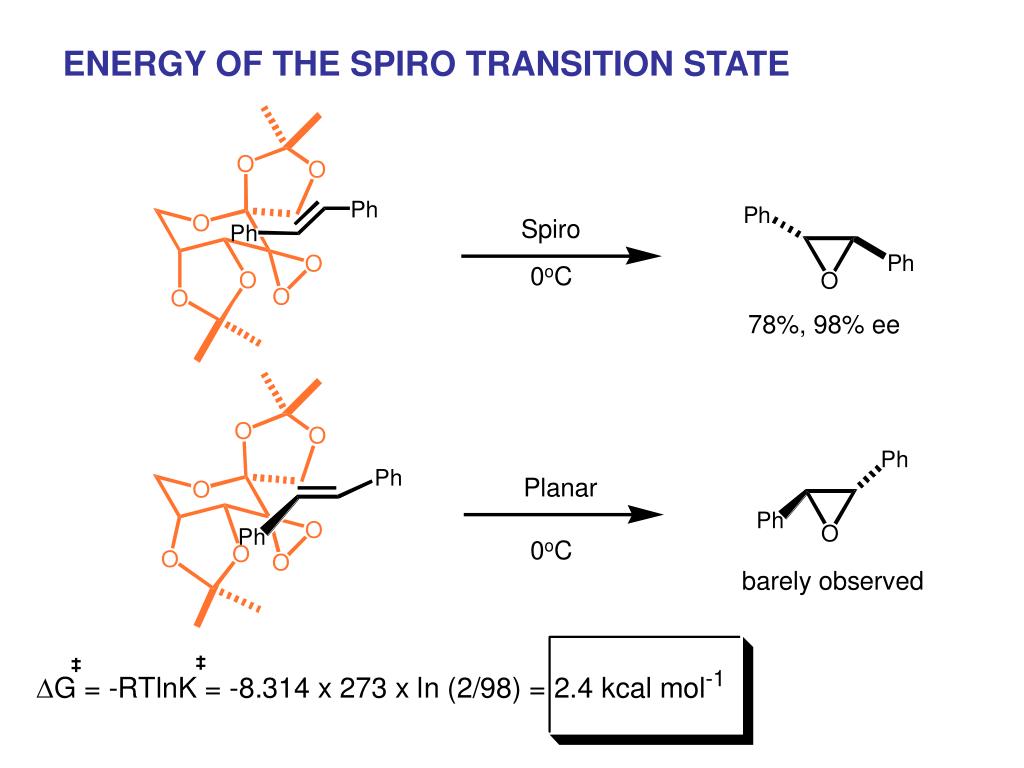

  30. ENERGY OF THE SPIRO TRANSITION STATE 0oC 78%, 98% ee 0oC

  31. DRAWBACK → Low enantioselectivity with cis and terminal olefins 95%, 20% ee 90%, 24% ee 43%, 61% ee → Competition between spiro and planar transition state Shi, Y.J. Am. Chem. Soc.1997, 119, 11224

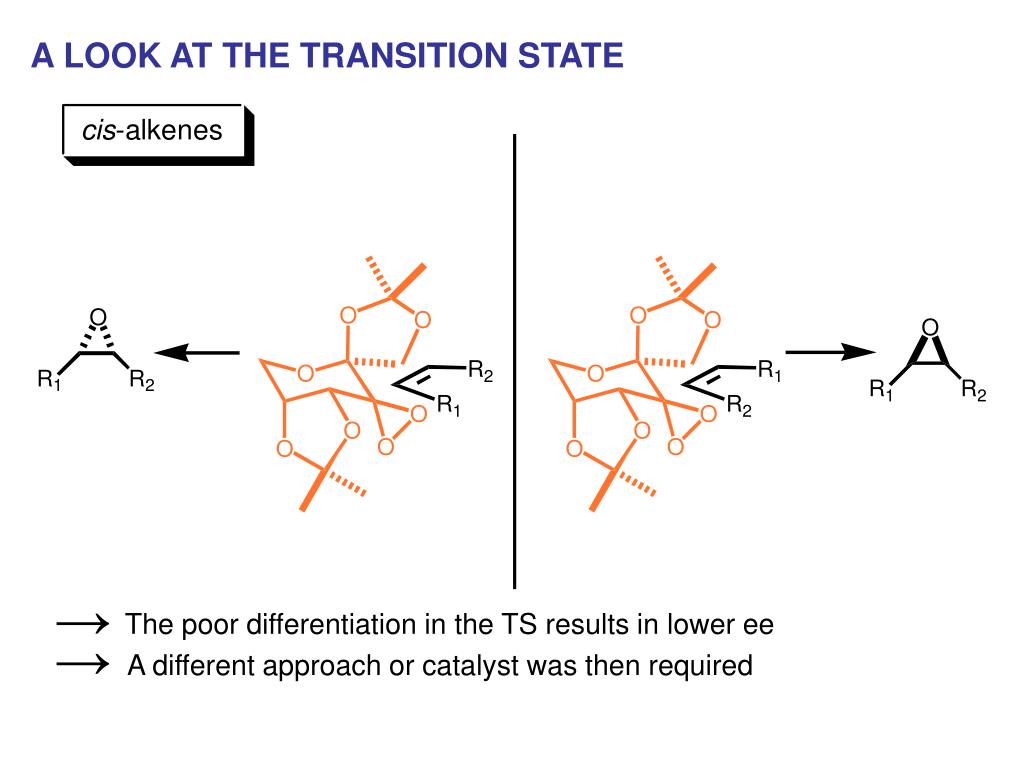

  32. A LOOK AT THE TRANSITION STATE → The poor differentiation in the TS results in lower ee → A different approach or catalyst was then required

  33. SOLUTION #1 Access to disubstituted geminal alkenes via 2,2-disubstituted vinylsilanes Murai, S.J. Org. Chem.1995, 60, 1834 Shi, Y.J. Org. Chem.1999, 64, 7675

  34. SOLUTION #2 Improvement through catalyst design Effect of the spiro Five membered ring ketal Electronic attraction between Ph and NBOC group Shi, Y. J. Org. Chem.2002, 67, 2435

  35. AN INTRIGUING REVERSE IN STEREOSELECTIVITY!

  36. FURTHER RESULTS Effect the substituent Shi, Y.Org. Lett.2003, 5, 293

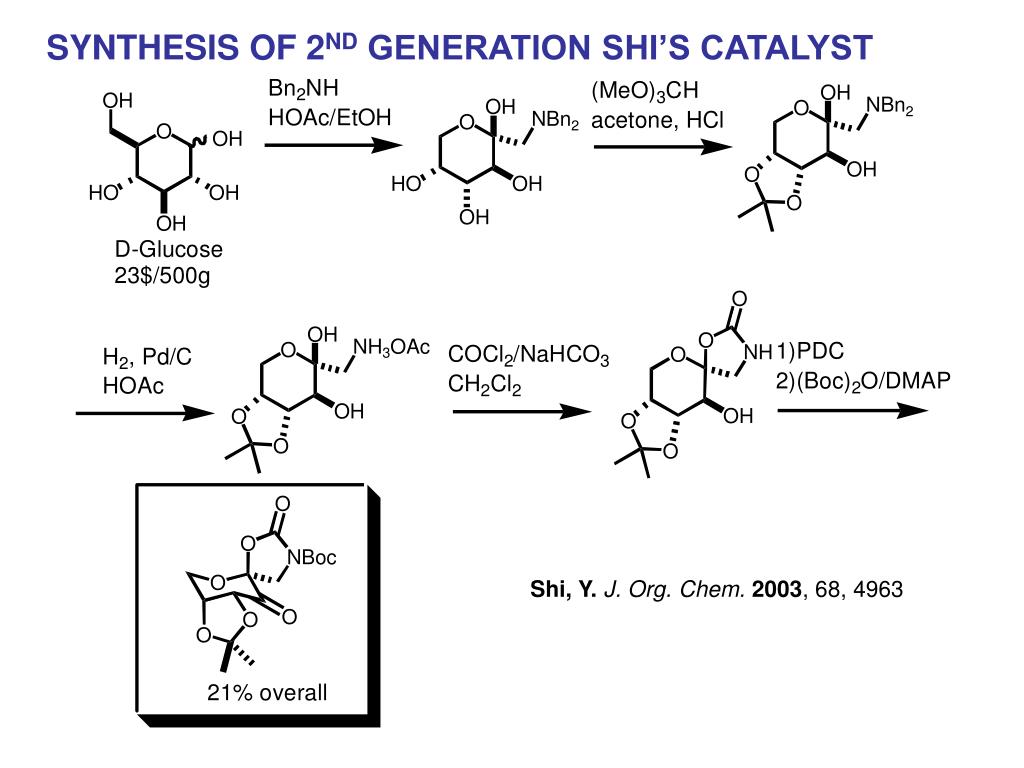

  37. SYNTHESIS OF 2ND GENERATION SHI’S CATALYST Shi, Y.J. Org. Chem. 2003, 68, 4963

  38. SUMMARY

  39. TOTAL SYSTHESIS OF CRYPTOPHYCIN 52 • Natural product isolated from blue-green algae • Cryptophycin 1 exhibits a broad spectrum of antitumor activity in mice • First synthezised by Kitigawa in 1994 and than by Moore and Tius in 1995 • Cryptophycin 52 is in advanced clinical evaluation for the treatment of solid tumors • An improve synthesis done by the Eli Lilly research group in 2002

  40. RETROSYNTHESIS

  41. BLUE FRAGMENT SYNTHESIS

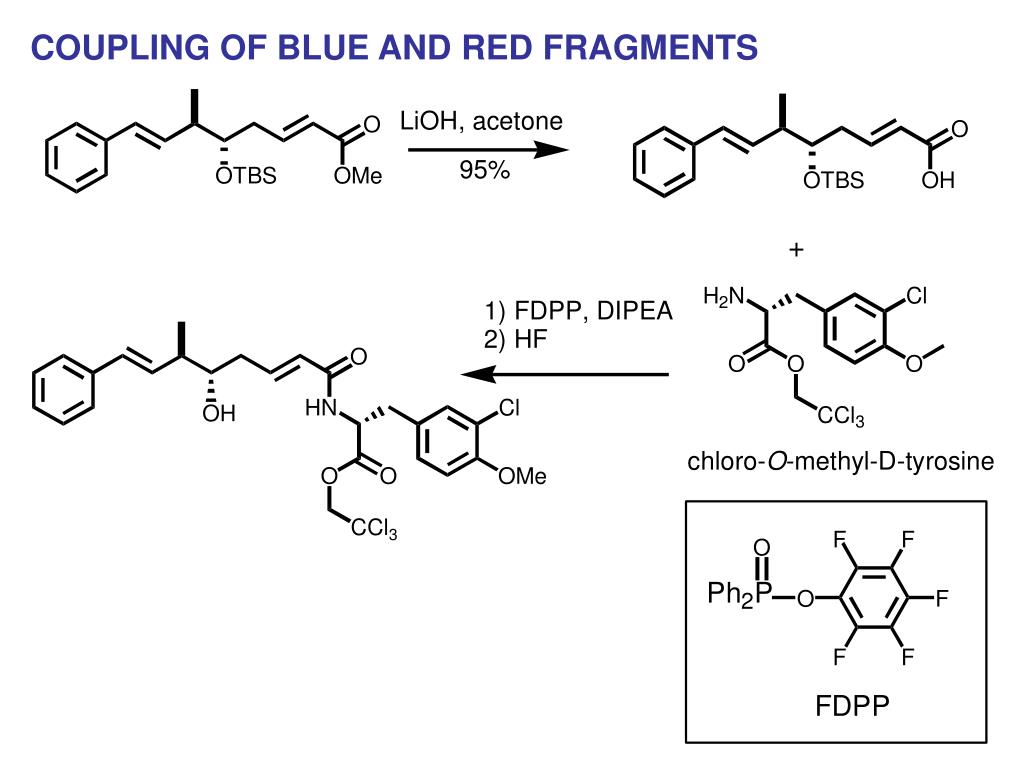

  42. COUPLING OF BLUE AND RED FRAGMENTS

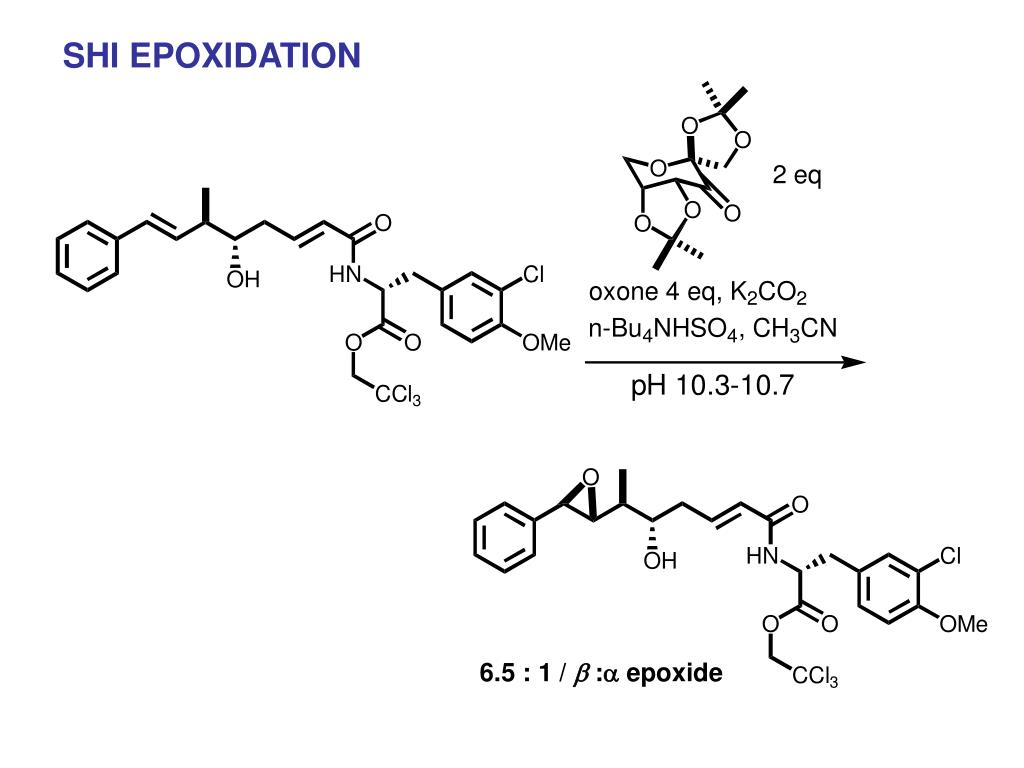

  43. SHI EPOXIDATION

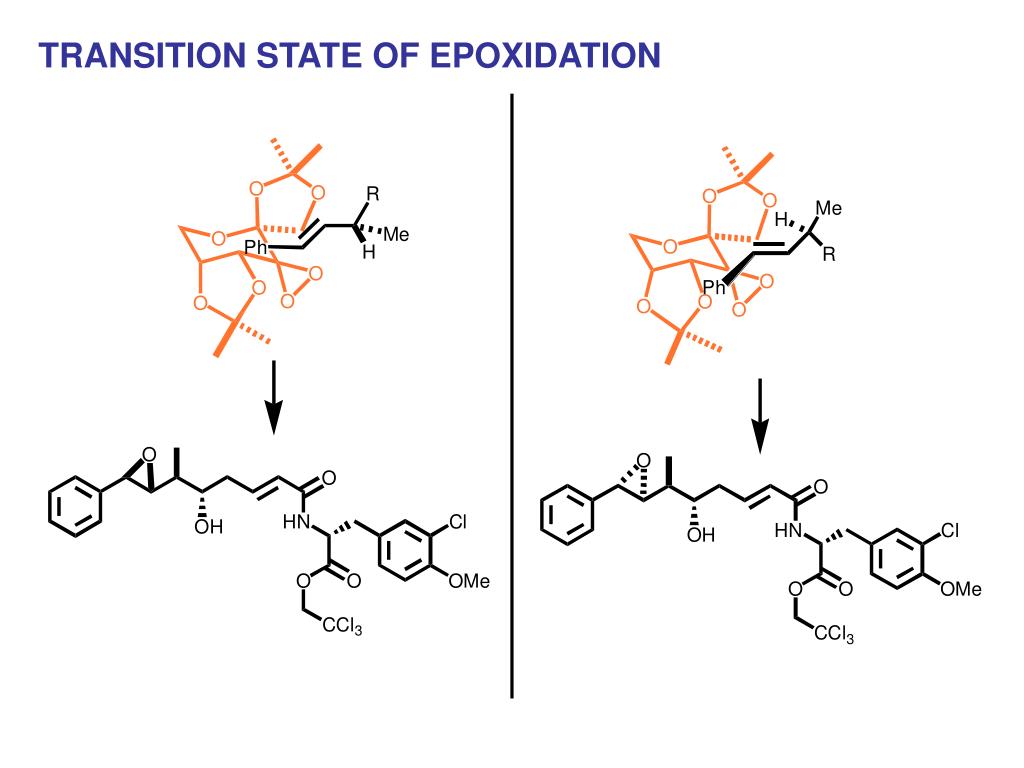

  44. TRANSITION STATE OF EPOXIDATION

  45. BLACK FRAGMENT SYNTHESIS

  46. ACKNOWLEDGEMENTS Bill Ogilvie Livia Aumond Myra Bertrand Val Charbonneau Ami Jun-Yee Chin Josée Cloutier Heather Foucault Joseph Jebreen Marc Lafrance Alison Lemay Mathieu Lemay Joseph Moran
