Presentation Transcript
Catalytic asymmetric synthesis of lactams l.jpg

Catalytic, Asymmetric Synthesis of β-Lactams

Matt Windsor

Gellman Group


Outline l.jpg

  • Background and Applications

  • Synthesis

    • Gilman-Speeter

    • Kinugasa

    • Staudinger

  • Potential Industrial Uses

  • Conclusions

Synthesis by staudinger l.jpg
Synthesis by Staudinger

  • First to synthesize β-lactam core from diphenylketene and benzylideneaniline



Discovery of penicillin l.jpg
Discovery of Penicillin

  • Discovered in 1928

  • First used to treat patients in 1942

  • Significantly lowered number of deaths and amputations caused by infected wounds in WWII

Penicillin s mode of action l.jpg
Penicillin’s Mode of Action

  • Prevents crosslinking of bacteria’s cell wall polymer strands (peptidoglycan)

Mechanism of activity l.jpg
Mechanism of Activity

  • -lactams act as inhibitors of serine proteases:

    • -lactamases

    • Prostate Specific Antigen

    • Thrombin

    • Human Cytomegalovirus

    • Elastase

Antibiotic resistance via lactamases l.jpg
Antibiotic Resistance via -Lactamases

  • -Lactamases able to remove acyl group, regenerate serine sidechain

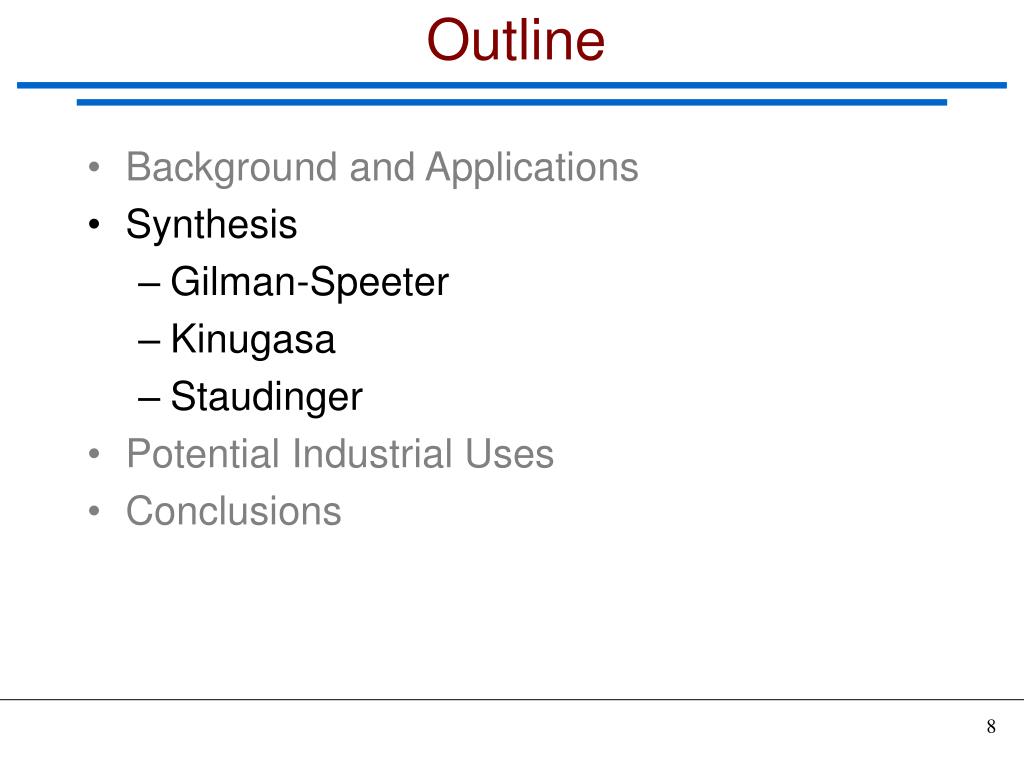

Outline8 l.jpg

  • Background and Applications

  • Synthesis

    • Gilman-Speeter

    • Kinugasa

    • Staudinger

  • Potential Industrial Uses

  • Conclusions

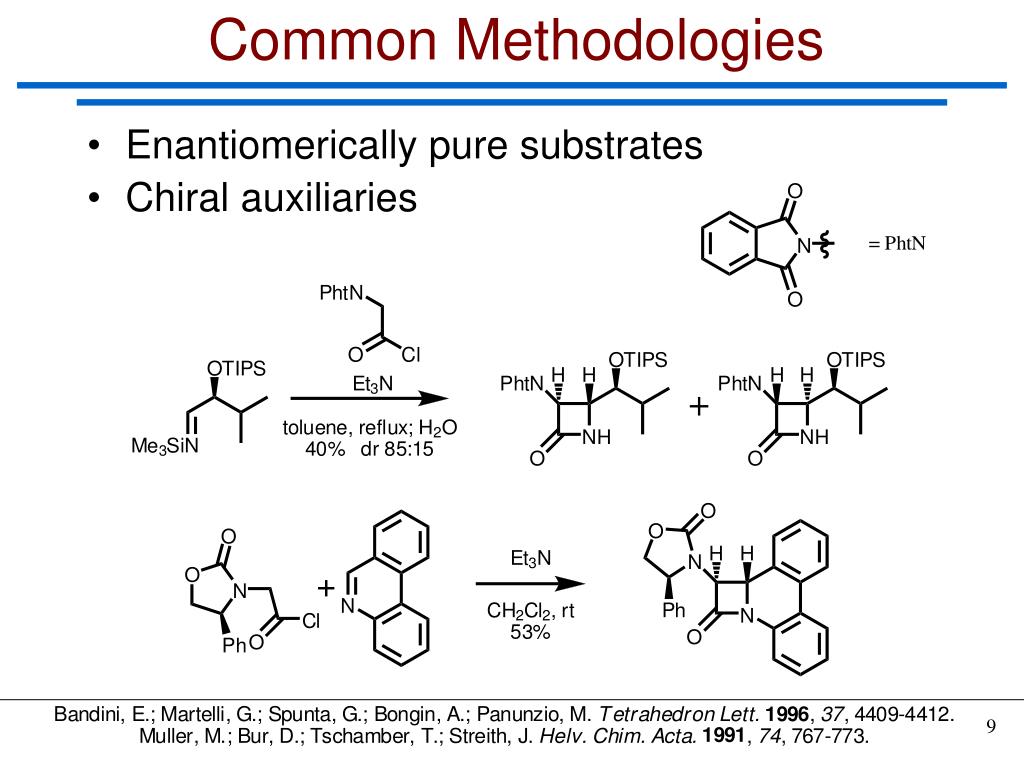

Common methodologies l.jpg
Common Methodologies

  • Enantiomerically pure substrates

  • Chiral auxiliaries

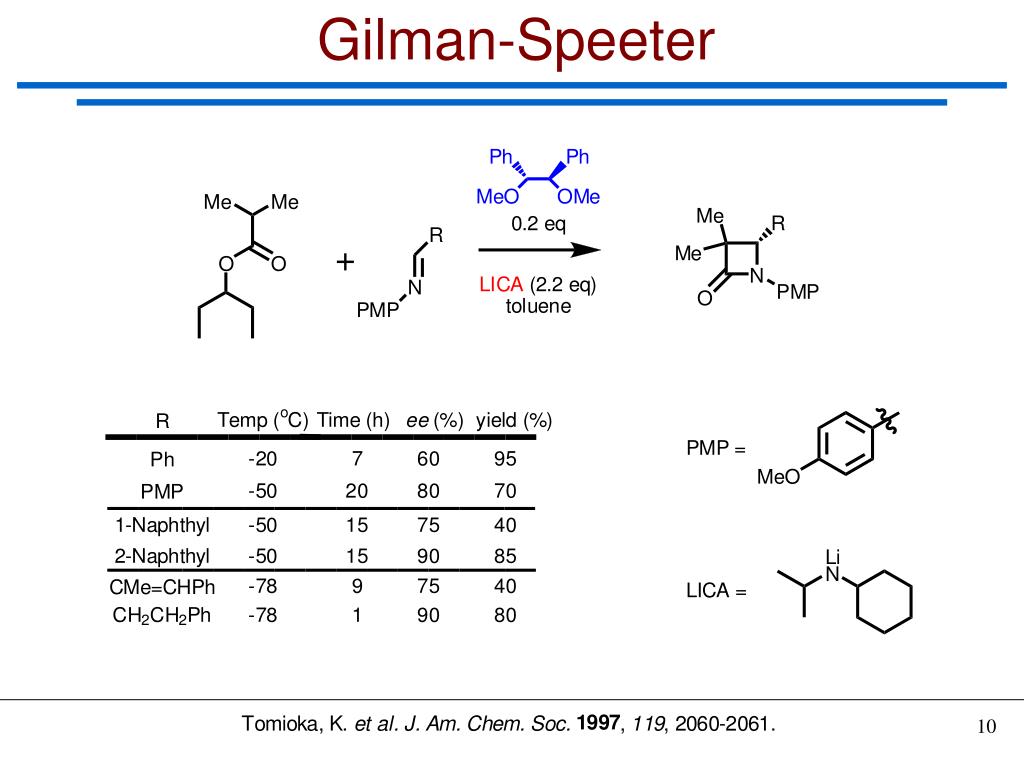

Gilman speeter selectivity l.jpg
Gilman-Speeter Selectivity

  • Ternary complex: Li amide, chiral ligand, Li enolate ester

  • Screening of new, tridentate catalysts to replace amide base in complex

Kinugasa background l.jpg
Kinugasa: Background

  • First reaction to give exclusively cis-lactam

  • Stoichiometeric use of copper under nitrogen

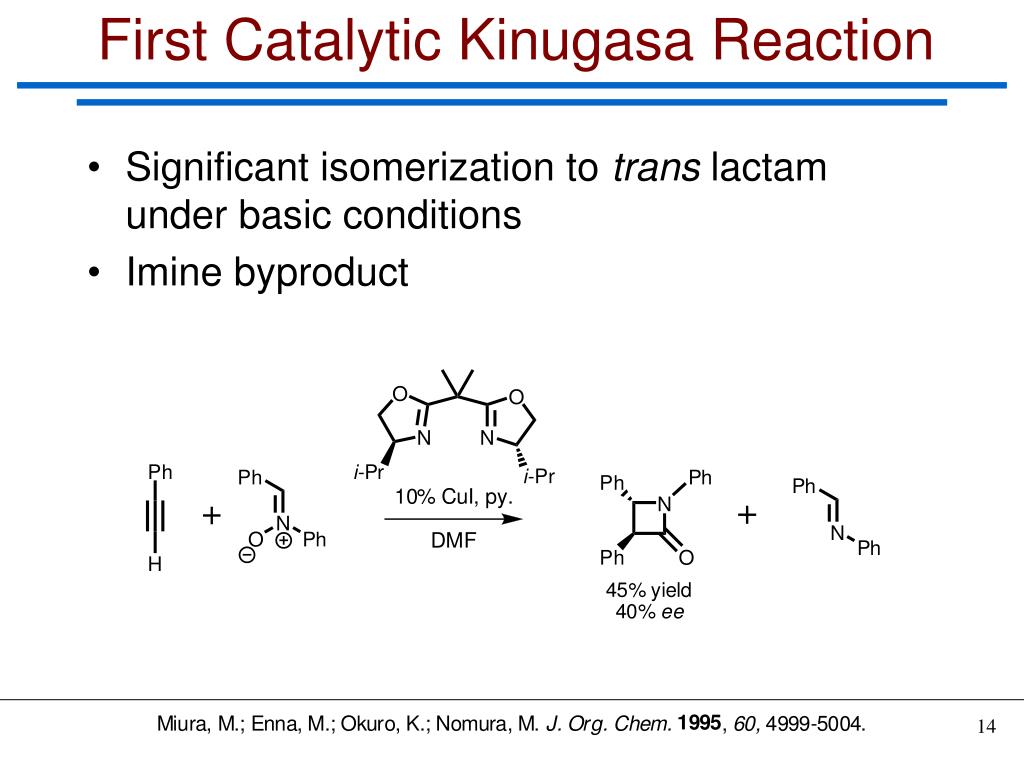

First catalytic kinugasa reaction l.jpg
First Catalytic Kinugasa Reaction

  • Significant isomerization to trans lactam under basic conditions

  • Imine byproduct

Isomerization from cis to trans l.jpg
Isomerization from cis to trans

Isomerization rate depends on R:

Ester > aryl > alkyl

Quaternary center hypothesis l.jpg
Quaternary Center Hypothesis

  • Introduce electrophile and get quaternary center

  • Addition should be trans to C-4 substituent

Initial quaternary conditions l.jpg
Initial Quaternary Conditions

  • Standard reaction conditions gave negligible amount of product

Development of new proton sink l.jpg
Development of New Proton Sink

  • Replaced R3N base

  • New system generates acetophenone

    • Poor proton donor compared to trialkylammonium salt

Air stable kinugasa catalyst l.jpg
Air Stable Kinugasa Catalyst

  • Cu(II) reagent stable under air

  • Cu(I) catalytic species

More evidence for new mechanism l.jpg
More Evidence for New Mechanism

  • Intermediate stabilized by electron withdrawing group (EWG)

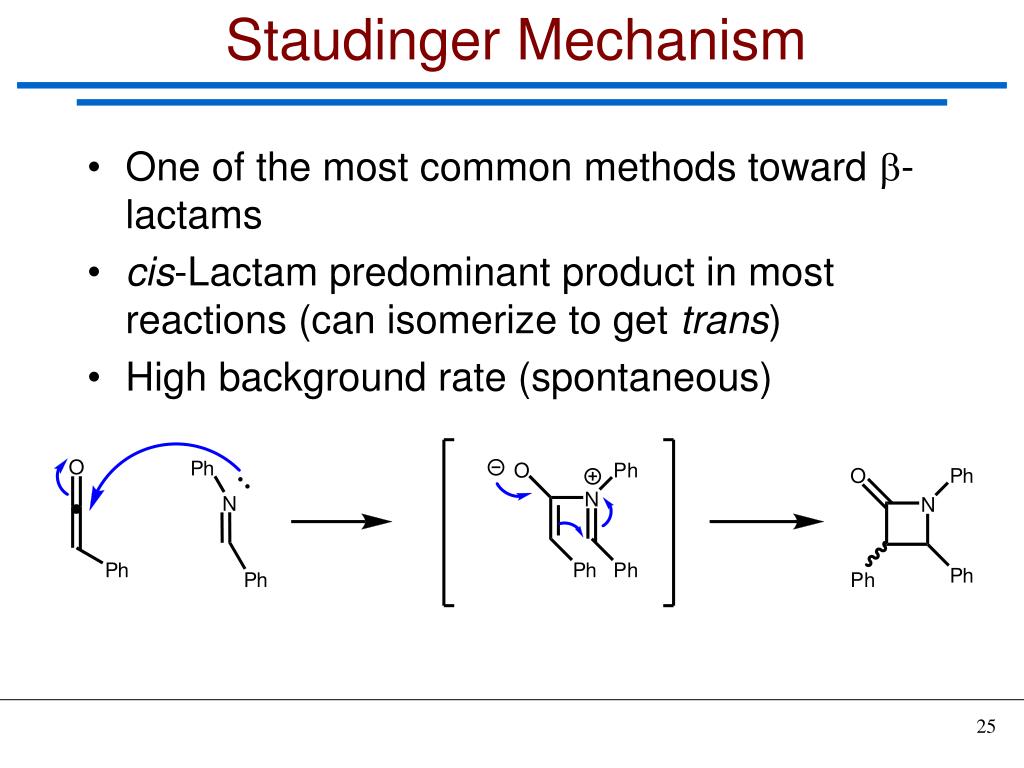

Staudinger mechanism l.jpg
Staudinger Mechanism

  • One of the most common methods toward -lactams

  • cis-Lactam predominant product in most reactions (can isomerize to get trans)

  • High background rate (spontaneous)

Reaction control l.jpg
Reaction Control

  • In order to control reaction, had to first prevent spontaneous cyclization

  • Requires development of electron-deficient imine

  • Catalyst needed for reaction to proceed

Diastereoselective catalyst l.jpg
Diastereoselective Catalyst

  • Rigidify transition state by using catalyst that is H-bond donor and acceptor

  • Selectivity lost in H-bonding solvent

Enantioselective catalyst l.jpg
Enantioselective Catalyst

  • Cinchona alkaloids used previously as enantioselective catalyst

Ketene generation l.jpg
Ketene Generation

  • Commonly use trialkylamine to dehydrohalogenate acyl chloride

  • Base can act as nucleophile to catalyze reaction racemically

  • Need non-nucleophilic, but strong thermodynamic base

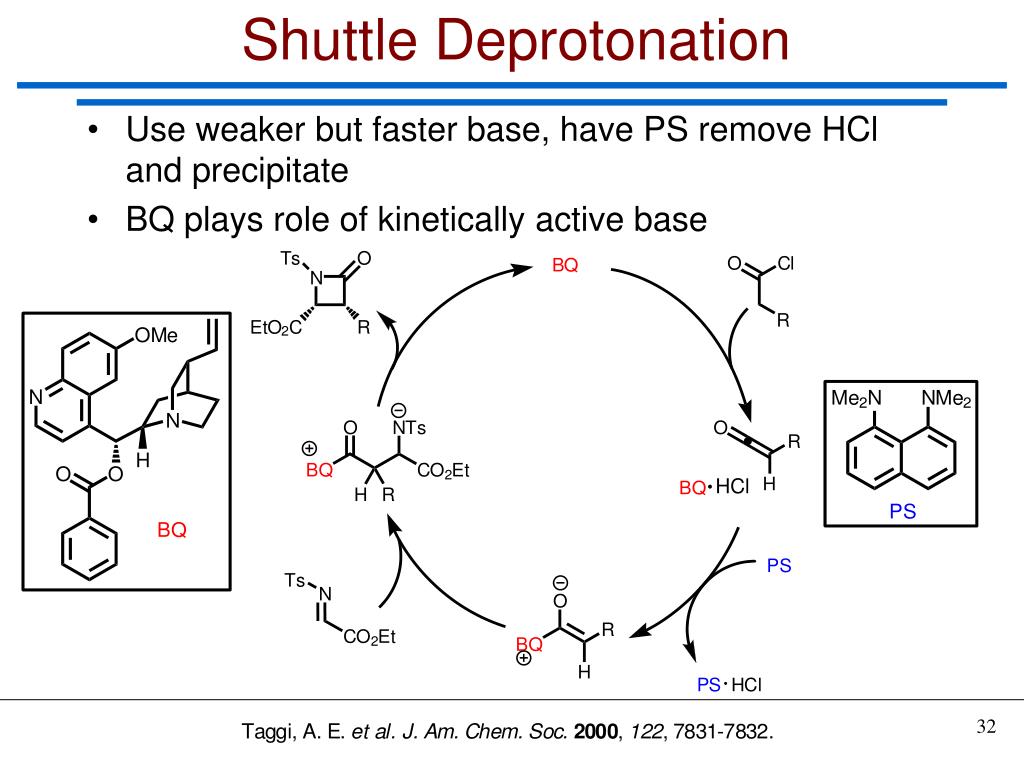

Shuttle deprotonation l.jpg
Shuttle Deprotonation

  • Use weaker but faster base, have PS remove HCl and precipitate

  • BQ plays role of kinetically active base

Synthesis with unique ketenes l.jpg
Synthesis with Unique Ketenes

  • Oxygen substituted ketenes can not be synthesized with chiral auxiliaries

Will a lewis acid la increase yield l.jpg
Will a Lewis Acid (LA) Increase Yield?

  • Intermediate reacting promiscuously

  • Need to activate imine or make intermediate more chemoselective

  • Four scenarios: coordinate to imine (A), enolate (B), both (C) or catalyst (D)

Indium as lewis acid l.jpg
Indium as Lewis Acid

  • Increase in yield, small loss in diastereoselectivity

Variation of the imine substituent l.jpg
Variation of the Imine Substituent

  • Range of ketene and imine substituents in very good yield, ee

Control of cis or trans product l.jpg
Control of cis or trans Product

  • cis/trans selection depends on N-protecting group!

Trans products from anionic catalyst l.jpg
trans Products From Anionic Catalyst

  • Negative charge, bulky counterion are key

  • No alkyl groups, work ongoing

Outline40 l.jpg

  • Background and Applications

  • Synthesis

    • Rhodium Catalyzed

    • Gilman-Speeter

    • Kinugasa

    • Staudinger

  • Potential Industrial Uses

  • Conclusions

Industrial uses zetia l.jpg
Industrial Uses: Zetia

  • Inhibitor of intestinal cholesterol absorption

  • Combined with Merck statin (ZOCOR ) and sold as Vytorin

Conclusions l.jpg

  • Field still in its infancy

  • Primarily limited by substrate specificity

    • Enolate for Gilman-Speeter

    • Imine for Staudinger

    • Nitrone for Kinugasa

  • Better catalysts to maximize selectivity, yield

Shout outs l.jpg
Shout Outs

  • Professor Sam Gellman

  • Gellman Group

  • Practice Talk Attendees

    • Lauren Boyle Claire Poppe

    • Maren Buck Chris Shaffer

    • Julee Byram Becca Splain

    • Alex Clemens Katherine Traynor

    • Richard Grant
