v e x arms

VEX Arms

Robert’s ARL robot in 2006

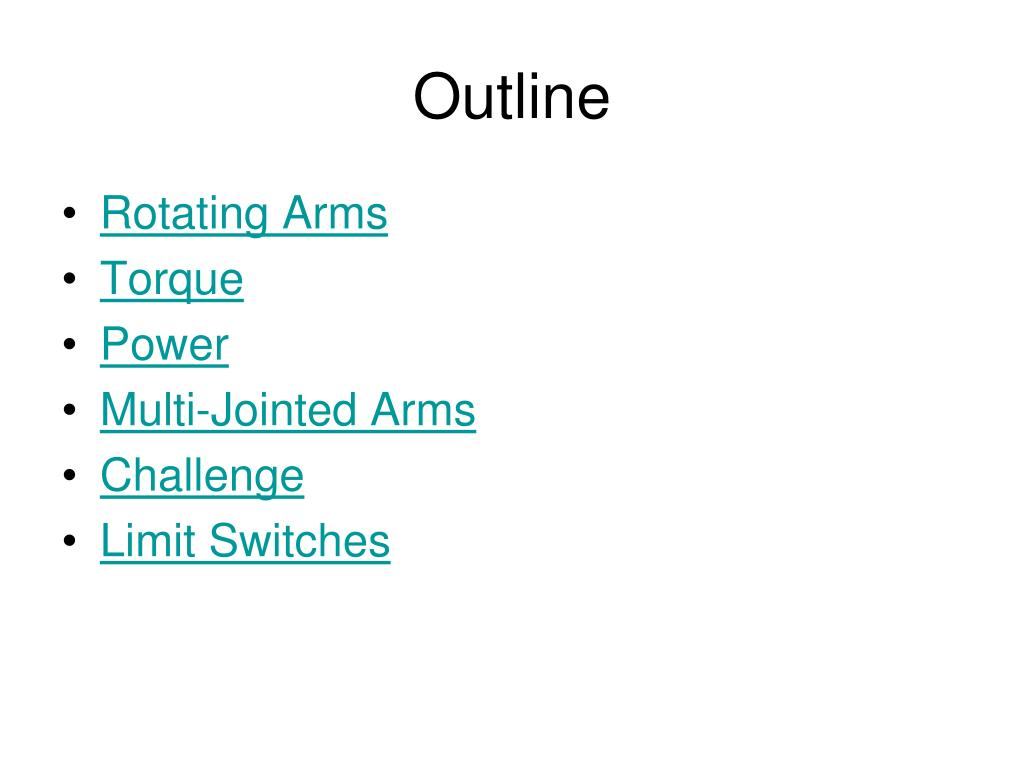

outline
Outline
  • Rotating Arms
  • Torque

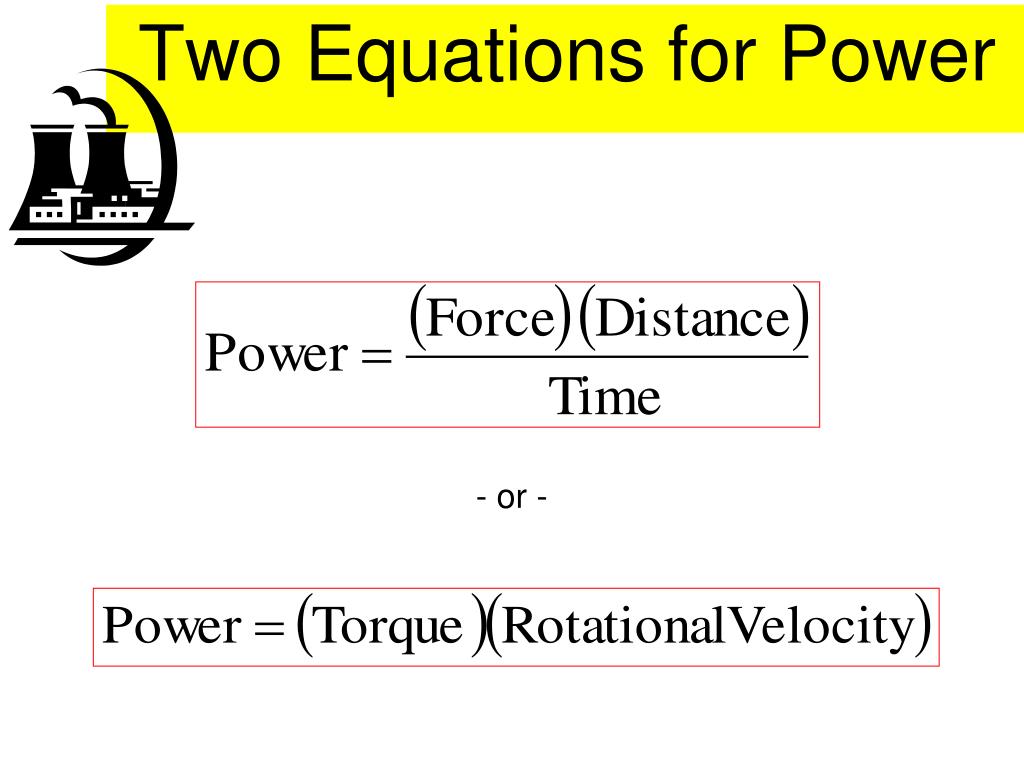

  • Power
  • Multi-Jointed Arms
  • Challenge
  • Limit Switches
rotating arms

counter weight

motor

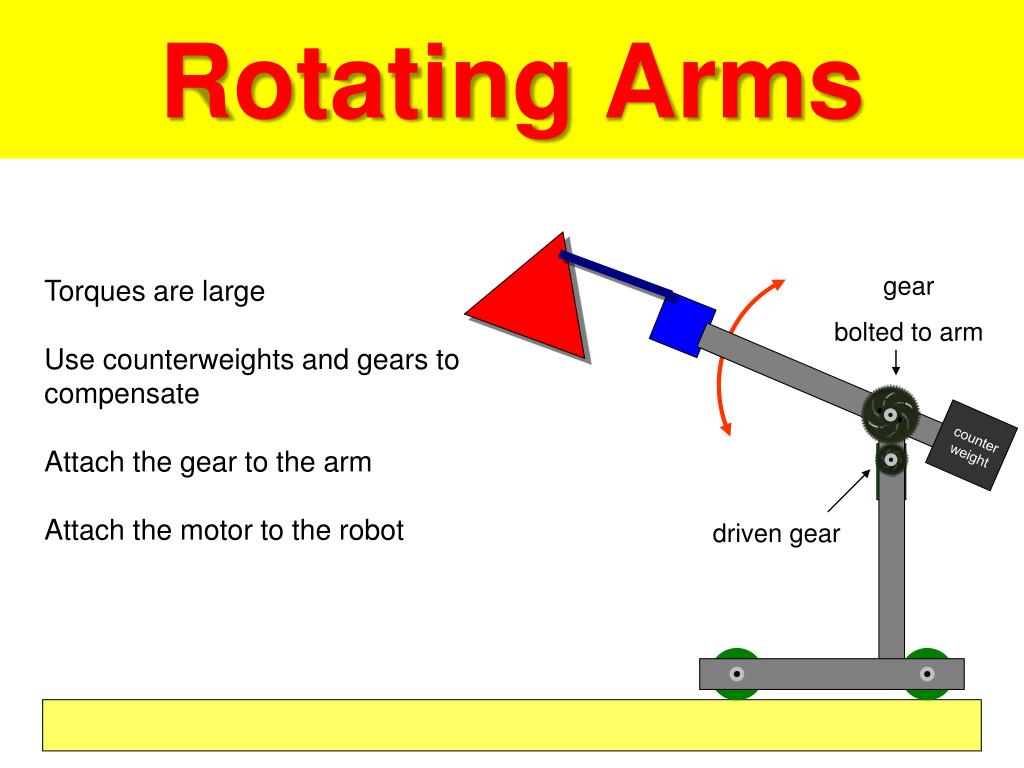

Rotating Arms

Torques are largeUse counterweights and gears to compensateAttach the gear to the armAttach the motor to the robot

gear

bolted to arm

driven gear

rotating arm
Rotating Arm

Carrier Robot

posted on www.vexforum.com by VexLABS

torque t
Torque (T)

T = F┴d

distance

force

perpendicular

F

d

pivot point

which arm has more torque on it

d1

Which arm has more torque on it?

10 lbs

Arm 2

Arm 1

10 lbs

d2

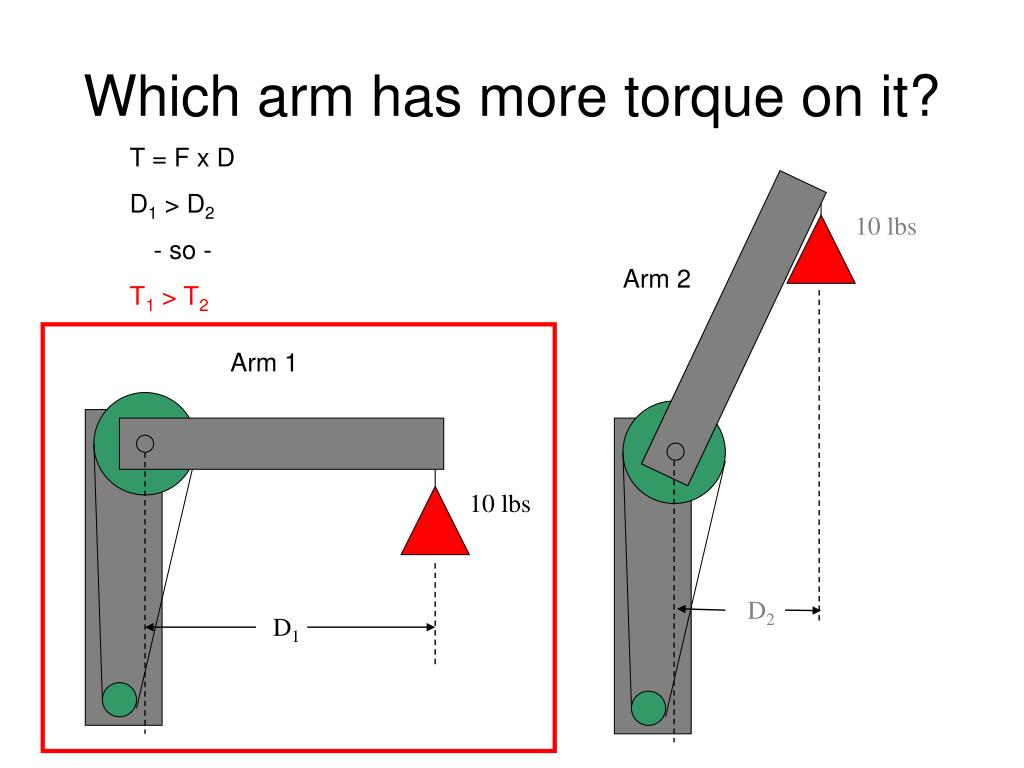

which arm has more torque on it1

D1

Which arm has more torque on it?

T = F x D

D1 > D2

- so -

T1 > T2

10 lbs

Arm 2

Arm 1

10 lbs

D2

which arm would require a more powerful motor

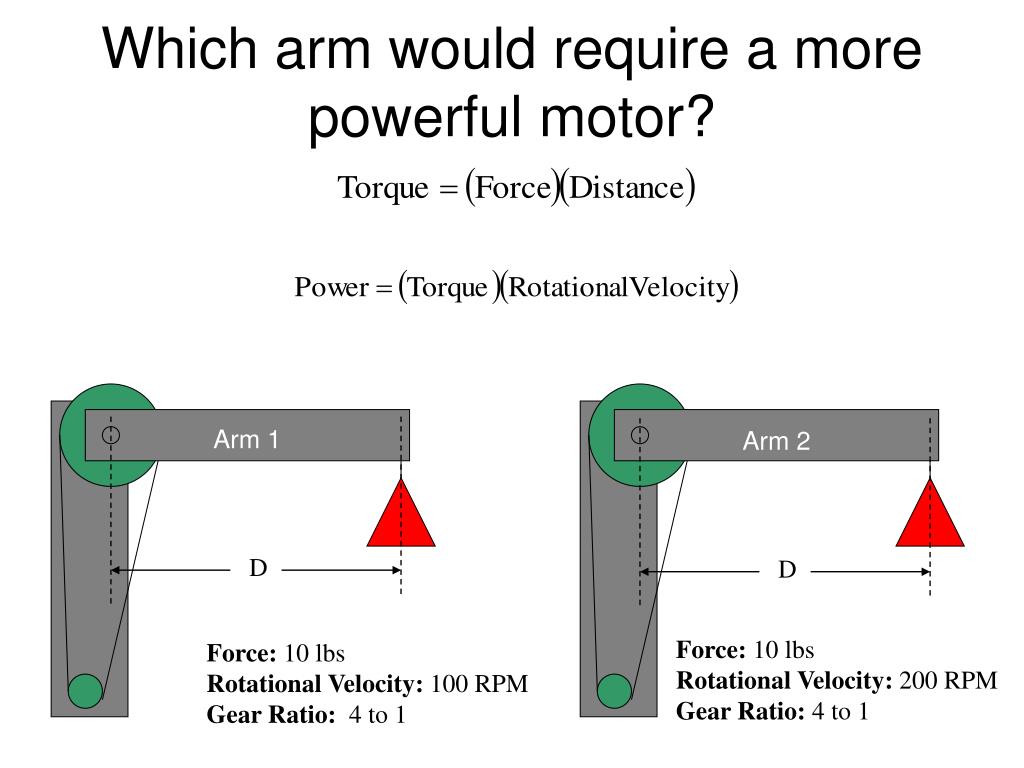

Which arm would require a more powerful motor?

Arm 1

Arm 2

D

D

Force: 10 lbs

Rotational Velocity: 200 RPM Gear Ratio: 4 to 1

Force: 10 lbs

Rotational Velocity: 100 RPM Gear Ratio: 4 to 1

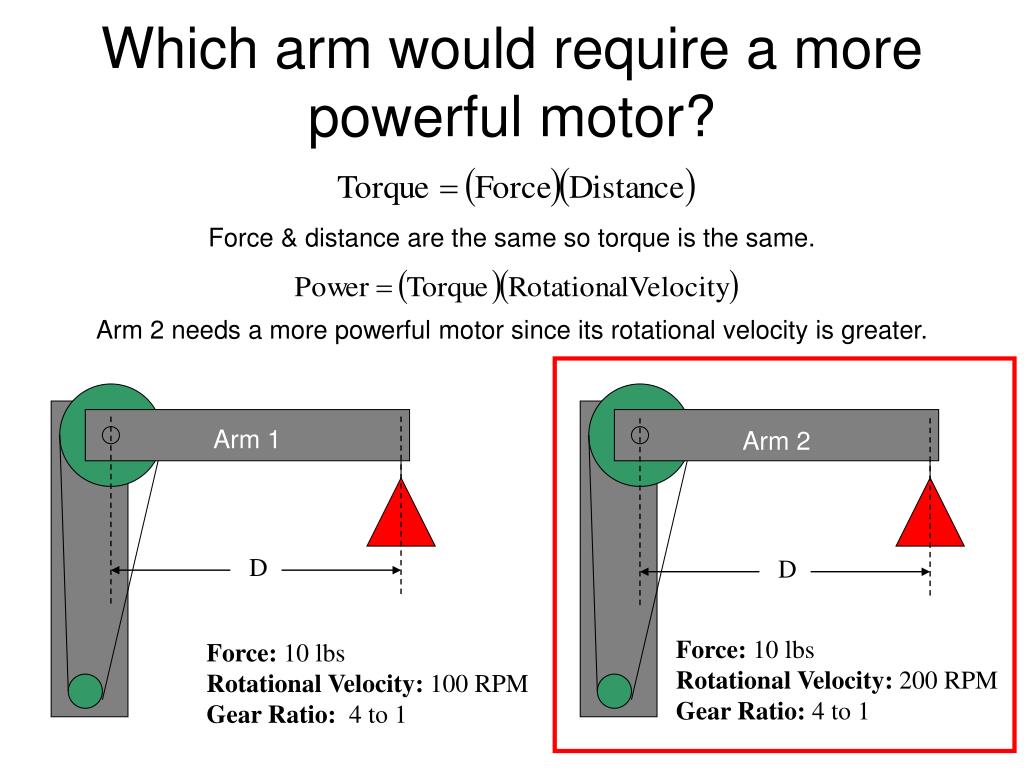

which arm would require a more powerful motor1
Which arm would require a more powerful motor?

Force & distance are the same so torque is the same.

Arm 2 needs a more powerful motor since its rotational velocity is greater.

Arm 1

Arm 2

D

D

Force: 10 lbs

Rotational Velocity: 200 RPM Gear Ratio: 4 to 1

Force: 10 lbs

Rotational Velocity: 100 RPM Gear Ratio: 4 to 1

multi jointed arms
Multi-Jointed Arms

Put multiple sections together to increase dexterity.

www.vexrobotics.com

Posted on www.vexforum.com by juniorVEXbot

arms challenge
Arms Challenge

CHALLENGES LIKE THESE ARE GOOD FOR HIGH SCHOOL STUDENTS, because they are well-specified for existing robot kits.

  • In our case we work on open-ended projects, more similar to real life.
  • For instance we can assume nothing when designing a humanoid robot arms.
  • It is however good to be realistic about costs.

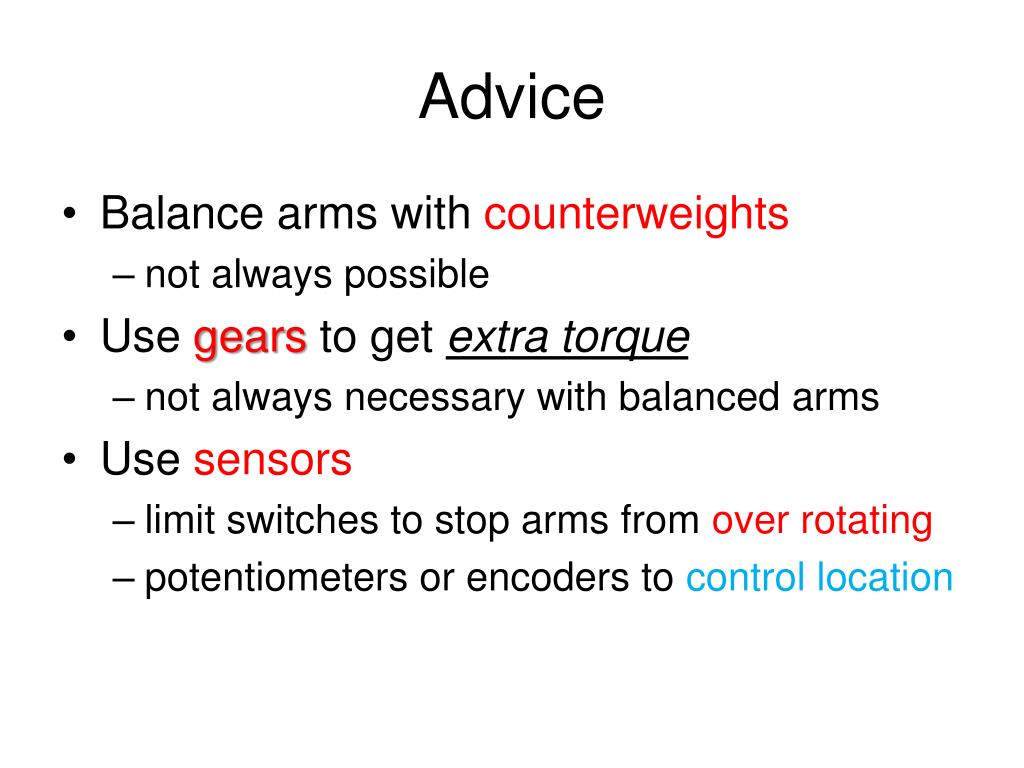

advice
Advice
  • Balance arms with counterweights
    • not always possible
  • Use gears to get extra torque
    • not always necessary with balanced arms
  • Use sensors
    • limit switches to stop arms from over rotating
    • potentiometers or encoders to control location

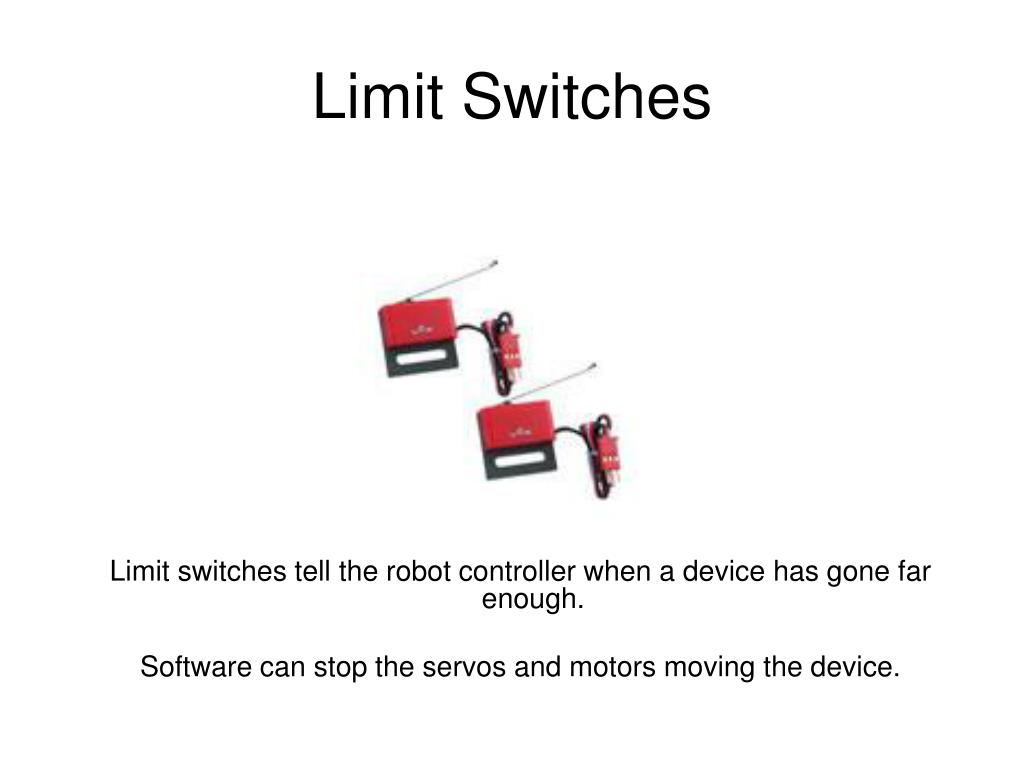

limit switches
Limit Switches

Limit switches tell the robot controller when a device has gone far enough.

Software can stop the servos and motors moving the device.

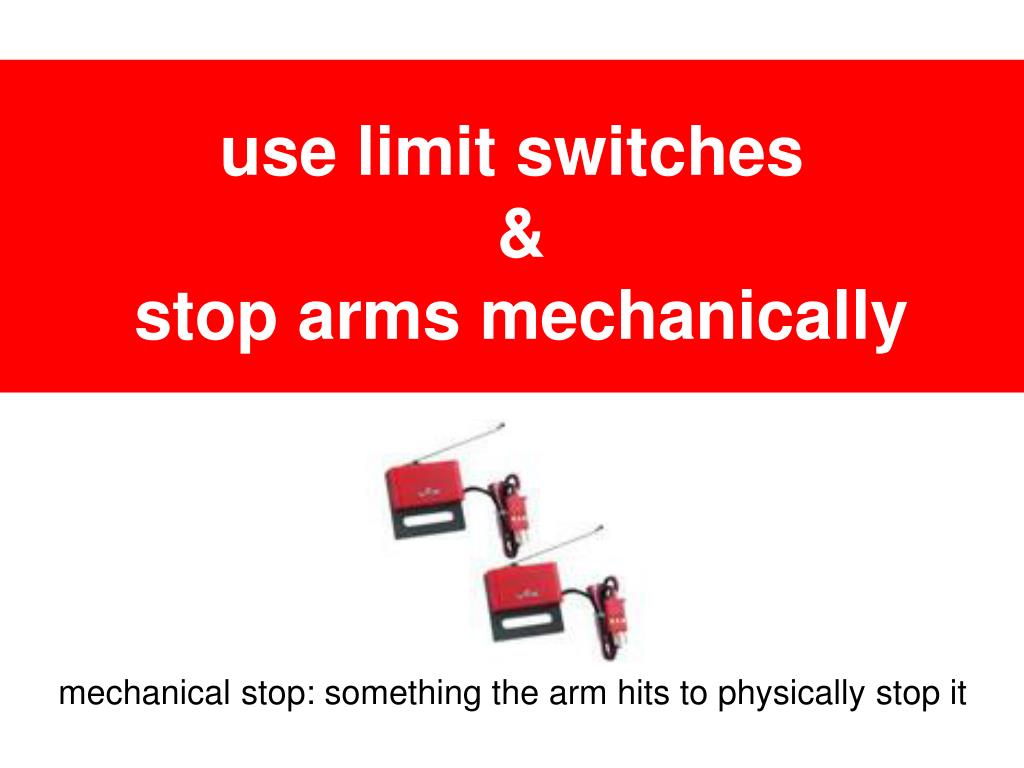

slide16
use limit switches

&

stop arms mechanically

mechanical stop: something the arm hits to physically stop it

optical shaft encoders
Optical Shaft Encoders
  • Detects 90 ticks per shaft rotation
  • Useful for measuring speeds

*Old encoders (they only have one PWM cable) can’t tell direction of rotation

*

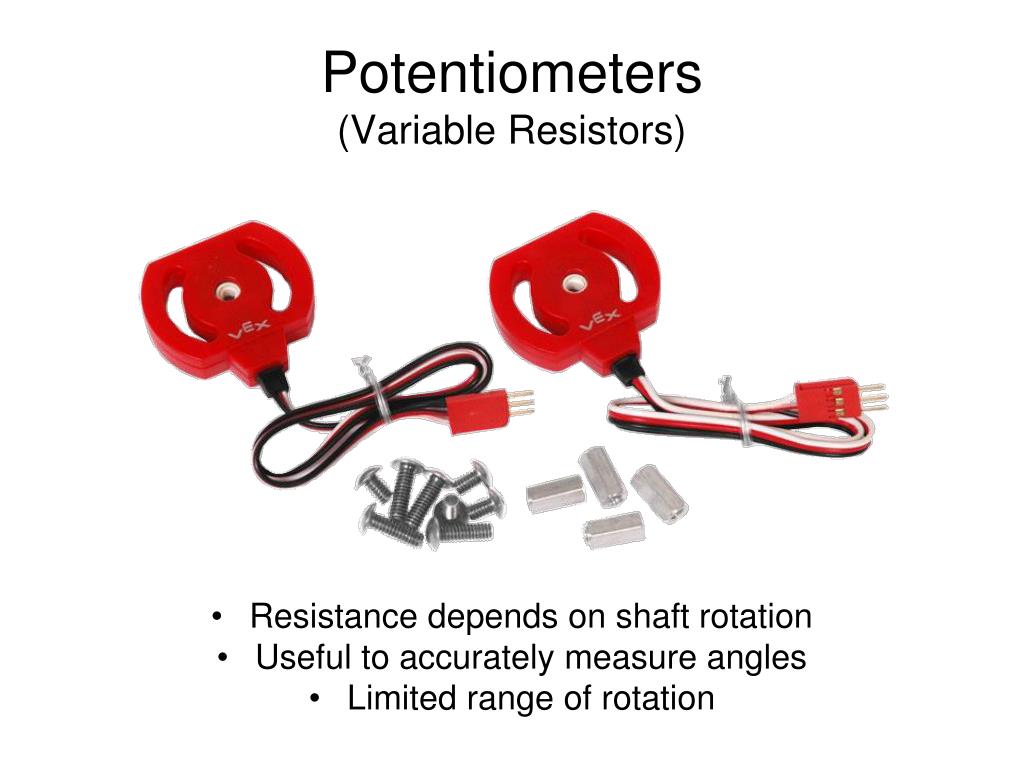

potentiometers variable resistors
Potentiometers(Variable Resistors)
  • Resistance depends on shaft rotation
  • Useful to accurately measure angles
  • Limited range of rotation
sources
Sources
  • J.M. Gabrielse
  • Greg Needel - Designing Competitive Manipulators: The Mechanics & Strategy

(www.robogreg.com)
