Presentation Transcript
concept v2 5
Concept V2.5
  • Lesson 16 Objectives:
    • After completing this lesson, the learner will be able to:
      • Program, download and test logic using the LD Editor.
      • Demonstrate an understanding of LD Logic.
concept v2 51
Concept V2.5
  • Creating a Ladder Diagram Section
concept v2 52
Concept V2.5

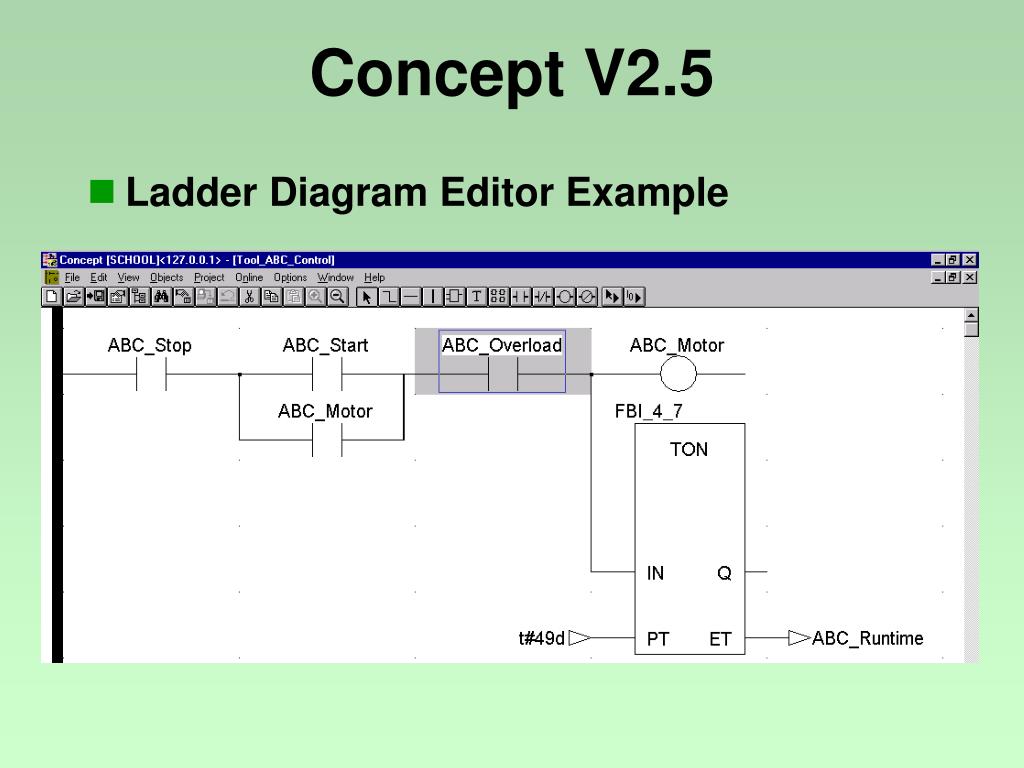

  • Ladder Diagram Editor Example
concept v2 53
Concept V2.5

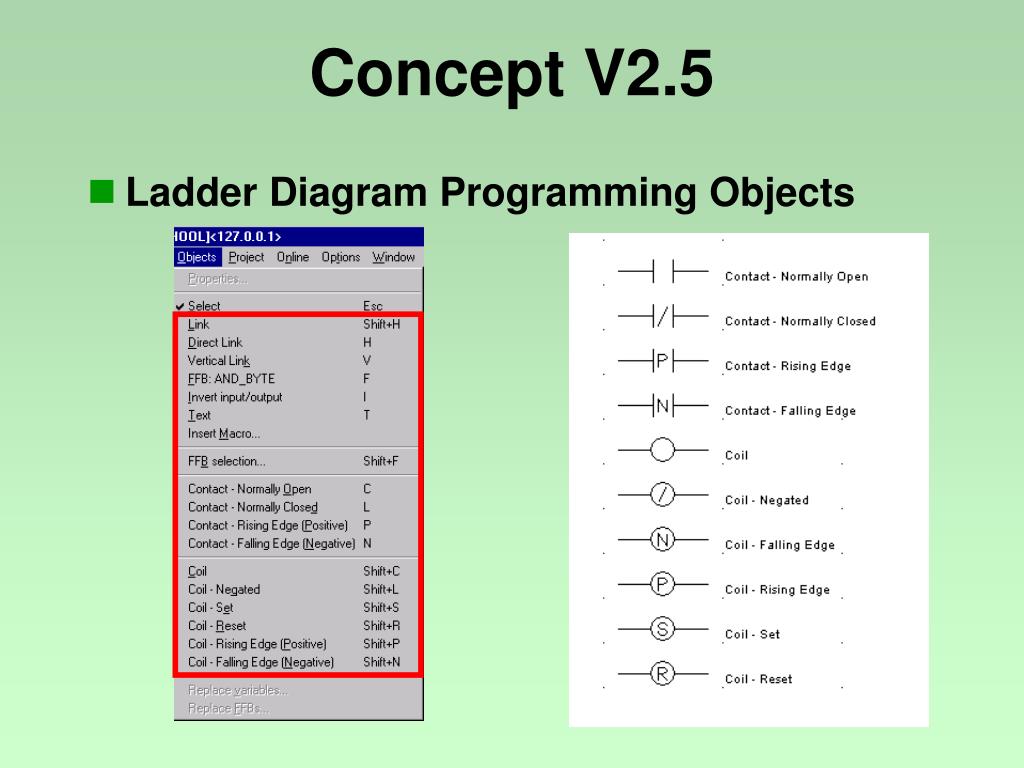

  • Ladder Diagram Programming Objects
concept v2 54
Concept V2.5
  • Connecting Objects
    • All contacts can be connected in sequence (AND-BOOL)
    • All contacts can be connected in parallel (OR-BOOL)
    • All contacts can be connected in both, parallel and sequence
    • The network must be connected to the power rail
    • The power rail refers to the data type BOOL
    • FFB's can be inserted at any position of the network
    • Coils have to be connected to contacts or FFB-outputs
    • The right and left side of a coil always has the same value!
    • At coils with negation or transition the value will be stored in the associated variable
concept v2 55
Concept V2.5
  • The Toolbar

Vertical short must be used for parallel connection

concept v2 56
Concept V2.5

Ladder Diagram

Demonstration

and

Lab
