Analysis of Symmetric and Skewed Distributions with Median and Range Assessments

This report analyzes multiple distributions, highlighting their characteristics. One distribution is symmetric, bell-shaped, with a median of 7, values ranging from 2 to 12, and no apparent outliers. Another is mound-shaped but skewed right, with a median of 7.5% and a range of 0% to 30%, featuring a gap at 22.5%. A third distribution is bell-shaped, centered around 55 years old, ranging from 40 to 70 years, also with no outliers. A comparison of two distributions is made along with the creation of relevant histograms, boxplots, and a scenario generating this data.

lawrence-stephenson
Download Presentation

Analysis of Symmetric and Skewed Distributions with Median and Range Assessments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 30 Second Paragraph Describe Distributions

  2. Describe this distribution

  3. The distribution is roughly symmetric and bell shaped or mounded • The median appears to be 7 • The values vary from 2 to 12 • There do not appear to be any outliers

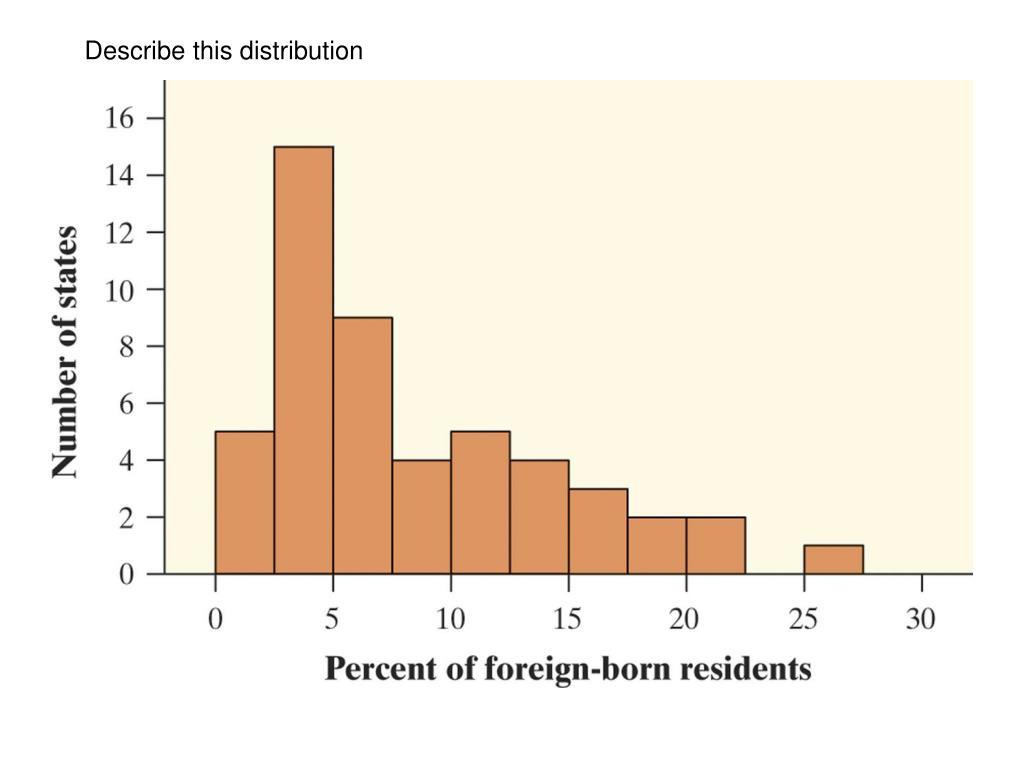

  4. Describe this distribution

  5. Mound shaped but Skewed to the right • Median percent is around 7.5% • Range extends from 0% to 30% with a small gap at 22.5%

  6. Describe this distribution

  7. The distribution is roughly symmetric and bell-shaped • The median appears to be 55 years old • The range is from 40 to 70 • There do not appear to be any outliers

  8. Create a histogram that corresponds to this distribution and then check that the description of the O-give was correct.

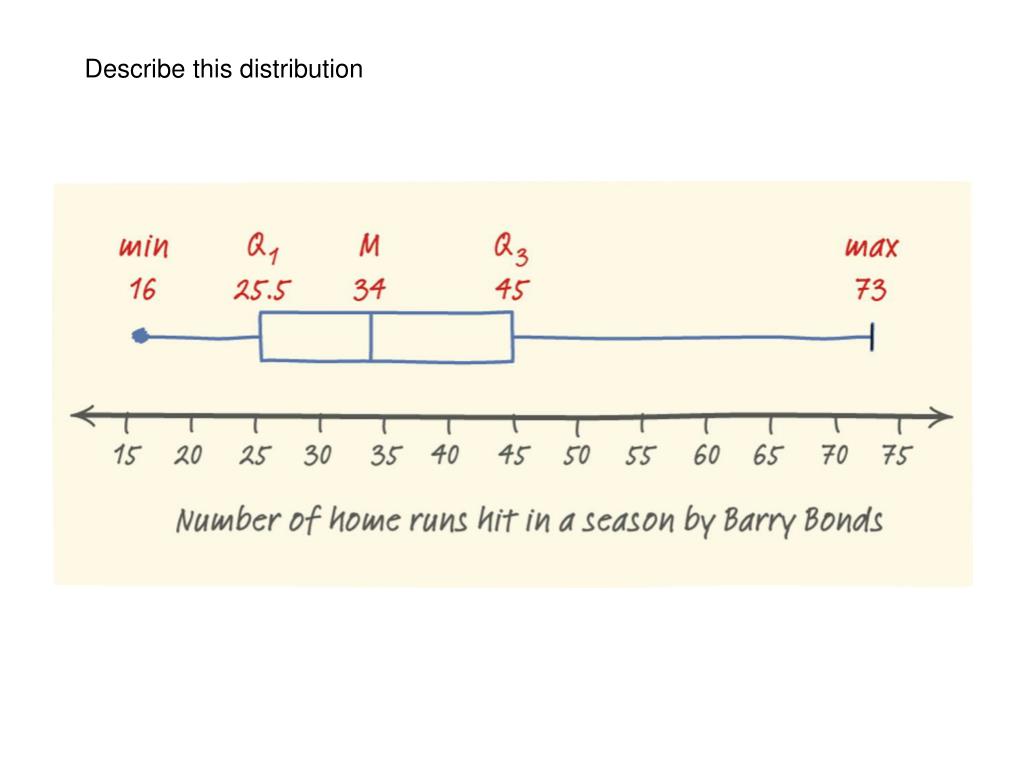

  9. Describe this distribution

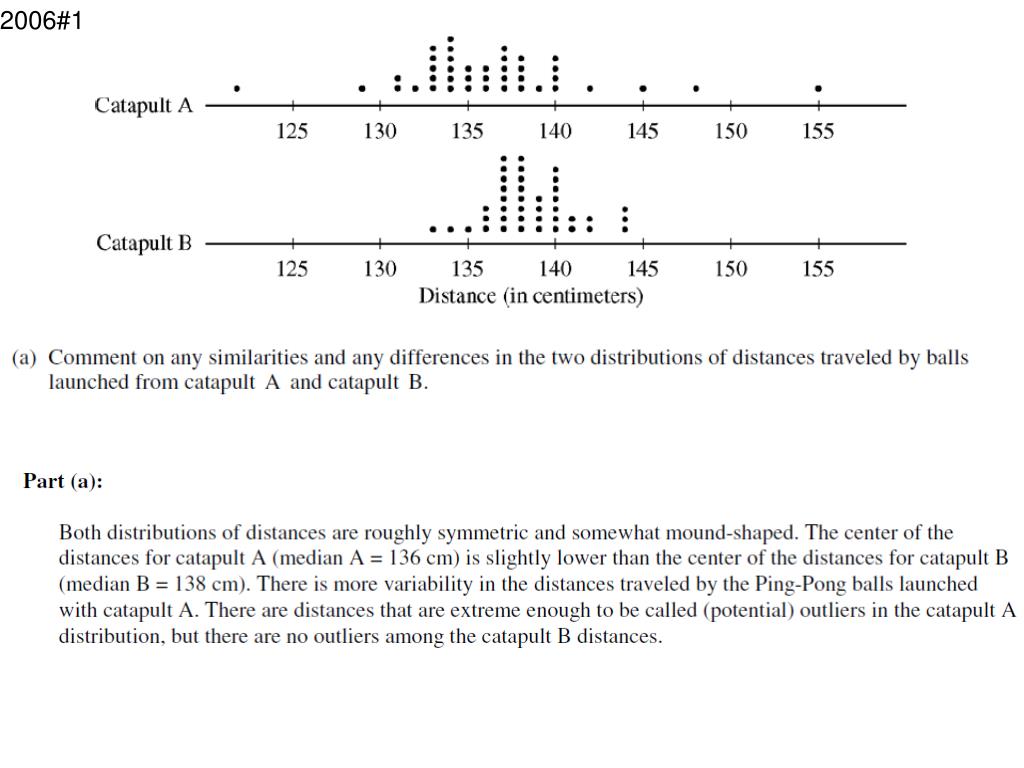

  10. 2006#1

  11. 2006#1

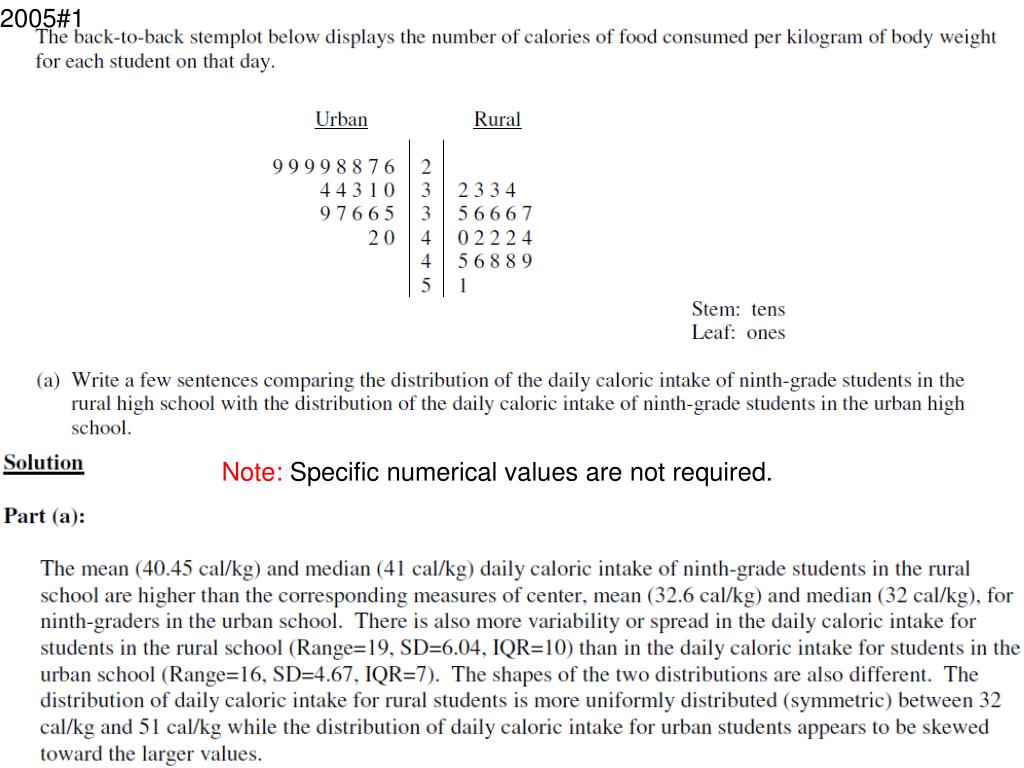

  12. 2005#1

  13. 2005#1 Note: Specific numerical values are not required.

  14. Compare the two distributions.

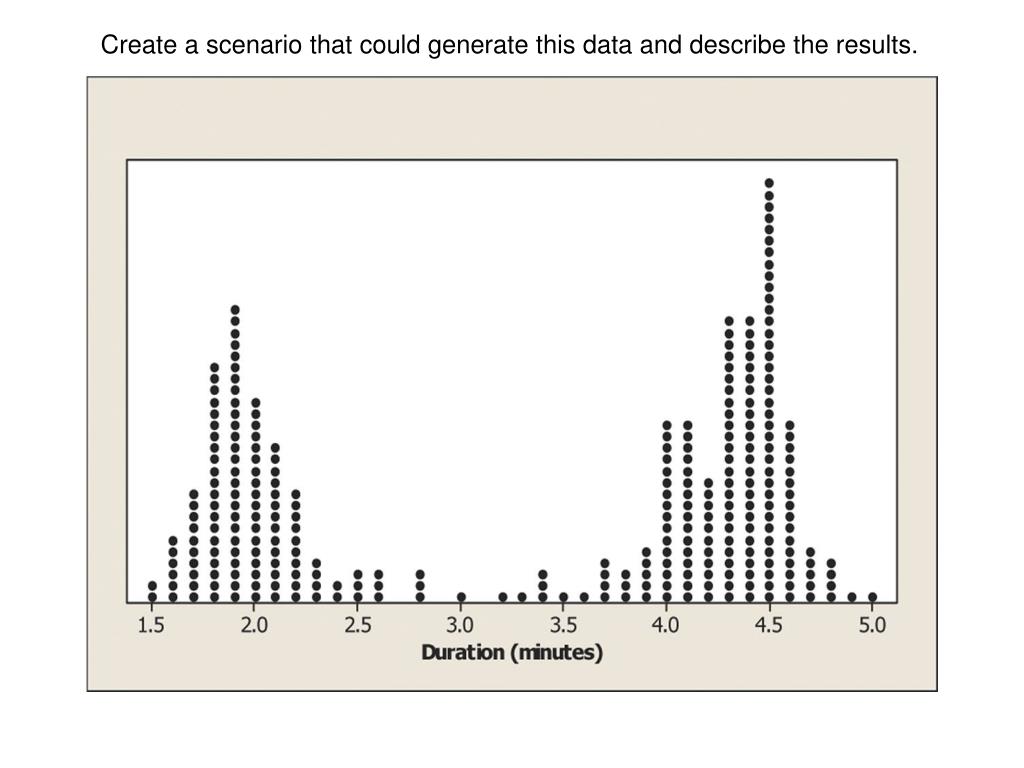

  15. Create a scenario that could generate this data and describe the results.

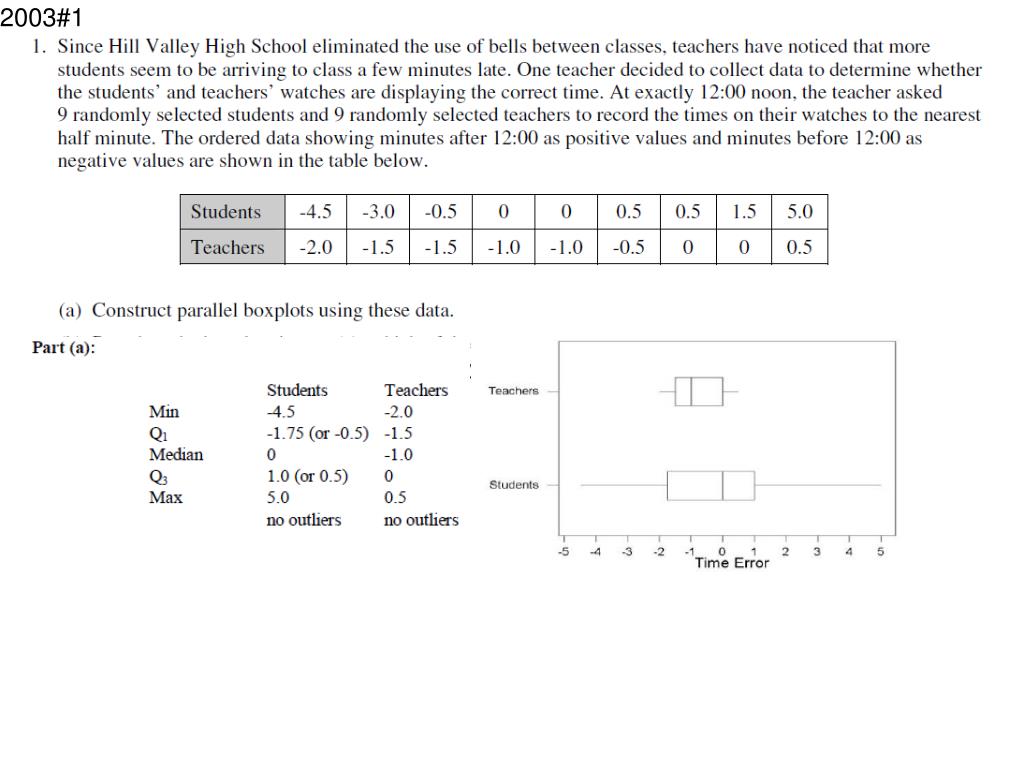

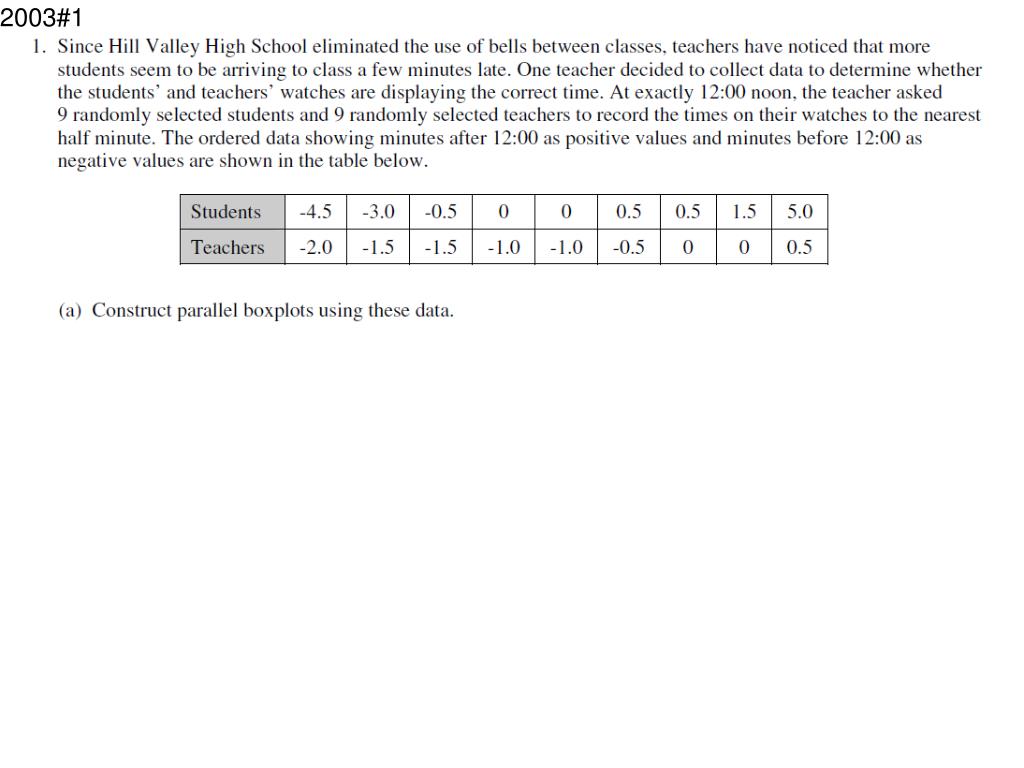

  16. 2003#1

  17. 2003#1

  18. 2003#1

  19. 2003#1

  20. Create a graph based on the following description: • Centered at 12 • Little variability • Roughly symmetric and mound shaped • Very slightly skewed to the left • Tightly clustered as roughly half of the data points are within +/- 1 of center • Range of data from 6.8 to 16.8

  21. 2008#1 Create a sketch of the side-by-side boxplots described above.
