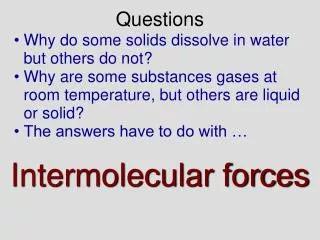

  1. Questions • Why do some solids dissolve in water but others do not? • Why are some substances gases at room temperature, but others are liquid or solid? • The answers have to do with … Intermolecular forces

  2. Intermolecular forces Overview • There are 2 types of attraction in molecules: intramolecular bonds & intermolecular forces • Intramolecular bonds are BONDS - ionic, polar covalent or non-polar covalent • Intermolecular forces (IMF) have to do with the attraction between molecules (vs. the attraction between atoms in a molecule) Intermolecular vs Intramolecular • 41 kJ to vaporize 1 mole of water (inter) • 930 kJ to break all O-H bonds in 1 mole of water (intra)

  3. + – H Cl + – + – + – + – Ionic, Dipole - Dipole attractions • We have seen that molecules can have a separation of charge • This happens in both ionic and polar bonds (the greater the EN, the greater the dipoles) • Molecules are non polar if the EN of all bonds is 0 - 0.4 or if it is symmetrical in shape • Molecules are polar if the EN of any bond is 0.5 or greater and if it is non symmetrical in shape

  4. + + + – + – – – + – + – Electronegativity & IMFs • EN essentially defines the type of IMF. • Ionic bonds form if the EN is 1.7 or greater. • Dipole-dipole (polar covalent) is around 0.5-1.9. • Hydrogen bonding is a type of dipole-dipole. • London forces exist in all molecules, but are especially important in non-polar covalent molecules (where EN is less than 0.5). • Recall that ionic are strongest. • Dipole-dipole are not as strong. • Hydrogen bonding is about five times stronger than regular dipole-dipole forces. • London forces are weakest.

  5. H - bonding • H-bonding is a special type of dipole - dipole attraction that is very strong • It occurs when N, O, or F are bonded to H Q- Calculate the EN for HCl and H2O A- HCl = 3.0-2.1 = 0.9, H2O = 3.5-2.1 = 1.4 • The high EN of NH, OH, and HF bonds cause these to be strong forces (about 5x stronger than normal dipole-dipole forces) • They are given a special name (H-bonding) because compounds containing these bonds are important in biological systems

  6. London forces • Non-polar molecules do not have dipoles like polar molecules. How, then, can non-polar compounds form solids or liquids? • London forces are named after Fritz London (also called van der Waal forces) • London forces are due to small dipoles that exist in non-polar molecules • Because electrons are moving around in atoms there will be instants when the charge around an atom is not symmetrical • The resulting tiny dipoles cause attractions between atoms/molecules

  7. London forces Induced dipole: Instantaneous dipole: Eventually electrons are situated so that tiny dipoles form A dipole forms in one atom or molecule, inducing a dipole in the other
