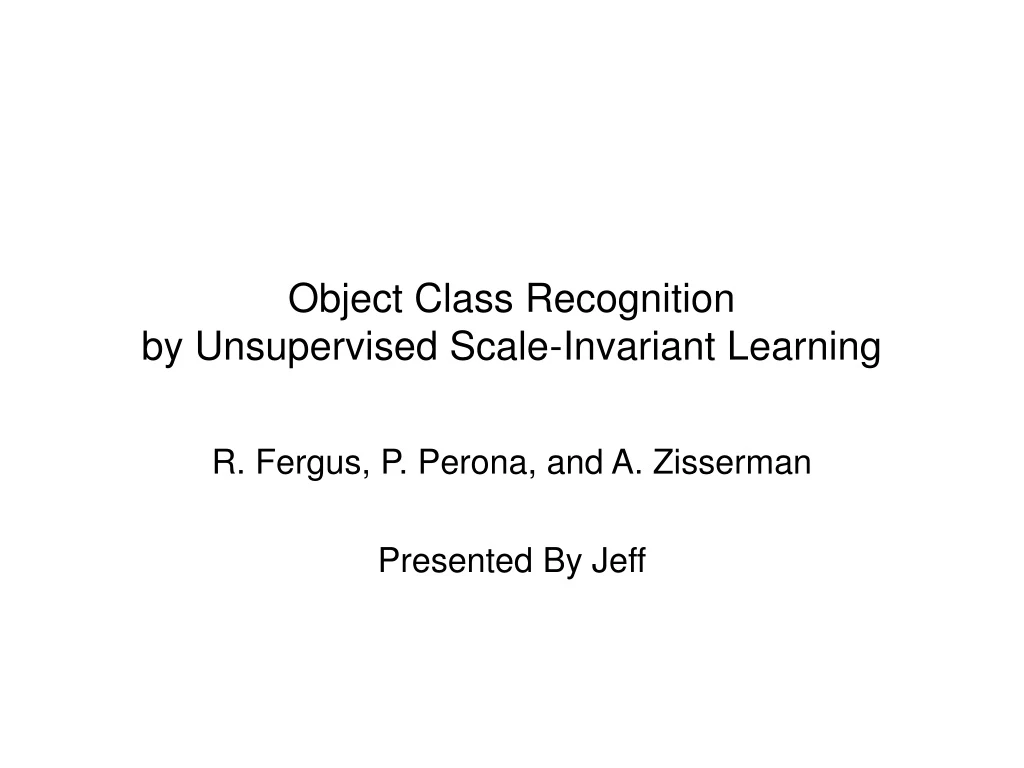

  1. Object Class Recognitionby Unsupervised Scale-Invariant Learning R. Fergus, P. Perona, and A. Zisserman Presented By Jeff

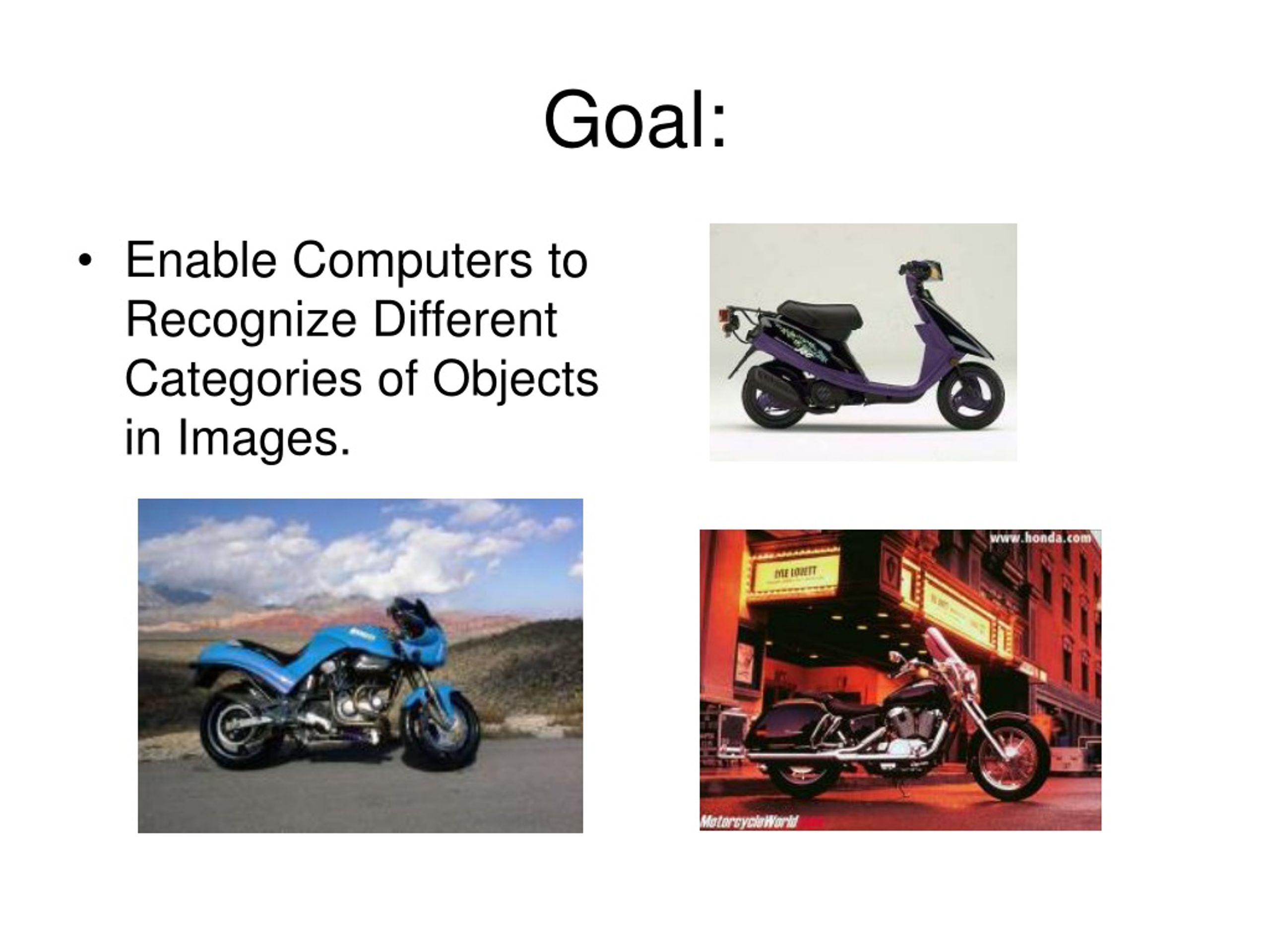

  2. Goal: • Enable Computers to Recognize Different Categories of Objects in Images.

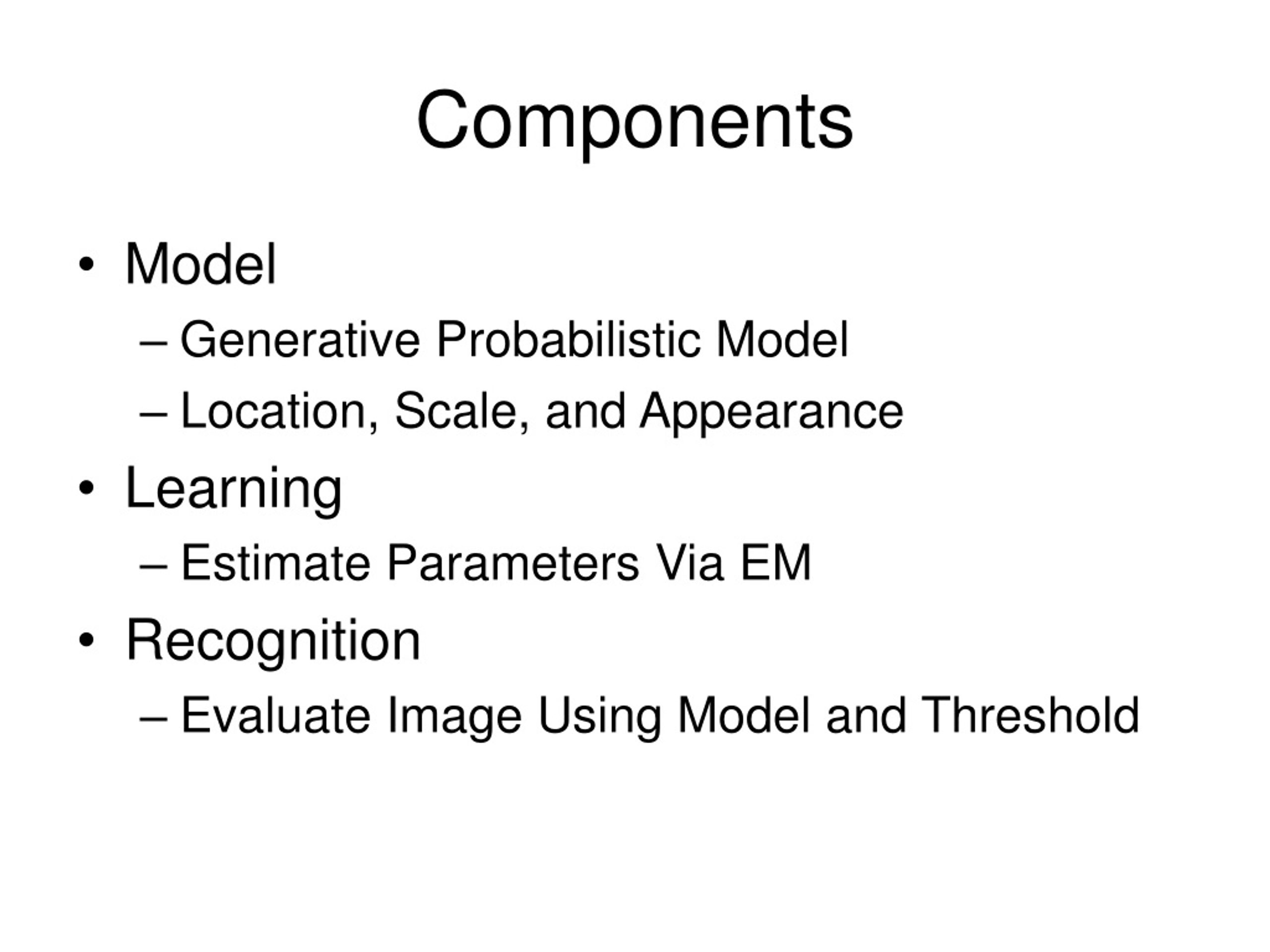

  3. Components • Model • Generative Probabilistic Model • Location, Scale, and Appearance • Learning • Estimate Parameters Via EM • Recognition • Evaluate Image Using Model and Threshold

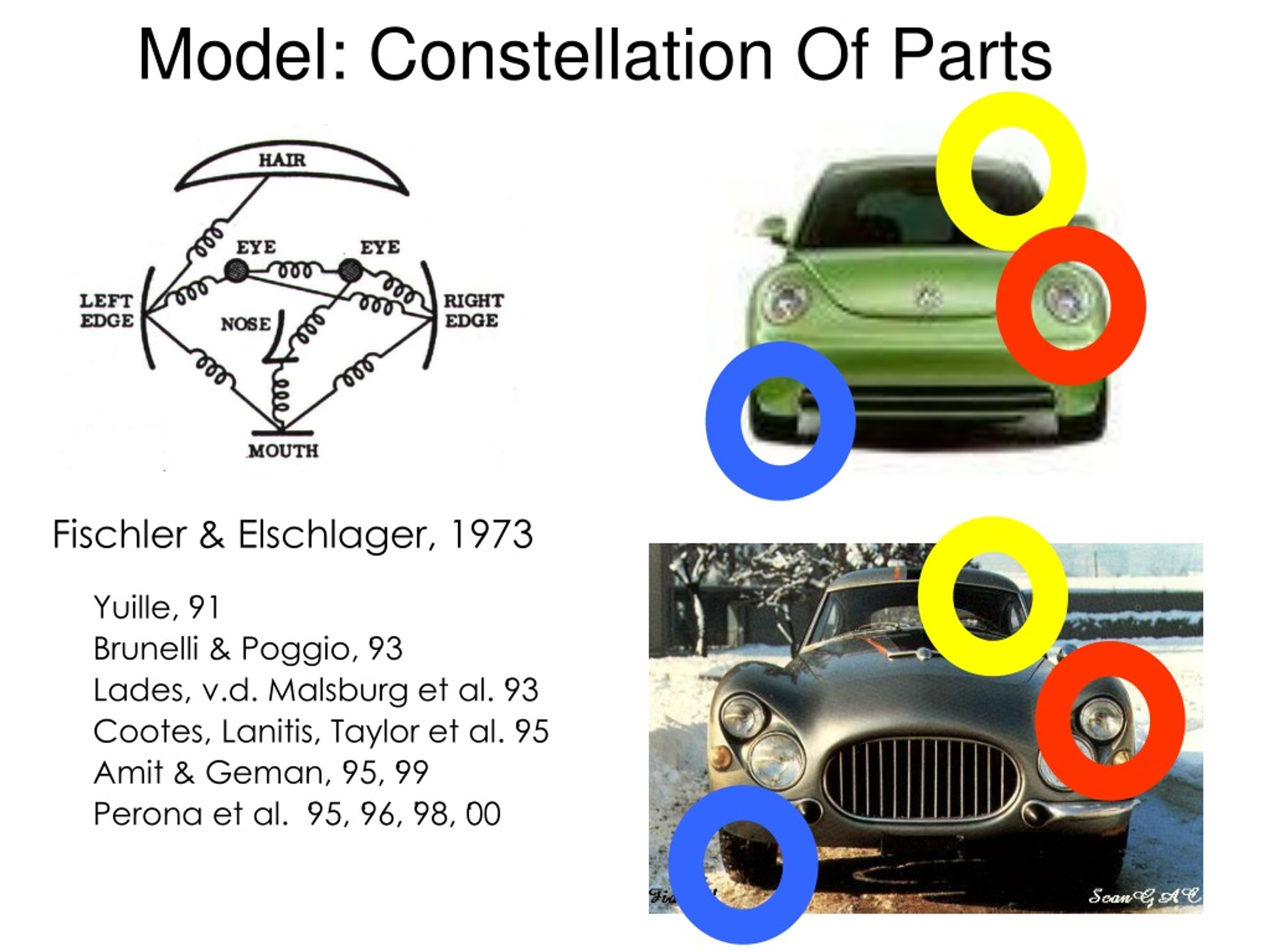

  4. Yuille, ‘91 • Brunelli & Poggio, ‘93 • Lades, v.d. Malsburg et al. ‘93 • Cootes, Lanitis, Taylor et al. ‘95 • Amit & Geman, ‘95, ‘99 • Perona et al. ‘95, ‘96, ’98, ‘00 Model: Constellation Of Parts Fischler & Elschlager, 1973

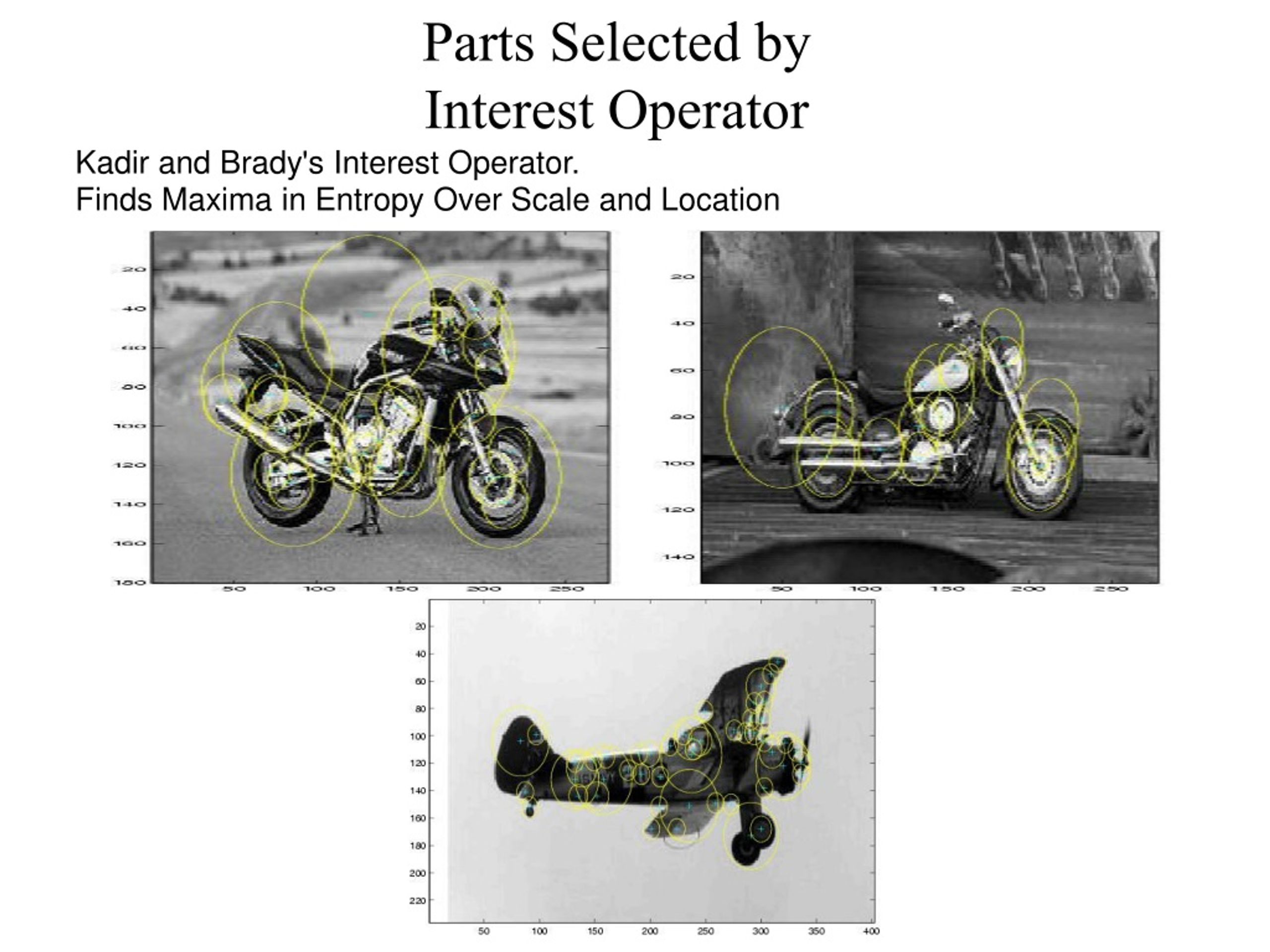

  5. Parts Selected by Interest Operator • Kadir and Brady's Interest Operator. • Finds Maxima in Entropy Over Scale and Location

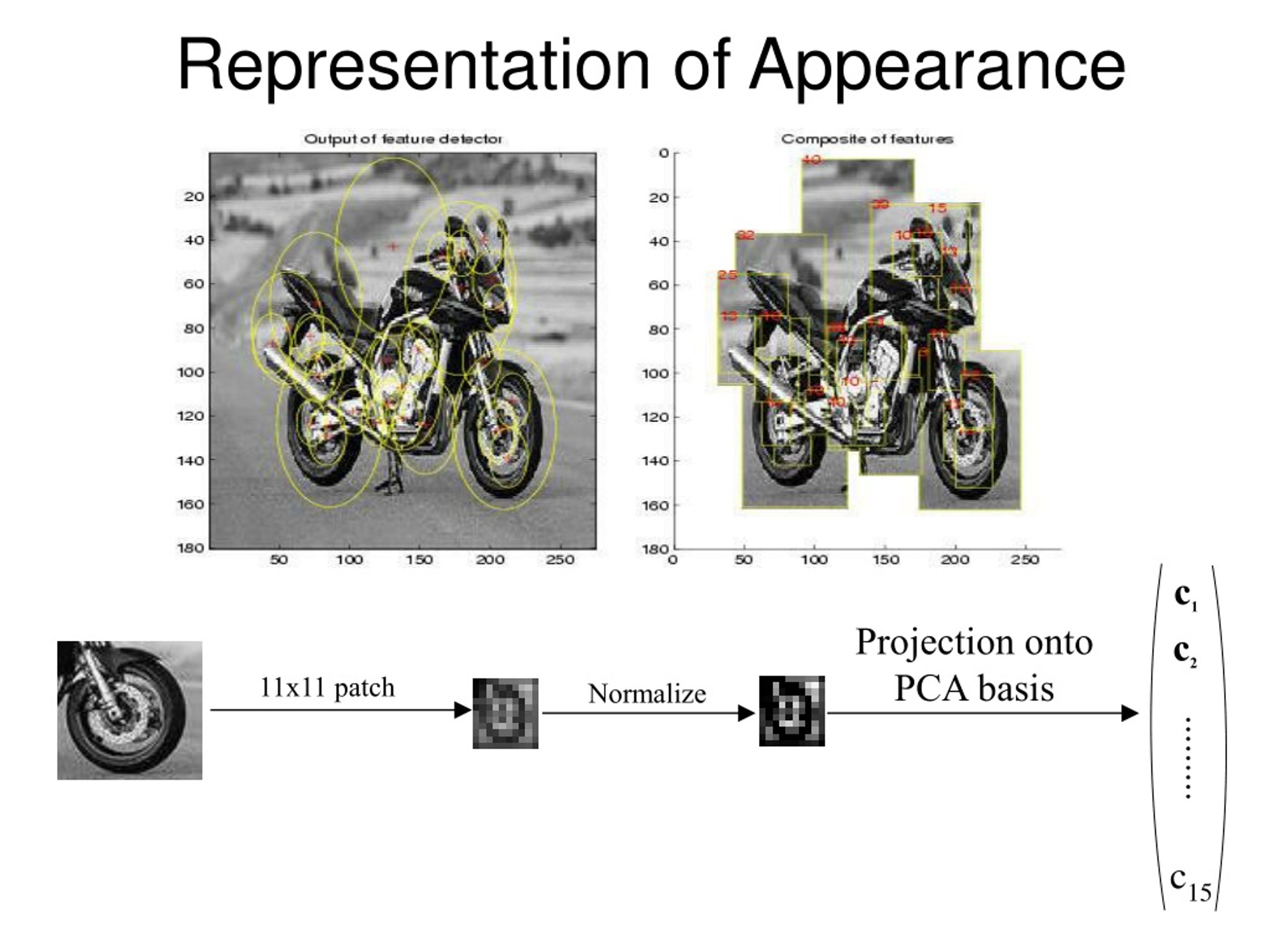

  6. c1 c2 Representation of Appearance Projection onto PCA basis 11x11 patch Normalize c15

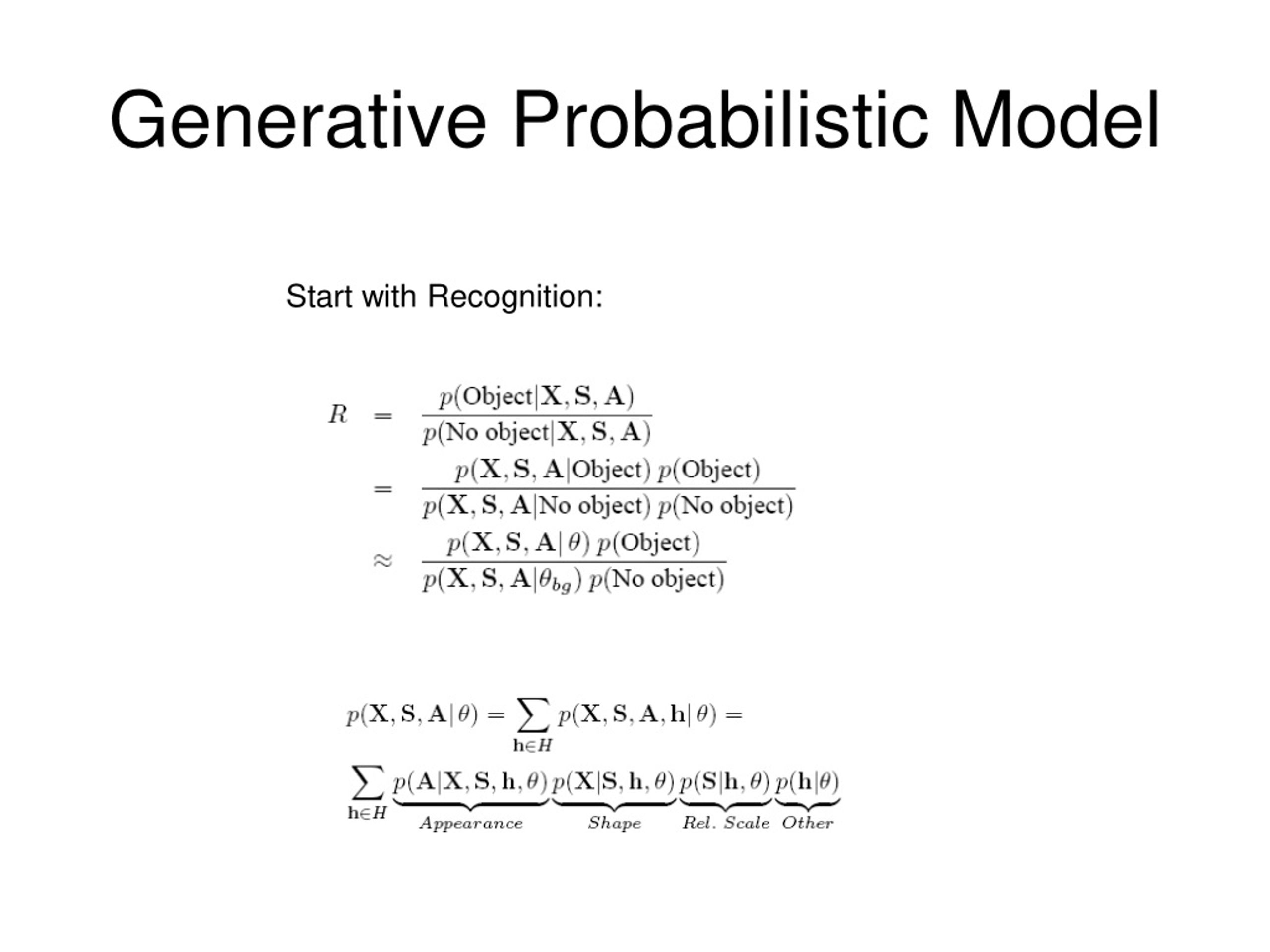

  7. Generative Probabilistic Model Start with Recognition:

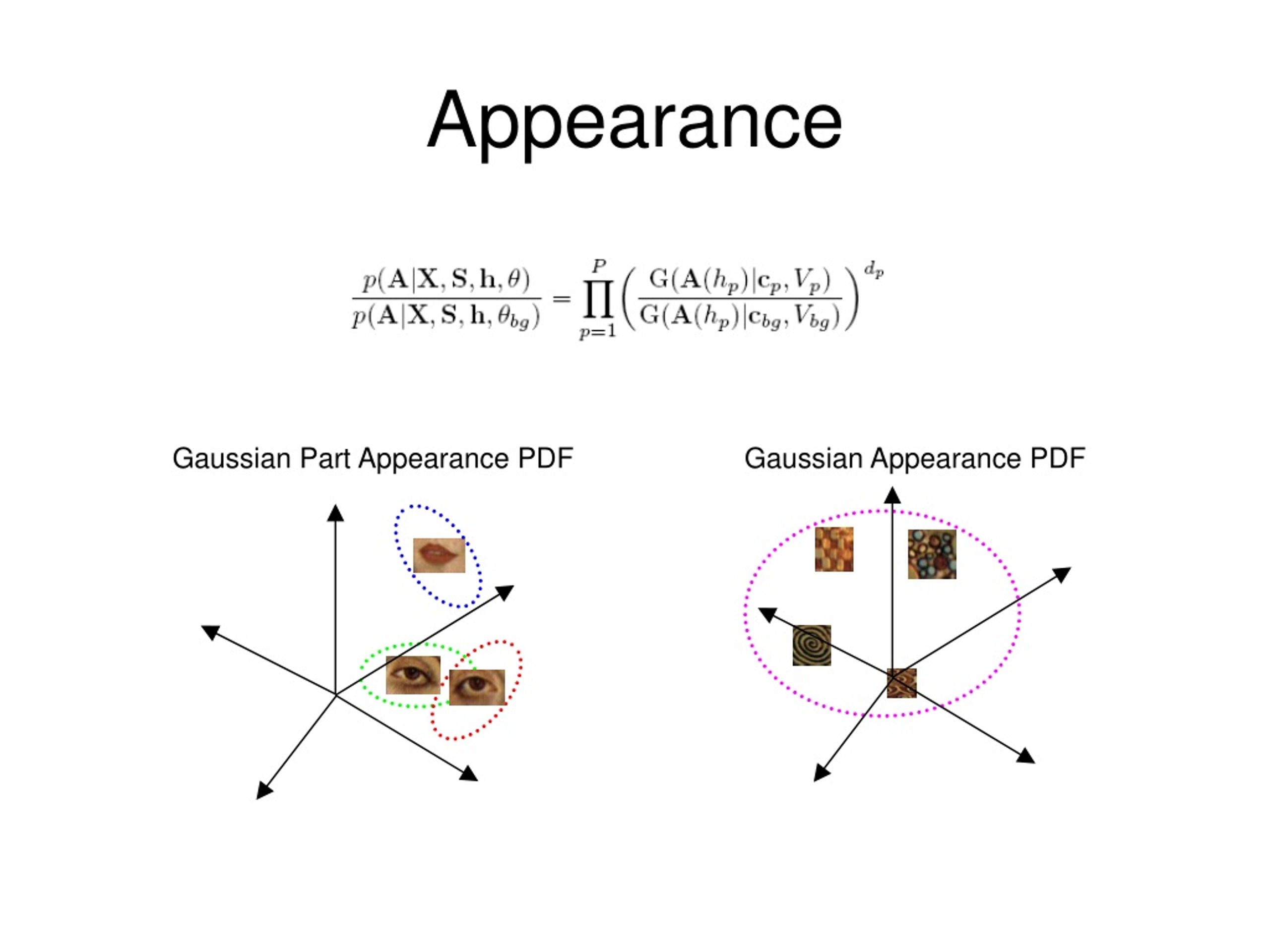

  8. Appearance Gaussian Part Appearance PDF Gaussian Appearance PDF

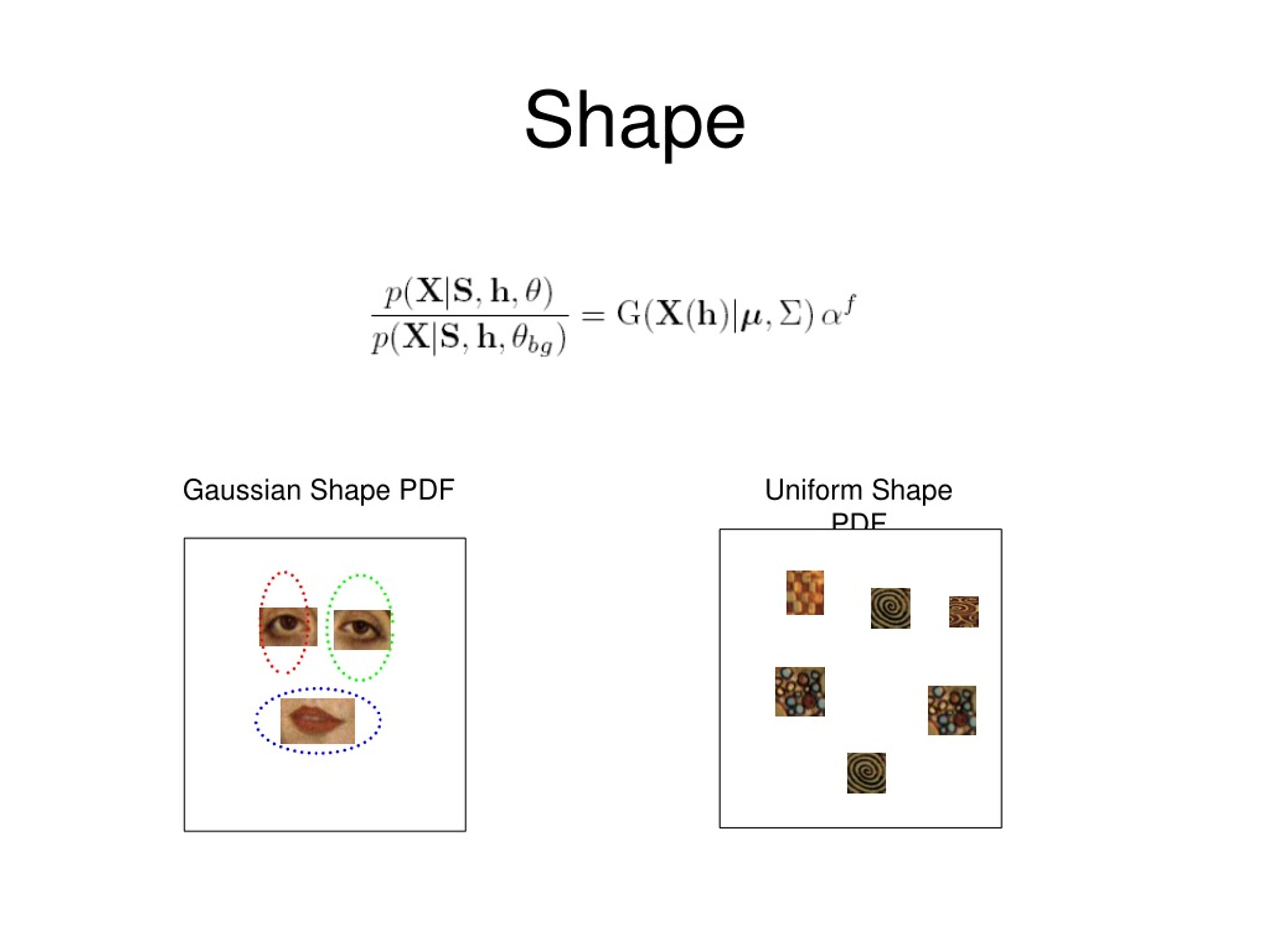

  9. Shape Gaussian Shape PDF Uniform Shape PDF

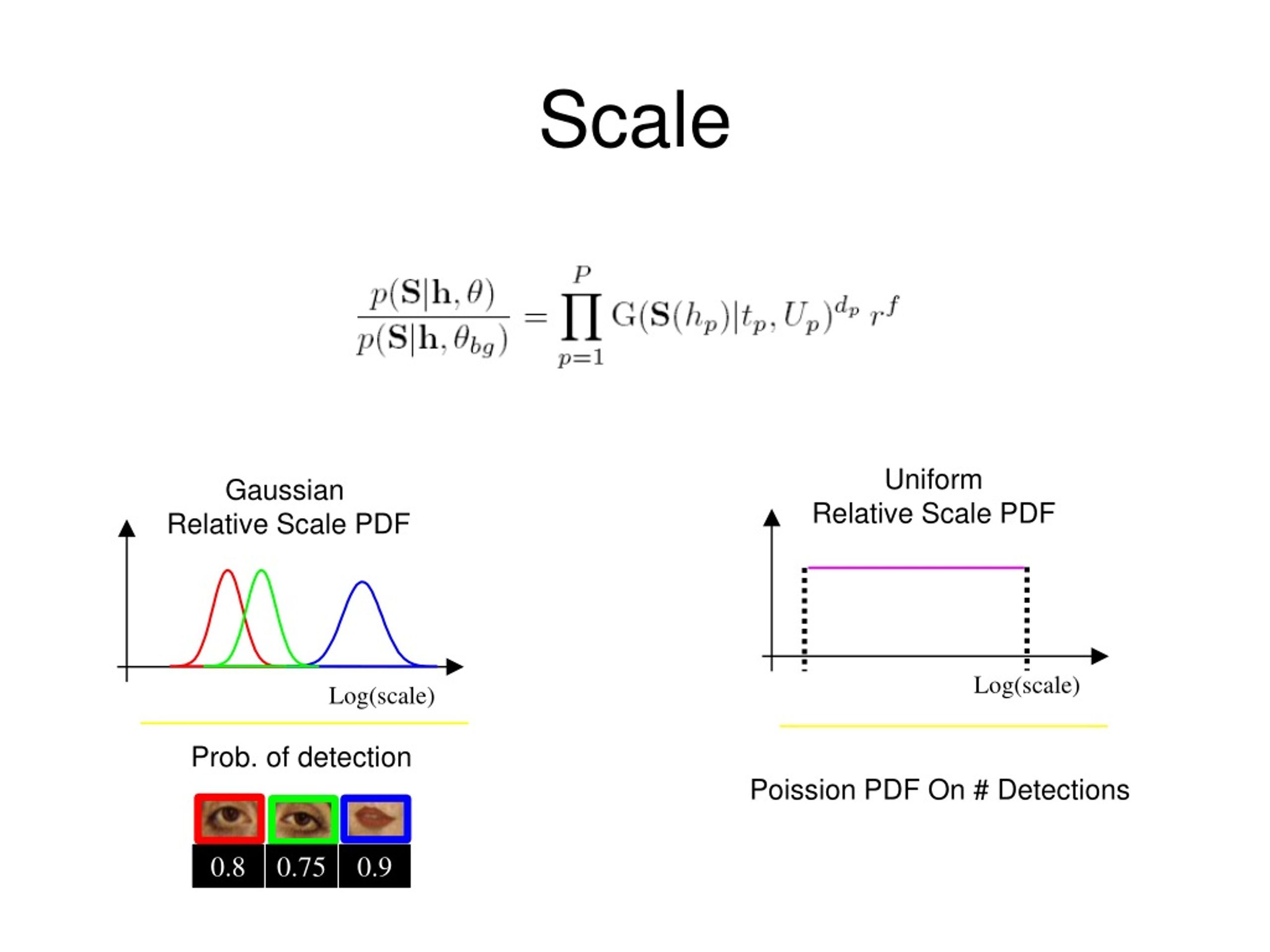

  10. 0.8 0.75 0.9 Scale Uniform Relative Scale PDF Gaussian Relative Scale PDF Log(scale) Log(scale) Prob. of detection Poission PDF On # Detections

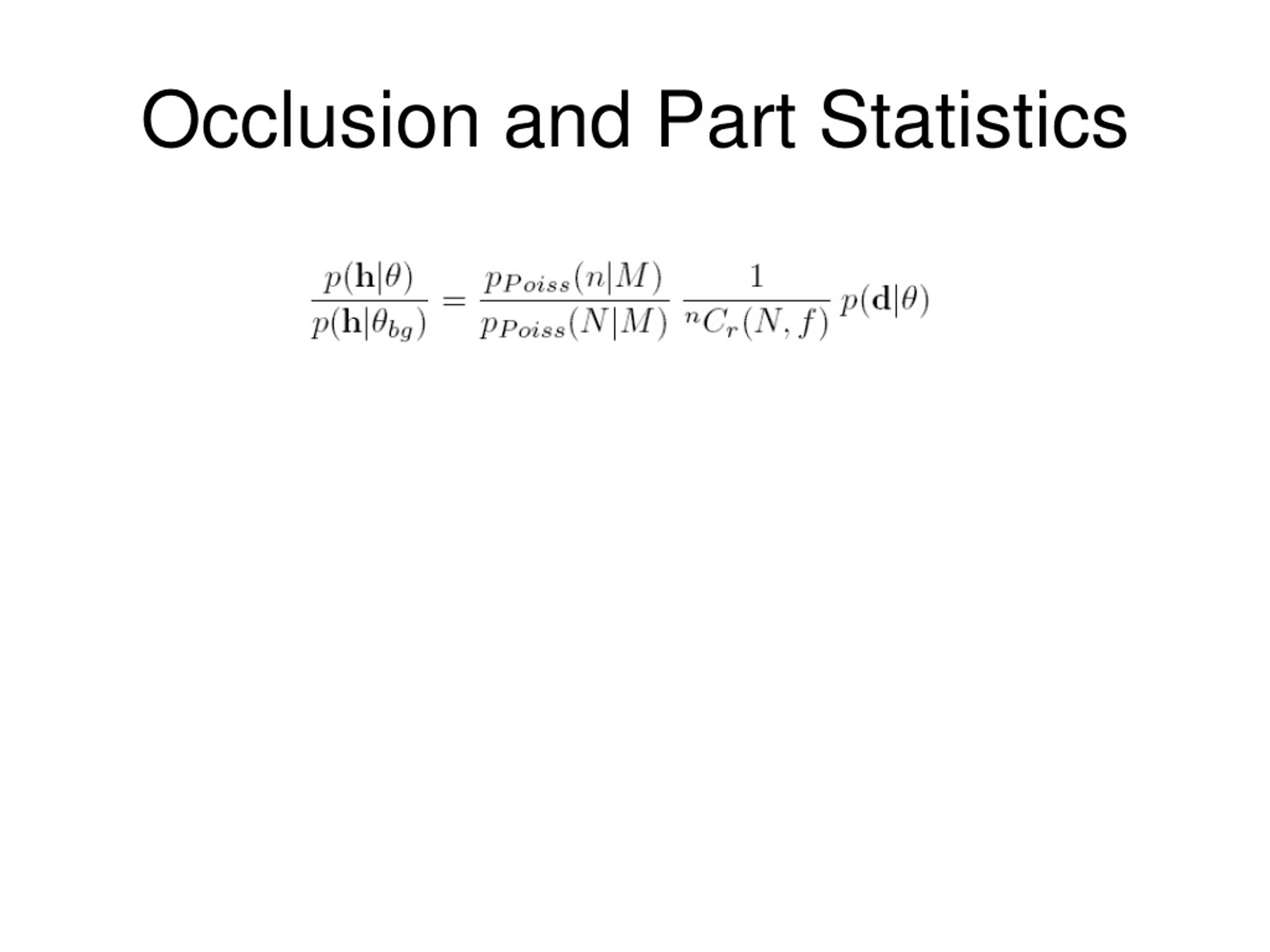

  11. Occlusion and Part Statistics

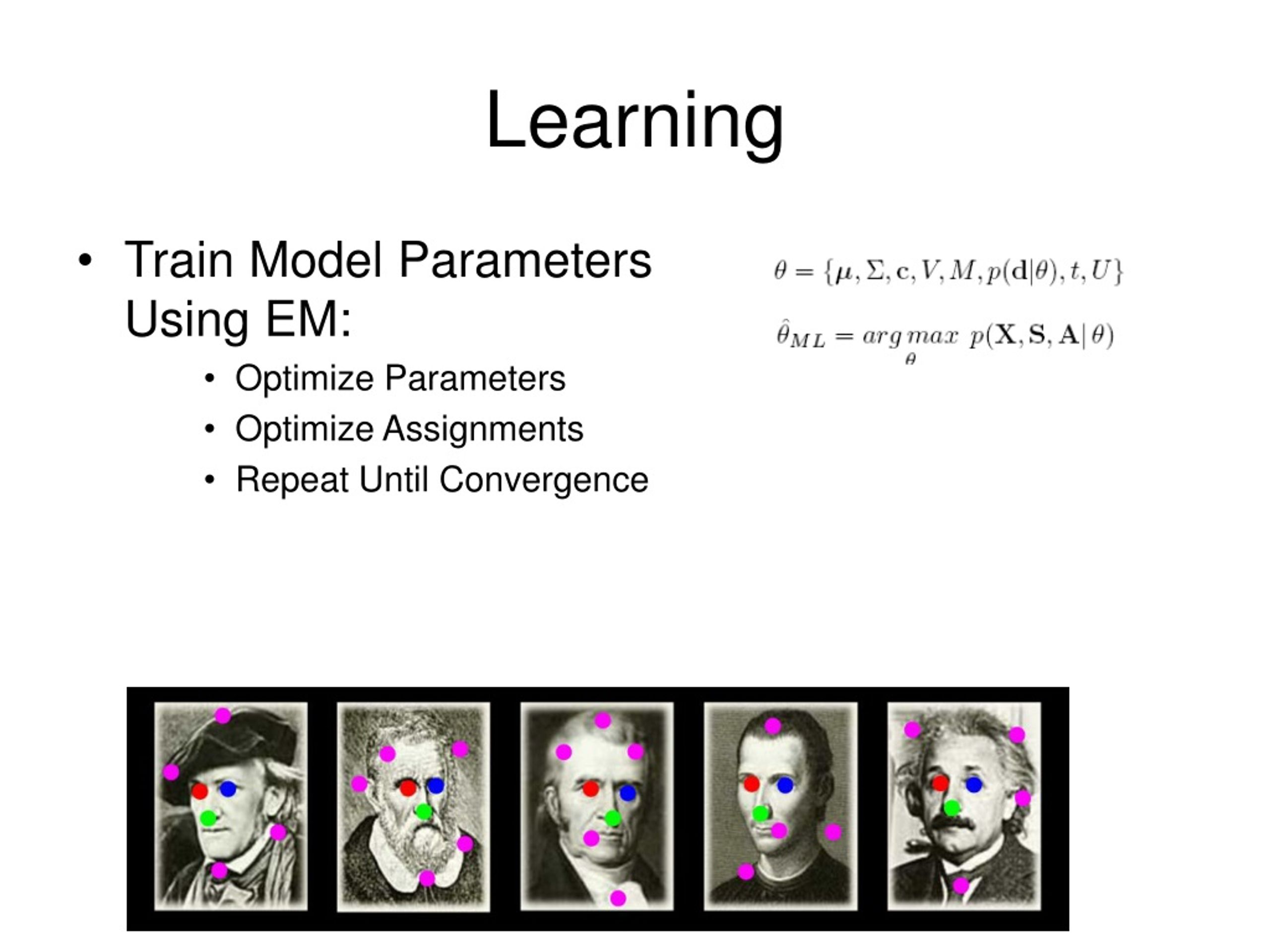

  12. Learning • Train Model Parameters Using EM: • Optimize Parameters • Optimize Assignments • Repeat Until Convergence

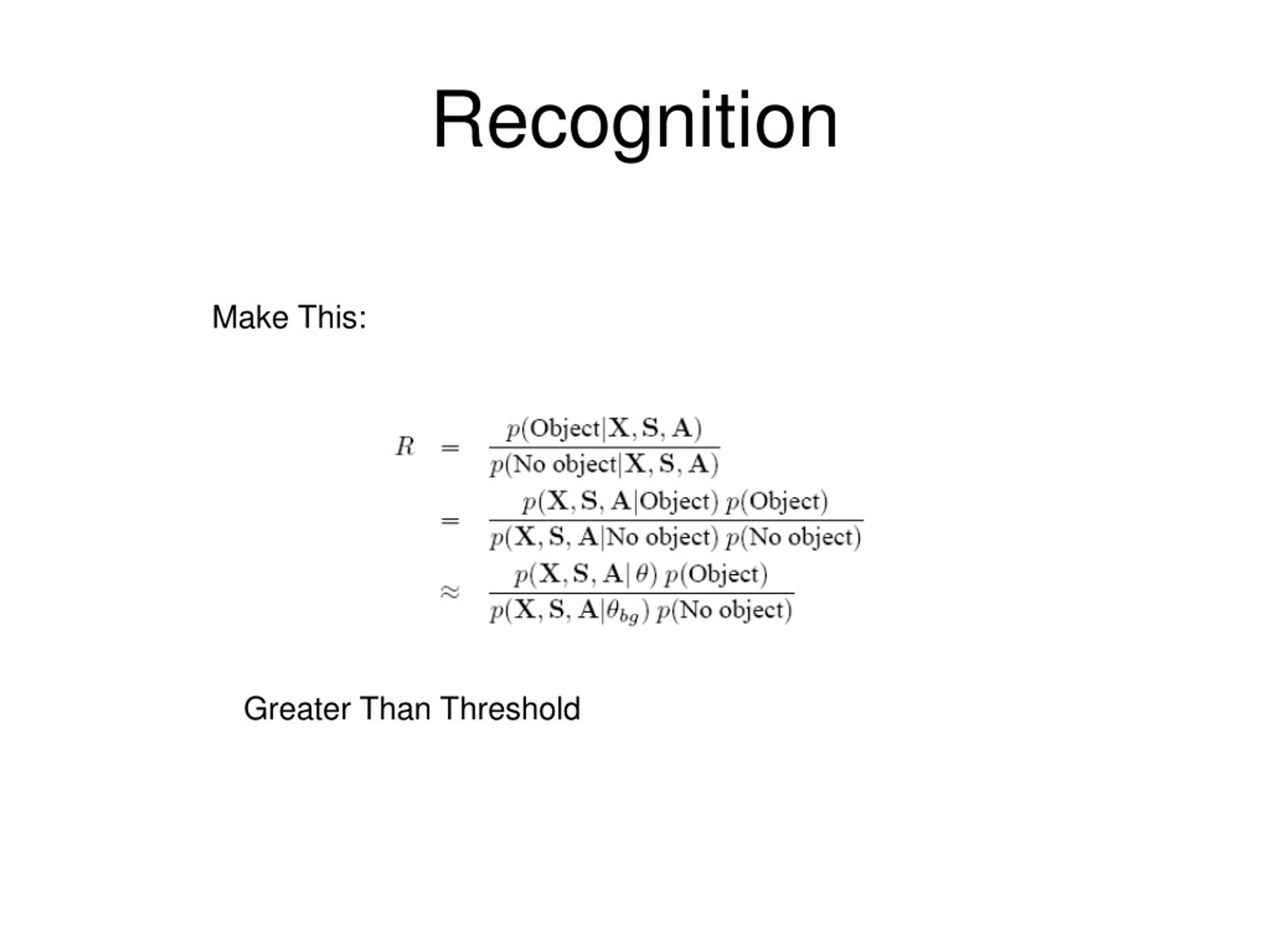

  13. Recognition Make This: Greater Than Threshold

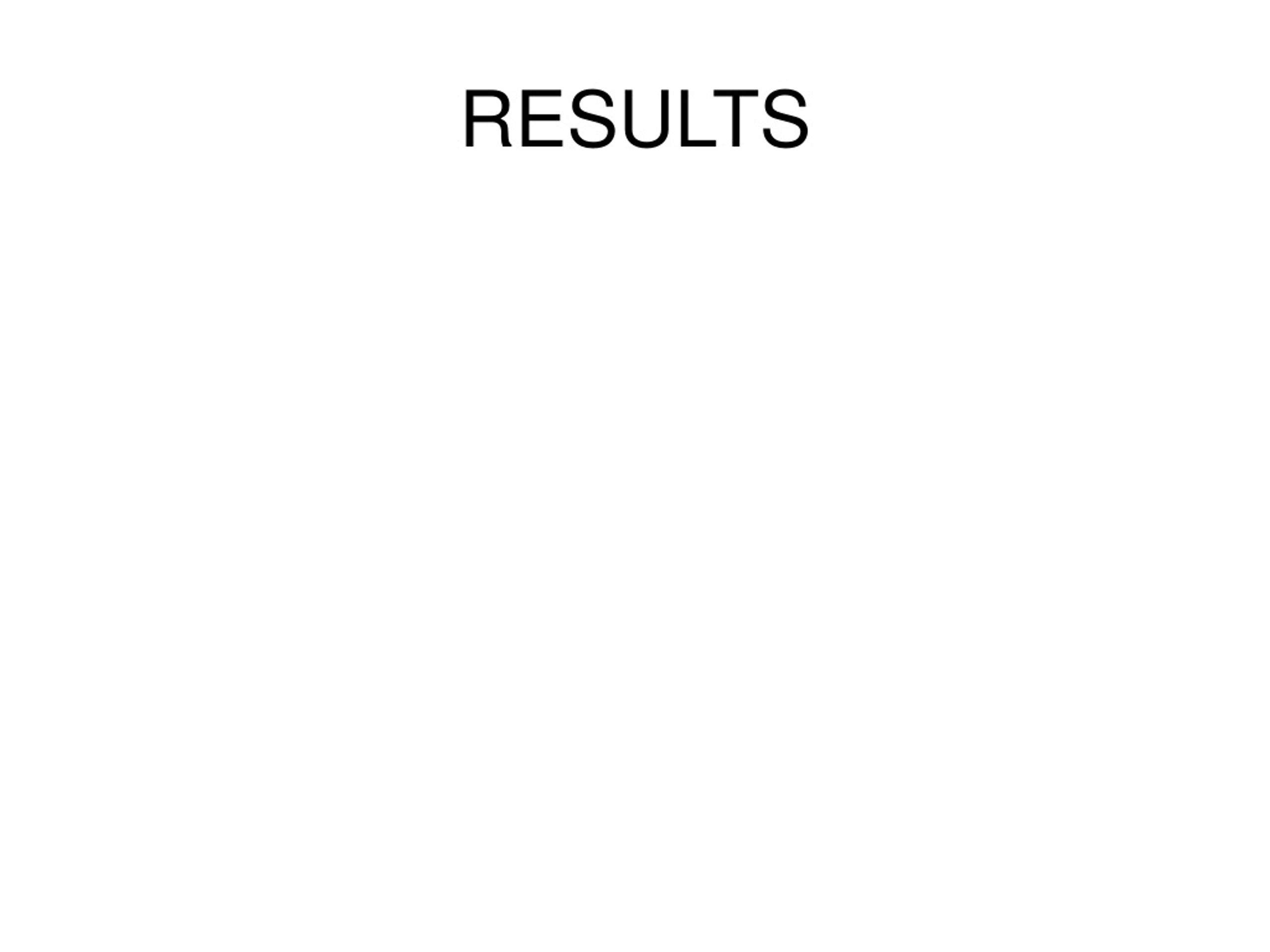

  14. RESULTS

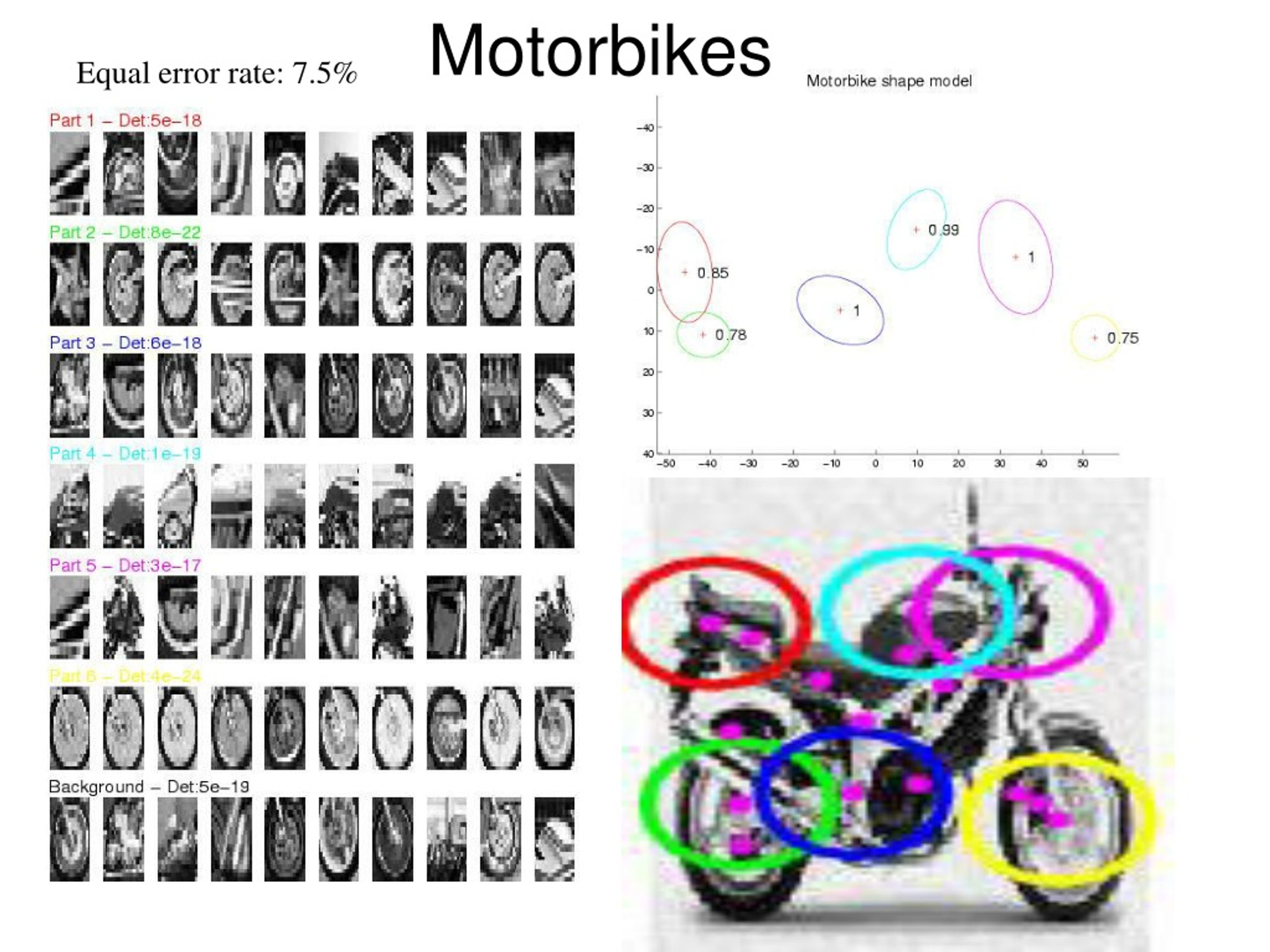

  15. Motorbikes Equal error rate: 7.5%

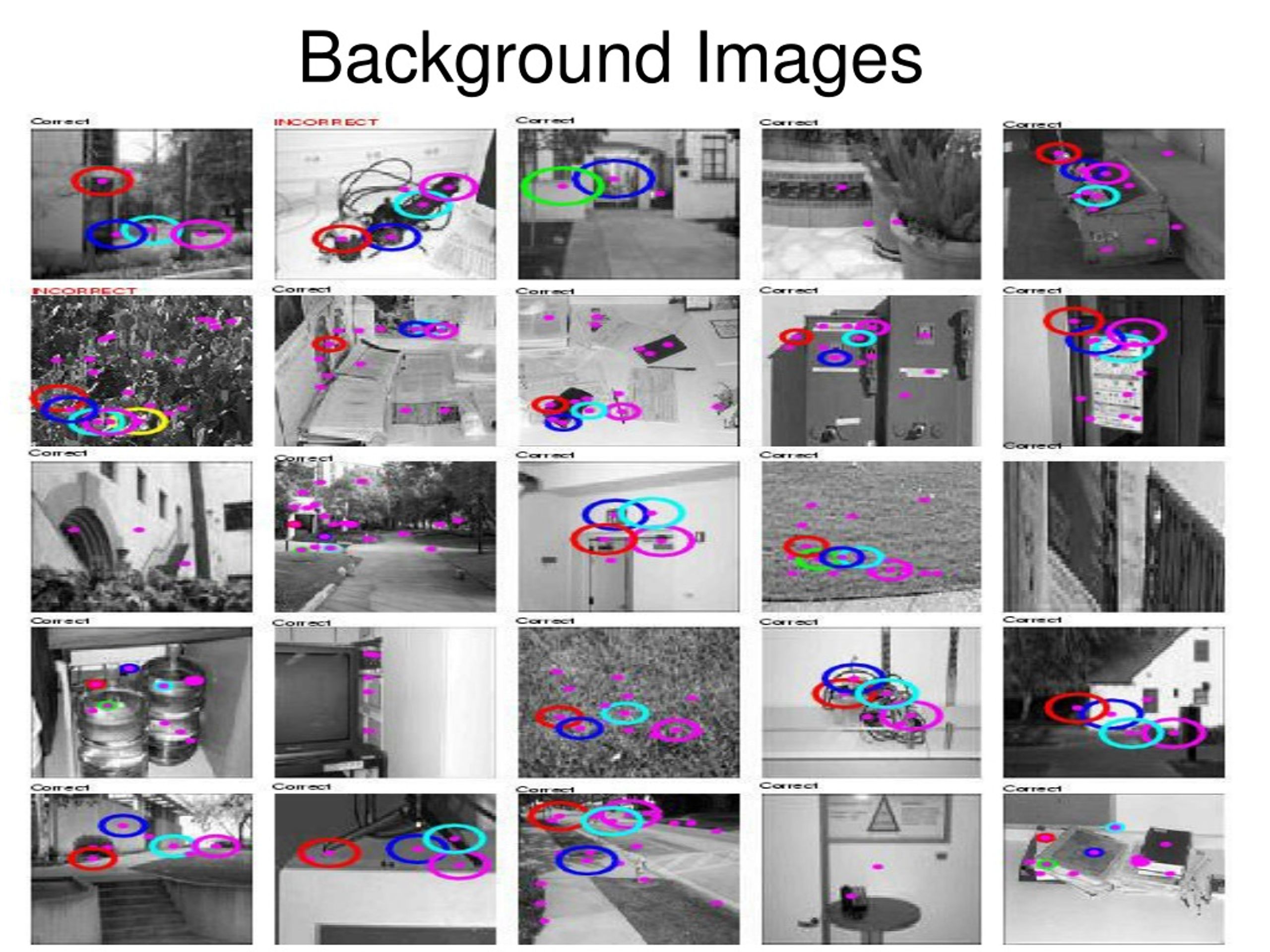

  16. Background Images

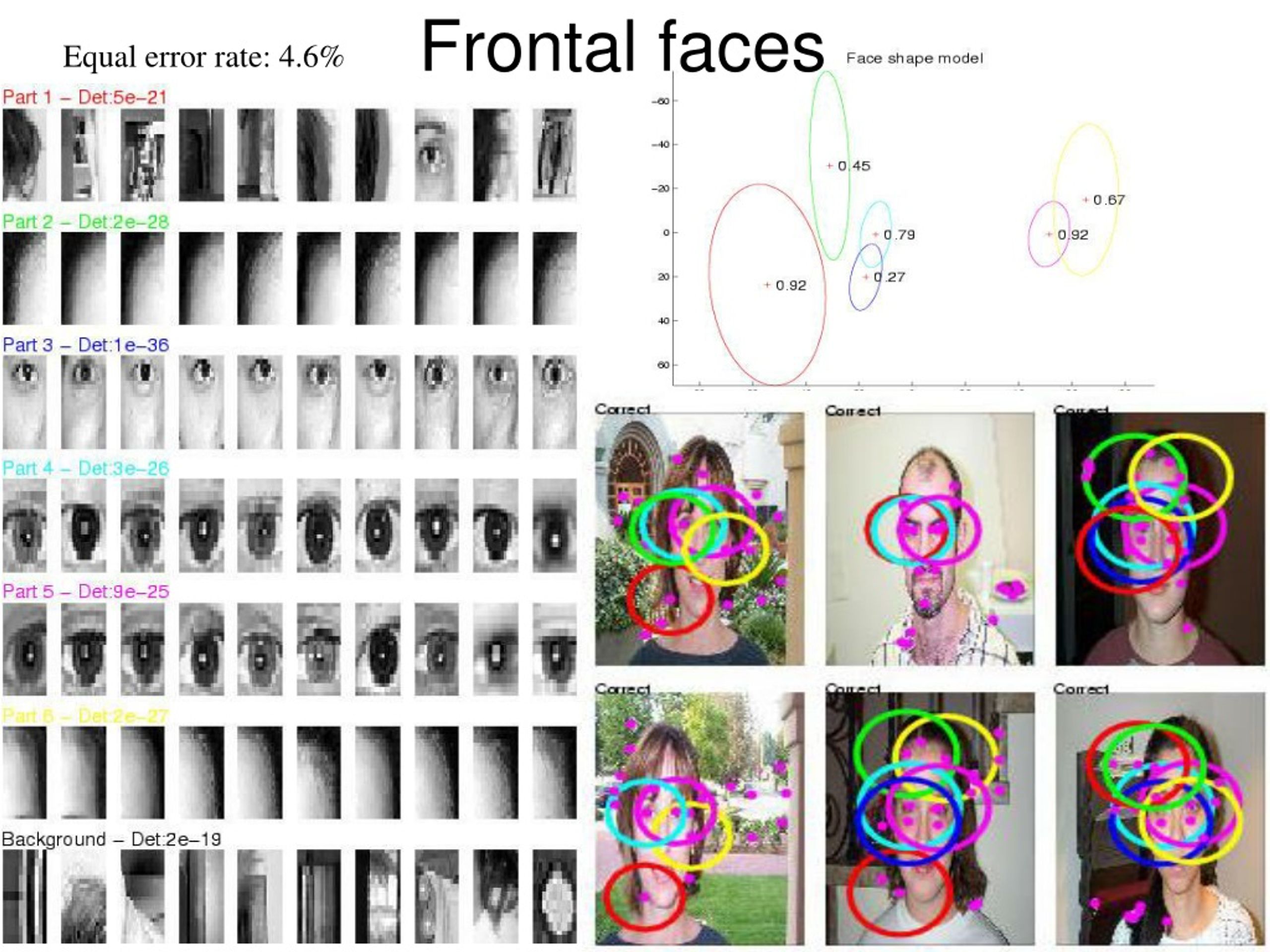

  17. Frontal faces Equal error rate: 4.6%

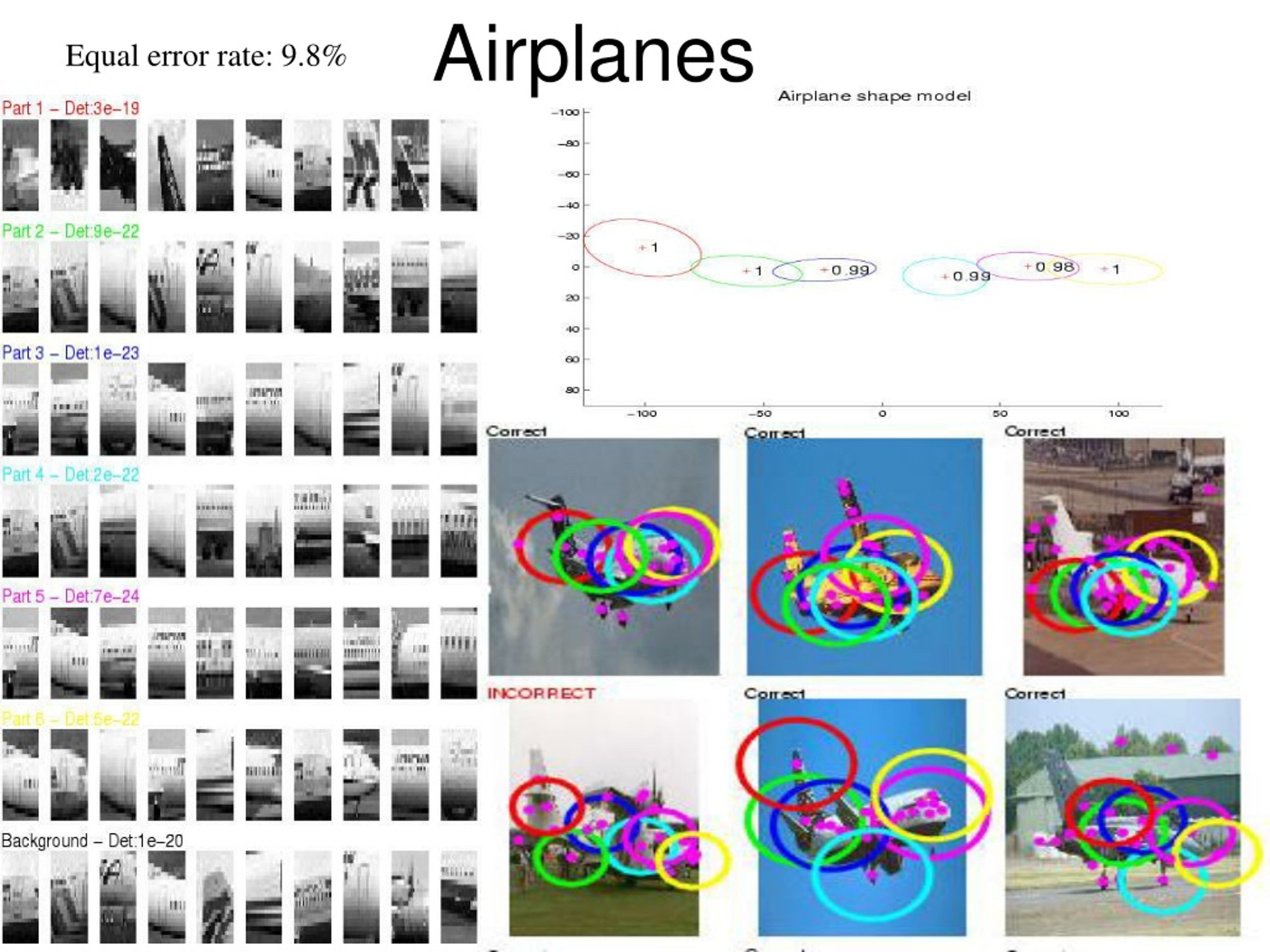

  18. Equal error rate: 9.8% Airplanes

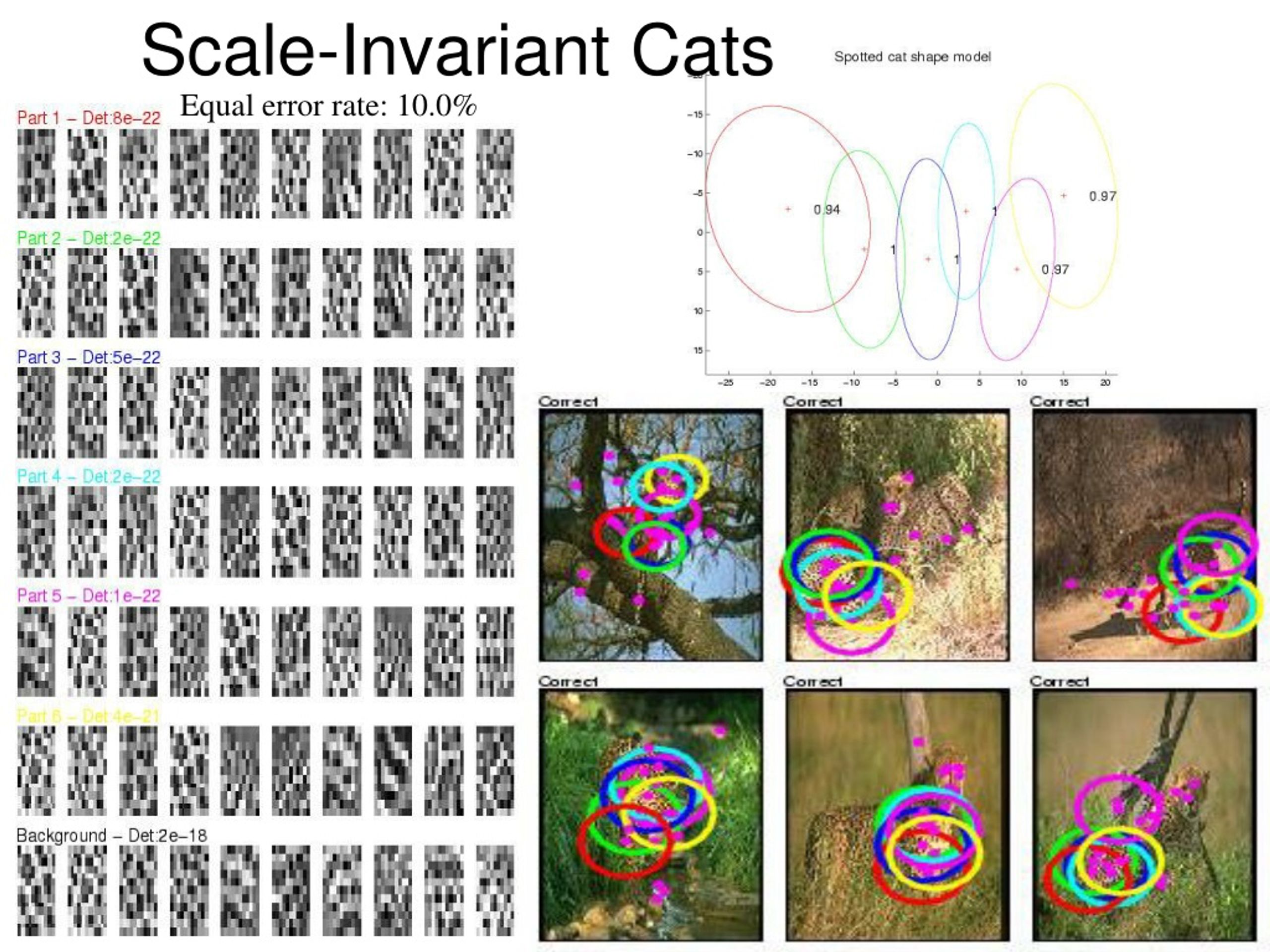

  19. Scale-Invariant Cats Equal error rate: 10.0%

  20. Scale-Invariant cars Equal error rate: 9.7%

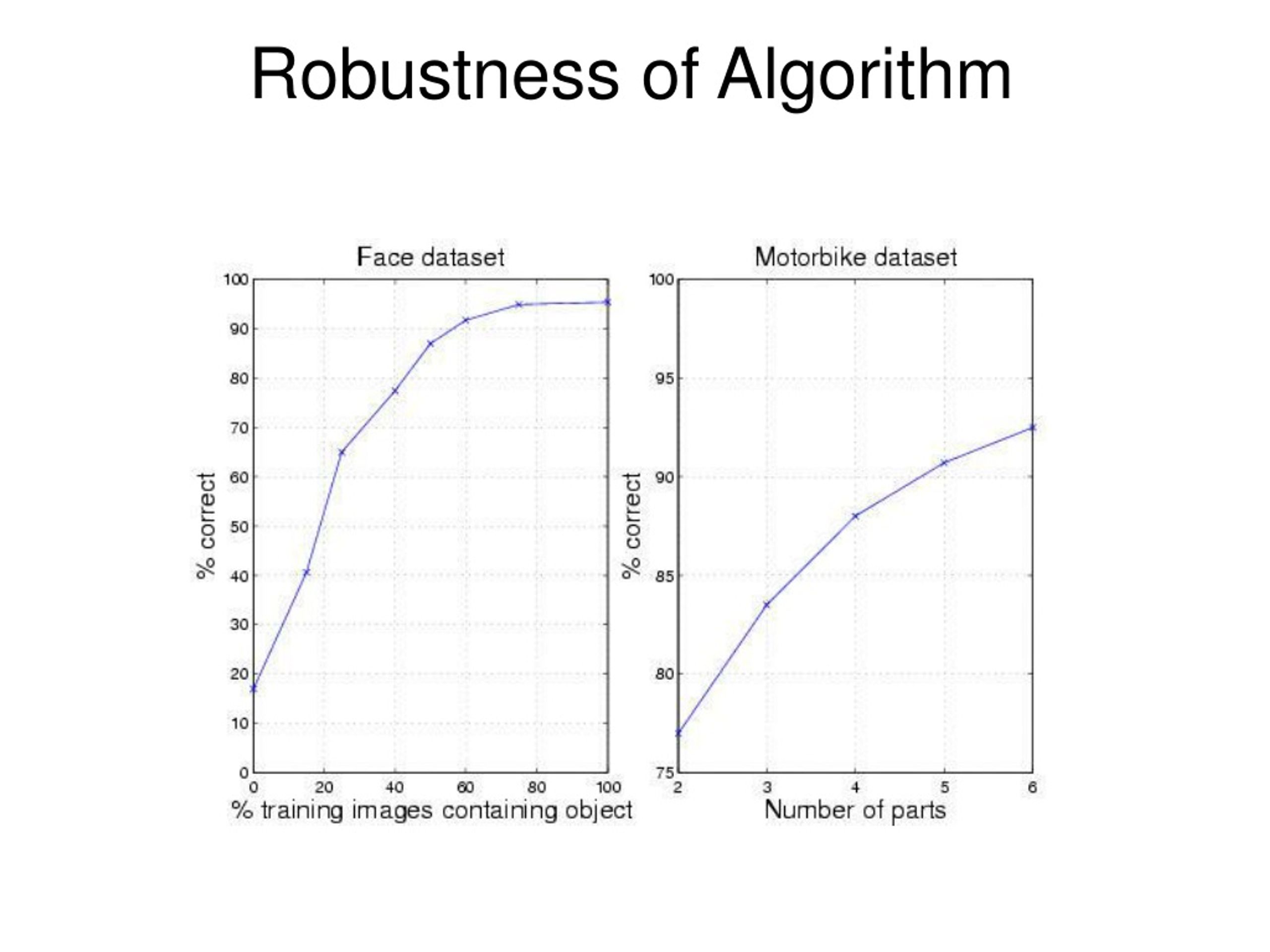

  21. Robustness of Algorithm

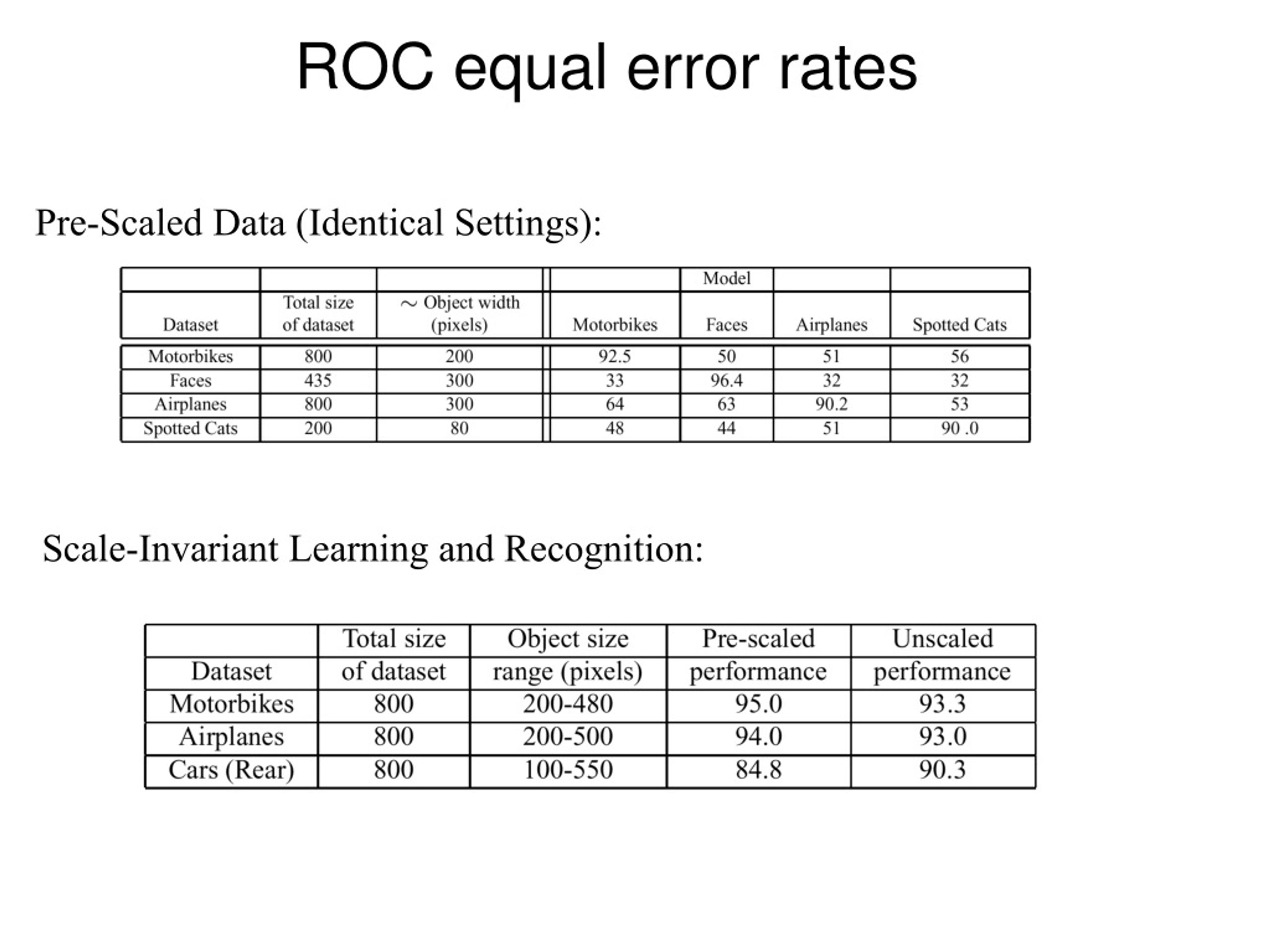

  22. ROC equal error rates Pre-Scaled Data (Identical Settings): Scale-Invariant Learning and Recognition:

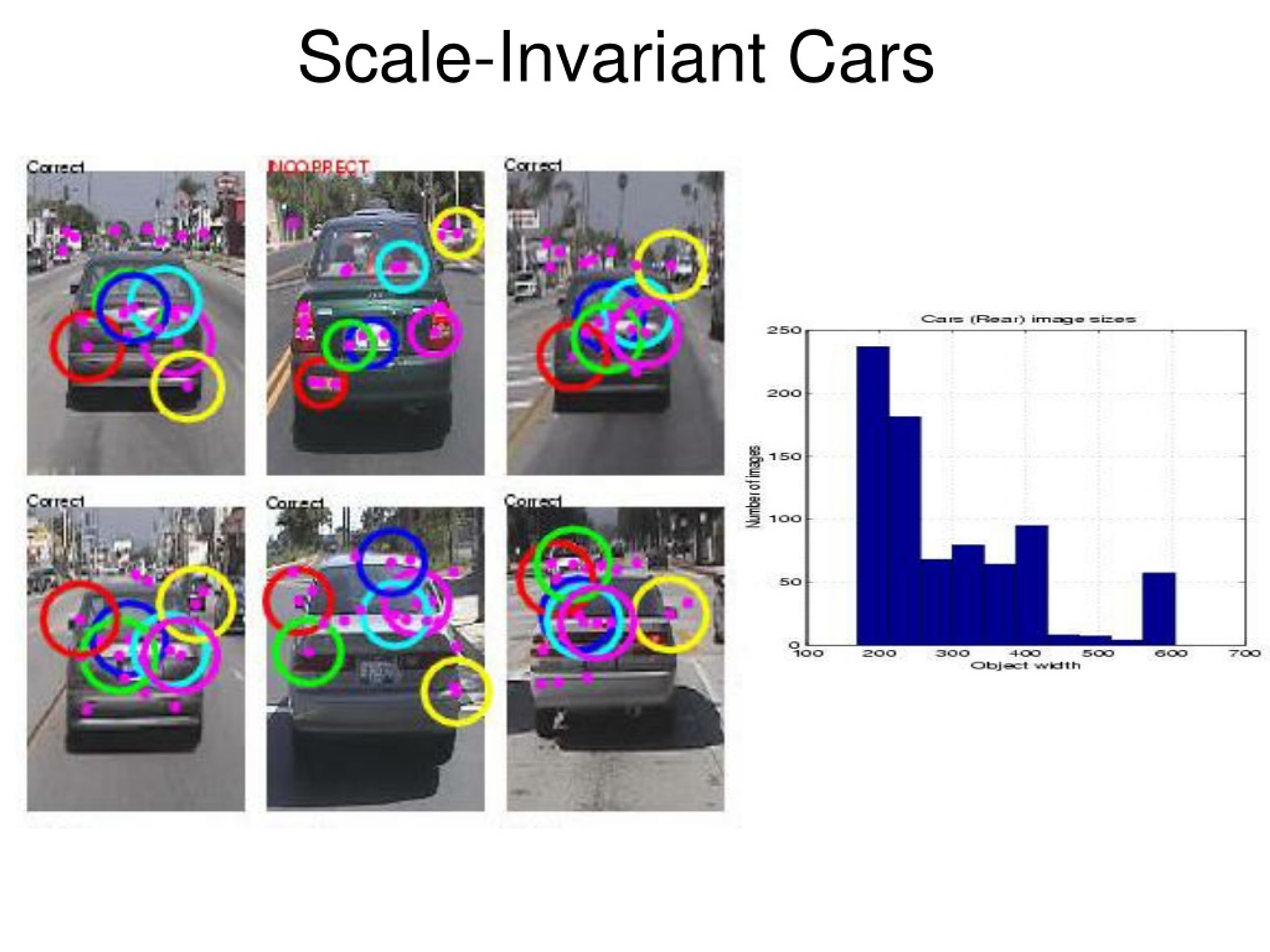

  23. Scale-Invariant Cars

  24. The End
