Simple Linear Regression On Excel. 1. Construct Scatterplot to see if data looks linear. Click Chart Wizard. Select Scatter and this chart sub-type. Highlight only cells that contain the x and y values. Enter a chart title Label x and y axes. Store on a new worksheet
E N D
1. Construct Scatterplot to see if data looks linear. Click Chart Wizard.
Select Scatter and this chart sub-type

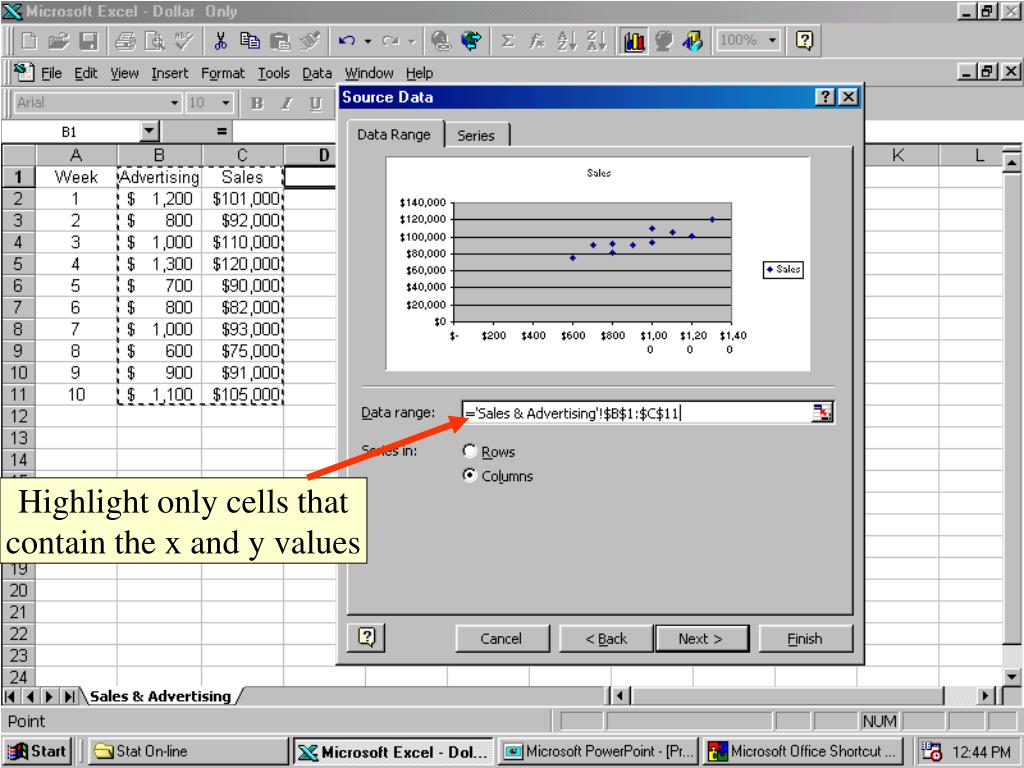

Highlight only cells that contain the x and y values
Enter a chart title Label x and y axes
Store on a new worksheet Name the worksheet
1. Click on grey background -- Delete 2. Click on any horizontal line -- Delete 3. Click on legend -- Delete
Right mouse click on any data point. Select “Add Trendline”. Select Linear from the trendline options.
Looks linear. Return to Original Worksheet.

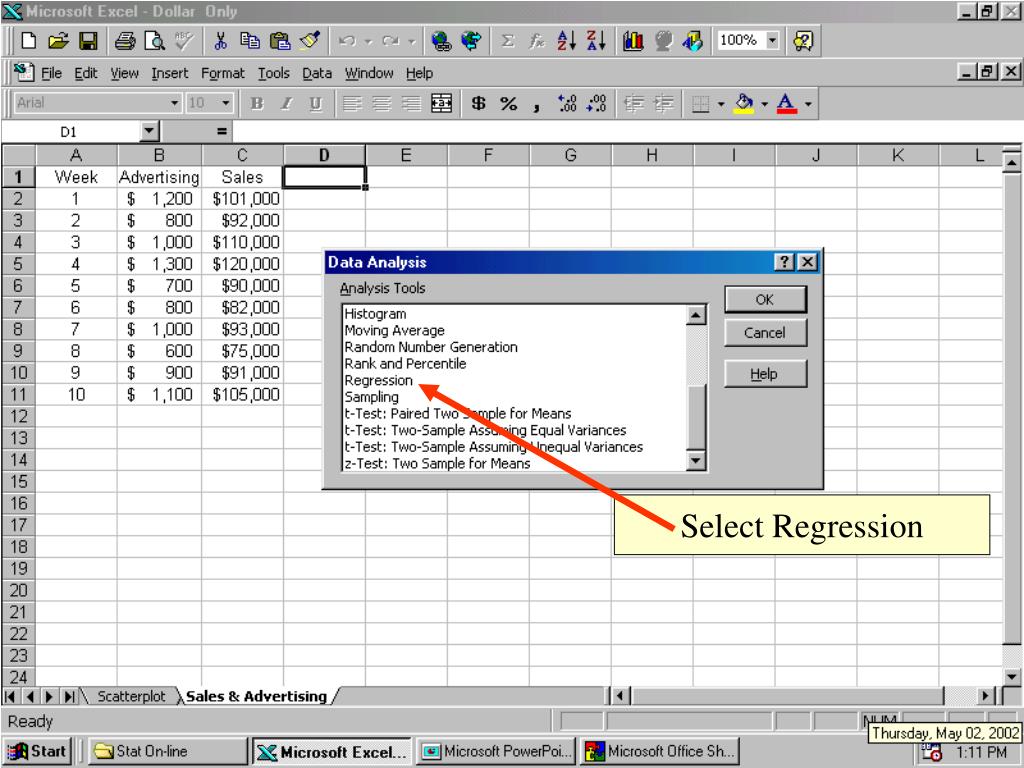

Go to Tools Menu Select Data Analysis
1. Highlight cells of y-variable 2. Highlight cells of x-variable 3. Check Labels (if first row has labels) 4. Check Confidence Level -- for other than 95% intervals (and change %) 5. Click New Worksheet Ply and give name
r r2 adj r2 s n SSR SSE SSTOTAL 95% Confidence interval for 1 99% Confidence interval for 1 Low p-value Linear model OK
